  1. Corporate Overview

  2. TACTICAL EDGE COMMUNICATIONS Solutions for Today’s Ever-Changing Warfare Environment

  3. Support and Enhance C2 Communications at Every Level The Smartronix Network Radio Gateway (NRG) combines multiple communication functions into a single appliance allowing users in the field: Maximum Communications Flexibility & Scalability Improved Coordination Between Networks Maintain Lower Operational Costs Seamless Integration into Existing Systems Fault-Tolerant Survivability of Critical Communications

  4. Rack Mount| Network Radio Gateway 1U Rack Mount Appliance – 4 to 12 Ports of Audio and Data

  5. RM-12 • Single Standalone Network Appliance • VoIP & RoIP Conferencing • Converging Voice • MIL-STD 188-184 & HPW Data • Remote Radio Configuration Control

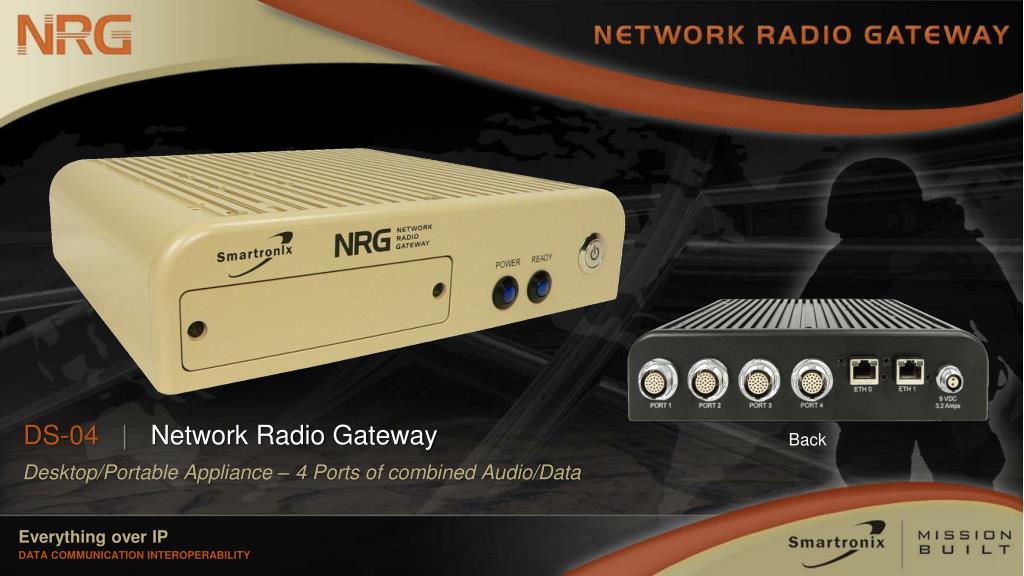

  6. DS-04| Network Radio Gateway Back Desktop/Portable Appliance – 4 Ports of combined Audio/Data

  7. DS-04 • Single Standalone Network Appliance • VoIP & RoIP Conferencing • Converging Voice • MIL-STD 188-184 & HPW Data • Remote Radio Configuration Control

  8. System Benefits • Radios can become networked resources • Multi-system Failover for Redundancy • Allows cascade configuration for more radios • Allows cross communication between audio sources • Auto-recovery capability • Easy to configure and maintain Can be configured in portable transit case with other rack mount equipment.

  9. Interoperability • Connecting Hub for all Protocols • Enables Seamless Mission Communications Across Multiple Systems

  10. Conferencing SoftwareVersatile User Interface SW screen shot Bridge Voice from Phones, Networked Clients, andRadiosinto a Single AudioChannel or Conference

  11. Operation / Scenario Scalable Communications Bridge – IP Wireless, Wired or Data Connect

  12. Multiple Domain Conferencing Ability to Setup and Manage Conferencing According to Specific Communication Requirements of Select Commands or Groups

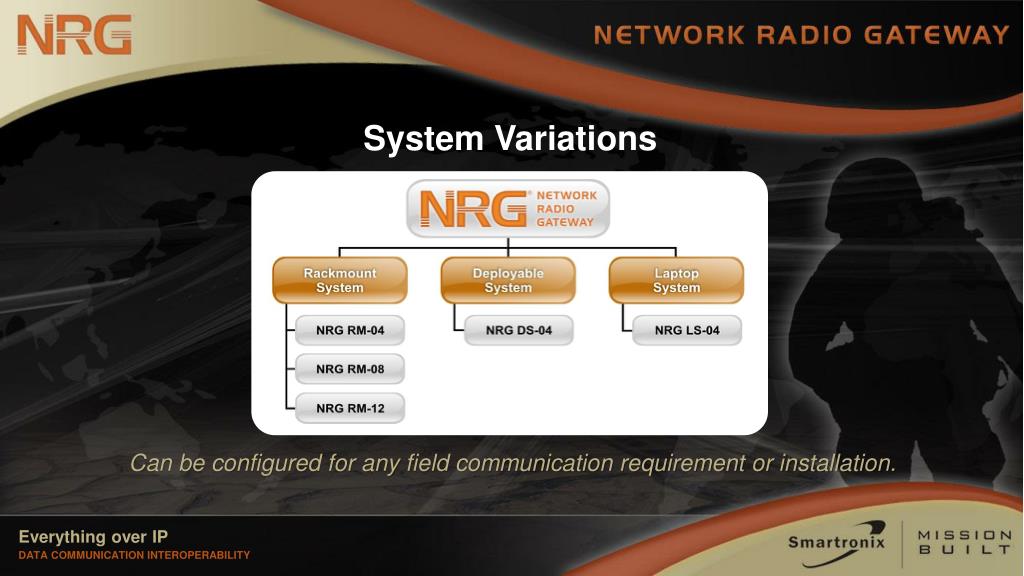

  13. System Variations Can be configured for any field communication requirement or installation.

  14. Radios Supported

  15. Smartronix RDATMCables Radio Data Adapter Lightweight, Low-Power, Intelligent Cables for Use with NRG & Tactical Radios

  16. C4I Capabilities & Solutions - Concept through Deployment Supporting the SOF Community Telecommunication and RelatedCommunications-Electronic Systems

  17. More than 700 systems (known as VICOM) have been deployed with operational units and facilities worldwide. • Used in Support of Critical Missions • and Disaster Relief: • Operation Iraqi Freedom • Operation Enduring Freedom • Hurricane Katrina Relief • Relief Efforts in Haiti

  18. Government / DoD Sales sales@smartronix.com 301-373-6033 www.smartronix.com
