1. Announcements 10/22/10 • Prayer • Exam starts next week on Thursday • Exam review session, results of voting: • Wed Oct 27, 5:30 – 7 pm. Room: C295 (next door) • Unknown HW 13 – missing CID/name (turned in ~Oct 11) • What are some applications of Fourier transforms? • Electronics: circuit response to non-sinusoidal signals (last lecture) • Data compression (as mentioned in PpP) • Acoustics: guitar string vibrations (PpP, today’s lecture) • Acoustics: sound wave propagation through dispersive medium • Optics: spreading out of pulsed laser in dispersive medium • Optics: frequency components of pulsed laser can excite electrons into otherwise forbidden energy levels • Quantum: “particle in a box” situation, aka “infinite square well”--wavefunction of an electron

2. Q&A with Dean Sommerfeldt • Info about the college, upcoming events, changes, concerns • Refreshments and prizes!

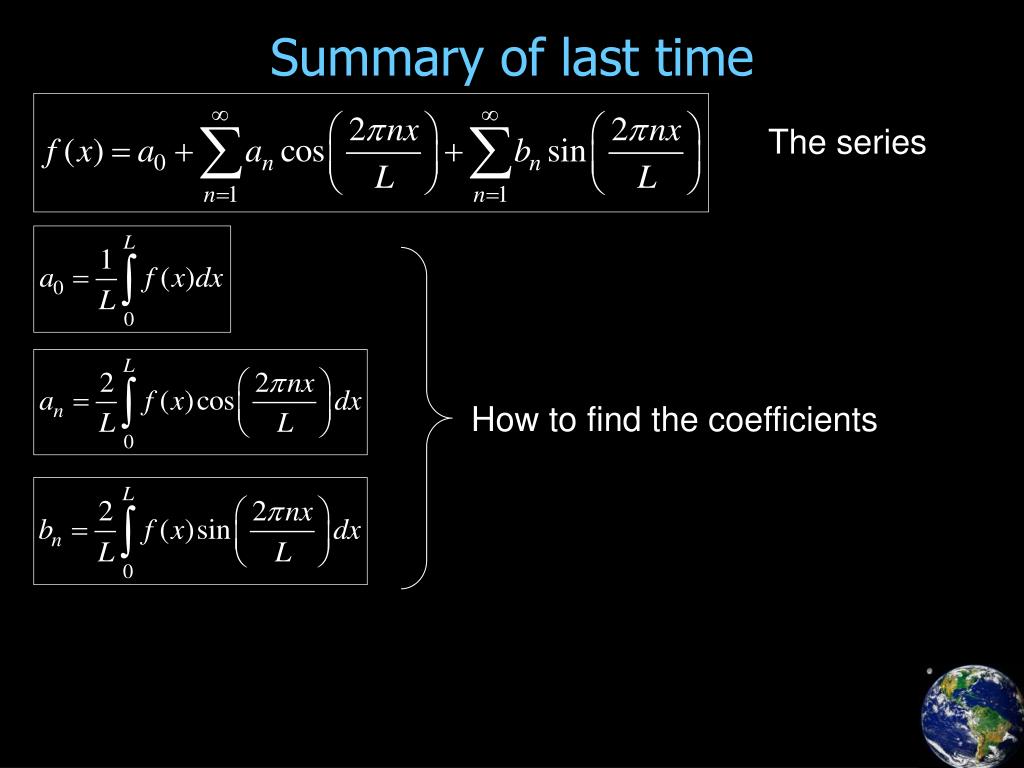

3. Summary of last time The series How to find the coefficients

4. Fourier Transform (review) Do the transform (or have a computer do it) Answer from computer: “There are several components at different values of k; all are multiples of k=0.01. k = 0.01: amplitude = 0 k = 0.02: amplitude = 0 … … k = 0.90: amplitude = 1 k = 0.91: amplitude = 1 k = 0.92: amplitude = 1 …” How does computer know all components will be multiples of k=0.01?

5. Periodic? • “Any function periodic on a distance L can be written as a sum of sines and cosines like this:” • What about nonperiodic functions? • “Fourier series” vs. “Fourier transform” • Special case: functions with finite domain

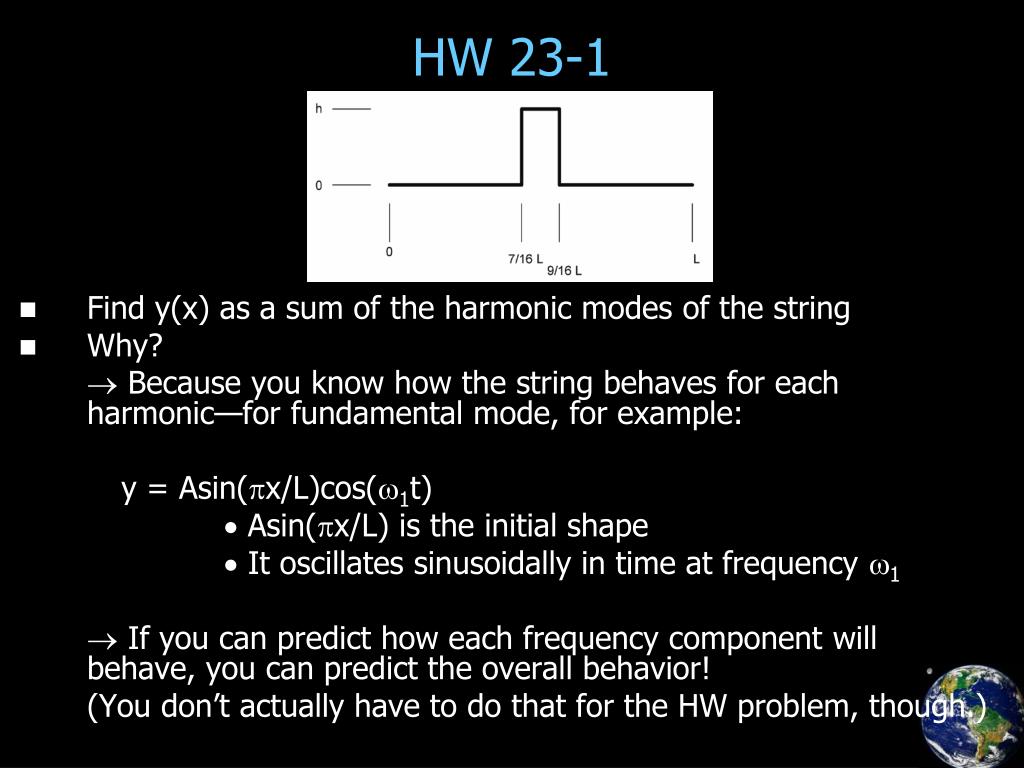

6. HW 23-1 • Find y(x) as a sum of the harmonic modes of the string • Why?  Because you know how the string behaves for each harmonic—for fundamental mode, for example: y = Asin(px/L)cos(w1t)  Asin(px/L) is the initial shape  It oscillates sinusoidally in time at frequency w1  If you can predict how each frequency component will behave, you can predict the overall behavior! (You don’t actually have to do that for the HW problem, though.)

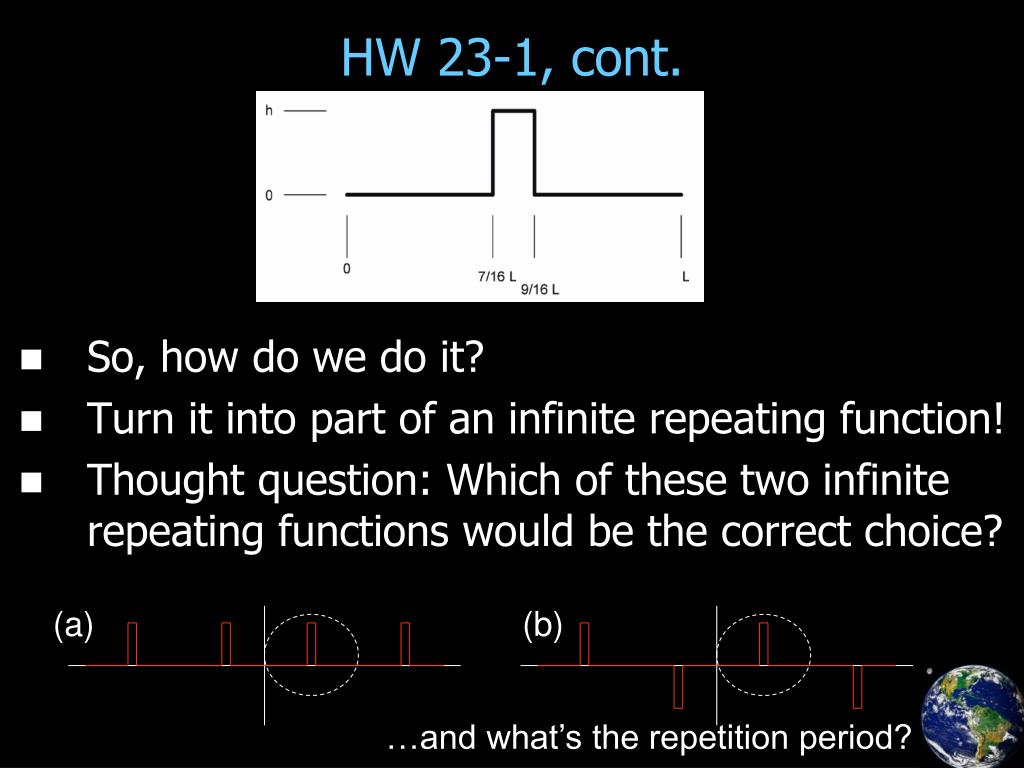

7. (a) (b) HW 23-1, cont. • So, how do we do it? • Turn it into part of an infinite repeating function! • Thought question: Which of these two infinite repeating functions would be the correct choice? …and what’s the repetition period?

8. Reading Quiz • Section 6.6 was about the motion of a guitar string. What was the string’s initial shape? • Rectified sine wave • Sawtooth wave • Sine wave • Square wave • Triangle wave

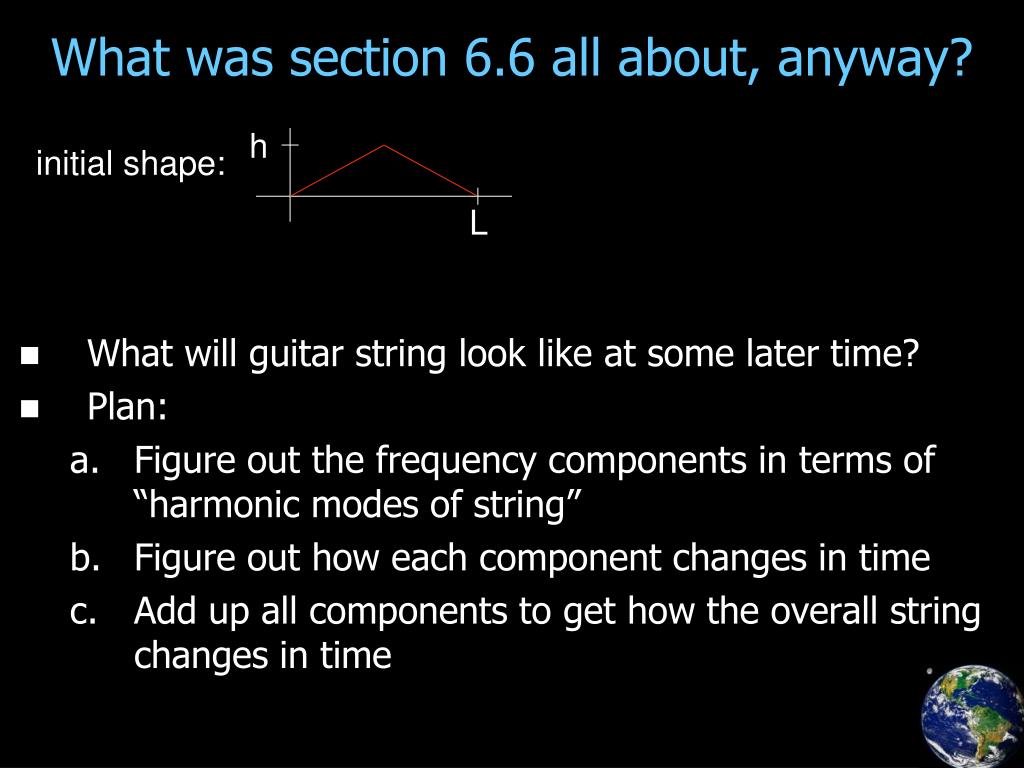

9. h L What was section 6.6 all about, anyway? • What will guitar string look like at some later time? • Plan: • Figure out the frequency components in terms of “harmonic modes of string” • Figure out how each component changes in time • Add up all components to get how the overall string changes in time initial shape:

10. h L Step 1: figure out the frequency components h • a0 = ? • an = ? • bn = ? 2 3 L 1 integrate from –L to L: three regions

11. h L Step 1: figure out the frequency components h L

12. h L Step 2: figure out how each component changes • Fundamental: y = Asin(px/L)cos(w1t) • 3rd harmonic: y = Asin(3px/L)cos(w3t) • 5th harmonic: y = Asin(5px/L)cos(w5t) • w1 = ? (assume velocity and L are known) = 2pf1 = 2p(v/l1) = 2pv/(2L) = pv/L • wn = ?

13. h L Step 3: put together • Each harmonic has y(x,t) = Asin(npx/L)cos(nw1t) = Asin(npx/L)cos(npvt/L) What does this look like?  Mathematica! http://www.physics.byu.edu/faculty/colton/courses/phy123-fall10/trianglestring.gif

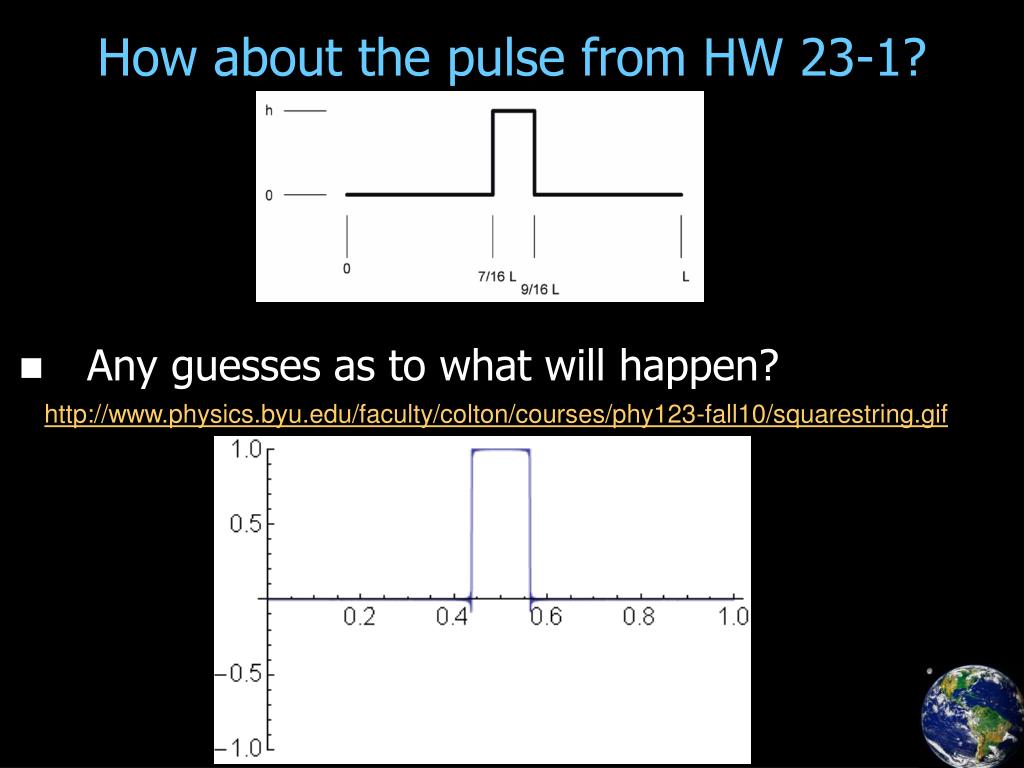

14. How about the pulse from HW 23-1? • Any guesses as to what will happen? http://www.physics.byu.edu/faculty/colton/courses/phy123-fall10/squarestring.gif
