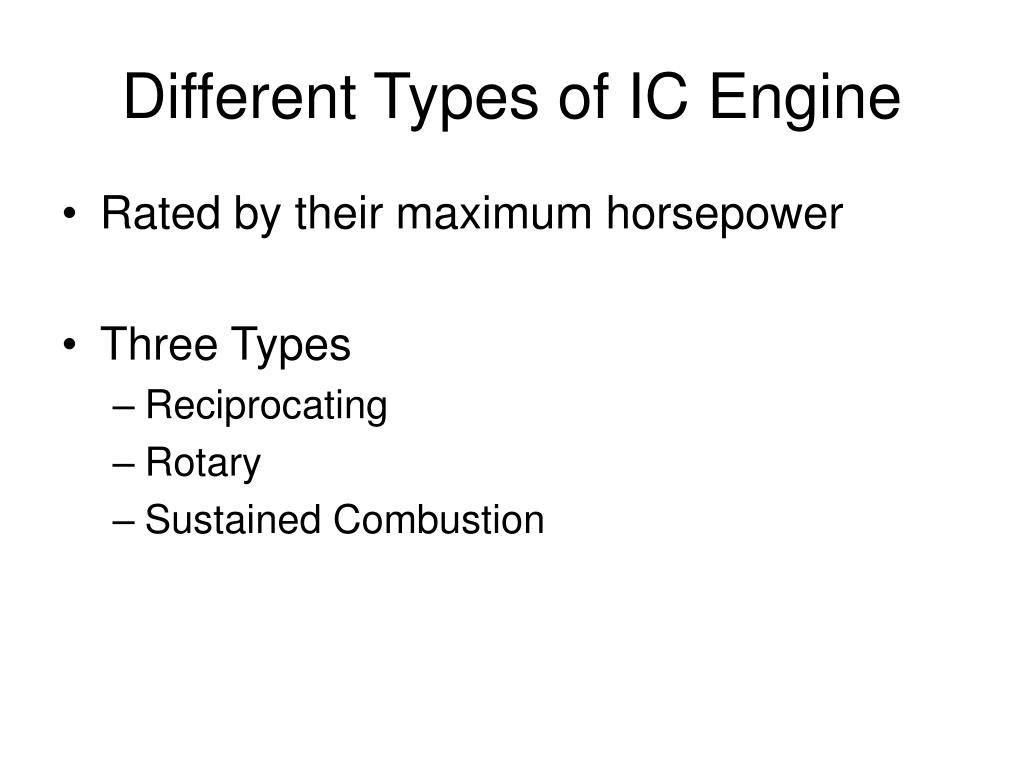

  1. Different Types of IC Engine • Rated by their maximum horsepower • Three Types • Reciprocating • Rotary • Sustained Combustion

  2. Reciprocating • Four Stroke • Most Widely Used • the four process in two cycles of piston motion. • Two Stroke • All 4 processes take place in a single stroke • Five and Six Stroke • 5 stroke adds refrigeration cycle (improved efficiency) • 6 stroke two types

  3. Rotary Engine (Wankel Engine) • Do not have pistons, • Contains an oval housing and a triangular rotor. • The engine phases occur in the spaces between the rotor surfaces and the housing. • Directly generates rotary motion of the rotor • Being Used in Automobiles, Racing Cars, and Go Karts

  4. Rotary Engine Working Model

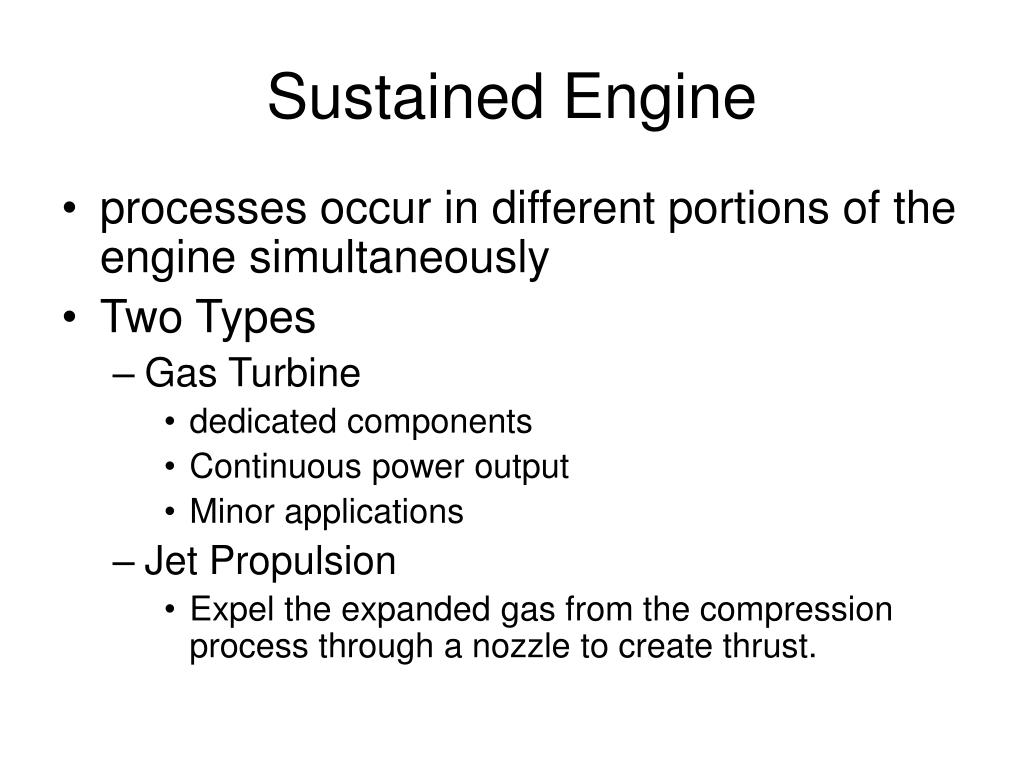

  5. Sustained Engine • processes occur in different portions of the engine simultaneously • Two Types • Gas Turbine • dedicated components • Continuous power output • Minor applications • Jet Propulsion • Expel the expanded gas from the compression process through a nozzle to create thrust.

  6. Reciprocating • Arrangement of Cylinders • Inline • Flat • V shape • W Engine • Working Principle • Speed of Engine • Head • Covers Cylinders • Threaded to fit in the Spark Plug

  7. Reciprocating Engine Parts • Ports • Intake Port • Exhaust Ports • Valves • Camshaft • rotates at one-half engine speed • opens the valves in correct sequence • Carburetor or Injector • Mixes air fuel mixture • Exhaust Pipe and Muffler

  8. Rotary Engine Parts • a disk that looks like a triangle • Intake and exhaust are through ports in the flat sides of the cylinder

  9. Comparison Advantage • 48% fewer parts and about a third the bulk and weight of a reciprocating engine. • Pollution control devices are easier to install • Higher rotating speed is achievable • Twice more efficient than piston ones Disadvantage • lack of torque at low speeds, leading to greater fuel consumption. • Complicated seal system • Low intake time • 50% longer stroke duration • Higher Manufacuring Costs

  10. Compression Ratio • Efficiency • Knocking

  11. 2 Stroke Engine • delivers one power stroke every two strokes instead of one every four • develops more power with the same displacement • heats up more, thus have a shorter life • lubricating oil must be mixed with the fuel causing high pollutants unless computerized

  12. Cooling System • Air Cooled, Natural or Fan • Water Cooling, • Thermostat keeps water away during heat up

  13. Lubrication • lubricated by oil from a separate oil reservoir • a gear pump delivers the oil at low pressure to the bearings • In a two-stroke engine the lubricating oil is mixed with the fuel

  14. Emission Control • US Regulation • Some Exhaust gas send back to cut down temperature and production of NOx • Lean Mixture • Catalytic Convertors • Variable Valve Timing (Thru Solenoids)
