  1. DIFFICULT AIRWAY MANAGEMENT Dr.Gayathri Ramanathan Associate Professor SRM MEDICAL COLLEGE HOSPITAL & RESEARCHCENTRE

  2. OBJECTIVES • Causes of difficult intubation • Basic airway evaluation • Management plan for Anticipated difficult airway – Plan A, Plan B , Plan C & Plan D • Gallery of tools • The Expected & Unexpected Difficult Airway

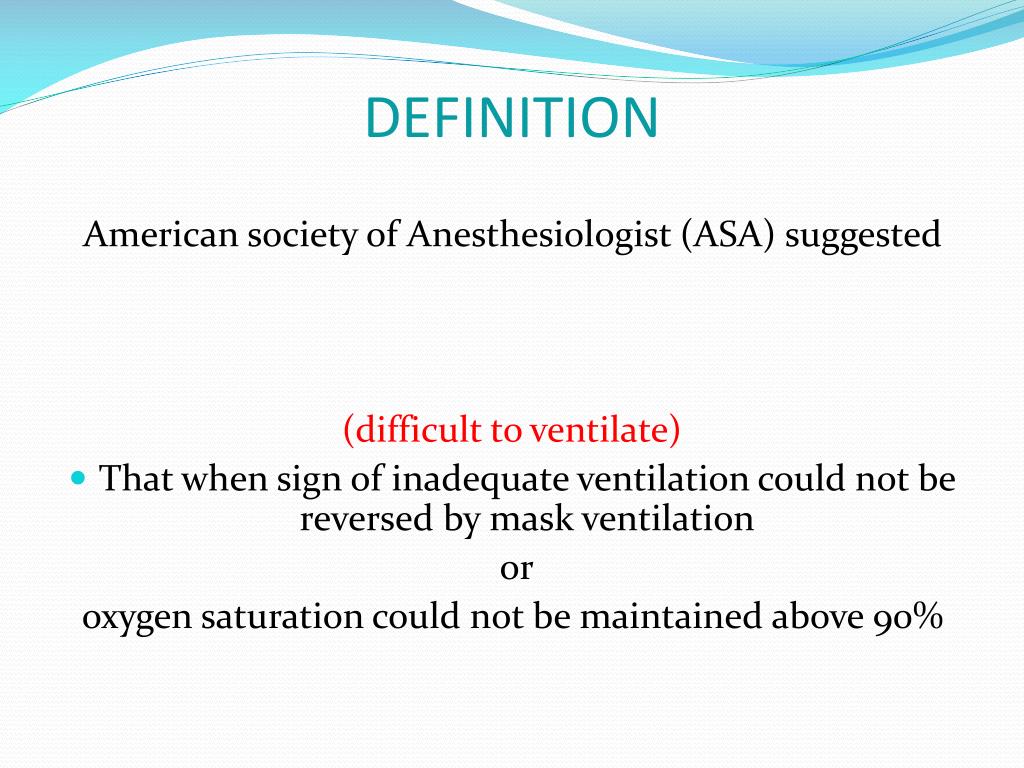

  3. DEFINITION American society of Anesthesiologist (ASA) suggested (difficult to ventilate) • That when sign of inadequate ventilation could not be reversed by mask ventilation or oxygen saturation could not be maintained above 90%

  4. DEFINITION (difficult to intubate) • If a trained Anaesthetist using conventional laryngoscope takes more than 3 attempts or more than 10 minute to complete tracheal intubation

  5. EVEN WITH PROPER EVALUATION ! 15- 50% ARE ONLY PICKED UP

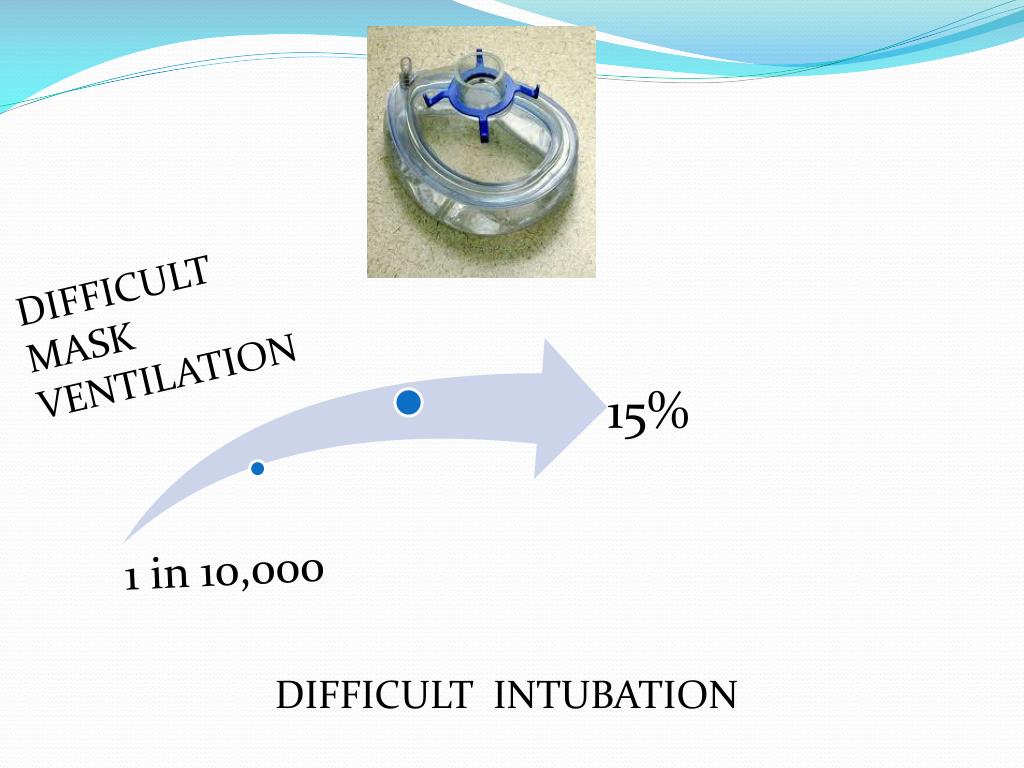

  6. DIFFICULT MASK VENTILATION DIFFICULT INTUBATION

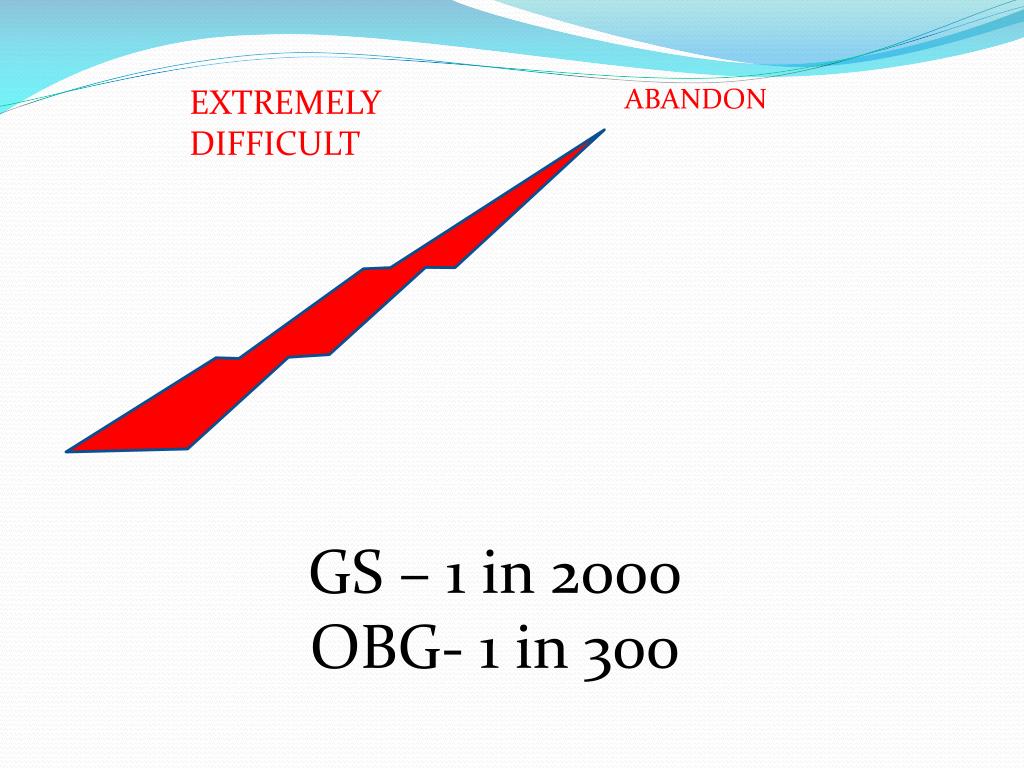

  7. EXTREMELY DIFFICULT ABANDON GS – 1 in 2000 OBG- 1 in 300

  8. Pre-op assessment Equipments CAUSES OF DIFFICULT INTUBATION Anesthetist Experience not enough Poor technique Malfunctioning equipment Inexperienced assistance

  9. CAUSES OF DIFFICULT INTUBATION Patient • Congenital causes • Acquired causes

  10. Basic airway evaluation in all patients • Dr. Binnion’sLEMON Law • BONES • The 4 D’s

  11. Dr. Binnions Lemon Law: An easy way to remember multiple tests… • L ook externally. • E valuate the 3-3-2 rule. • M allampati. • O bstruction? • N eck mobility.

  12. L: Look Externally Obesity Buck teeth Short muscular neck Receding jaw Dentures

  13. L: Look Externally Macroglossia Stridor Facial trauma

  14. E:Evaluate the 3-3-2 rule • 3 fingers fit in mouth- Inter incisor distance • 3 fingers fit from mentum to hyoid cartilage • 2 fingers fit from the floor of the mouth to the top of the thyroid cartilage

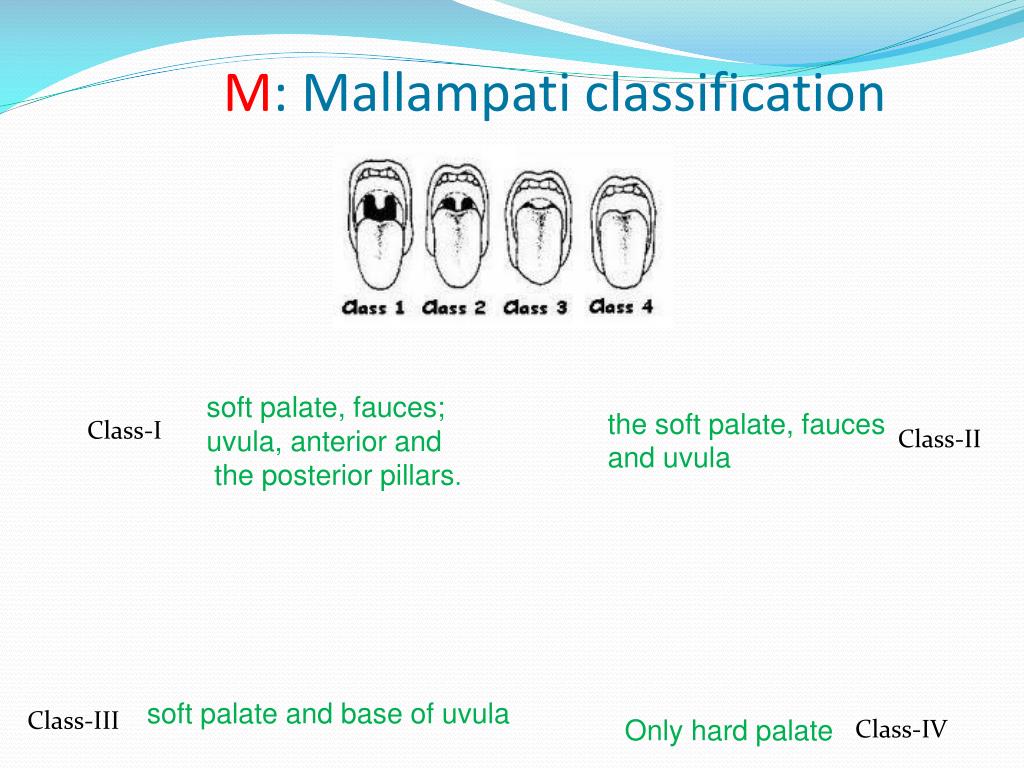

  15. M:Mallampati classification soft palate, fauces; uvula, anterior and the posterior pillars. the soft palate, fauces and uvula Class-I Class-II soft palate and base of uvula Class-III Only hard palate Class-IV

  16. O: Obstruction? • Blood • Vomitus • Teeth • Epiglottis • Dentures • Tumors • Impacted Objects

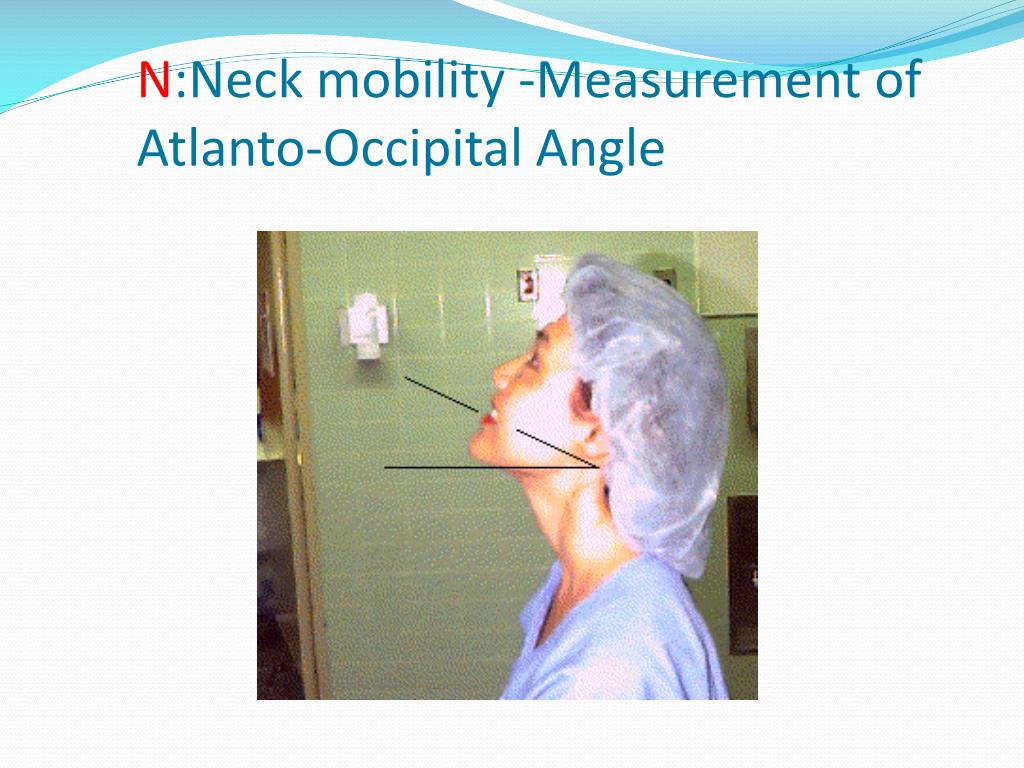

  17. N:Neck mobility -Measurement of Atlanto-Occipital Angle

  18. Thyro- Mental Distance • Measure from upper edge of thyroid cartilage to chin with the head fully extended. • A short thyromental distance = an anterior larynx . • > 7 cm is usually= easy intubation • < 6 cm=difficult airway

  19. MANAGEMENT PLAN OF ANTICIPATED DIFFICULT AIRWAY

  20. Is mask ventilation going to be difficult? Can’t ventilate Defined by “BONES” • Beard • Obesity • No teeth • Elderly • Snoring Can’t ventilate

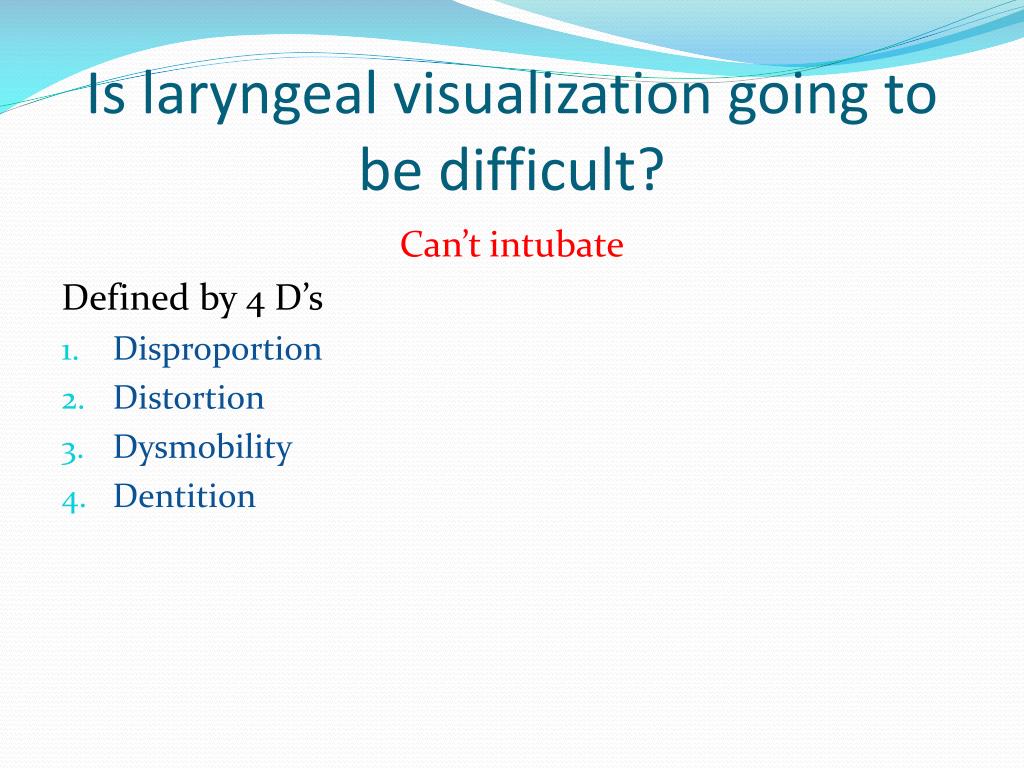

  21. Is laryngeal visualization going to be difficult? Can’t intubate Defined by 4 D’s • Disproportion • Distortion • Dysmobility • Dentition

  22. Disproportion Achondroplasia Pierre robin sequence Can’t intubate Acromegaly Prognathism

  23. Distortion Burns contracture Neurofibromatosis Can’t intubate Cystic hygroma

  24. Dysmobility TM joint Ankylosis Can’t intubate Klippel Fiel

  25. Dentition Can’t intubate Edentulous Buck teeth

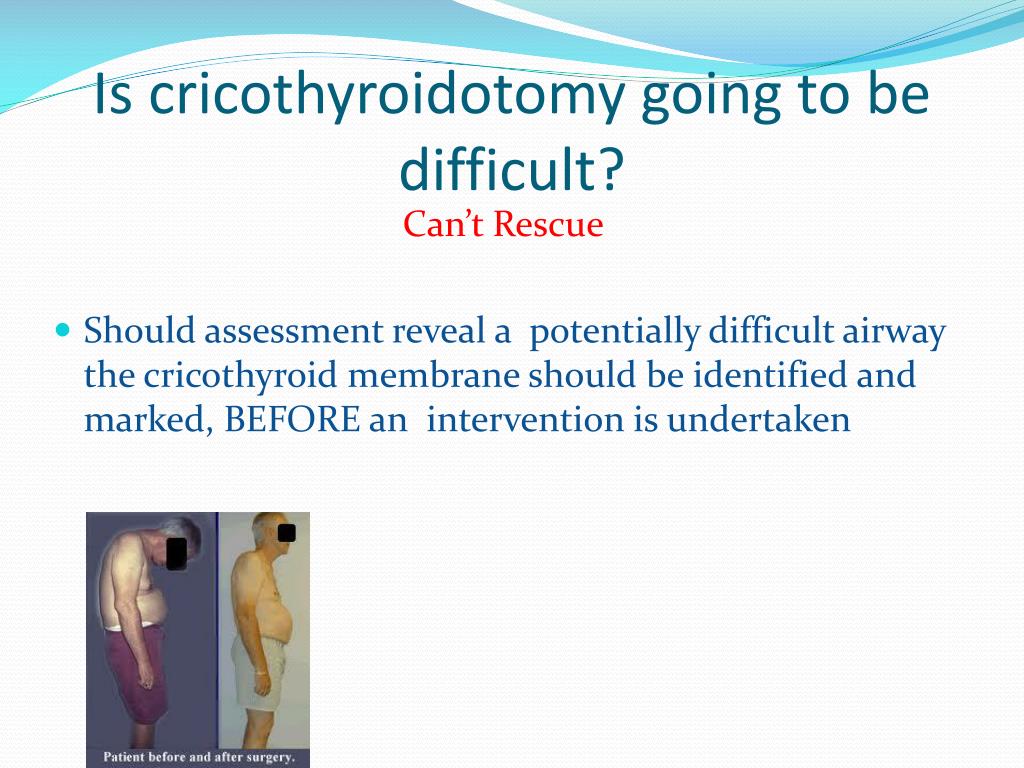

  26. Is cricothyroidotomy going to be difficult? Can’t Rescue • Should assessment reveal a potentially difficult airway the cricothyroid membrane should be identified and marked, BEFORE an intervention is undertaken

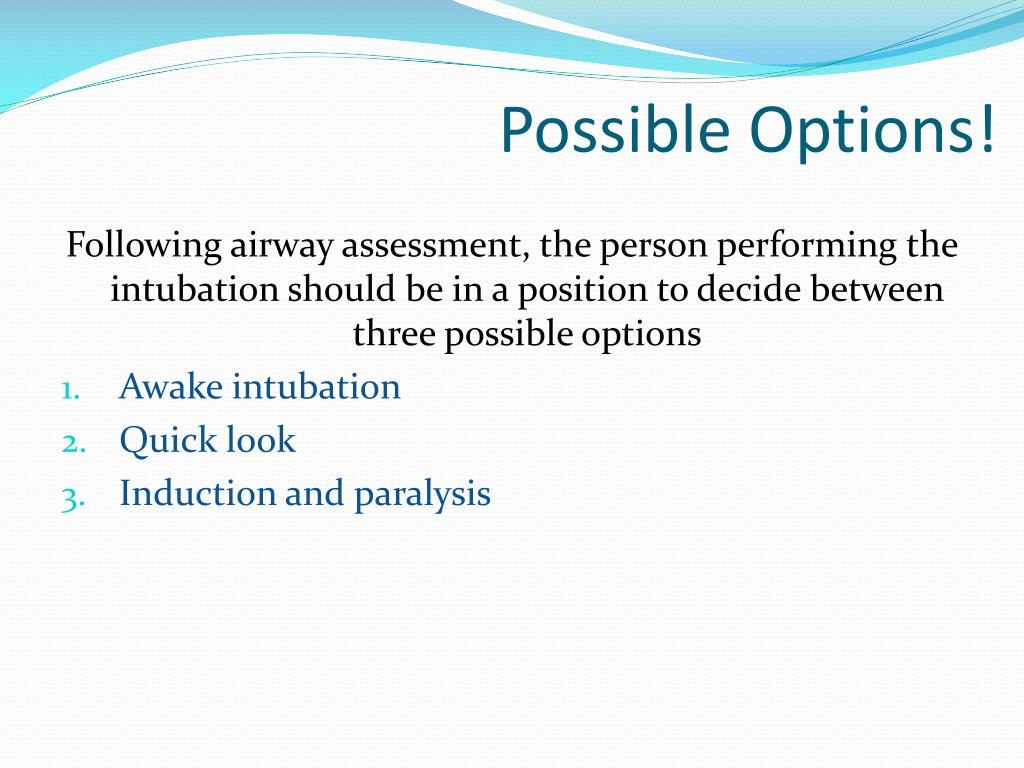

  27. Possible Options! Following airway assessment, the person performing the intubation should be in a position to decide between three possible options • Awake intubation • Quick look • Induction and paralysis

  28. 1. Awake Intubation The patient needs to be intubated awake There is significant risk of complications if sedatives and/or muscle relaxants are administered prior to airway control.

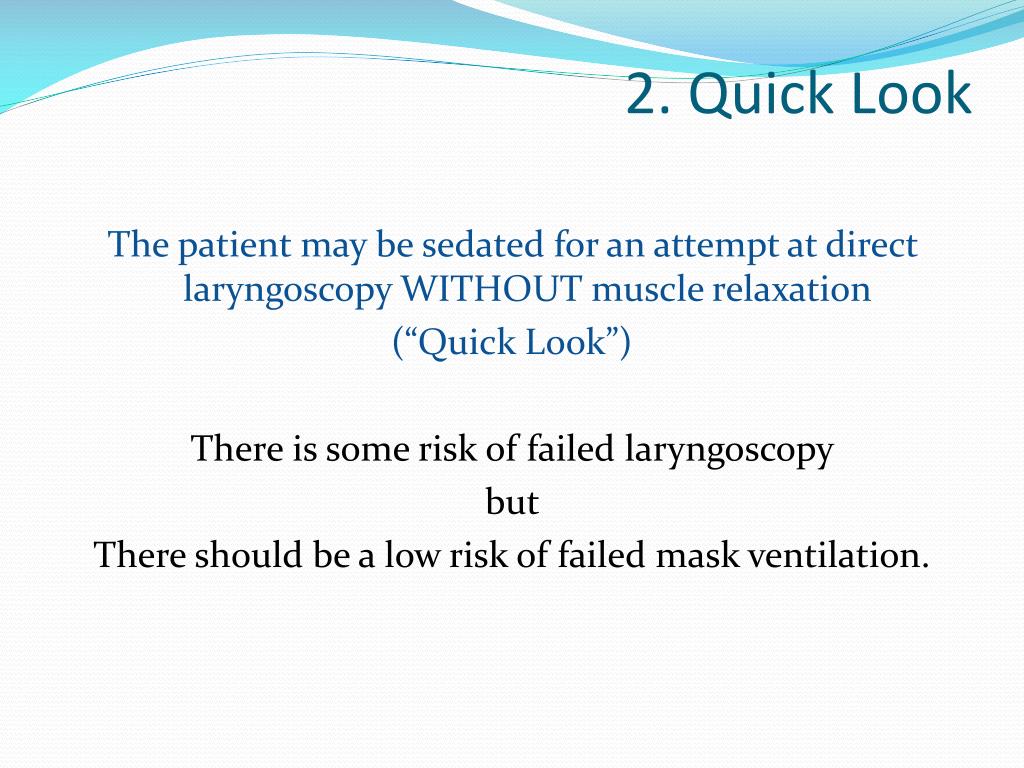

  29. 2. Quick Look The patient may be sedated for an attempt at direct laryngoscopy WITHOUT muscle relaxation (“Quick Look”) There is some risk of failed laryngoscopy but There should be a low risk of failed mask ventilation.

  30. 3. Induction & Paralysis The patient may be induced and paralyzed, In this case the patient is assessed as having a low risk of laryngoscopy and/or mask ventilation

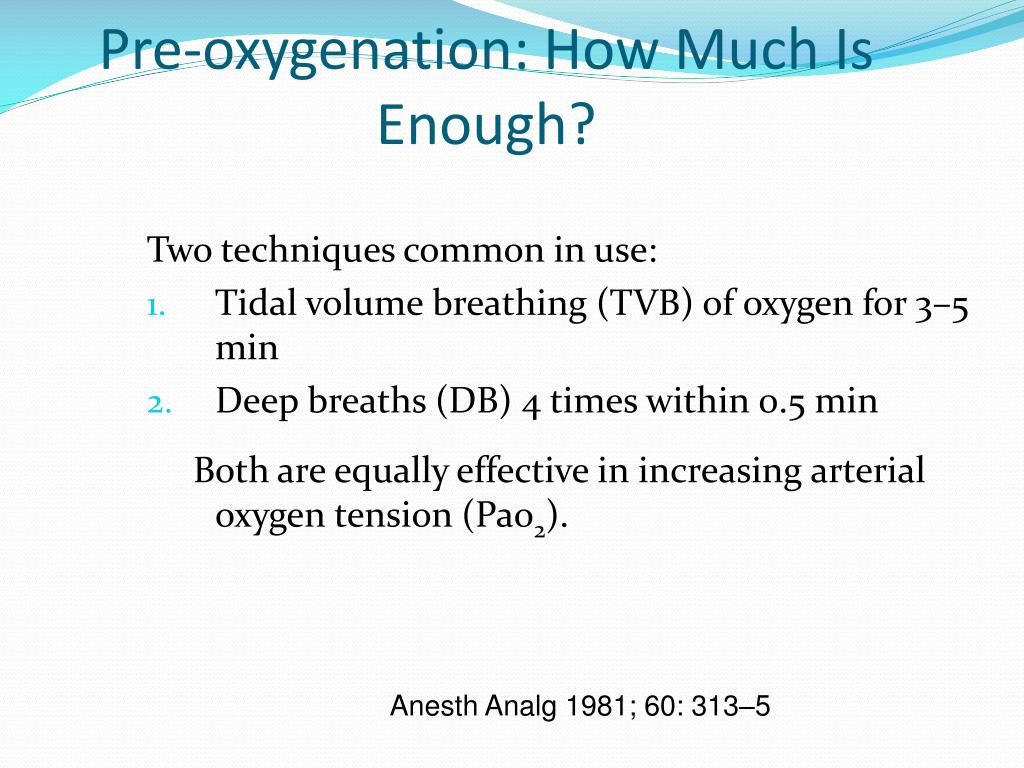

  31. Pre-oxygenation: How Much Is Enough? Two techniques common in use: • Tidal volume breathing (TVB) of oxygen for 3–5 min • Deep breaths (DB) 4 times within 0.5 min Both are equally effective in increasing arterial oxygen tension (Pao2). Anesth Analg 1981; 60: 313–5

  32. Pre-oxygenation Spontaneous recovery from succinylcholine-induced apnea may not occur sufficiently quickly to prevent hemoglobin desaturation in subjects whose ventilation is not assisted. Each subject received 5 mg/kg thiopental and 1 mg/kg succinylcholine. Anesthesiology 2001, 95: 754-759

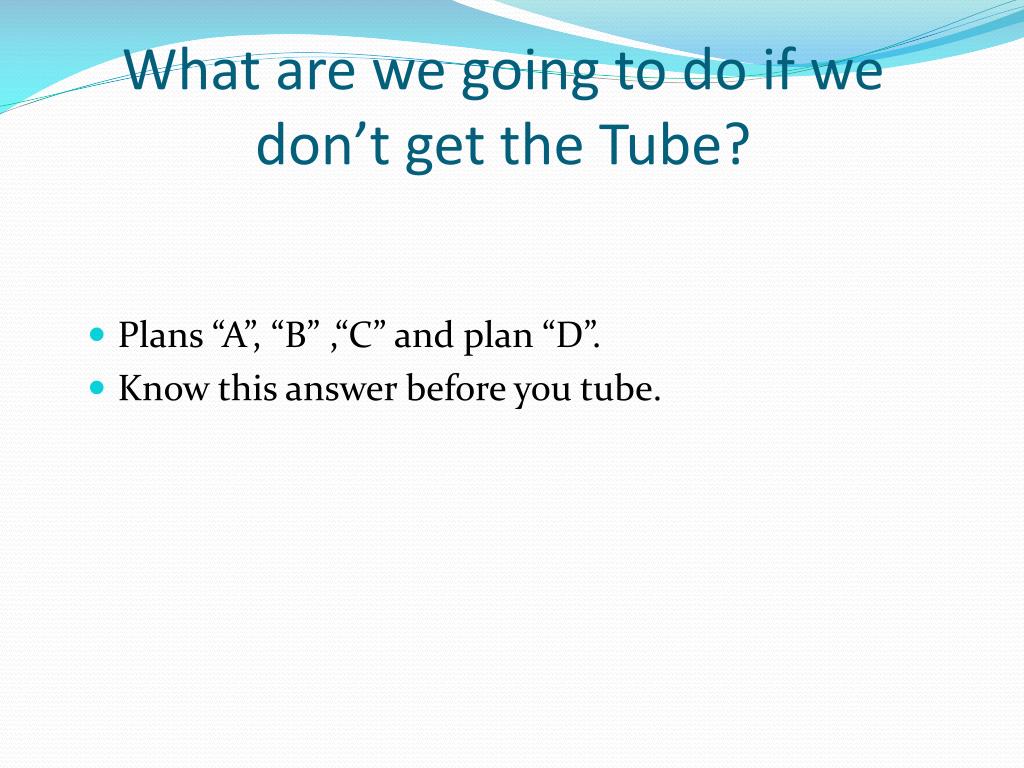

  33. What are we going to do if we don’t get the Tube? • Plans “A”, “B” ,“C” and plan “D”. • Know this answer before you tube.

  34. Failure -Why does it happens? • No critical discussion with colleagues about proposed management plan • No request for experienced help • Exaggerated idea of personal ability • Ill-conceived plan A and/or plan B • Poorly executed plan A and/or plan B • Persisting with plan A too long, starting the rescue plan too late • Not involving, and preparing, surgical colleagues

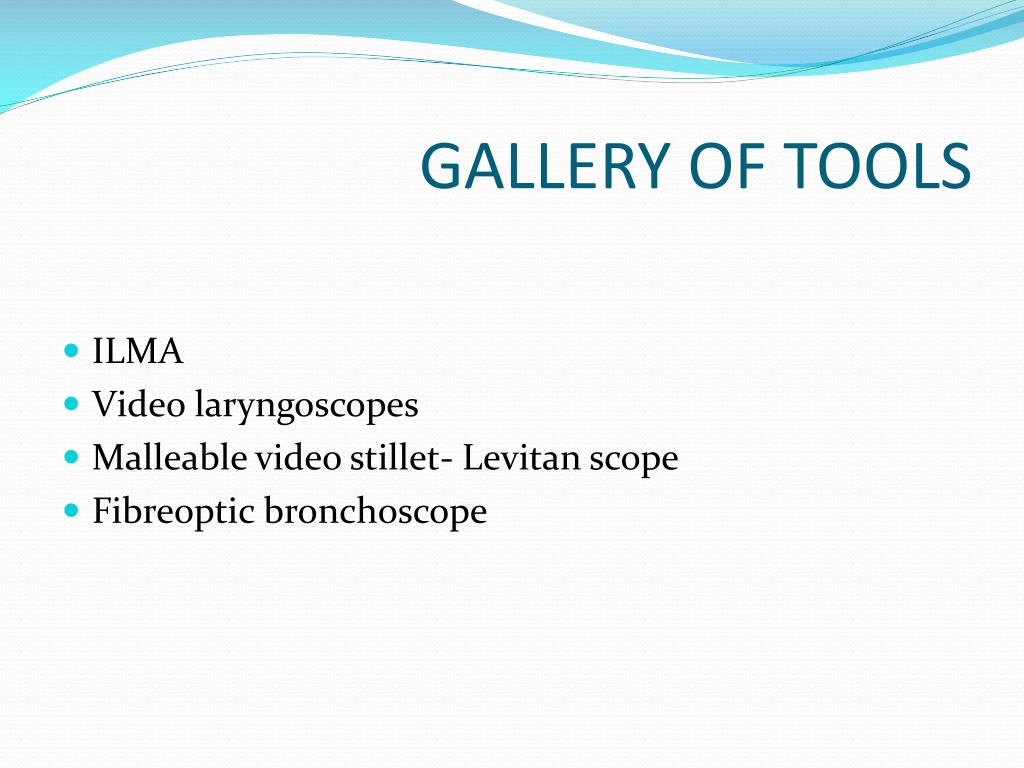

  35. GALLERY OF TOOLS • ILMA • Video laryngoscopes • Malleable video stillet- Levitan scope • Fibreoptic bronchoscope

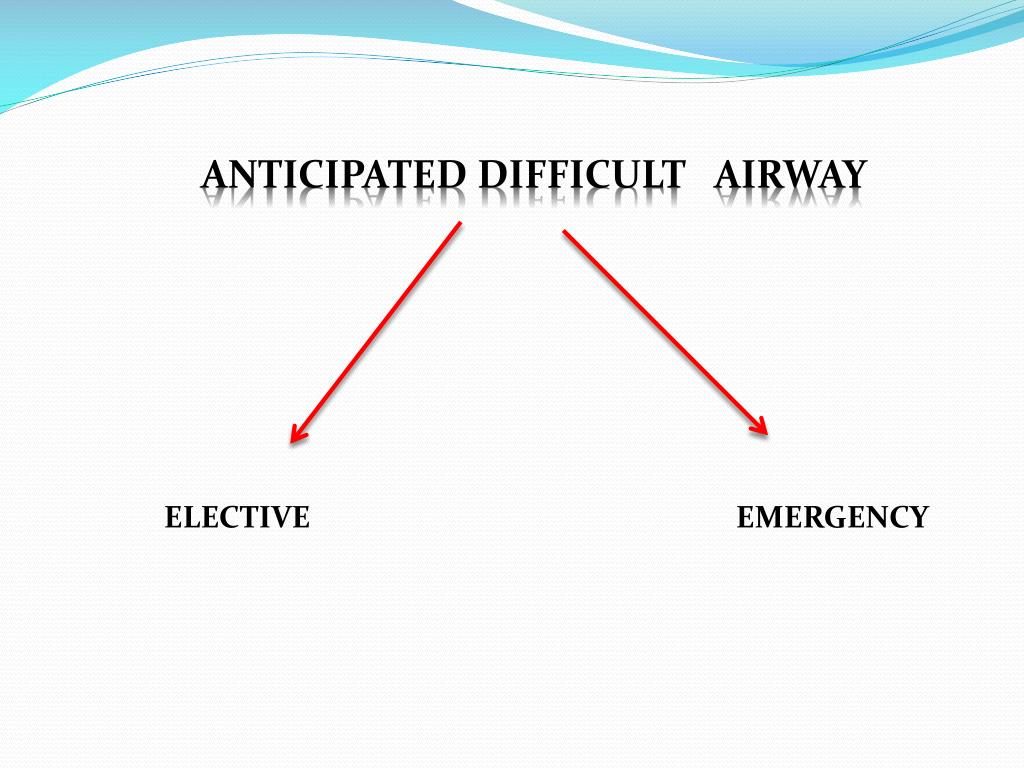

  36. ANTICIPATED DIFFICULT AIRWAY ELECTIVE EMERGENCY

  37. ANTICIPATED DIFFICULT AIRWAY ANTICIPATED DIFFICULT AIRWAY ELECTIVE EMERGENCY

  38. ELECTIVE Old case of Hemi-mandibulectomy with forehead flap with trismus for block dissection of neck nodes

  39. Anesthesia of choice - G.A. Intubating technique of choice ?

  40. MANAGEMENT PLAN OF UNANTICIPATED DIFFICULT AIRWAY

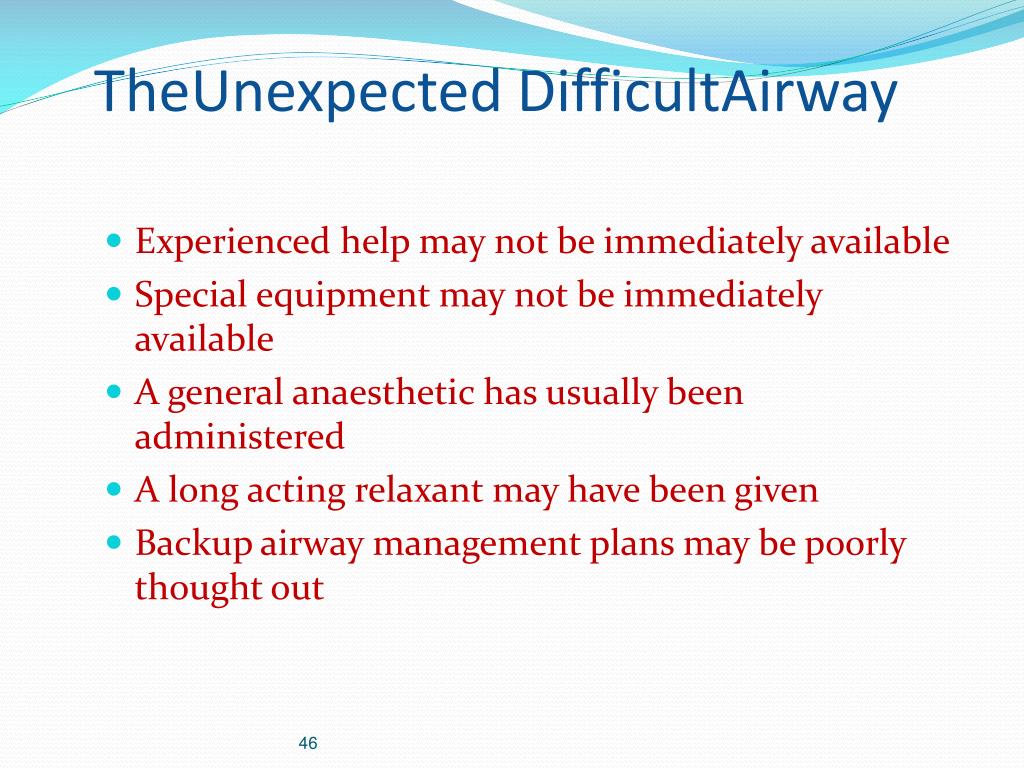

  41. TheUnexpectedDifficultAirway • Experienced help may not be immediately available • Special equipment may not be immediately available • A general anaesthetic has usually been administered • A long acting relaxant may have been given • Backup airway management plans may be poorly thought out

  42. Take home message • Be familiar with the alternative methods of intubating technique and use it regularly in your day today practice e.g. ILMA, FOB, Videolaryngoscopes, cricothyroidotomy……………. • So that you won’t fumble at the time of crisis

  43. GOOD LUCK Challenges may be Waiting for you

  44. The whole world is made up of mistakes and people Forgive the mistakes and love the people Thank you
