  1. SF6-Quality-Analyser SF6-Quality-Analyser portable qualityanalysistoensureswitchgearsafety • Zero emission • Integrated Pump back • Batterypowered • Graphictouchscreen • 25 % lighter 1

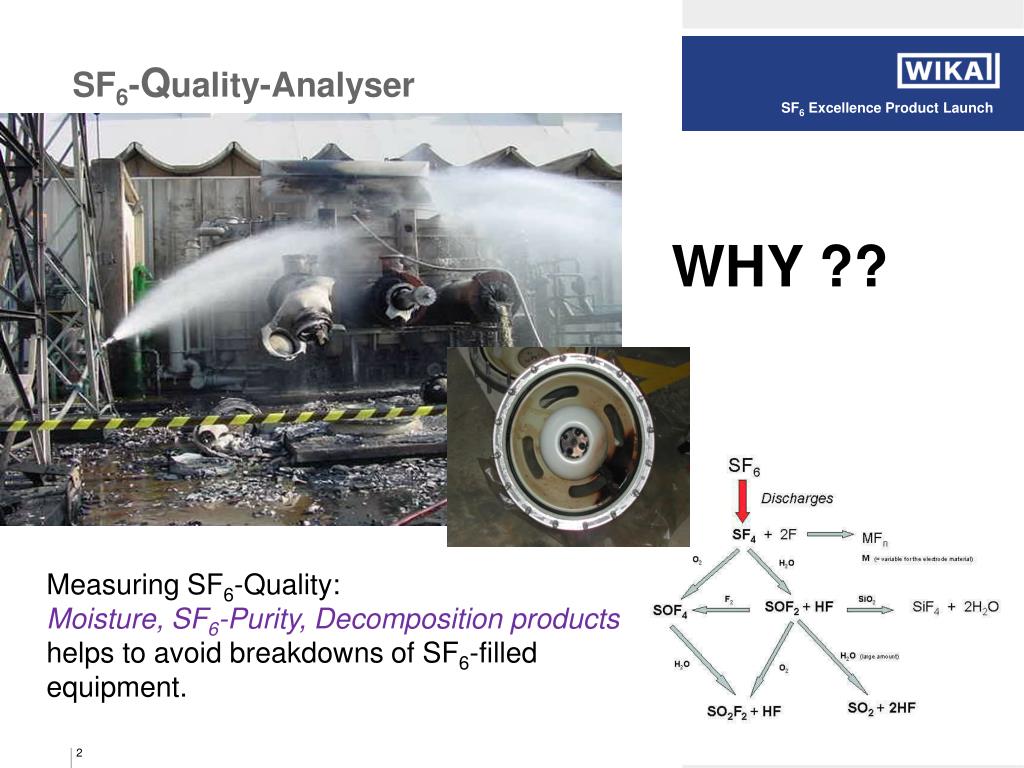

  2. SF6-Quality-Analyser WHY ?? MeasuringSF6-Quality: Moisture, SF6-Purity, Decompositionproducts helpstoavoidbreakdownsof SF6-filled equipment. 2

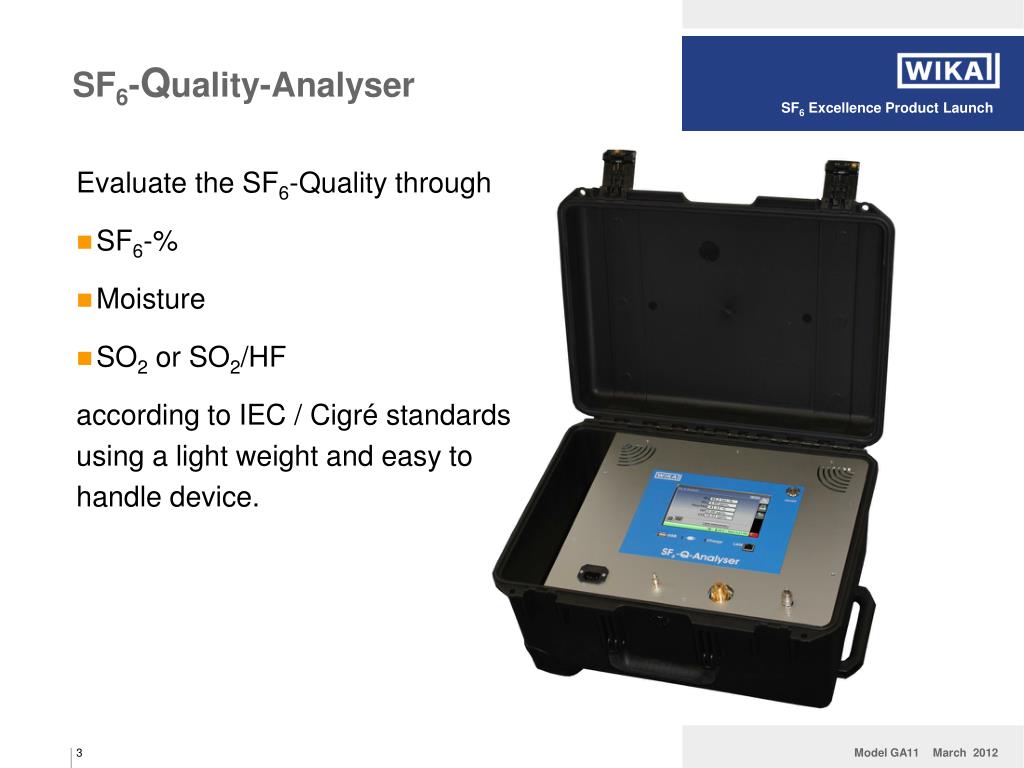

  3. SF6-Quality-Analyser • Evaluate the SF6-Quality through • SF6-% • Moisture • SO2or SO2/HF • according to IEC / Cigré standards using a light weight and easy to handle device. 3

  4. SF6-Quality-Analyser • Features: • Integrated PumpBack • No transportation limitations • Battery and/or AC power • Operation modes with battery: • Pump back • External bag for recovery • External cylinder for recovery • Graphic touch screen 4

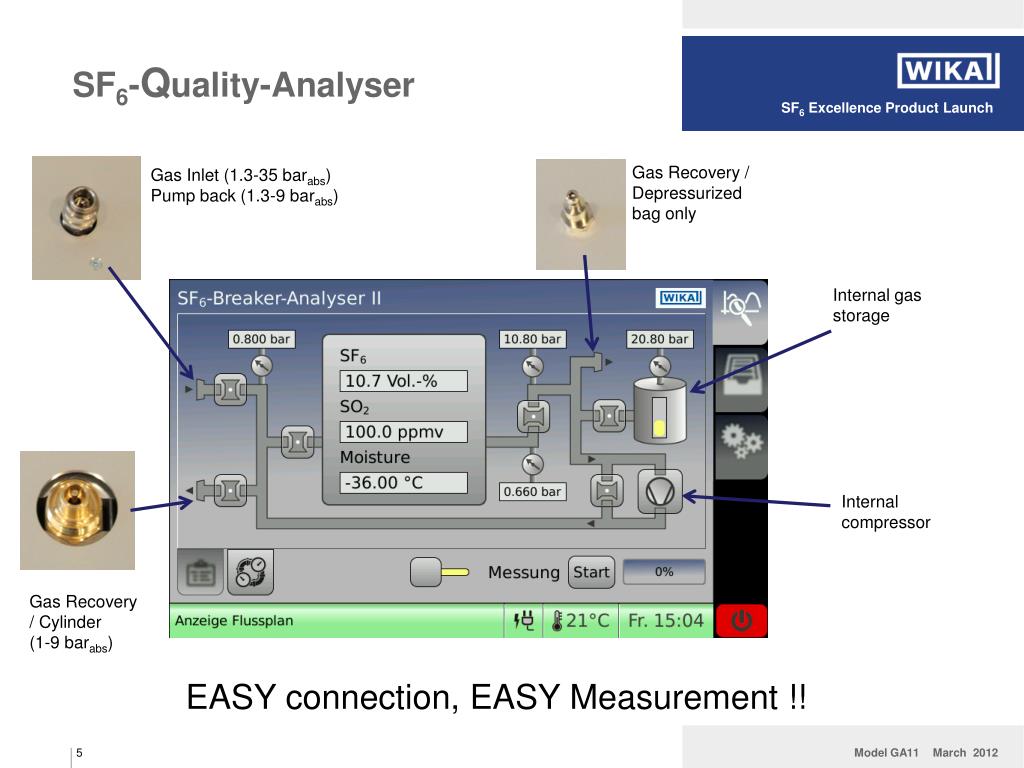

  5. SF6-Quality-Analyser Gas Recovery / Depressurized bag only Gas Inlet (1.3-35 barabs) Pump back (1.3-9 barabs) Internal gas storage Internal compressor Gas Recovery / Cylinder (1-9 barabs) EASY connection, EASY Measurement !! 5

  6. SF6-Quality-Analyser • Features: • Measuring Moisture, SF6-Percentage, SO2, HF (optional) • Storage:500 measurements • Import measuring point names • Dimensions: 21.2 x 16.0 x 11.7 in • Weight: approx. 55 lbs EASY Lifting !! 6
