06 – Wave Interference

06 – Wave Interference. The principle of superposition states that when two or more waves pass through each other, the resulting disturbance at a given point in the medium is found by adding the individual displacements each wave would have caused . There are three (3) types of interference:

lacy
Download Presentation

06 – Wave Interference

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 06 – Wave Interference

  2. The principle of superposition states that when two or more waves pass through each other, the resulting disturbance at a given point in the medium is found by adding the individual displacements each wave would have caused. • There are three (3) types of interference: • Constructive Interference • Destructive Interference • Total Destructive nterference Principle of Interference

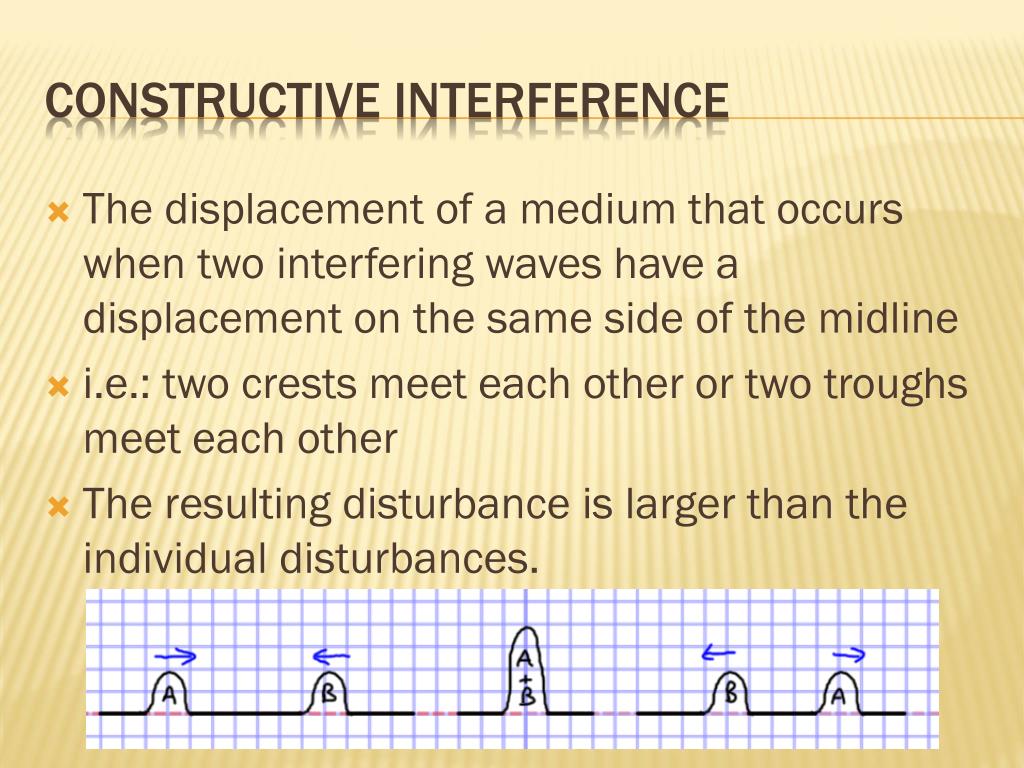

  3. The displacement of a medium that occurs when two interfering waves have a displacement on the same side of the midline i.e.: two crests meet each other or two troughs meet each other The resulting disturbance is larger than the individual disturbances. Constructive Interference

  4. The displacement of a medium that occurs when two interfering waves have a displacement on the opposite side of the midline i.e.: a crest meets a trough Occurs when the resulting displacement is smaller than the individual displacements. Destructive Interference

  5. The displacement of a medium that occurs when two interfering waves have an equal displacement on the opposite side of the midline i.e.: one trough meets one crest with an equal amplitude The amplitude is zero at the instant of interference. Total Destructive Interference
