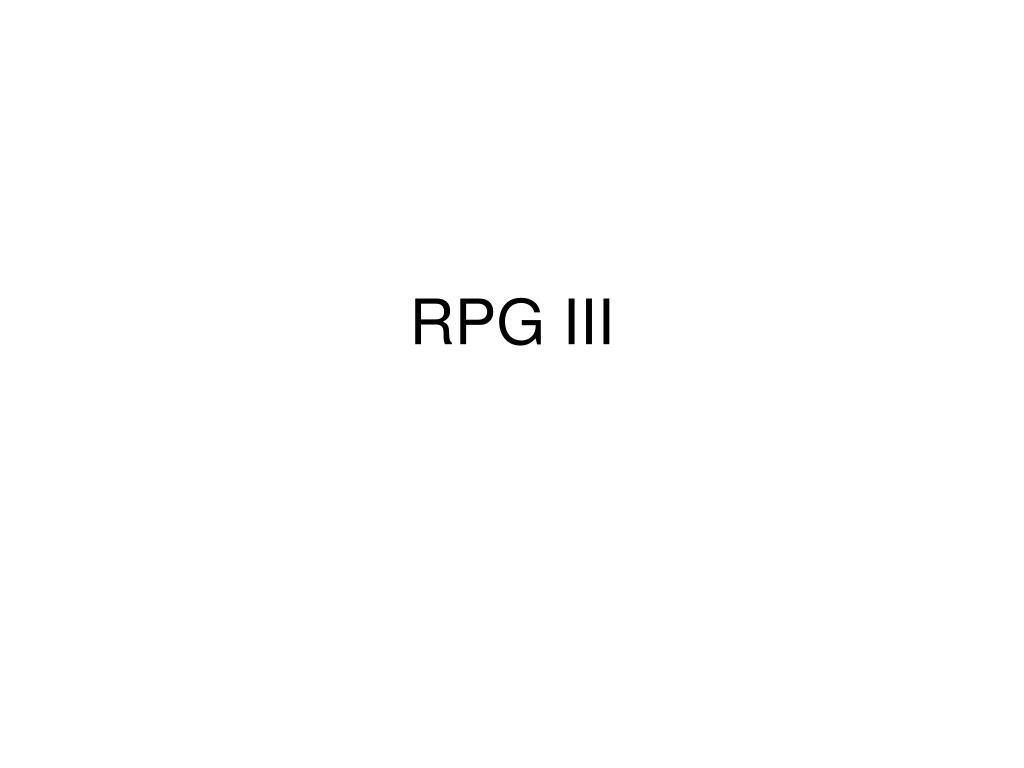

  1. RPG III

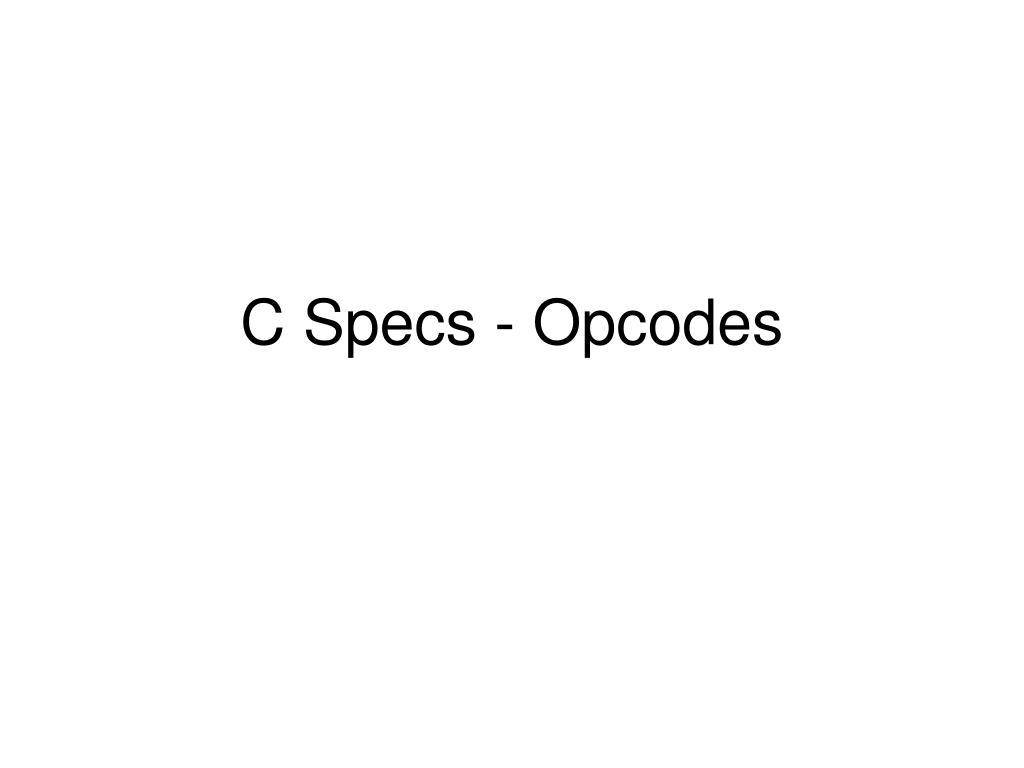

  2. C Specs - Opcodes

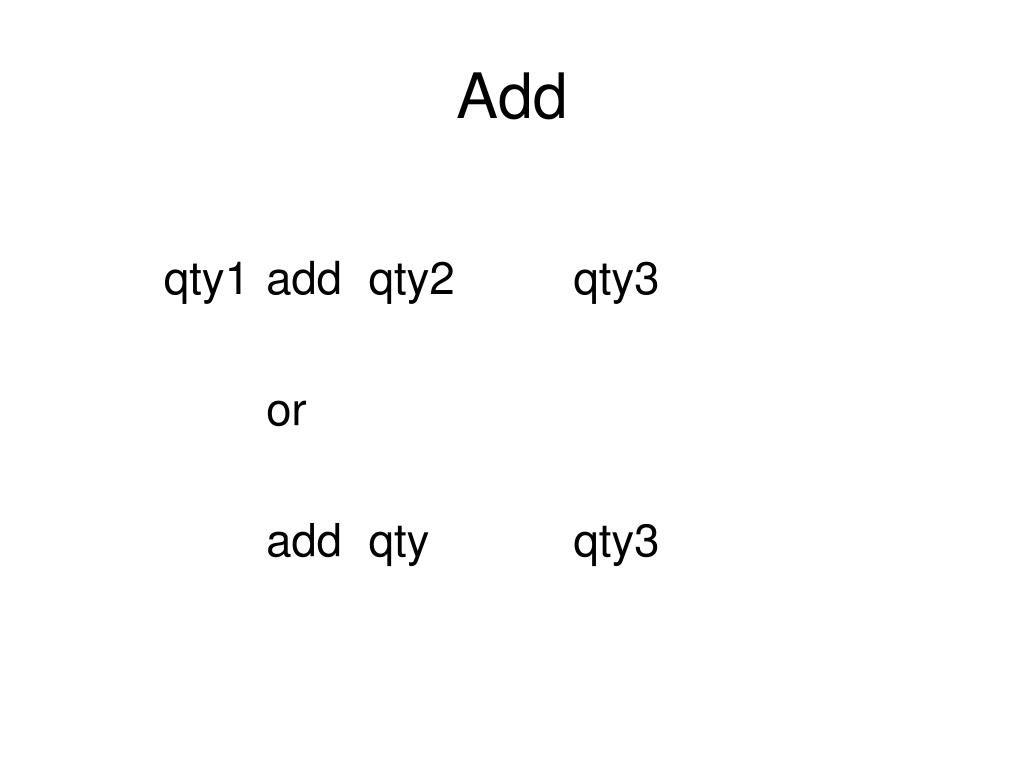

  3. Add qty1 add qty2 qty3 or add qty qty3

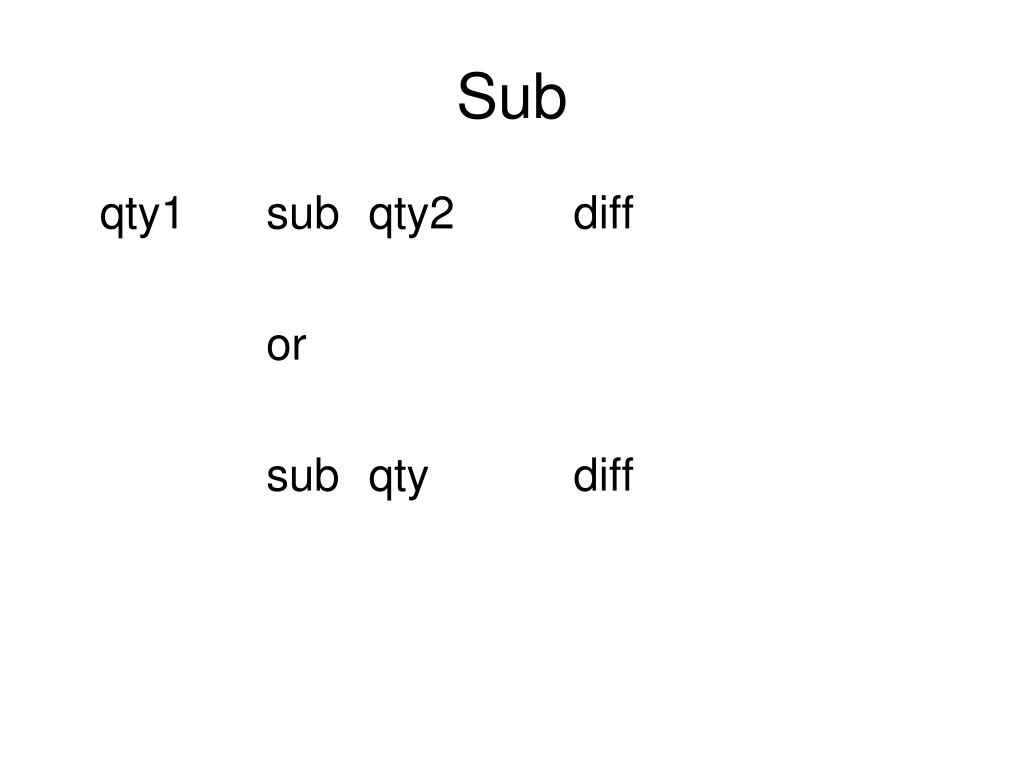

  4. Sub qty1 sub qty2 diff or sub qty diff

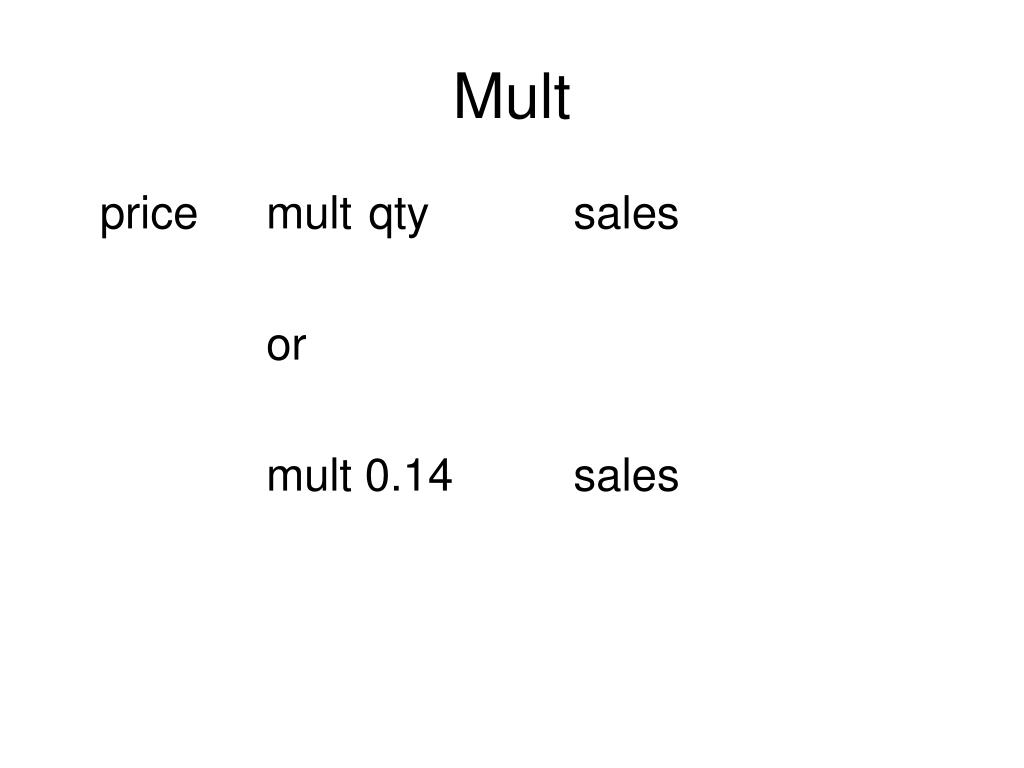

  5. Mult price mult qty sales or mult 0.14 sales

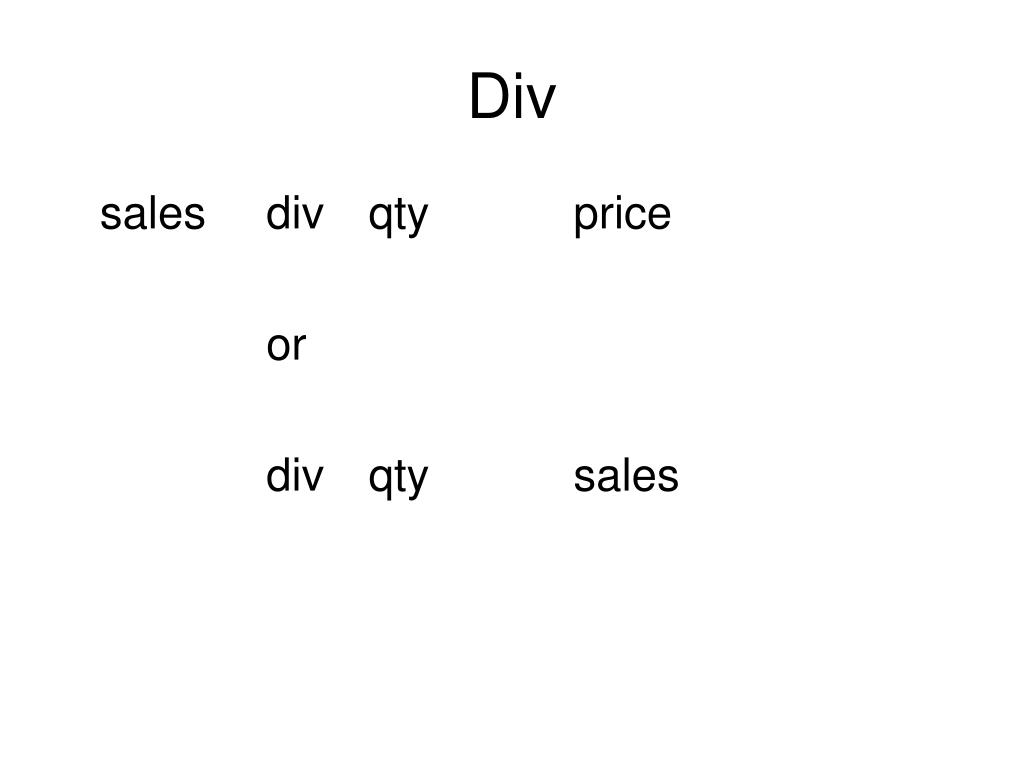

  6. Div sales div qty price or div qty sales

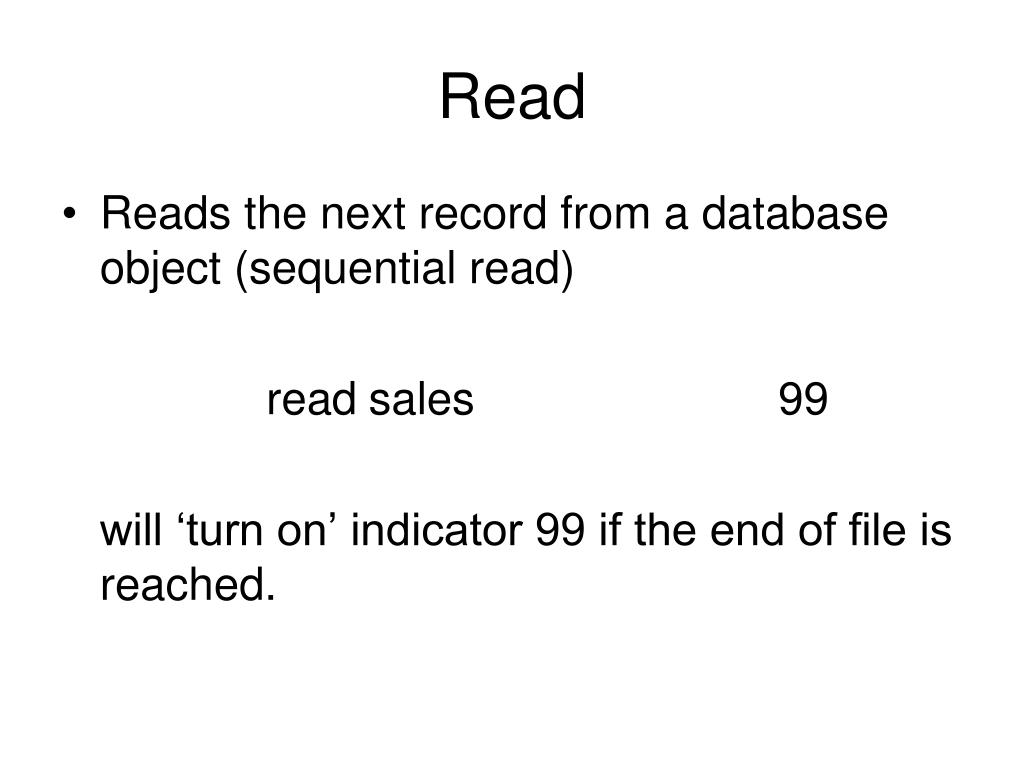

  7. Read • Reads the next record from a database object (sequential read) read sales 99 will ‘turn on’ indicator 99 if the end of file is reached.

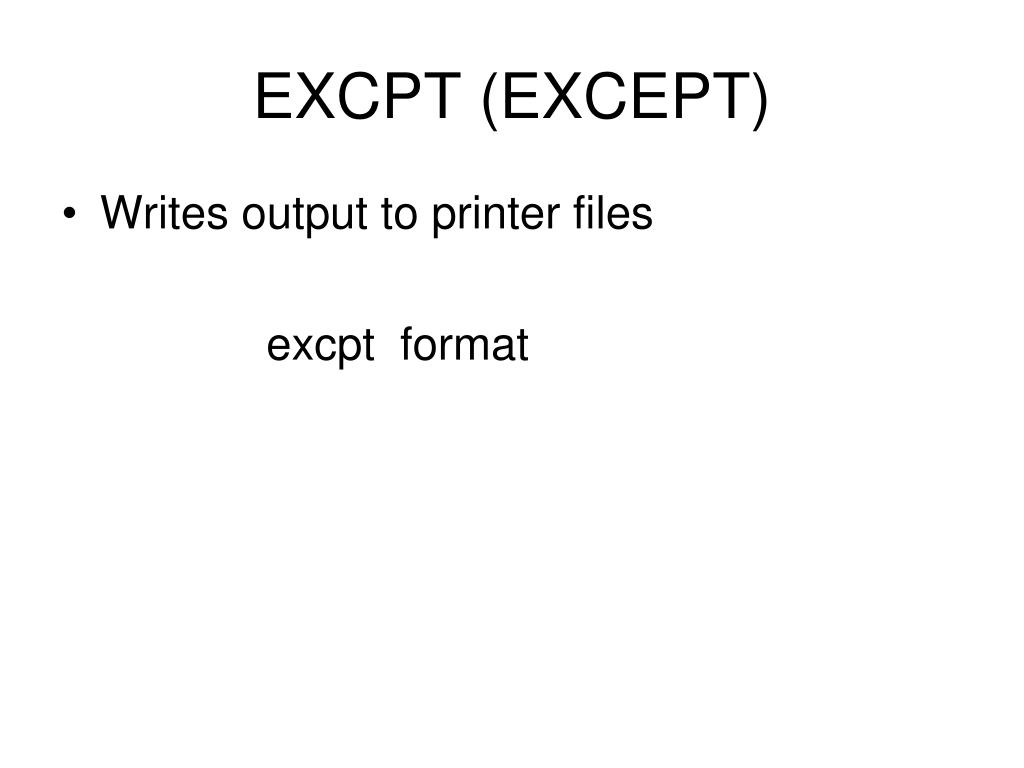

  8. EXCPT (EXCEPT) • Writes output to printer files excpt format

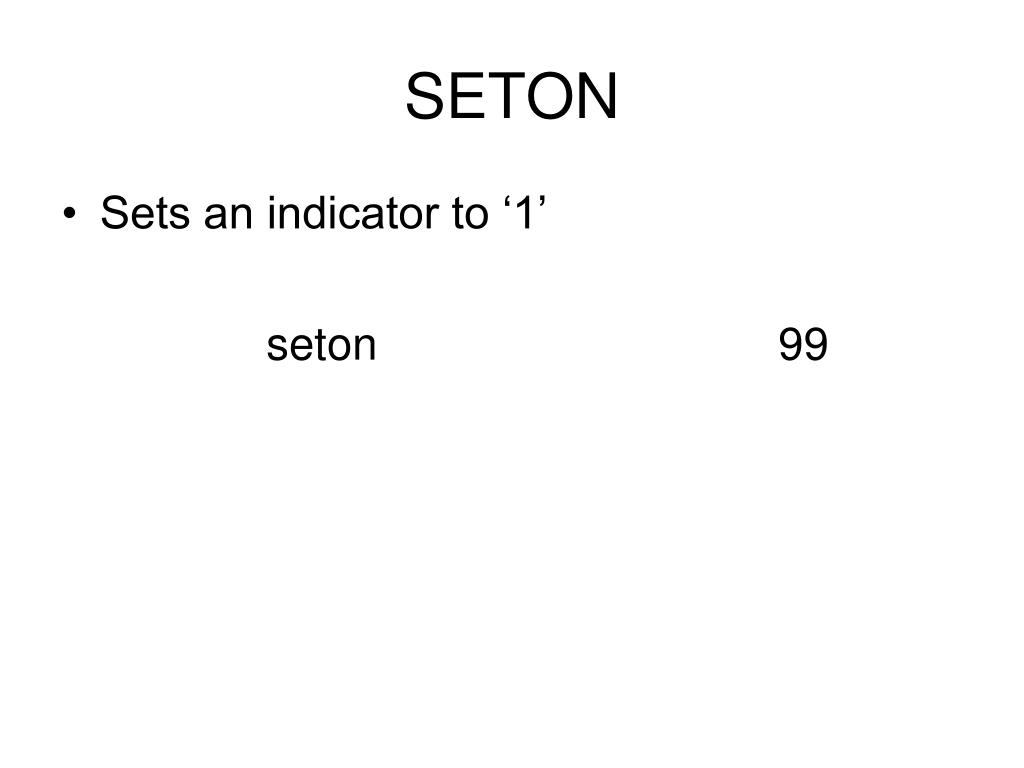

  9. SETON • Sets an indicator to ‘1’ seton 99

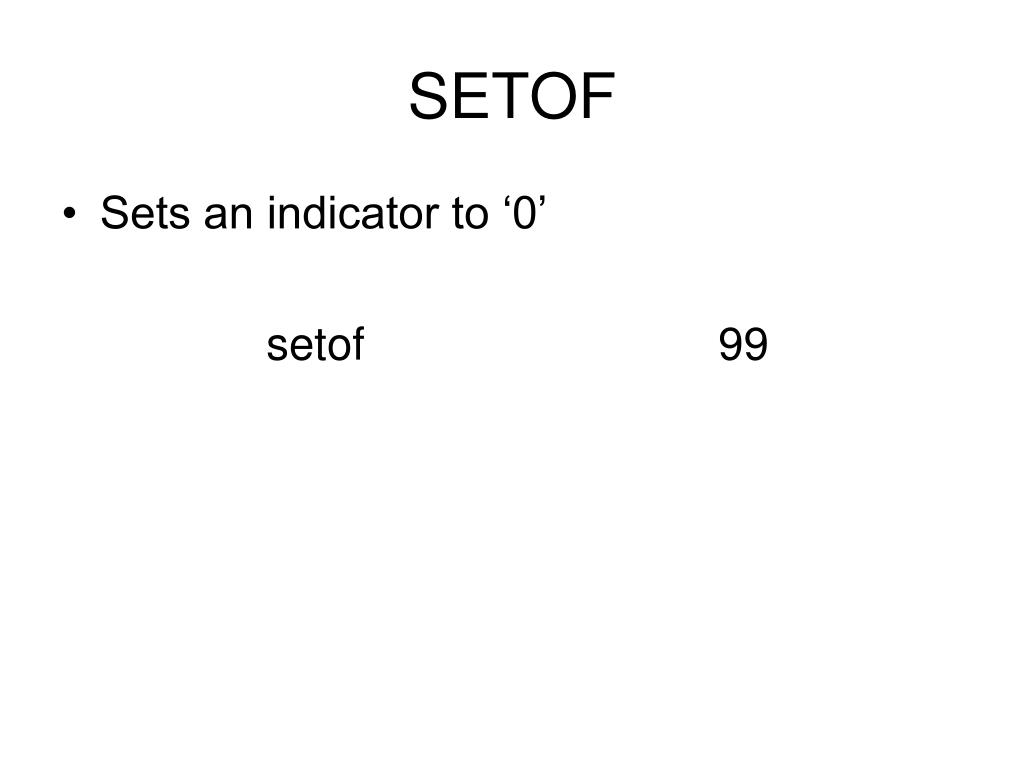

  10. SETOF • Sets an indicator to ‘0’ setof 99

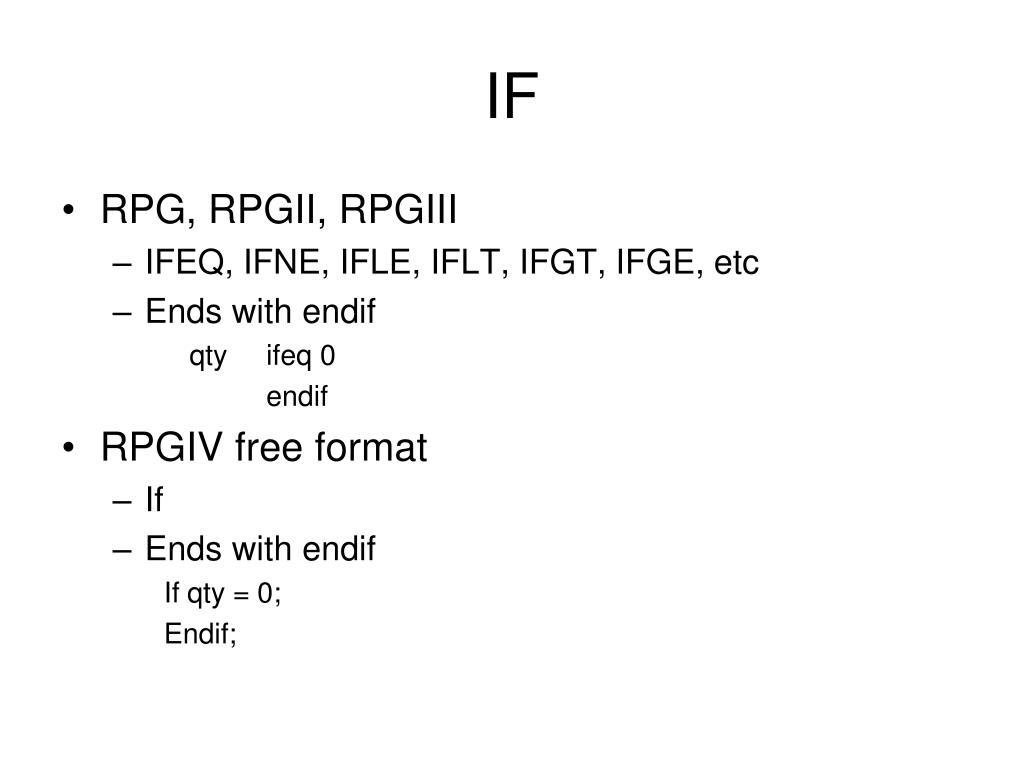

  11. IF • RPG, RPGII, RPGIII • IFEQ, IFNE, IFLE, IFLT, IFGT, IFGE, etc • Ends with endif qty ifeq 0 endif • RPGIV free format • If • Ends with endif If qty = 0; Endif;

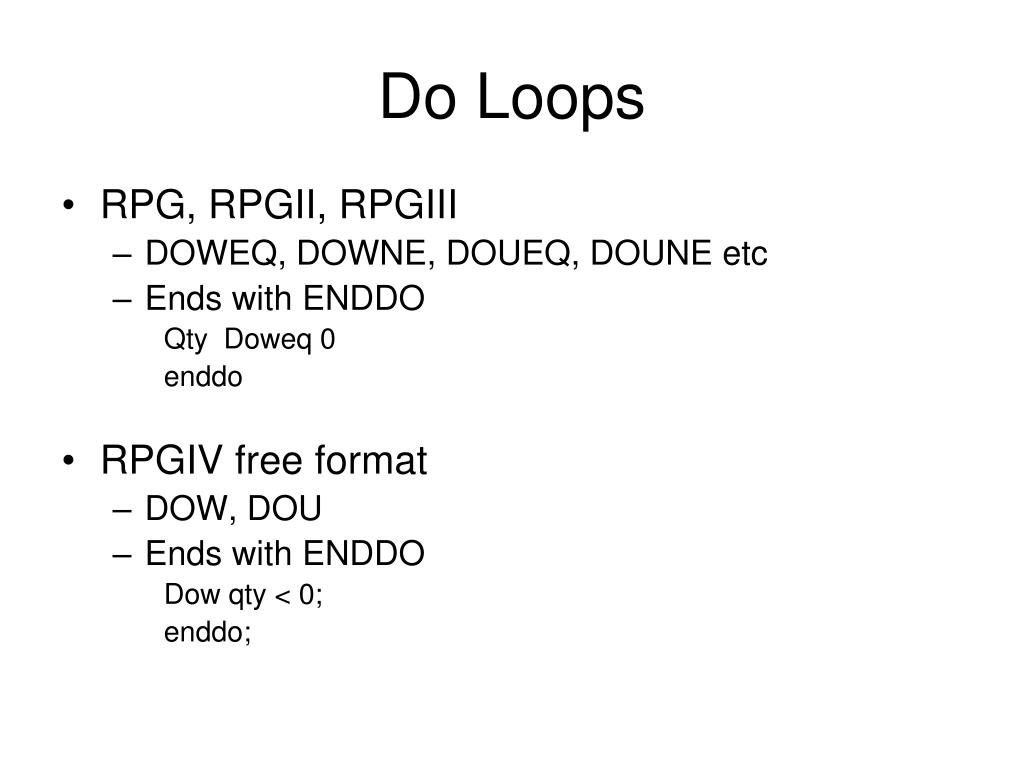

  12. Do Loops • RPG, RPGII, RPGIII • DOWEQ, DOWNE, DOUEQ, DOUNE etc • Ends with ENDDO Qty Doweq 0 enddo • RPGIV free format • DOW, DOU • Ends with ENDDO Dow qty < 0; enddo;

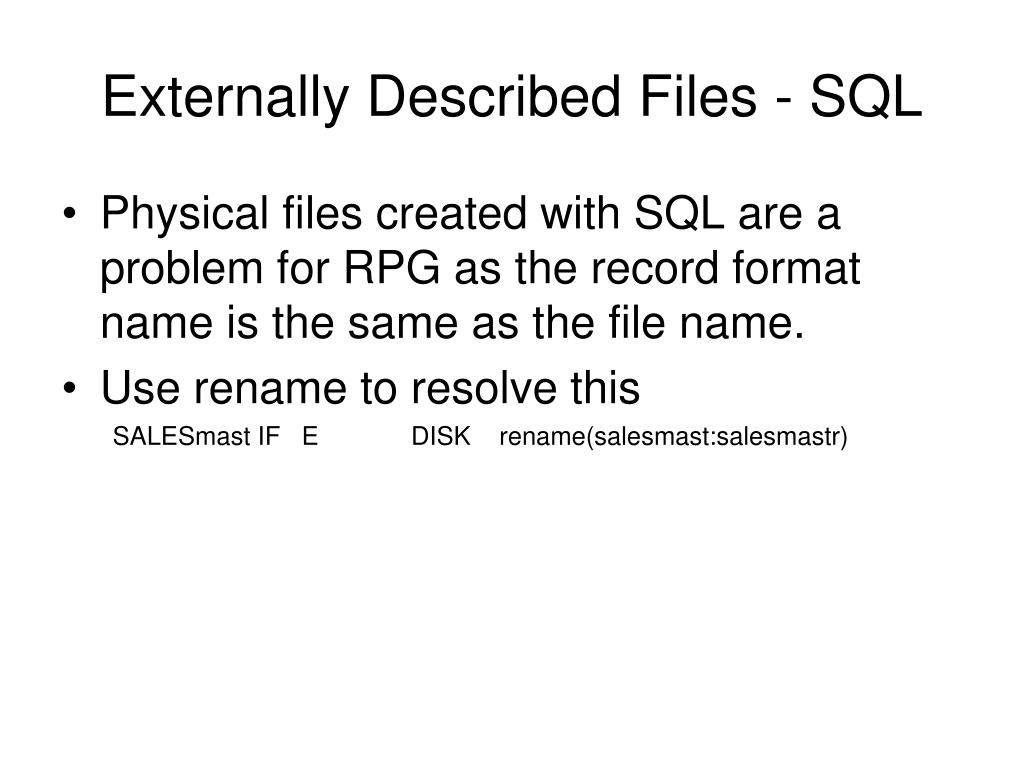

  13. Externally Described Files - SQL • Physical files created with SQL are a problem for RPG as the record format name is the same as the file name. • Use rename to resolve this SALESmast IF E DISK rename(salesmast:salesmastr)

  14. Itempgm2 Demo

  15. CVTRPGSRC • Converts an RPGIII program to RPGIV • Expands factor sizes • Substitutes 5 character opcodes for 6 character equivalents • Creates definition specs for tables and arrays

  16. EVAL • Executes an expression • RPG IV only • As an assignment eval *inlr = *on • As a mathematical expression eval counter = counter + 1

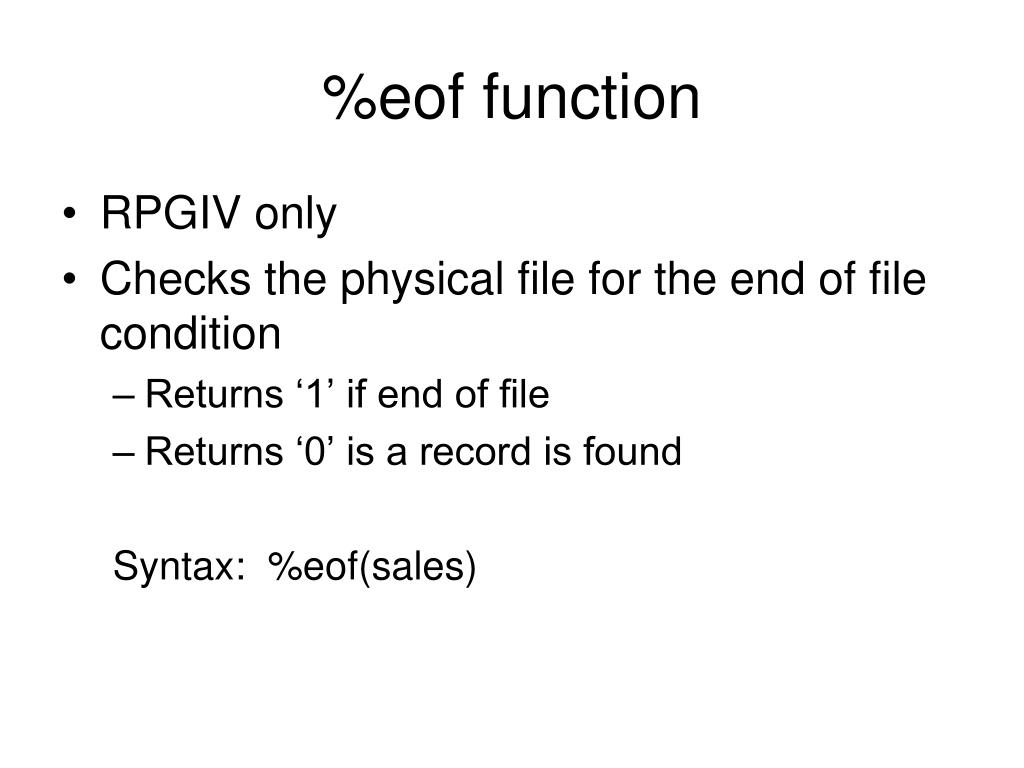

  17. %eof function • RPGIV only • Checks the physical file for the end of file condition • Returns ‘1’ if end of file • Returns ‘0’ is a record is found Syntax: %eof(sales)

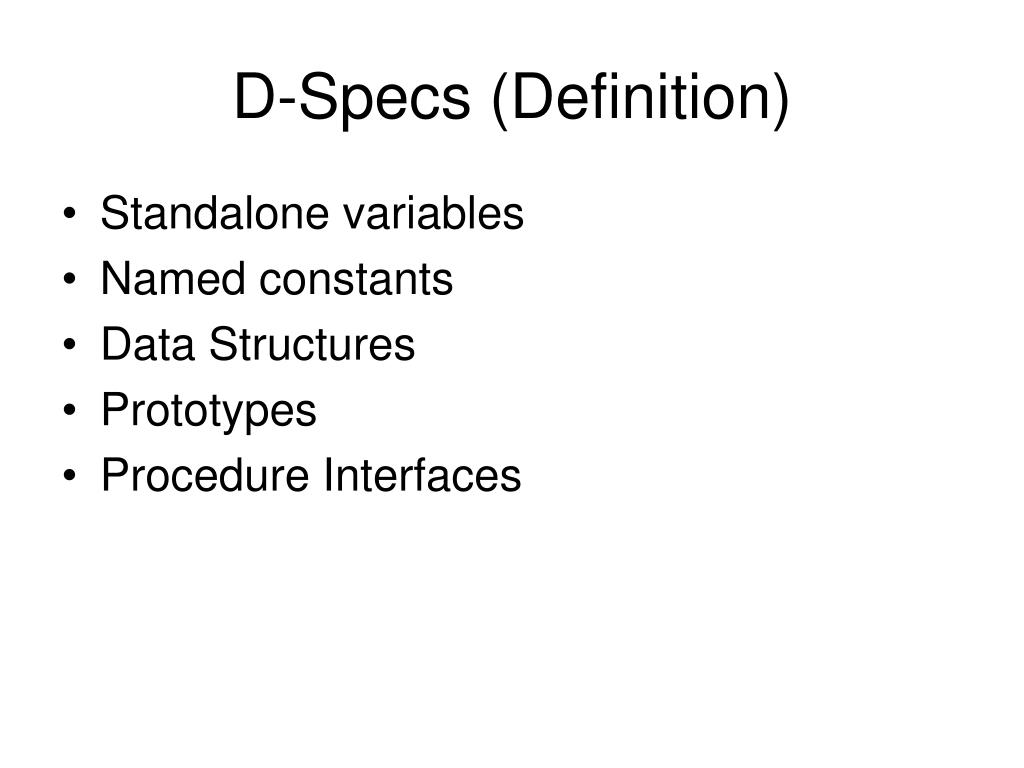

  18. D-Specs (Definition) • Standalone variables • Named constants • Data Structures • Prototypes • Procedure Interfaces

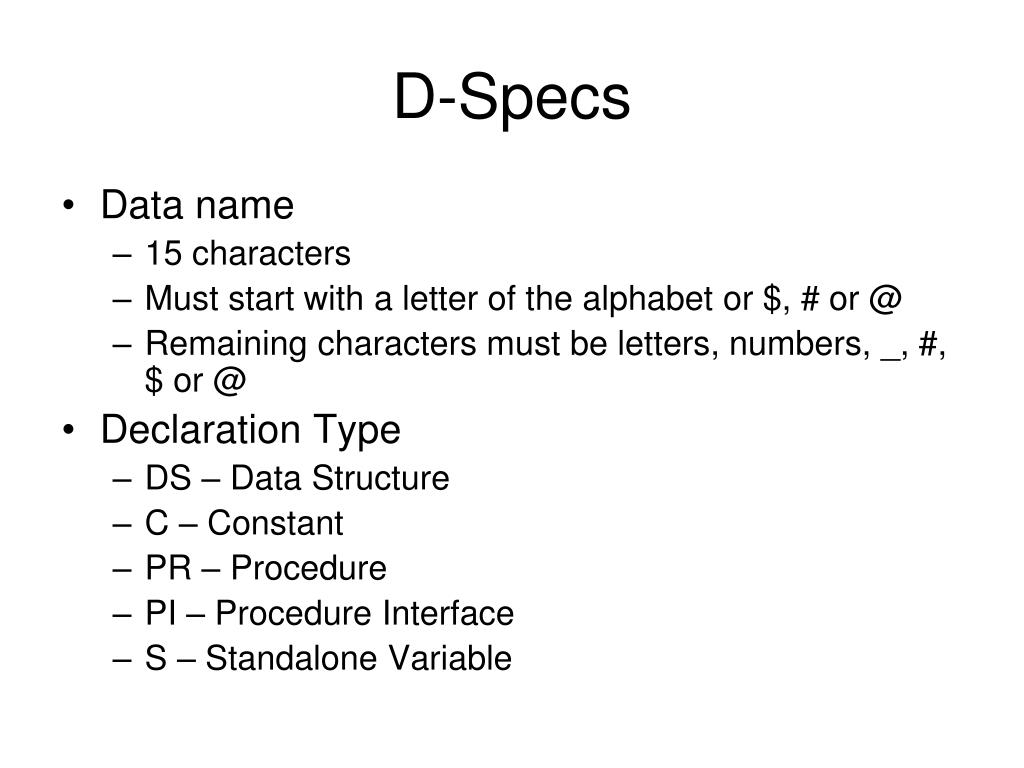

  19. D-Specs • Data name • 15 characters • Must start with a letter of the alphabet or $, # or @ • Remaining characters must be letters, numbers, _, #, $ or @ • Declaration Type • DS – Data Structure • C – Constant • PR – Procedure • PI – Procedure Interface • S – Standalone Variable

  20. D-Specs • Length • Length of Data • Decimal Places • Number of decimal places • Data type

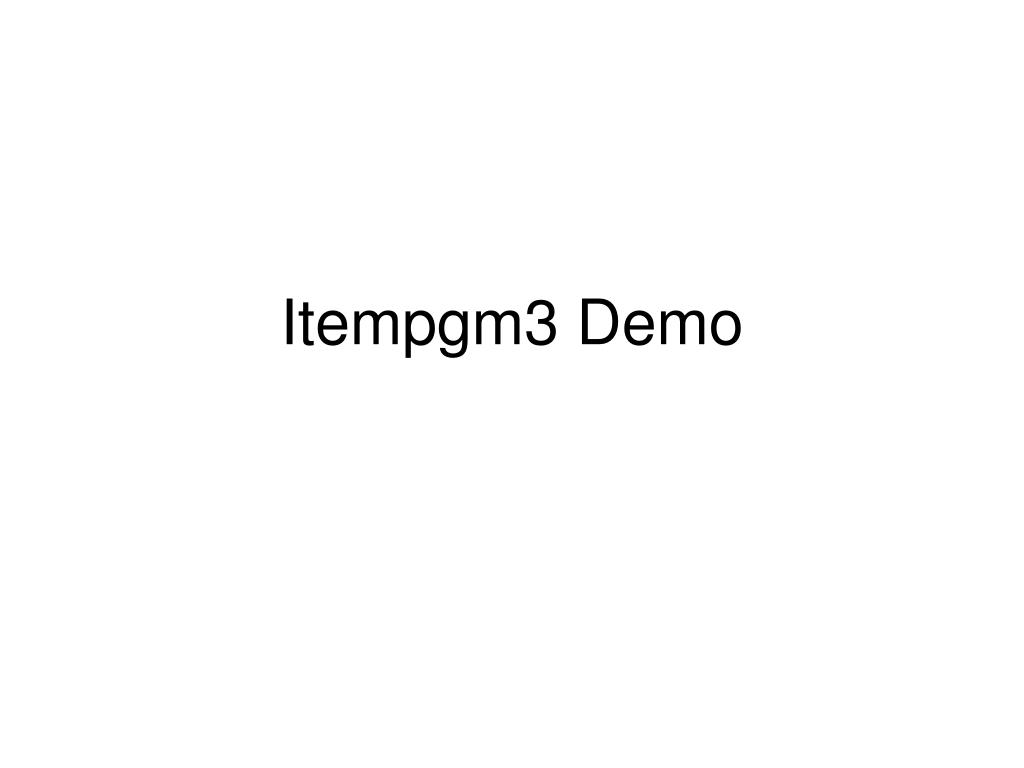

  21. Itempgm3 Demo
