  1. L L U F N I E EN 60849 C N A I L C P O M V V s e n a Voice Evacuation New Alarm System

  2. History From Background Music to Automatic Voice Alarms • For a long time PA systems have been used to distribute background music and paging announcements into public areas • Nowadays these PA systems that have evolved into Integrated Voice Evacuation systems, are used to warn people who face various life threatening situations • In an emergency situation it has become essential to have Automatic Voice Alarms in conjunction with Alarms. Voice Alarm Systems

  3. V V enas - Range Security • Voice Alarm Systems • Clear instructions allow a controlled evacuation without panic • The requirements for a secure Voice Alarm System are written in the European standard EN 60849 • TOA follows these requirements with its systems of the

  4. Venas Systems • VM-2000-Series • The integrated PA System Manager for small to medium sized PA systems, 120 or 240 watts • VX-2000-Series • The modular System for medium to large PA systems • Fully compatible with EN 60849 • Easy system configuration via PC • Easy maintenance via PC

  5. VX-2000 Secure Security

  6. Applications Announcement Backgroundmusic Alarm 8 Inputs Connections 50 Speaker Lines 128 ControlInputs 128 ControlOutputs Surveillanceacc. to EN 60849 EasyMaintenance Redundancy, Economy Mode Security VX-2000 System VX-2000 RS 232C

  7. Applications BackgroundMusic VX-2000 System VX-2000

  8. VX-2000 VX-2000 VX-2000 Tuner Background Music • Matching Modules for Different Sources • different jacks: • Cinch, XLR, phone and screw terminal • balanced or unbalanced • with or without variable high- and low pass filter • gain adjustment Easy call up of signal distribution into several zones

  9. Applications Announcement BackgroundMusic VX-2000 System VX-2000

  10. Announcement (1) • System’s Remote Microphone • Up to 8 remote microphones • Free programmable buttons • Expandable up to 105 buttons • Announcements • *individual into each zone • *into groups of zones • *All-call • *with or without pre/post chime • *4 different chime sounds • Permanent or non-permanent talk button • adjustable off-time for permanent talk buttoncovered alarm button

  11. Announcement (2) • Standard Remote Microphone • Programmable access to certain zones • 2 optional Voice Announcement Boards EV-200 • Playback of up to 16 pre-recorded messages • manually activated announcements • Timer-controlled announcements • Programmable access of certain messages to certain zones

  12. Applications Announcement BackgroundMusic Alarm VX-2000 System VX-2000

  13. Alarm (1) • Voice-Alarm with Pre-Recorded Messages • Automatic Alarm • Control via Fire Detecting System • Warning and Evacuation programmable for each fire area • Manual Alarm • Control from system’s remote microphonevia covered Alarm button • Warning or evacuation programmable Control from Fireman’s Microphone • selectable warning message for selectable fire areas • selectable evacuation message for selectable fire areas

  14. Alarm (2) • Fireman’s Microphone • Acoustically monitored rigid microphone • Free programmable buttons • Activation warning message • Activation evacuation message • Activation all-clear message • Zone selection for paging • Failure indication • Expandable up to 105 buttons • All-call paging possible in case of CPU failure

  15. FDS Automatic Fire Area Related Alarm (Example) • Tower Building with Several Fire Areas • Fire in the 5th floor • the fire detecting system (FDS) controlsthe VX-2000 specifically • The VX-2000 starts an Evacuation message for the 5th and 6th floor • It also starts a Warning message for the other floorssimultaneously • The fire increases • The fire detecting system controlsfurther control inputs of the VX-2000 VX-2000 • The VX-2000 starts anEvacuation message for all floors FDS FDS

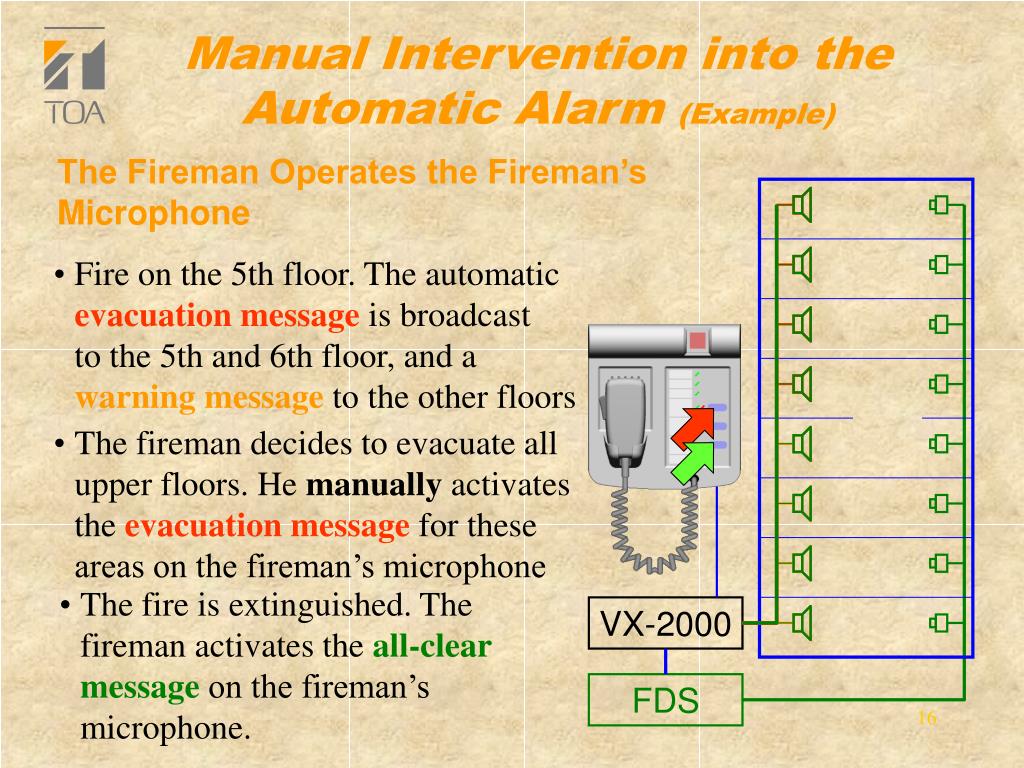

  16. FDS Manual Intervention into the Automatic Alarm (Example) • The Fireman Operates the Fireman’s Microphone • Fire on the 5th floor. The automatic evacuation message is broadcast to the 5th and 6th floor, and a warning messageto the other floors • The fireman decides to evacuate all upper floors. He manually activates the evacuation messagefor these areas on the fireman’s microphone • The fire is extinguished. The fireman activates the all-clear messageon the fireman’s microphone. VX-2000

  17. Application Announcement BackgroundMusic Alarm 8 Inputs Connections 128 ControlInputs VX-2000 System VX-2000

  18. Inputs • Audio Inputs • 8 Module Slots • for connection of up to 15 sound sources(8 system remote microphones, 7 further sources) • different jacks: • Cinch, XLR, phone, screw terminal, RJ45 • balanced or unbalanced • with or without variable high and low pass filter • gain control • Control Inputs • 16 control inputs at the matrix • expandable up to 128 control inputs

  19. Application Announcement BackgroundMusic Alarm 8 Inputs Connections 50 Speaker Lines 128 ControlInputs 128 ControlOutputs VX-2000 System VX-2000

  20. Outputs • 50 Speaker Lines 100 Volt Amplifier with: 4 x 60 W • 2 x 120 W • 1 x 240 W • 1 x 420 W • full surveillance • Control Outputs: • 16 control outputs on the matrix • expandable up to 128 control outputs

  21. Applications Announcement BackgroundMusic Alarm 8 Inputs Connections 50 Speaker Lines 128 ControlInputs 128 Steuer-ausgänge VX-2000 System VX-2000 RS 232C

  22. RS 232C Interface • Connection with PC • Easy-to-Use Software on Windows™ • Configuration of the system • Maintenance and inspection • Reading the log file

  23. Application Announcement BackgroundMusic Alarm 8 Inputs Connections 50 Speaker Lines 128 ControlInputs 128 ControlOutputs Surveillanceacc. to EN 60849 Security VX-2000 System VX-2000 RS 232C

  24. pre-ampli-fier pre-ampli-fier internal signal path power amplifier microphonecapsule,acoustically Matrix System microphone cable connection line pre-ampli-fier connection line speaker circuit Surveillance of theCritical Signal Path • Surveillance of The Audio Paths Without Gap

  25. Power Supply AC mains power supply Fuses Matrix System CPU Battery Battery Communication line CPU Secondary power supply Surveillance of the System Availability • Power Supply and Controls CPU

  26. Failure Signalization (1) • On the System’s Remote Microphone • Fixed indication: • Any failure • Line failure on the zone buttons • Free programmable • Failure of a certain part (e.g. battery) • Failure of a group(e.g. amplifiers) with acoustical signalizationaccording to EN 60849 • Receipt button

  27. Failure Signalization (2) • Via Control Outputs • Any combination of single failures : • Failure of a certain element (e.g. battery) • Failure Group (e.g. amplifiers) • any (possible) failure to be indicated on the fireman’s panel for automatic control of replacement devices (if not available with the system already)

  28. Application Announcement BackgroundMusic Alarm 8 Inputs Connections 50 speaker lines 128 ControlInputs 128 ControlOutputs Surveillanceacc. to EN 60849 Redundancy, Economy Mode Security VX-2000 System VX-2000 RS 232C

  29. Redundancy, Economy Mode (1) • Redundancy • Automatic Switch-Over to Stand-by Amplifier • Power Supply can be designed redundant (at a power supply unit’s loss, another power supply unit takes over the supply) • If the CPU fails, it is still possible to make an all-call from the fireman’s microphone • Automatic Reset • Surveillance and automatic Reset of the CPU via Watchdog timer

  30. Redundancy, Economy Mode (2) • Economy Mode • Stand-by Function of Power Amplifiers • In economy mode, the power consumption of the power amplifiers is reduced when not in use • At battery operation the current consumption is extremely reduced, and the battery’s capacity can be designed lower than usual • quick readiness of the power amplifiers

  31. Application Announcement BackgroundMusic Alarm 8 Inputs Connections 50 speaker lines 128 ControlInputs 128 ControlOutputs Surveillanceacc. to EN 60849 Installation &Maintenance Redundancy, Economy Mode Security VX-2000 System VX-2000 RS 232C

  32. Installation & Maintenance • Maintenance Software on Windows™ • Installation Support • Initial measuring of the speaker lines via PC • Easy Maintenance • Configuration Check • Comparison PC setting - system setting • Connection Check • Check of all internal wiring • Surveillance Check • automatic check of all monitored elements, manual check of the buttons • Emergency Check • Check of the emergency functions with or without broadcast of warning and evacuation messages

  33. Announcement BackgroundMusic Alarm 8 Inputs 50 Speaker lines 128 ControlInputs 128 ControlOutputs Surveillanceacc. to EN 60849 Installation &Maintenance Redundancy, Economy Mode V enas VX-2000 System VX-2000 RS 232C V ... even more than EN 60849

  34. V enas V We want to inform you ... ... just ask…..
