  1. Networks (1) 1304230 Dr. Shadi R. Masadeh Email: sh_almasadeh@asu.edu.jo– Ext. 1428 CNS Department Faculty of Information Technology (FIT)

  2. Networks (1) 1304230 • Prerequisite: 1304130 • Course Description • Text Book: “ TCP/IP Protocol Suite: Behrouz A. Forouzan, McGrawHill, Third Edition, 2006 ” • References:   “ Data & Computer Networks: W. Stallings, Prentice Hall, Seventh Edition, 2004 “

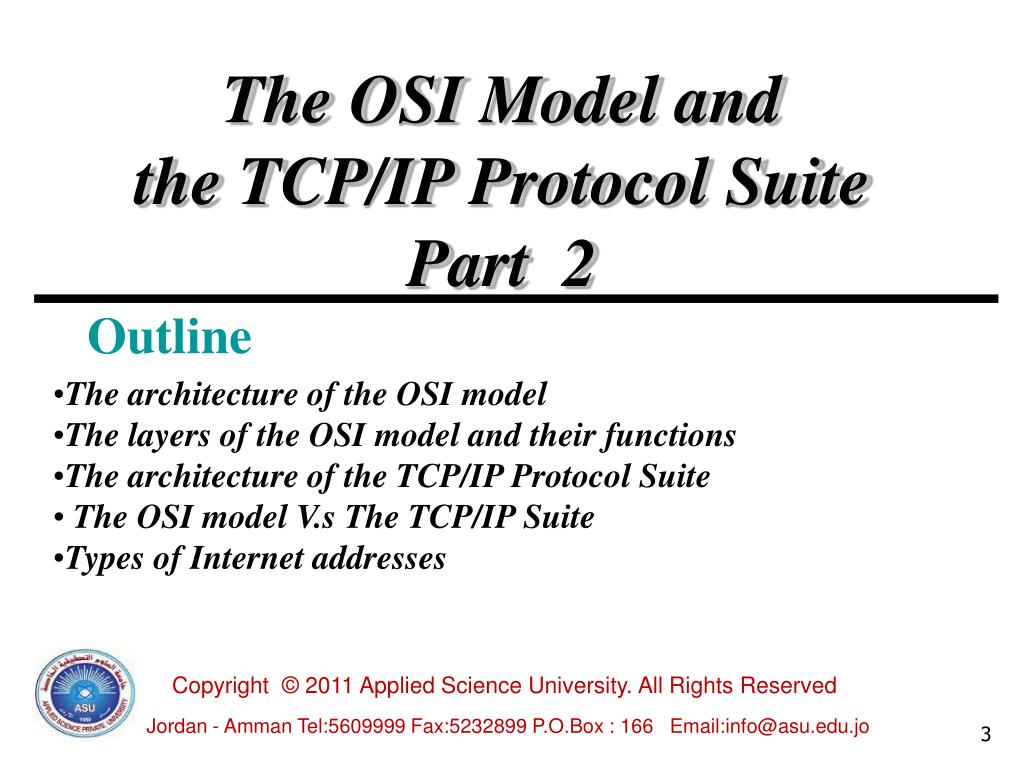

  3. The OSI Model andthe TCP/IP Protocol Suite Part 2 Outline • The architecture of the OSI model • The layers of the OSI model and their functions • The architecture of the TCP/IP Protocol Suite • The OSI model V.s The TCP/IP Suite • Types of Internet addresses 3

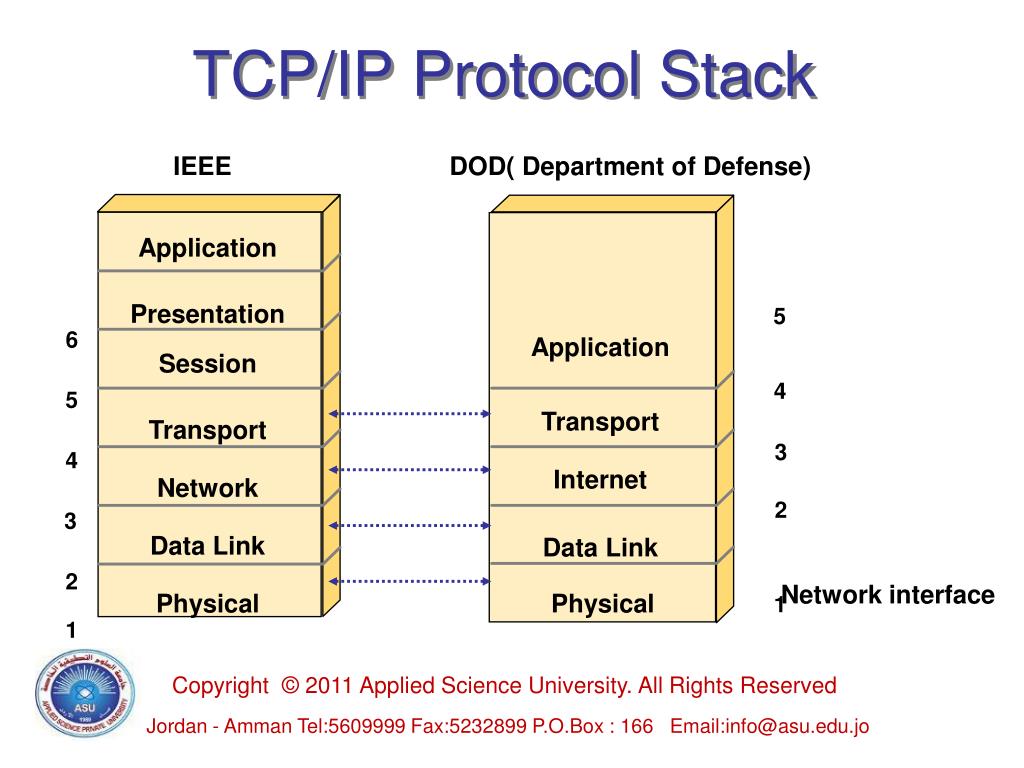

  4. IEEE DOD( Department of Defense) 5 Application Presentation 4 Application Session 3 Transport Transport 2 Internet Network Data Link Data Link Physical Physical TCP/IP Protocol Stack 7 6 5 4 3 2 1 1 Network interface

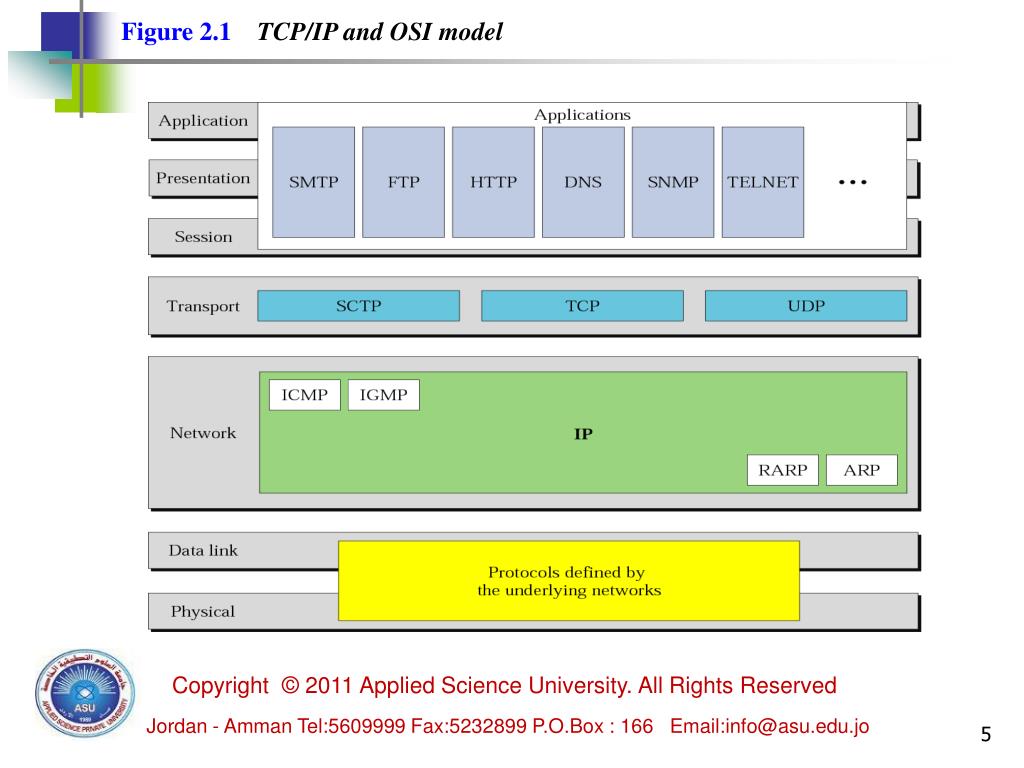

  5. Figure 2.1TCP/IP and OSI model 5

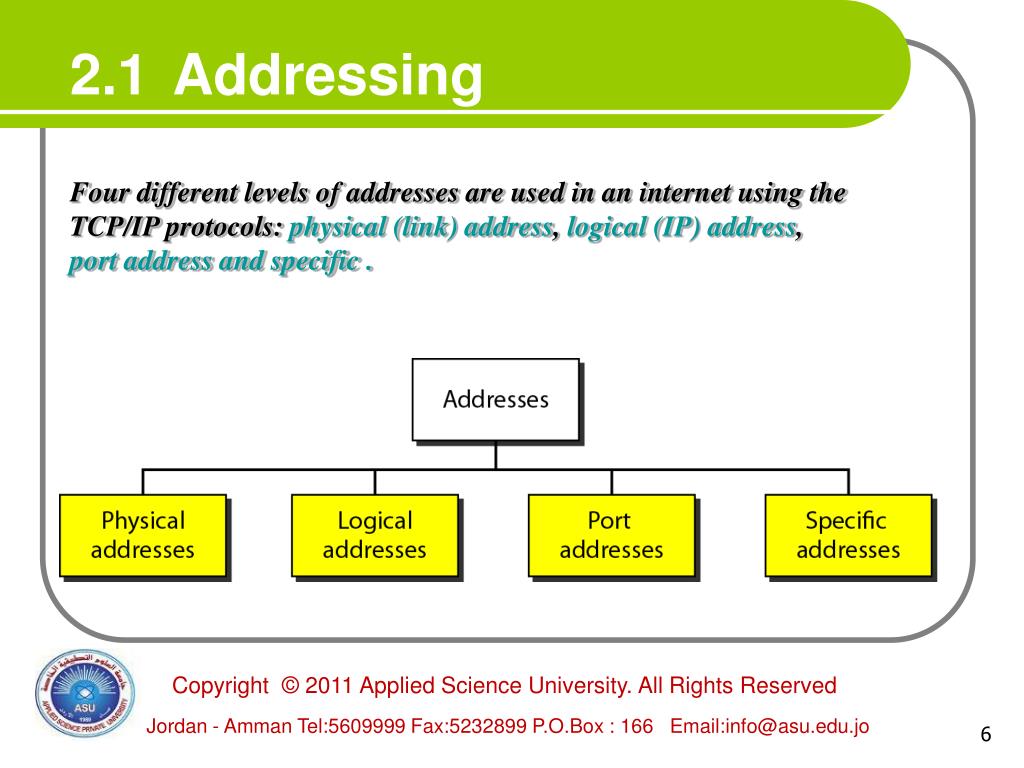

  6. 2.1 Addressing Four different levels of addresses are used in an internet using the TCP/IP protocols: physical (link) address, logical (IP) address, port addressand specific . 6

  7. Figure 2.2Relationship of layers and addresses in TCP/IP 7

  8. Figure 2.3 Physical addresses 8

  9. Figure 2.4Logical addresses 9

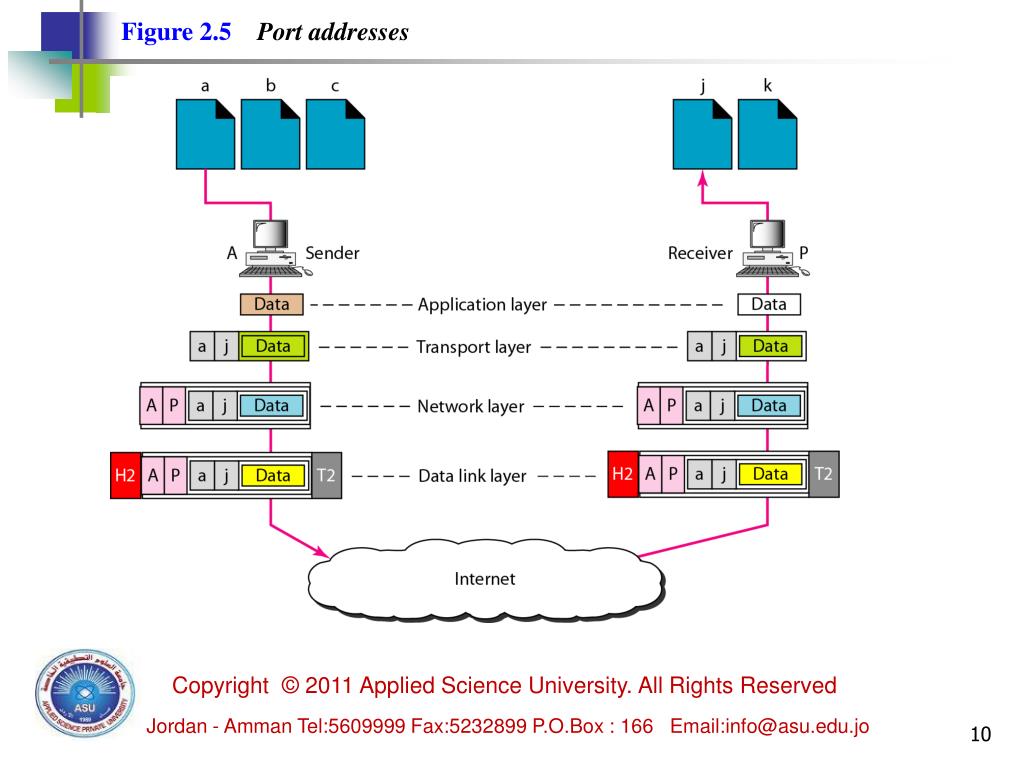

  10. Figure 2.5Port addresses 10
