The Sine Rule

The Sine Rule. C. McMinn. a sin A. b sin B. c sin C. = =. SOH/CAH/TOA can only be used for right-angled triangles. The Sine Rule can be used for any triangle:. C. b. The sides are labelled to match their opposite angles . a. A. B. c. The Sine Rule:. A. Example 1 :.

laqueta
Download Presentation

The Sine Rule

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Sine Rule C. McMinn

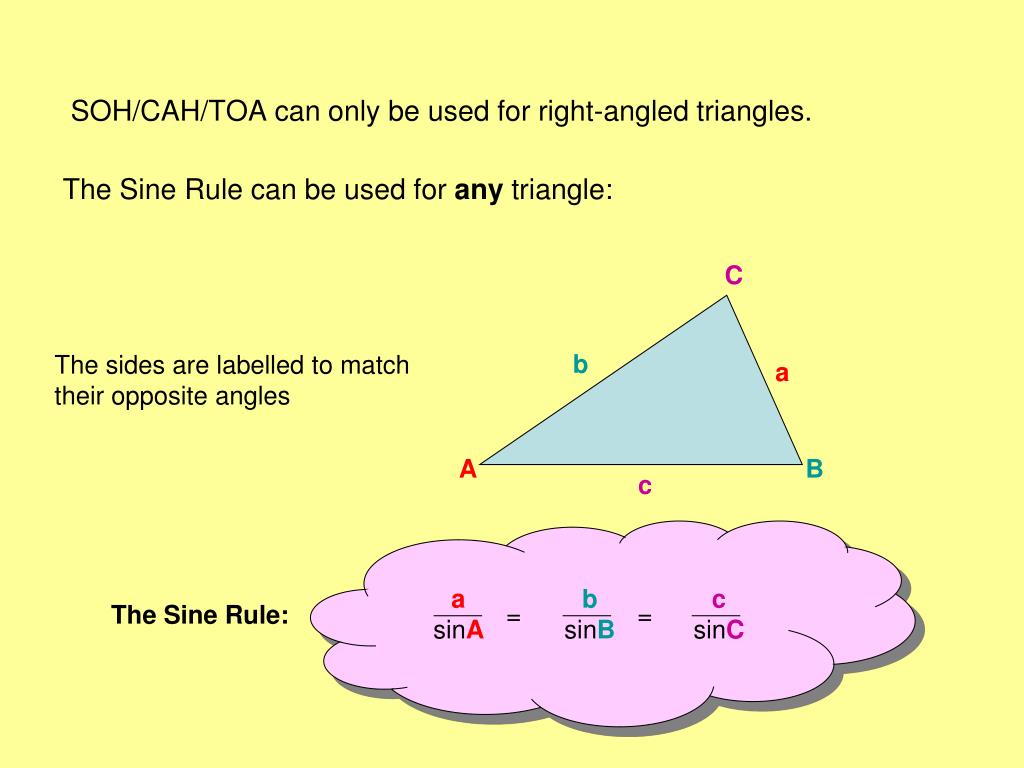

  2. a sinA b sinB c sinC = = SOH/CAH/TOA can only be used for right-angled triangles. The Sine Rule can be used for any triangle: C b The sides are labelled to match their opposite angles a A B c The Sine Rule:

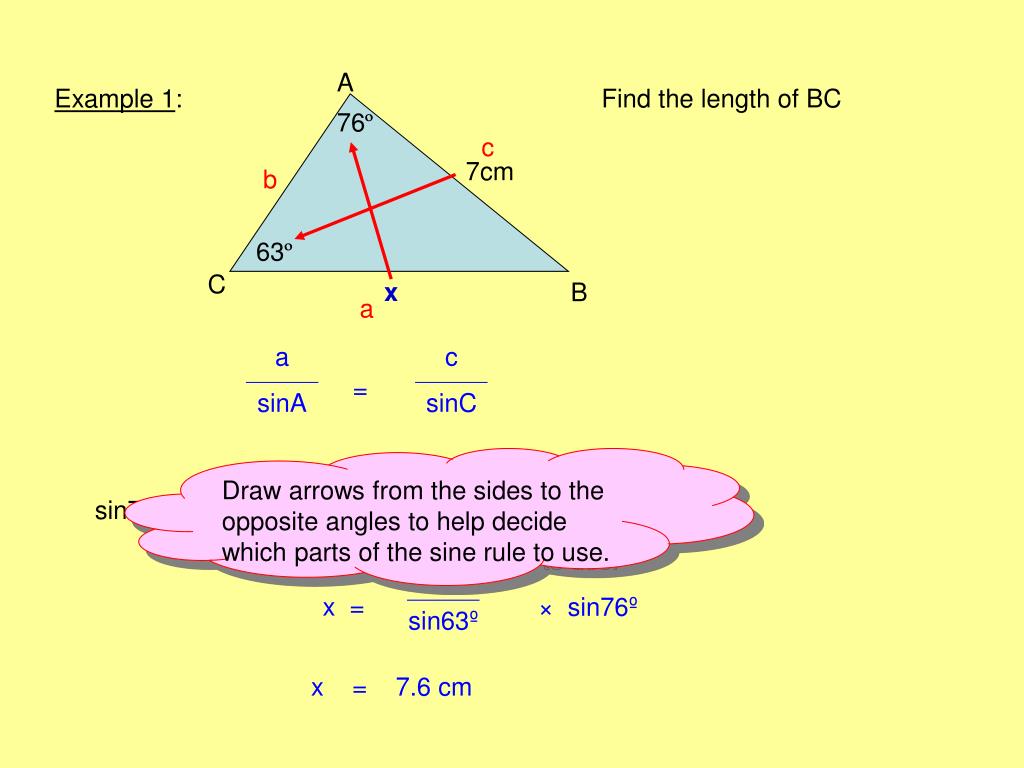

  3. A Example 1: Find the length of BC 76º c 7cm b 63º C x B a a sinA c sinC = Draw arrows from the sides to the opposite angles to help decide which parts of the sine rule to use. x sin76º 7 sin63º sin76º × = × sin76º 7 sin63º x = ×sin76º x = 7.6 cm

  4. P Example 2: Find the length of PR 82º x r q 43º 55º Q 15cm R p p sinP q sinQ = Draw arrows from the sides to the opposite angles to help decide which parts of the sine rule to use. 15 sin82º x sin43º sin43º × = × sin43º 15 sin82º = x sin43º × x = 10.33 cm

  5. G B 3. 1. 2. F 53º 13 cm 41º x 8.0 35.3 5.5 x 62º A x 130º 28º D E 5 cm 63º 76º C H 26 mm I 10.7 4. 5.2 cm 5. x 61º R 6. P 37º 66º 57º 10 m 35º x 5.2 77º 62º Q 12 cm 6 km 85º 7. x 6.6 65º 86º x 6.9

  6. Remember: • Draw a diagram • Label the sides • Set out your working exactly as you have been shown • Check your answers regularlyand ask for help if you need it

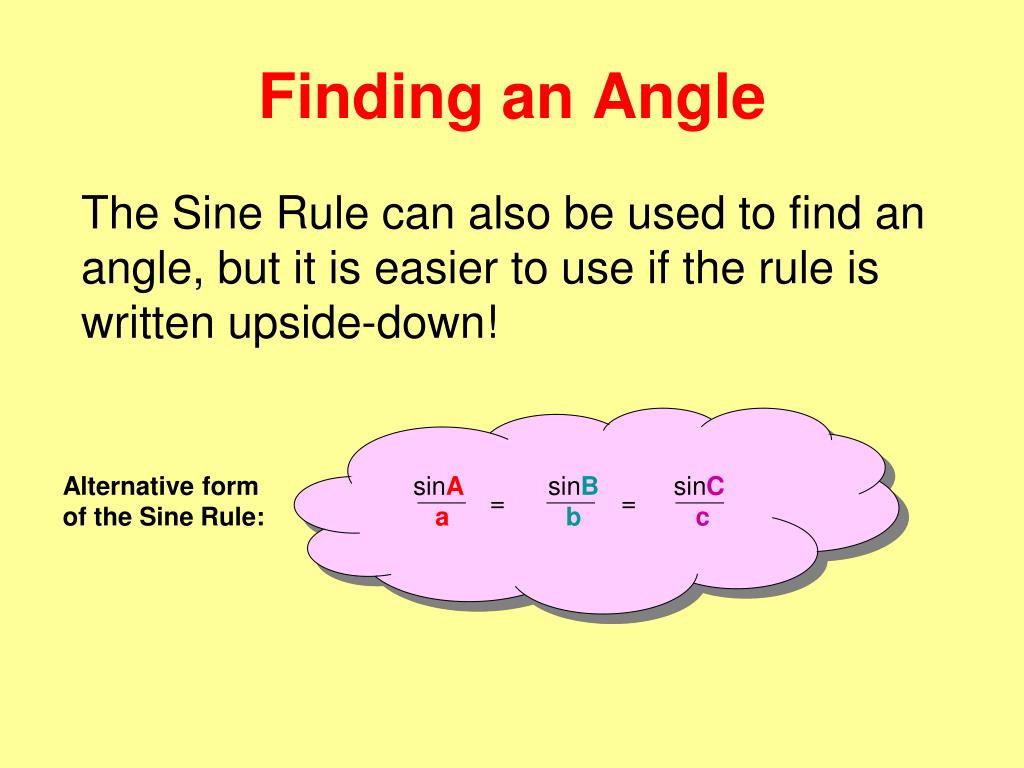

  7. sinA a sinB b sinC c = = Finding an Angle The Sine Rule can also be used to find an angle, but it is easier to use if the rule is written upside-down! Alternative form of the Sine Rule:

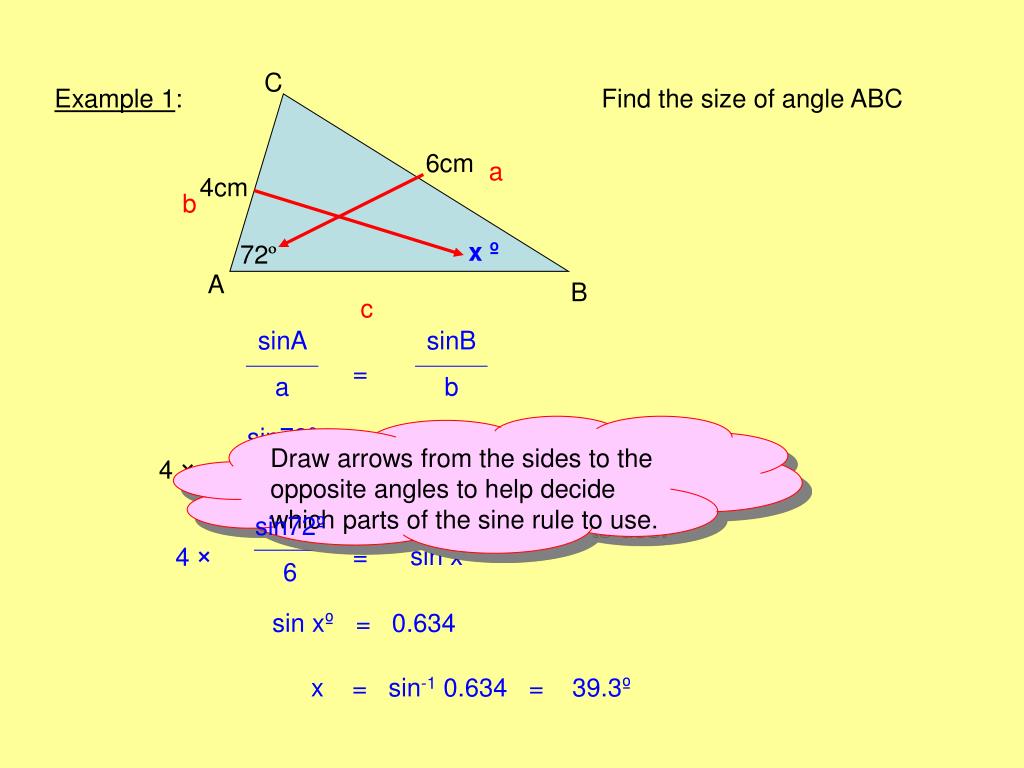

  8. C Example 1: Find the size of angle ABC 6cm a 4cm b x º 72º A B c sinA a sinB b = Draw arrows from the sides to the opposite angles to help decide which parts of the sine rule to use. sin72º 6 sin xº 4 4× = × 4 sin72º 6 = sin xº 4× sin xº = 0.634 x = sin-1 0.634 = 39.3º

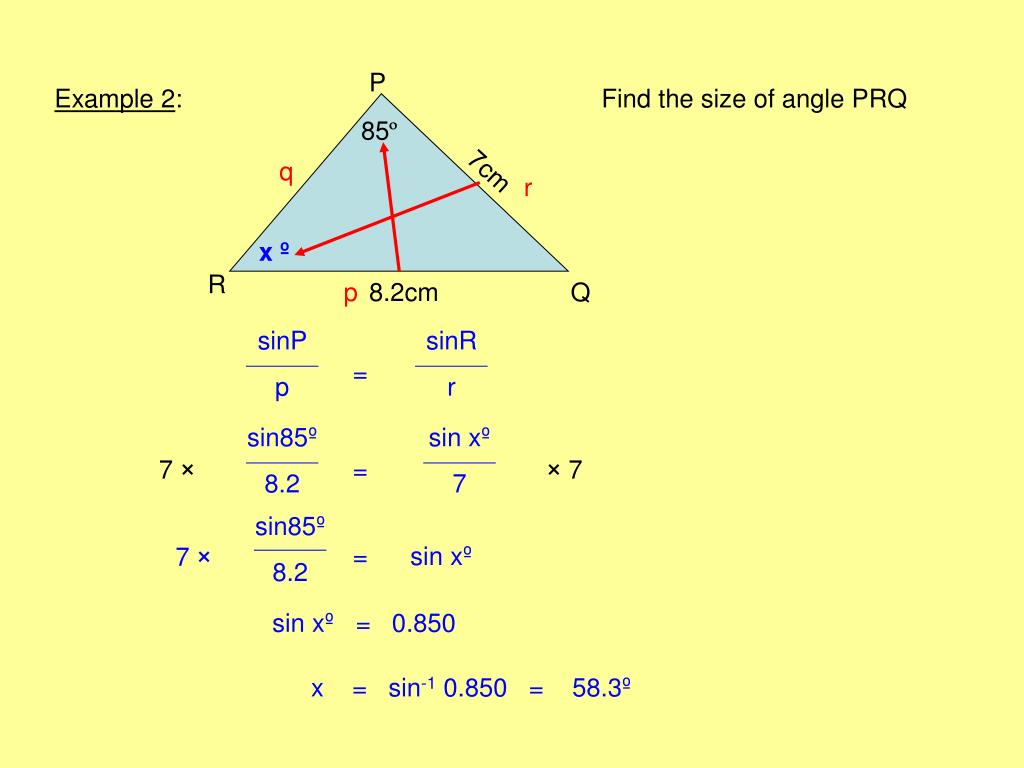

  9. P Example 2: Find the size of angle PRQ 85º q 7cm r x º R p 8.2cm Q sinP p sinR r = sin85º 8.2 sin xº 7 7× = × 7 sin85º 8.2 = sin xº 7× sin xº = 0.850 x = sin-1 0.850 = 58.3º

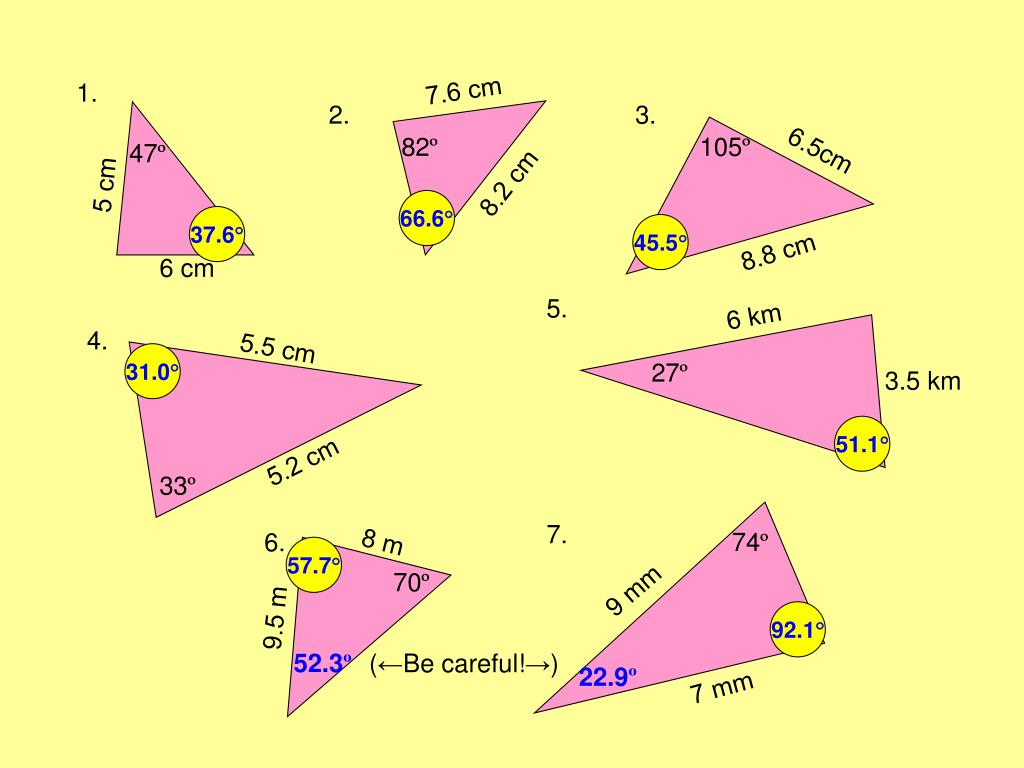

  10. 7.6 cm 1. 2. 3. 82º 105º 6.5cm 47º 5 cm 8.2 cm 66.6° xº 37.6° xº 45.5° xº 8.8 cm 6 cm 5. 6 km 4. 5.5 cm 31.0° xº 27º 3.5 km 51.1° xº 5.2 cm 33º 7. 6. 8 m 74º 57.7° xº 70º 9 mm 9.5 m 92.1° xº 52.3º (←Be careful!→) 22.9º 7 mm

  11. Remember: • Draw a diagram • Label the sides • Set out your working exactly as you have been shown • Check your answers regularlyand ask for help if you need it
