  1. Valence-based Connectivity Coding Hu Jianwei 2007-11-07

  2. Why Mesh Compression • Slow networks require data compression to reduce the latency • Small storage devices need data compression to save space

  3. Surface Based Meshes • Connectivity • How the vertices connect with each other • Geometry • Coordinates of the vertices vertex1 ( x, y, z ) vertex2 ( x, y, z ) vertex3 ( x, y, z ) vertexv face1 1 2 3 4 face2 3 4 3 face3 5 2 1 3 facef

  4. Classification • Connectivity encoding • Geometry encoding • Single-rate compression • Progressive compression

  5. Valence-based Compression • Triangle Mesh Compression [98 Touma & Gotsman] • Valence-Driven Connectivity Encoding for 3D Meshes [01 Alliez & Desbrun] • Near-Optimal Connectivity Encoding of 2-Manifold Polygon Meshes [02 Khodakovsky et al.] • Compressing Polygon Mesh Connectivity with Degree Duality Prediction [02 Isenburg]

  6. Key Observation 98 Touma & Gotsman • A genus-0 manifold mesh is topologically equivalent to a planar graph • The vertices incident on any mesh vertex may be ordered

  7. Code Words 98 Touma & Gotsman • The topology may be encoded with: • add<degree> • split<offset> • merge<index><offset> • Then entropy encoded • Huffman • arithmetic • run-length

  8. Example Traversal 98 Touma & Gotsman

  9. Example Traversal 98 Touma & Gotsman

  10. Example Traversal 98 Touma & Gotsman

  11. Example Traversal 98 Touma & Gotsman

  12. Example Traversal 98 Touma & Gotsman

  13. Example Traversal 98 Touma & Gotsman

  14. Example Traversal 98 Touma & Gotsman

  15. Example Traversal 98 Touma & Gotsman

  16. Example Traversal 98 Touma & Gotsman

  17. Example Traversal 98 Touma & Gotsman

  18. Example Traversal 98 Touma & Gotsman

  19. Example Traversal 98 Touma & Gotsman

  20. Example Traversal 98 Touma & Gotsman

  21. Add dummy vertices 98 Touma & Gotsman

  22. Example Traversal 98 Touma & Gotsman

  23. Encoding 98 Touma & Gotsman

  24. Encoding 98 Touma & Gotsman

  25. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ;

  26. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ;

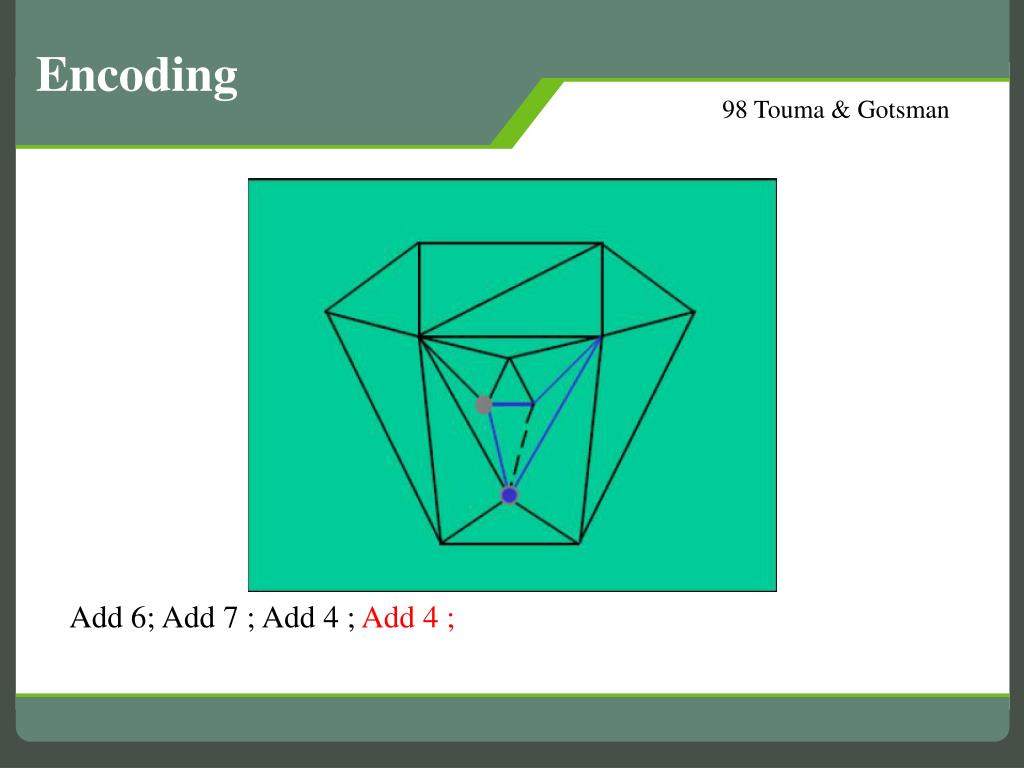

  27. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ;

  28. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ;

  29. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ;

  30. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ;

  31. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 (focus full) ;

  32. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ;

  33. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ;

  34. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ;

  35. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ;

  36. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ;

  37. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ;

  38. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ;

  39. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 (focus full) ;

  40. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ;

  41. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ;

  42. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ;

  43. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ; Add 4 (focus full);

  44. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ; Add 4 ; (focus full)

  45. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ; Add 4;

  46. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ; Add 4;

  47. Encoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ; Add 4; Huffman coding run-length coding

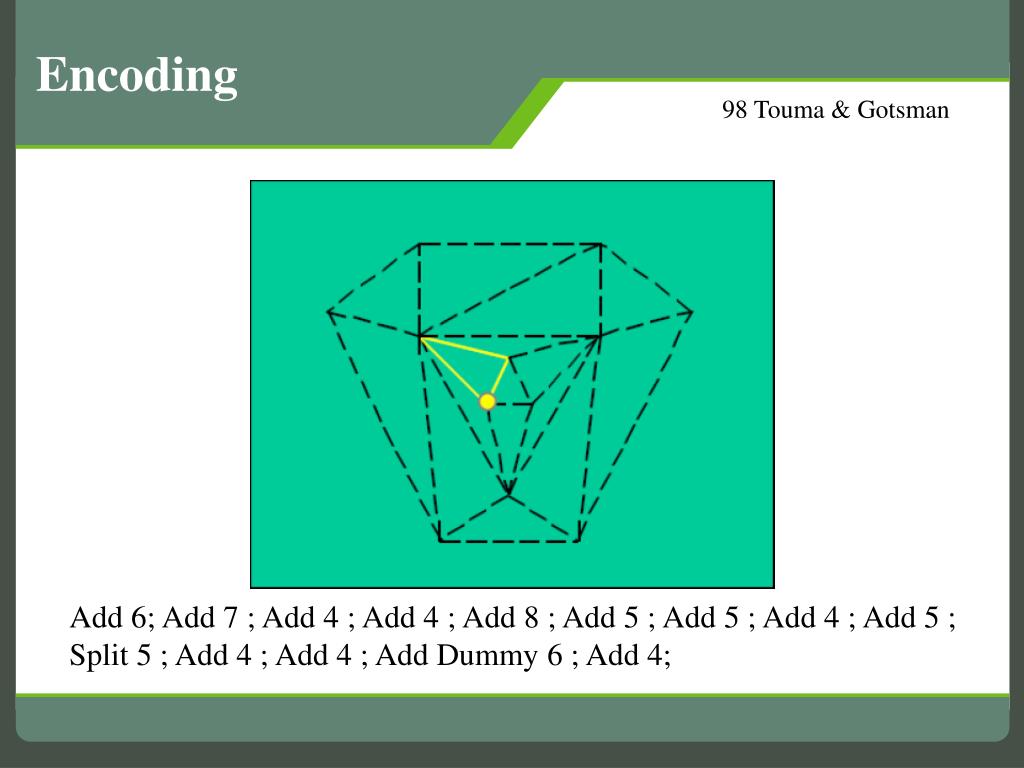

  48. Decoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ; Add 4;

  49. Decoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ; Add 4;

  50. Decoding 98 Touma & Gotsman Add 6; Add 7 ; Add 4 ; Add 4 ; Add 8 ; Add 5 ; Add 5 ; Add 4 ; Add 5 ; Split 5 ; Add 4 ; Add 4 ; Add Dummy 6 ; Add 4;
