  1. COOL for DCS Current Status and Plans Jim Cook, PVSS/Conditions DB Interface

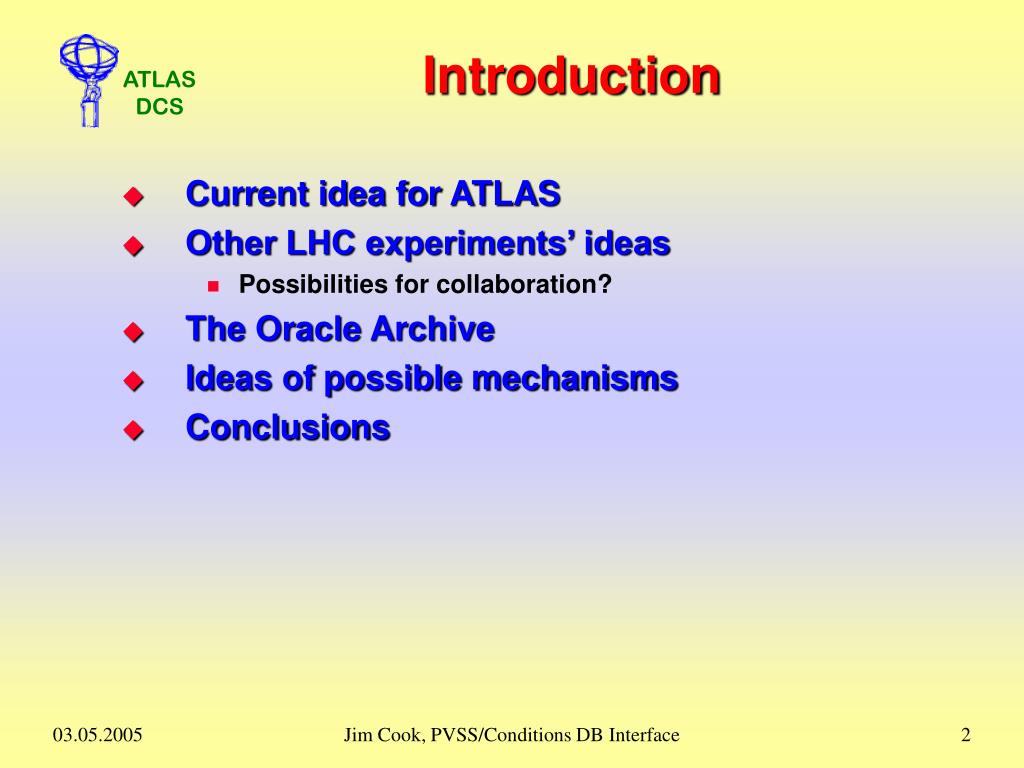

  2. Introduction • Current idea for ATLAS • Other LHC experiments’ ideas • Possibilities for collaboration? • The Oracle Archive • Ideas of possible mechanisms • Conclusions Jim Cook, PVSS/Conditions DB Interface

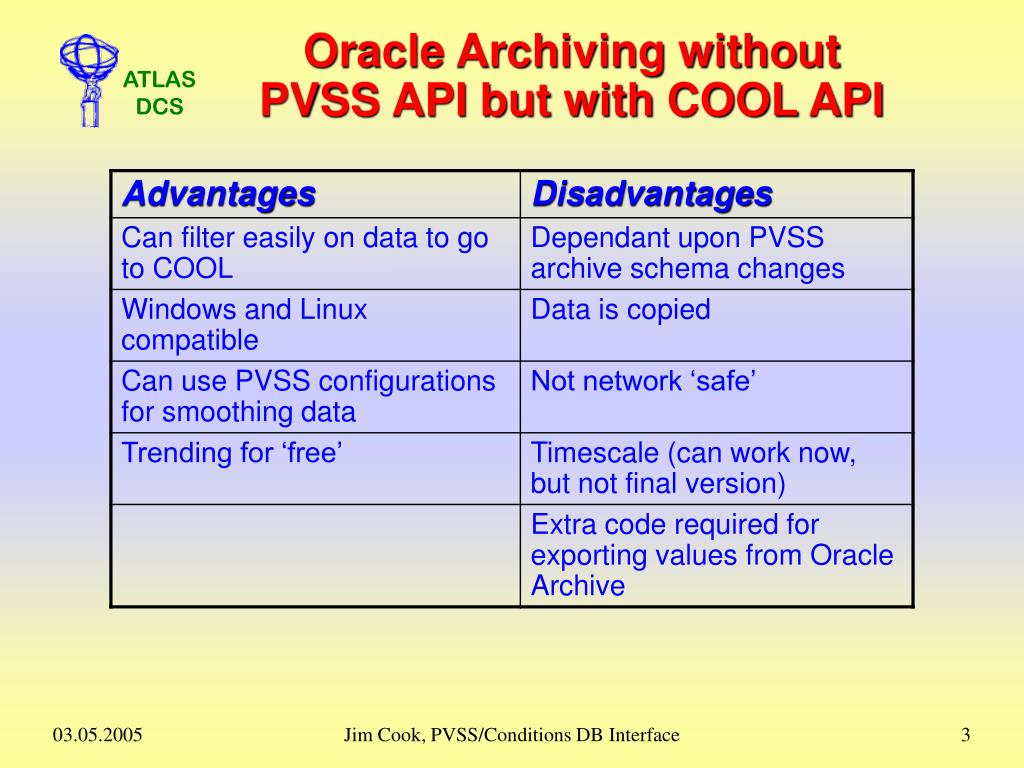

  3. Oracle Archiving without PVSS API but with COOL API Jim Cook, PVSS/Conditions DB Interface

  4. LHC Conditions DBs Alice has closest match to ATLAS. Possibility of added man-power Jim Cook, PVSS/Conditions DB Interface

  5. Signal PVSS PVSS COOL Conditions DB PVSS PVSS Oracle Archive PVSS Data Data COOL Data PVSS-COOL Process Configuration DIM-COOL Process LHCb System Overview Jim Cook, PVSS/Conditions DB Interface

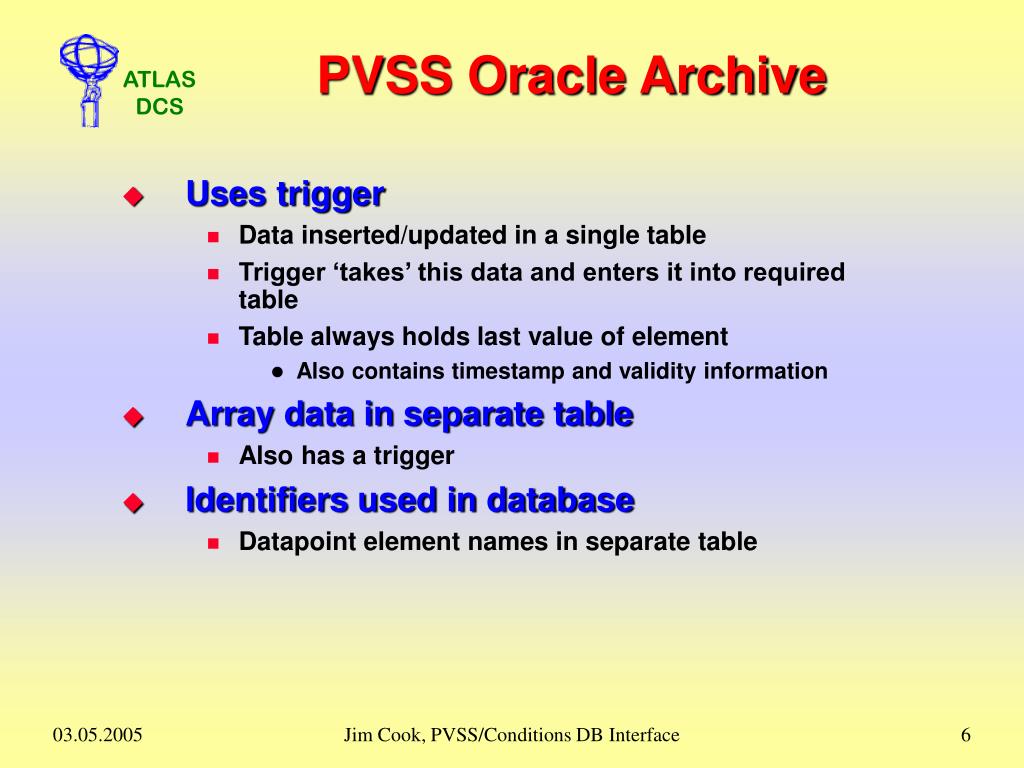

  6. PVSS Oracle Archive • Uses trigger • Data inserted/updated in a single table • Trigger ‘takes’ this data and enters it into required table • Table always holds last value of element • Also contains timestamp and validity information • Array data in separate table • Also has a trigger • Identifiers used in database • Datapoint element names in separate table Jim Cook, PVSS/Conditions DB Interface

  7. Mechanism? (I) • ‘Overload’ trigger • Enter required data into table under our control • Temporary tables • Allow to grow to pre-defined size • Create new table and ‘close’ old one • Size can be tailored for optimum performance • Use block update feature of COOL • Possible to filter data at this time • External process • Signaled when temporary table is ‘closed’ • How to signal process? Jim Cook, PVSS/Conditions DB Interface

  8. Mechanism? (II) • External Process • Uses timer(s) for when to copy data • No signalling required • Retrieve data over last time-range • Use block update feature of COOL • Could filter data at this time • No additional code required in Archive itself Jim Cook, PVSS/Conditions DB Interface

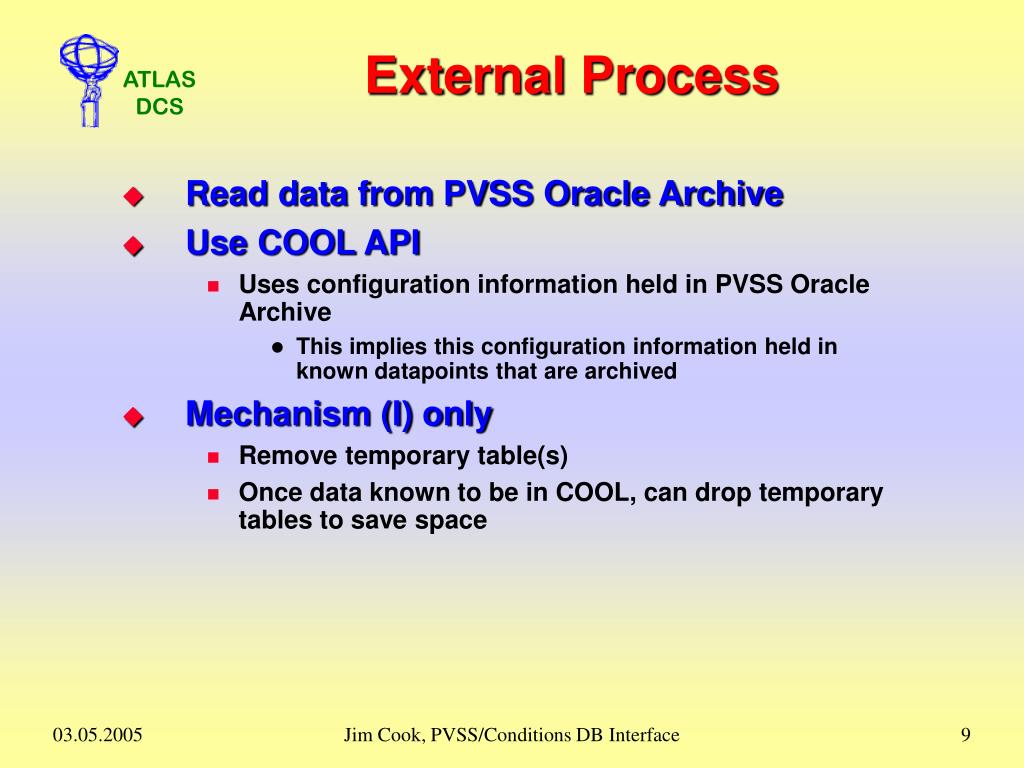

  9. External Process • Read data from PVSS Oracle Archive • Use COOL API • Uses configuration information held in PVSS Oracle Archive • This implies this configuration information held in known datapoints that are archived • Mechanism (I) only • Remove temporary table(s) • Once data known to be in COOL, can drop temporary tables to save space Jim Cook, PVSS/Conditions DB Interface

  10. Signaling • Oracle Foreign Function Interface (FFI) • Unix (SUN) and Windows • Call shared library functions • Use sockets for platform independence? • Keep function small • Fast and simple • Send name of temporary table to process • Is this permitted on CERN servers? • External process polling • Intermittent check for value in DB • When ‘true’, process table indicated • Other ideas? Jim Cook, PVSS/Conditions DB Interface

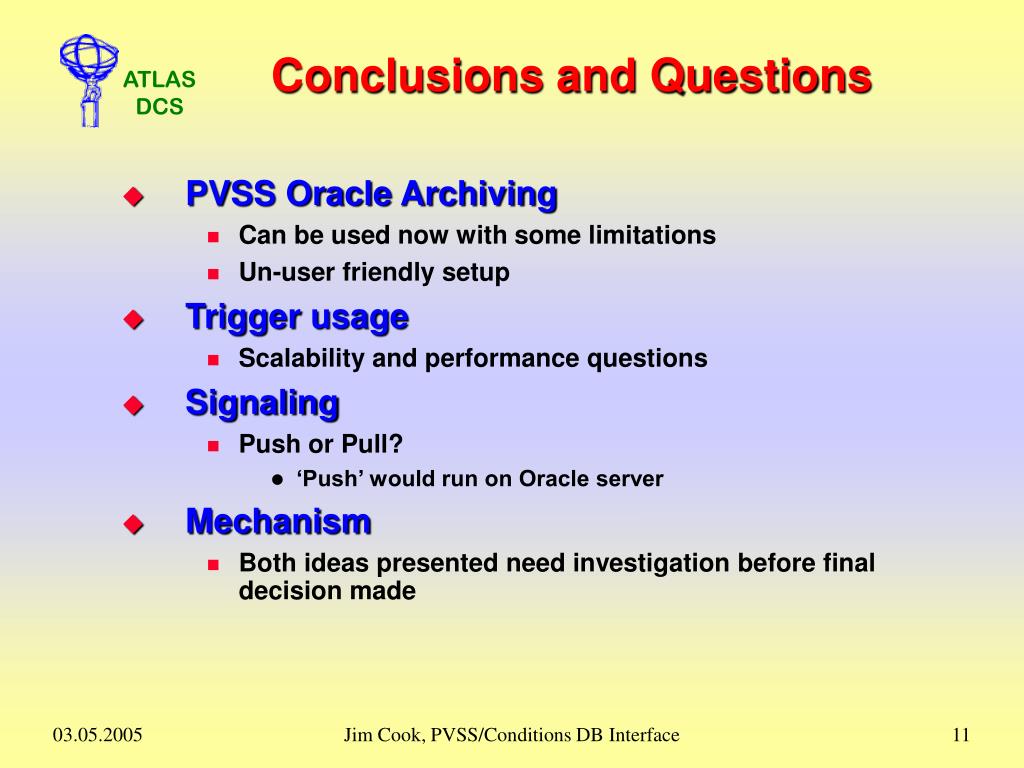

  11. Conclusions and Questions • PVSS Oracle Archiving • Can be used now with some limitations • Un-user friendly setup • Trigger usage • Scalability and performance questions • Signaling • Push or Pull? • ‘Push’ would run on Oracle server • Mechanism • Both ideas presented need investigation before final decision made Jim Cook, PVSS/Conditions DB Interface
