  1. Energy Management by January 2010

  2. Our Company and Market • Our mission: Coordinating security, temperature, and lighting for comfort, convenience and safety • We offer the best price/performance ratio in the industry • HAI has more home automation systems in use than any other company

  3. HAI: The Company • Recognized name • Industry leader since 1985 • Seventh generation products • High performance, low cost • Standard product • Profitable • Top awards

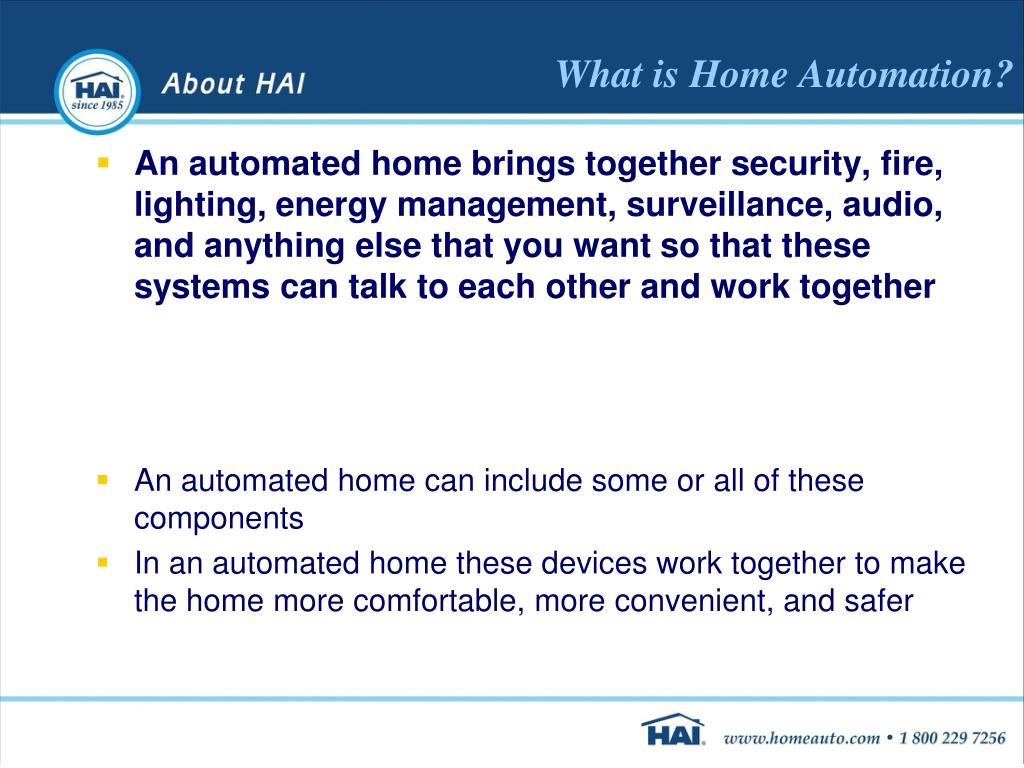

  4. What is Home Automation? • An automated home brings together security, fire, lighting, energy management, surveillance, audio, and anything else that you want so that these systems can talk to each other and work together • An automated home can include some or all of these components • In an automated home these devices work together to make the home more comfortable, more convenient, and safer

  5. HAI Systems can do it all!

  6. Central Control • Everything in the house still functions normally • For example, light switches are still light switches, push the top of the paddle to turn the light on and the bottom to turn it off • Everything in the house will work by itself without the automation system • You can control any device in the house from any interface (console, touchscreen, internet, telephone)

  7. Event Based Automation • The automation system can control devices automatically based on any event in the system. These programs are customized for the homeowner to do anything they want. • Manage temperatures, lights, and heavy duty loads based on schedule and/or occupancy • When I arm the security system in AWAY turn all lights off, set back thermostat, turn off the hot water heater • Turn the light on in a dark hallway if someone walks through a motion detector and turn it off after 30 seconds

  8. Temperature Control • Heating and cooling account for about 56% of the energy use in a typical U.S. home according to the U.S. Department of Energy

  9. HAI Omnistat II Thermostats • Stand Alone • Operates like a conventional thermostat • Communicating • Built in Serial Connection • Optional Ethernet • Optional ZigBee, Z-Wave, and other wireless available • UL, UL-C, FCC, CE approvals • EPA Energy Star Listed

  10. Simple and intuitive Proximity Sensor Available in White, Black, or Silver Backlight can be set to over 100 colors Displays Outdoor Temperature (with sensor) Compatible with 95% of residential and light commercial systems Backlighted thermostats

  11. Omnistat Capabilities • Compressor short-cycle protection • Optical isolation for long term reliability • High/Low Setting Limits • Control Lock Out • Non-volatile Memory - No Batteries Required • Filter Reminder Feature / FILE (Filter Exchange) • Celsius or Fahrenheit / 24 Hour or AM/PM • Adjustable Cycle Times (Energy Saving) • Day/Night Modes • Displays Outdoor Temperature

  12. RC2000 Single Stage Conventional Two Stage Conventional Heat Pump Multi Stage Heat Pump Dual Fuel Heat Pump Master Thermostat for Zone Control Humidity Dehumidification Dehumidifier Fan Speed Control RC1000 Single Stage Conventional Heat Pump Choose Your Model

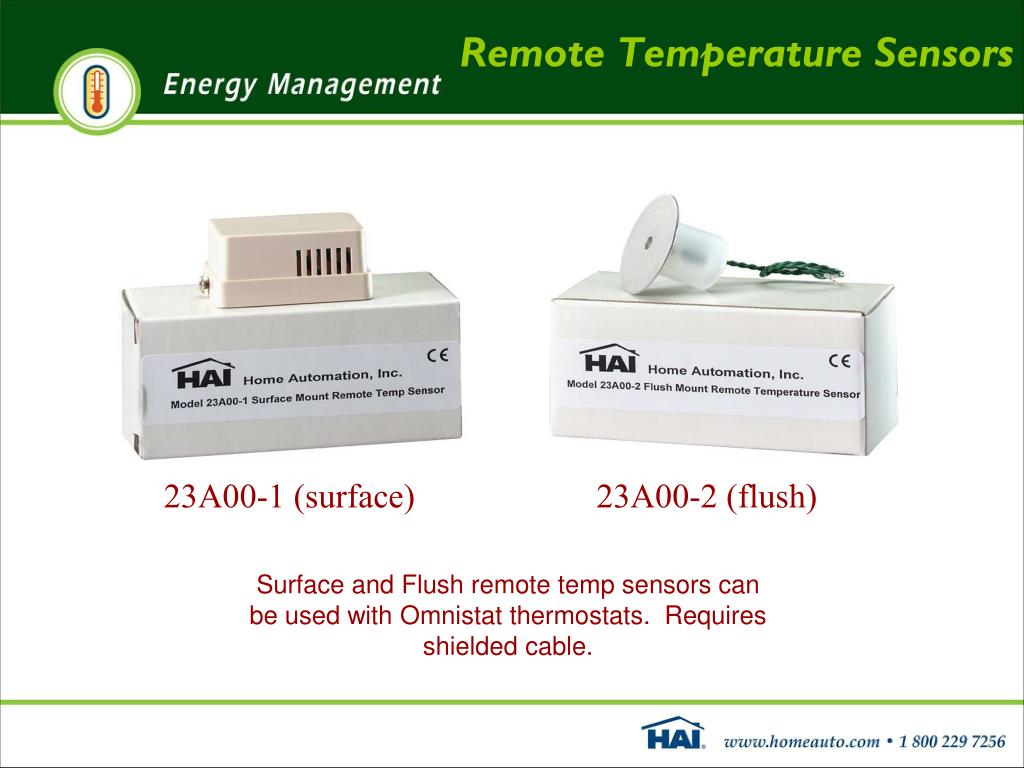

  13. Remote Temperature Sensors 23A00-1 (surface) 23A00-2 (flush) Surface and Flush remote temp sensors can be used with Omnistat thermostats. Requires shielded cable.

  14. Main Menu

  15. Warning

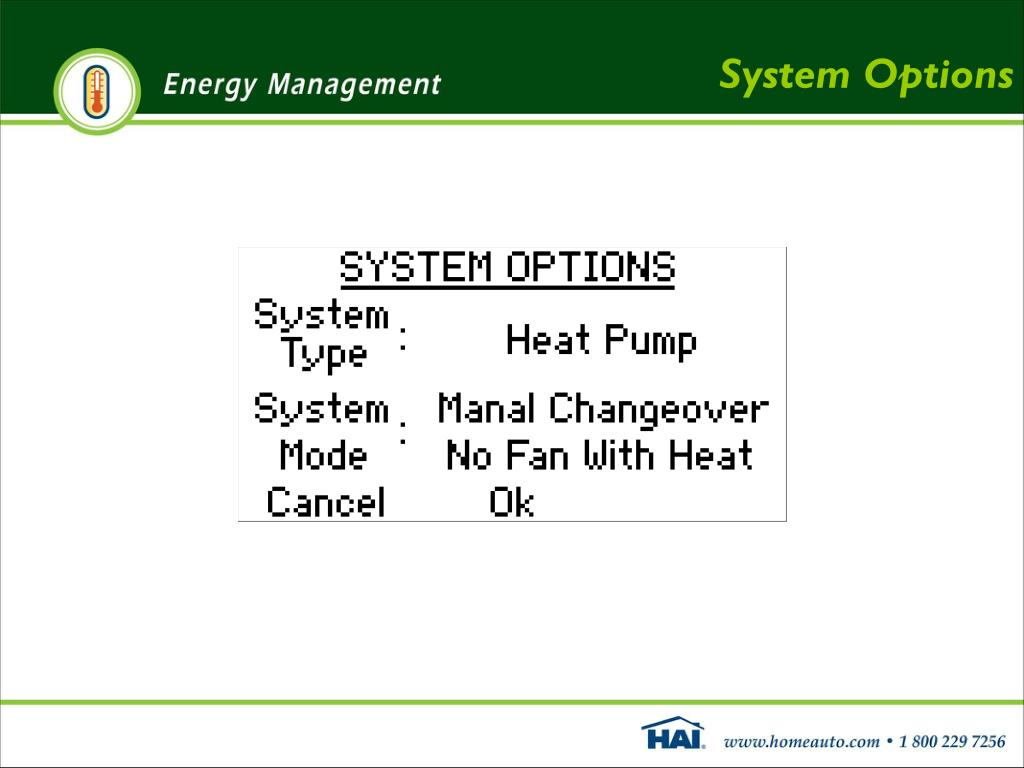

  16. System Options

  17. Stage Settings

  18. Humidity Options

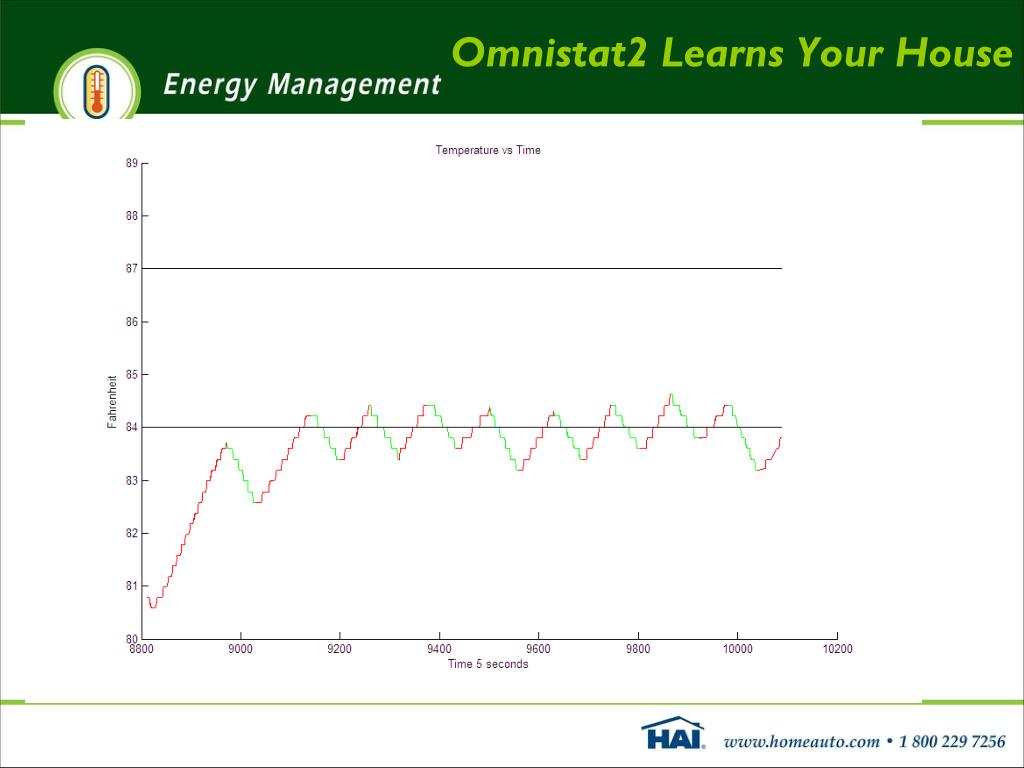

  19. Omnistat2 Learns Your House

  20. System Runtime Information

  21. Filter Reminder • Having a dirty filter can reduce efficiency by 5%

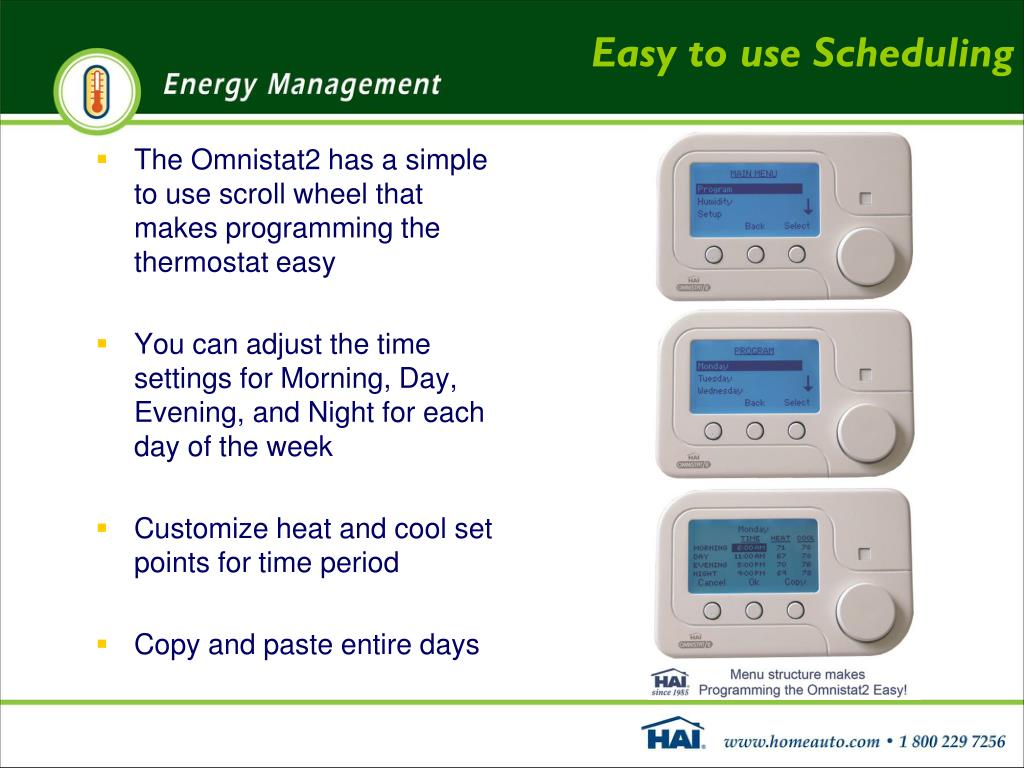

  22. The Omnistat2 has a simple to use scroll wheel that makes programming the thermostat easy You can adjust the time settings for Morning, Day, Evening, and Night for each day of the week Customize heat and cool set points for time period Copy and paste entire days Easy to use Scheduling

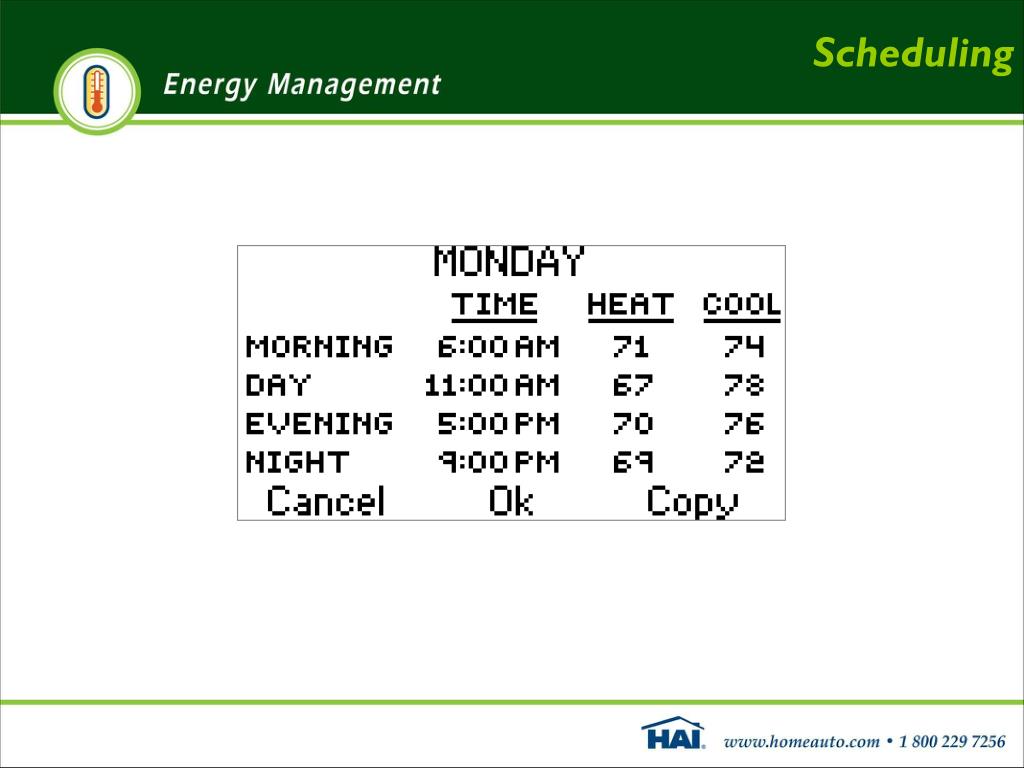

  23. Scheduling

  24. Omnistat2 thermostats can communicate with your electric meter with participation from your local utility View information such as: Current cost of energy How much energy you have used How much your utility bill will be this month Set back temperatures based on demand Coming soon to a Utility near you

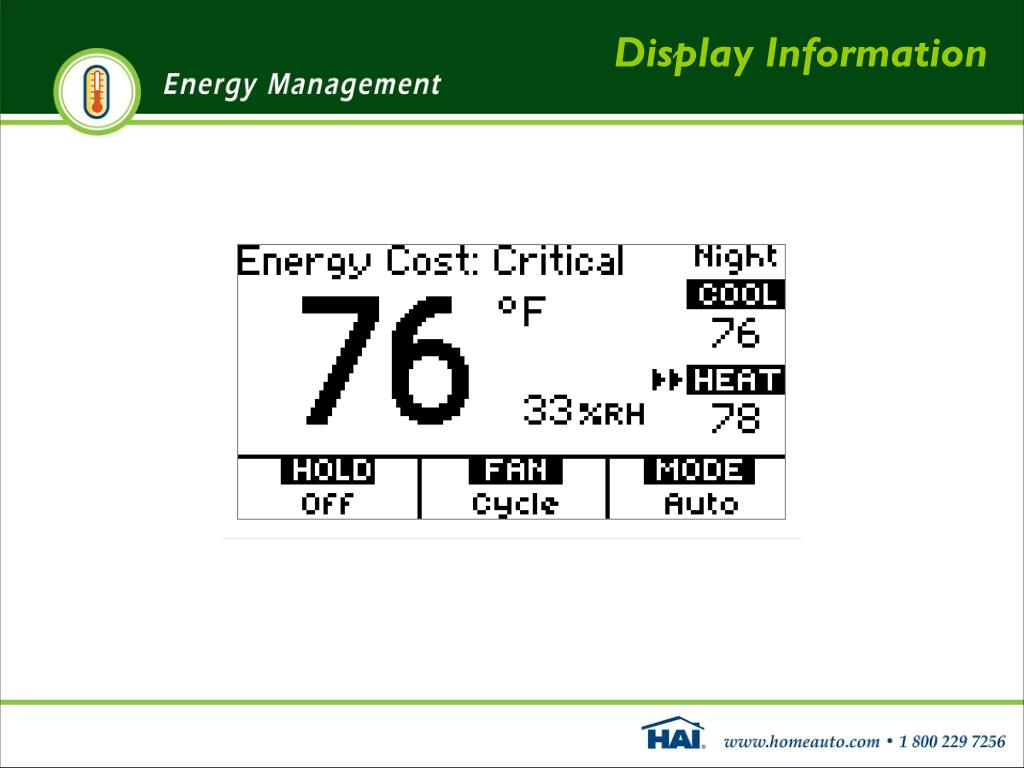

  25. Display Information

  26. Energy Cost

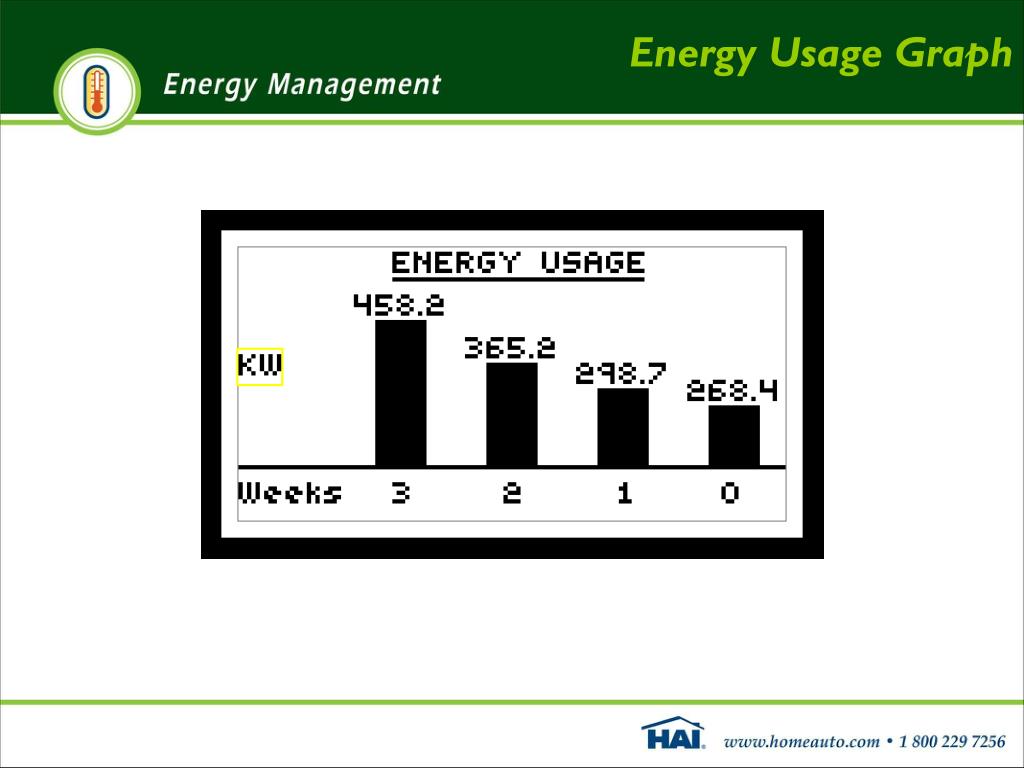

  27. Energy Usage Graph

  28. Demand Setbacks

  29. Temperature and Humidity Sensors 31A00-7 Extended Range Indoor/Outdoor Temp Sensor 14A00-8 Water Temp Sensor 31A00-8 Extended RangeTemp and Humidity Sensor

  30. Energy Management Temperature and humidity sensors may be used for temperature based programming of events.

  31. Energy Management Temperature sensors can be used to control the temperatures in attics, garages, greenhouses, basements, wine cellars or coolers.

  32. Heavy Duty Load Control • According to the Department of Energy 14%-25% of the energy used in home is used by your hot water heater.

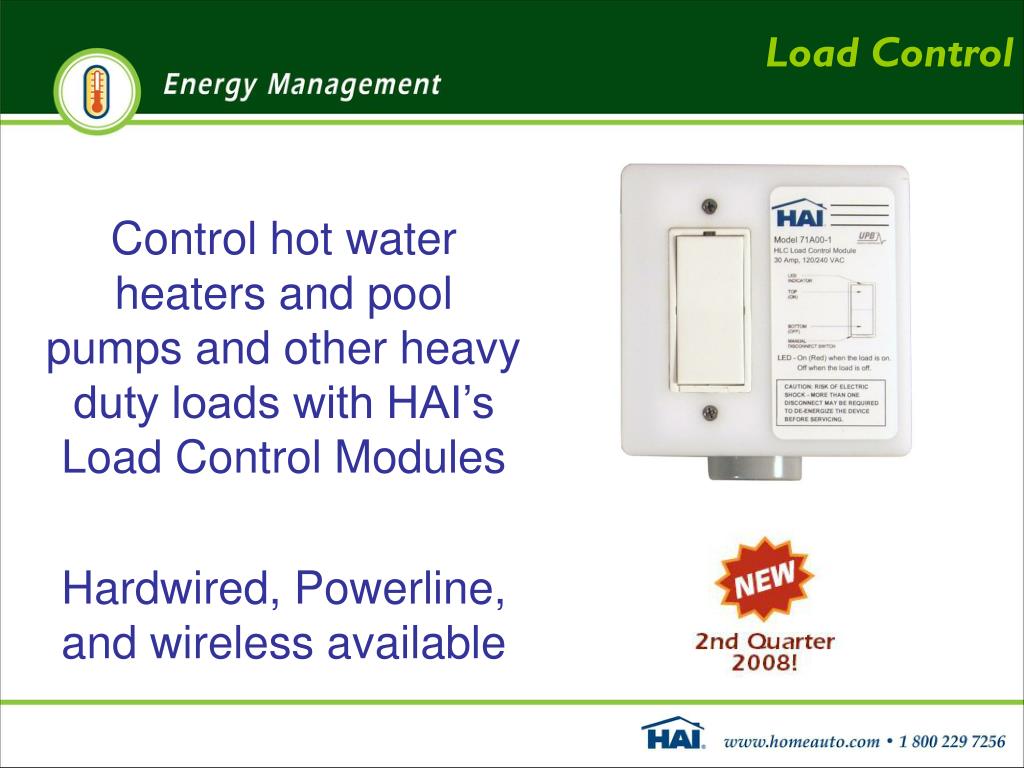

  33. Load Control Control hot water heaters and pool pumps and other heavy duty loads with HAI’s Load Control Modules Hardwired, Powerline, and wireless available

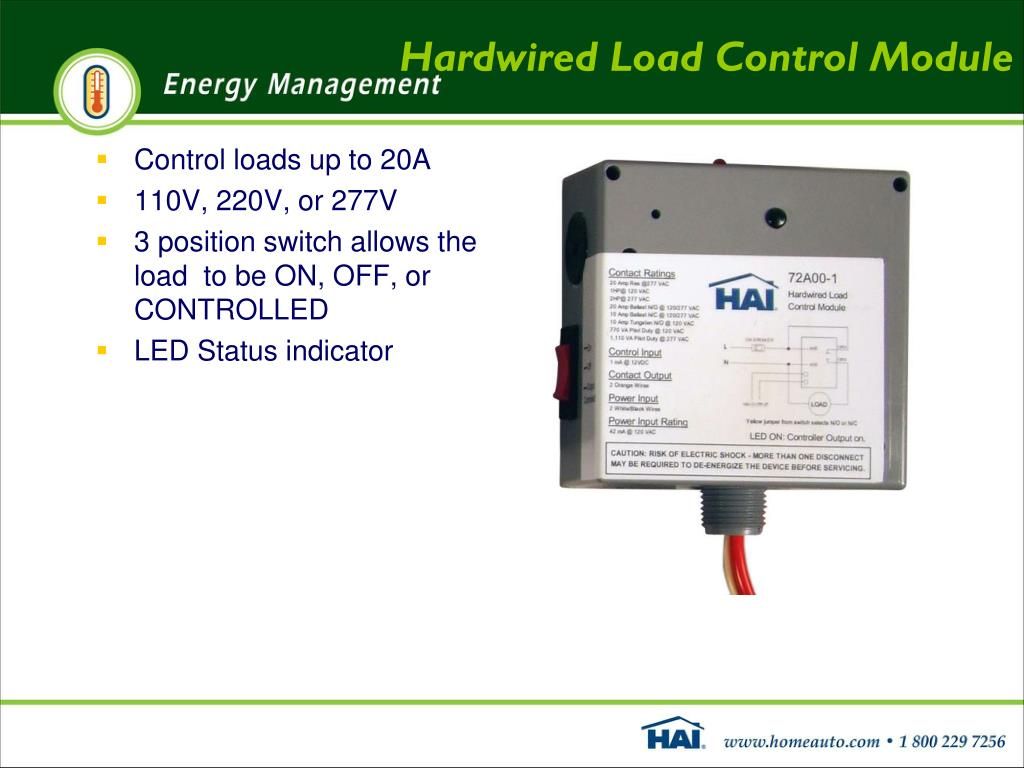

  34. Control loads up to 20A 110V, 220V, or 277V 3 position switch allows the load to be ON, OFF, or CONTROLLED LED Status indicator Hardwired Load Control Module

  35. Lighting Control • According to the U.S. Department of Energy artificial lighting consumes almost 15% of a household's electricity use • The Home Lighting Control Alliance says that dimming your lights by 25% saves 20% of the energy used and extends bulb life by 10 times. Dimming your lights by 50% and saves 40% in energy and extends bulb life by 20 times

  36. Using the Omni or Lumina you get the easiest to install, easiest to program, and easiest to operate lighting control system on the market today! The HLC family of products from HAI uses existing wires so it can be used in new or retrofit installations. Elegant Lighting Control

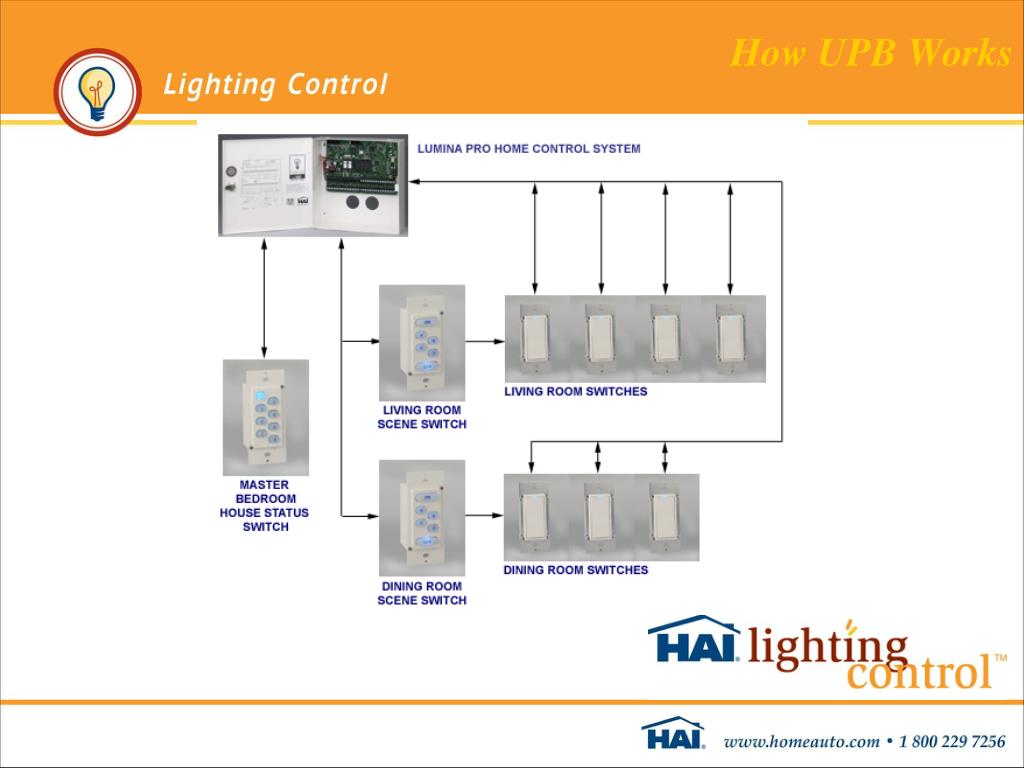

  37. How UPB Works

  38. Light Switches HLC Dimmer Switches act the same as the Dimmer Switches that homeowners know.

  39. Light Switches With the exception of the 1500W UPB™ and 2400W UPB™ Dimmer Switches, HLC switches accommodate standard Decora-style Wallplates available at any home center. Mix and match Decora-style Wallplates from your electrical distributor to easily add a personalized touch to any room.

  40. Light Switches HLC has the following switches: • 600W UPB™ Dimmer • 600W UPB™ Non-Dimming • 1000W UPB™ Dimmer • 1500W UPB™ Dimmer • 2400W UPB™ Dimmer • 15A Relay UPB™ • Auxiliary UPB™ • Scene • House Status • Mode

  41. Lamp Modules • Simply Plug in the lamp module to add lighting control to any room

  42. Scene Switch • Room Controllers work with switches in a room to set scenes, turn the room on and off, and dim and brighten. • Room on, or hold to brighten room • Set a scene • Room off, or hold to dim room

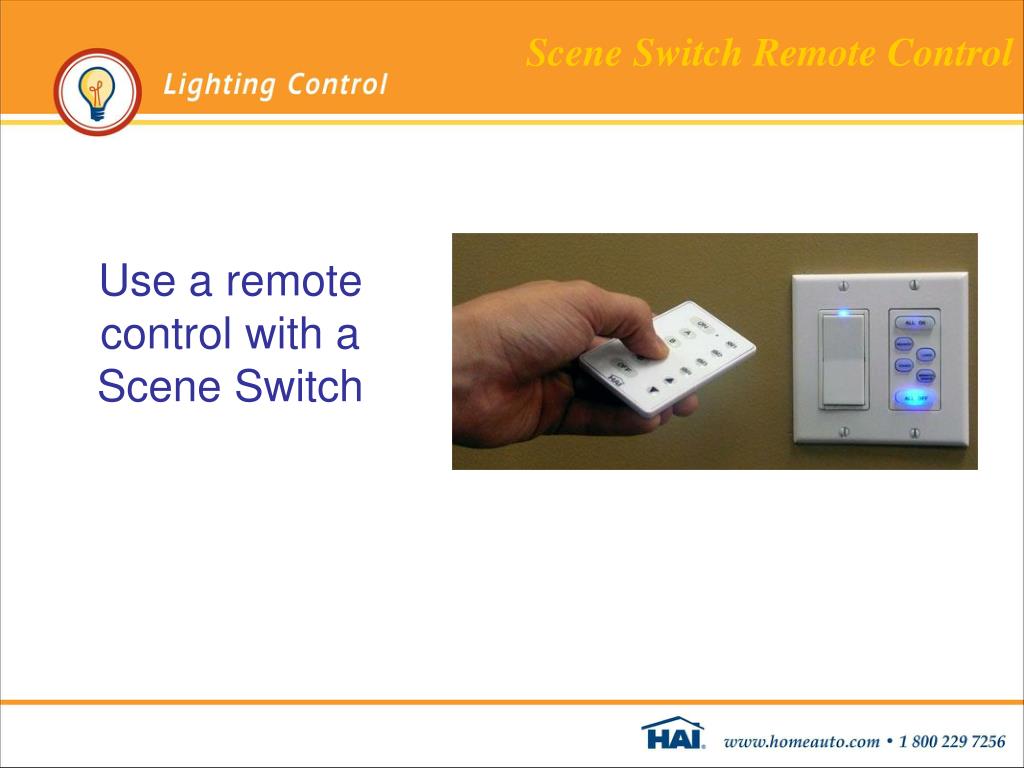

  43. Scene Switch Remote Control Use a remote control with a Scene Switch

  44. House Status Switch • Shows status of each room in the house • Ideal for master control of lighting in master bedroom, by entry door, garage, etc. • More than one can be used in a system • Custom engraving available

  45. Thanks for Attending! We hope HAI can be a profitable part of your future!
