  1. xxxxxxxxxxxxxxxxxxxx TXD

  2. TXD Design Goals • Alternative to a “Big-Rig” • Shallow oil/gas and CBM applications • Handle range 3 casing • Quick and easy set-up and breakdown • High performance in compact package • Low axle weights • Automated pipe handling • Hands free breakout (hydraulic roughneck) • Powerful tophead rotation system

  3. Telemast Concept Innovative design offers 2:1 cylinder/head travel Head fully retracted for short transport length Mast fully extended as required for setting casing Construction locates cylinder rods out of harms way Mast slides so loads are transmitted to the ground Mast mounted hydraulic outriggers support loads High tophead travel speeds

  4. Basic Specifications Mounting: Custom tri-axle trailer with tag dolly Deck Engine: MTU 12V-2000, 760 hp, air starter Tophead: 4 3/4” ID (120.6 mm) spindle, 4 x two speed motors, 0-90 rpm @ 17,750 ft-lb, 0-180 rpm @ 7,670 ft-lbs Mast: 50’ top head travel, 30 1/4” table, power holding slips Fluid Lines: 3” ID, 3000 psi WP Feed System: 200,000 lb (actual) hoist, 32,000 lb. down Pipe Handling Winch: 9,600 lb with hydraulic jib boom Automated Pipe Handling System: Custom tandem axle trailer powered by rig hydraulics, up to 47’ long x 30” OD tubulars Power Breakout: Hands free, 4½” to 8” OD, 53,000 ft-lb

  5. Basic Dimensions • Minimum Overall Length: 50’ (15.2 m) • Front Overhang: negligible • Width: 9’ 6” (2.9 m) • Height: 13’ 6” (4.1 m) • Weight: 95,000 lb (43,181 kg) • Distribution: 20,000 lb/axle (9,072 kg), 17,000 lb/axle (7,711 kg) with tag dolly

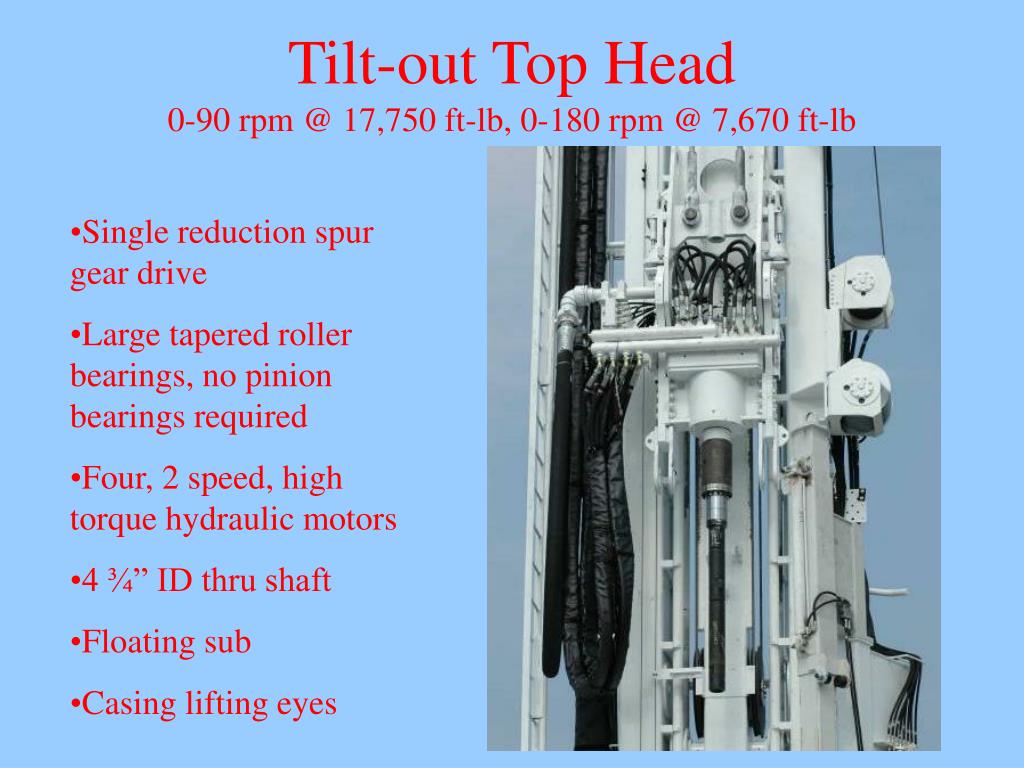

  6. Tilt-out Top Head0-90 rpm @ 17,750 ft-lb, 0-180 rpm @ 7,670 ft-lb Single reduction spur gear drive Large tapered roller bearings, no pinion bearings required Four, 2 speed, high torque hydraulic motors 4 ¾” ID thru shaft Floating sub Casing lifting eyes

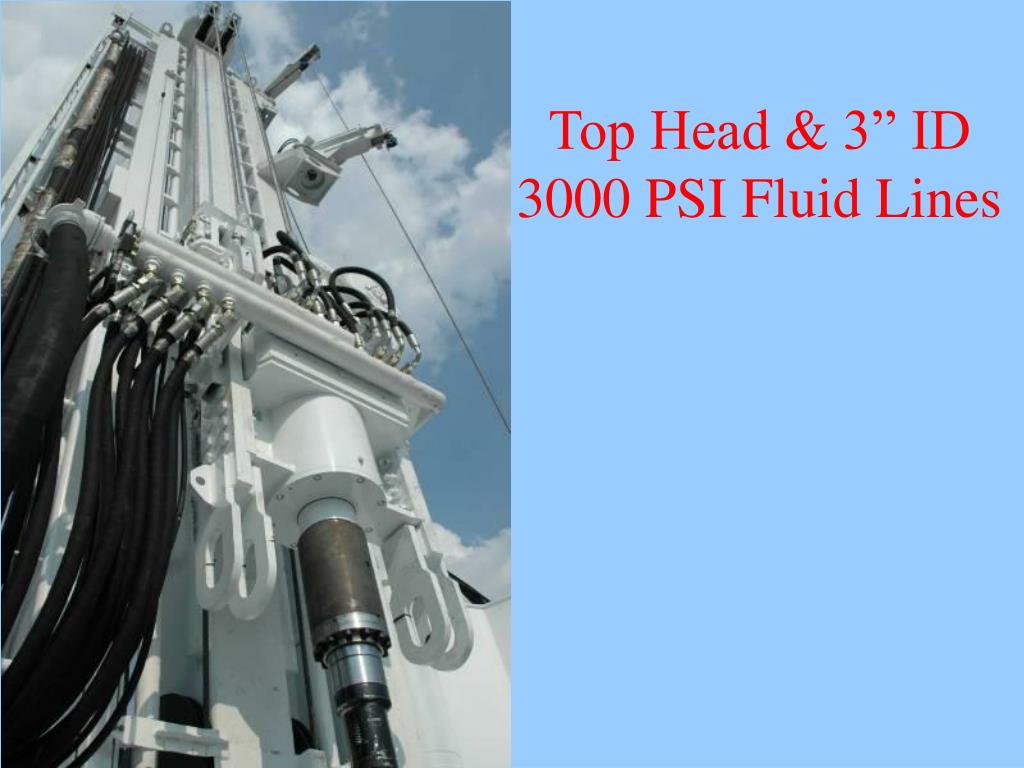

  7. Top Head & 3” ID 3000 PSI Fluid Lines

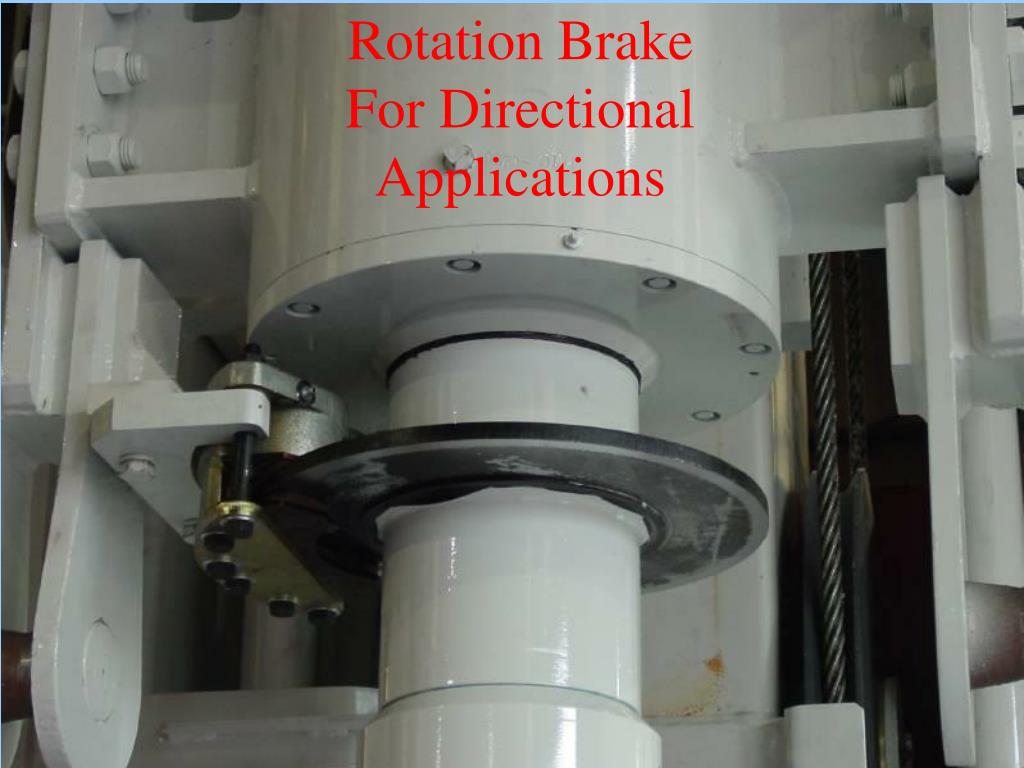

  8. Rotation BrakeFor Directional Applications

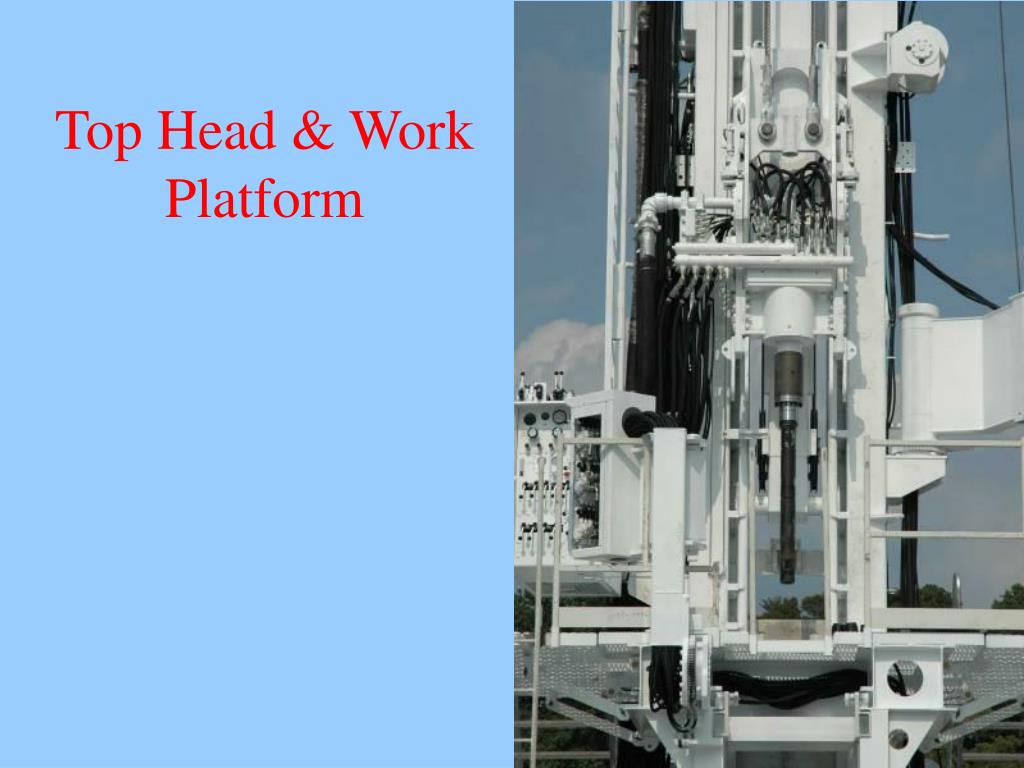

  9. Top Head & Work Platform

  10. Power Breakout4” – 8” OD” 4” Drill Pipe 8” Collars

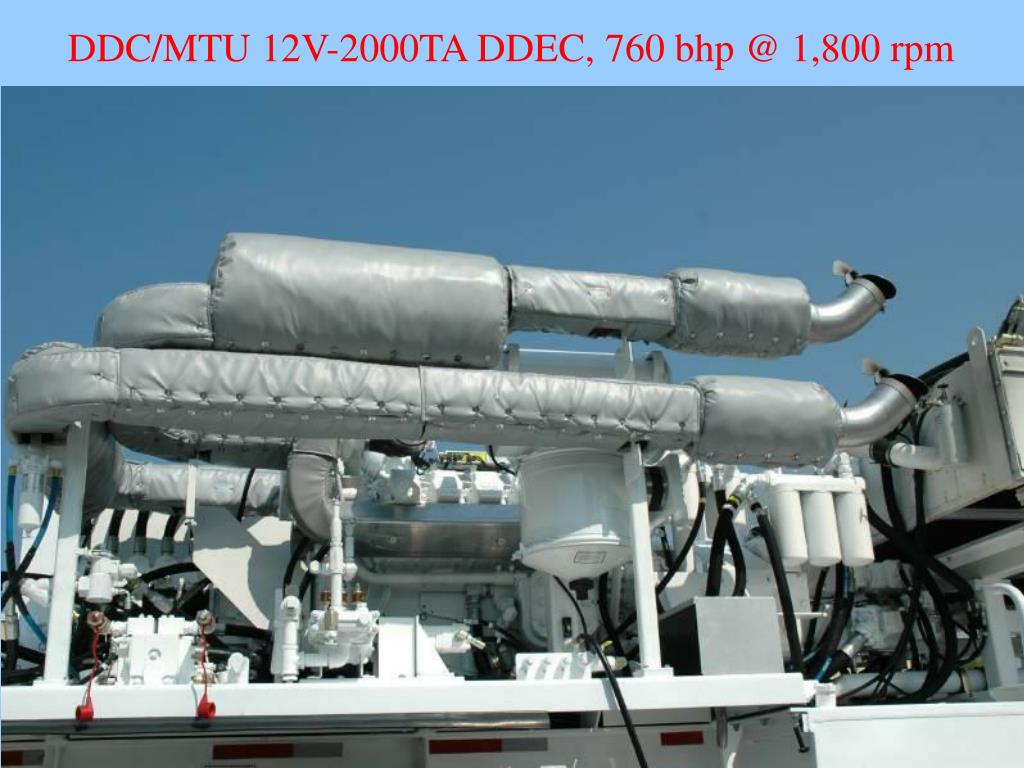

  11. DDC/MTU 12V-2000TA DDEC, 760 bhp @ 1,800 rpm

  12. TXD Rig Transport

  13. Pipe Loader Transport

  14. Transport

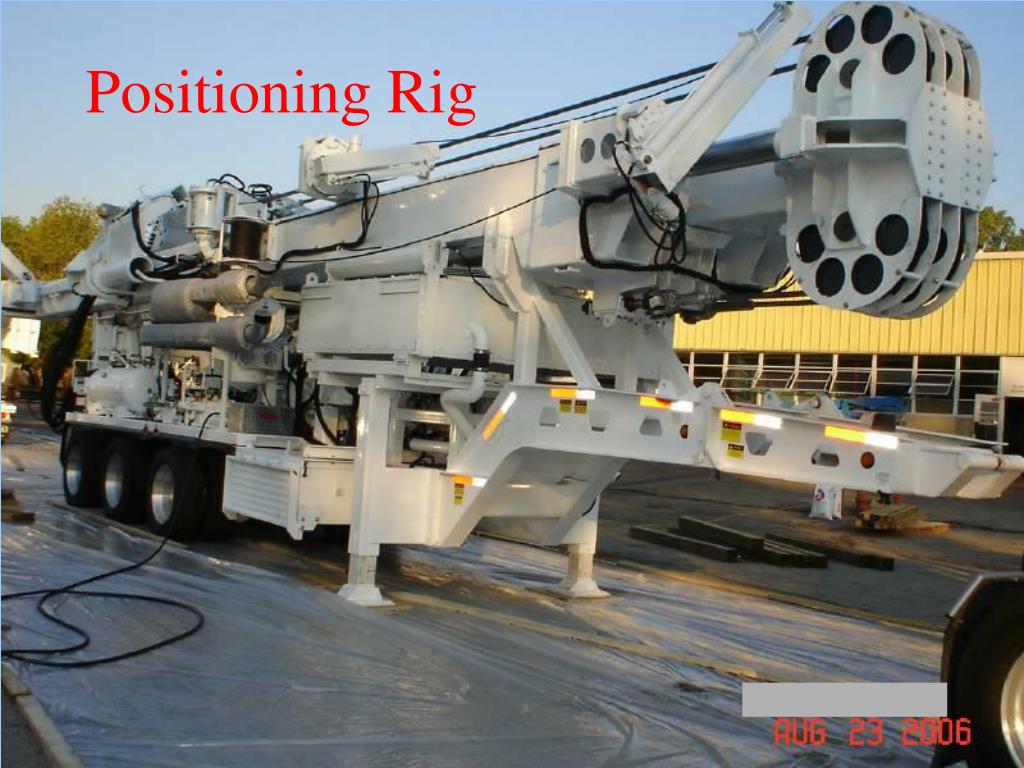

  15. Positioning Rig

  16. Erecting Mast

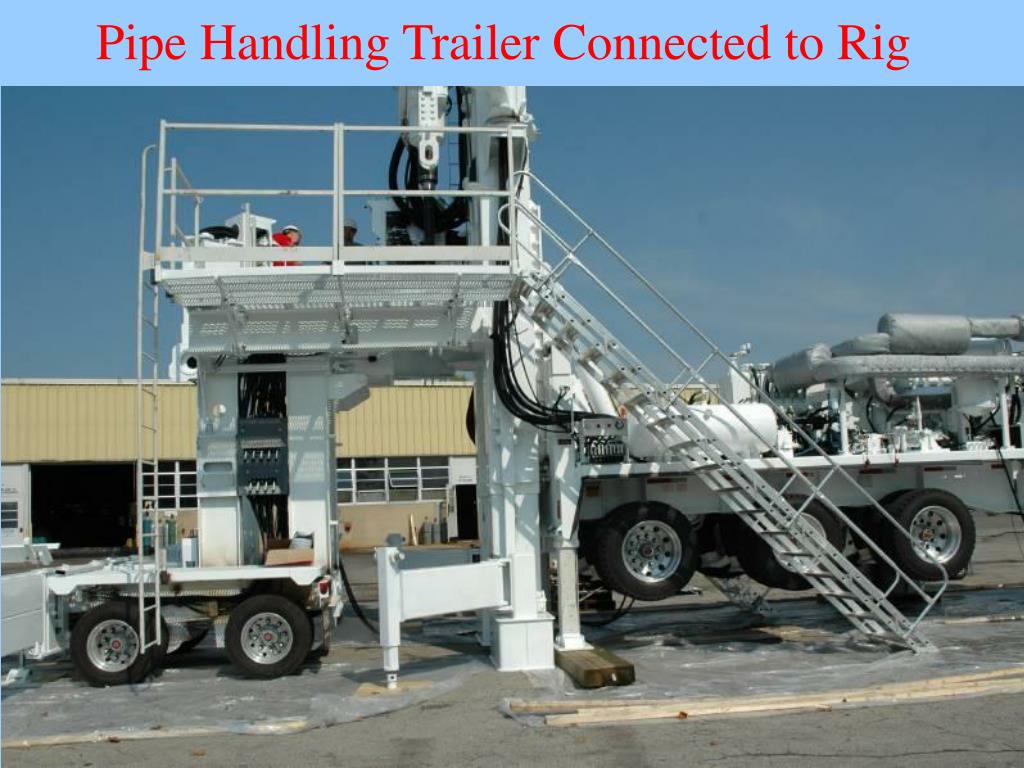

  17. Pipe Handling Trailer Connected to Rig

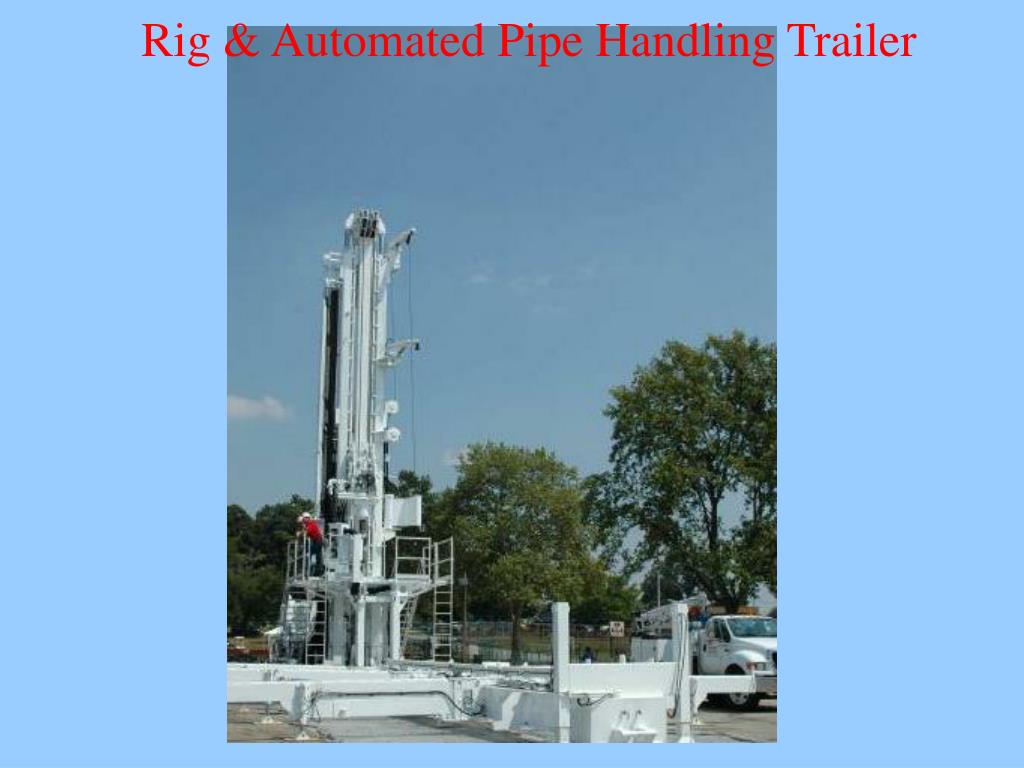

  18. Rig & Automated Pipe Handling Trailer

  19. Automated Pipe Handling Trailer

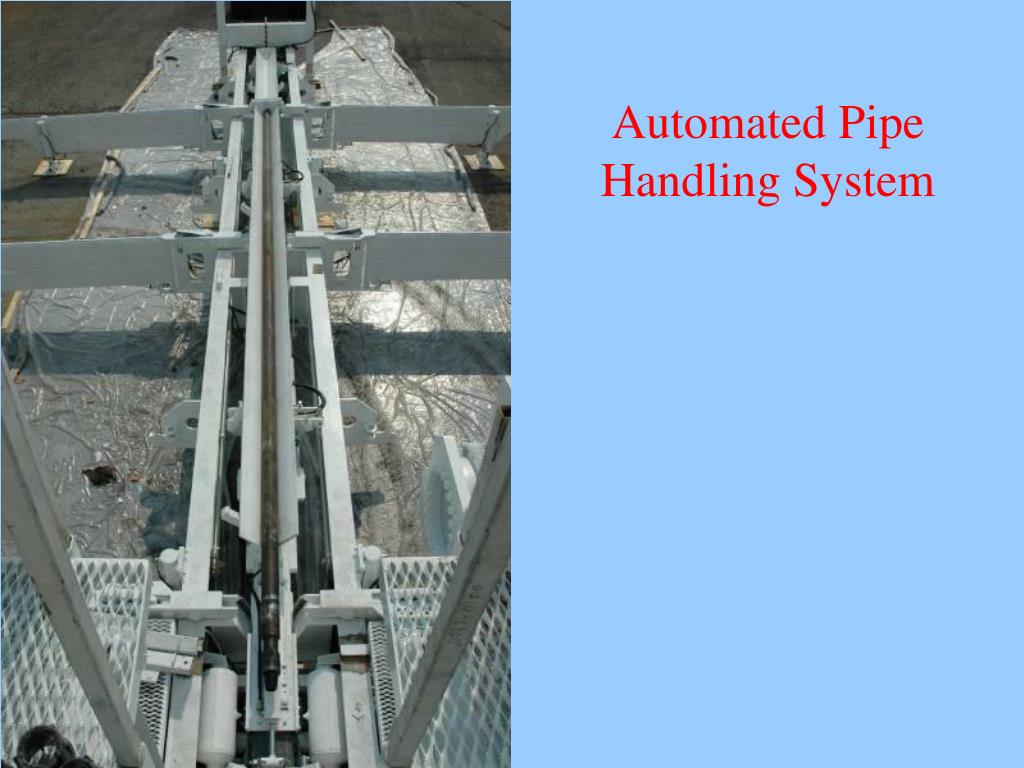

  20. Automated Pipe Handling System

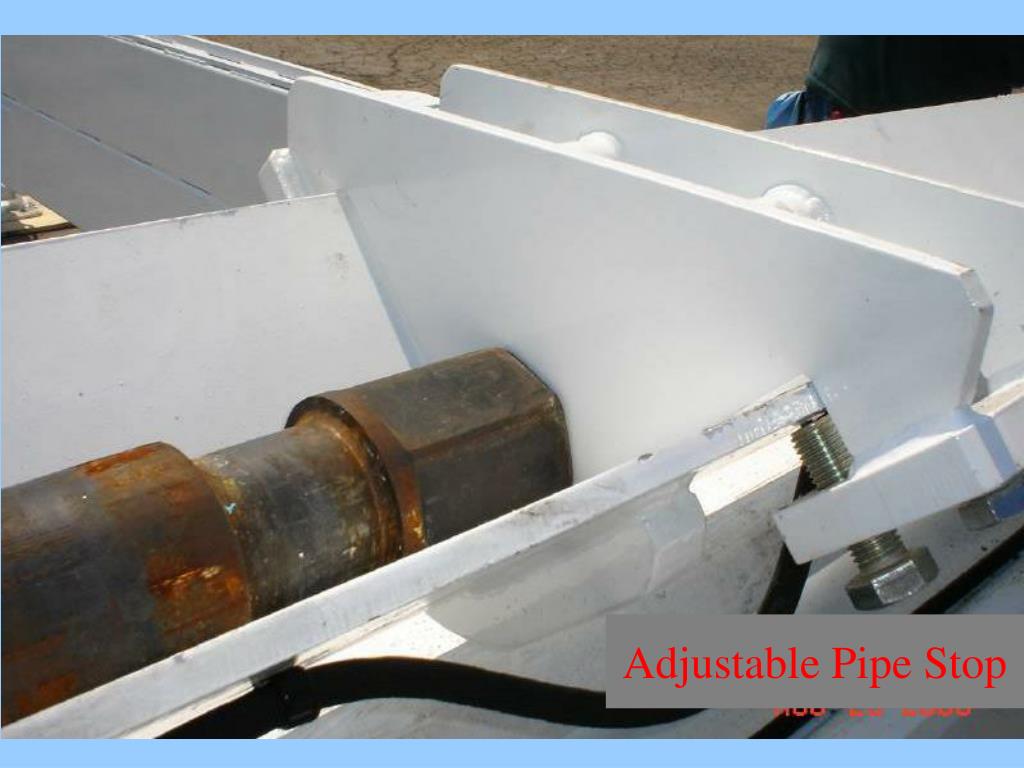

  21. Pipe Stop Adjustable Pipe Stop

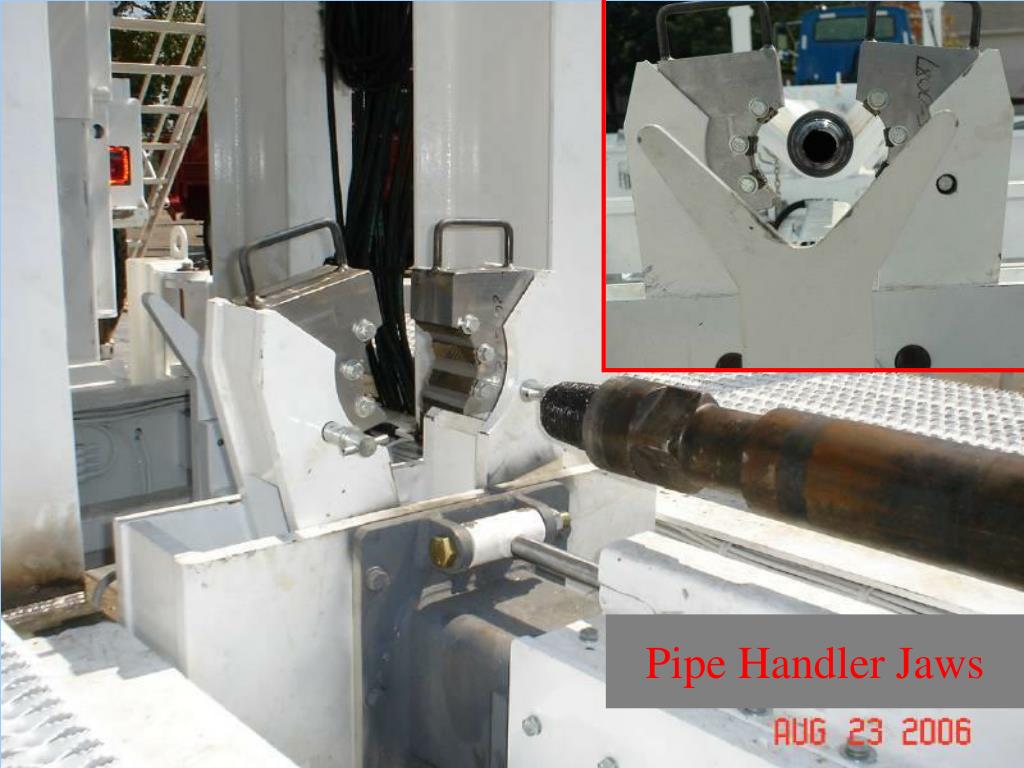

  22. Pipe Handler Jaws

  23. Pipe Handling Adjustable Pipe Stop

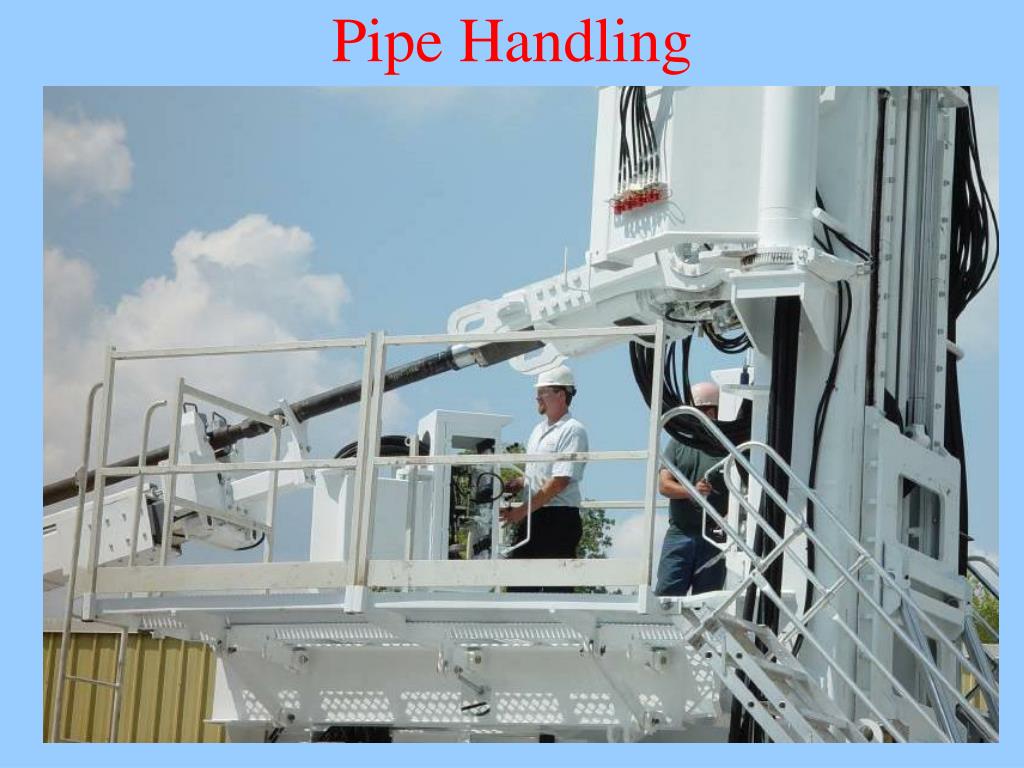

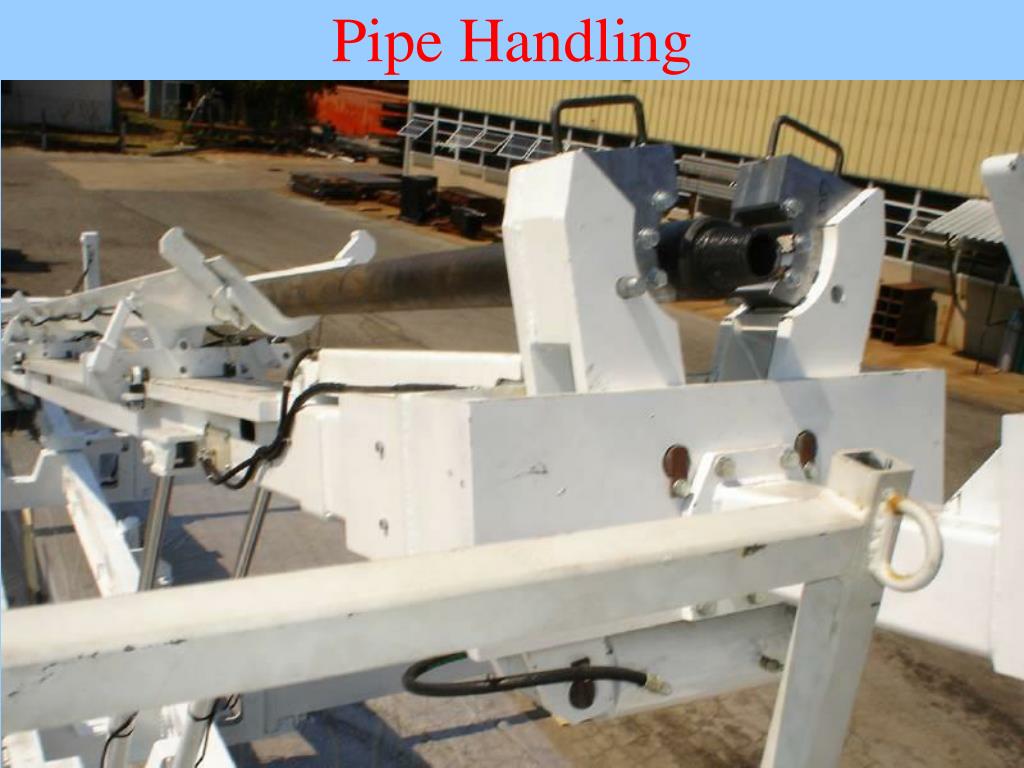

  24. Pipe Handling

  25. Pipe Handling Adjustable Pipe Stop

  26. Pipe Handling

  27. Pipe Handling

  28. Pipe Handling

  29. Pipe Handling

  30. Pipe Handling

  31. Pipe Handling

  32. Pipe Handling

  33. Schramm Engineering • Over 50 years of drill rig design experience • Utilizing the latest CAD systems • Finite Element Analysis insures dependability • Dynamic field testing - Installed Strain Gauges

  34. TXD

  35. TXD ROTADRILL

  36. TXD ROTADRILL

  37. TXD ROTADRILL

  38. ROTADRILLS WWW.SCHRAMMINC.COM
