Projectile Motion

Projectile Motion. Projectile Motion. Feeding the Monkey (Banana Gun). Where does the zookeeper aim if he wants to hit the monkey? ( He knows the monkey will let go as soon as he shoots ! ). Feeding the Monkey. r = r 0. If there were no gravity, simply aim . at the monkey. r = v 0 t.

len
Download Presentation

Projectile Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Projectile Motion Projectile Motion

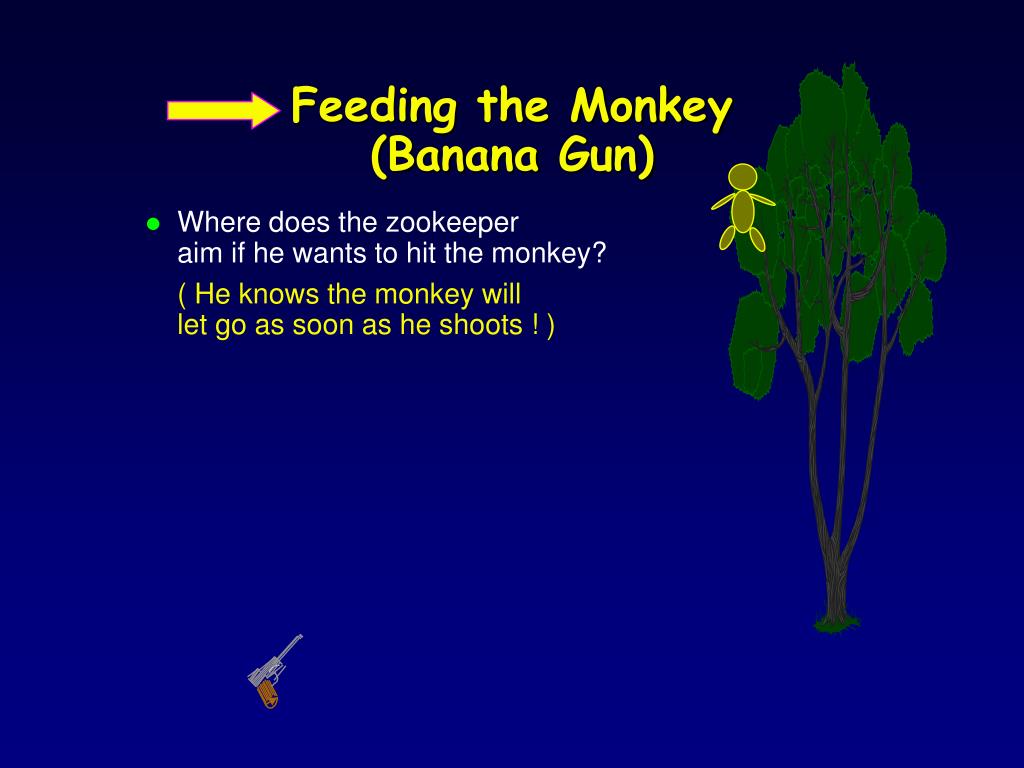

  2. Feeding the Monkey(Banana Gun) • Where does the zookeeper aim if he wants to hit the monkey? • ( He knows the monkey willlet go as soon as he shoots ! )

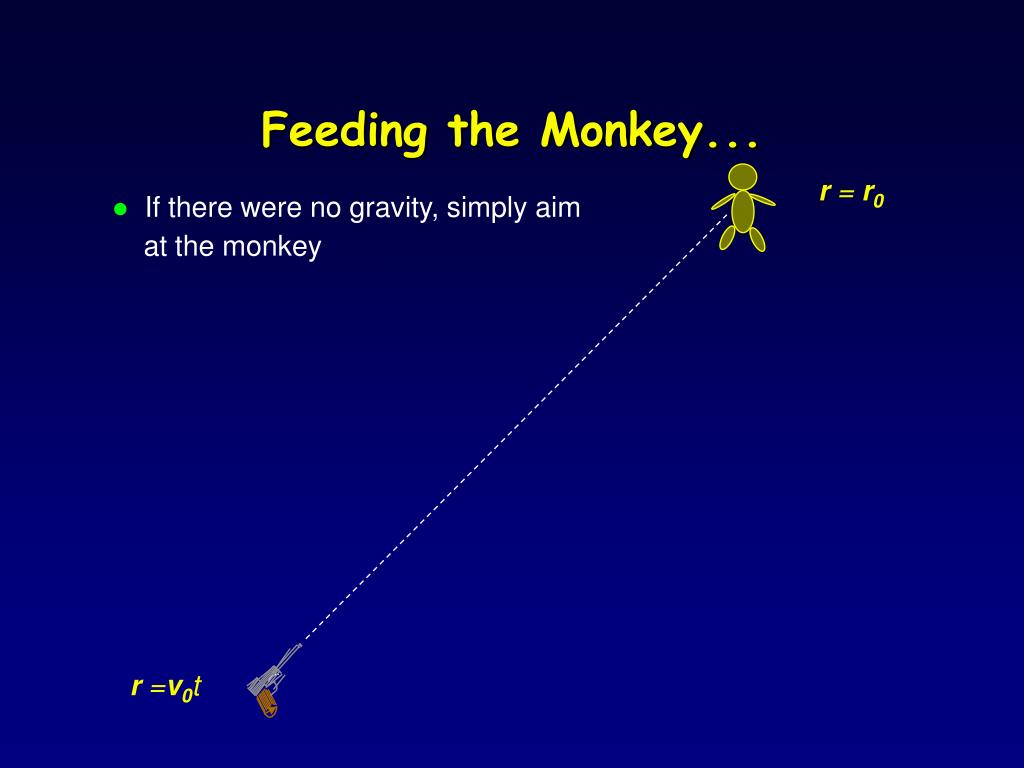

  3. Feeding the Monkey... r = r0 • If there were no gravity, simply aim at the monkey r =v0t

  4. Banana hits monkey! Feeding the Monkey... r= r0 - 1/2 g t2 • With gravity, still aim at the monkey! r= v0t - 1/2 g t2

  5. Projectile: An Object Moving Solely Under Influence of Gravity

  6. Horizontally Launched Projectile

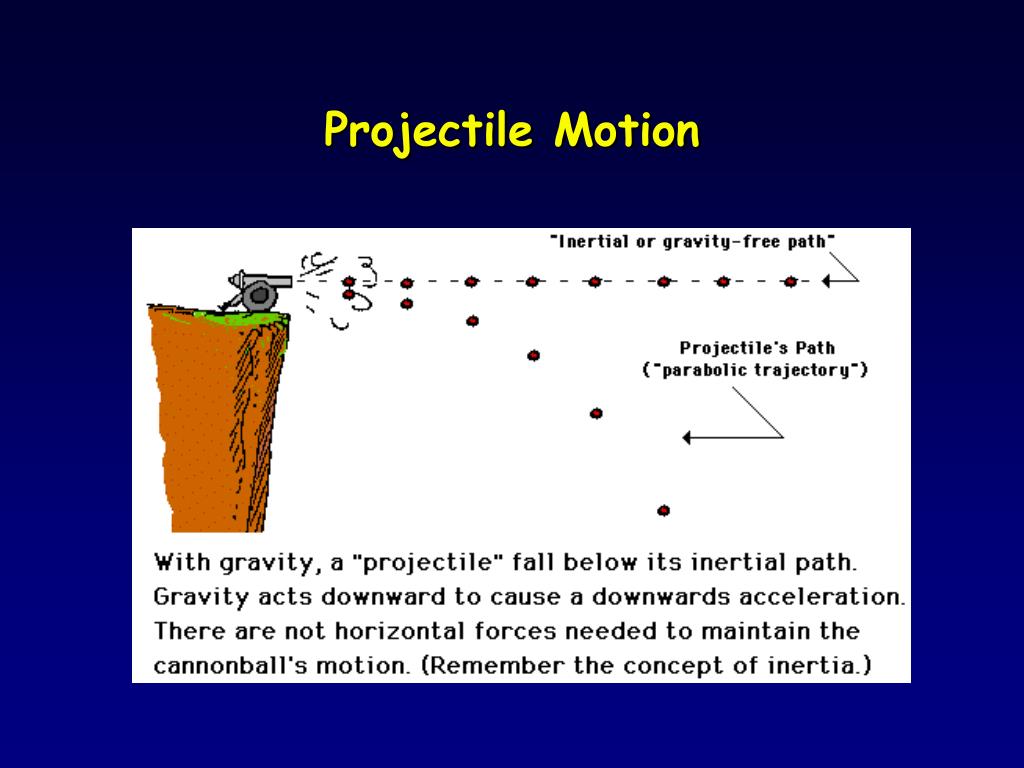

  7. Projectile Motion

  8. Projectile Velocities

  9. Net Force in Freefall

  10. Independence of x & y Motions For Vx= 5 m/s

  11. Projectile Launched at Angle

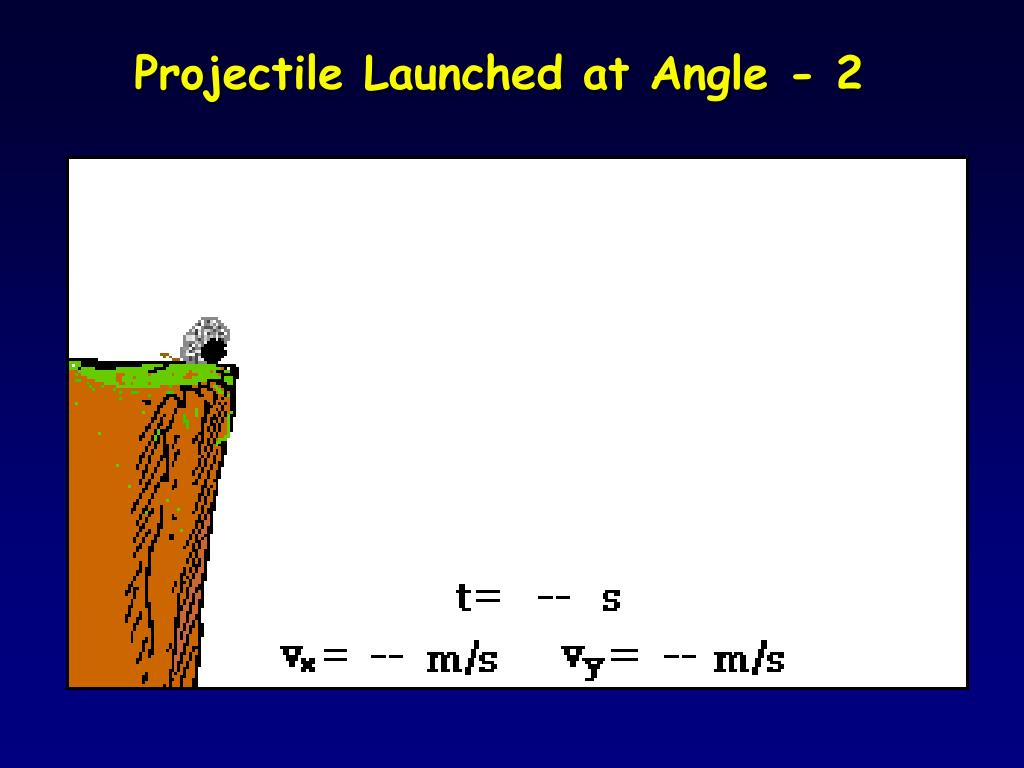

  12. Projectile Launched at Angle - 2

  13. Monkey Zookeeper

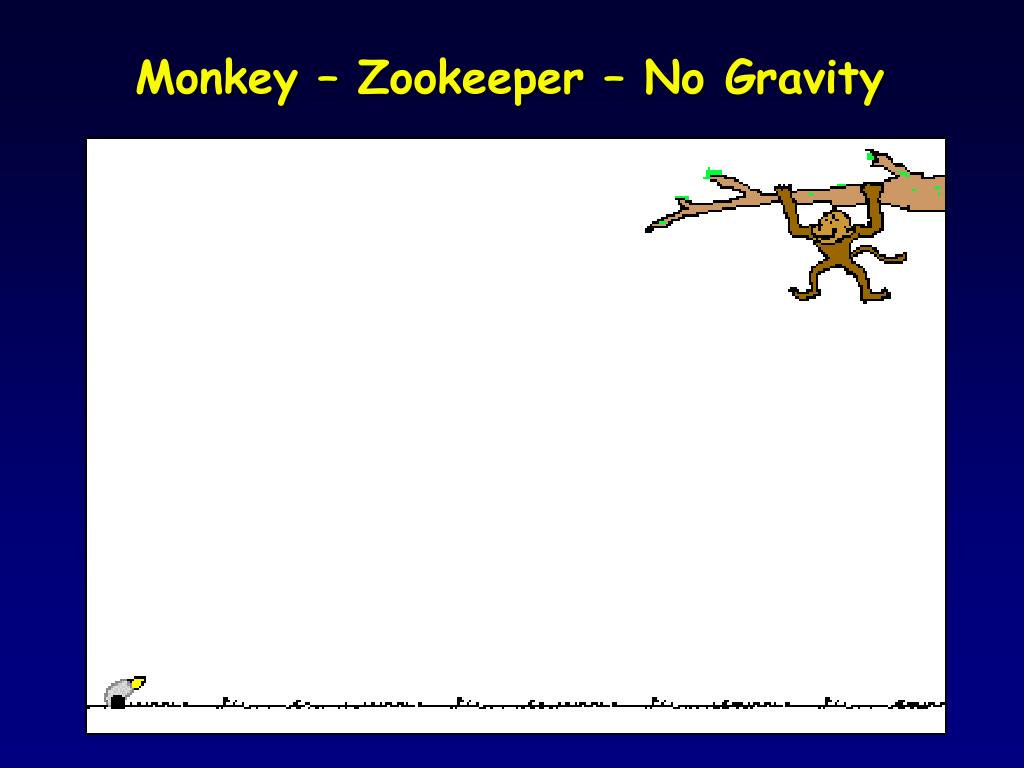

  14. Monkey – Zookeeper – No Gravity

  15. Monkey Zookeeper - Fast

  16. Monkey – Zookeeper - Slow

  17. Projectile Trajectories Complementary angles have equal ranges

  18. Satellite Motion • If superman threw a rock fast enough … it would orbit the earth (if there were no air resistance

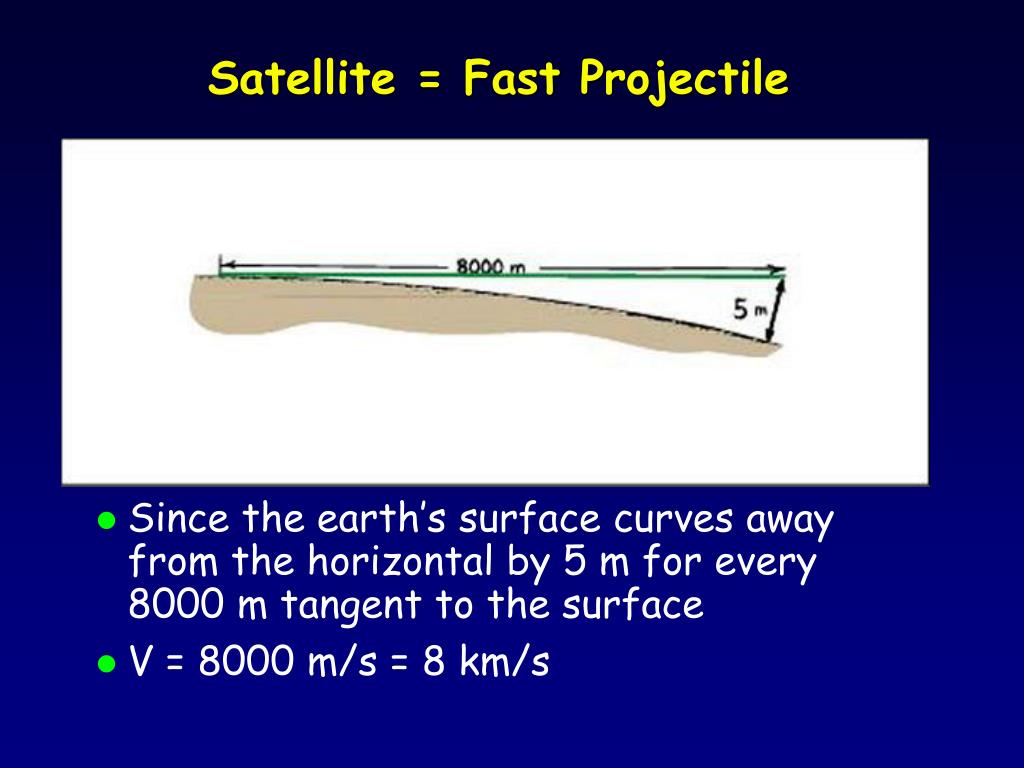

  19. Satellite = Fast Projectile • Since the earth’s surface curves away from the horizontal by 5 m for every 8000 m tangent to the surface • V = 8000 m/s = 8 km/s

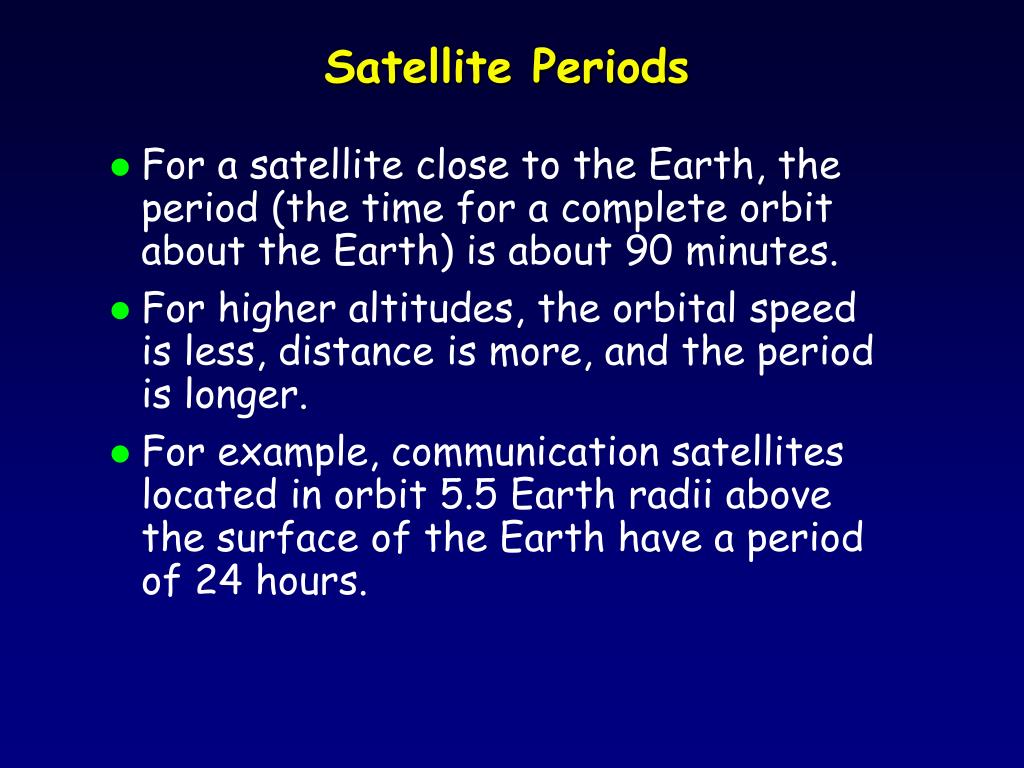

  20. Satellite Periods • For a satellite close to the Earth, the period (the time for a complete orbit about the Earth) is about 90 minutes. • For higher altitudes, the orbital speed is less, distance is more, and the period is longer. • For example, communication satellites located in orbit 5.5 Earth radii above the surface of the Earth have a period of 24 hours.
