  1. Fall 2010 Data StructuresLecture 9 Fang Yu Department of Management Information Systems National Chengchi University

  2. 7 2  9 4 2 4 7 9 7  2 2 7 9  4 4 9 7 7 2 2 9 9 4 4 Fundamental Algorithms Divide and Conquer: Merge-sort, Quick-sort, and Recurrence Analysis

  3. Divide-and-Conquer A general algorithm design paradigm Divide: divide the input data S in two or more disjoint subsets S1, S2, … Recur: solve the sub problems recursively Conquer: combine the solutions for S1,S2, …, into a solution for S The base case for the recursion are subproblems of constant size Analysis can be done using recurrence equations

  4. Merge-sort • Merge-sort is a sorting algorithm based on the divide-and-conquer paradigm • Like heap-sort • It uses a comparator • It has O(n log n) running time • Unlike heap-sort • It does not use an auxiliary priority queue • It accesses data in a sequential manner (suitable to sort data on a disk)

  5. Merge-sort • AlgorithmmergeSort(S, C) • Inputsequence S with n elements, comparator C • Outputsequence S sorted • according to C • ifS.size() > 1 • (S1, S2)partition(S, n/2) • mergeSort(S1, C) • mergeSort(S2, C) • Smerge(S1, S2) Merge-sort on an input sequence S with n elements consists of three steps: Divide: partition S into two sequences S1and S2 of about n/2 elements each Recur: recursively sort S1and S2 Conquer: merge S1and S2 into a unique sorted sequence

  6. Merging Two Sorted Sequences • Algorithmmerge(A, B) • Inputsequences A and B withn/2 elements each • Outputsorted sequence of A  B • S empty sequence • whileA.isEmpty() B.isEmpty() • ifA.first().element()<B.first().element() • S.addLast(A.remove(A.first())) • else • S.addLast(B.remove(B.first())) • whileA.isEmpty() S.addLast(A.remove(A.first())) • whileB.isEmpty() S.addLast(B.remove(B.first())) • return S The conquer step of merge-sort consists of merging two sorted sequences A and B into a sorted sequence S containing the union of the elements of A and B Merging two sorted sequences, each with n/2 elements and implemented by means of a doubly linked list, takes O(n) time

  7. Merge-Sort Tree 7 2  9 4 2 4 7 9 7  2 2 7 9  4 4 9 7 7 2 2 9 9 4 4 • An execution of merge-sort is depicted by a binary tree • each node represents a recursive call of merge-sort and stores • unsorted sequence before the execution and its partition • sorted sequence at the end of the execution • the root is the initial call • the leaves are calls on subsequences of size 0 or 1

  8. 7 2 9 4  2 4 7 9 3 8 6 1  1 3 8 6 7 2  2 7 9 4  4 9 3 8  3 8 6 1  1 6 7  7 2  2 9  9 4  4 3  3 8  8 6  6 1  1 An execution example 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9

  9. 7 2  2 7 9 4  4 9 3 8  3 8 6 1  1 6 7  7 2  2 9  9 4  4 3  3 8  8 6  6 1  1 Partition 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 4 2 4 7 9 3 8 6 1  1 3 8 6

  10. 7  7 2  2 9  9 4  4 3  3 8  8 6  6 1  1 Partition 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 4 2 4 7 9 3 8 6 1  1 3 8 6 7  2 2 7 9 4  4 9 3 8  3 8 6 1  1 6

  11. 7  2 2 7 9 4  4 9 3 8  3 8 6 1  1 6 Recur: base case 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 4 2 4 7 9 3 8 6 1  1 3 8 6 77 2  2 9  9 4  4 3  3 8  8 6  6 1  1

  12. Recur: Base case 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 4 2 4 7 9 3 8 6 1  1 3 8 6 7  2 2 7 9 4  4 9 3 8  3 8 6 1  1 6 77 22 9  9 4  4 3  3 8  8 6  6 1  1

  13. Merge 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 4 2 4 7 9 3 8 6 1  1 3 8 6 7  22 7 9 4  4 9 3 8  3 8 6 1  1 6 77 22 9  9 4  4 3  3 8  8 6  6 1  1

  14. Recursive call,…, merge 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 4 2 4 7 9 3 8 6 1  1 3 8 6 7  22 7 9 4  4 9 3 8  3 8 6 1  1 6 77 22 9 9 4 4 3  3 8  8 6  6 1  1

  15. Merge 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 42 4 7 9 3 8 6 1  1 3 8 6 7  22 7 9 4  4 9 3 8  3 8 6 1  1 6 77 22 9 9 4 4 3  3 8  8 6  6 1  1

  16. Recursive call, …, merge, merge 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 42 4 7 9 3 8 6 1  1 3 6 8 7  22 7 9 4  4 9 3 8 3 8 6 1  1 6 77 22 9 9 4 4 33 88 66 11

  17. Merge 7 2 9 4  3 8 6 11 2 3 4 6 7 8 9 7 2  9 42 4 7 9 3 8 6 1  1 3 6 8 7  22 7 9 4  4 9 3 8 3 8 6 1  1 6 77 22 9 9 4 4 33 88 66 11

  18. Analysis of Merge-sort • The height h of the merge-sort tree is O(logn) • at each recursive call we divide in half the sequence, • The overall amount or work done at the nodes of depth iis O(n) • we partition and merge 2i sequences of size n/2i • we make 2i+1 recursive calls • Thus, the total running time of merge-sort is O(n log n)

  19. Quick-sort x x L G E x A randomized sorting algorithm based on the divide-and-conquer paradigm: • Divide: pick a random element x (called pivot) and partition S into • L elements less than x • E elements equal x • G elements greater than x • Recur: sort L and G • Conquer: join L, Eand G

  20. Partition Algorithmpartition(S,p) Inputsequence S, position p of pivot Outputsubsequences L,E, G of the elements of S less than, equal to, or greater than the pivot, resp. L,E, G empty sequences x S.remove(p) whileS.isEmpty() y S.remove(S.first()) ify<x L.addLast(y) else if y=x E.addLast(y) else{ y > x } G.addLast(y) return L,E, G • We partition an input sequence as follows: • We remove, in turn, each element y from S and • We insert y into L, Eor G,depending on the result of the comparison with the pivot x • Each insertion and removal is at the beginning or at the end of a sequence, and hence takes O(1) time • Thus, the partition step of quick-sort takes O(n) time

  21. Quick-Sort Tree 7 4 9 6 2 2 4 6 7 9 4 2 2 4 7 9 7 9 2 2 9 9 • An execution of quick-sort is depicted by a binary tree • Each node represents a recursive call of quick-sort and stores • Unsorted sequence before the execution and its pivot • Sorted sequence at the end of the execution • The root is the initial call • The leaves are calls on subsequences of size 0 or 1

  22. Execution Example 7 2 9 4 3 7 6 11 2 3 4 6 7 8 9 7 2 9 4  2 4 7 9 3 8 6 1  1 3 8 6 9 4  4 9 3  3 8  8 2  2 9  9 4  4 Pivot selection

  23. Partition, recursive call, pivot selection 7 2 9 4 3 7 6 11 2 3 4 6 7 8 9 2 4 3 1 2 4 7 9 3 8 6 1  1 3 8 6 9 4  4 9 3  3 8  8 2  2 9  9 4  4 Quick-Sort

  24. Partition, recursive call, base case 7 2 9 4 3 7 6 11 2 3 4 6 7 8 9 2 4 3 1 2 4 7 3 8 6 1  1 3 8 6 11 9 4  4 9 3  3 8  8 9  9 4  4 Quick-Sort

  25. Recursive call, …, base case, join 7 2 9 4 3 7 6 11 2 3 4 6 7 8 9 2 4 3 1  1 2 3 4 3 8 6 1  1 3 8 6 11 4 334 3  3 8  8 9  9 44 Quick-Sort

  26. Recursive call, pivot selection 7 2 9 4 3 7 6 11 2 3 4 6 7 8 9 2 4 3 1  1 2 3 4 7 9 7 1  1 3 8 6 11 4 334 8  8 9  9 9  9 44 Quick-Sort

  27. Partition, …, recursive call, base case 7 2 9 4 3 7 6 11 2 3 4 6 7 8 9 2 4 3 1  1 2 3 4 7 9 7 1  1 3 8 6 11 4 334 8  8 99 9  9 44 Quick-Sort

  28. Join, join 7 2 9 4 3 7 6 1 1 2 3 4 67 7 9 2 4 3 1  1 2 3 4 7 9 7 1779 11 4 334 8  8 99 9  9 44 Quick-Sort

  29. In-place Quick-sort AlgorithminPlaceQuickSort(S,l,r) Inputsequence S, ranks l and r Output sequence S with the elements of rank between l and rrearranged in increasing order ifl  r return i a random integer between l and r x S.elemAtRank(i) (h,k) inPlacePartition(x) inPlaceQuickSort(S,l,h - 1) inPlaceQuickSort(S,k + 1,r) • Quick-sort can be implemented to run in-place • In the partition step, we use replace operations to rearrange the elements • The recursive calls consider • elements with rank less than h • elements with rank greater than k

  30. In-Place Quick-Sort j k (pivot = 6) 3 2 5 1 0 7 3 5 9 2 7 9 8 9 7 6 9 j k 3 2 5 1 0 7 3 5 9 2 7 9 8 9 7 6 9 • Perform the partition using two indices to split S into L, E, G • Repeat until j and k cross: • Scan j to the right until finding an element >x or j=k. • Scan k to the left until finding an element < x or j=k. • Swap elements at indices j and k (or swap pivot with j when j=k and return (j,j))

  31. Summary of Sorting Algorithms

  32. Recurrence Equation Analysis The conquer step of merge-sort consists of merging two sorted sequences, each with n/2 elements and implemented by means of a doubly linked list, takes at most bn steps, for some constant b. Likewise, the basis case (n< 2) will take at b most steps. Therefore, if we let T(n) denote the running time of merge-sort:

  33. Recurrence Equation Analysis We can therefore analyze the running time of merge-sort by finding a closed form solution to the above equation. That is, a solution that has T(n) only on the left-hand side. We can achieve this by iterative substitution: In the iterative substitution, or “plug-and-chug,” technique, we iteratively apply the recurrence equation to itself and see if we can find a pattern

  34. Iterative Substitution Note that base, T(n)=b, case occurs when 2i=n. That is, i = log n. So, Thus, T(n) is O(n log n).

  35. The Recursion Tree Total time = bn + bn log n (last level plus all previous levels) Draw the recursion tree for the recurrence relation and look for a pattern:

  36. Guess-and-Test Method In the guess-and-test method, we guess a closed form solution and then try to prove it is true by induction: For example: Guess: T(n) < cn log n

  37. Guess-and-Test Method Wrong! We cannot make this last line be less than cn log n

  38. Guess-and-Test Method, (cont.) So, T(n) is O(n log2n). In general, to use this method, you need to have a good guess and you need to be good at induction proofs. (if c>b) Recall the recurrence equation: Guess #2: T(n) < cn log2n.

  39. Master Method Many divide-and-conquer recurrence equations have the form:

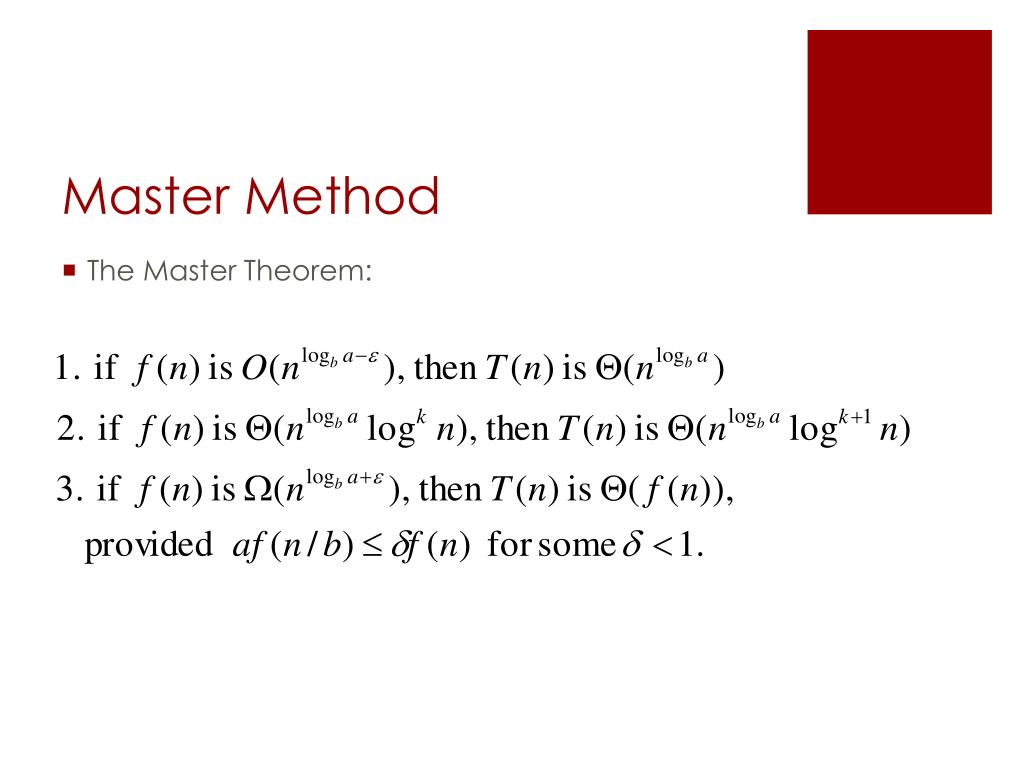

  40. Master Method The Master Theorem:

  41. Master Method, Example 1 • The form: • The Master Theorem: • Solution: • a = 4, b =2, f(n) is n • logba=2, so case 1 says T(n) is O(n2)

  42. Master Method, Example 2 • The form: • The Master Theorem: • Solution: • a = 2, b =2 • Solution: logba=1, so case 2 says T(n) is O(n log2 n).

  43. Master Method, Example 3 • The form: • The Master Theorem: • Solution: • a = 1, b =3 • logba=0, so case 3 says T(n) is O(n logn).

  44. Master Method, Example 4 • The form: • The Master Theorem: • Solution: • a = 8, b =2 • logba=3, so case 1 says T(n) is O(n3).

  45. HW9 (Due on Nov. 18) Quick sort keywords! Implement a quick sort algorithm for keywords Add each keyword into an array/linked list unorder Sort the keywords upon request Output all the keywords

  46. Operations Given a sequence of operations in a txt file, parse the txt file and execute each operation accordingly

  47. An input file Similar to HW7, add Fang 3 add Yu 5 add NCCU 2 add UCSB 1 output add MIS 4 Sort output You need to read the sequence of operations from a txt file 2. The format is firm 3. Raise an exception if the input does not match the format [Fang, 3][Yu, 5][NCCU, 2][UCSB, 1] [UCSB, 1][NCCU, 2][Fang, 3][MIS, 4] [Yu, 5]
