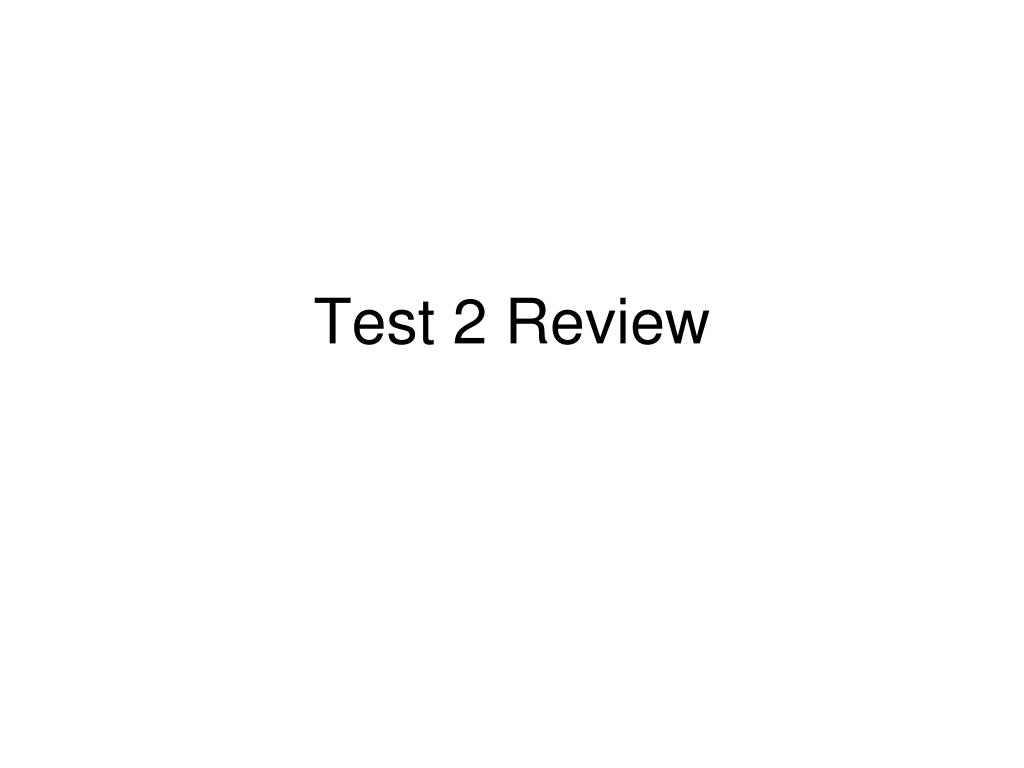

  1. Test 2 Review

  2. General Info. • All tests are comprehensive. You are still responsible for the material covered prior to the first exam. • You will be tested more on your ability to understanding code than on your ability to write code. • There will be multiple choice and true/false questions. • Studying this review is notenough; you are responsible for all material covered in the lecture notes.

  3. Topics covered since last exam • Writing and calling functions • Manipulating images and text on the canvas • Creating Interactive programs • Mouse and keyboard event handler functions • Mouse and keyboard built-in variables • Using the functions:loop(), noLoop(), and reDraw() • Using arrays • Creating object orientated programs using classes and objects

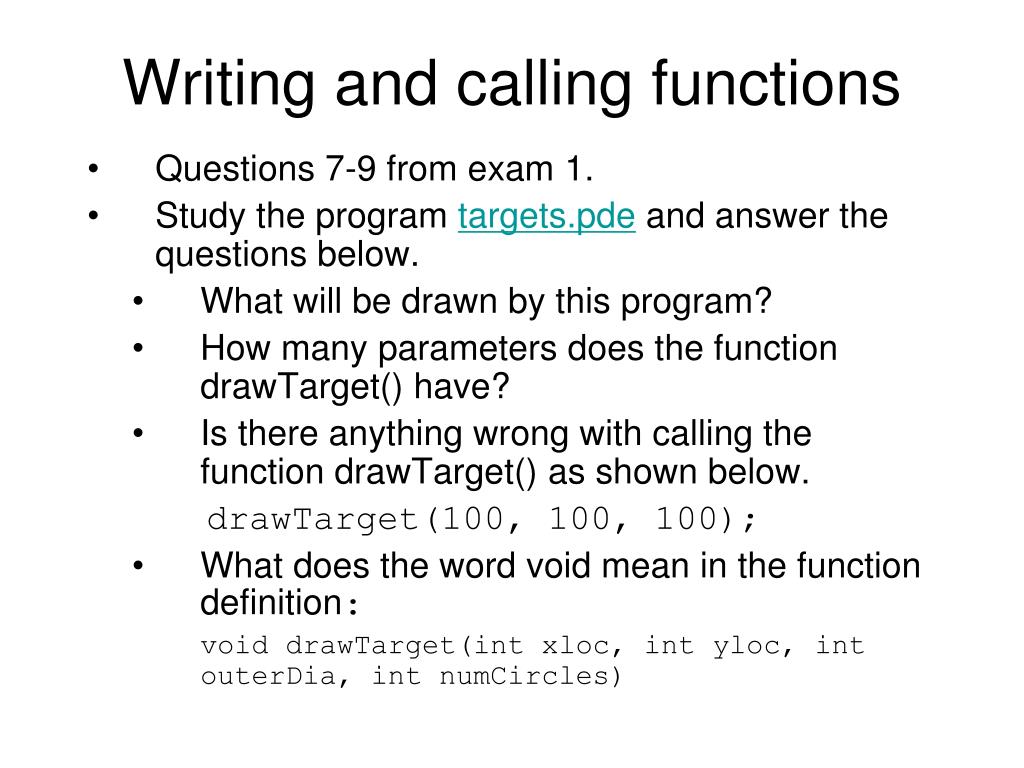

  4. Writing and calling functions • Questions 7-9 from exam 1. • Study the program targets.pde and answer the questions below. • What will be drawn by this program? • How many parameters does the function drawTarget() have? • Is there anything wrong with calling the function drawTarget() as shown below. drawTarget(100, 100, 100); • What does the word void mean in the function definition: void drawTarget(int xloc, int yloc, int outerDia, int numCircles)

  5. Manipulating images and text • If the color depth of an image format is 8 bits, how many distinct colors can be represented? • Name one image format that provides lossless compression and one that provides lossy compression. • Does this command cause an image (that is stored in the sketch data folder) to appear on the canvas? PImageimg=loadImage(“cartoonFace.gif"); • Describe the difference between the data type String and the data type char. • Is this a legal statement in Processing: ‘5’ + 5 ; • What is printed by this statement: println(boolean(5)) ; • Does this command cause text to appear on the canvas: PFont f = loadFont("Albany-48.vlw“, 40);

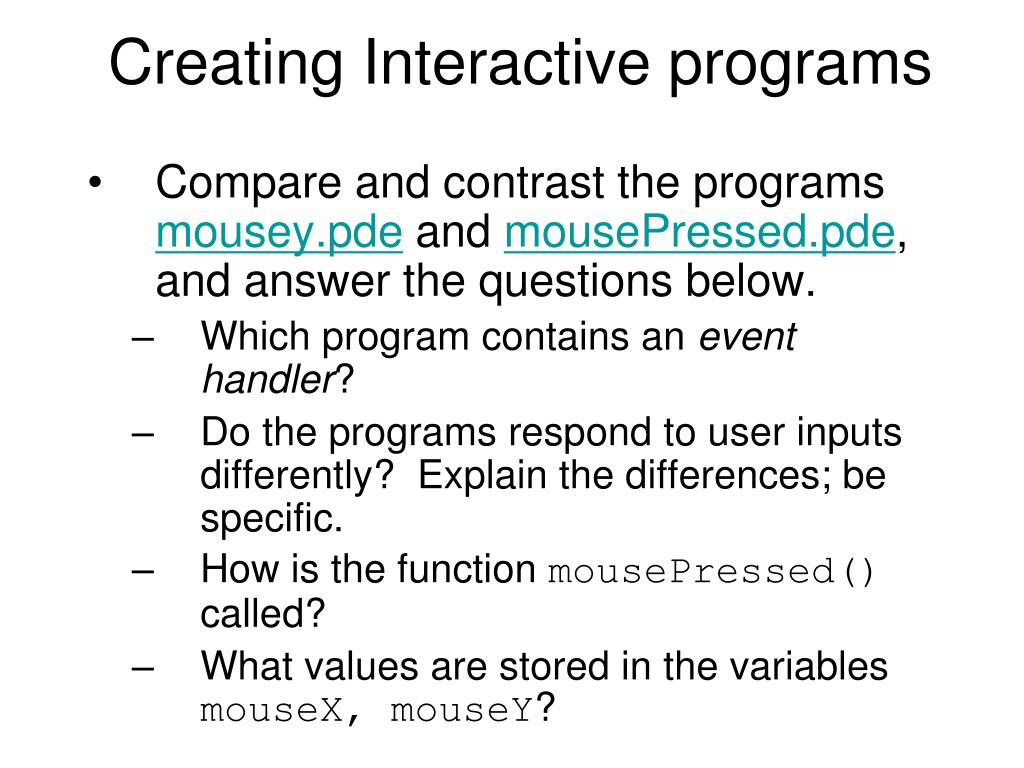

  6. Creating Interactive programs • Compare and contrast the programs mousey.pde and mousePressed.pde, and answer the questions below. • Which program contains an event handler? • Do the programs respond to user inputs differently? Explain the differences; be specific. • How is the function mousePressed() called? • What values are stored in the variables mouseX, mouseY?

  7. Functions: loop(), noLoop(), and reDraw() • Study the program loopNoLoop.pde and answer the questions below. • Does the program contain any event handlers, and if so how many? • Explain exactly what the program does when it’s running and the user interacts with the program by: (1) pressing a key on the keyboard, or (2) pressing a mouse button.

  8. Arrays • Declare an array large enough to hold 100 float variables. • Declare an array of 10 integers and store the value 1 in each element in the array. • Explain what happens when the following segment of code is run. float[] coswave = new float[100]; for (int i = 0; i < 100; i++) { coswave[i] = i; }

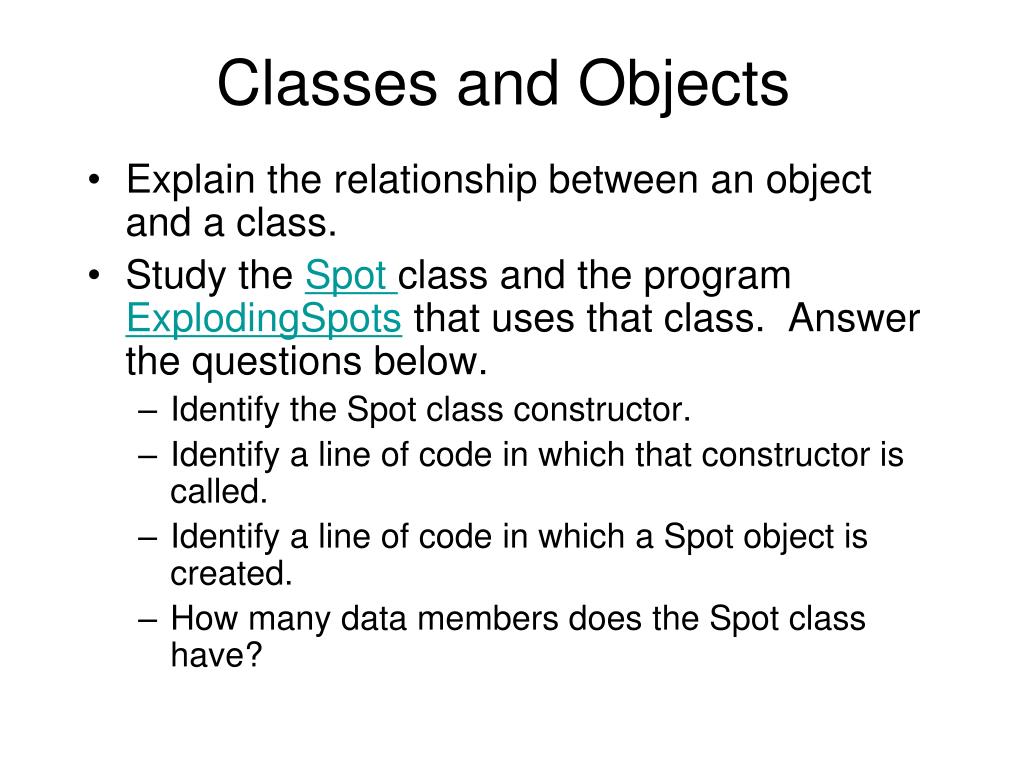

  9. Classes and Objects • Explain the relationship between an object and a class. • Study the Spotclass and the program ExplodingSpots that uses that class. Answer the questions below. • Identify the Spot class constructor. • Identify a line of code in which that constructor is called. • Identify a line of code in which a Spot object is created. • How many data members does the Spot class have?
