  1. Habitat For Humanity

  2. Architectural Team Bill Cox Brian Vosberg Rosann Magnifico John Peugeot Web Information Team Asli Kumcu Mike Monahan Energy Efficiency Team Brent Phillips Adam Stanczak Jeff Bryles Drew Susott HFH Members

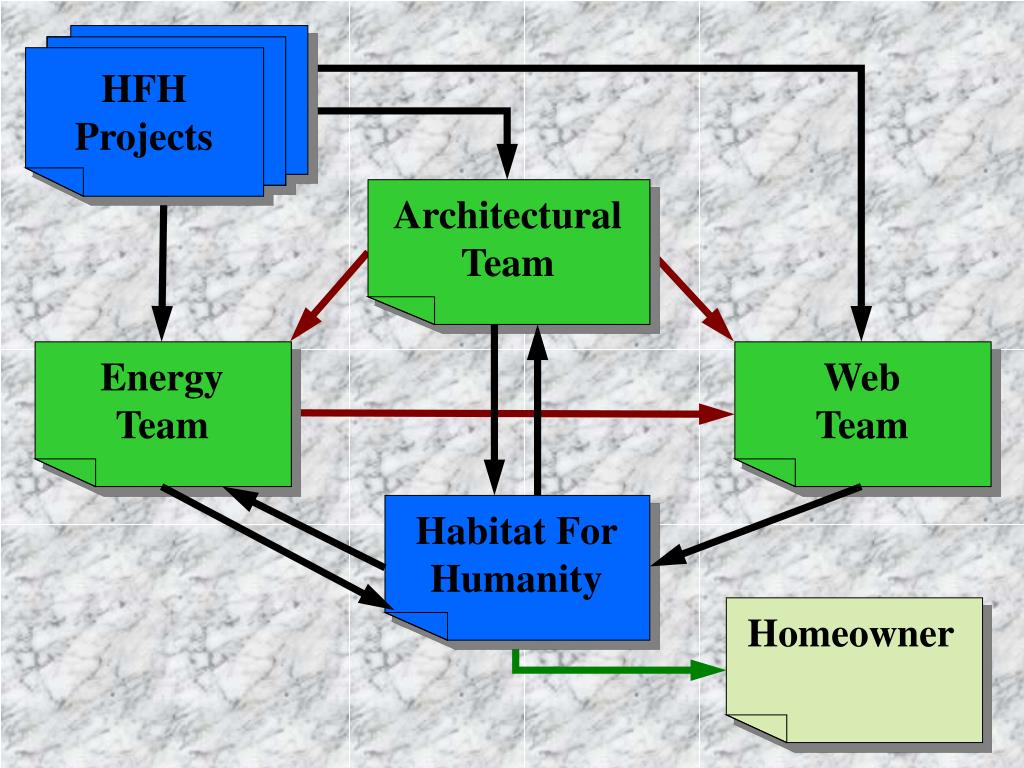

  3. Architectural Team Energy Team Web Team Habitat For Humanity Homeowner HFH Projects

  4. Architectural Team Bill Cox Brian Vosberg Rosann Magnifico John Peugeot

  5. Objectives • To create a 3-D video tour of a habitat house for prospective buyers • Completed by Paladin Inc. • To create a floor plan selection guide to be used for future home owners

  6. Selection Guide • Blueprints for 2, 3, & 4 bedroom homes • 23 Total Plans • Each set of plans consists of 3 pages: 1. Floor layout with front elevation 2. Electrical layout with 3-D view 3. The four elevation views

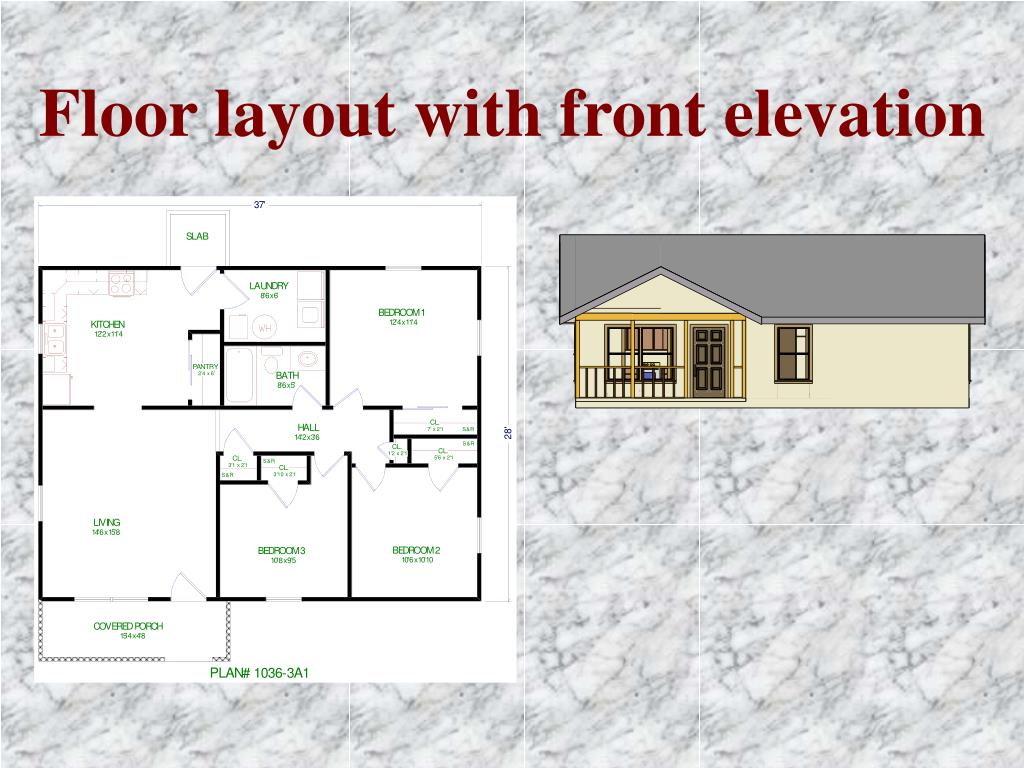

  7. Floor layout with front elevation

  8. Electrical layout with 3-D view

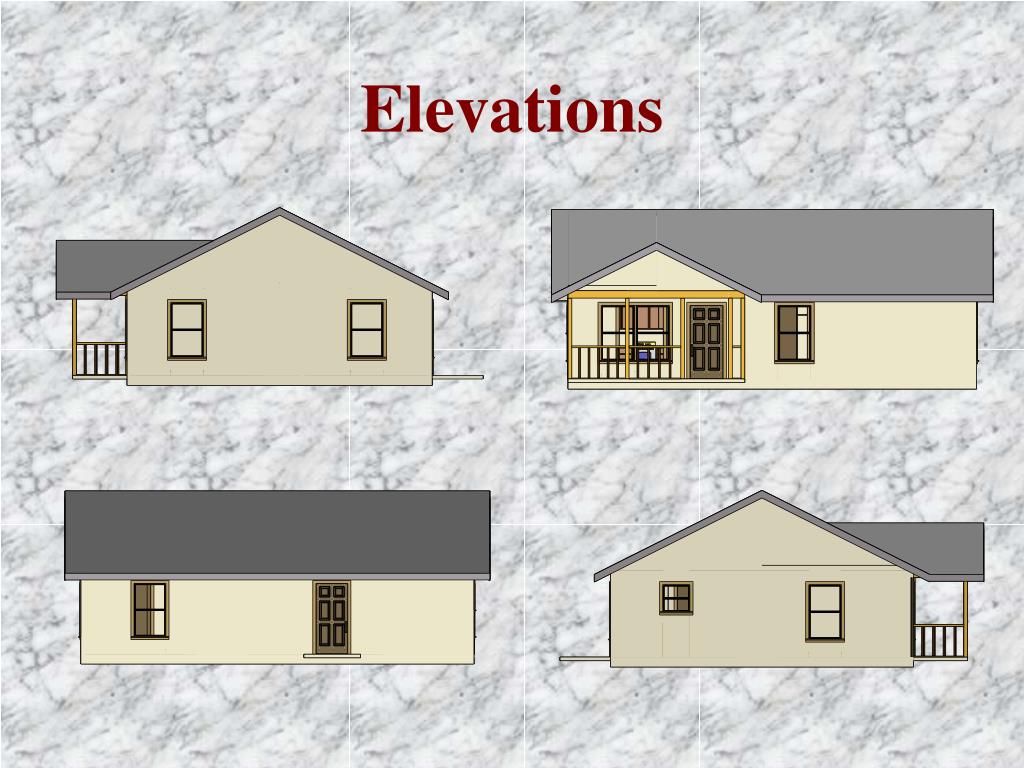

  9. Elevations

  10. Future plans • Create building materials lists • Create construction timeline • Create construction schematic drawings

  11. Energy Team Brent Phillips Jeff Bryles Adam Stanczak Drew Susott

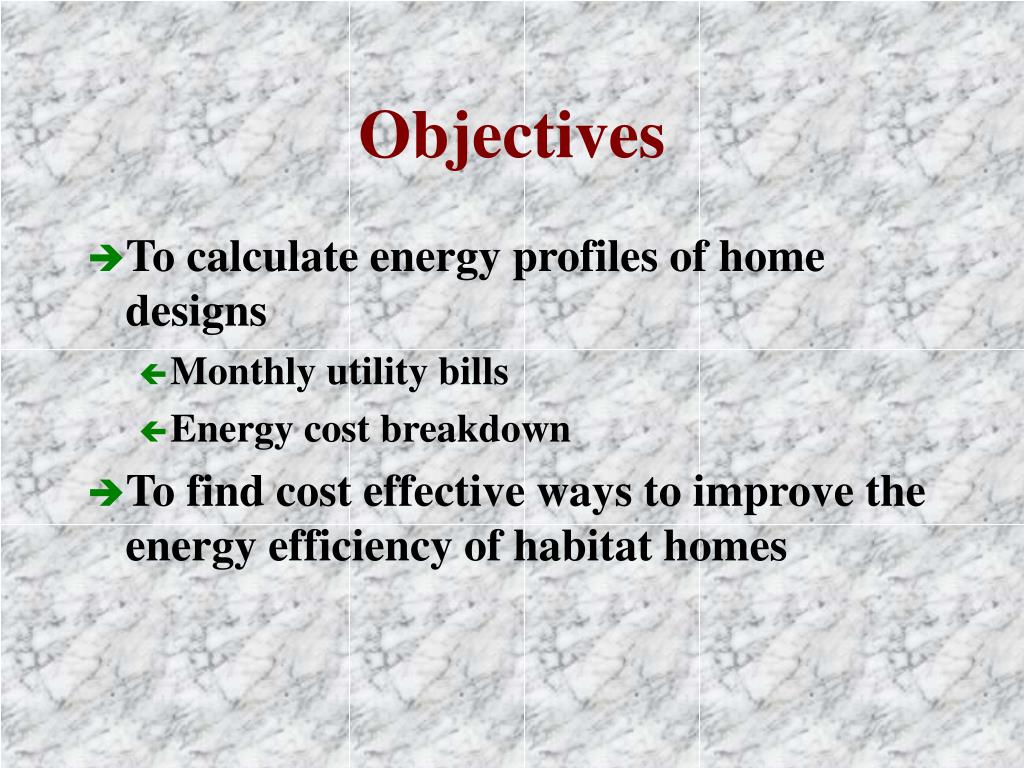

  12. Objectives • To calculate energy profiles of home designs • Monthly utility bills • Energy cost breakdown • To find cost effective ways to improve the energy efficiency of habitat homes

  13. Approach • Create models of multiple habitat houses within the Energy 10 software • Perform on-site energy testing and evaluation • Perform modifications to the base model and compare to current design • Compare energy savings to cost of design changes

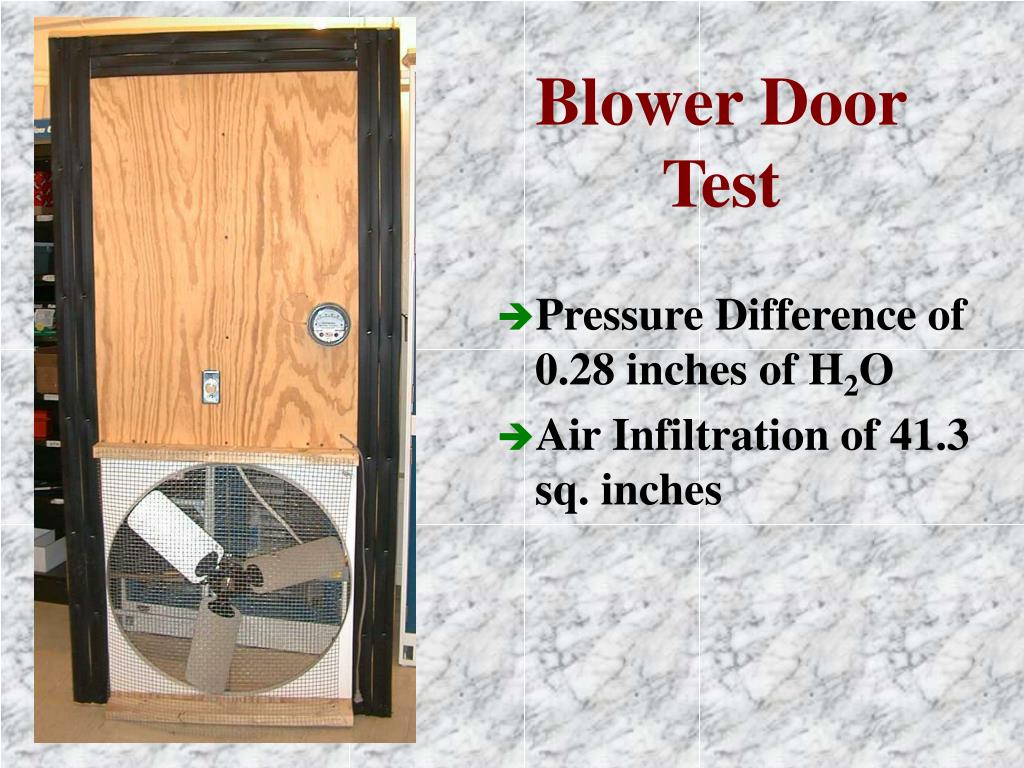

  14. Pressure Difference of 0.28 inches of H2O Air Infiltration of 41.3 sq. inches Blower Door Test

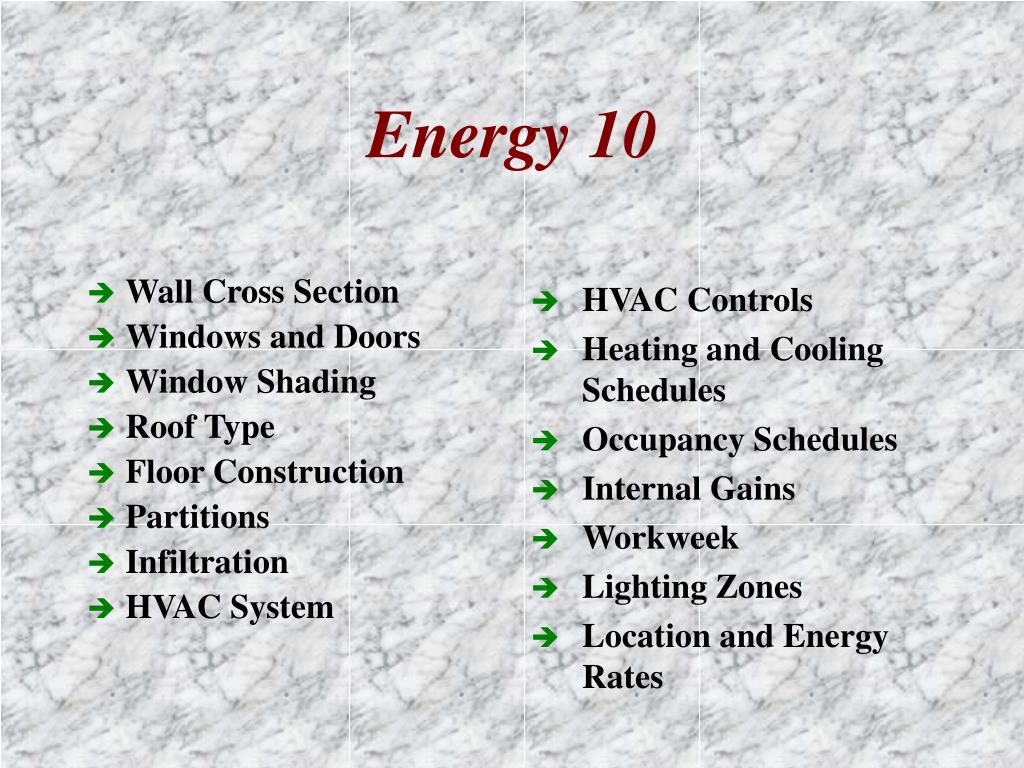

  15. Wall Cross Section Windows and Doors Window Shading Roof Type Floor Construction Partitions Infiltration HVAC System HVAC Controls Heating and Cooling Schedules Occupancy Schedules Internal Gains Workweek Lighting Zones Location and Energy Rates Energy 10

  16. Utility Costs • Average calculated monthly utility costs were approximately $54 • Average monthly bills from current houses were around $50

  17. Temperature Setbacks • Developed profiles of occupancy and sleeping patterns • Set heating temperatures back from 70 to 65 • Set cooling temperatures up from 75 to 80 • Annual savings of approximately $30 per year • Return on investment of two years

  18. Future Tasks • Tests • Thermal imaging performed by ThermoScan Inc. • Analyses • Reevaluate central vs. window air conditioning • House wrap • Window type • Shingle color

  19. Web Information Team Mike Monahan Asli Kumcu

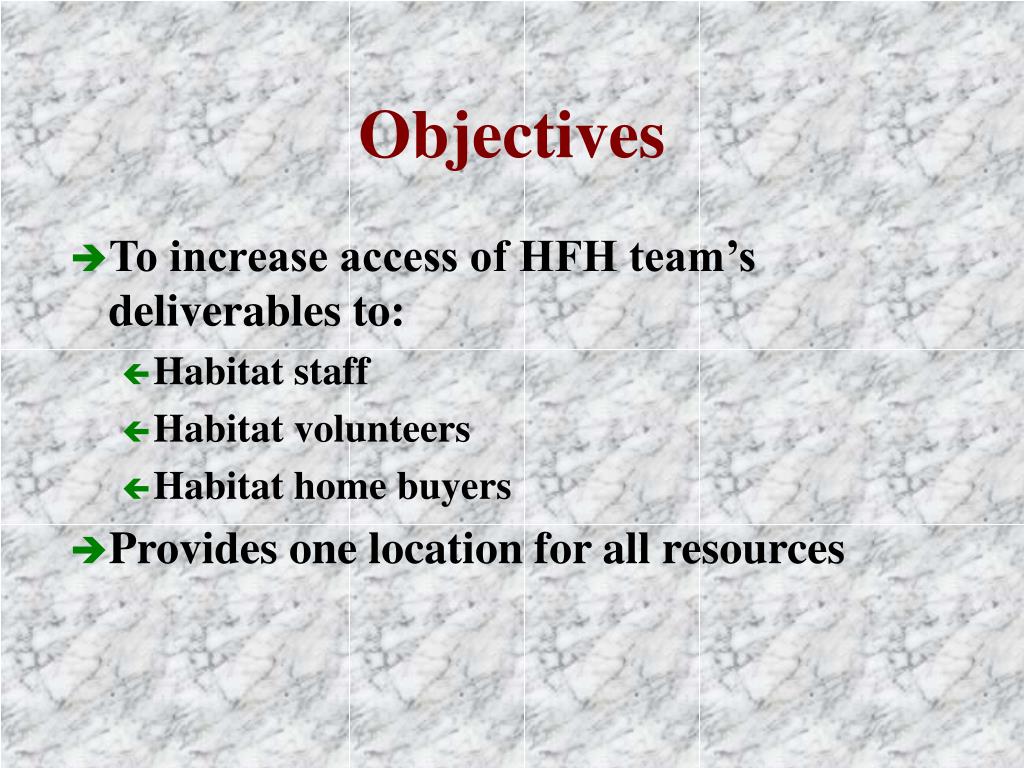

  20. Objectives • To increase access of HFH team’s deliverables to: • Habitat staff • Habitat volunteers • Habitat home buyers • Provides one location for all resources

  21. Habitat Home Efficiency, Selection and Construction Online Resource Enter Guide

  22. Future Tasks • Expand Floor Selection Guide to include all homes • Develop tutorials to complete Construction Timeline • Expand Energy Analysis to include all homes

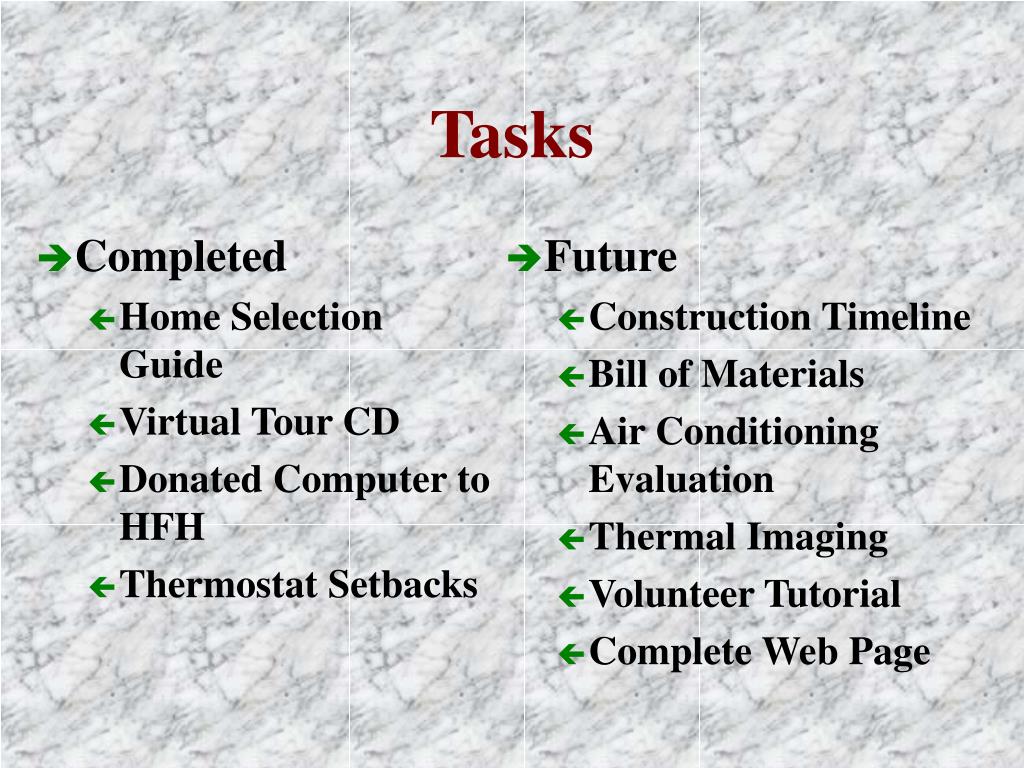

  23. Completed Home Selection Guide Virtual Tour CD Donated Computer to HFH Thermostat Setbacks Future Construction Timeline Bill of Materials Air Conditioning Evaluation Thermal Imaging Volunteer Tutorial Complete Web Page Tasks

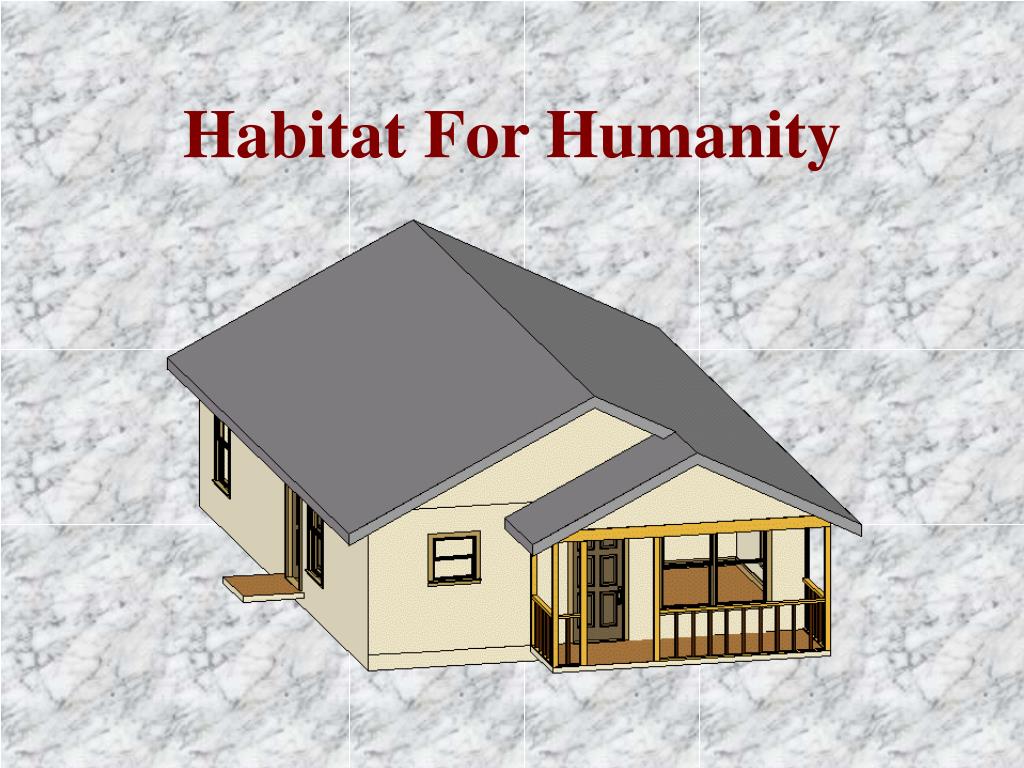

  24. Habitat For Humanity
