  1. Sterilisation principles • WHAT IS STERILISATION • WHY STERILISATION • HOW TO STERILISE

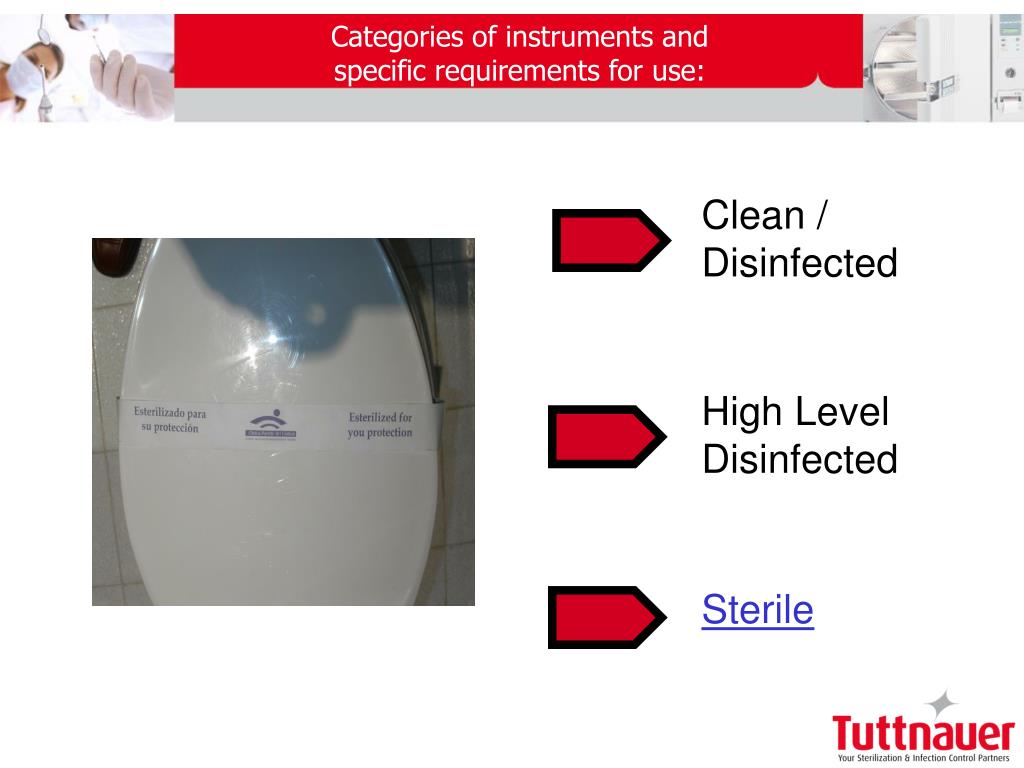

  2. Categories of instruments and specific requirements for use: Clean / Disinfected High Level Disinfected Sterile

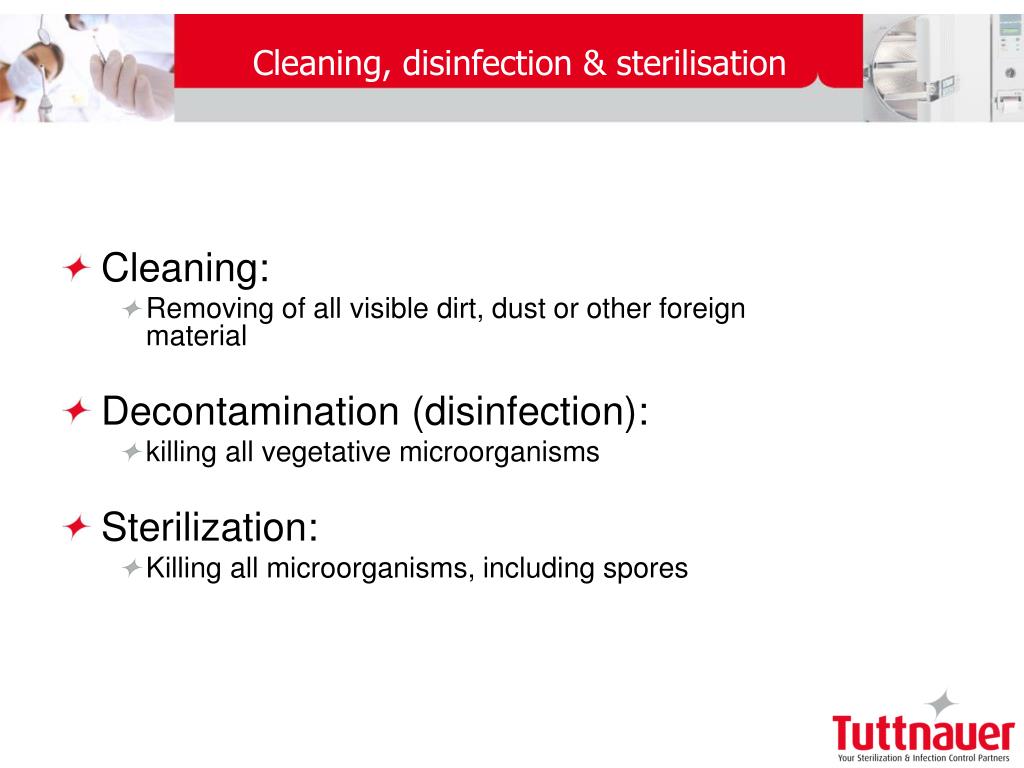

  3. Cleaning, disinfection & sterilisation • Cleaning: • Removing of all visible dirt, dust or other foreign material • Decontamination (disinfection): • killing all vegetative microorganisms • Sterilization: • Killing all microorganisms, including spores

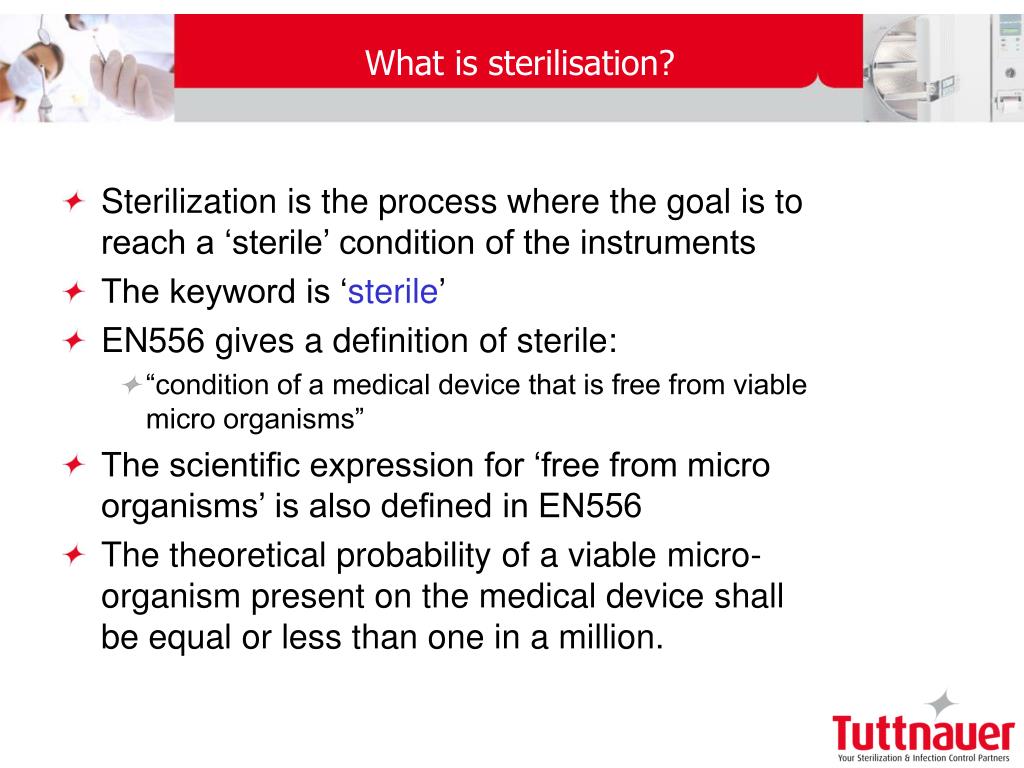

  4. What is sterilisation? • Sterilization is the process where the goal is to reach a ‘sterile’ condition of the instruments • The keyword is ‘sterile’ • EN556 gives a definition of sterile: • “condition of a medical device that is free from viable micro organisms” • The scientific expression for ‘free from micro organisms’ is also defined in EN556 • The theoretical probability of a viable micro- organism present on the medical device shall be equal or less than one in a million.

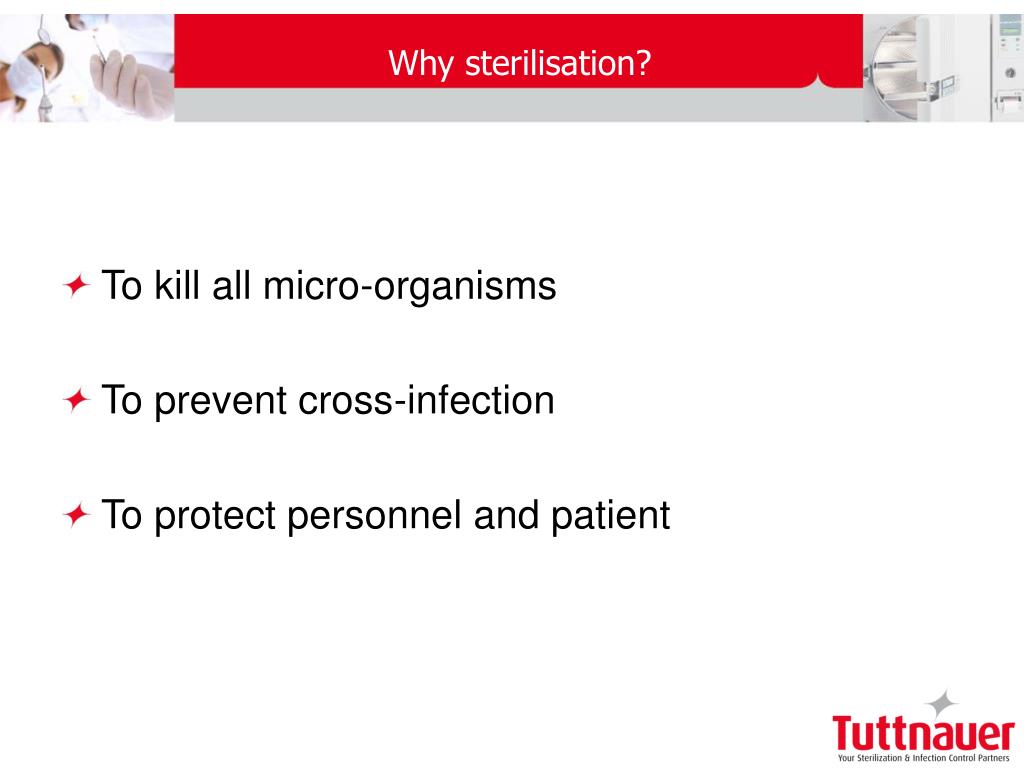

  5. Why sterilisation? • To kill all micro-organisms • To prevent cross-infection • To protect personnel and patient

  6. Pasteur History of micro organisms • 1674: ‘Antonie Van Leeuwenhoek’ discovers great numbers of bacteria's • 1862: ‘Louis Pasteur’ a French biologist proves that: • Bacteria's multiply by dividing • Infection is ‘air born’ • Boiling kills the bacteria • 1870: ‘Henry Charlton Bastian’ English neurologist concludes that 100ºC is not killing all the bacteria • 1880: ‘Charles Chamberland’ manufactures the first autoclave to boil on more than100ºC

  7. Various Micro Organisms • Animal-like: • Malaria and Bilharzias • Vegetable-like: • Mould (10 times the size of a bacteria) • Bacteria (10 times the size of a virus) • Bacillus or spores (high resistant bacteria) • Viruses: Needs “living” material to multiply

  8. Cleaning and Disinfection

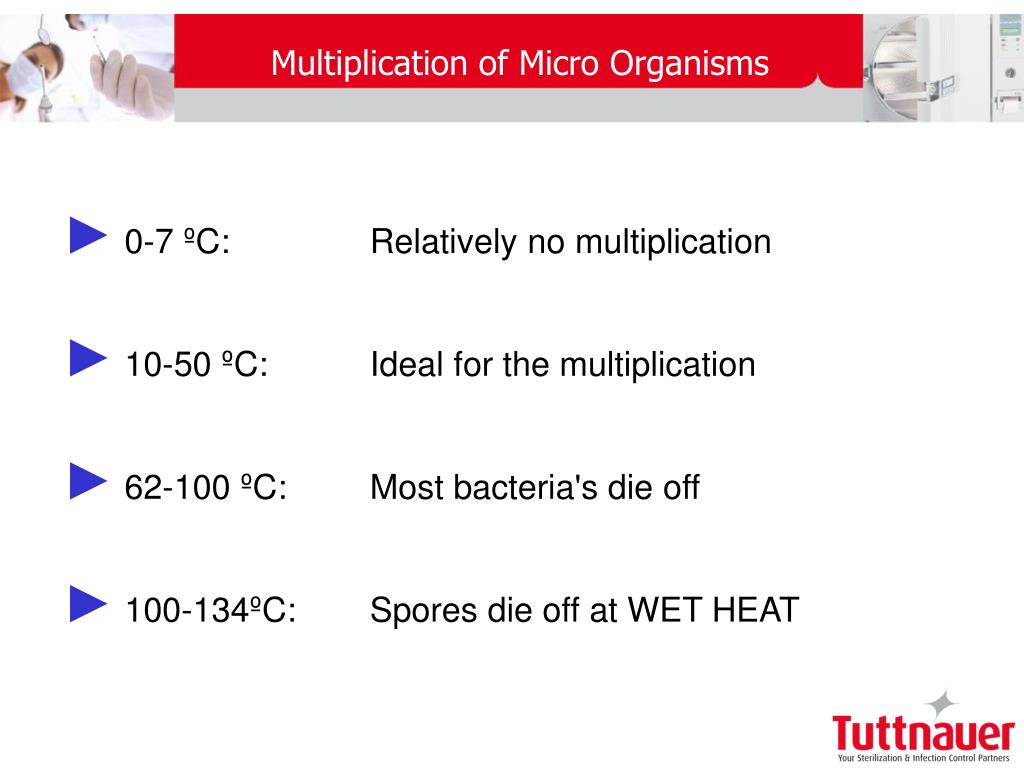

  9. Multiplication of Micro Organisms • 0-7 ºC: Relatively no multiplication • 10-50 ºC: Ideal for the multiplication • 62-100 ºC: Most bacteria's die off • 100-134ºC: Spores die off at WET HEAT

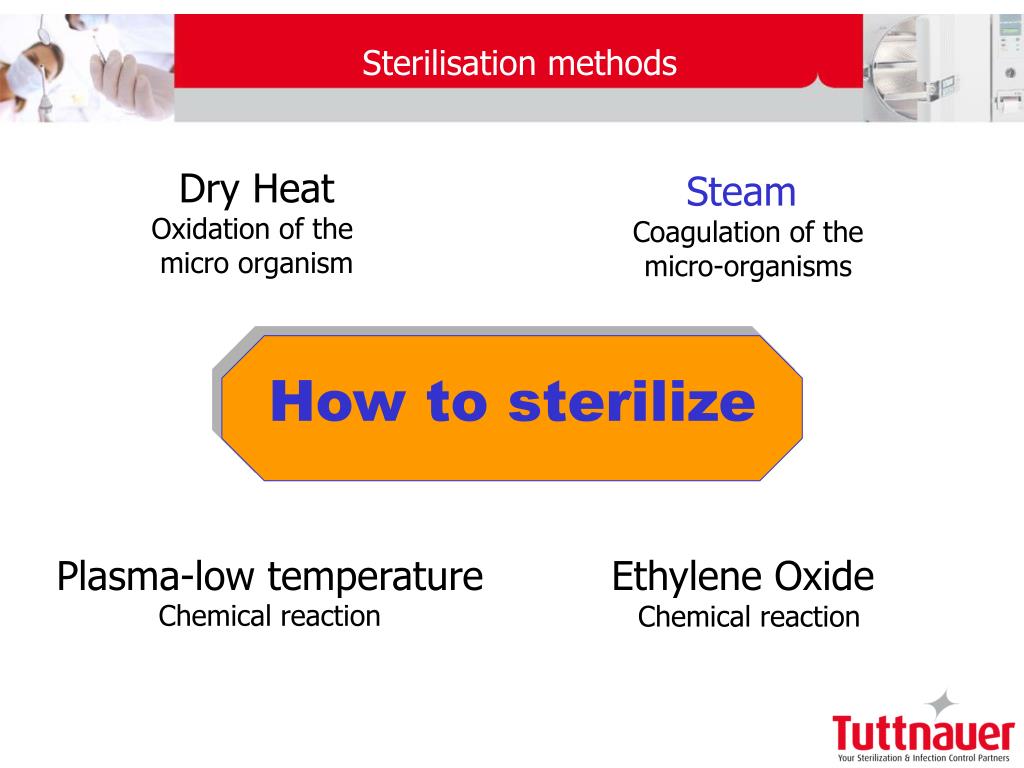

  10. How to sterilize Sterilisation methods Dry HeatOxidation of the micro organism SteamCoagulation of themicro-organisms Plasma-low temperature Chemical reaction Ethylene Oxide Chemical reaction

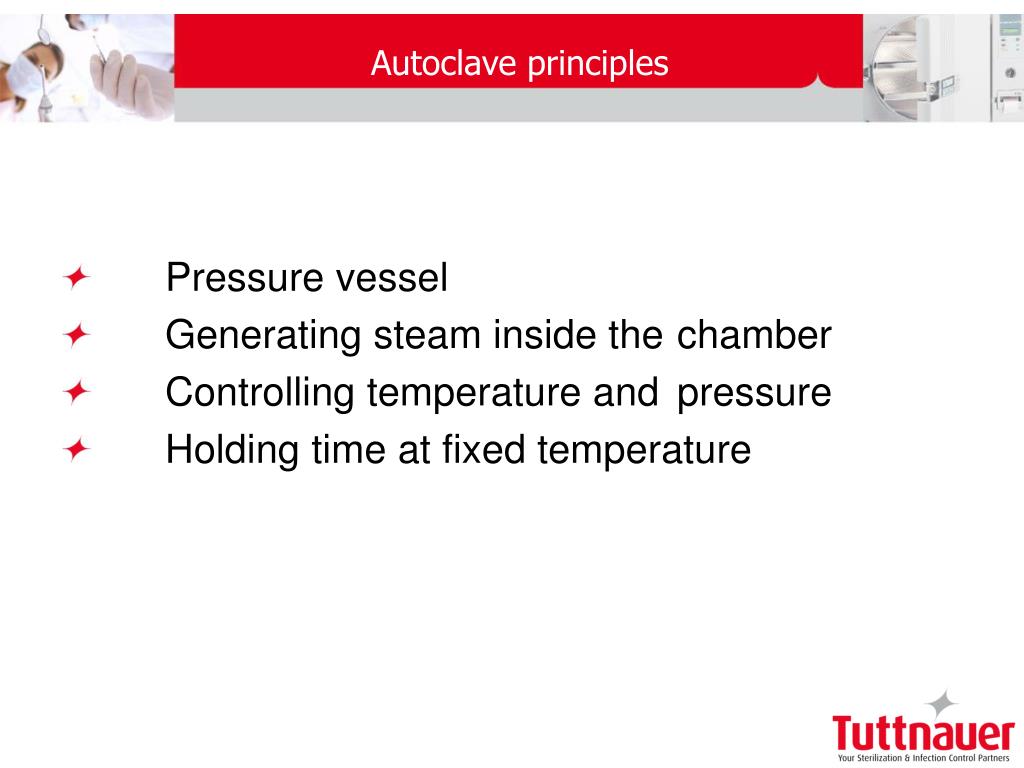

  11. Autoclave principles • Pressure vessel • Generating steam inside the chamber • Controlling temperature and pressure • Holding time at fixed temperature

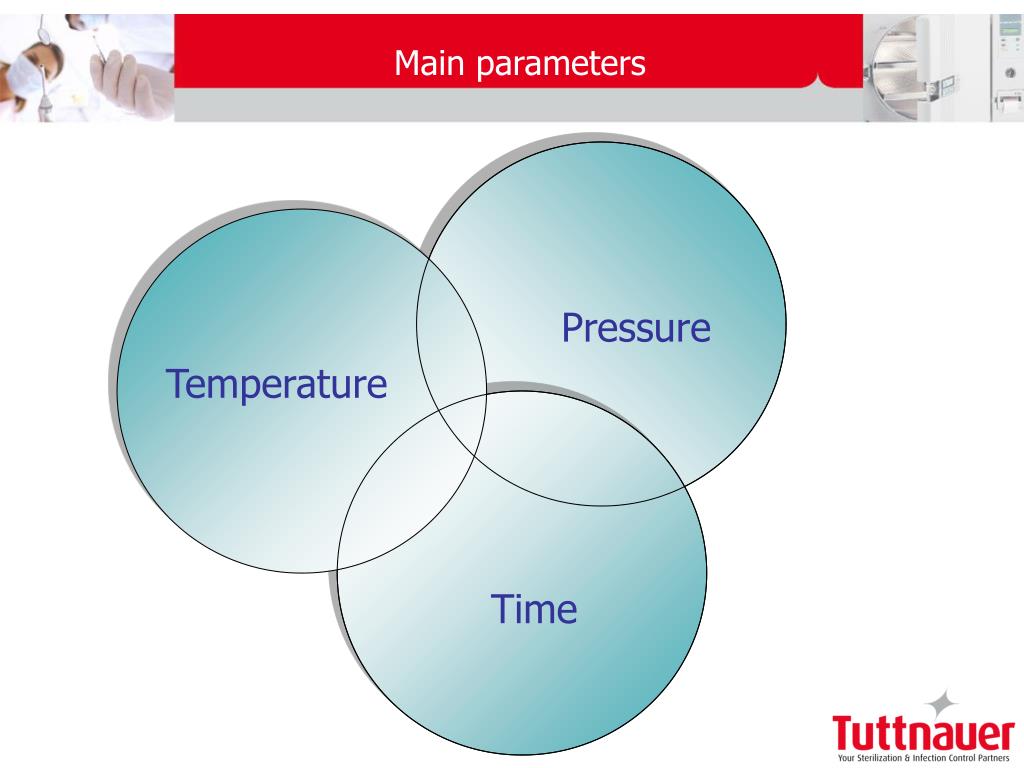

  12. Pressure Temperature Time Main parameters

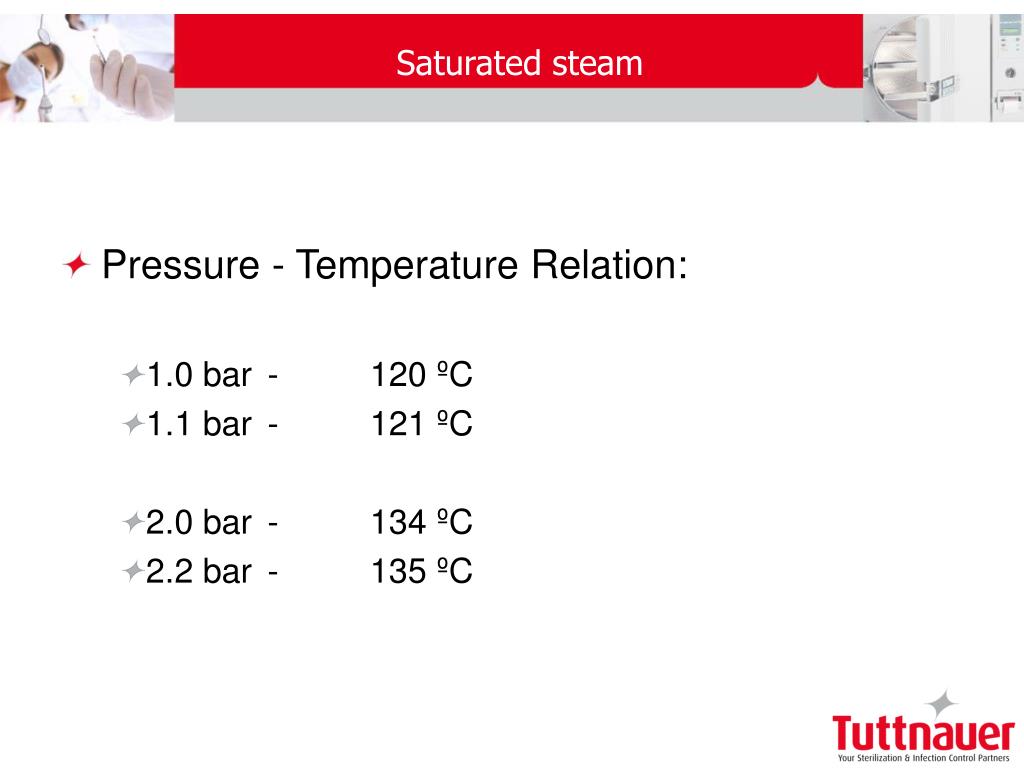

  13. Saturated steam • Pressure - Temperature Relation: • 1.0 bar - 120 ºC • 1.1 bar - 121 ºC • 2.0 bar - 134 ºC • 2.2 bar - 135 ºC

  14. Minimum holding time • Temperature - Time relation • 134 to 138 ºC - 3 Minutes • 121 to 124 ºC - 15 Minutes • 105 to 108 ºC - 2 Hours

  15. Air & steam • Where there’s air, there’s no steam • Where there’s no steam, there’s no sterilization • Air obstructs the temperature from rising

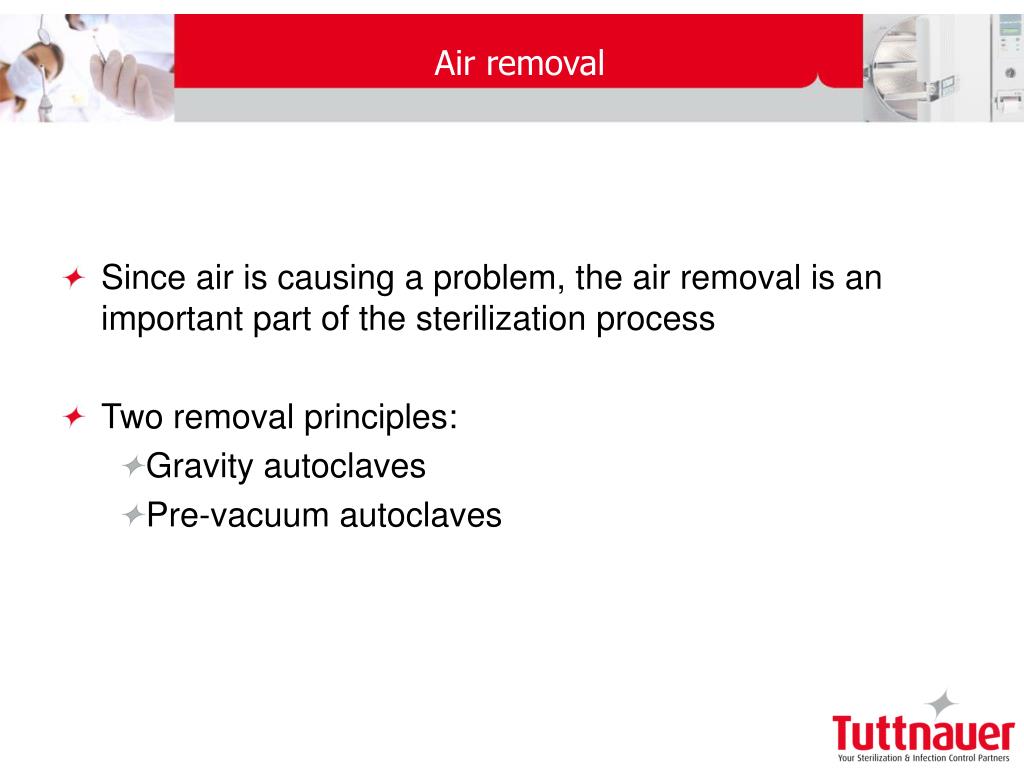

  16. Air removal • Since air is causing a problem, the air removal is an important part of the sterilization process • Two removal principles: • Gravity autoclaves • Pre-vacuum autoclaves

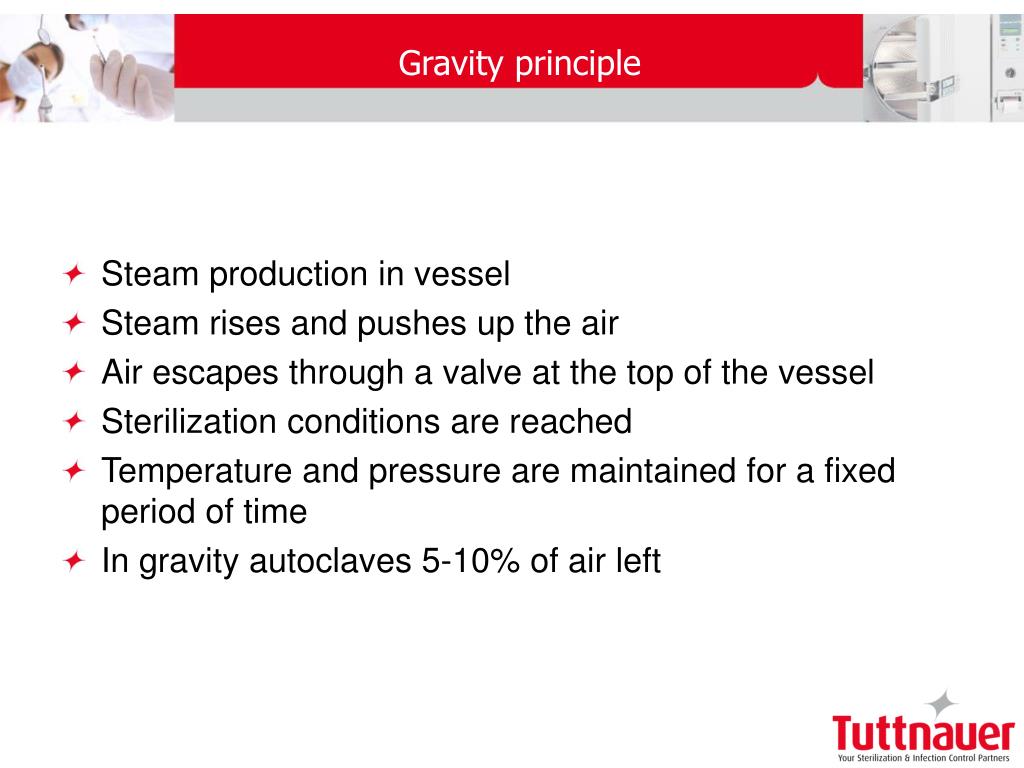

  17. Gravity principle • Steam production in vessel • Steam rises and pushes up the air • Air escapes through a valve at the top of the vessel • Sterilization conditions are reached • Temperature and pressure are maintained for a fixed period of time • In gravity autoclaves 5-10% of air left

  18. Process stages - gravity

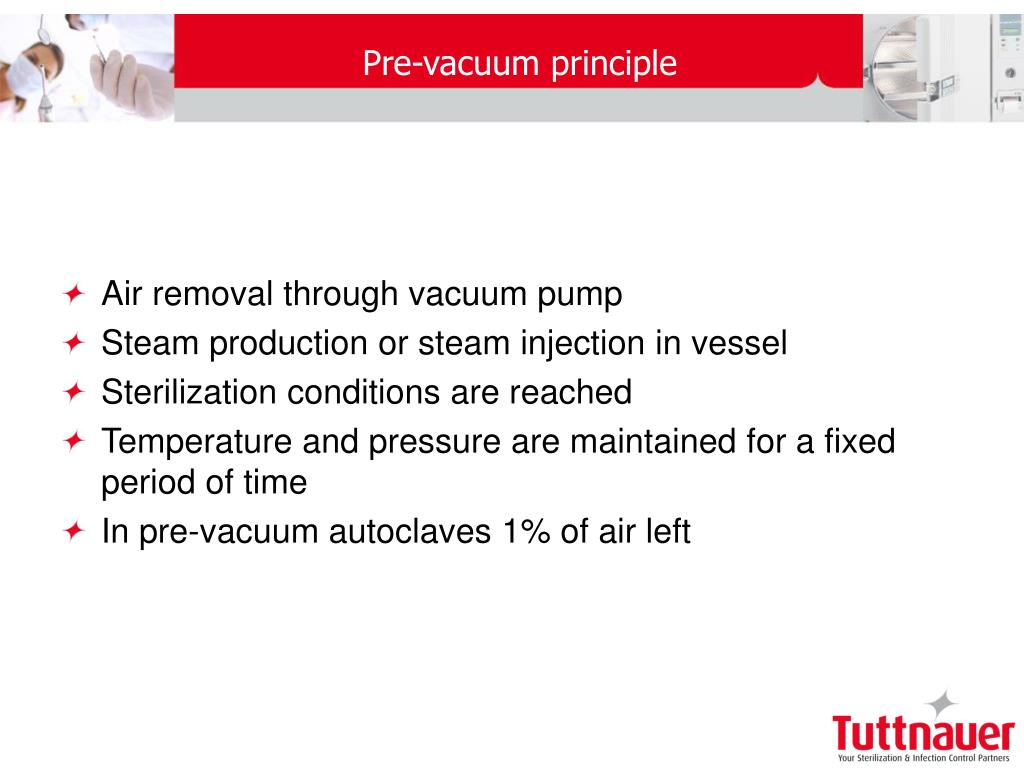

  19. Pre-vacuum principle • Air removal through vacuum pump • Steam production or steam injection in vessel • Sterilization conditions are reached • Temperature and pressure are maintained for a fixed period of time • In pre-vacuum autoclaves 1% of air left

  20. Process stages - vacuum 1 vacuum pulse

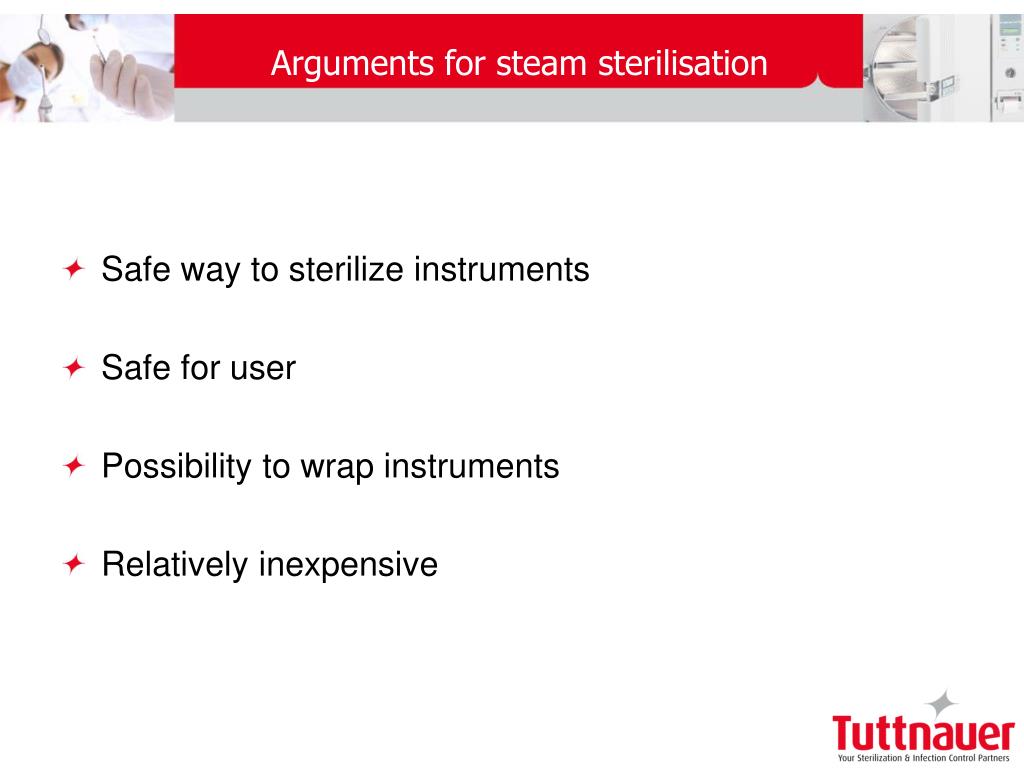

  21. Arguments for steam sterilisation • Safe way to sterilize instruments • Safe for user • Possibility to wrap instruments • Relatively inexpensive

  22. TUTTNAUER Europe Sales Dept. Henk Ras Carlos Naipal sales@tuttnauer.nl Service Dept. Michel Oerlemans (Technical training) service@tuttnauer.nl Tel: +31(0)76- 542 3510
