  1. Prioritizing Projects for Pre-Disaster Mitigation (PDM) Competitive Grant Program SHMPAT Meeting July 21-22, 2003 SHMPAT PDM

  2. OBJECTIVE 1 To develop a process for prioritizing Florida projects to compete for PDM funding SHMPAT PDM

  3. OBJECTIVE 2 To maximize the opportunities for Florida projects to qualify and be approved for PDM funding SHMPAT PDM

  4. Hazard Mitigation SHMPAT PDM

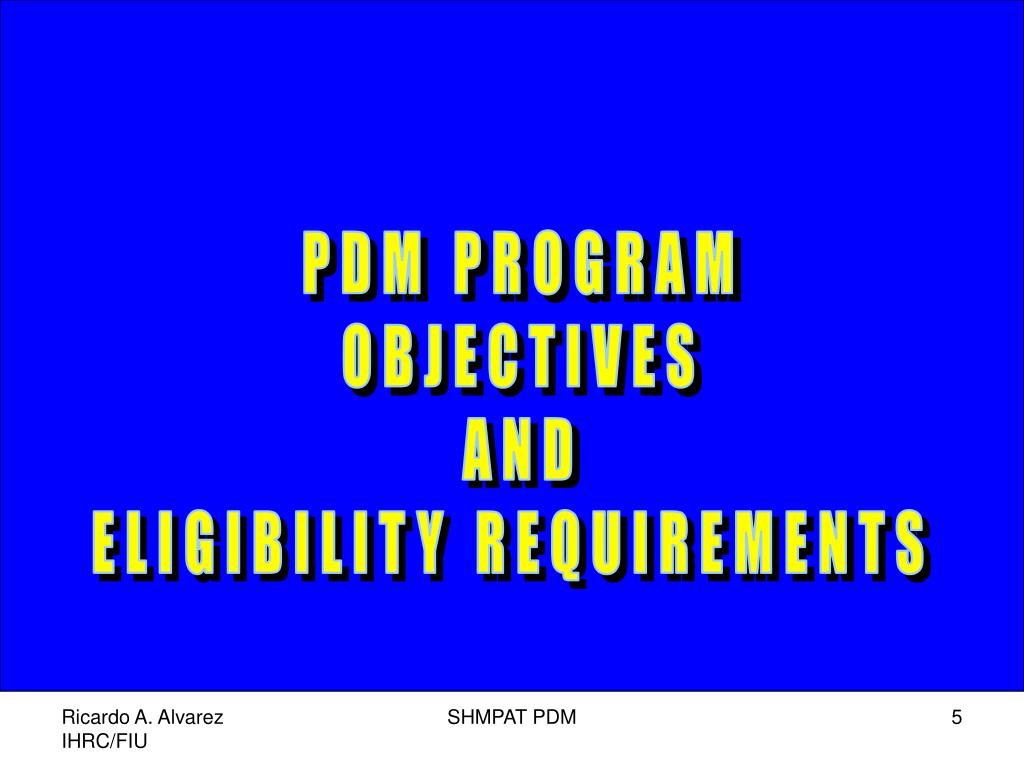

  5. PDM PROGRAM OBJECTIVES AND ELIGIBILITY REQUIREMENTS SHMPAT PDM

  6. PDM 1 Authority: Stafford Act s. 203 DMA of 2000 s. 102 SHMPAT PDM

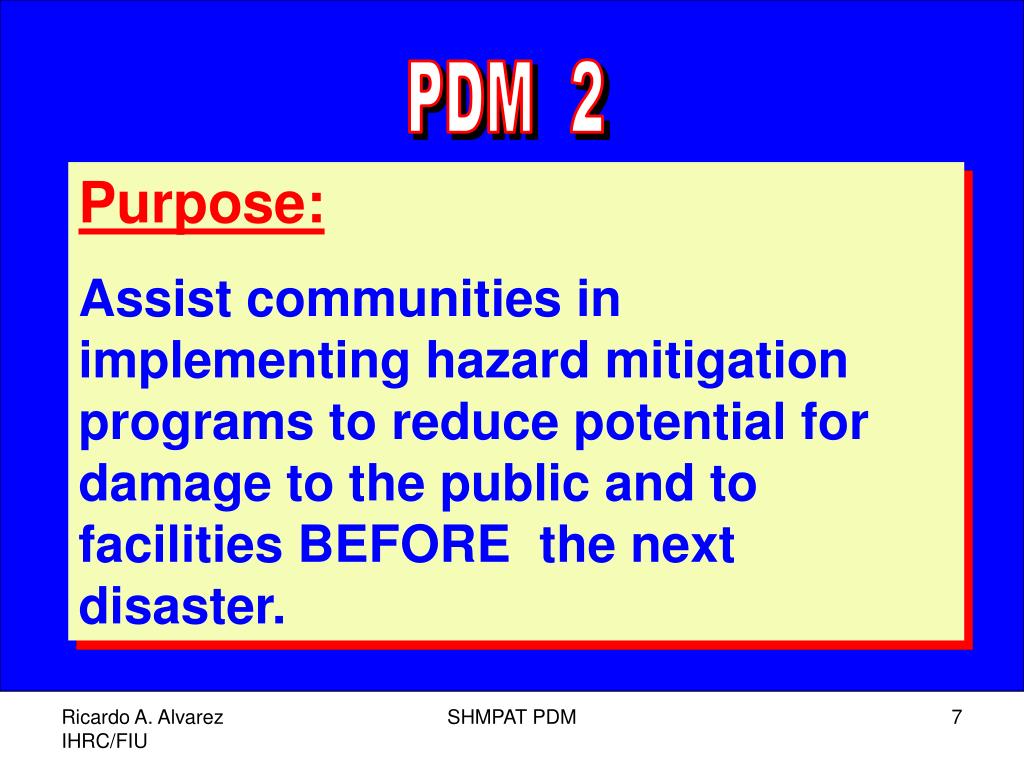

  7. PDM 2 Purpose: Assist communities in implementing hazard mitigation programs to reduce potential for damage to the public and to facilities BEFORE the next disaster. SHMPAT PDM

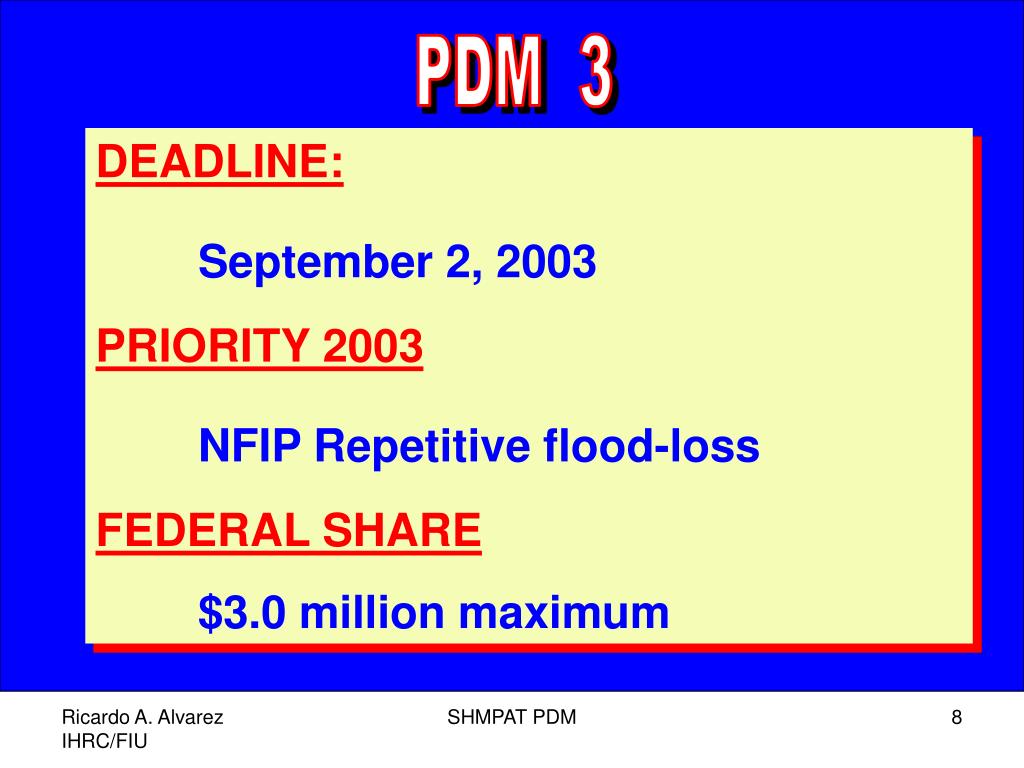

  8. PDM 3 DEADLINE: September 2, 2003 PRIORITY 2003 NFIP Repetitive flood-loss FEDERAL SHARE $3.0 million maximum SHMPAT PDM

  9. PDM 4 COST SHARING 75% Federal 25% Applicant in-kind allowed MANAGEMENT COST 5% max. allowed BENEFIT-COST BCR of 1.0 or higher SHMPAT PDM

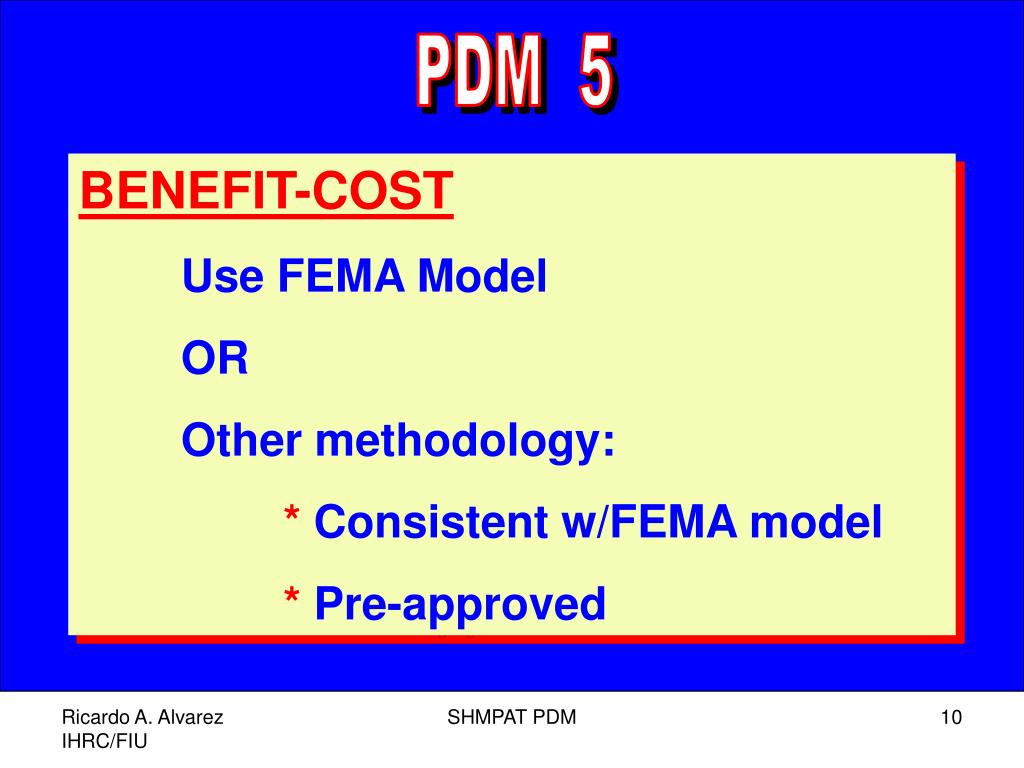

  10. PDM 5 BENEFIT-COST Use FEMA Model OR Other methodology: * Consistent w/FEMA model * Pre-approved SHMPAT PDM

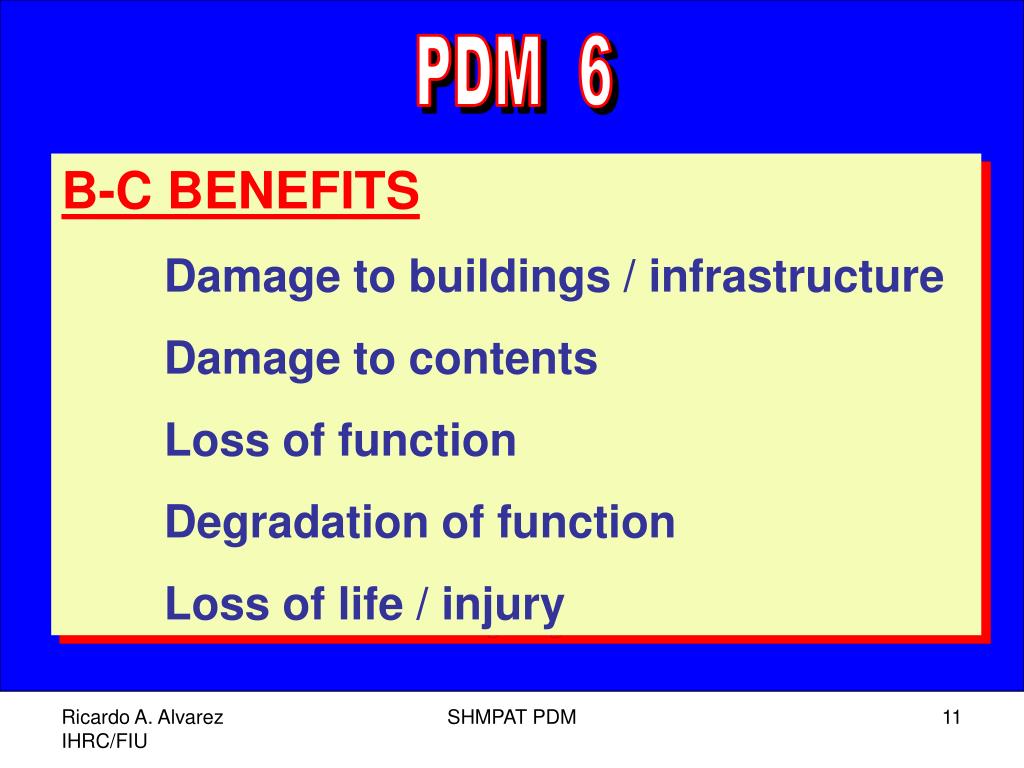

  11. PDM 6 B-C BENEFITS Damage to buildings / infrastructure Damage to contents Loss of function Degradation of function Loss of life / injury SHMPAT PDM

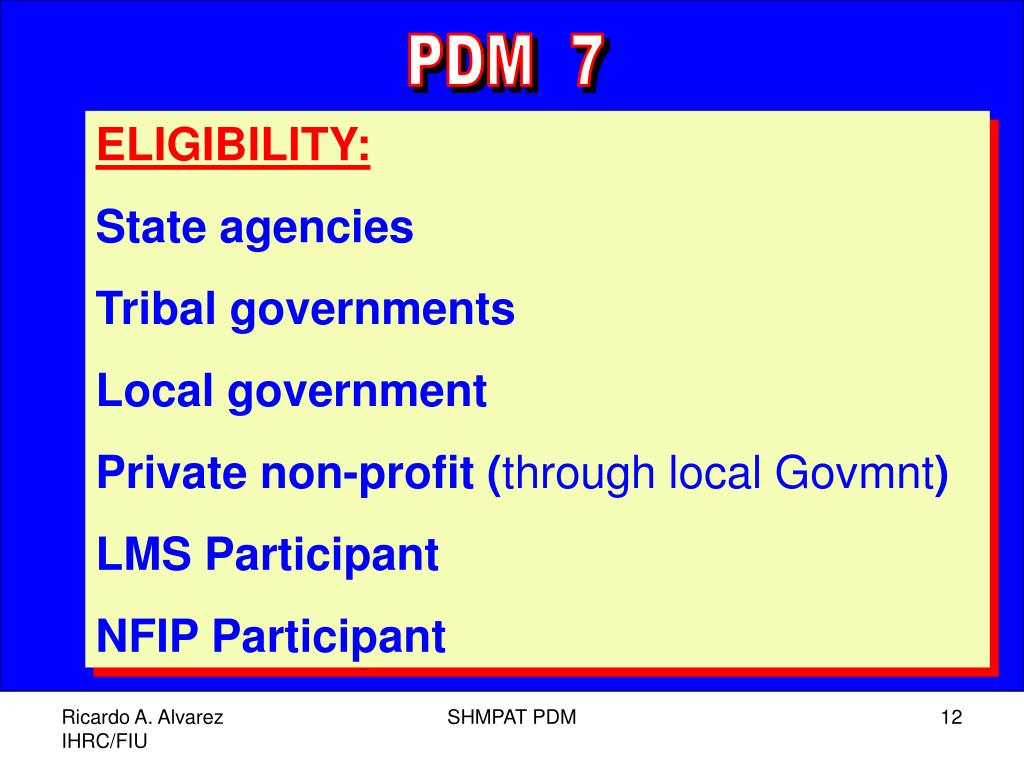

  12. PDM 7 ELIGIBILITY: State agencies Tribal governments Local government Private non-profit (through localGovmnt) LMS Participant NFIP Participant SHMPAT PDM

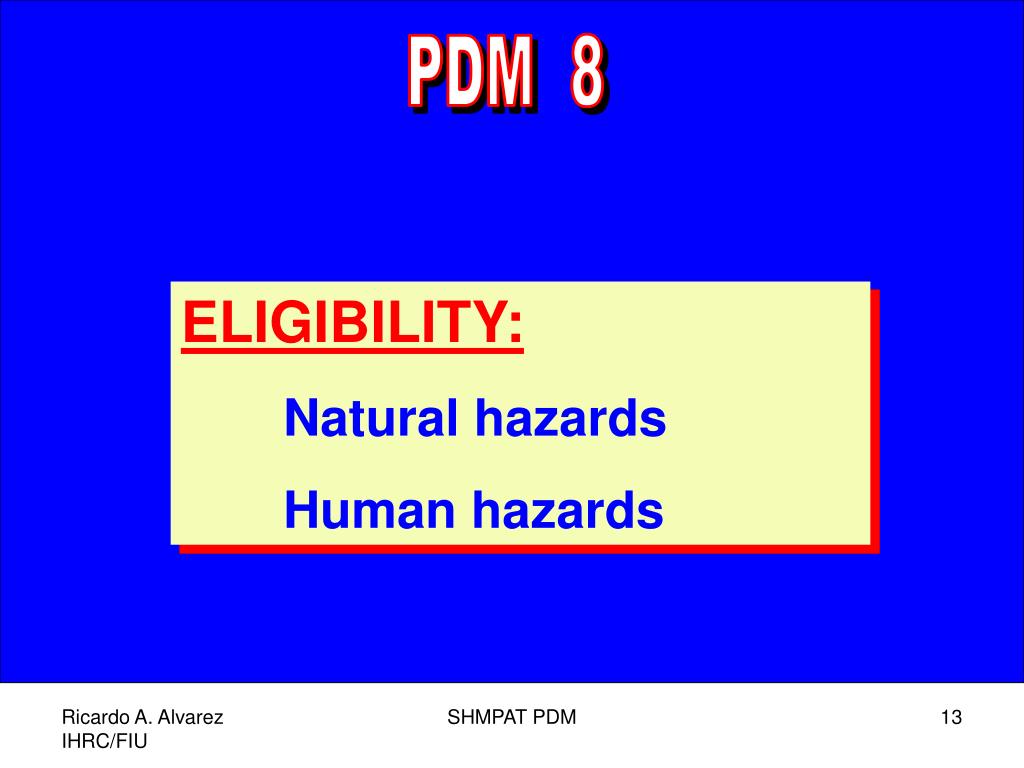

  13. PDM 8 ELIGIBILITY: Natural hazards Human hazards SHMPAT PDM

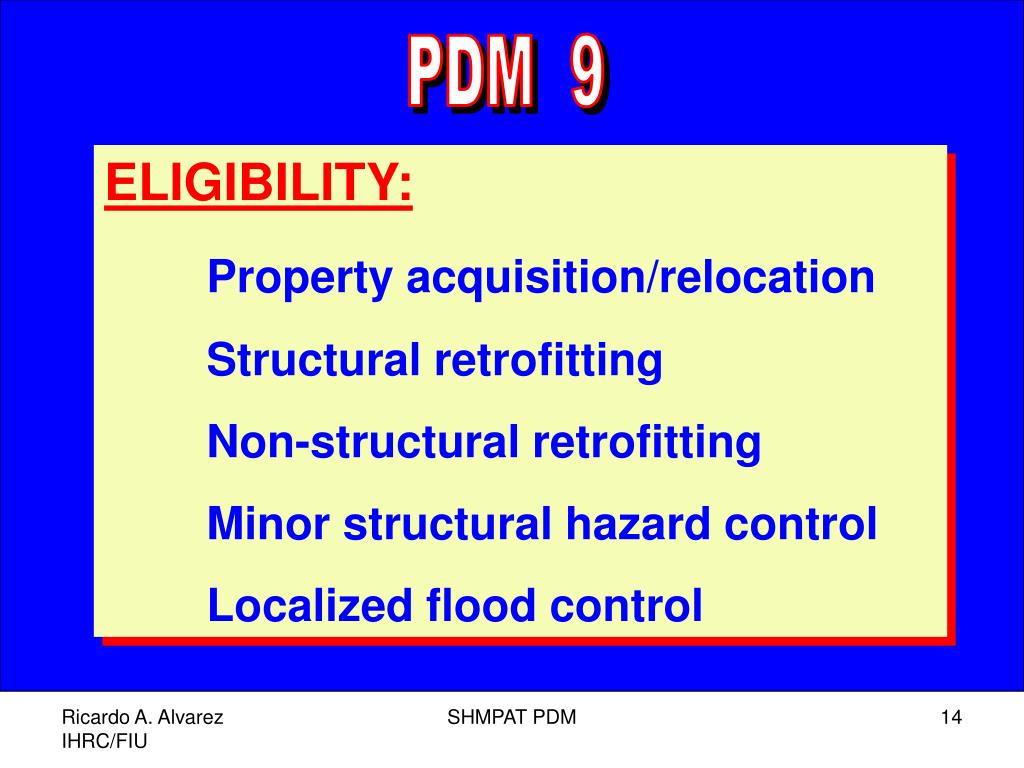

  14. PDM 9 ELIGIBILITY: Property acquisition/relocation Structural retrofitting Non-structural retrofitting Minor structural hazard control Localized flood control SHMPAT PDM

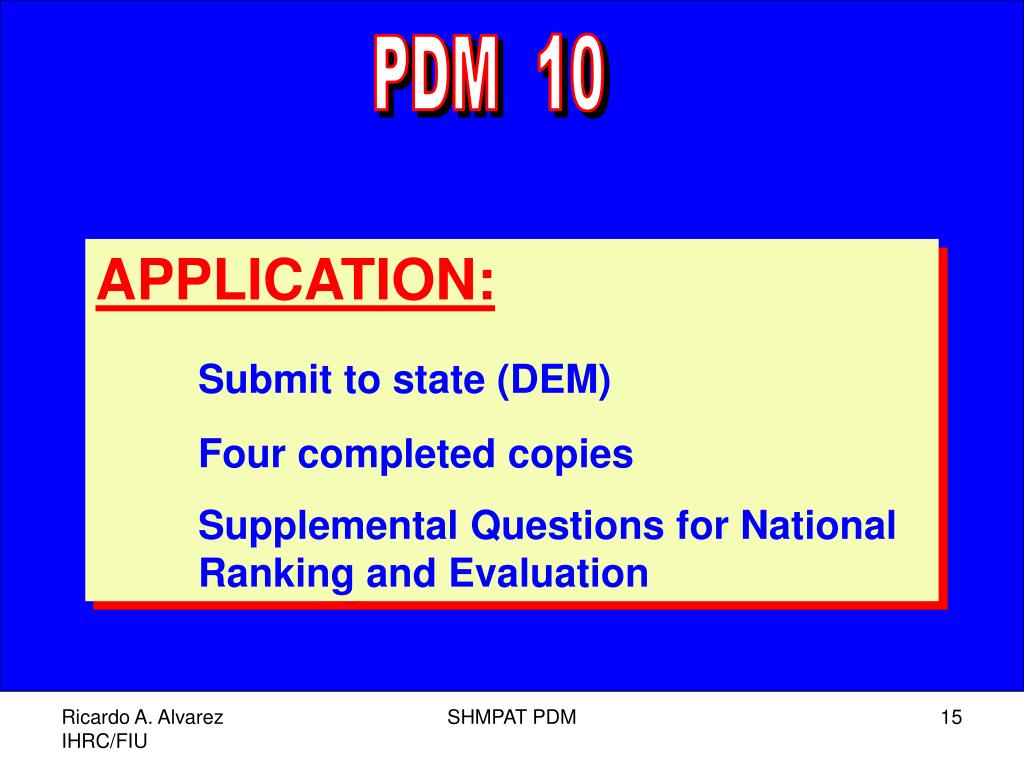

  15. PDM 10 APPLICATION: Submit to state (DEM) Four completed copies Supplemental Questions for National Ranking and Evaluation SHMPAT PDM

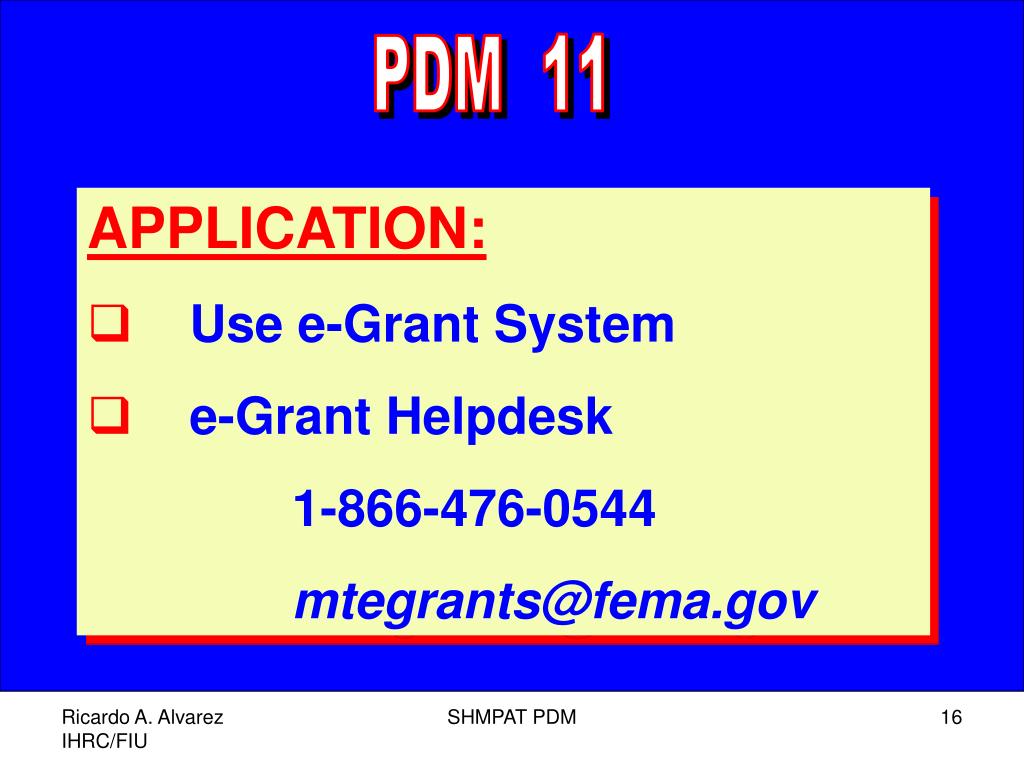

  16. PDM 11 • APPLICATION: • Use e-Grant System • e-Grant Helpdesk • 1-866-476-0544 • mtegrants@fema.gov SHMPAT PDM

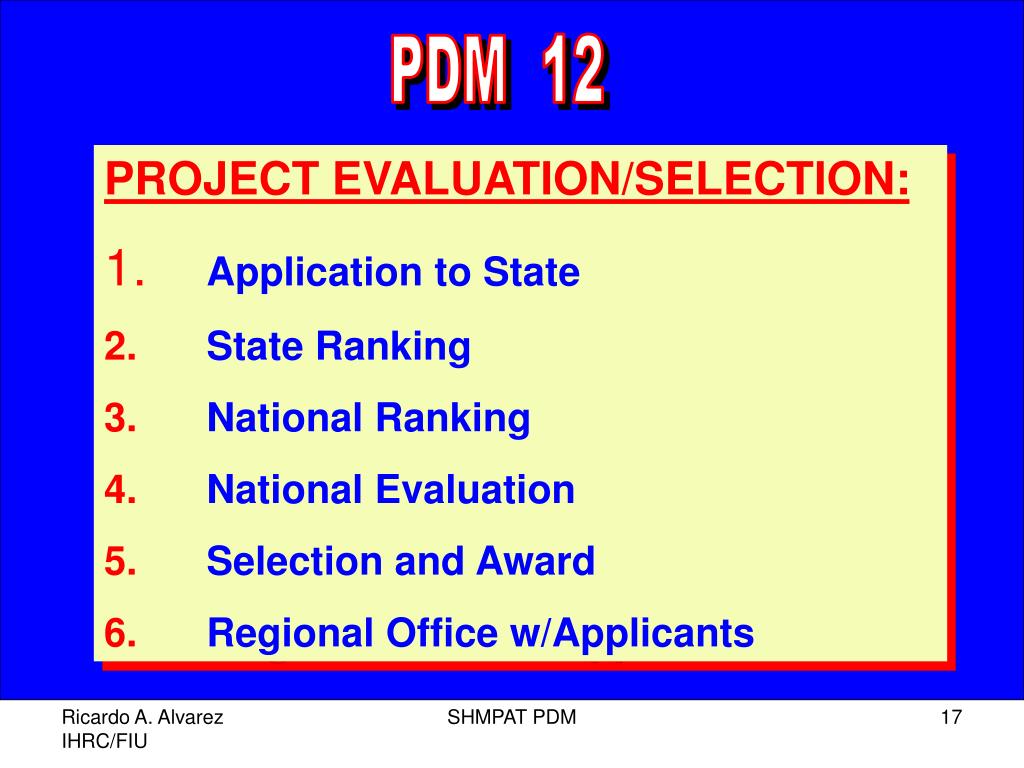

  17. PDM 12 • PROJECT EVALUATION/SELECTION: • Application to State • State Ranking • National Ranking • National Evaluation • Selection and Award • Regional Office w/Applicants SHMPAT PDM

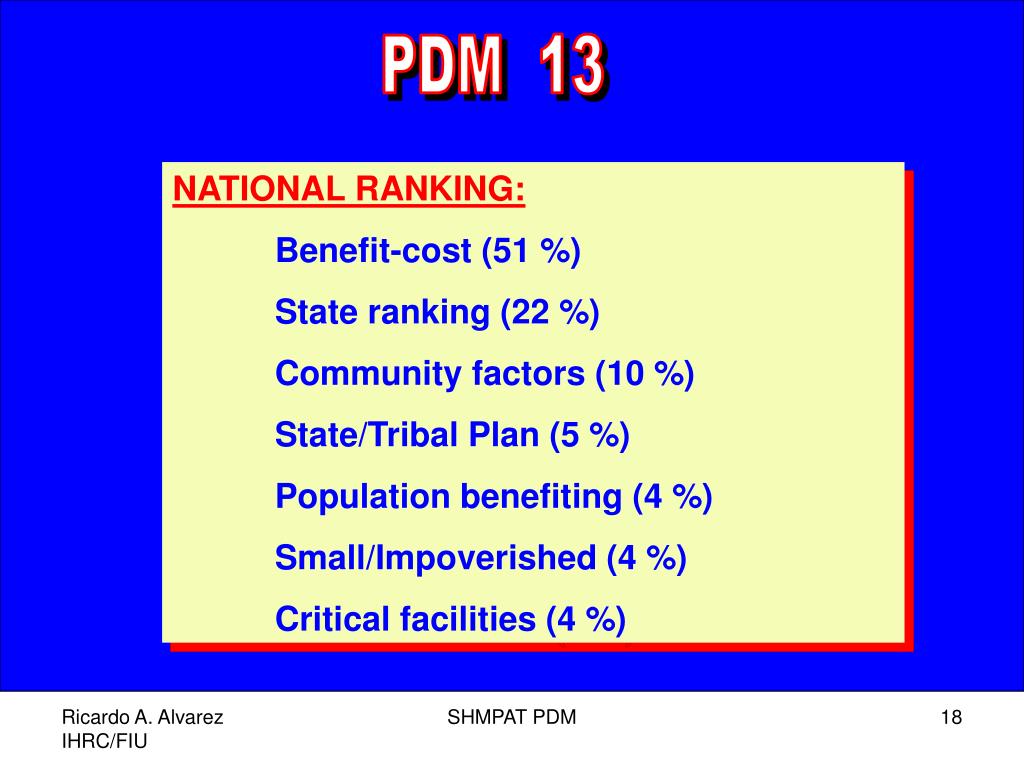

  18. PDM 13 NATIONAL RANKING: Benefit-cost (51 %) State ranking (22 %) Community factors (10 %) State/Tribal Plan (5 %) Population benefiting (4 %) Small/Impoverished (4 %) Critical facilities (4 %) SHMPAT PDM

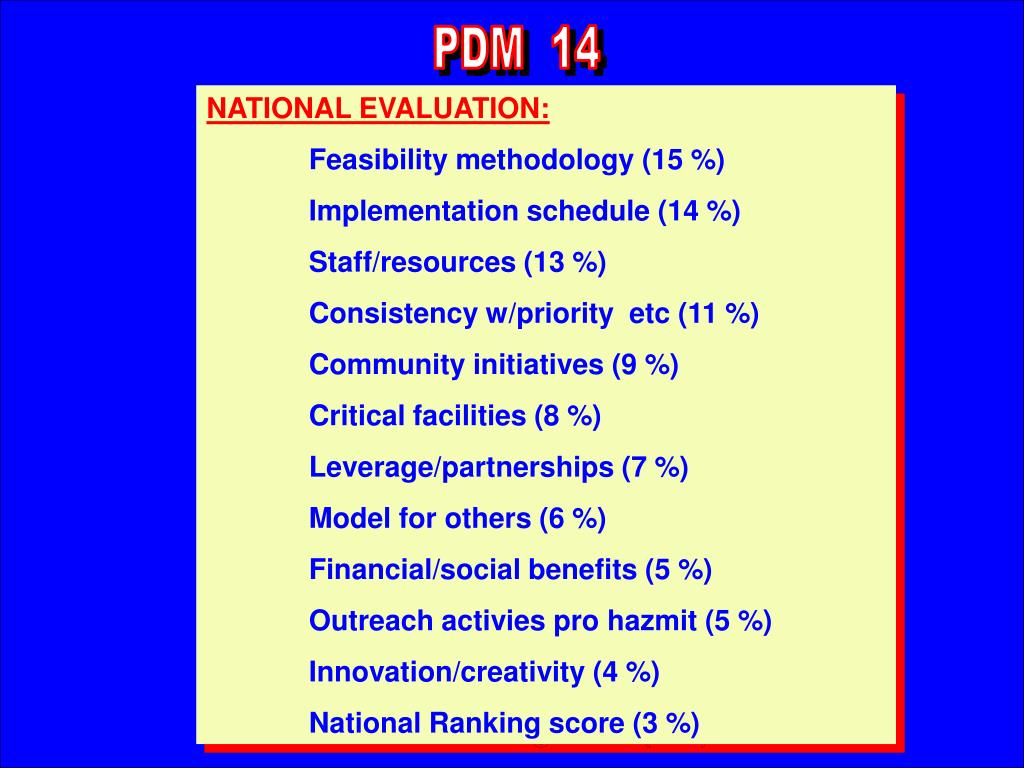

  19. PDM 14 NATIONAL EVALUATION: Feasibility methodology (15 %) Implementation schedule (14 %) Staff/resources (13 %) Consistency w/priority etc (11 %) Community initiatives (9 %) Critical facilities (8 %) Leverage/partnerships (7 %) Model for others (6 %) Financial/social benefits (5 %) Outreach activies pro hazmit (5 %) Innovation/creativity (4 %) National Ranking score (3 %) SHMPAT PDM

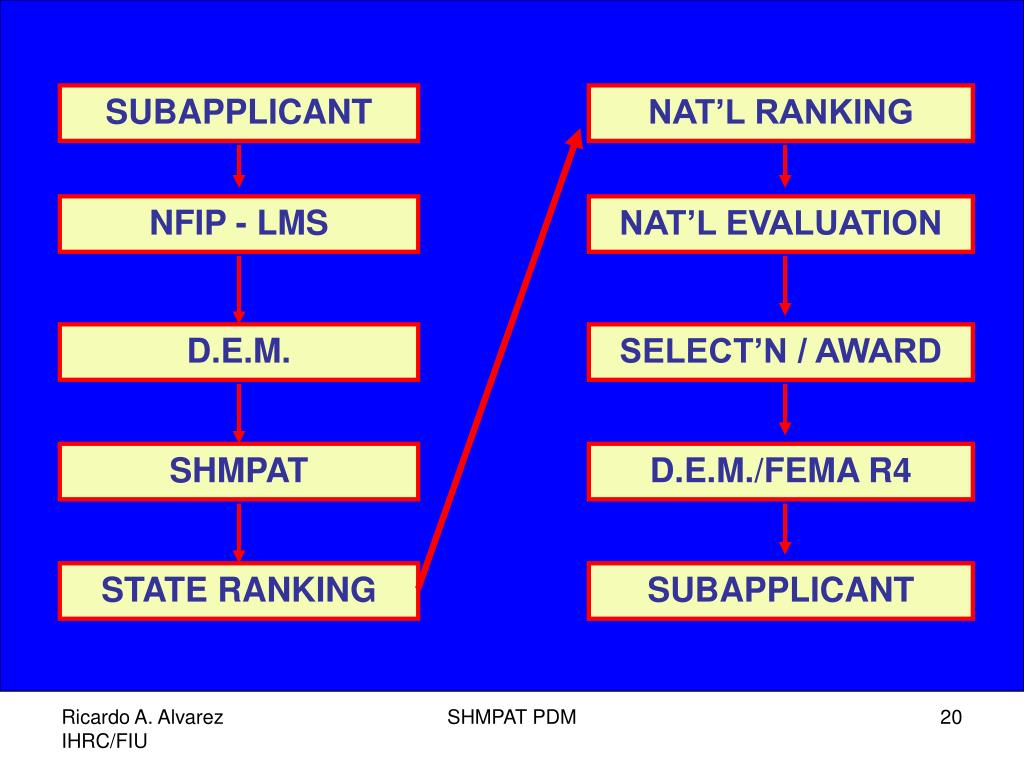

  20. SUBAPPLICANT NAT’L RANKING NFIP - LMS NAT’L EVALUATION D.E.M. SELECT’N / AWARD SHMPAT D.E.M./FEMA R4 STATE RANKING SUBAPPLICANT SHMPAT PDM

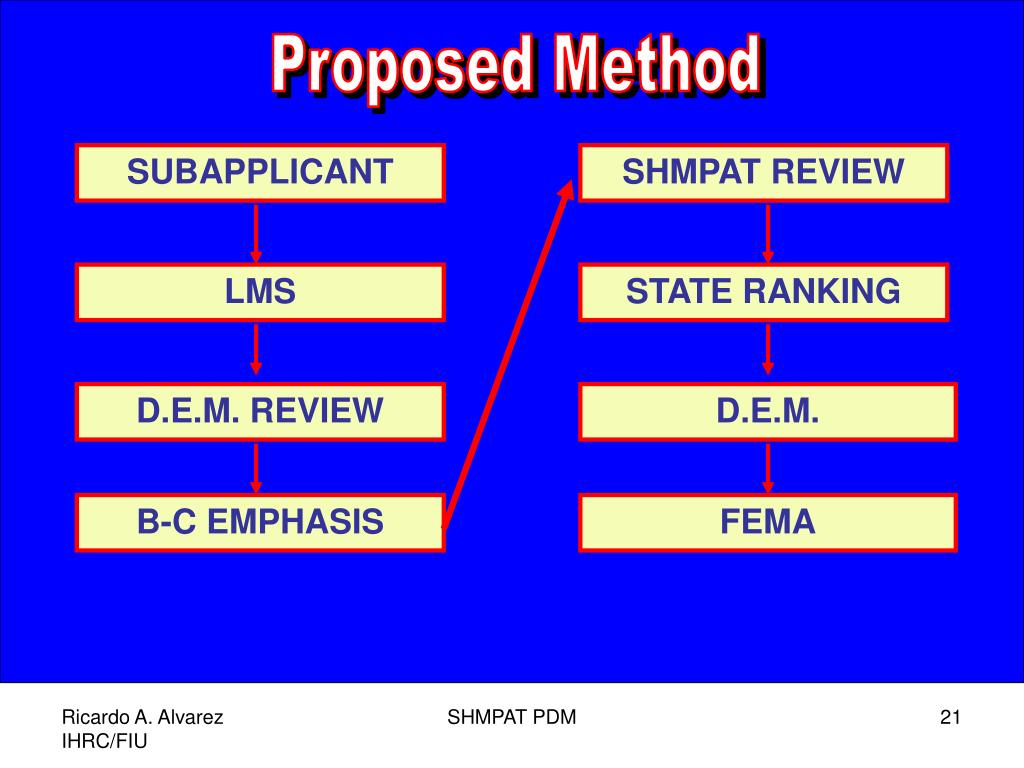

  21. Proposed Method SUBAPPLICANT SHMPAT REVIEW LMS STATE RANKING D.E.M. REVIEW D.E.M. B-C EMPHASIS FEMA SHMPAT PDM

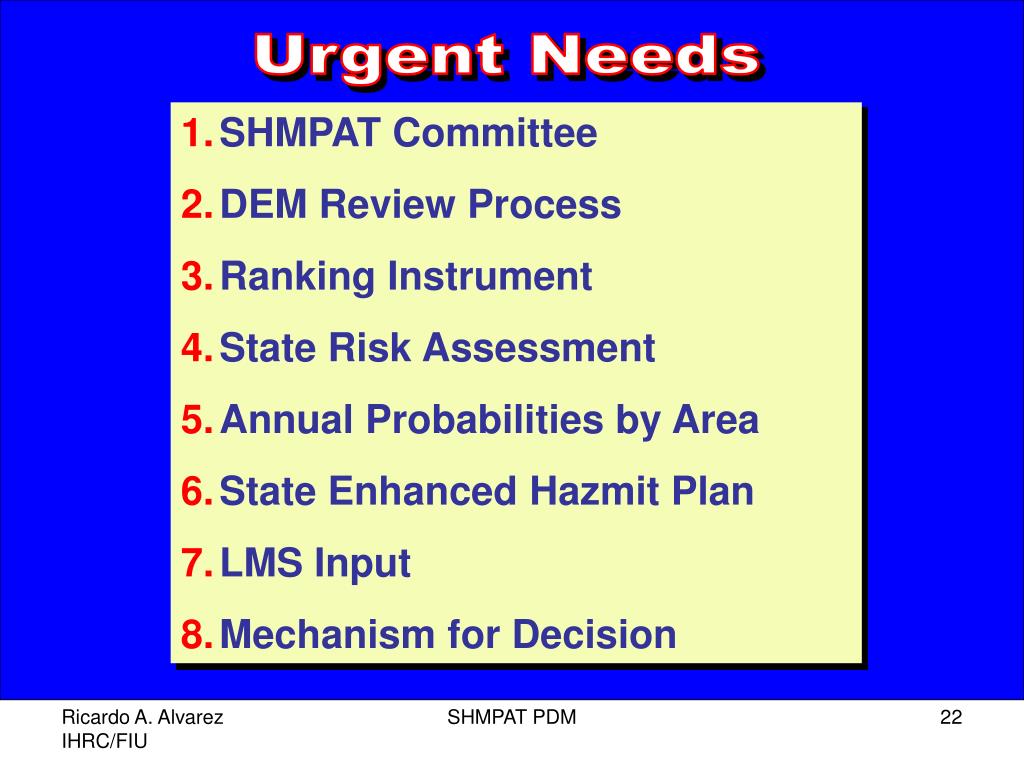

  22. Urgent Needs • SHMPAT Committee • DEM Review Process • Ranking Instrument • State Risk Assessment • Annual Probabilities by Area • State Enhanced Hazmit Plan • LMS Input • Mechanism for Decision SHMPAT PDM

  23. PART 2 Back to Basics SHMPAT PDM

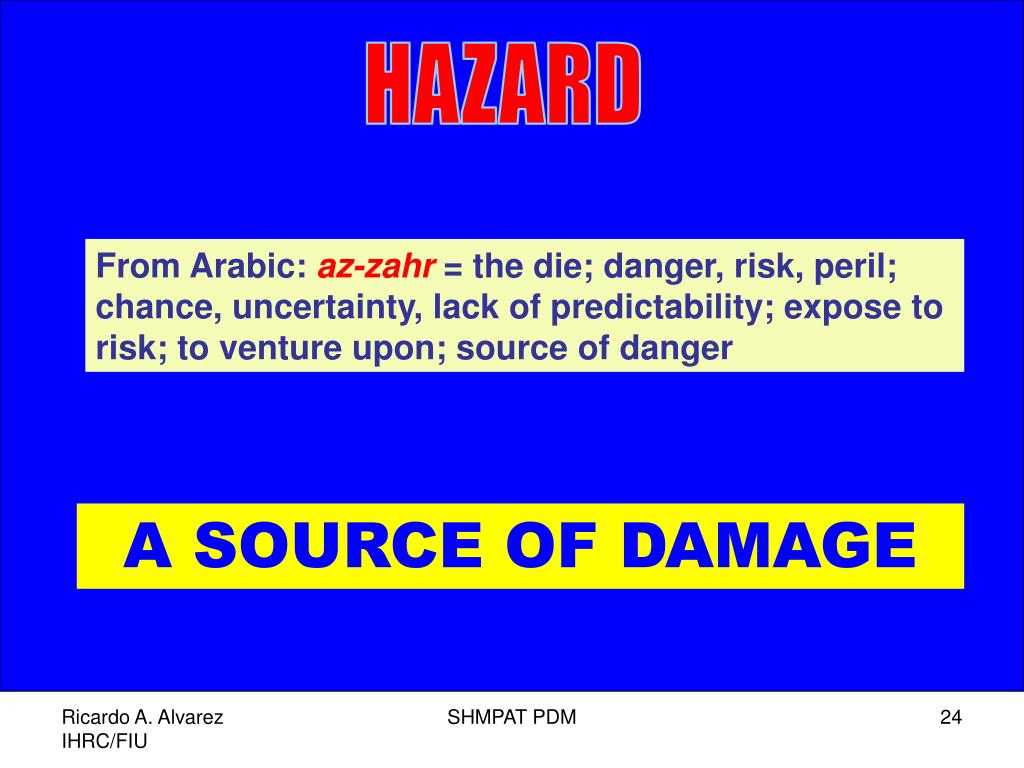

  24. HAZARD From Arabic: az-zahr= the die; danger, risk, peril; chance, uncertainty, lack of predictability; expose to risk; to venture upon; source of danger A SOURCE OF DAMAGE SHMPAT PDM

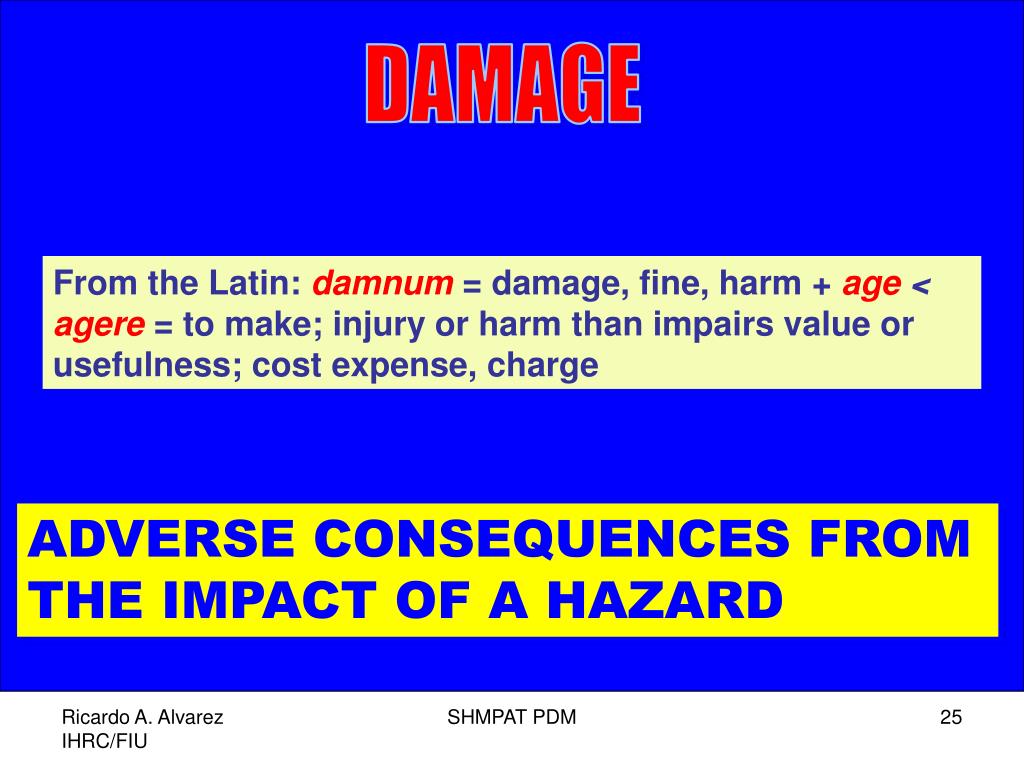

  25. DAMAGE From the Latin: damnum = damage, fine, harm + age < agere= to make; injury or harm than impairs value or usefulness; cost expense, charge ADVERSE CONSEQUENCES FROM THE IMPACT OF A HAZARD SHMPAT PDM

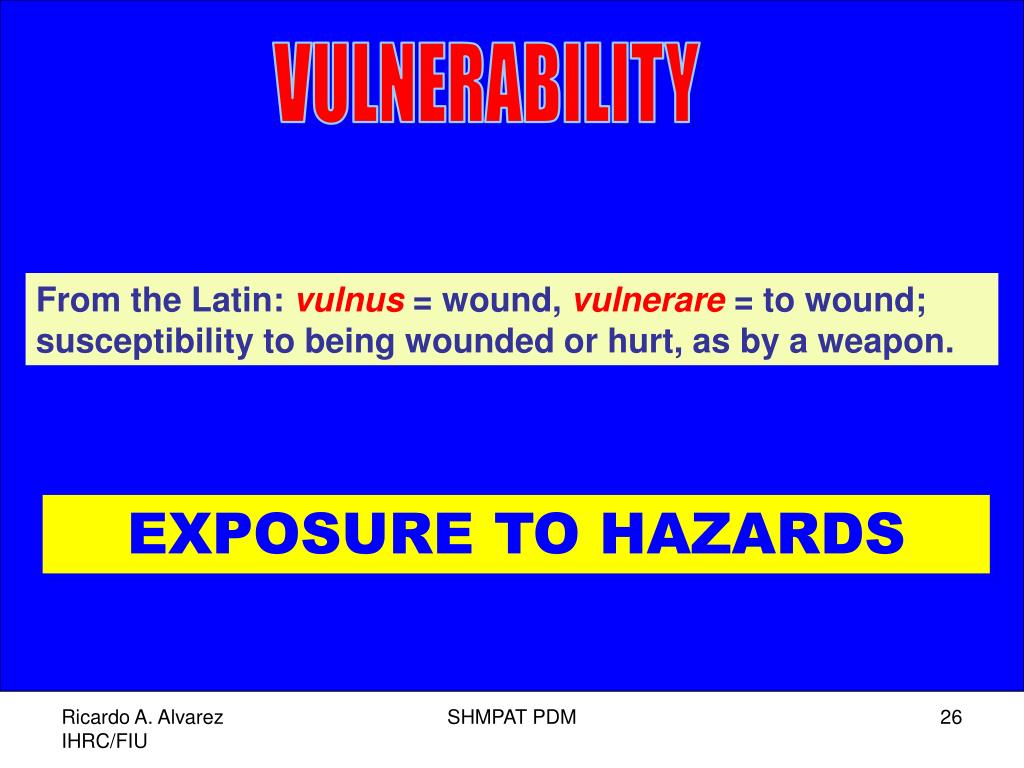

  26. VULNERABILITY From the Latin: vulnus = wound, vulnerare = to wound; susceptibility to being wounded or hurt, as by a weapon. EXPOSURE TO HAZARDS SHMPAT PDM

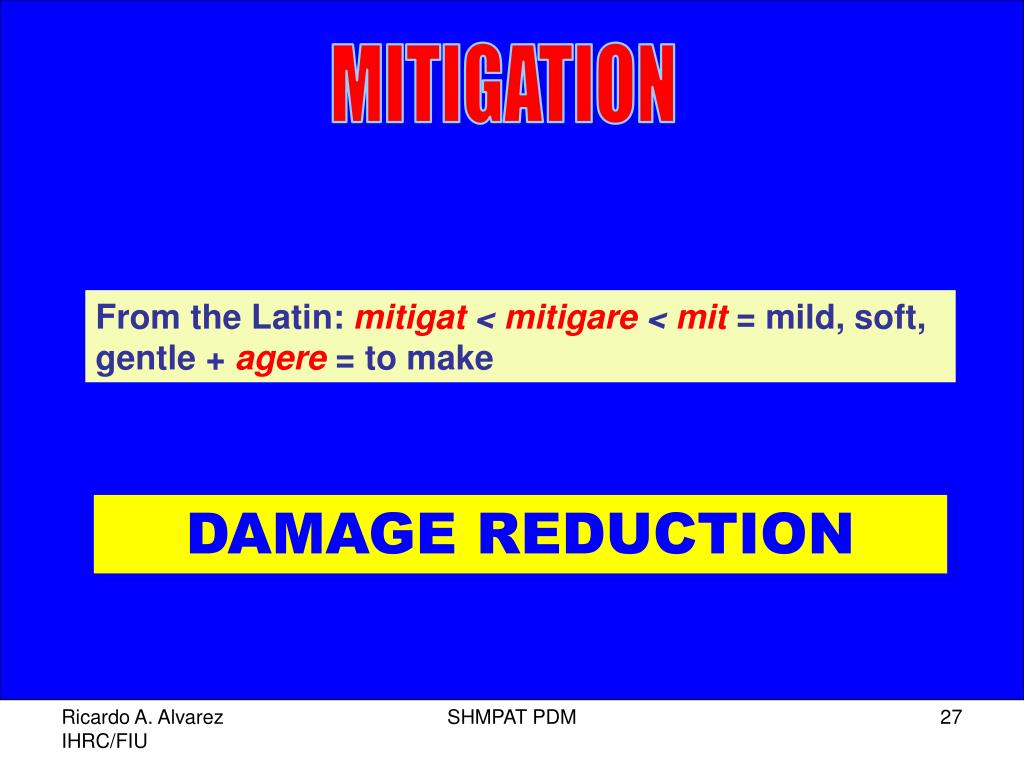

  27. MITIGATION From the Latin: mitigat < mitigare < mit= mild, soft, gentle + agere= to make DAMAGE REDUCTION SHMPAT PDM

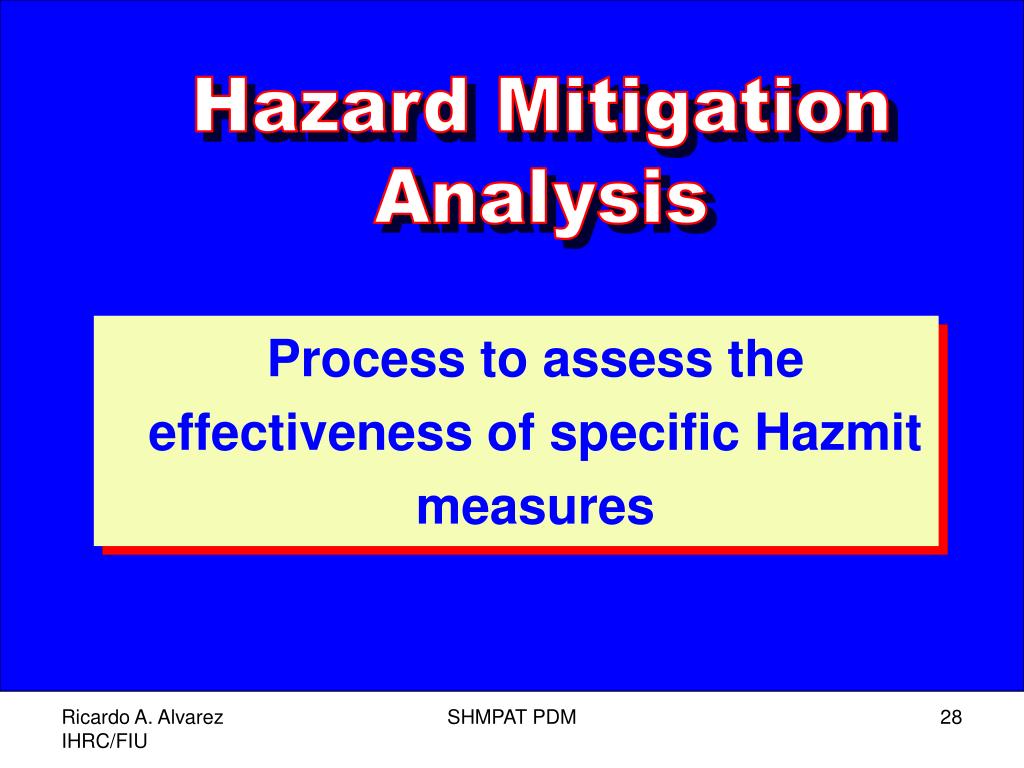

  28. Hazard Mitigation Analysis Process to assess the effectiveness of specific Hazmit measures SHMPAT PDM

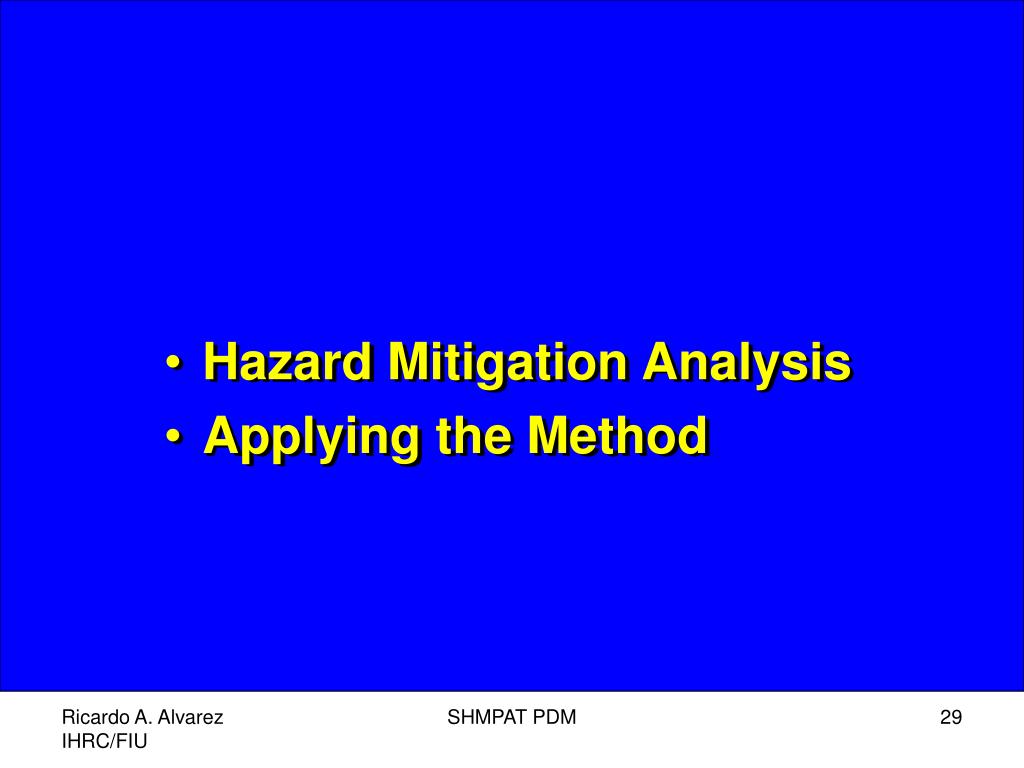

  29. Hazard Mitigation Analysis • Applying the Method SHMPAT PDM

  30. Follow the Steps- 1 2. ASSESS VULNERABILITY 1. SELECT SUBJECT 3. SELECT HAZARD 4. SET MAGNITUDE SCALE 5. ESTABLISH FREQUENCY 6. ESTABLISH BENCHMARK 7. DAMAGE PER EVENT 8. ANNUAL DAMAGE BEFORE HAZMIT SHMPAT PDM

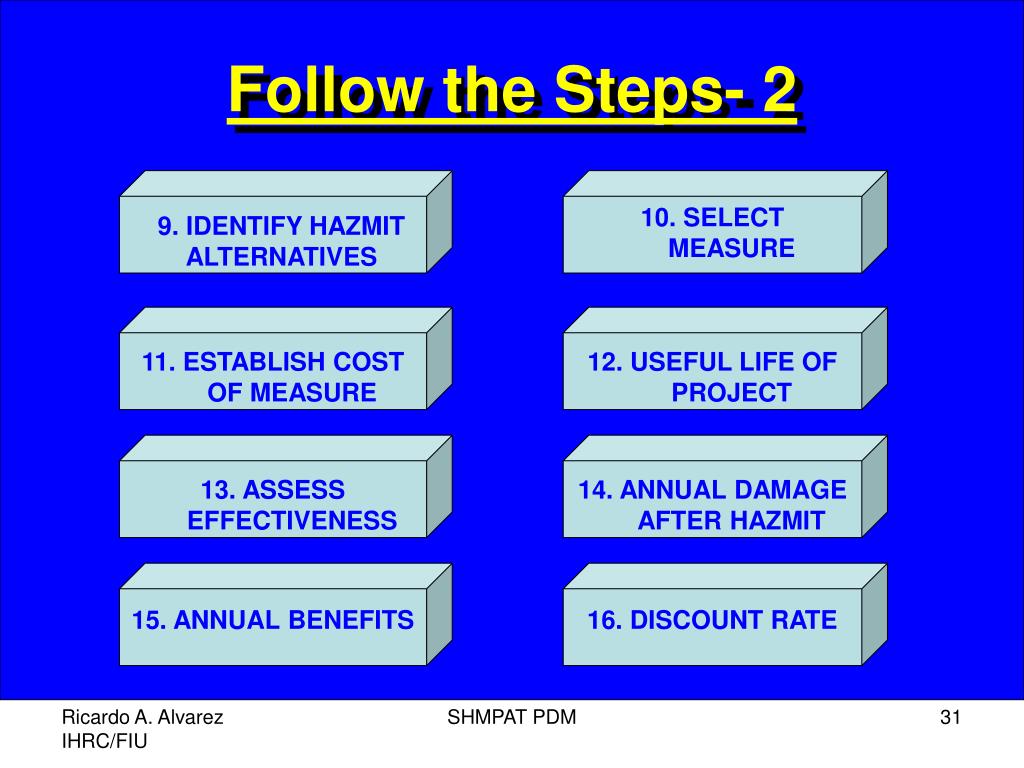

  31. Follow the Steps- 2 10. SELECT MEASURE 9. IDENTIFY HAZMIT ALTERNATIVES 11. ESTABLISH COST OF MEASURE 12. USEFUL LIFE OF PROJECT 13. ASSESS EFFECTIVENESS 14. ANNUAL DAMAGE AFTER HAZMIT 15. ANNUAL BENEFITS 16. DISCOUNT RATE SHMPAT PDM

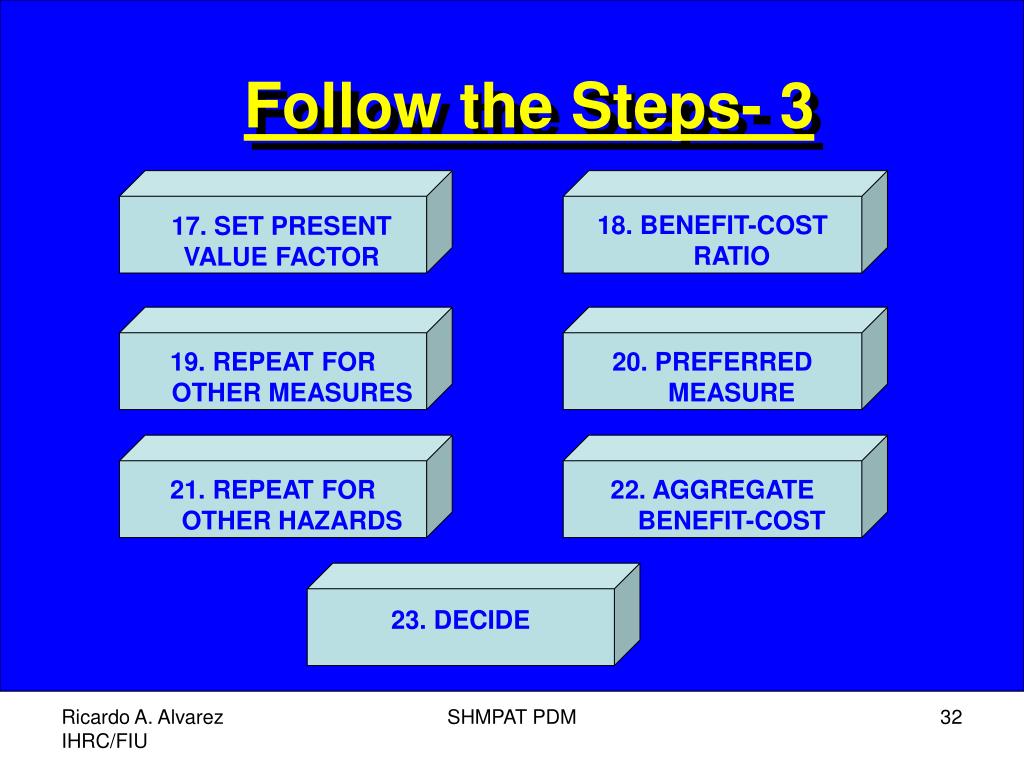

  32. Follow the Steps- 3 18. BENEFIT-COST RATIO 17. SET PRESENT VALUE FACTOR 19. REPEAT FOR OTHER MEASURES 20. PREFERRED MEASURE 21. REPEAT FOR OTHER HAZARDS 22. AGGREGATE BENEFIT-COST 23. DECIDE SHMPAT PDM

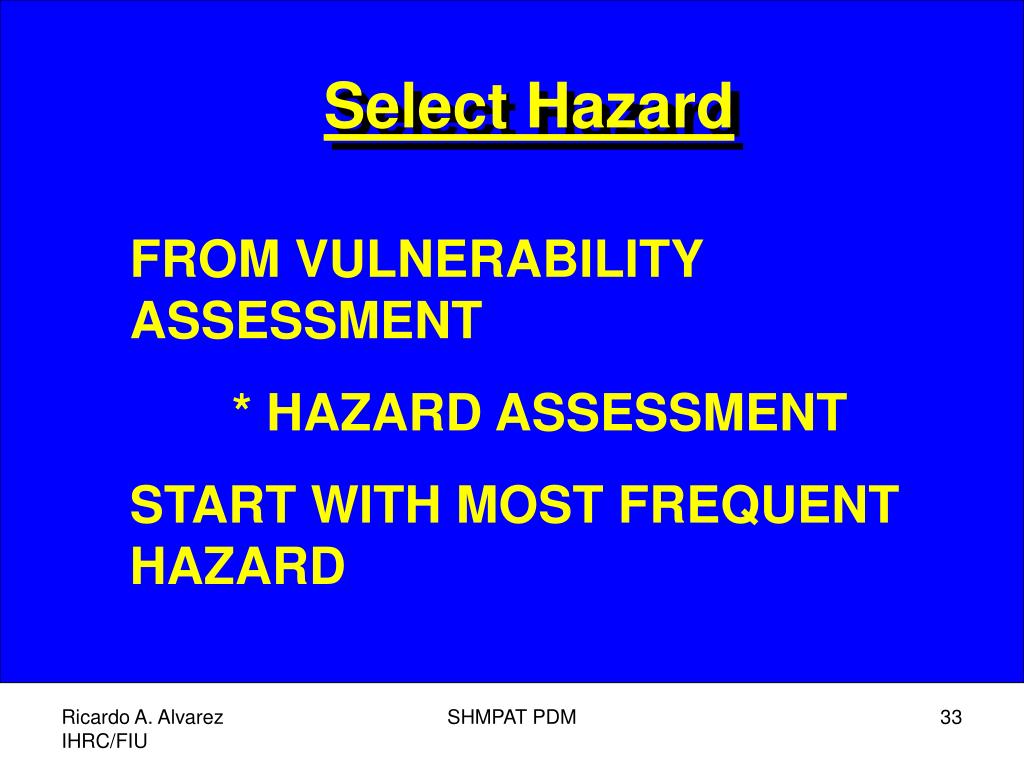

  33. Select Hazard FROM VULNERABILITY ASSESSMENT * HAZARD ASSESSMENT START WITH MOST FREQUENT HAZARD SHMPAT PDM

  34. Hurricane SHMPAT PDM

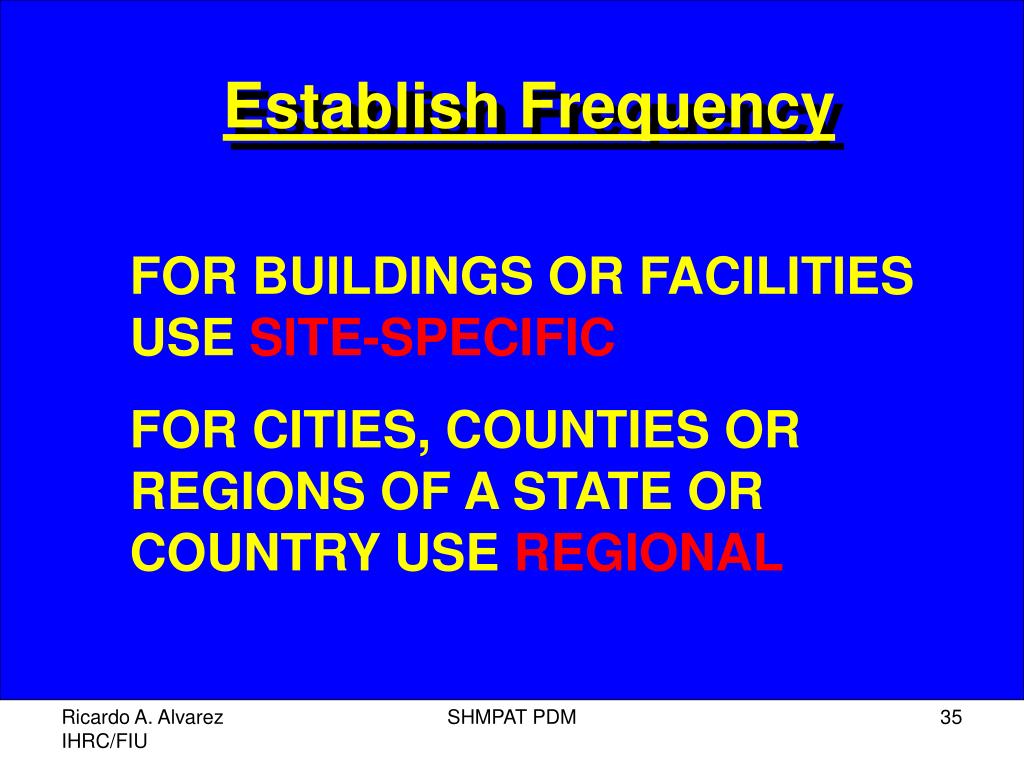

  35. Establish Frequency FOR BUILDINGS OR FACILITIES USE SITE-SPECIFIC FOR CITIES, COUNTIES OR REGIONS OF A STATE OR COUNTRY USE REGIONAL SHMPAT PDM

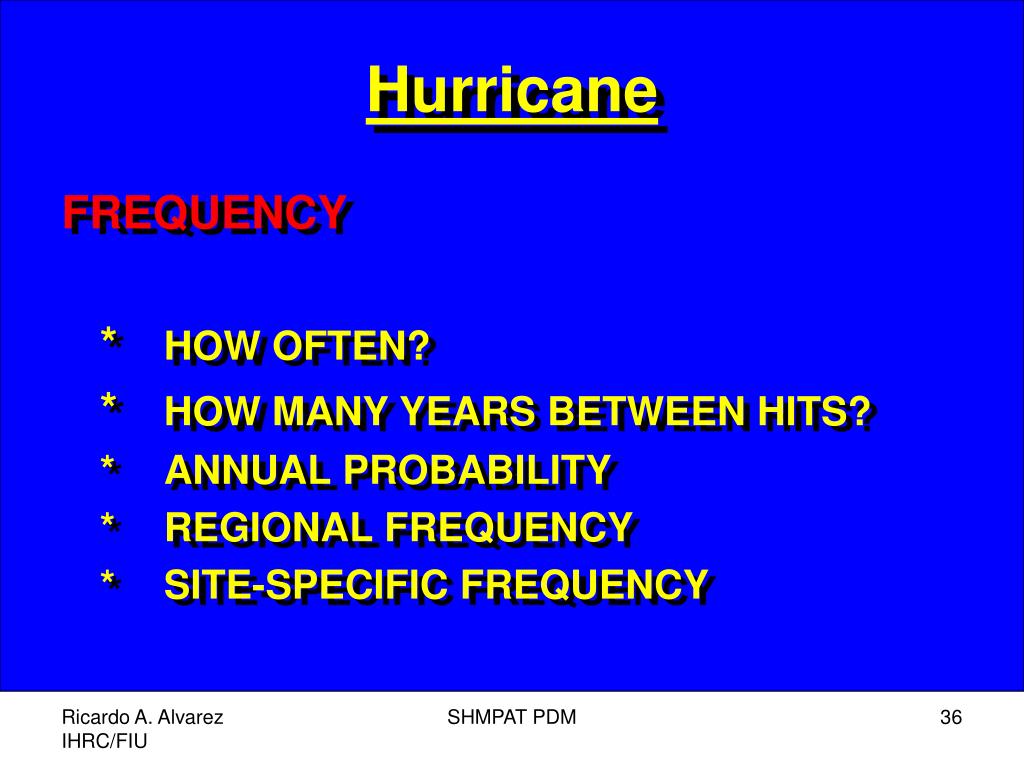

  36. Hurricane FREQUENCY * HOW OFTEN? * HOW MANY YEARS BETWEEN HITS? * ANNUAL PROBABILITY * REGIONAL FREQUENCY * SITE-SPECIFIC FREQUENCY SHMPAT PDM

  37. Hurricane - Frequency • REGIONAL 50 – 75 NAUT. MILES SHMPAT PDM

  38. Hurricane - Frequency SITE-SPECIFIC SITE DIRECT HIT SHMPAT PDM

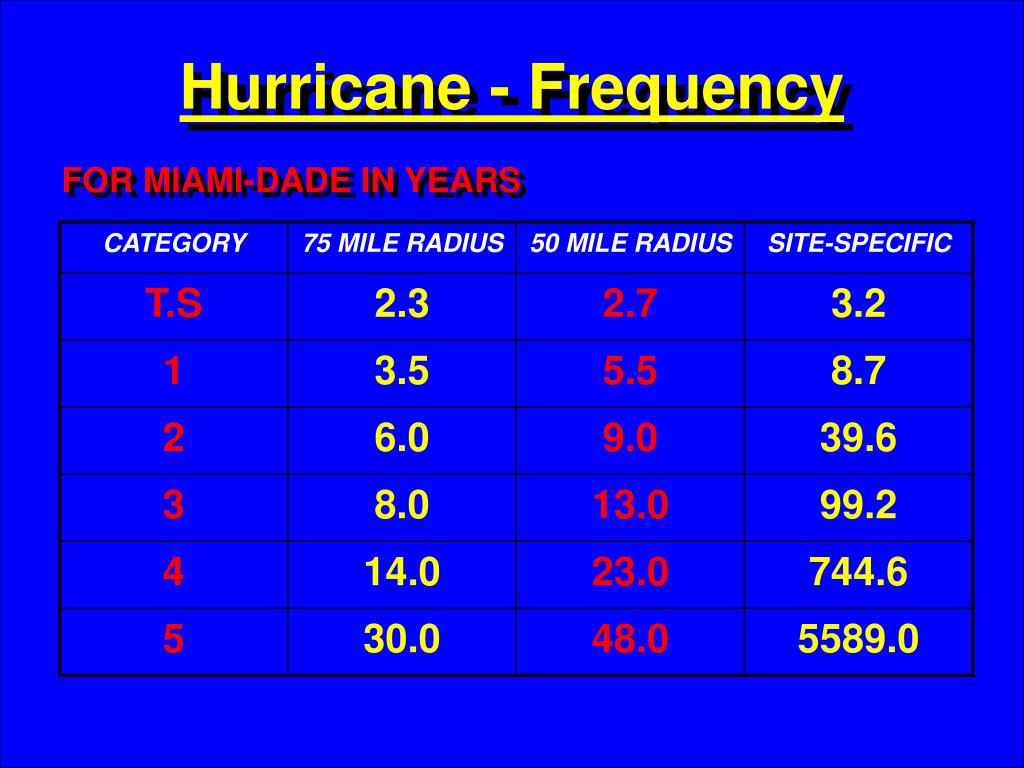

  39. Hurricane - Frequency FOR MIAMI-DADE IN YEARS SHMPAT PDM

  40. Hurricane - Frequency ANNUAL PROBABILITY FOR MIAMI-DADE SHMPAT PDM

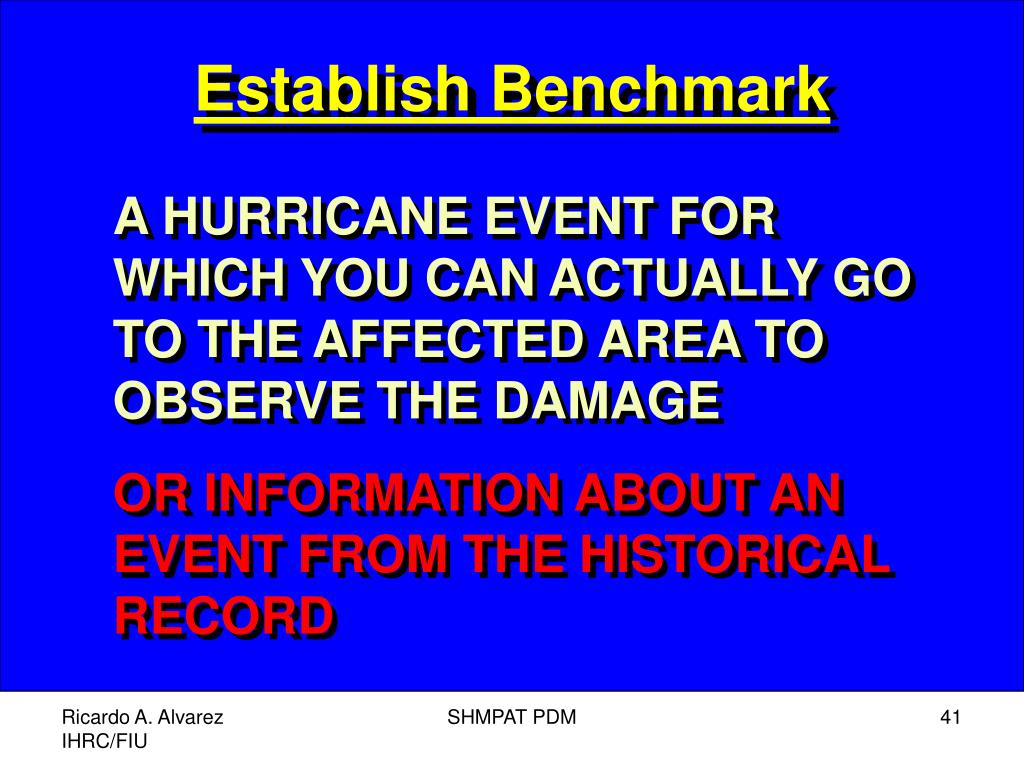

  41. Establish Benchmark A HURRICANE EVENT FOR WHICH YOU CAN ACTUALLY GO TO THE AFFECTED AREA TO OBSERVE THE DAMAGE OR INFORMATION ABOUT AN EVENT FROM THE HISTORICAL RECORD SHMPAT PDM

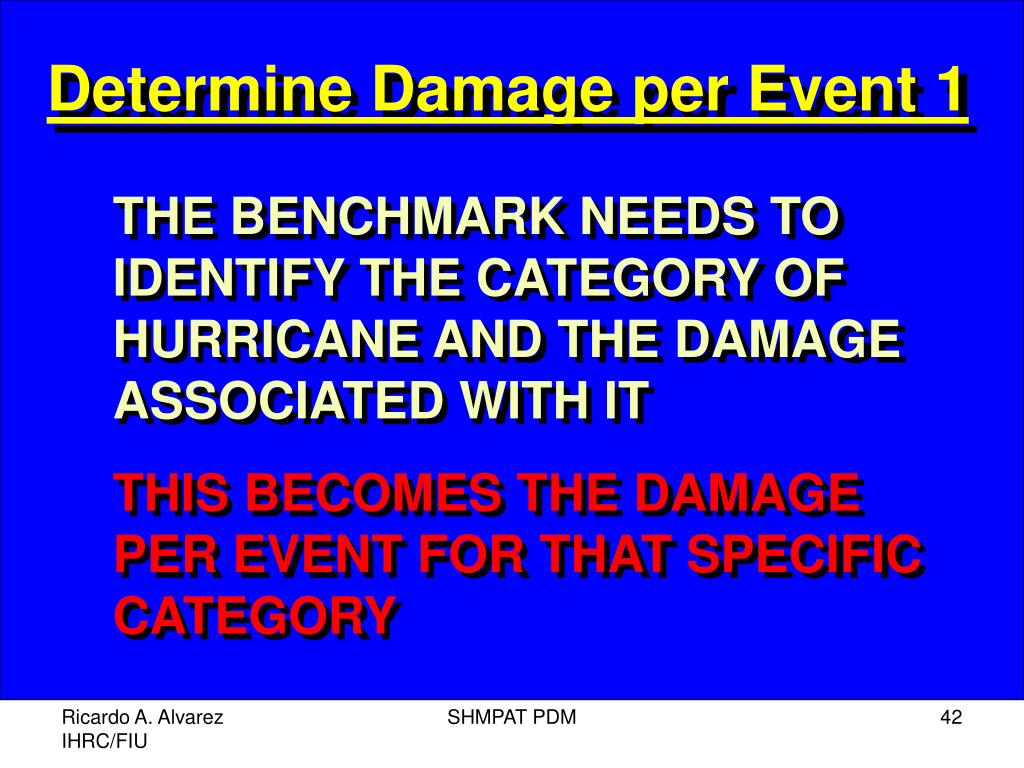

  42. Determine Damage per Event 1 THE BENCHMARK NEEDS TO IDENTIFY THE CATEGORY OF HURRICANE AND THE DAMAGE ASSOCIATED WITH IT THIS BECOMES THE DAMAGE PER EVENT FOR THAT SPECIFIC CATEGORY SHMPAT PDM

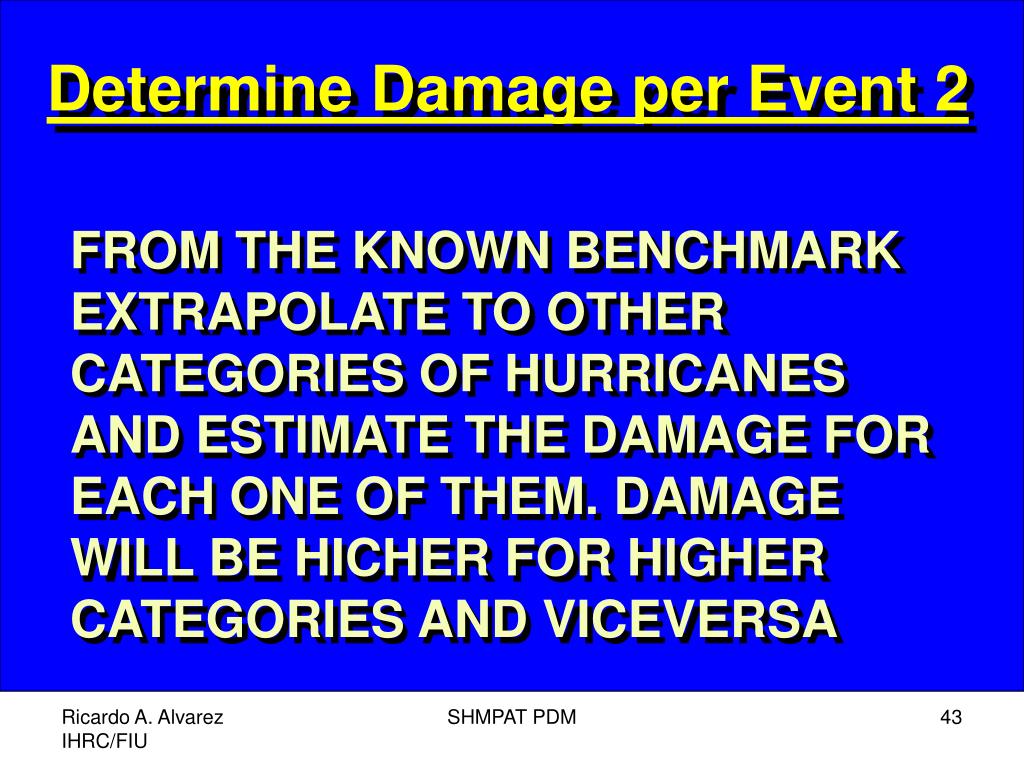

  43. Determine Damage per Event 2 FROM THE KNOWN BENCHMARK EXTRAPOLATE TO OTHER CATEGORIES OF HURRICANES AND ESTIMATE THE DAMAGE FOR EACH ONE OF THEM. DAMAGE WILL BE HICHER FOR HIGHER CATEGORIES AND VICEVERSA SHMPAT PDM

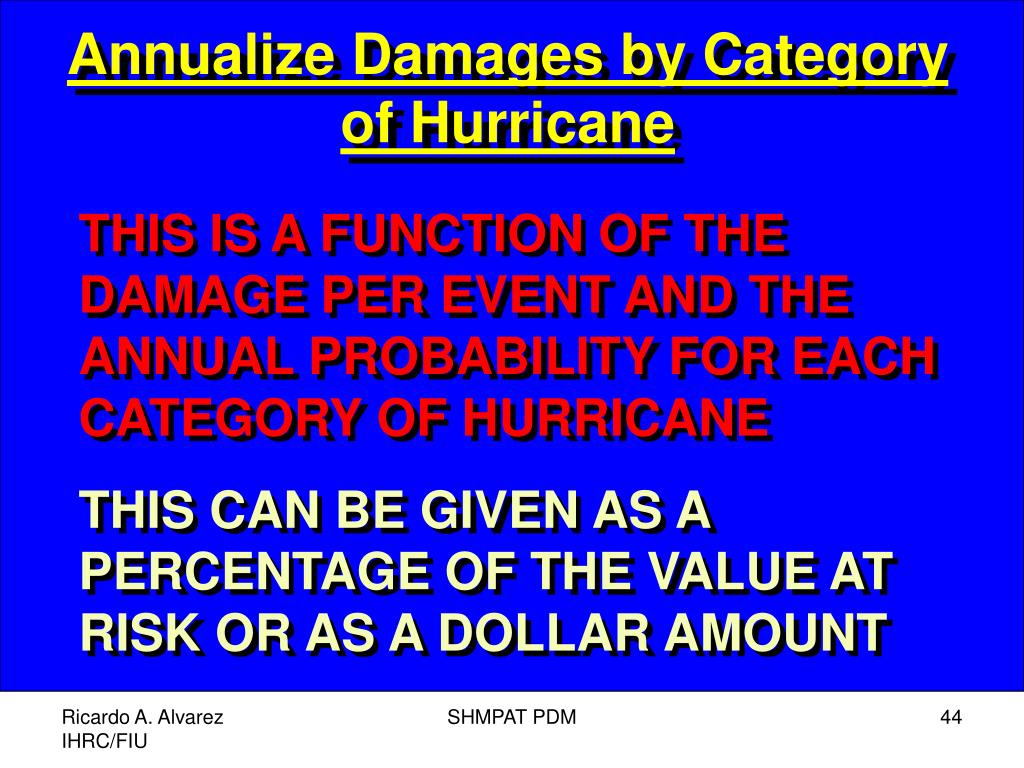

  44. Annualize Damages by Category of Hurricane THIS IS A FUNCTION OF THE DAMAGE PER EVENT AND THE ANNUAL PROBABILITY FOR EACH CATEGORY OF HURRICANE THIS CAN BE GIVEN AS A PERCENTAGE OF THE VALUE AT RISK OR AS A DOLLAR AMOUNT SHMPAT PDM

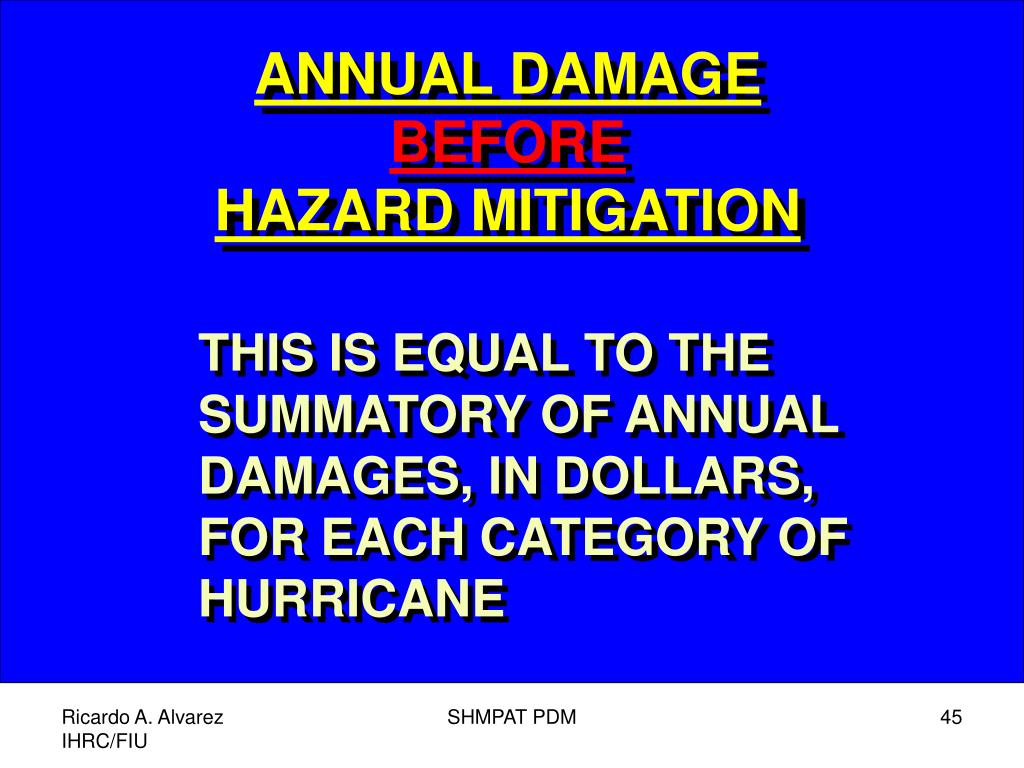

  45. ANNUAL DAMAGEBEFOREHAZARD MITIGATION THIS IS EQUAL TO THE SUMMATORY OF ANNUAL DAMAGES, IN DOLLARS, FOR EACH CATEGORY OF HURRICANE SHMPAT PDM

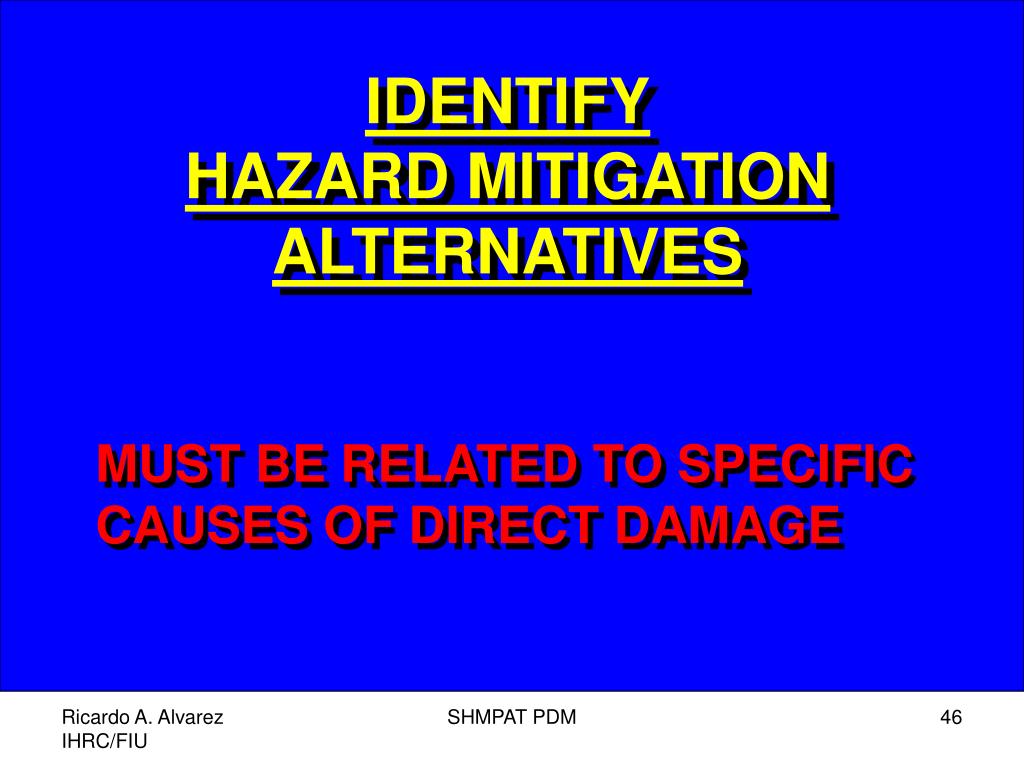

  46. IDENTIFYHAZARD MITIGATIONALTERNATIVES MUST BE RELATED TO SPECIFIC CAUSES OF DIRECT DAMAGE SHMPAT PDM

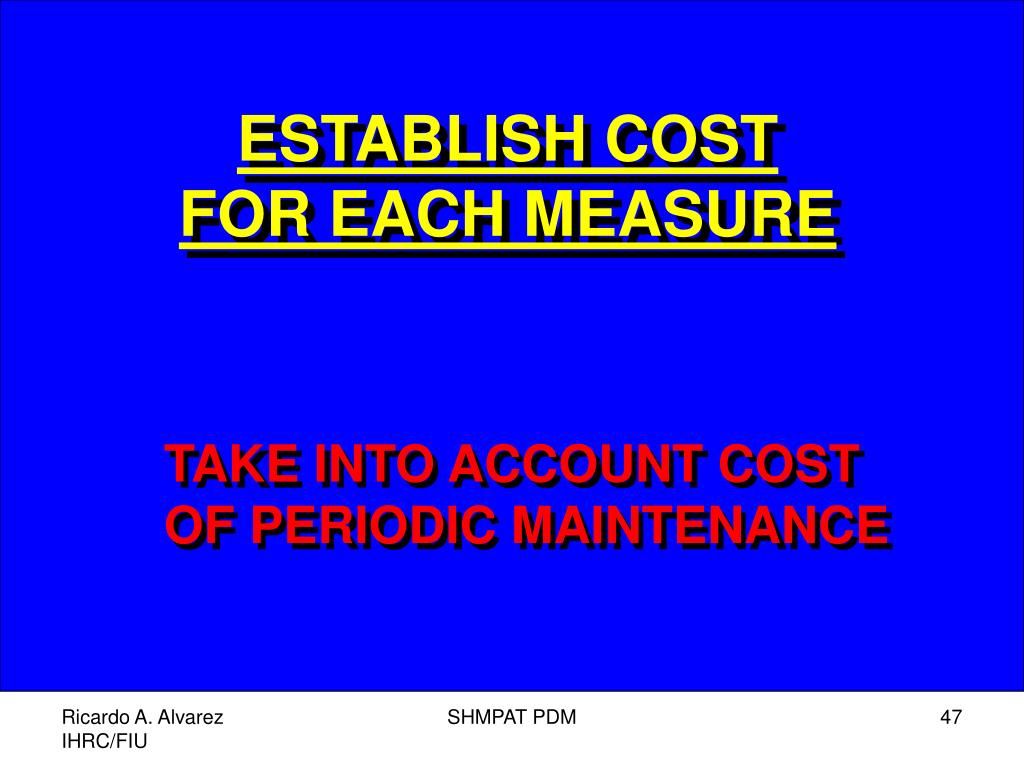

  47. ESTABLISH COSTFOR EACH MEASURE TAKE INTO ACCOUNT COST OF PERIODIC MAINTENANCE SHMPAT PDM

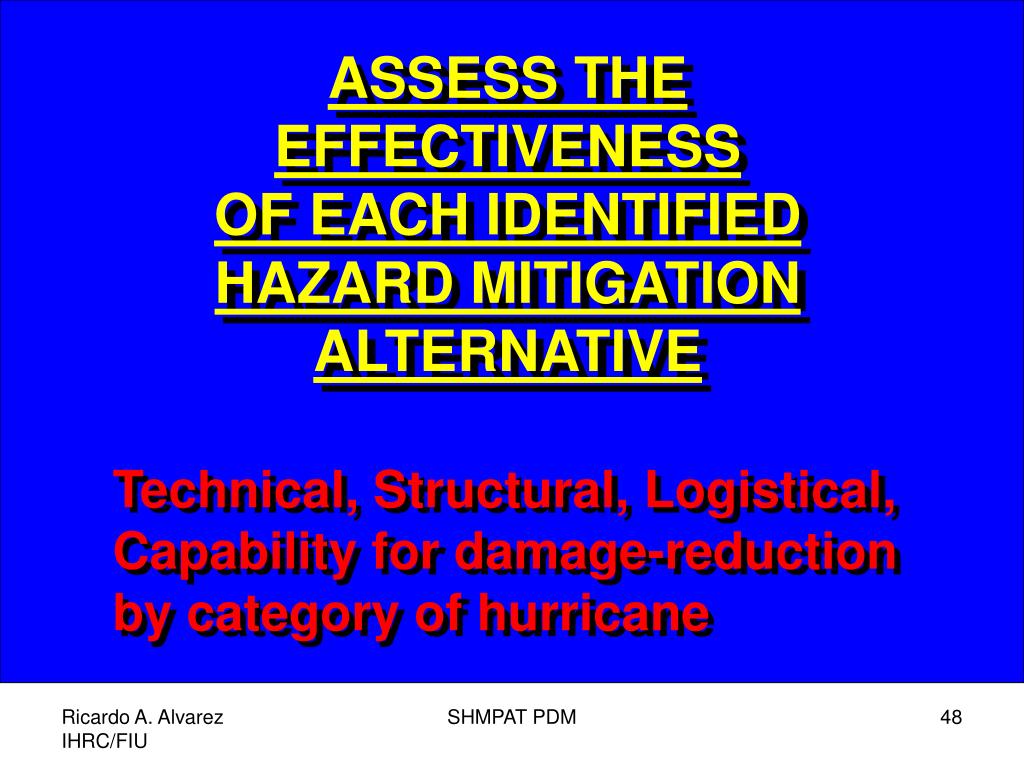

  48. ASSESS THEEFFECTIVENESSOF EACH IDENTIFIEDHAZARD MITIGATIONALTERNATIVE Technical, Structural, Logistical, Capability for damage-reduction by category of hurricane SHMPAT PDM

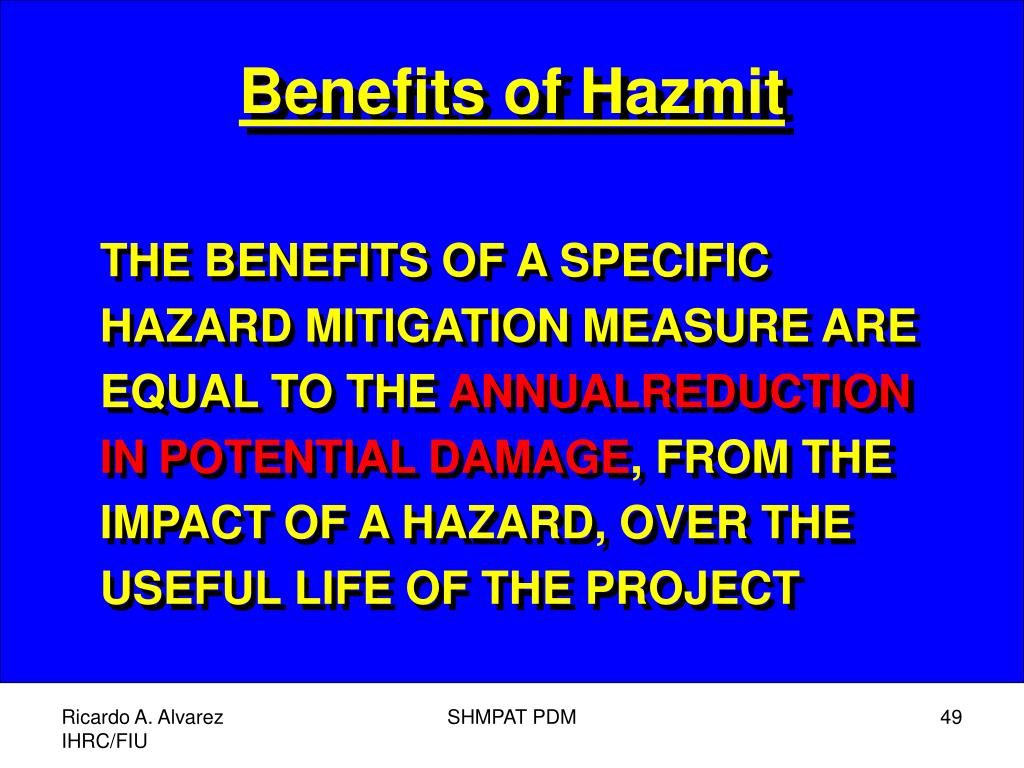

  49. Benefits of Hazmit THE BENEFITS OF A SPECIFIC HAZARD MITIGATION MEASURE ARE EQUAL TO THE ANNUALREDUCTION IN POTENTIAL DAMAGE, FROM THE IMPACT OF A HAZARD, OVER THE USEFUL LIFE OF THE PROJECT SHMPAT PDM

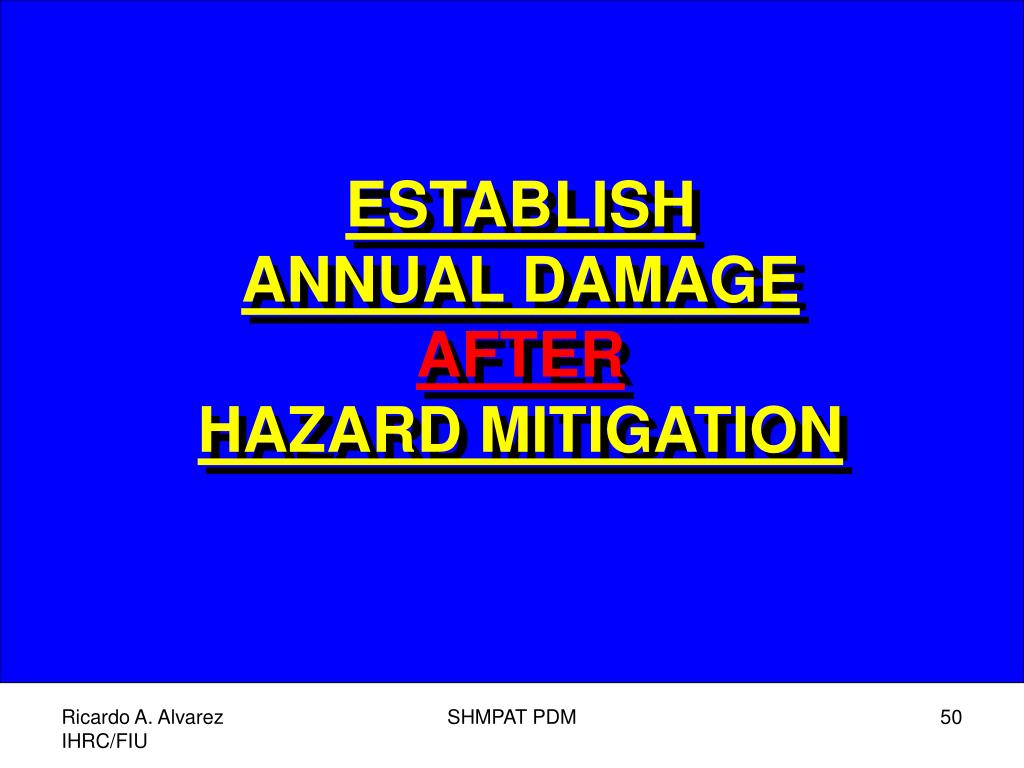

  50. ESTABLISH ANNUAL DAMAGE AFTER HAZARD MITIGATION SHMPAT PDM
