Job sequencing on 3 machines.

Job sequencing on 3 machines. Two conditions for a easy solution: 1. The smallest duration on machine #1 is at least as great as the largest duration on machine #2. 2. The smallest duration on machine #3 is at least as great as the largest duration on machine #2.

lillian-cole
Download Presentation

Job sequencing on 3 machines.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Job sequencing on 3 machines. • Two conditions for a easy solution: • 1. The smallest duration on machine #1 is at least as great as the largest duration on machine #2. • 2. The smallest duration on machine #3 is at least as great as the largest duration on machine #2.

  2. Conditions for an easy solution: • T1,smallest >= T2,largest AND/OR • T3,smallest >= T2,largest

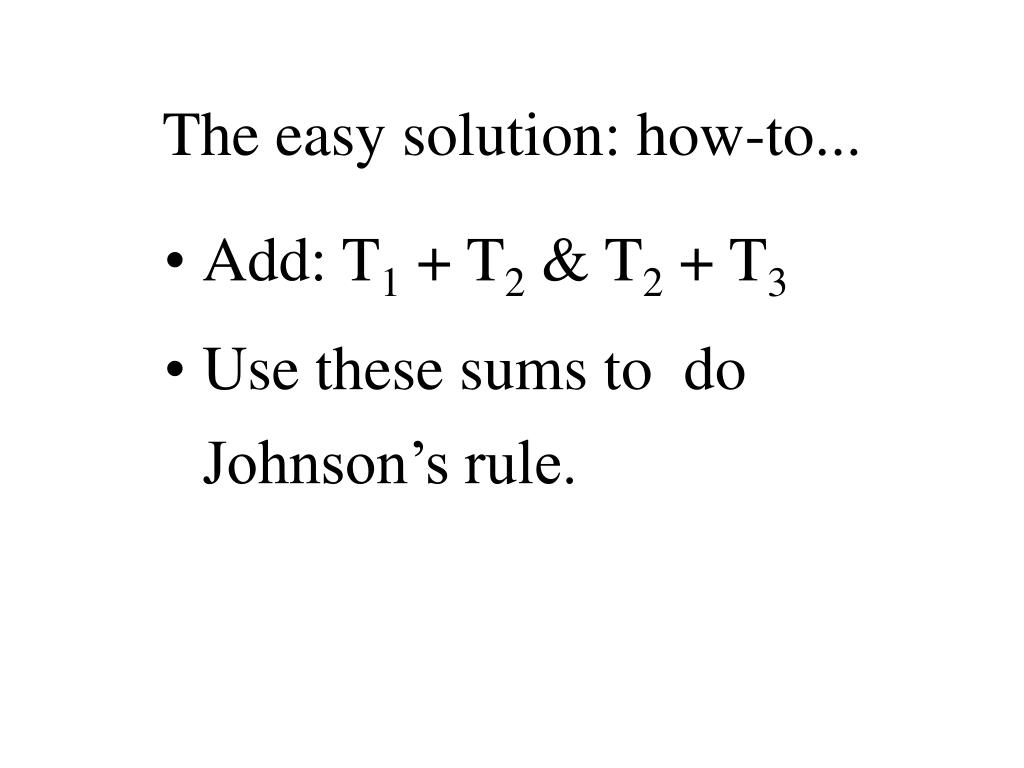

  3. The easy solution: how-to... • Add: T1 + T2 & T2 + T3 • Use these sums to do Johnson’s rule.

  4. Example: 3 machines Duration (hrs.) Job Mach 1Mach 2Mach 3 B 5 3 7 A 13 5 9 C 6 4 5 D 7 2 6

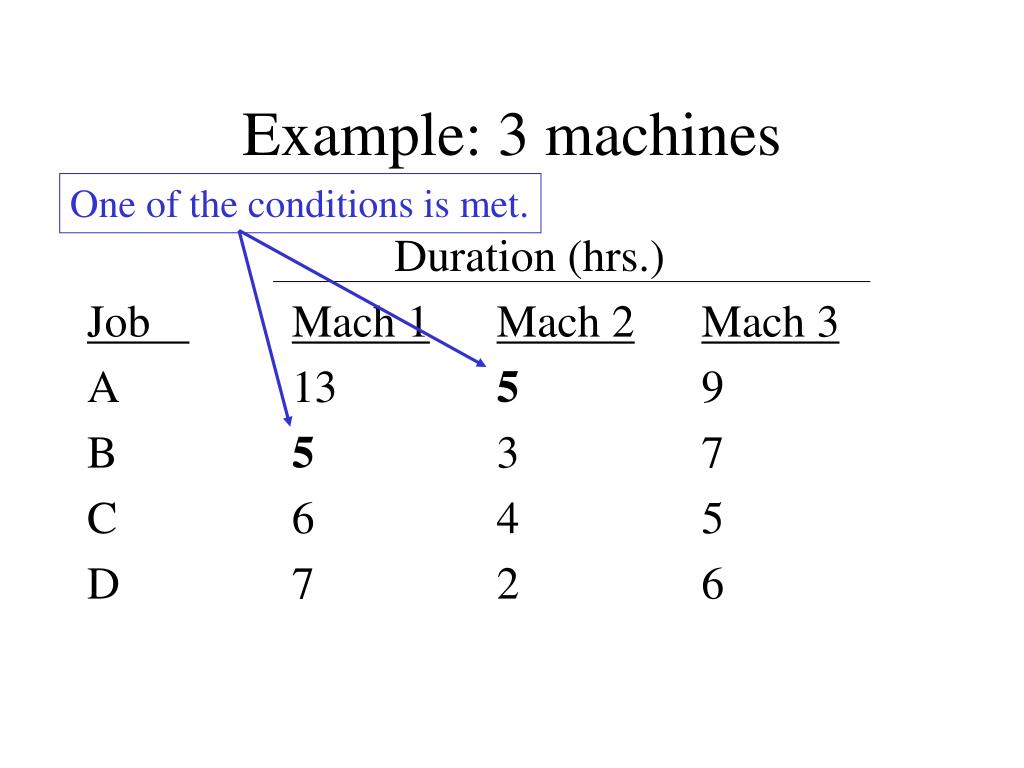

  5. Example: 3 machines One of the conditions is met. Duration (hrs.) Job Mach 1Mach 2Mach 3 A 13 5 9 B 5 3 7 C 6 4 5 D 7 2 6

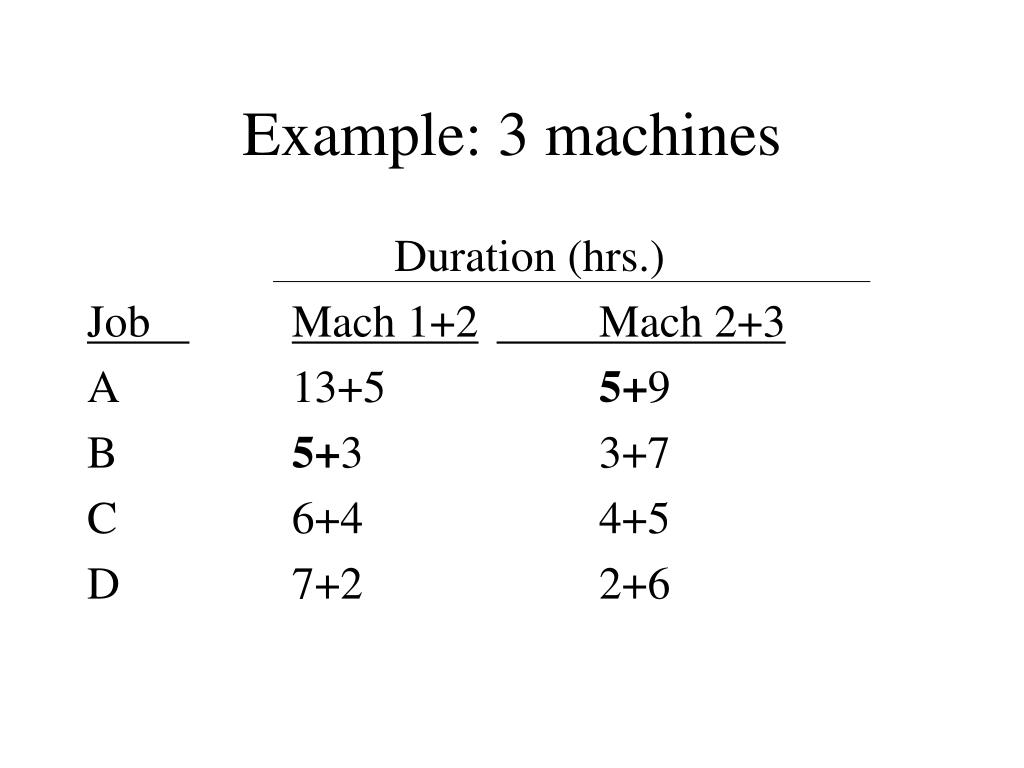

  6. Example: 3 machines Duration (hrs.) Job Mach 1+2 Mach 2+3 A 13+5 5+9 B 5+3 3+7 C 6+4 4+5 D 7+2 2+6

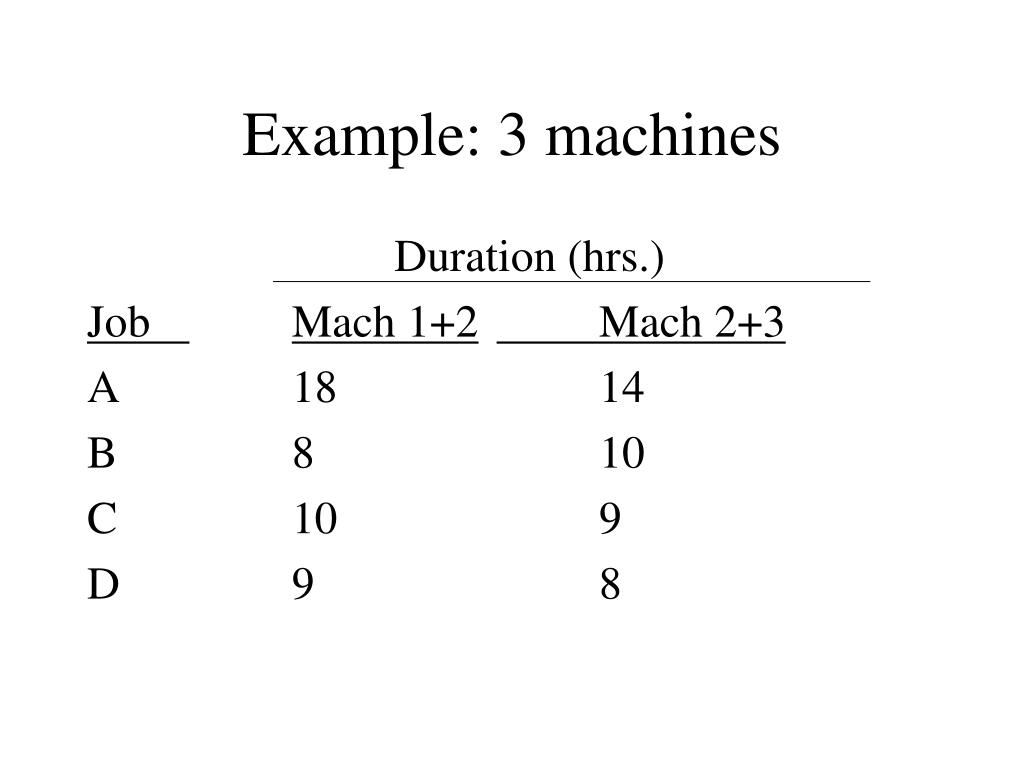

  7. Example: 3 machines Duration (hrs.) Job Mach 1+2 Mach 2+3 A 18 14 B 8 10 C 10 9 D 9 8

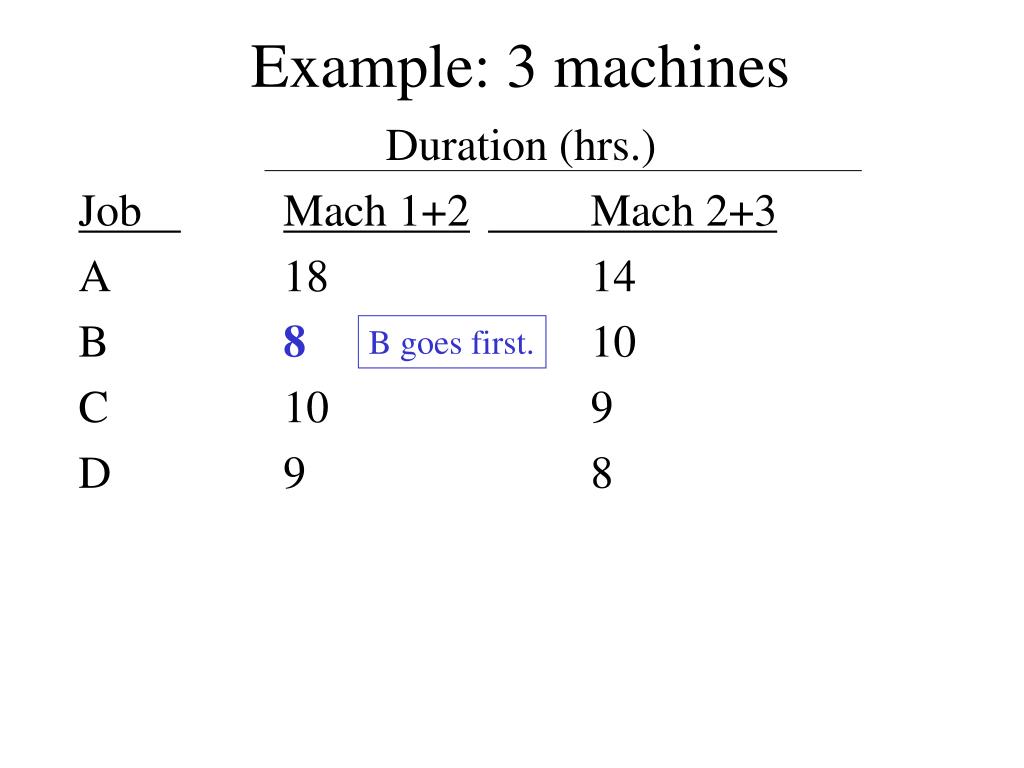

  8. Example: 3 machines Duration (hrs.) Job Mach 1+2 Mach 2+3 A 18 14 B 8 10 C 10 9 D 9 8 B goes first.

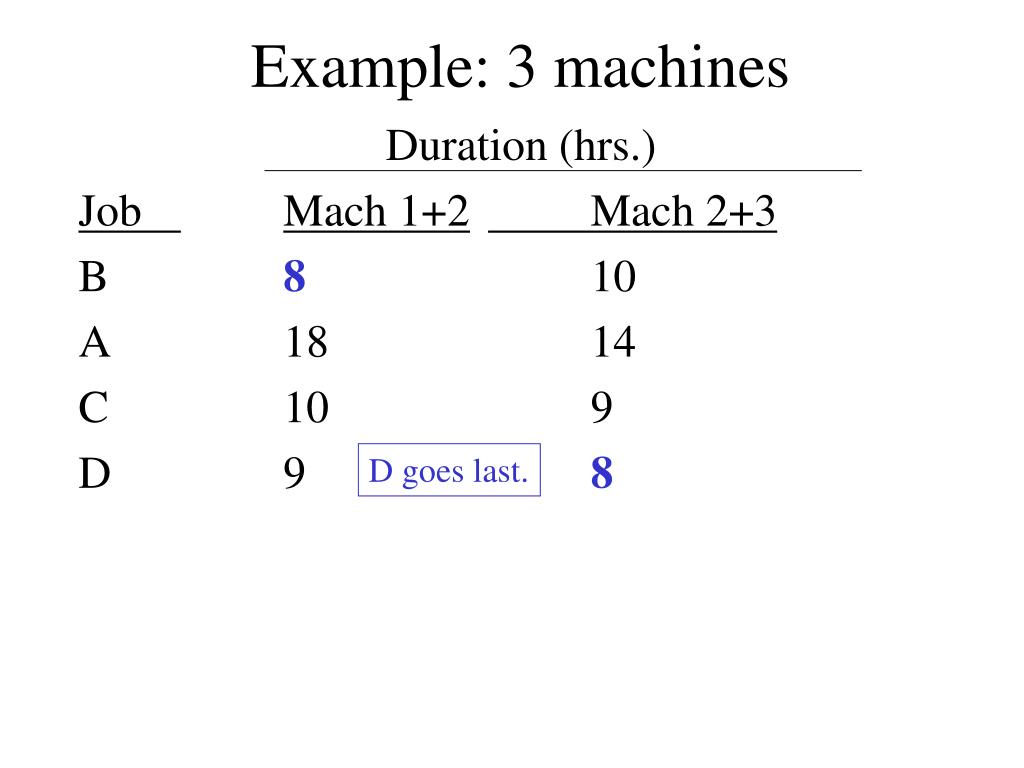

  9. Example: 3 machines Duration (hrs.) Job Mach 1+2 Mach 2+3 B 8 10 A 18 14 C 10 9 D 9 8 D goes last.

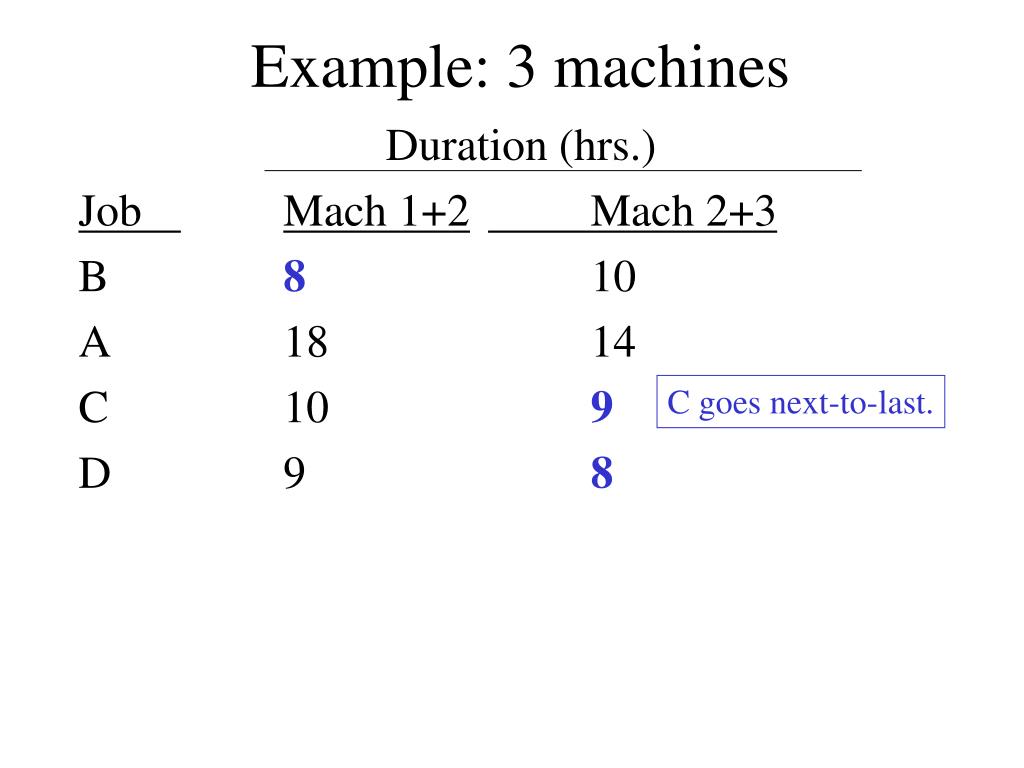

  10. Example: 3 machines Duration (hrs.) Job Mach 1+2 Mach 2+3 B 8 10 A 18 14 C 10 9 D 9 8 C goes next-to-last.

  11. Example: 3 machines Duration (hrs.) Job Mach 1+2 Mach 2+3 B 8 10 A 18 14 C 10 9 D 9 8 B goes 3rd-to-last.

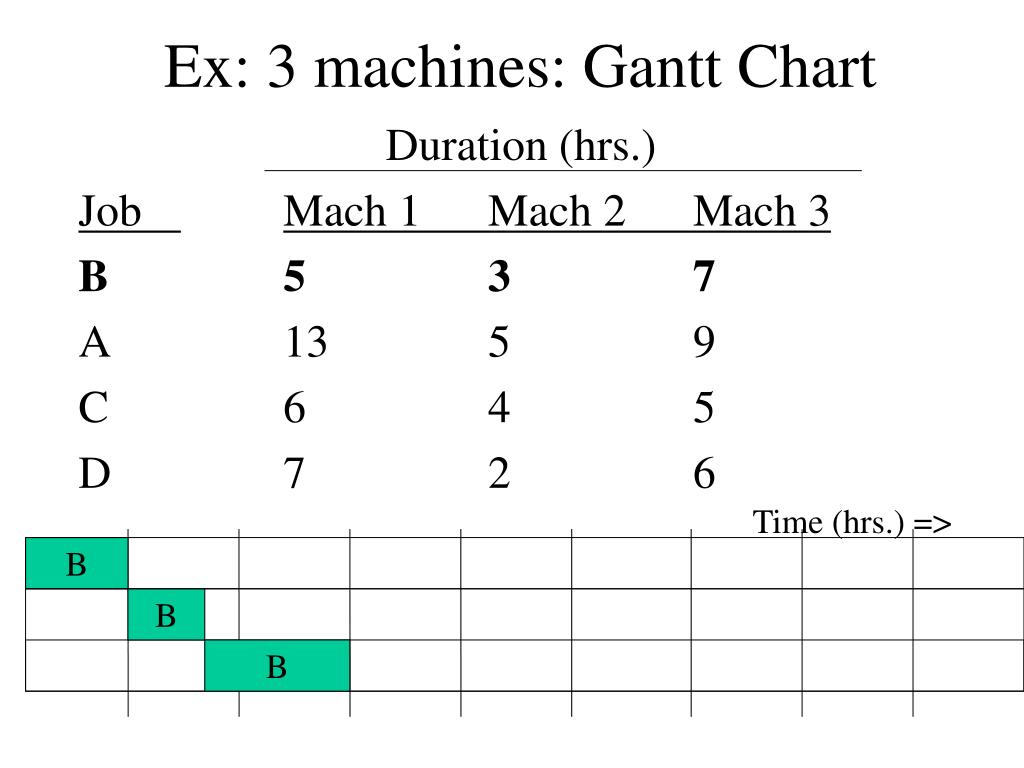

  12. Ex: 3 machines: Gantt Chart Duration (hrs.) Job Mach 1 Mach 2 Mach 3 B 5 3 7 A 13 5 9 C 6 4 5 D 7 2 6 Time (hrs.) => B B B

  13. Ex: 3 machines: Gantt Chart Duration (hrs.) Job Mach 1 Mach 2 Mach 3 B 5 3 7 A 13 5 9 C 6 4 5 D 7 2 6 Time (hrs.) => B A B A B A

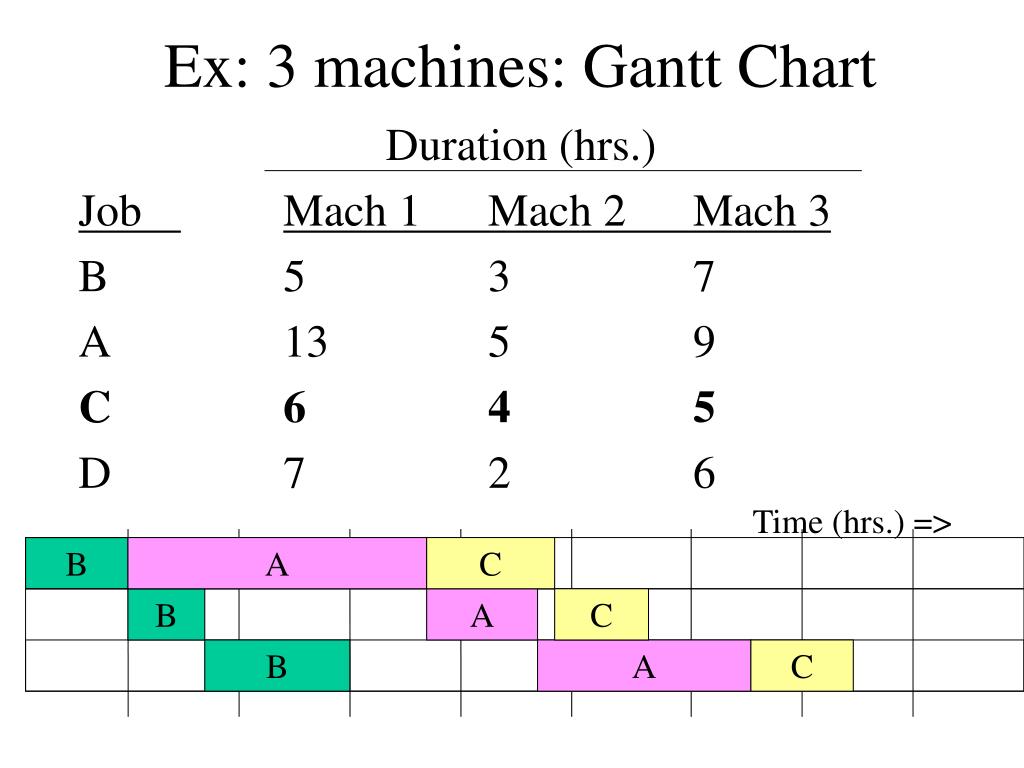

  14. Ex: 3 machines: Gantt Chart Duration (hrs.) Job Mach 1 Mach 2 Mach 3 B 5 3 7 A 13 5 9 C 6 4 5 D 7 2 6 Time (hrs.) => B A C B A C B A C

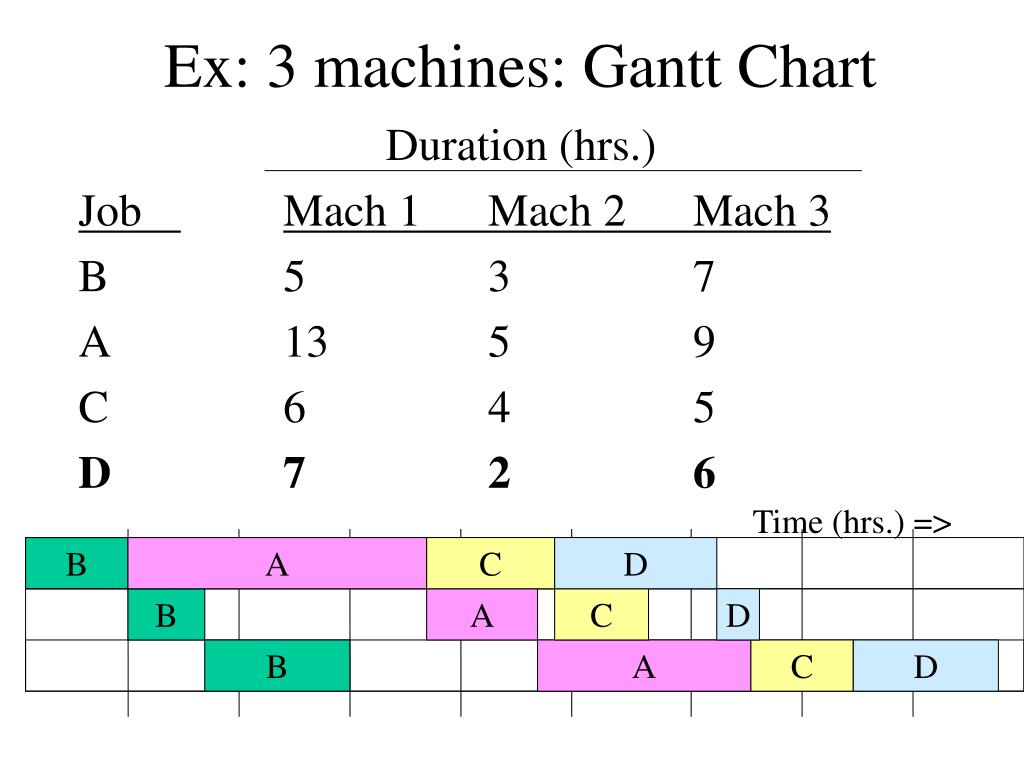

  15. Ex: 3 machines: Gantt Chart Duration (hrs.) Job Mach 1 Mach 2 Mach 3 B 5 3 7 A 13 5 9 C 6 4 5 D 7 2 6 Time (hrs.) => B A C D B A C D B A C D

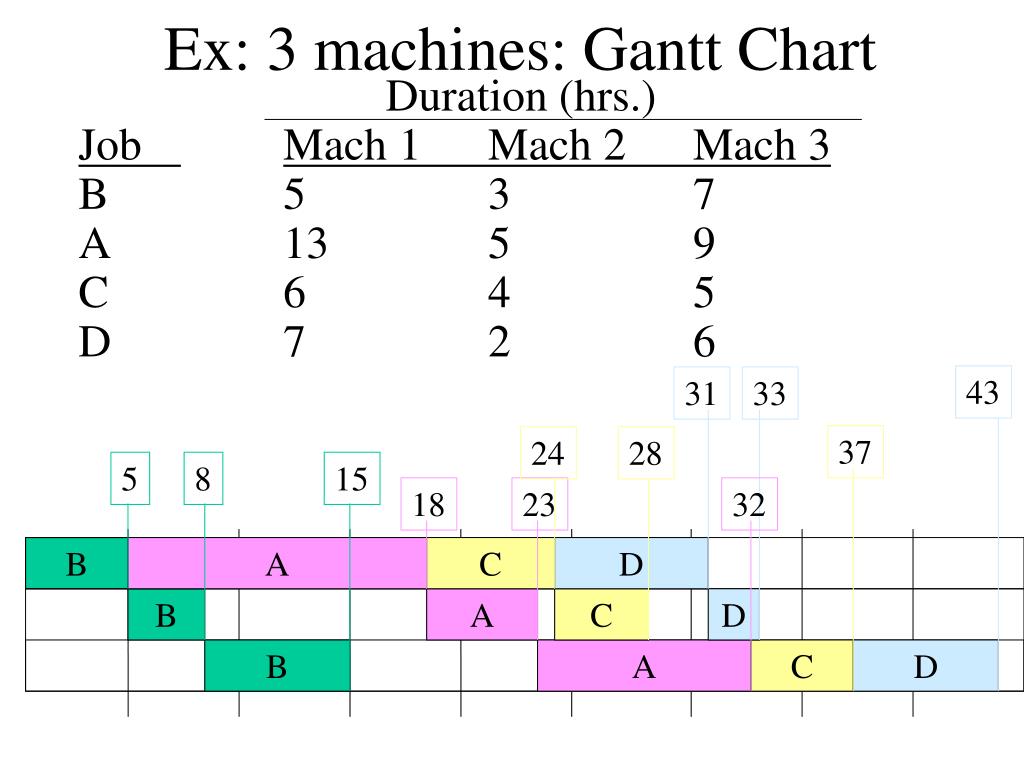

  16. Ex: 3 machines: Gantt Chart Duration (hrs.) Job Mach 1 Mach 2 Mach 3 B 5 3 7 A 13 5 9 C 6 4 5 D 7 2 6 43 31 33 37 24 28 5 8 15 18 23 32 B A C D B A C D B A C D
