ZOMBI-0 in air:. WLS-liquid: LAB + 5% PMP Illumination : LED fiber, 2.7 V a ir gap ~1mm Possible interpretation: Flat signal part from homogeneous light distribution in cell Increasing signal in forward direction from direct coupling of light to wls - fibers ?. Z1 at 90 degr .
E N D

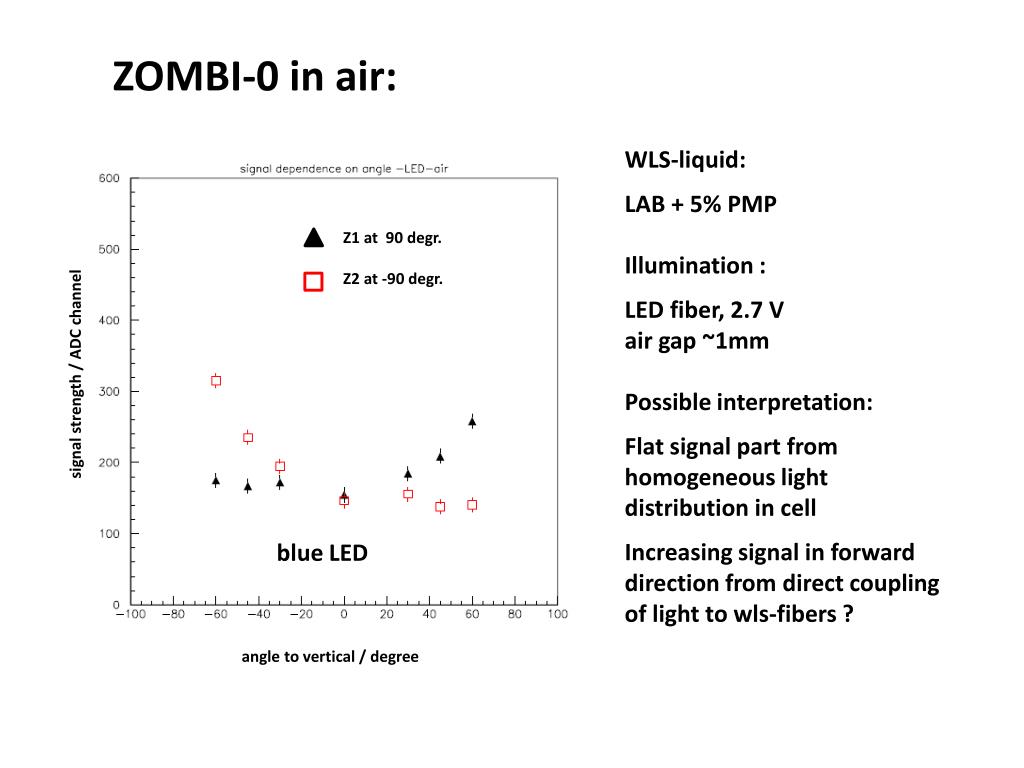

ZOMBI-0 in air: WLS-liquid: LAB + 5% PMP Illumination : LED fiber, 2.7 V air gap ~1mm Possible interpretation: Flat signal part from homogeneous light distribution in cell Increasing signal in forward direction from direct coupling of light to wls-fibers ? Z1 at 90 degr. Z2 at -90 degr. signal strength / ADC channel blue LED angle to vertical / degree

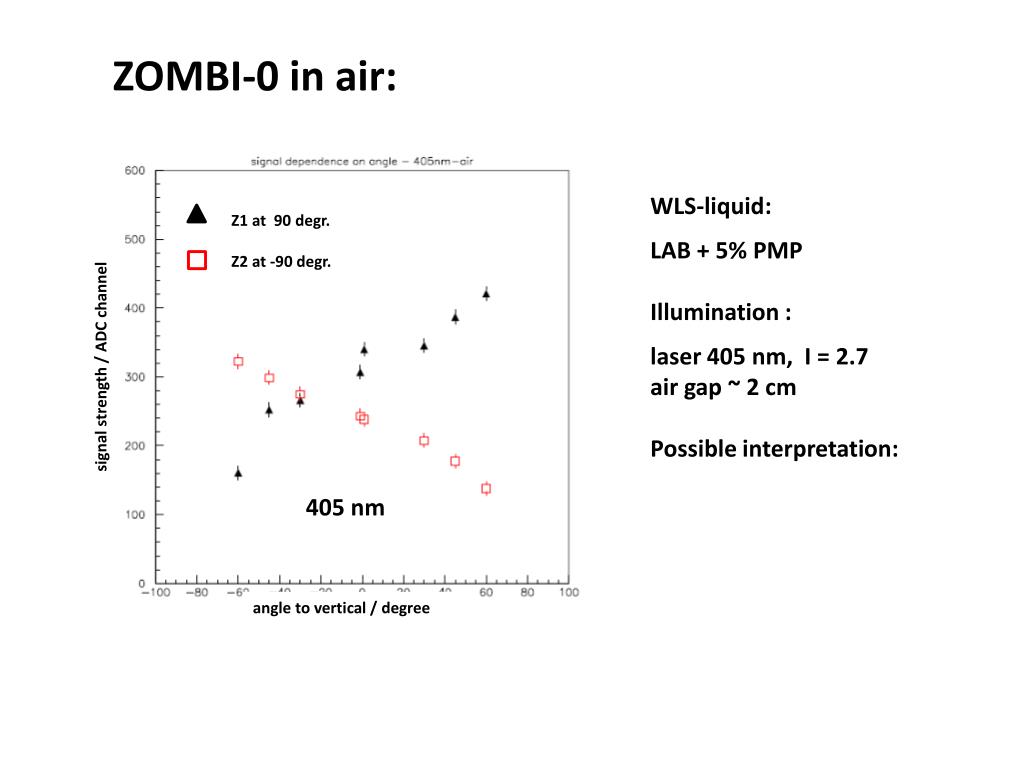

ZOMBI-0 in air: WLS-liquid: LAB + 5% PMP Illumination : laser 405 nm, I = 2.7 air gap ~ 2 cm Possible interpretation: Z1 at 90 degr. Z2 at -90 degr. signal strength / ADC channel 405 nm angle to vertical / degree

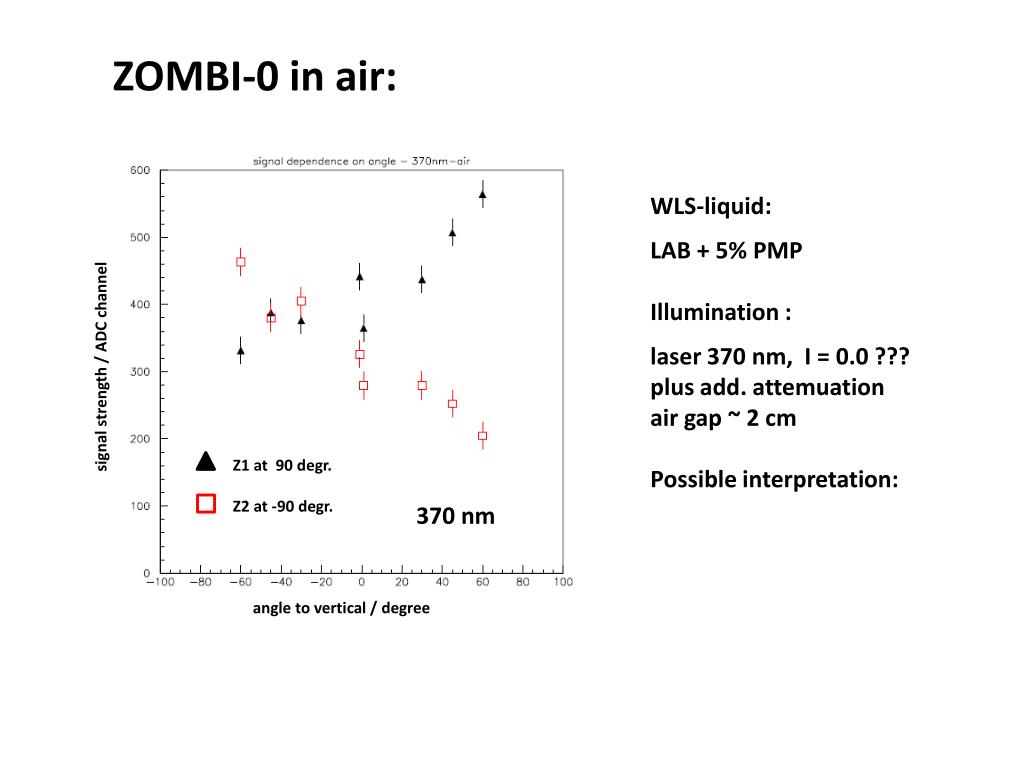

ZOMBI-0 in air: WLS-liquid: LAB + 5% PMP Illumination : laser 370 nm, I = 0.0 ??? plus add. attemuation air gap ~ 2 cm Possible interpretation: signal strength / ADC channel Z1 at 90 degr. Z2 at -90 degr. 370 nm angle to vertical / degree
ZOMBI-0 in air: WLS-liquid: LAB + 5% PMP Illumination : flash lamp 310 nm, I = 5.5 air gap ~2 cm Possible interpretation: If flash lamp works correctly,all light comes from wave length shifting Z1 at 90 degr. Z2 at -90 degr. signal strength / ADC channel 310 nm angle to vertical / degree

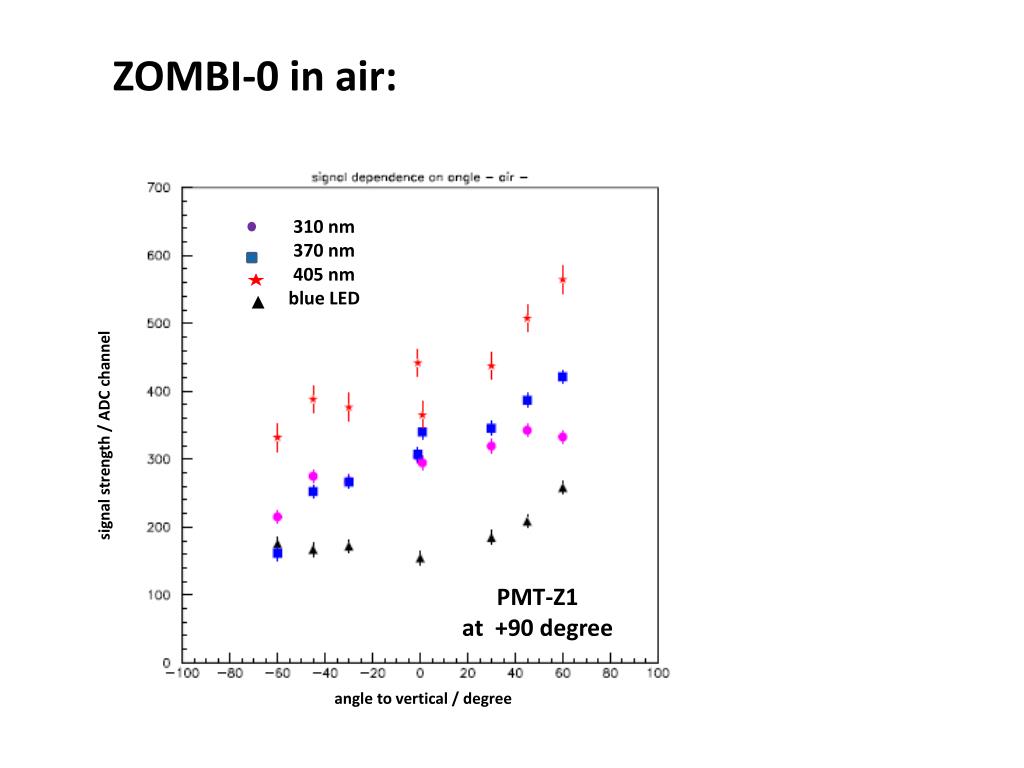

ZOMBI-0 in air: 310 nm 370 nm 405 nm blue LED signal strength / ADC channel PMT-Z1 at +90 degree angle to vertical / degree

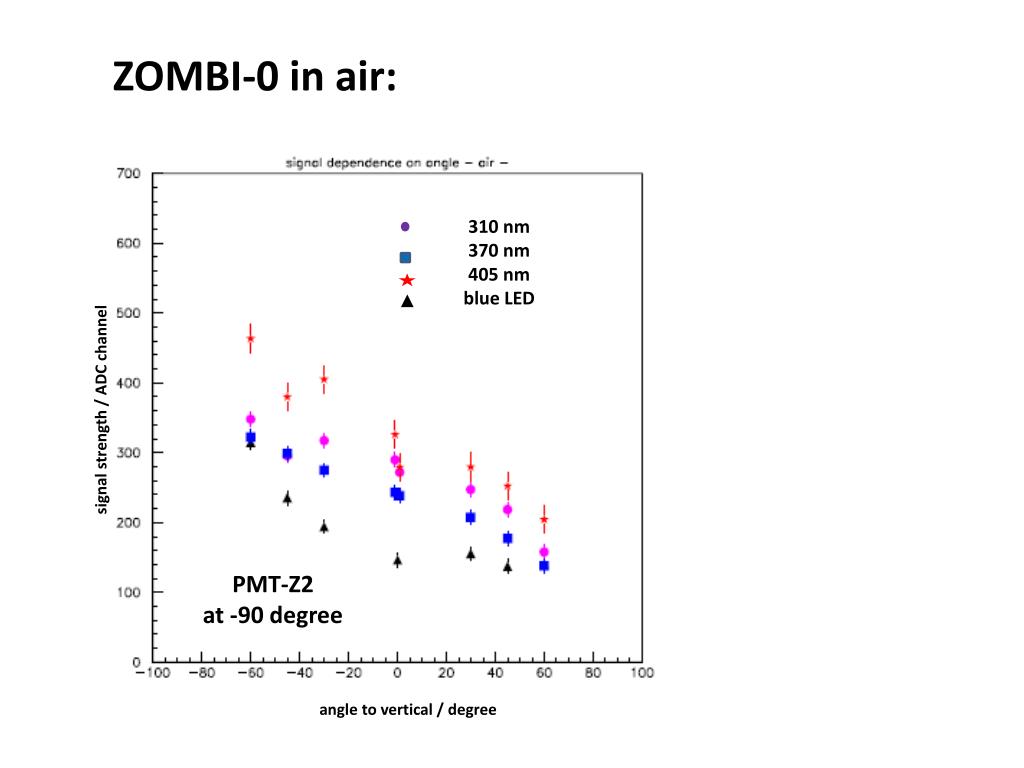

ZOMBI-0 in air: 310 nm 370 nm 405 nm blue LED signal strength / ADC channel PMT-Z2 at -90 degree angle to vertical / degree

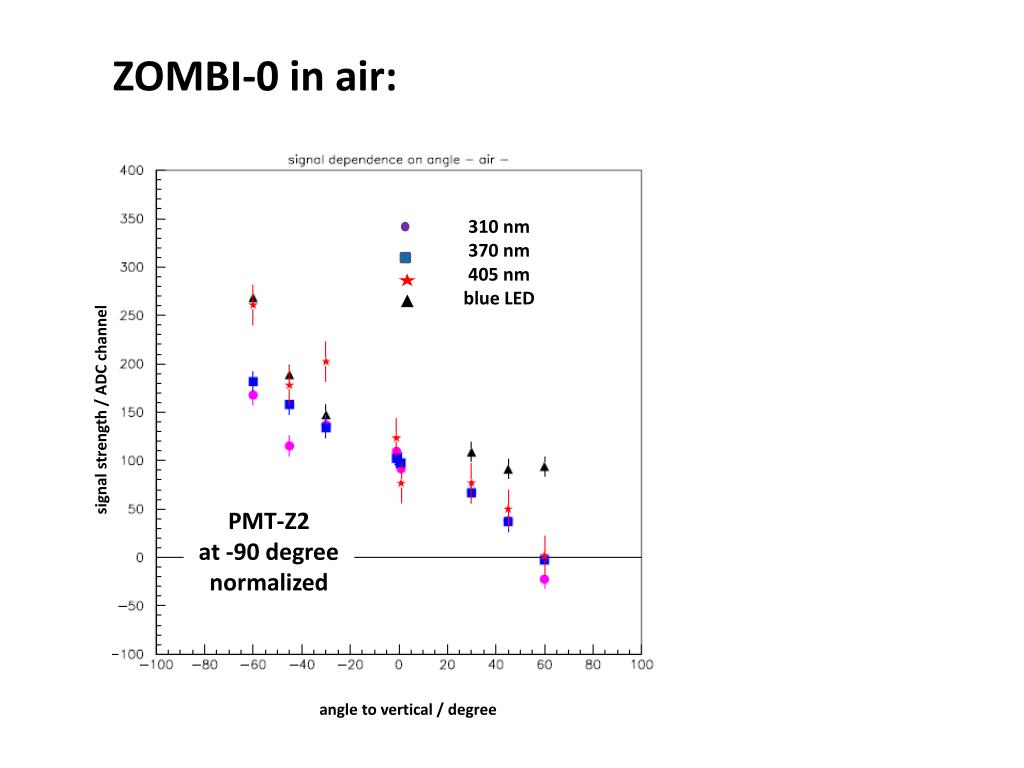

ZOMBI-0 in air: 310 nm 370 nm 405 nm blue LED signal strength / ADC channel PMT-Z2 at -90 degree normalized angle to vertical / degree

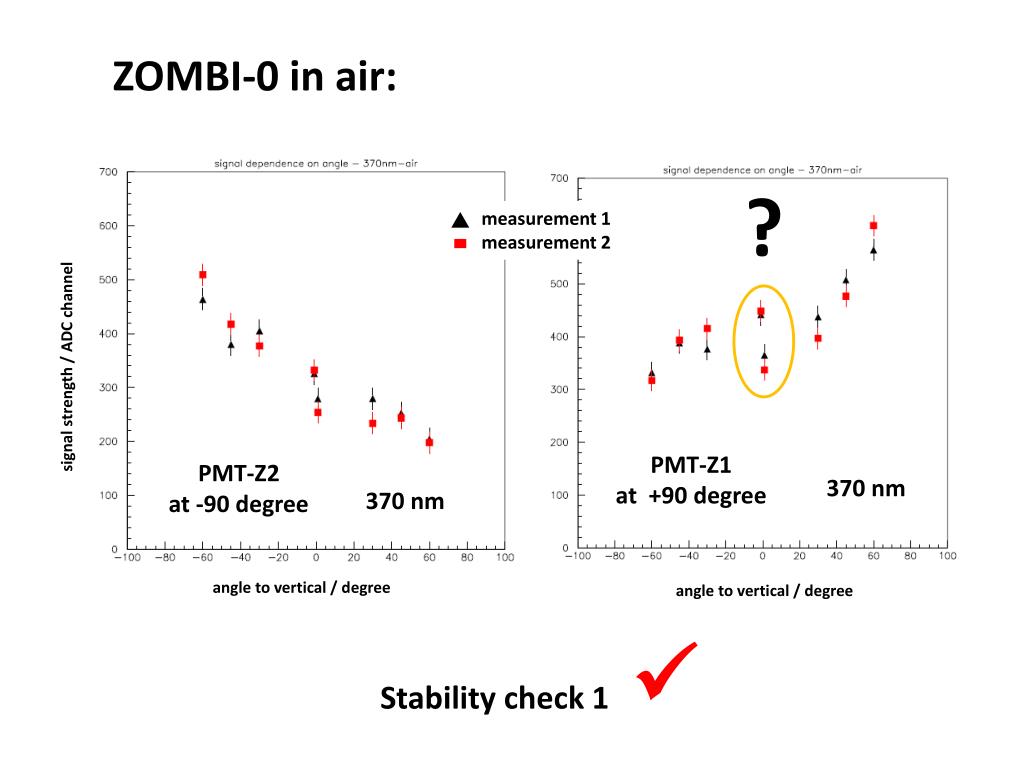

ZOMBI-0 in air: ? measurement 1measurement 2 signal strength / ADC channel PMT-Z1 at +90 degree PMT-Z2 at -90 degree 370 nm 370 nm angle to vertical / degree angle to vertical / degree Stability check 1
ZOMBI-0 in air: measurement 1 measurement 2 signal strength / ADC channel PMT-Z1 at +90 degree PMT-Z2 at -90 degree blue LED blue LED angle to vertical / degree angle to vertical / degree Stability check 2
ZOMBI-0 in air and water: PMT-Z2 at -90 degree PMT-Z1 at +90 degree blue LED blue LED water air water air signal strength / ADC channel angle to vertical / degree angle to vertical / degree

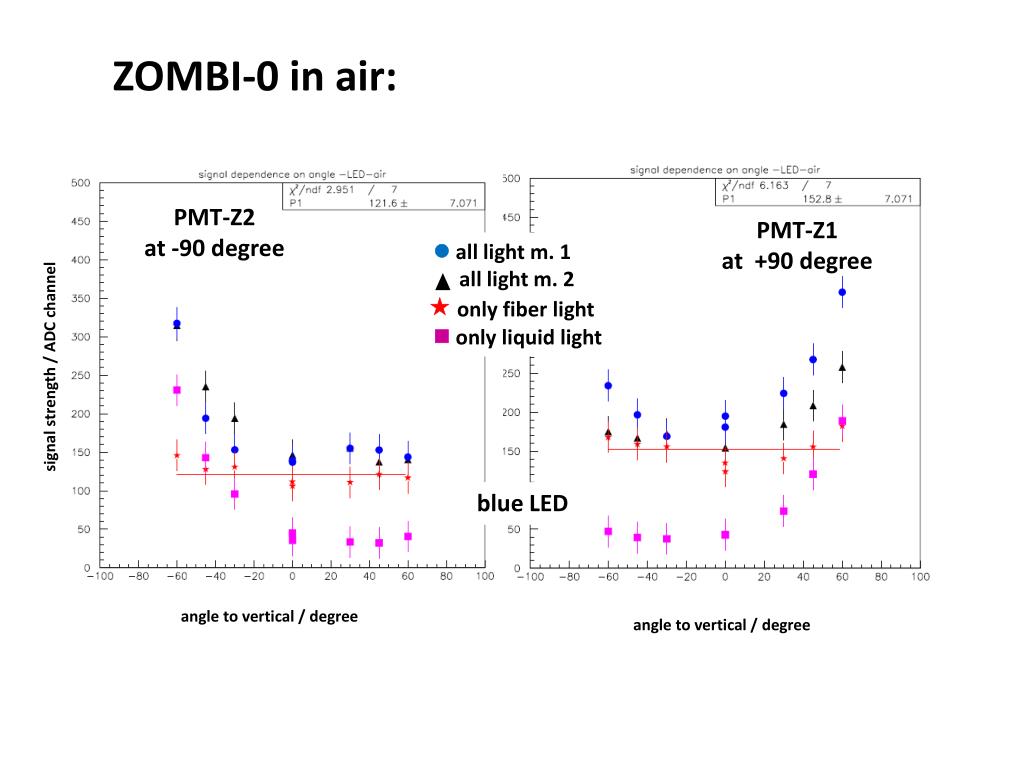

ZOMBI-0 in air: PMT-Z2 at -90 degree PMT-Z1 at +90 degree all light m. 1 all light m. 2 only fiber light only liquid light signal strength / ADC channel blue LED angle to vertical / degree angle to vertical / degree
ZOMBI-0 in air: PMT-Z2 at -90 degree PMT-Z1 at +90 degree all lightonly fiber light only liquid light signal strength / ADC channel 310 nm angle to vertical / degree angle to vertical / degree

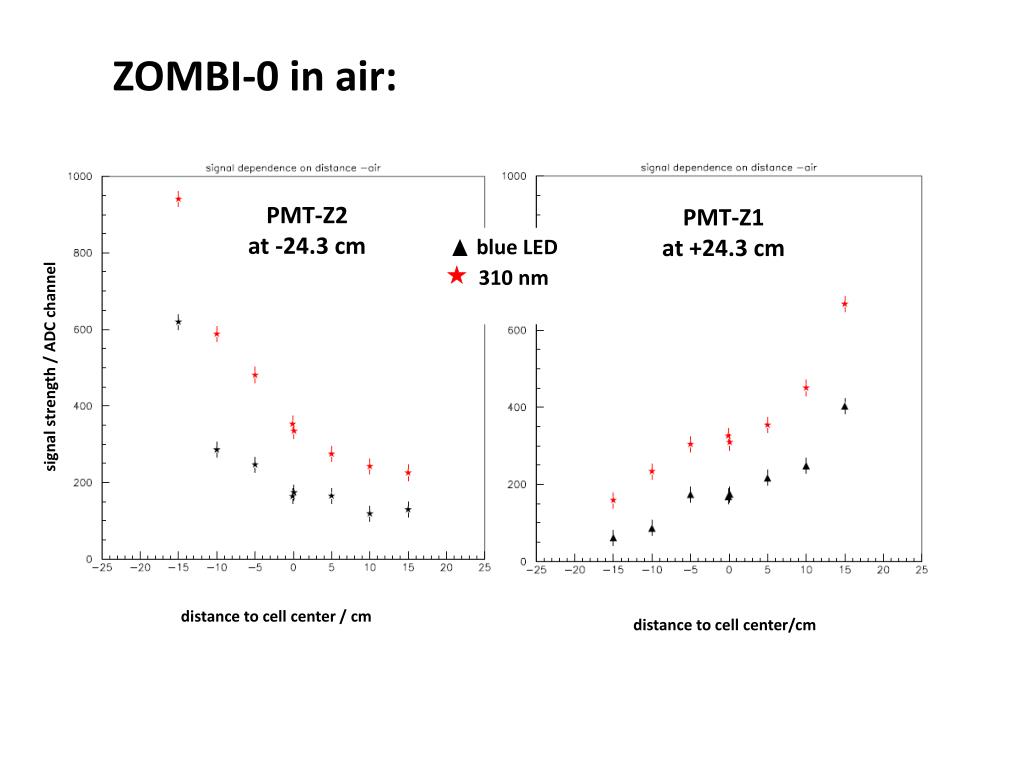

ZOMBI-0 in air: PMT-Z2 at -24.3 cm PMT-Z1 at +24.3 cm blue LED 310 nm signal strength / ADC channel distance to cell center / cm distance to cell center/cm
PMT-ZOMBI-1: Working point for all LED measurements: 2.7 V SZOMBI-c/ SbarePMT 0.002 LED-fiber illuminates center of bare PMT Working point for 310nm measurement: 5.5a.u. SZOMBI-c / SbarePMT 0.02 signal strength / ADC channel Working point for 405 nm measurement: 2.7 a.u. SZOMBI-c / SbarePMT 0.03 LED voltage / V
