  1. Public Health CBRN course CBRN overview Daniel Kollek, MD, CCFP(EM)

  2. Goals of session • To provide an overview of the categories and actions of CBRN agents and the roles of Public Health in responding to them

  3. Outline of session • Definitions • Chemical overview • Biological overview • Radiological overview • Nuclear overview • Roles of public health

  4. DefinitionsChemical Biological Radiological Nuclear Public Health role

  5. (1) Definitions Disaster • The Merriam-Webster dictionary definition of disaster is "a sudden or great misfortune." • The Medical definition if a disaster is "when the destructive effects of an event overwhelm the ability of a given area or community to meet the demand for health care."

  6. (1) Definitions Mass Casualty Incident A disaster that is typified by a large number of patients that outstrip resources on the basis of numbers of individuals requiring care.

  7. (1) Definitions CBRN Disasters contaminated by an agent that can be Chemical Biological Radioactive or Nuclear. Each one of these has specific response needs . Also known as NBC or ABC

  8. Terrorism A terror attack is defined as an attack targeted at civilian non-combatants for the purpose of affecting the government that represents them. A successful terror event involves large number of casualties, may involve CBRN contaminants, causes infrastructure damage and has a psychological impact (1) Definitions

  9. DefinitionsChemical Biological Radiological Nuclear Public Health role

  10. (2) Chemical Chemical Agents • What is a hazardous material? • How do we classify chemical agents? • What are the chemical agents we worry about (and why)? • What type of incidents might we face?

  11. (2) Chemical Hazardous Material A substance is considered hazardous when, because of its quantity, concentration, or physical characteristics, it poses a real hazard to human health or the environment Mississauga train derailment 1979

  12. (2) Chemical Chemical Agent Classification Nerve agent – organophosphate based, insecticides Blister agent – Vesicants Pulmonary agent – Choking (ie Phosgene, Chlorine) Blood agent - Cyanide Other agents Pepper spray, Tear gas, CS, OC

  13. (2) Chemical “TICs and TIMs” Toxic Industrial Chemicals • Irritants (chlorine, phosgene, hydrogen chloride, ammonia, isocyanates) • Pharmacologic-like agents (cyanide) • Hydrocarbons • Alcohol-based solvents • Corrosives (acids & bases) • Pesticides (organophosphates and others) • Smoke • Riot Control (Tear Gas & Pepper Spray)

  14. (2) Chemical Incident Types • Small, localized HazMat Incident • 84% of incidents occur at fixed sites • 70% involve 1 or 2 victims • 90% are ambulatory • Liquid contamination more common • Greater need for showering • Chemical MCI • Most commonly gas or vapor exposure • Most exposures are mild with few significant toxic effects • Beware of incidents in enclosed spaces • Clothing removal is the focus of decontamination

  15. (2) Chemical Response to chemical agents • Decontamination • Antidotal therapy • 2PAM, • Atropine, • Benzodiazepines

  16. (3) Biological DefinitionsChemicalBiologicalRadiologicalNuclear Public Health role

  17. (3) Biological Types of Bio-agents • Bacterial • Viral • Toxins

  18. (3) Biological Characteristics of Bio-agents • Low visibility • High potency • Latency • Easy accessibility • Simple delivery • Good sustainability and propagation • Does Not Affect Structures

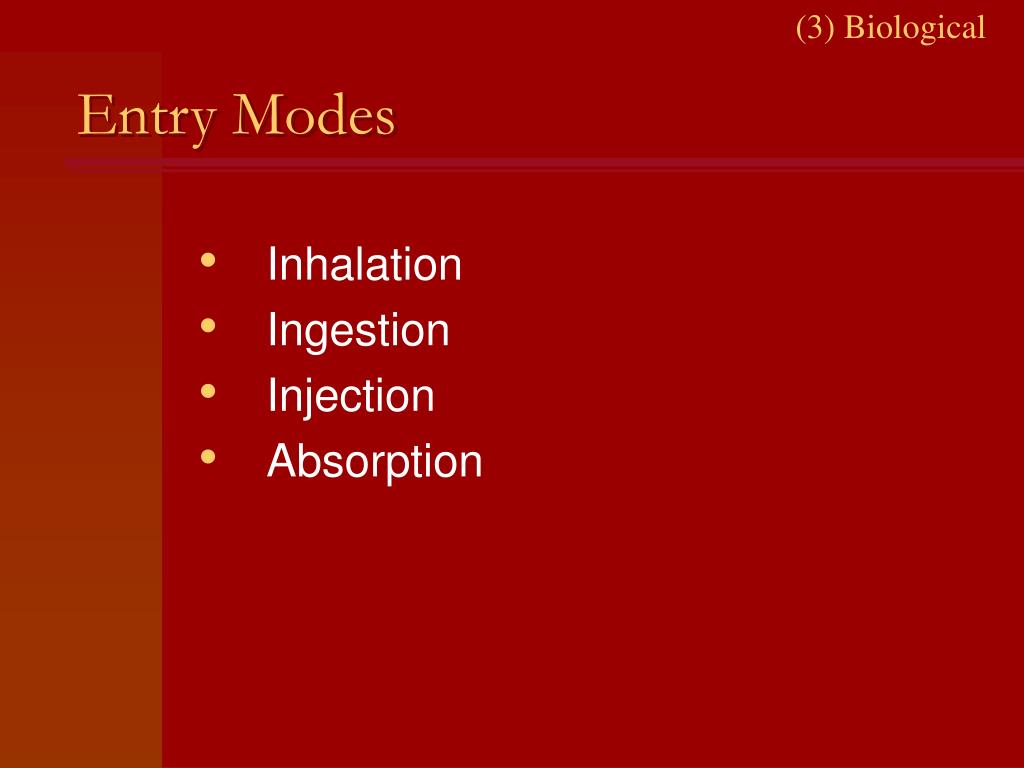

  19. (3) Biological Entry Modes • Inhalation • Ingestion • Injection • Absorption

  20. (3) Biological Bioterrorism agents Category A Diseases/Agents Organisms that pose a risk to national security because they: • can be easily disseminated or transmitted from person to person; • result in high mortality rates and have the potential for major public health impact; • might cause public panic and social disruption; and • require special action for public health preparedness.

  21. (3) Biological A level bioterrorism agents • Anthrax (Bacillus anthracis) • Botulism (Clostridium botulinum toxin) • Plague (Yersinia pestis) • Smallpox (variola major) • Tularemia (Francisella tularensis) • Viral hemorrhagic fevers (filoviruses [e.g., Ebola, Marburg] and arenaviruses [e.g., Lassa, Machupo])

  22. (3) Biological Bioterrorism agents Category B Diseases/Agents Second highest priority agents include those that: • are moderately easy to disseminate; • result in moderate morbidity rates and low mortality rates; and • require specific enhancements of laboratory diagnostic capacity and enhanced disease surveillance.

  23. (3) Biological B level bioterrorism agents • Brucellosis (Brucella species) • Epsilon toxin of Clostridium perfringens • Food safety threats (e.g., Salmonella species, Escherichia coli O157:H7, Shigella) • Glanders (Burkholderia mallei) • Melioidosis (Burkholderia pseudomallei) • Psittacosis (Chlamydia psittaci) • Q fever (Coxiella burnetii) • Ricin toxin from Ricinus communis (castor beans) • Staphylococcal enterotoxin B • Typhus fever (Rickettsia prowazekii) • Viral encephalitis (alphaviruses [e.g., Venezuelan equine encephalitis, eastern equine encephalitis, western equine encephalitis]) • Water safety threats (e.g., Vibrio cholerae, Cryptosporidium parvum)

  24. (3) Biological Bioterrorism agents Category C Diseases/Agents Third highest priority agents include emerging pathogens that could be engineered for mass dissemination in the future because of: • availability; • ease of production and dissemination; and • potential for high morbidity and mortality rates and major health impact.

  25. (3) Biological C level bioterrorism agents • Emerging infectious diseases such as Nipah virus and hantavirus

  26. (4) Radiological DefinitionsChemicalBiologicalRadiologicalNuclear Public Health role

  27. (4) Radiological What Is Radiation? Radio/TV Sun Nuclear Heat Light Microwave

  28. (4) Radiological Electromagnetic Spectrum Increasing Energy and Frequency Radio/TV Microwave X-ray Gamma Electrical Power Light UV IONIZING RADIATION NON-IONIZING RADIATION Increasing Harm

  29. (4) Radiological Health Effects of Radiation Exposure • Lethal at high doses • Mutagenic • Carcinogenic • Other biological effects, especially at high doses

  30. (4) Radiological Decrease Radiation Effects Time:Decrease time spent near the radioactive source Distance:Increase distance between you and the source Shielding:Increase the physical shielding between you and the source

  31. (4) Radiological Common Shelters From the Environmental Protection Agency’s Manual of Protective Action Guides and Protective Actions for Nuclear Incidents, Appendix C

  32. (4) Radiological Potential Terrorist Scenarios • Radiological • Radiological dispersion device; e.g., “dirty bomb” • Malicious use of radioactive substances • Nuclear • Attack on nuclear facility • Nuclear weapon • Improvised nuclear device (IND)

  33. (4) Radiological Mass Radiological Casualties “For an improvised nuclear device >100,000 patients could require evaluation and treatment.” Department of Homeland Security Working Group on Radiological Dispersal Device (RDD) Preparedness, Medical Preparedness and Response Sub-Group Report (May, 2003)

  34. (4) Radiological Radioactive Sources • 157,000 licensed users in U.S. • 2,000,000 devices containing radioactive sources • Approximately 400 sources lost or stolen in U.S. every year

  35. (4) Radiological Sources Around the World Recovered transport container Sources used in mobile cesium irradiators in the former Soviet Union Photos courtesy of the International Atomic Energy Agency (IAEA)

  36. (4) Radiological Goiânia Radiological Release Obsolete radiotherapy machine Abandoned cancer clinic Photos courtesy of the International Atomic Energy Agency (IAEA)

  37. (4) Radiological Goiânia Morbidity • 249 exposed; 54 hospitalized • Eight with radiation sickness • Four people died • 112,000 people monitored (>10% of total population) Photos courtesy of the International Atomic Energy Agency (IAEA)

  38. (4) Radiological How do you categorize exposures?

  39. (4) Radiological Categorization • External contamination • Patient is radioactive! • Remove all clothes is most important part of decontamination • Irradiation - local or whole body • Patient is not radioactive and poses no risk to others! • Ingestion • Body fluids may be radioactive • Combination of above

  40. (4) Radiological Remember! Categorisation determines risk to others and can identify specific therapeutic steps to be taken Dose determines severity, treatment plan and prognosis

  41. (5) Nuclear DefinitionsChemicalBiological RadiologicalNuclear Public Health role

  42. (5) Nuclear Key Issues in Nuclear Event • Same concerns as radiation event • Added concerns of mass trauma and major system disruption

  43. So what have we learned so far?

  44. CBRN comparison

  45. (5) Public Health DefinitionsChemicalBiological Radiological NuclearPublic Health role

  46. (5) Public Health Public Health Role • Early Detection • Mass Patient Care • Mass Immunization/Prophylaxis • Epidemiologic investigation • Communication • Command and Control

  47. (5) Public Health Public Health Role (2) • Mass Fatality Management • Evacuations/sheltering (humans and animals) • Environmental Surety • Community Recovery (rapid health risk assessment, mental health etc)

  48. Questions ???
