  1. TEIN2-VN / VINAREN update TEIN2-VN Technical Task Force July/2006

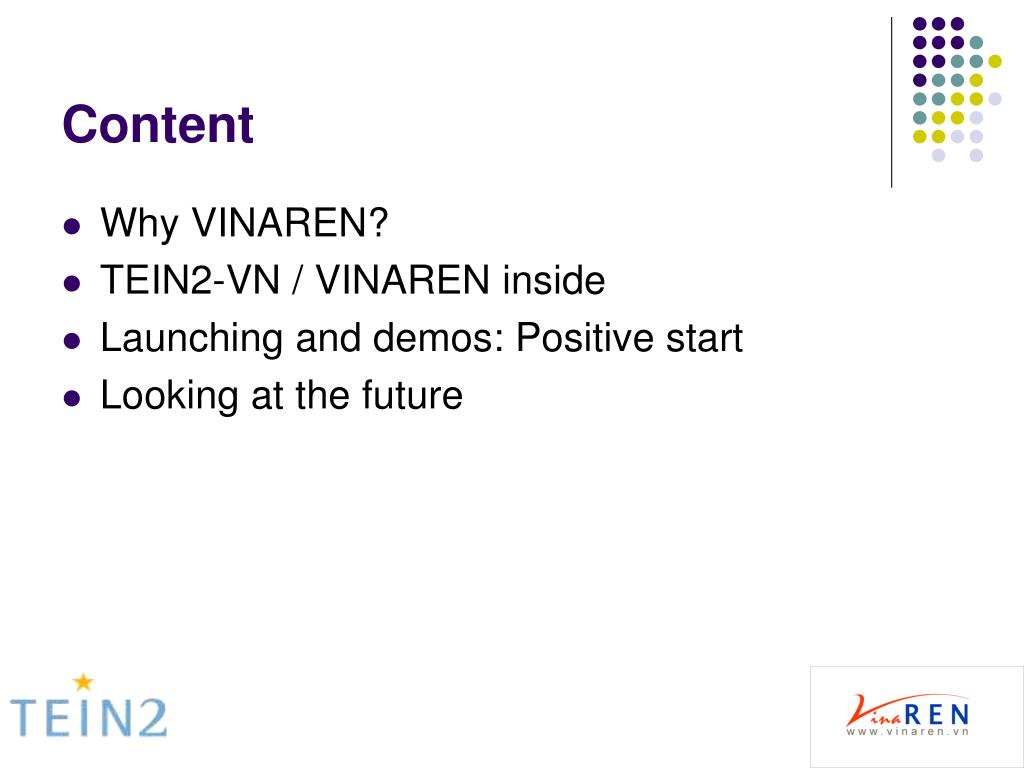

  2. Content • Why VINAREN? • TEIN2-VN / VINAREN inside • Launching and demos: Positive start • Looking at the future

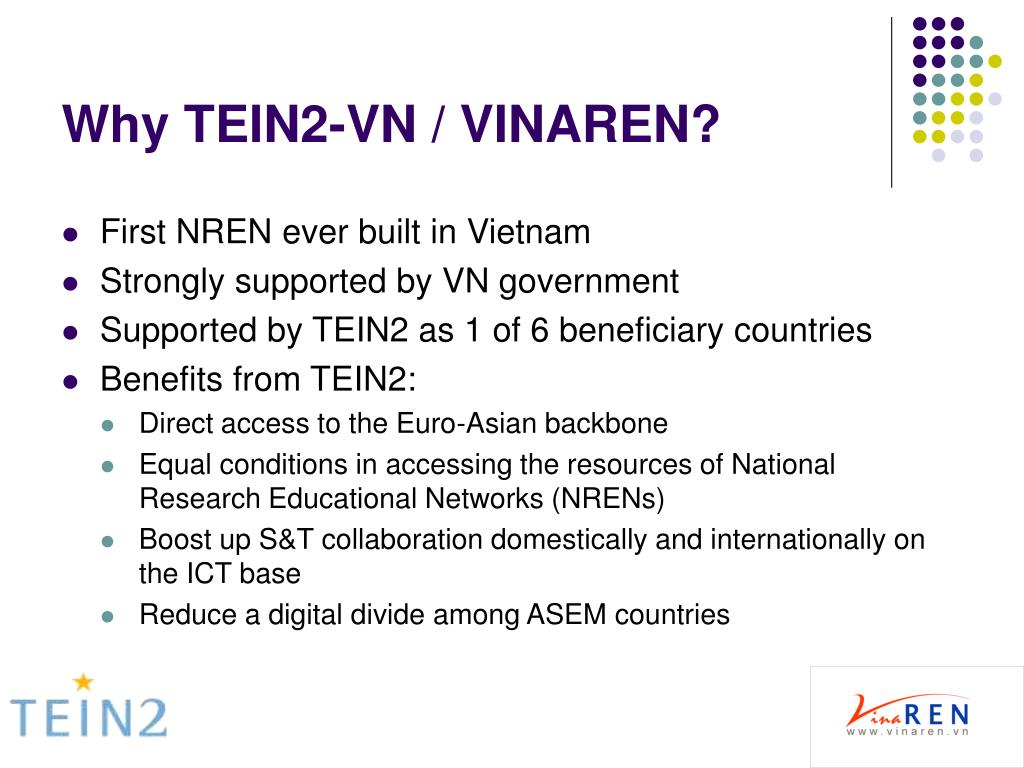

  3. Why TEIN2-VN / VINAREN? • First NREN ever built in Vietnam • Strongly supported by VN government • Supported by TEIN2 as 1 of 6 beneficiary countries • Benefits from TEIN2: • Direct access to the Euro-Asian backbone • Equal conditions in accessing the resources of National Research Educational Networks (NRENs) • Boost up S&T collaboration domestically and internationally on the ICT base • Reduce a digital divide among ASEM countries

  4. TEIN2-VN / VINAREN • Hanoi (NOC-VN) – Hong Kong TEIN2 hub: clear channel T3 = 45Mbps • NOC-VN built at Hanoi University of Technologies (HUT) • Fiber Optic infrastructure connecting VINAREN members in Hanoi with 100Mbps: IOIT/VAST, MOST, NHP, VNU • Open Source Based Platform and Environment (OS, Network Tools, StarOffice, Open Office, e-learning platforms, …) • Network monitoring systems

  5. TEIN2-VN / VINAREN (cont.) • The 1st National Symposium on TEIN2-VN and VINAREN in Dec. 3, 2005 to Promote the VINAREN Activities • Operation and Maintenance by the Leading Institutions (HUT, IOIT, VNU, …) • International collaboration: Telemedicine, Video-Conference, DVTS, etc. • Experience Sharing with other NOCs, NRENs for the Most Advanced Solutions and Technology

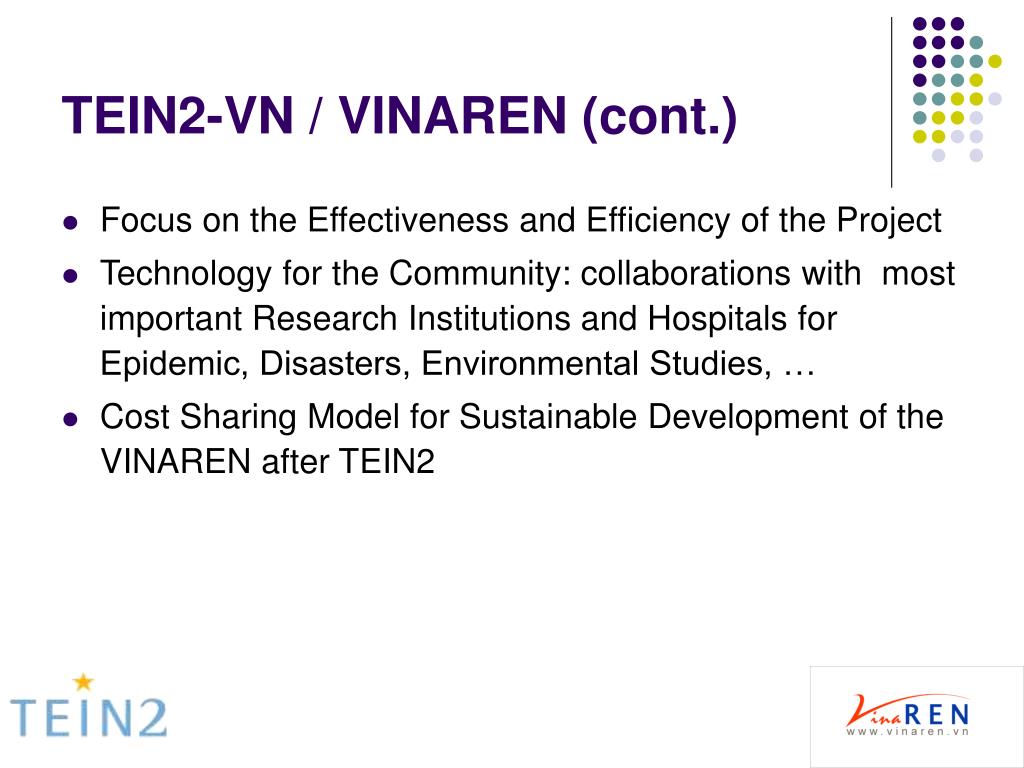

  6. TEIN2-VN / VINAREN (cont.) • Focus on the Effectiveness and Efficiency of the Project • Technology for the Community: collaborations with most important Research Institutions and Hospitals for Epidemic, Disasters, Environmental Studies, … • Cost Sharing Model for Sustainable Development of the VINAREN after TEIN2

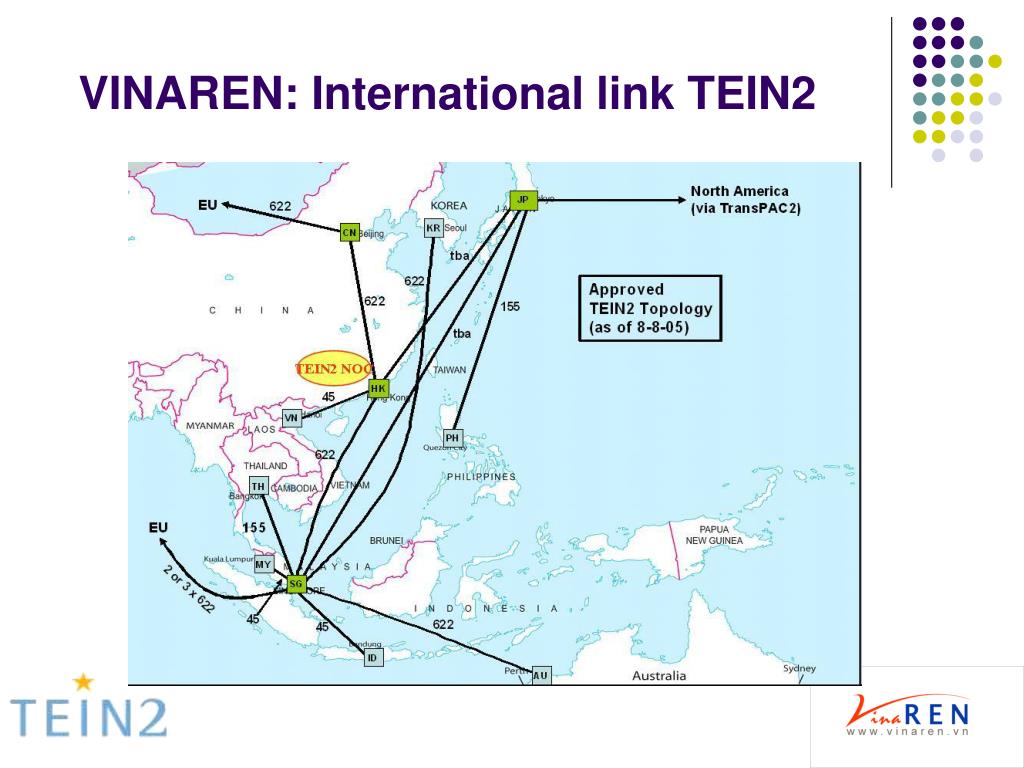

  7. VINAREN: International link TEIN2

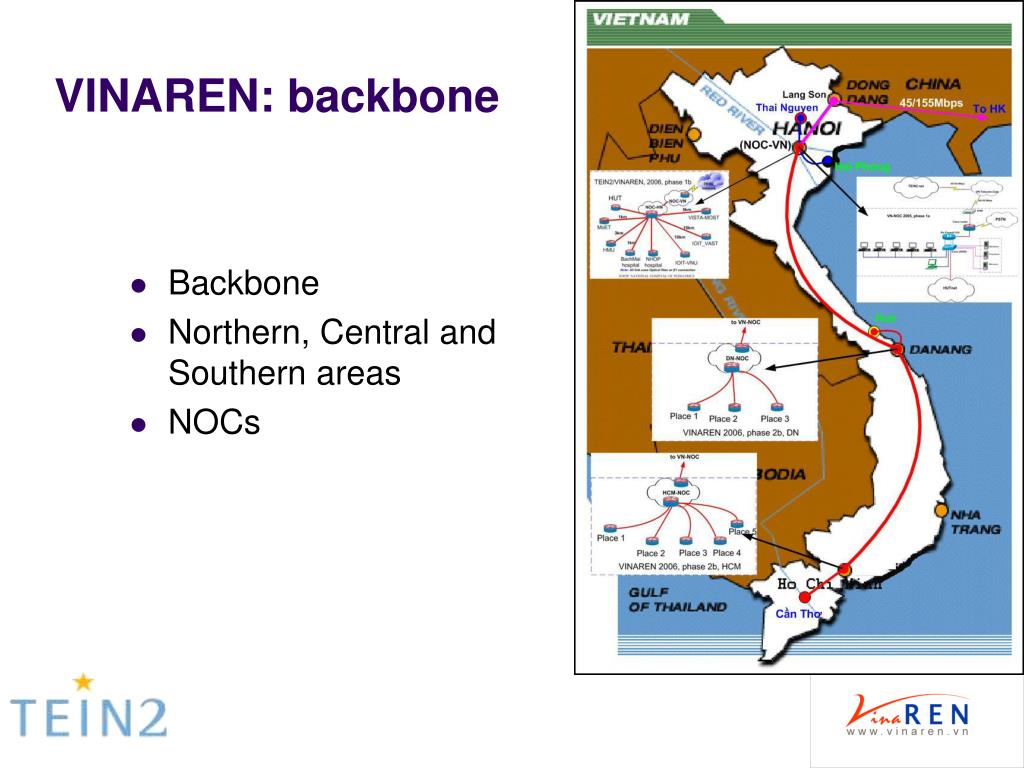

  8. VINAREN: backbone • Backbone • Northern, Central and Southern areas • NOCs

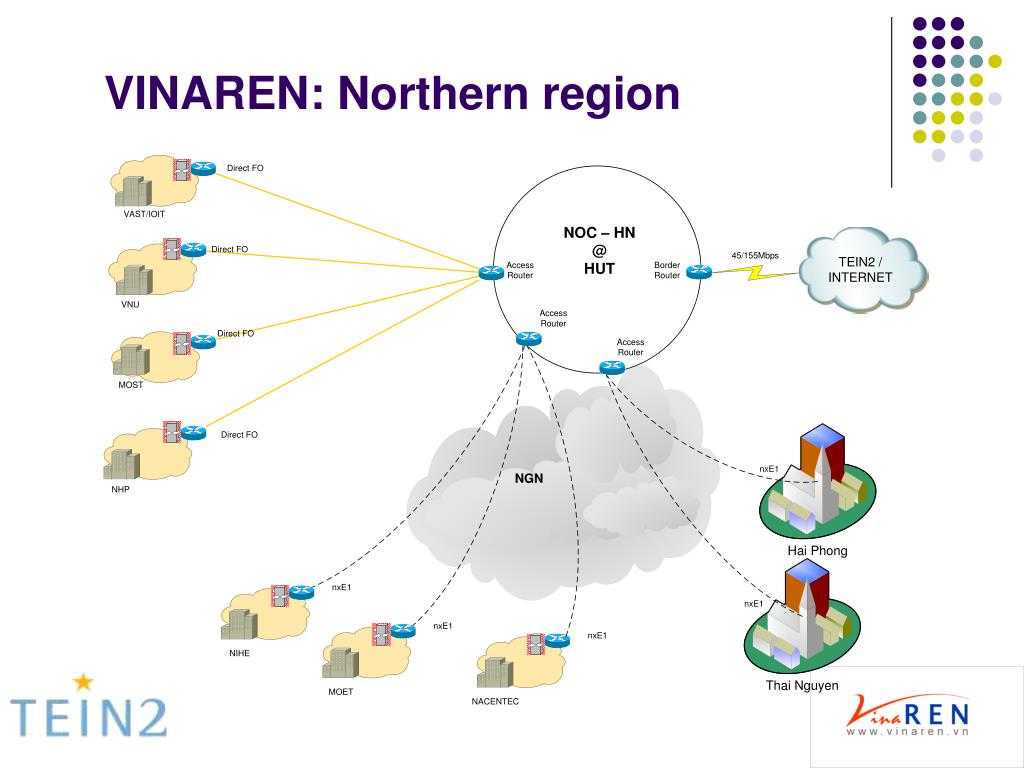

  9. VINAREN: Northern region

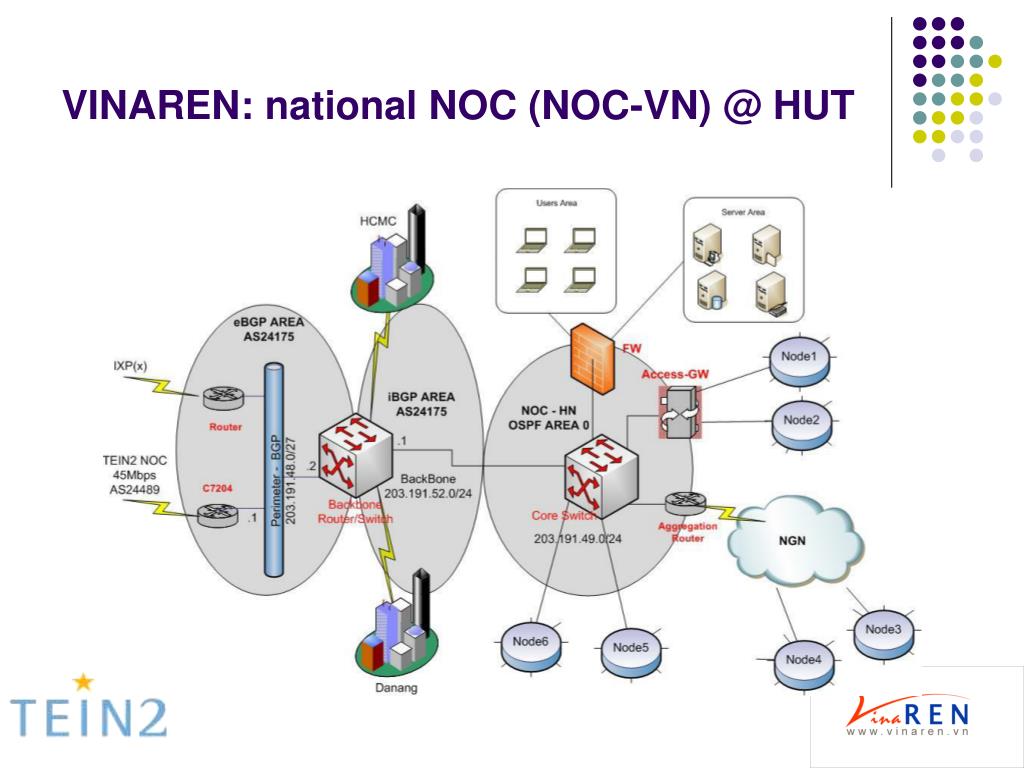

  10. VINAREN: national NOC (NOC-VN) @ HUT

  11. Network monitoring tools

  12. VINAREN Launch: TEIN2 10th Halong meeting

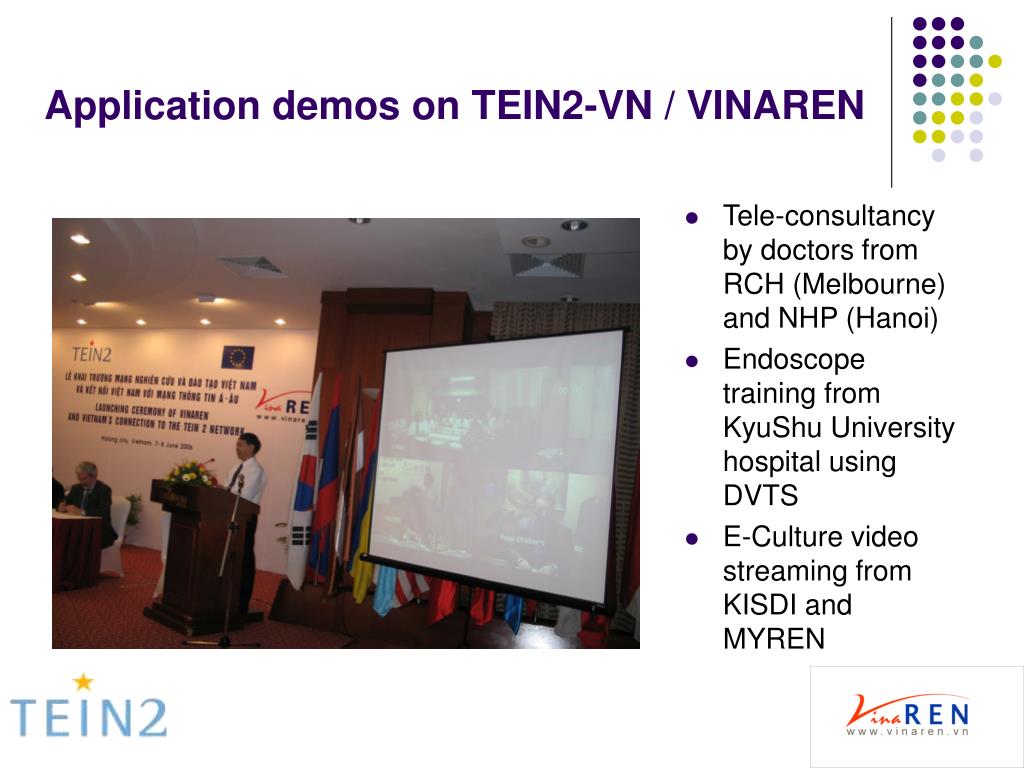

  13. Application demos on TEIN2-VN / VINAREN • Tele-consultancy by doctors from RCH (Melbourne) and NHP (Hanoi) • Endoscope training from KyuShu University hospital using DVTS • E-Culture video streaming from KISDI and MYREN

  14. VINAREN: Looking at the future • Hanoi – Hong Kong link upgrade to STM1 = 155Mbps • VINAREN Backbone design and implementation • Domestic Connectivity from regional NOCs to other Institutions 15 + 10 + 5 Points (6/2007) • Extension to 50+ Institutions. • Expansion of the Connectivity if allowed by TEIN2 (12/2007) • Sustainable Development, Expansion to others (with TEIN3) • Detailed Plan of VINAREN for 2005-2007 with 3.7M USD

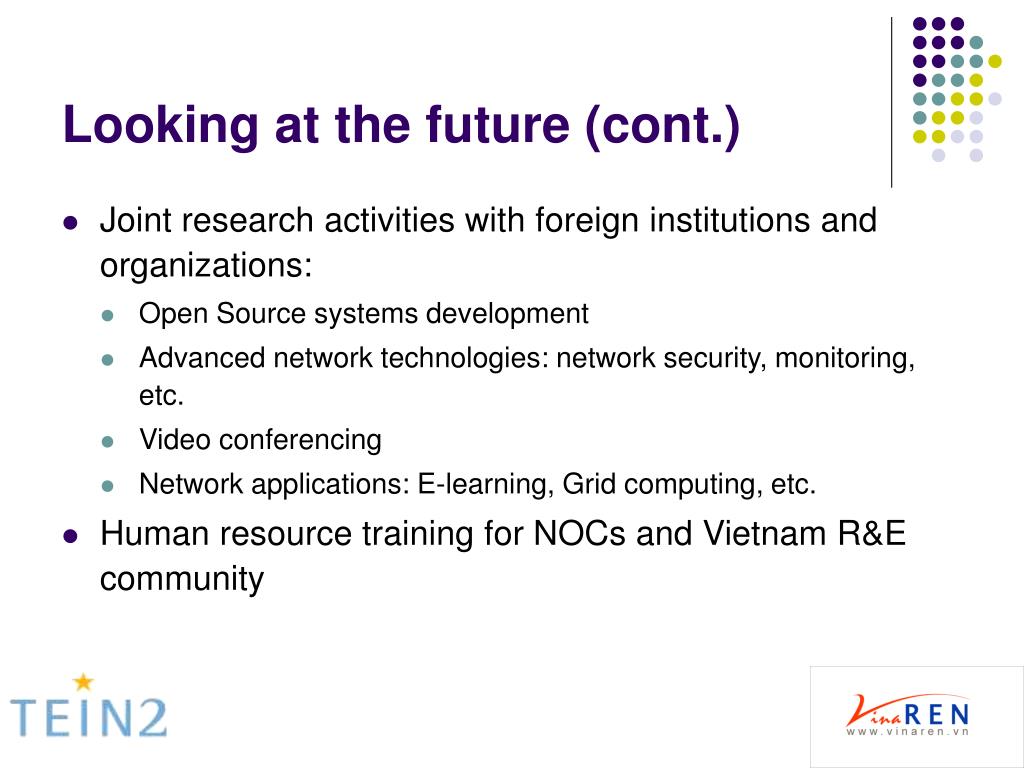

  15. Looking at the future (cont.) • Joint research activities with foreign institutions and organizations: • Open Source systems development • Advanced network technologies: network security, monitoring, etc. • Video conferencing • Network applications: E-learning, Grid computing, etc. • Human resource training for NOCs and Vietnam R&E community

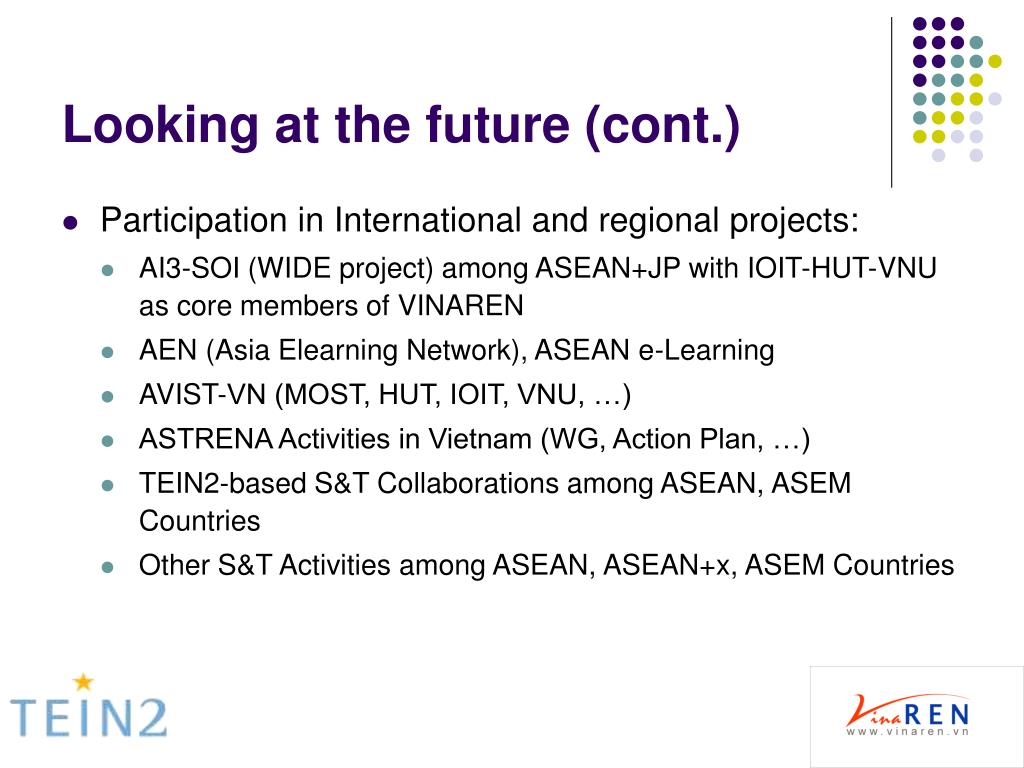

  16. Looking at the future (cont.) • Participation in International and regional projects: • AI3-SOI (WIDE project) among ASEAN+JP with IOIT-HUT-VNU as core members of VINAREN • AEN (Asia Elearning Network), ASEAN e-Learning • AVIST-VN (MOST, HUT, IOIT, VNU, …) • ASTRENA Activities in Vietnam (WG, Action Plan, …) • TEIN2-based S&T Collaborations among ASEAN, ASEM Countries • Other S&T Activities among ASEAN, ASEAN+x, ASEM Countries

  17. Thank you!

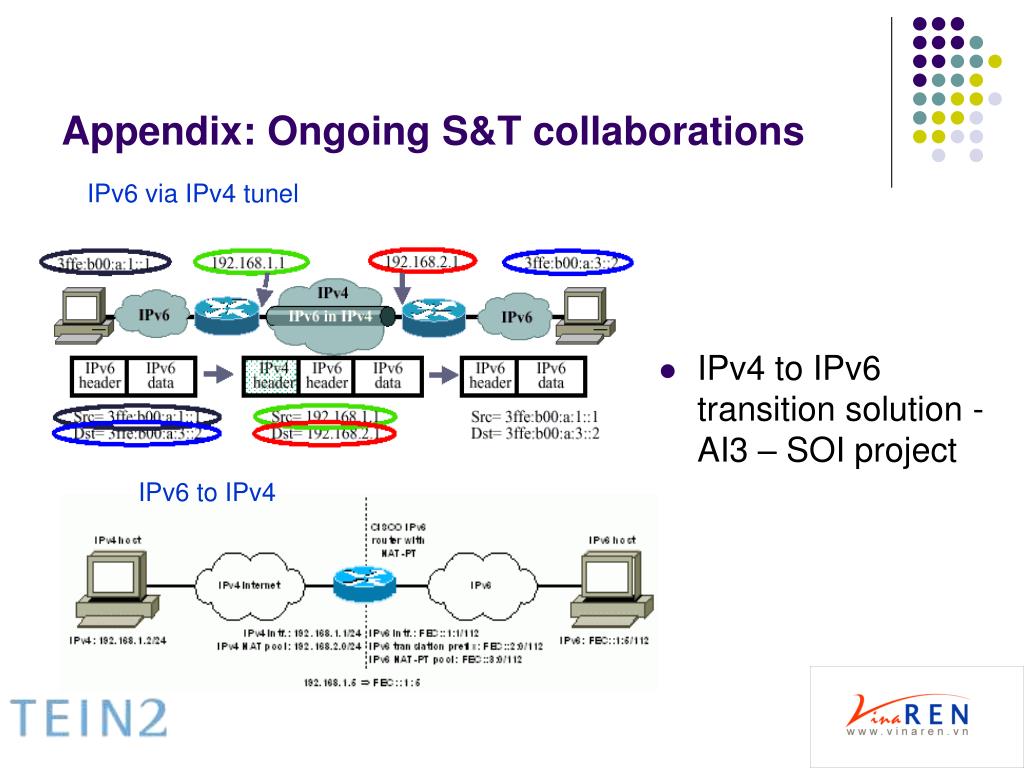

  18. Appendix: Ongoing S&T collaborations IPv6 via IPv4 tunel • IPv4 to IPv6 transition solution - AI3 – SOI project IPv6 to IPv4

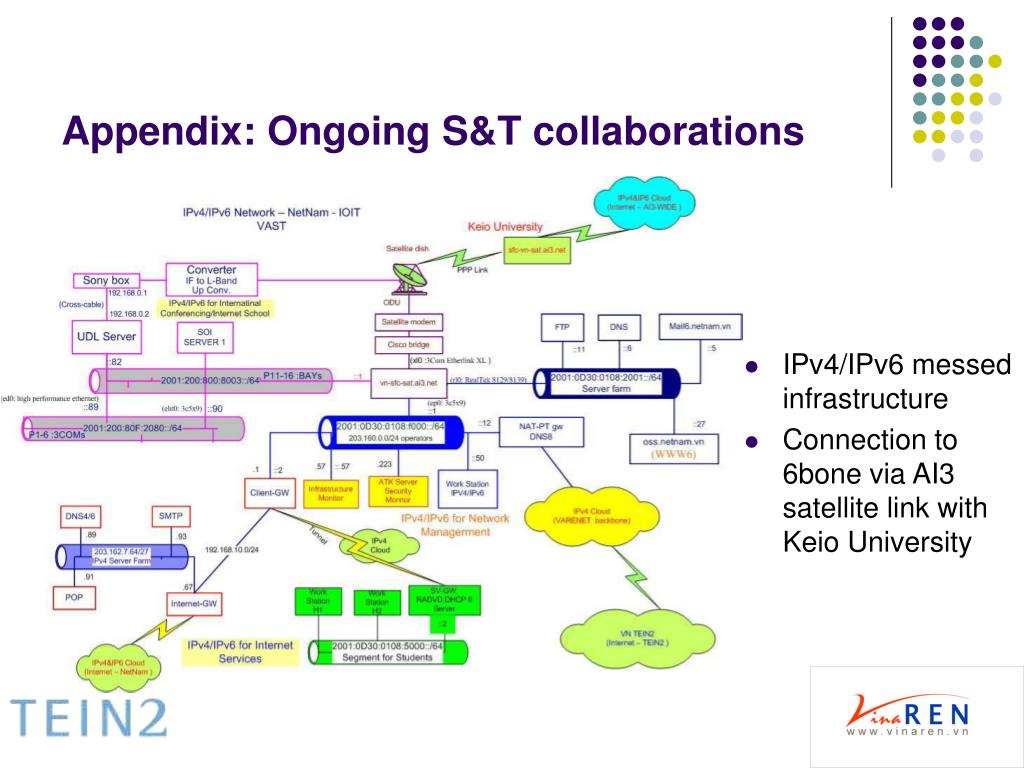

  19. Appendix: Ongoing S&T collaborations • IPv4/IPv6 messed infrastructure • Connection to 6bone via AI3 satellite link with Keio University

  20. Human Security policy Security mechanism and services Procedures and processes Security tools Rules Appendix: Ongoing S&T collaborations • Network security • Implementation of Policy-based architecture (from DMTF and IETF) • Strict procedures in configuration and deployment of network security policies • With local Vietnamese partners
