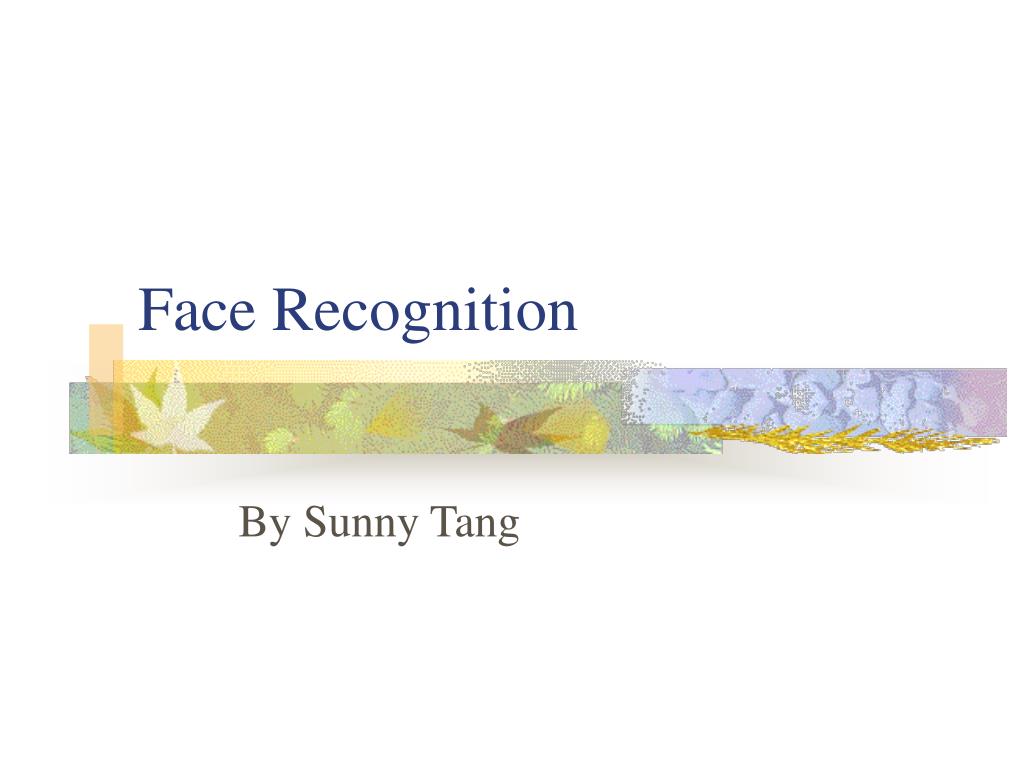

  1. Face Recognition By Sunny Tang

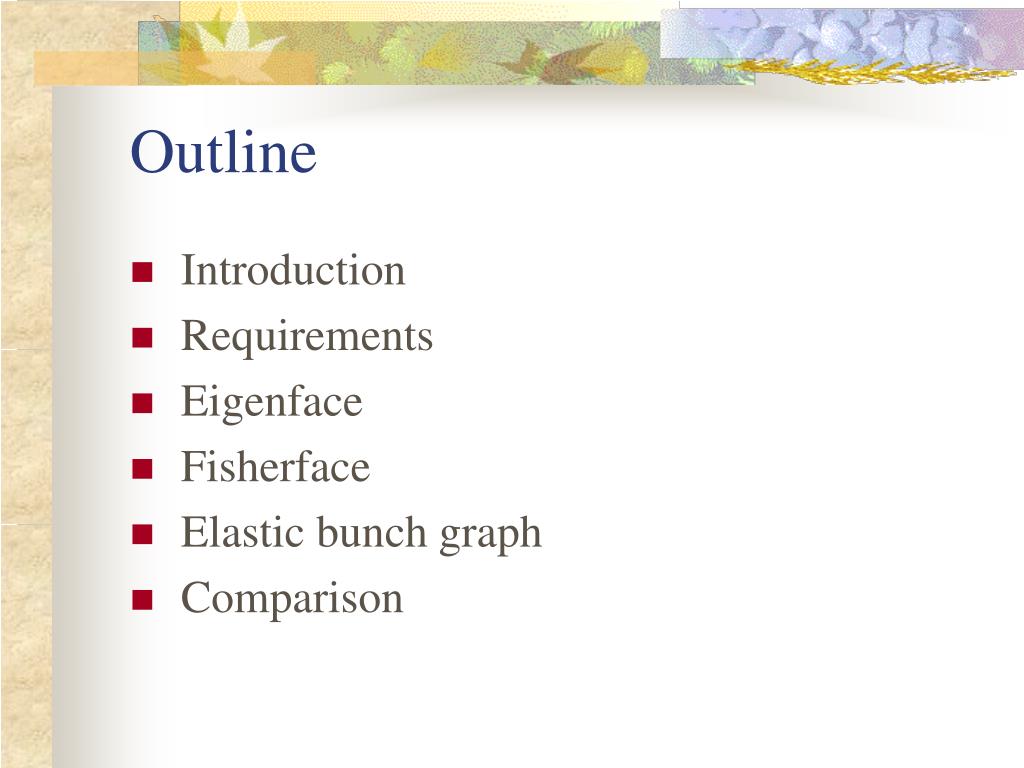

  2. Outline • Introduction • Requirements • Eigenface • Fisherface • Elastic bunch graph • Comparison

  3. Introduction • What is face recognition? • Applications • Security applications • Image search engine

  4. Requirements • Accurate • Efficient • Light invariant • Rotation invariant

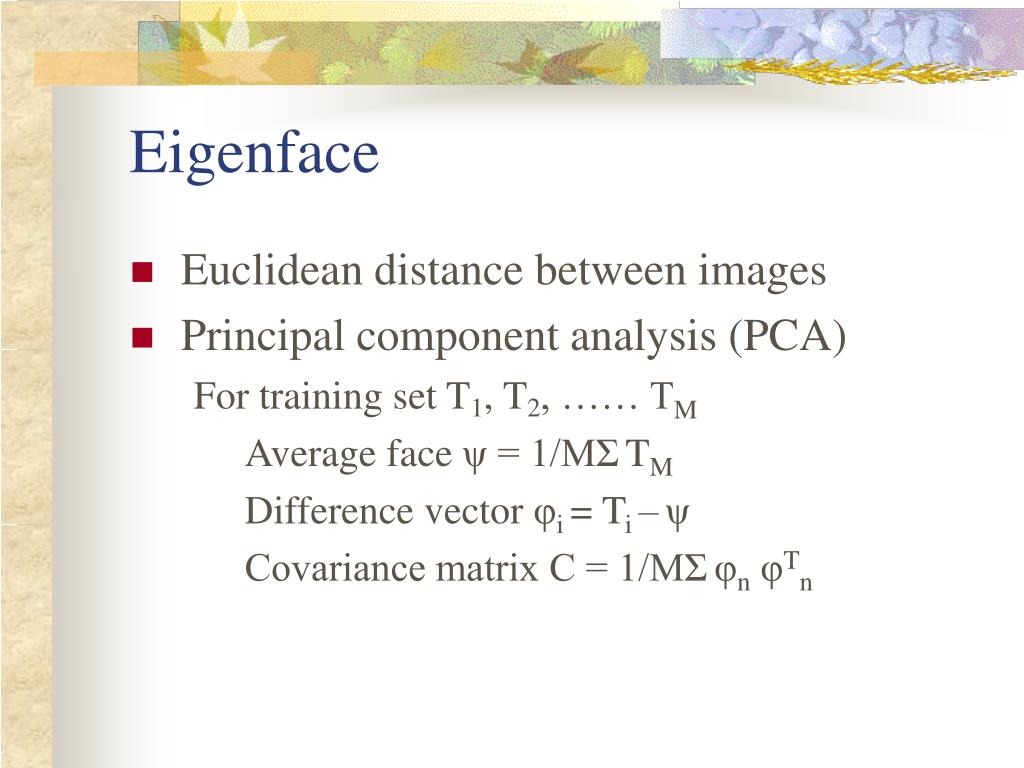

  5. Eigenface • Euclidean distance between images • Principal component analysis (PCA) For training set T1, T2, …… TM Average face ψ = 1/MΣTM Difference vector φi = Ti –ψ Covariance matrix C = 1/MΣφn φTn

  6. PCA

  7. Recognition • Projection in Eigenface Projection ωi = W(T – ψ) W = {eigenvectors} • Compare projections

  8. Fisherface • Similar approach to Eigerface • Fisher’s Linear Discriminant (FLD) • PCA • Scatter Matrix • Projection Matrix

  9. Fisherface • FLD • Between-class scatter matrix • Within-class scatter matrix • Projection Matrix

  10. FLD

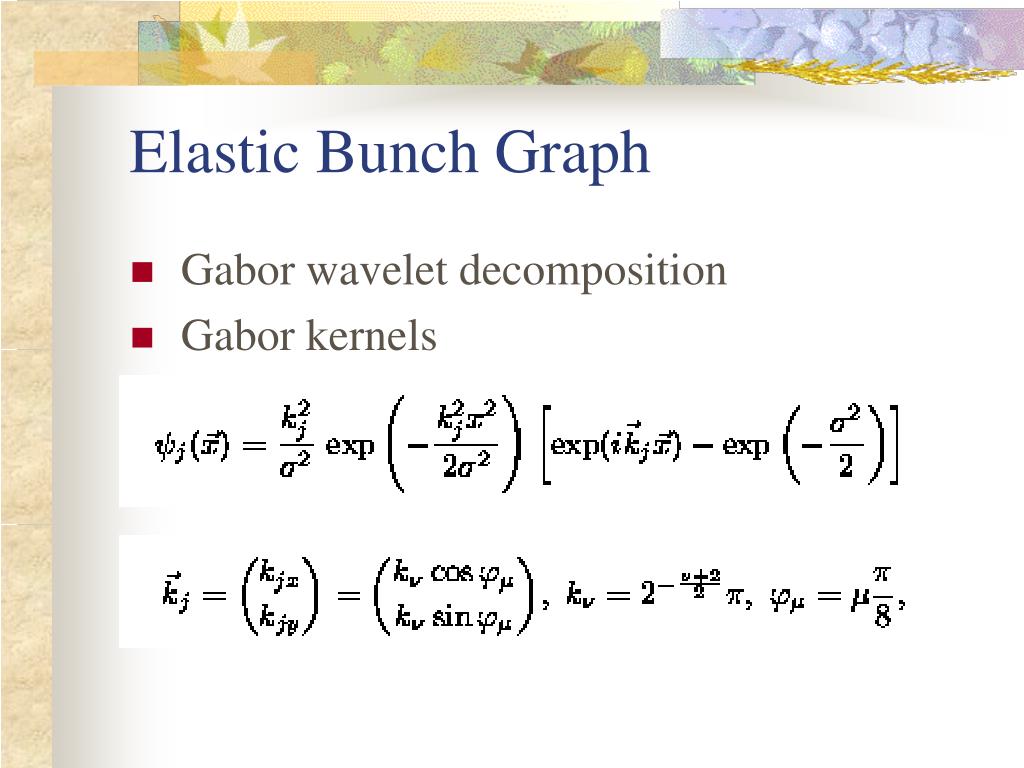

  11. Elastic Bunch Graph • Gabor wavelet decomposition • Gabor kernels

  12. Gabor Filters

  13. Jets • Small patch gray values • Wavelet transform

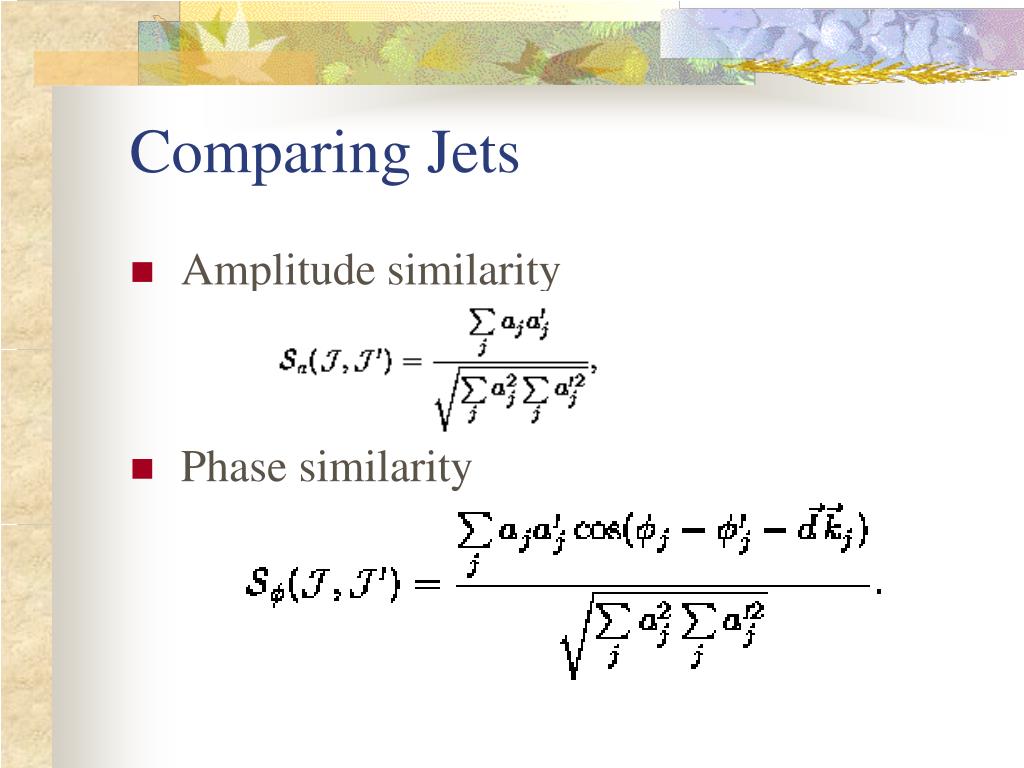

  14. Comparing Jets • Amplitude similarity • Phase similarity

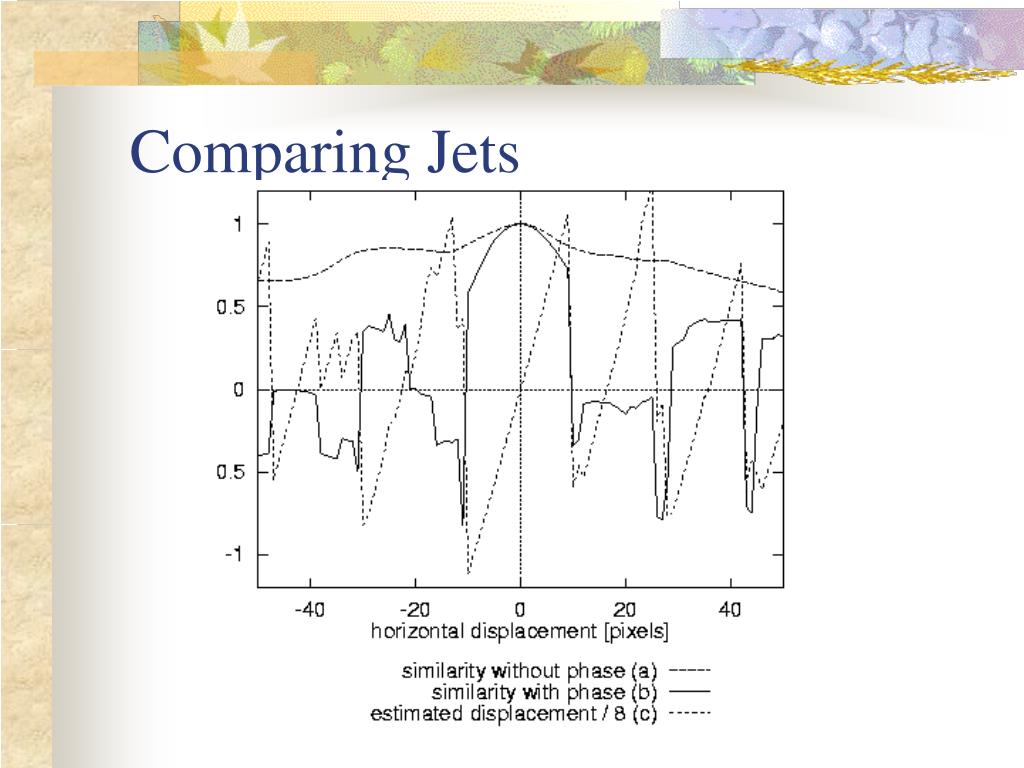

  15. Comparing Jets

  16. Face Bunch Graphs (FBG) • Stack like general representation • Two types of FBG: • Normalization stage • Graph extraction stage • Graph similarity function

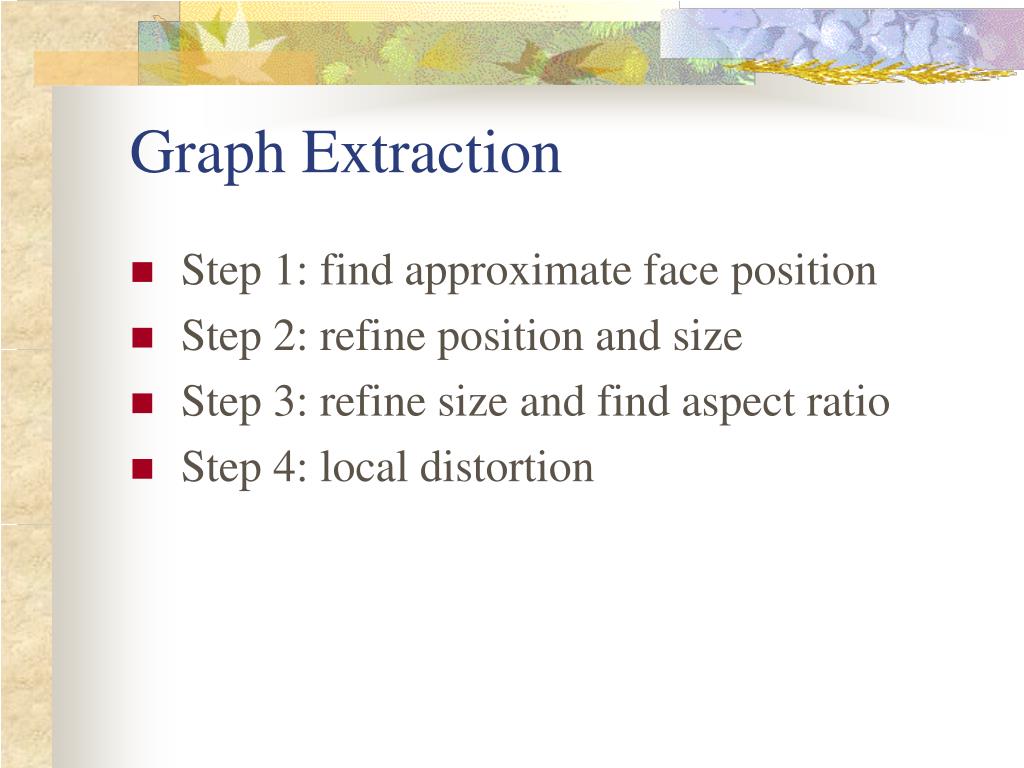

  17. Graph Extraction • Step 1: find approximate face position • Step 2: refine position and size • Step 3: refine size and find aspect ratio • Step 4: local distortion

  18. Recognition • Comparing image graph • Recognized for highest similarity

  19. Comparison • Eigenface • Fast, easy implementation • Fisherface • Light invariant, better classification • Elastic bunch graph • Rotation, light, scale invariant

  20. Q & A Section
