  1. Router Hardening Nancy Grover, CISSP ISC2/ISSA Security Conference November 2004

  2. Introduction • Types of Routers • Unnecessary Services • Password Management • Interactive Access • IP Routing

  3. Introduction • Warning Banners • SNMP Security • Logging Requirements • General Requirements • Router Threat Management

  4. Types of Routers • Boundary or edge routers • Interior routers • Backbone routers • Aggregate routers or hub routers

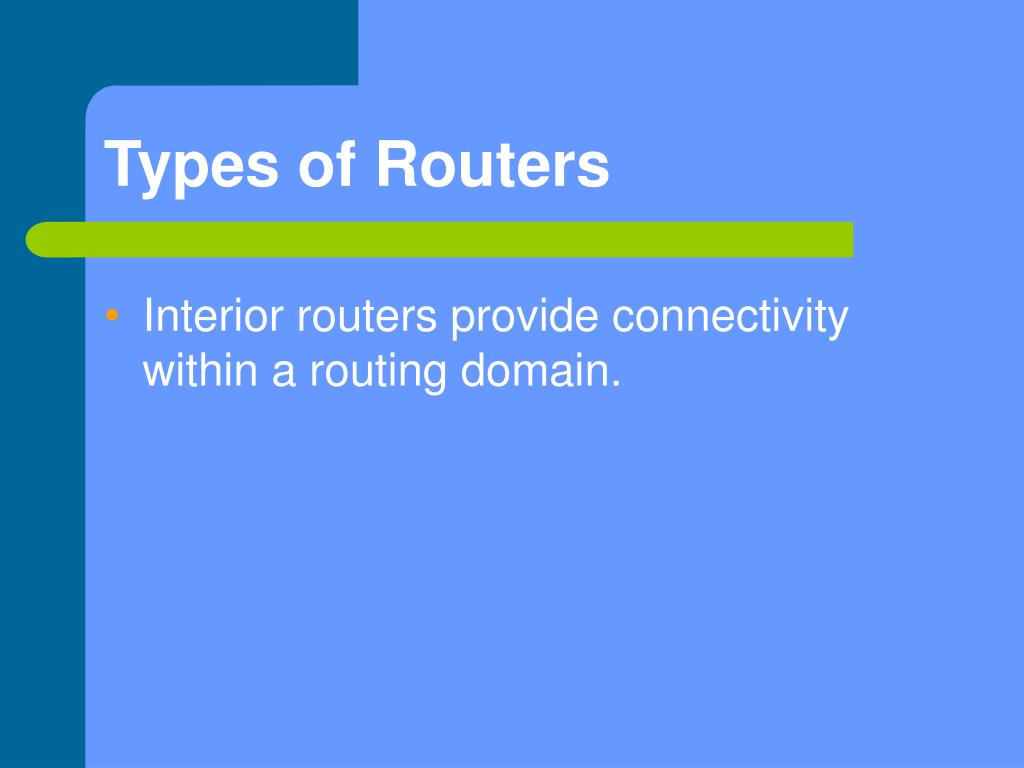

  5. Types of Routers • Interior routers provide connectivity within a routing domain.

  6. Types of Routers • Backbone routers provide connectivity between routing domains.

  7. Types of Routers • Aggregate routers and hub routers are used to combine a large number of connections into a fewer number of high bandwidth connections.

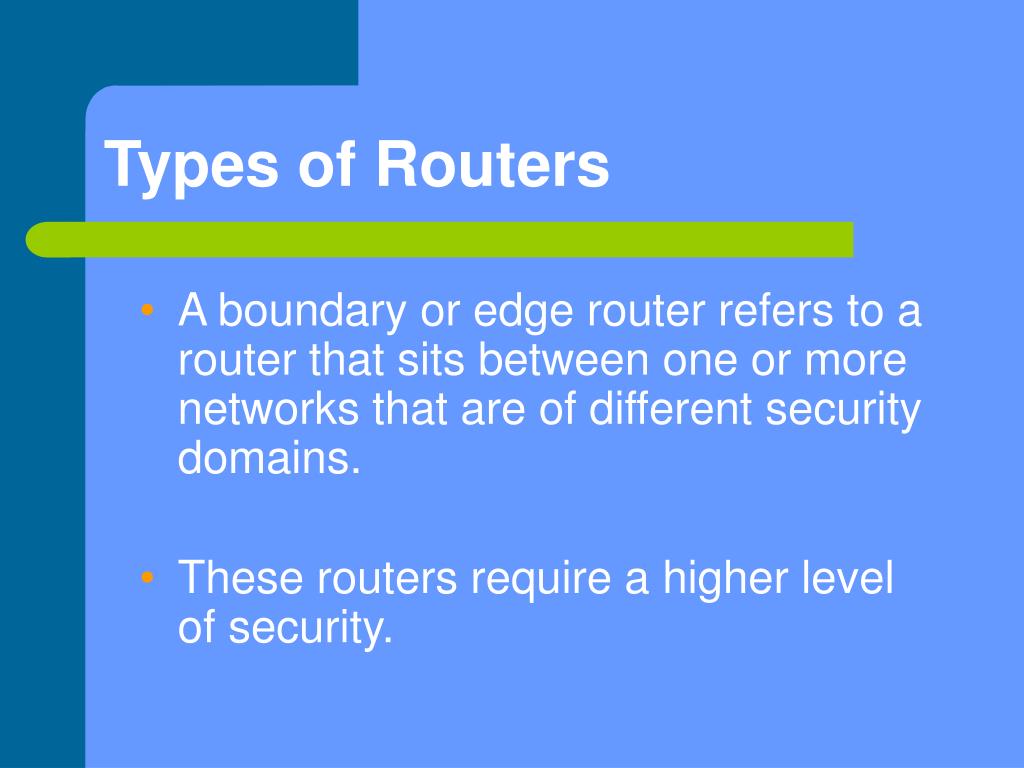

  8. Types of Routers • A boundary or edge router refers to a router that sits between one or more networks that are of different security domains. • These routers require a higher level of security.

  9. Unnecessary Services • TCP & UDP Small Servers need to be disabled on the router.

  10. Unnecessary Services • These services can be disabled with the commands: no service tcp-small-servers no service udp-small-servers • Note: Small services are disabled by default in Cisco IOS 12.0 and later software.

  11. Unnecessary Services • Boundary/edge routers should have Cisco Discovery Protocol (CDP) disabled.

  12. Unnecessary Services • The CDP protocol can be disabled with the global configuration command: no cdp running • CDP can be disabled on a particular interface with: no cdp enable

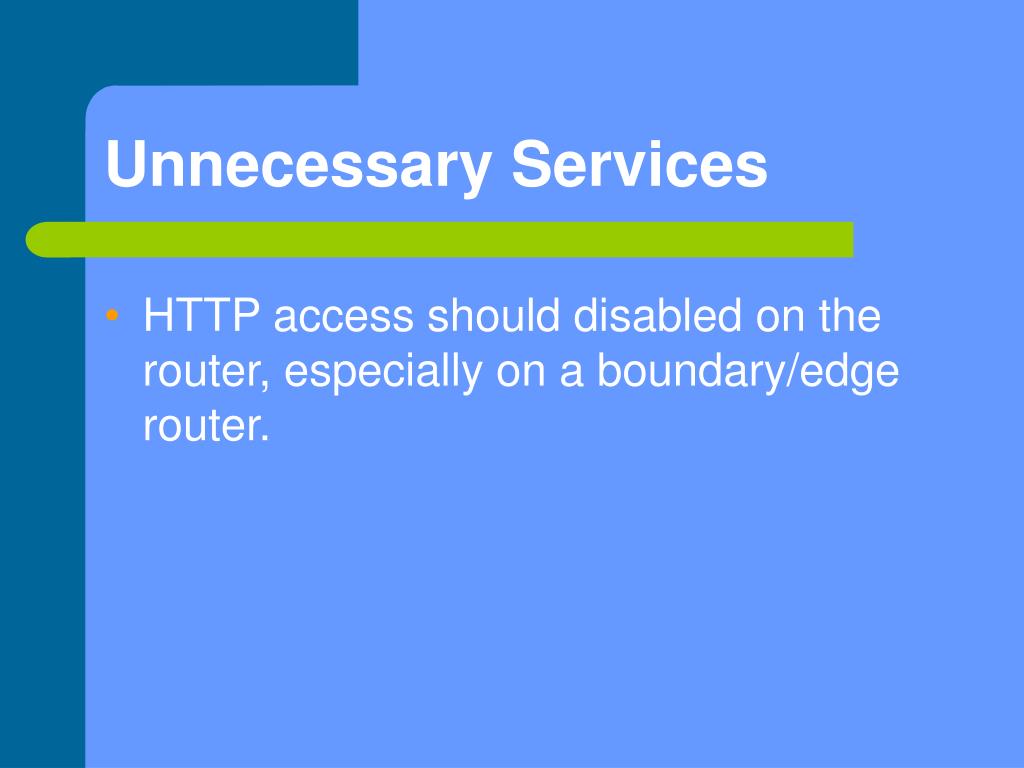

  13. Unnecessary Services • HTTP access should disabled on the router, especially on a boundary/edge router.

  14. Unnecessary Services • Finger should be disabled on the router. • The finger service can be disabled with the command: no service finger

  15. Unnecessary Services • The RSH and RCP services must be restricted by IP address. • If the services are not needed, they must be disabled.

  16. Unnecessary Services • These services can be disabled with thecommands: no ip rcmd rcp-enable no ip rcmd rsh-enable • Note: These commands are disabled by default in Cisco IOS 12.0 and later.

  17. Password Management • The service password encryption command should be enabled to provide minimum protection for configured passwords.

  18. Password Management • As a global default, use the command: service password encryption • Note: Thiscommand directs the IOS software to encrypt passwords, CHAP secrets, and similar data saved in its configuration file.

  19. Password Management • The enable secret command is used to set the password granting privileged administrative access to the IOS system.

  20. Password Management • All system installation, maintenance, and default passwords supplied by vendors must be changed. • Passwords should follow the password complexity guidelines outlined in your company’s security policies.

  21. Interactive Access • tty console and auxiliary access should be controlled with both a user ID and password stored in a local file on the router. • Note: All tty access should use either TACACS+ or a RADIUS server for authentication.

  22. Interactive Access • Reverse telnet sessions to console and auxiliary tty lines should be disabled. • Disable reverse telnet sessions on tty lines by using the command: transport input none

  23. Interactive Access • vty access to the router should be controlled by both a user ID and password when logging into the router. • Note: All vty access should use either a TACACS+ or a RADIUS server for authentication.

  24. Interactive Access • vty lines should be configured to accept connections only from those protocols actually needed.

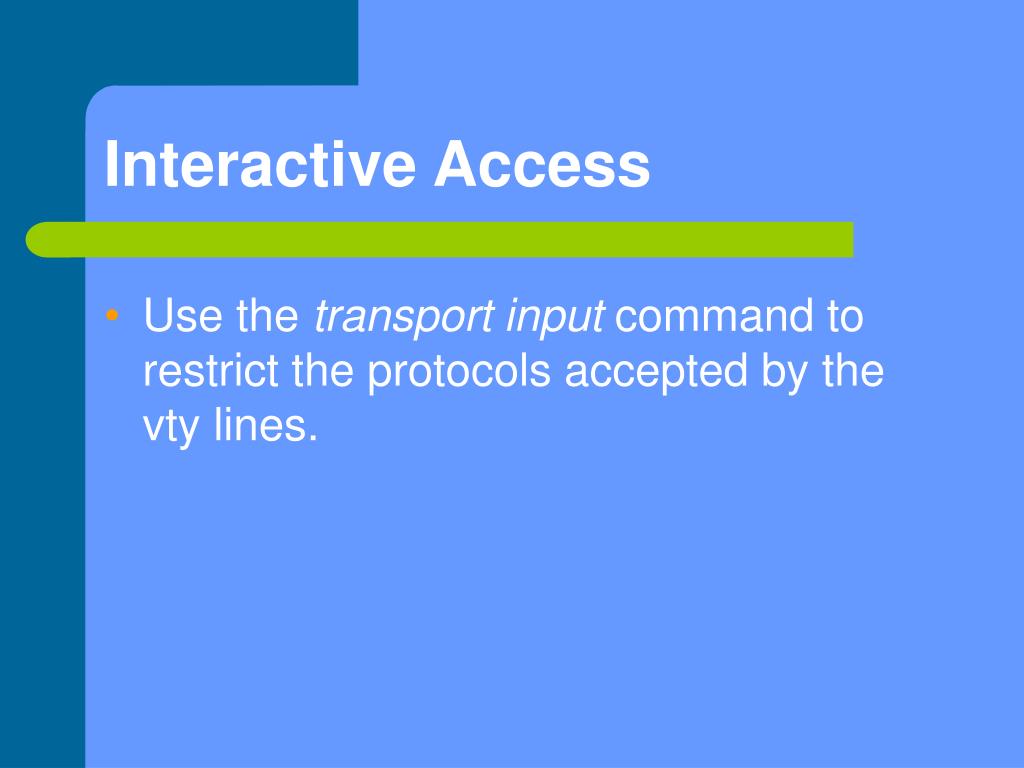

  25. Interactive Access • Usethe transport input command to restrict the protocols accepted by the vty lines.

  26. Interactive Access • Access to at least one vty line should be restricted to an IP or IP range to protect against Denial of Service Attacks. • The ip access-class command can be used to restrict the IP addresses.

  27. Interactive Access • Timeouts should be configured on all vty lines, based on your company’s timeout policy. • Use the exec-timeout command to configure timeouts on vty lines.

  28. IP Routing • Routers should have IP source routing disabled. • Disable IP source routing as a global default with the no ip source-routecommand.

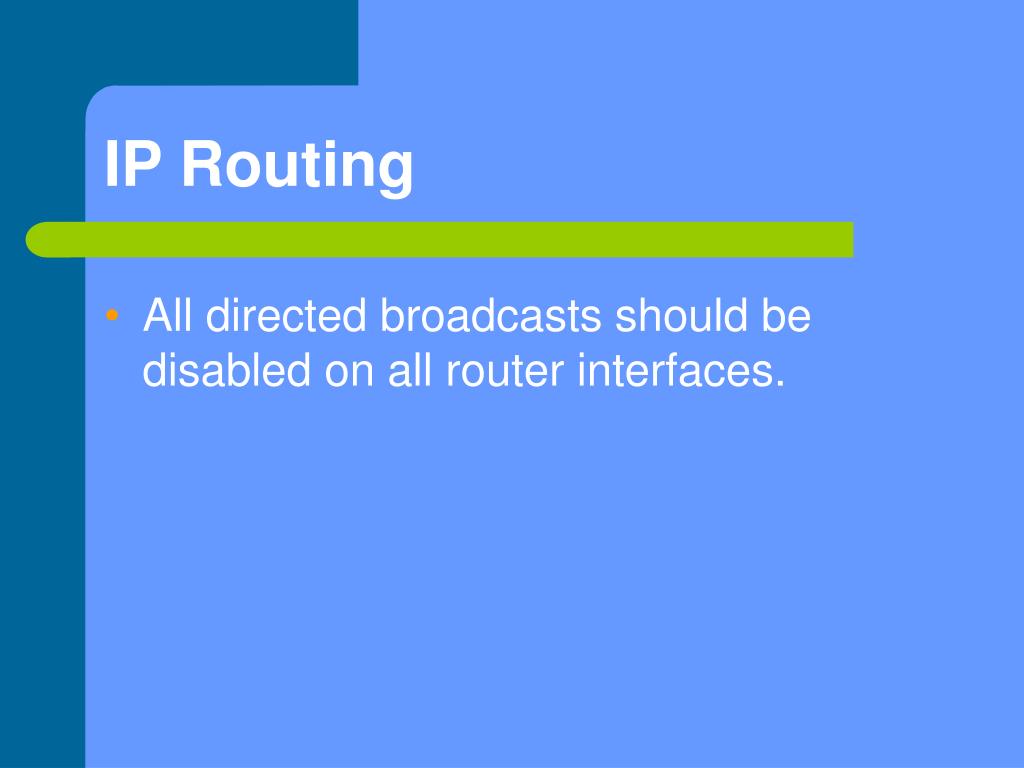

  29. IP Routing • All directed broadcasts should be disabled on all router interfaces.

  30. IP Routing • Use the no ip directed-broadcast command to prevent directed broadcasts that could “explode” into link-layer broadcasts. • Note: directed broadcasts are disabled by default in Cisco IOS 12.0 and later.

  31. IP Routing • Boundary/edge routers, in particular, should filter ICMP redirects. • Use access lists to block ICMP redirects. • Note: All boundary routers should block ICMP redirects to prevent Denial of Service attacks.

  32. IP Routing • If the router is Internet facing or a boundary/edge router, apply anti-spoofing access lists on all inbound Internet/external facing interfaces.

  33. IP Routing • Note: Anti-spoofing access lists should block: • Publicly owned internal address space • All RFC1918 private addresses • IP addresses with a source address of a router interface • 127.0.0.0 (loopback)

  34. Warning Banner • Is the company’s warning banner displayed to anyone logging into the router? • Note: Use the banner login command to configure the warning banner.

  35. SNMP Security • SNMP community strings should adhere to your company’s password complexity guidelines.

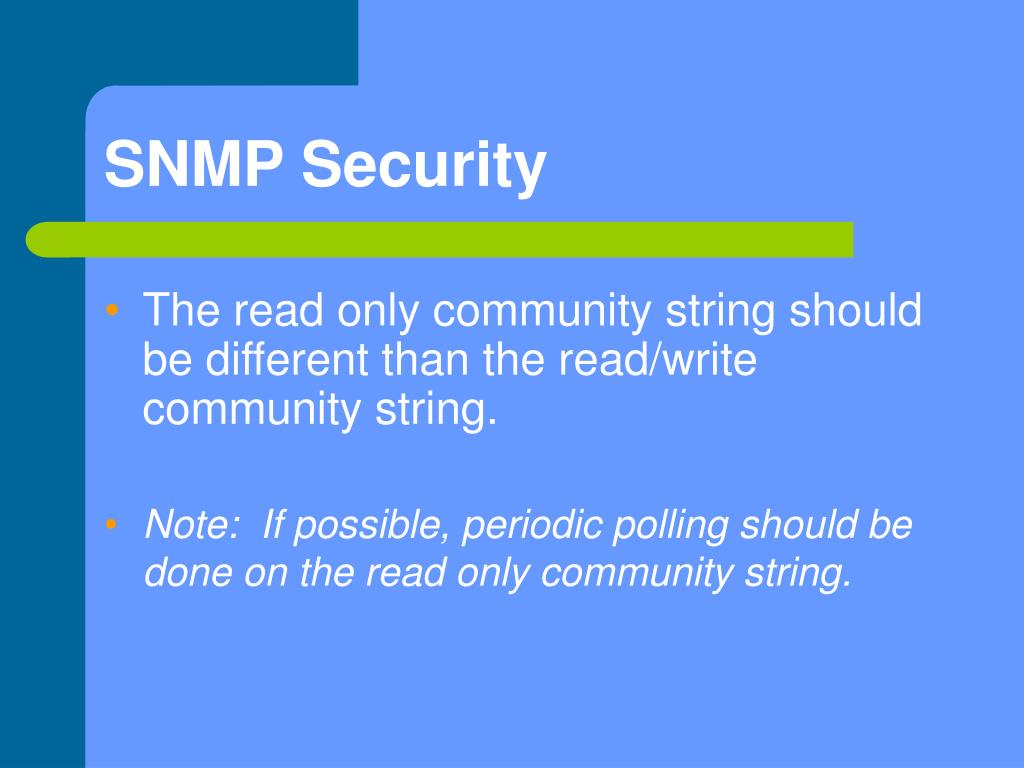

  36. SNMP Security • The read only community string should be different than the read/write community string. • Note: If possible, periodic polling should be done on the read only community string.

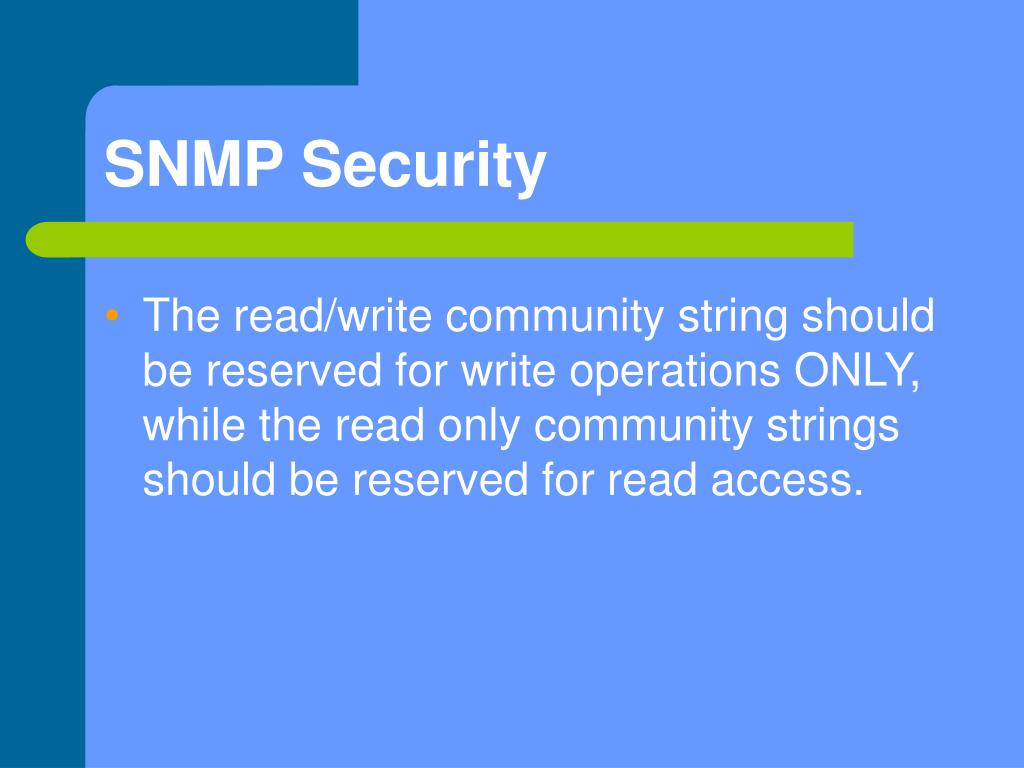

  37. SNMP Security • The read/write community string should be reserved for write operations ONLY, while the read only community strings should be reserved for read access.

  38. SNMP Security • Access lists should be employed to restrict SNMP to the IP addresses of management stations only.

  39. Logging Requirements • System logging should be enabled and the information saved to both a local buffer and a syslog server.

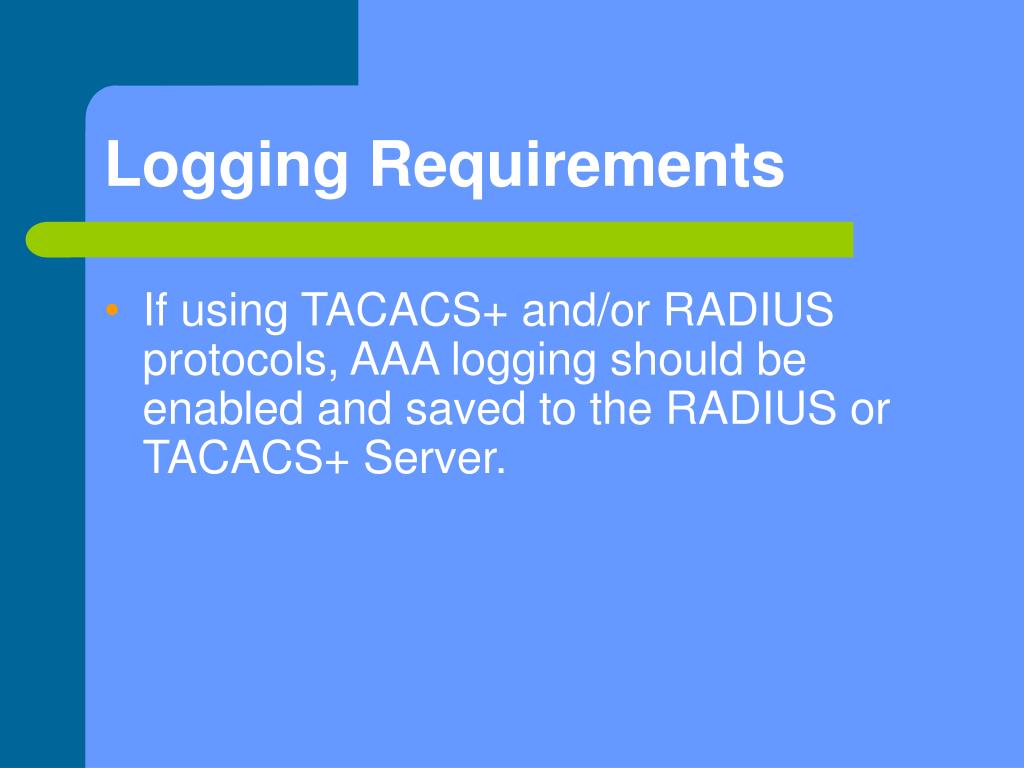

  40. Logging Requirements • If using TACACS+ and/or RADIUS protocols, AAA logging should be enabled and saved to the RADIUS or TACACS+ Server.

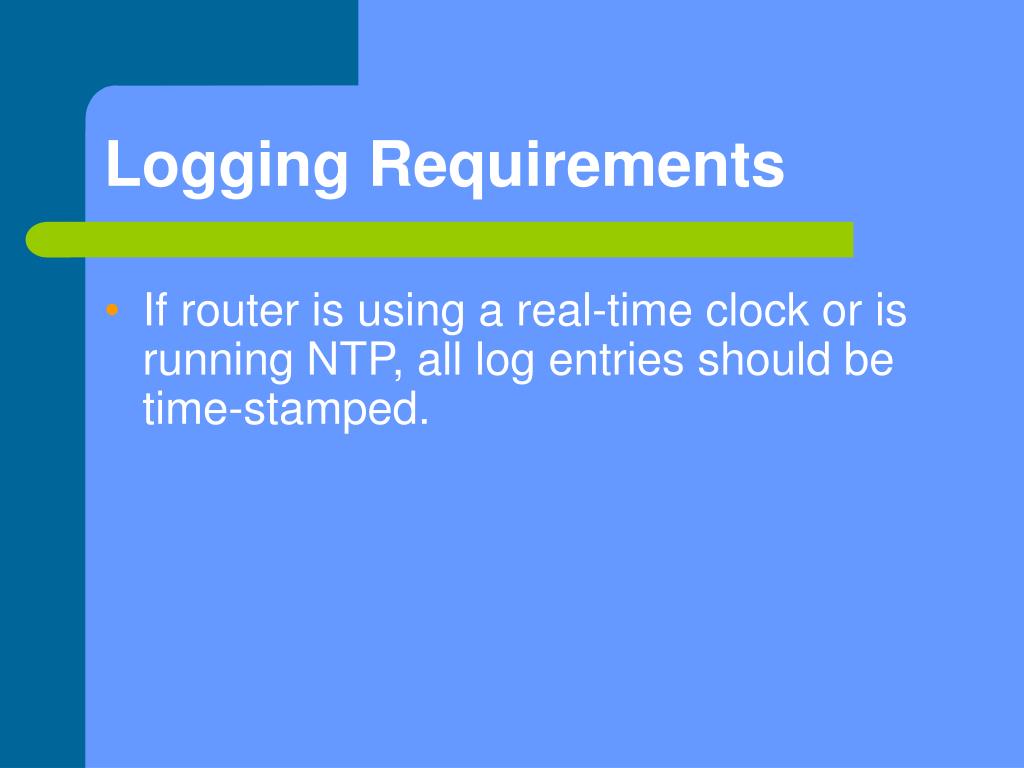

  41. Logging Requirements • If router is using a real-time clock or is running NTP, all log entries should be time-stamped.

  42. Logging Requirements • To show time-stamps, use the command: service timestamps log datetime localtime show-timezone

  43. Logging Requirements • All logging information should be retained for a minimum of 90 days, or for the time specified in your company’s policy.

  44. Logging Requirements • System logs must be protected from unauthorized access, and frequently reviewed for unusual or suspicious events.

  45. General Requirements • Establish a procedure to load appropriate IOS security patches, keeping the IOS level current.

  46. General Requirements • Physical access to the router and its components must be strictly controlled.

  47. General Requirements • Back-up and contingency processes for each router need to be documented and in place.

  48. General Requirements • There should be a method to receive and distribute vendor and other security advisories to the appropriate people in your company

  49. Router Threat Management • Threat Warning – Inform technology SME’s of a newly identified threat. • Threat Plan – Provide specific remediation information to SMEs. • Alert – Send urgent threat information and remediation plans to all System Administrators.

  50. Router Threat Management • Critical T-0: Immediate risk. Patching must begin immediately. • Critical T-7: Testing and installation of patches is expected on all impacted systems within 7 days. • Important T-30: Patches expected to be tested and installed within 30 days. • Informational: General awareness threat issue.
