Light Weight Portable Cranes

1. Light Weight Portable Cranes

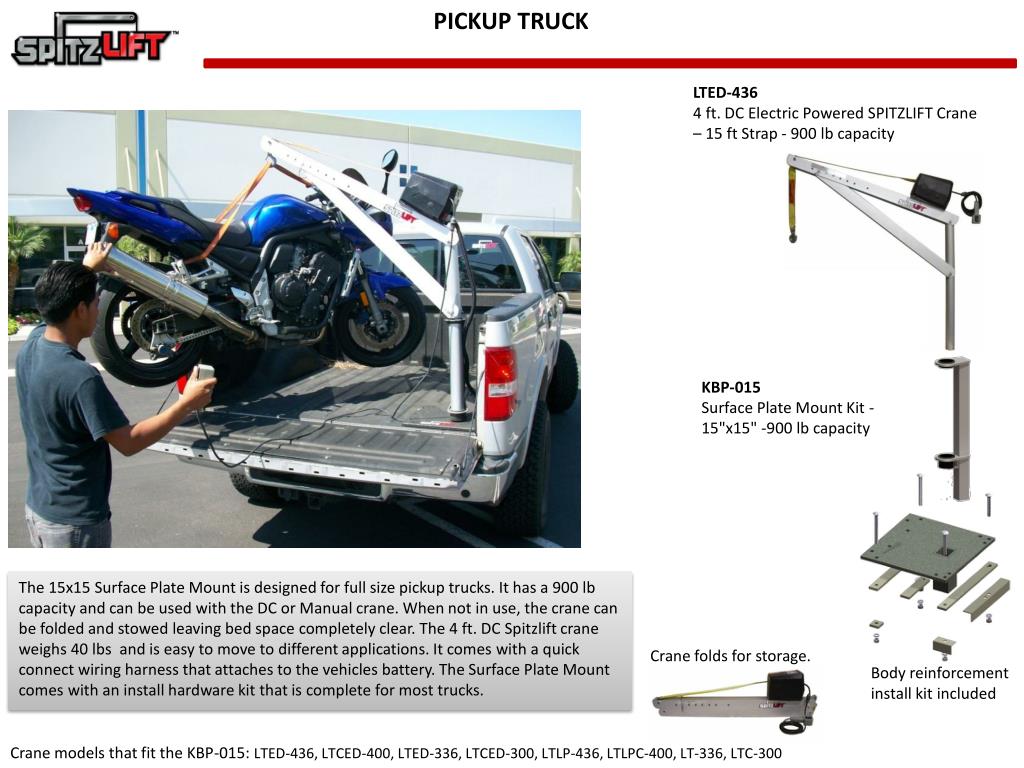

2. PICKUP TRUCK LTED-436 4 ft. DC Electric Powered SPITZLIFT Crane– 15 ft Strap - 900 lb capacity KBP-015 Surface Plate Mount Kit -15"x15" -900 lb capacity The 15x15 Surface Plate Mount is designed for full size pickup trucks. It has a 900 lb capacity and can be used with the DC or Manual crane. When not in use, the crane can be folded and stowed leaving bed space completely clear. The 4 ft. DC Spitzlift crane weighs 40 lbs and is easy to move to different applications. It comes with a quick connect wiring harness that attaches to the vehicles battery. The Surface Plate Mount comes with an install hardware kit that is complete for most trucks. Crane folds for storage. Body reinforcement install kit included Crane models that fit the KBP-015: LTED-436, LTCED-400, LTED-336, LTCED-300, LTLP-436, LTLPC-400, LT-336, LTC-300

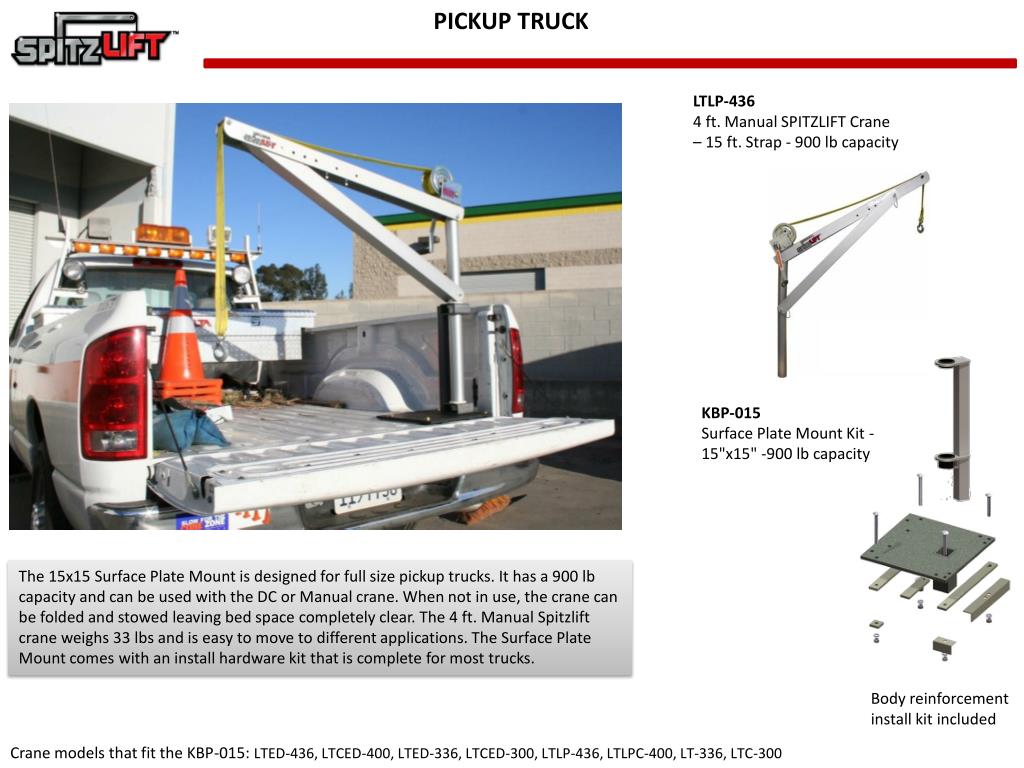

3. PICKUP TRUCK LTLP-436 4 ft. Manual SPITZLIFT Crane – 15 ft. Strap - 900 lb capacity KBP-015 Surface Plate Mount Kit -15"x15" -900 lb capacity The 15x15 Surface Plate Mount is designed for full size pickup trucks. It has a 900 lb capacity and can be used with the DC or Manual crane. When not in use, the crane can be folded and stowed leaving bed space completely clear. The 4 ft. Manual Spitzlift crane weighs 33 lbs and is easy to move to different applications. The Surface Plate Mount comes with an install hardware kit that is complete for most trucks. Body reinforcement install kit included Crane models that fit the KBP-015: LTED-436, LTCED-400, LTED-336, LTCED-300, LTLP-436, LTLPC-400, LT-336, LTC-300

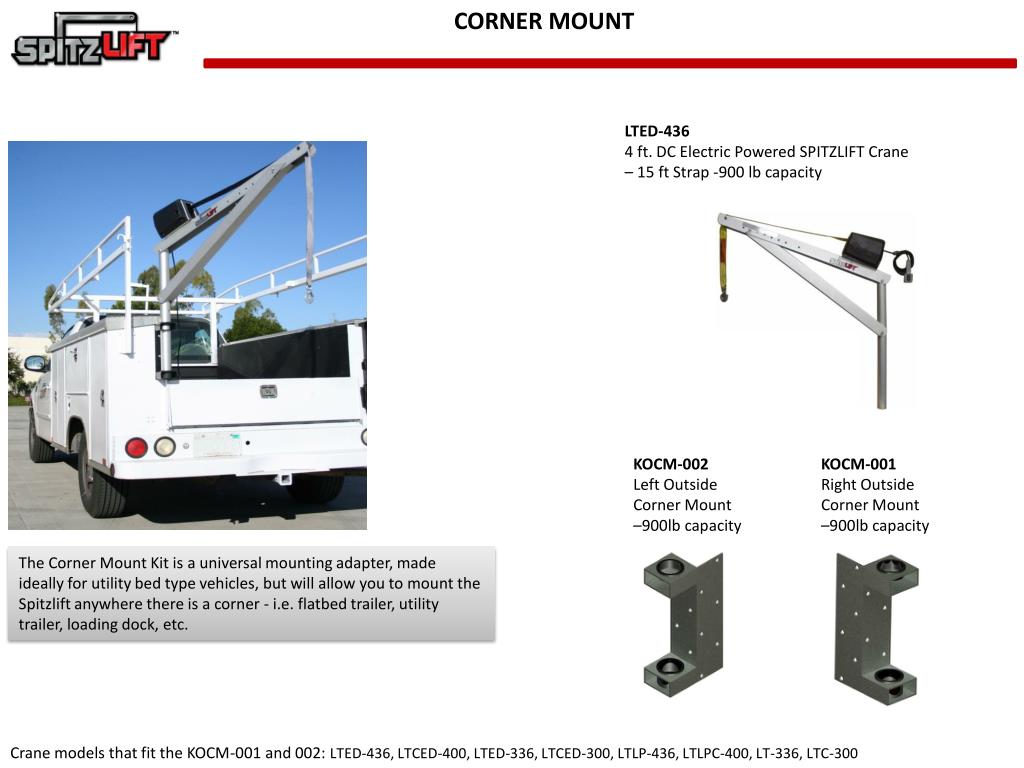

4. CORNER MOUNT LTED-436 4 ft. DC Electric Powered SPITZLIFT Crane – 15 ft Strap -900 lb capacity KOCM-002 Left Outside Corner Mount –900lb capacity KOCM-001 Right Outside Corner Mount –900lb capacity The Corner Mount Kit is a universal mounting adapter, made ideally for utility bed type vehicles, but will allow you to mount the Spitzlift anywhere there is a corner - i.e. flatbed trailer, utility trailer, loading dock, etc. Crane models that fit the KOCM-001 and 002: LTED-436, LTCED-400, LTED-336, LTCED-300, LTLP-436, LTLPC-400, LT-336, LTC-300

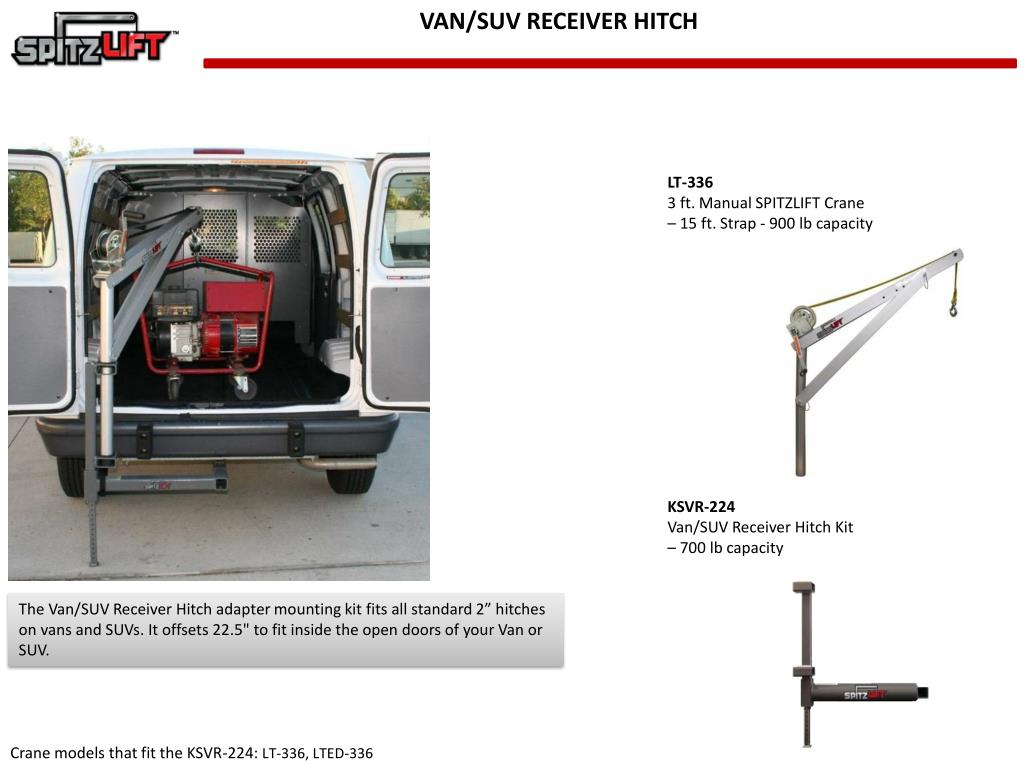

5. VAN/SUV RECEIVER HITCH LT-336 3 ft. Manual SPITZLIFT Crane – 15 ft. Strap - 900 lb capacity KSVR-224 Van/SUV Receiver Hitch Kit – 700 lb capacity The Van/SUV Receiver Hitch adapter mounting kit fits all standard 2” hitches on vans and SUVs. It offsets 22.5" to fit inside the open doors of your Van or SUV. Crane models that fit the KSVR-224: LT-336, LTED-336

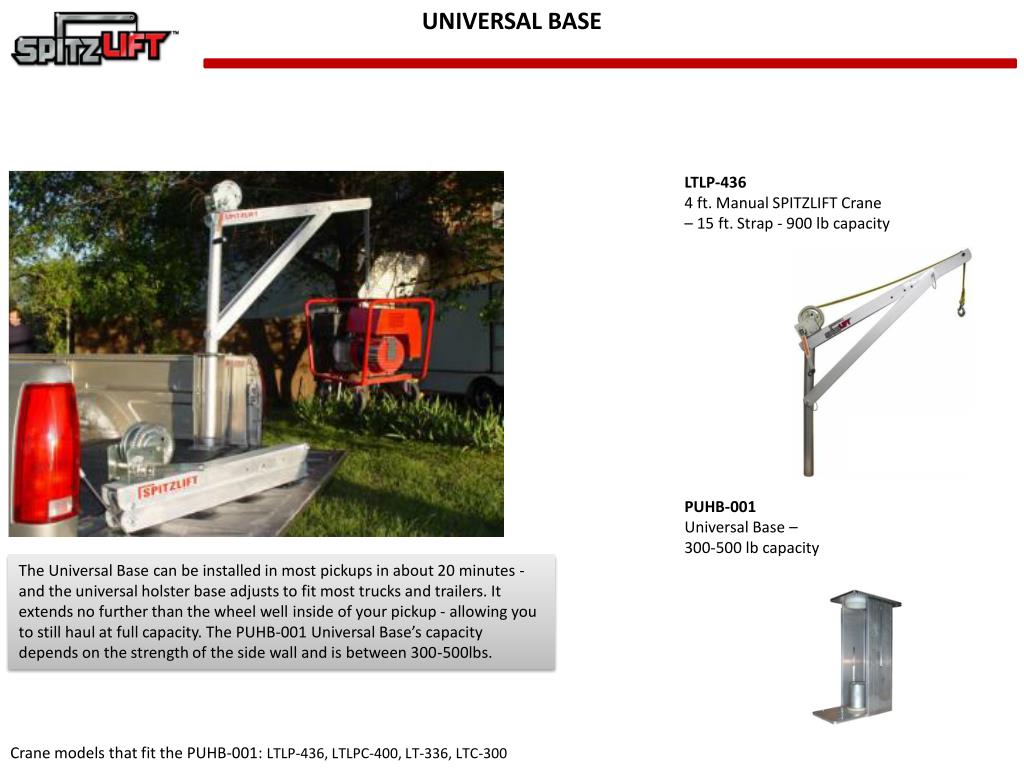

6. UNIVERSAL BASE LTLP-436 4 ft. Manual SPITZLIFT Crane – 15 ft. Strap - 900 lb capacity PUHB-001 Universal Base – 300-500 lb capacity The Universal Base can be installed in most pickups in about 20 minutes - and the universal holster base adjusts to fit most trucks and trailers. It extends no further than the wheel well inside of your pickup - allowing you to still haul at full capacity. The PUHB-001 Universal Base’s capacity depends on the strength of the side wall and is between 300-500lbs. Crane models that fit the PUHB-001: LTLP-436, LTLPC-400, LT-336, LTC-300

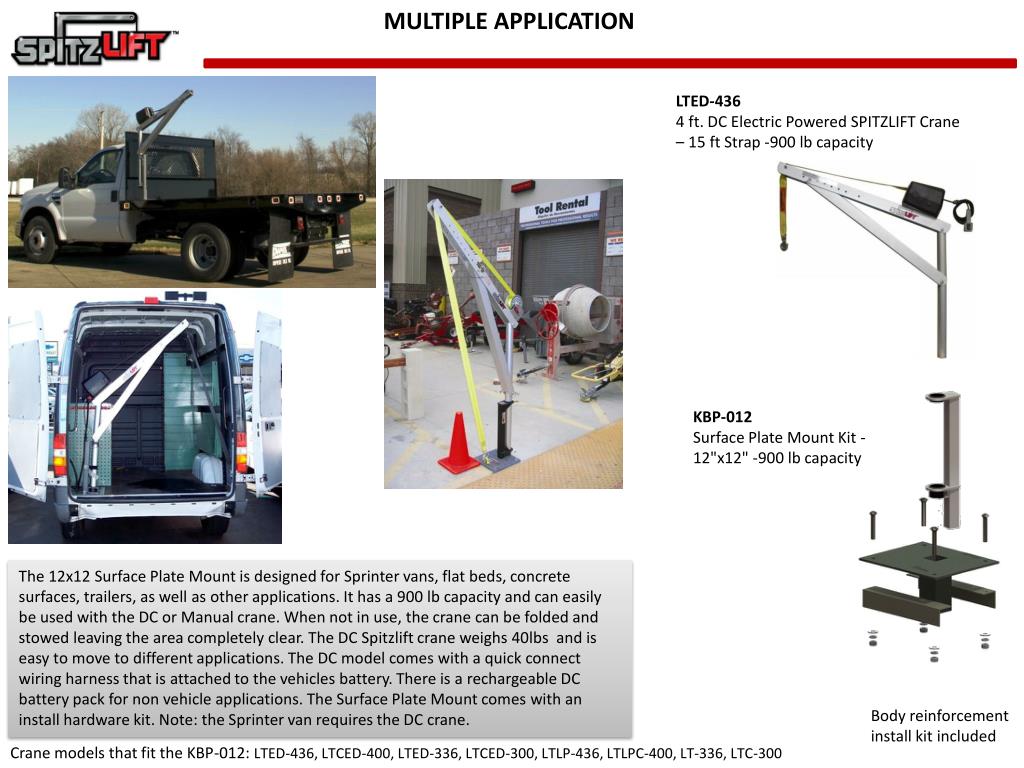

7. MULTIPLE APPLICATION LTED-436 4 ft. DC Electric Powered SPITZLIFT Crane – 15 ft Strap -900 lb capacity KBP-012 Surface Plate Mount Kit -12"x12" -900 lb capacity The 12x12 Surface Plate Mount is designed for Sprinter vans, flat beds, concrete surfaces, trailers, as well as other applications. It has a 900 lb capacity and can easily be used with the DC or Manual crane. When not in use, the crane can be folded and stowed leaving the area completely clear. The DC Spitzlift crane weighs 40lbs and is easy to move to different applications. The DC model comes with a quick connect wiring harness that is attached to the vehicles battery. There is a rechargeable DC battery pack for non vehicle applications. The Surface Plate Mount comes with an install hardware kit. Note: the Sprinter van requires the DC crane. Body reinforcement install kit included Crane models that fit the KBP-012: LTED-436, LTCED-400, LTED-336, LTCED-300, LTLP-436, LTLPC-400, LT-336, LTC-300

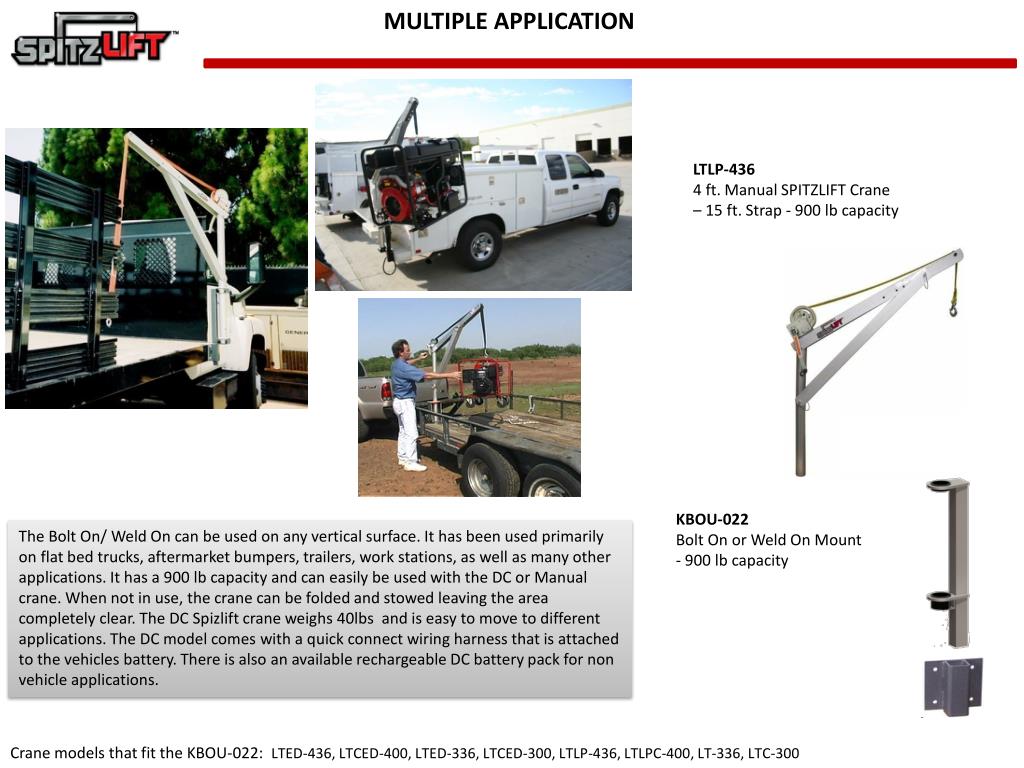

8. MULTIPLE APPLICATION LTLP-436 4 ft. Manual SPITZLIFT Crane – 15 ft. Strap - 900 lb capacity KBOU-022 Bolt On or Weld On Mount - 900 lb capacity The Bolt On/ Weld On can be used on any vertical surface. It has been used primarily on flat bed trucks, aftermarket bumpers, trailers, work stations, as well as many other applications. It has a 900 lb capacity and can easily be used with the DC or Manual crane. When not in use, the crane can be folded and stowed leaving the area completely clear. The DC Spizlift crane weighs 40lbs and is easy to move to different applications. The DC model comes with a quick connect wiring harness that is attached to the vehicles battery. There is also an available rechargeable DC battery pack for non vehicle applications. Crane models that fit the KBOU-022: LTED-436, LTCED-400, LTED-336, LTCED-300, LTLP-436, LTLPC-400, LT-336, LTC-300

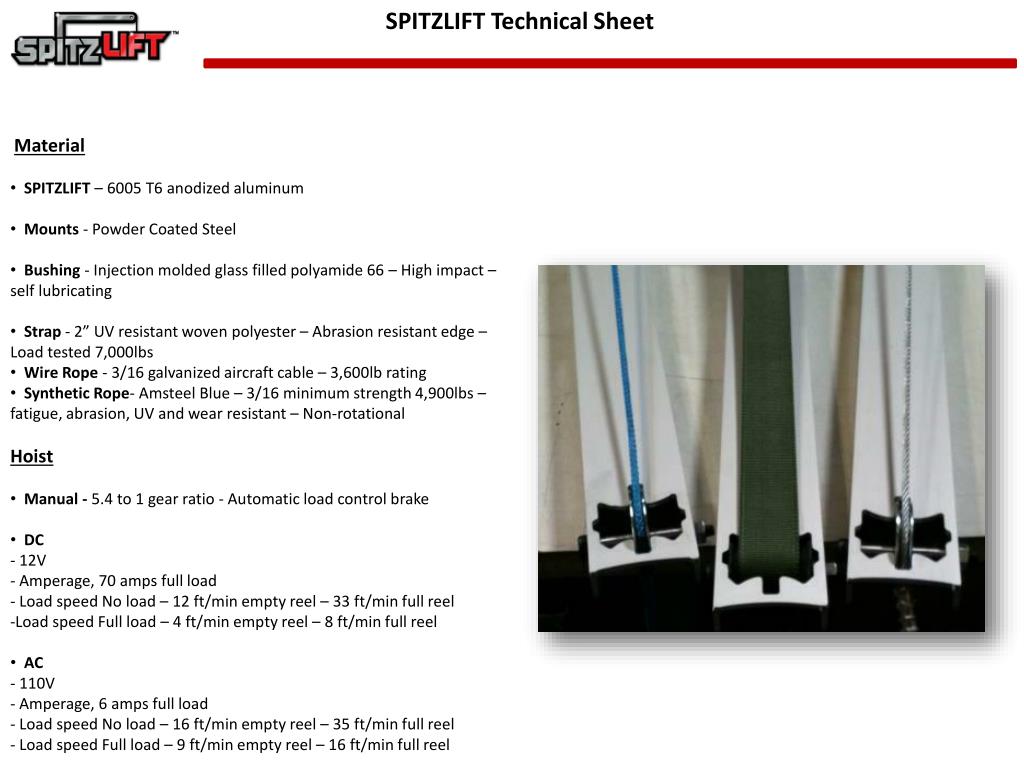

9. SPITZLIFT Technical Sheet • Material • SPITZLIFT – 6005 T6 anodized aluminum • Mounts - Powder Coated Steel • Bushing - Injection molded glass filled polyamide 66 – High impact – self lubricating • Strap - 2” UV resistant woven polyester – Abrasion resistant edge – Load tested 7,000lbs • Wire Rope - 3/16 galvanized aircraft cable – 3,600lb rating • Synthetic Rope- Amsteel Blue – 3/16 minimum strength 4,900lbs – fatigue, abrasion, UV and wear resistant – Non-rotational • Hoist • Manual - 5.4 to 1 gear ratio - Automatic load control brake • DC • - 12V • - Amperage, 70 amps full load • - Load speed No load – 12 ft/min empty reel – 33 ft/min full reel • Load speed Full load – 4 ft/min empty reel – 8 ft/min full reel • AC • - 110V • - Amperage, 6 amps full load • - Load speed No load – 16 ft/min empty reel – 35 ft/min full reel • - Load speed Full load – 9 ft/min empty reel – 16 ft/min full reel
