  1. Lecture #6, Jan. 31, 2007 • Notes about homework • Project #1 • More about ML-LEX • String lexers • File lexers • Handling exceptions • Using named REs • Library functions • Anonymous functions • The compile manager

  2. Survey • How many intend to take CS322 next quarter? • How many people would like to see the class in the evening as it is this quarter (6:00 - 7:50 pm) • How many would like to see the class earlier in the day. Say 2:00 – 3:50 pm • How many would like to see the class later in the afternoon, but not in the evening. Say 4:00 – 5:50

  3. A note about handing in homework • When you hand in homework, please hand in the following: • The complete file as you wrote it, with no extra text, etc. I should be able to load the file (as is) into SML. • A trace of your test of the program. This should include commands to load the file above, and a sequence of tests that test the code you wrote. Many times I ask you to extend some code. Be sure and test the code you wrote, not my code. My code has enough errors I don’t want to know about new ones, unless it affects your code. • You should include enough tests to convunce me your program works. You should include enough tests so that every statement in your program is exercised at least once in some test. 3 tests per function is the minimum, some functions may require more if they have many paths. • An optional cover sheet where you provide any additional information I need to grade your assignment. • Be sure that your name is clearly written on the top left hand side of what you hand in. • If your program doesn’t load, a trace of the errors may help me figure out what went wrong, so I can suggest a fix.

  4. Project 1 • Project 1 is assigned today (Wed. Jan 31, 2007) • It is Due in 2 weeks: Wed. Feb. 15, 2007 • It can be downloaded off the web page. • Other useful links can also be found there. • There will be no homework assigned next Monday or Wednesday. But there is homework assigned today. • Today’s homework is practice to get you started on using sml-lex.

  5. Example lex file type lexresult = unit; type pos = int; type svalue = int; exception EOF; fun eof () = (print "eof"; raise EOF); %% %% [\t\ ]+ => ( lex() (* ignore whitespace *) ) ; Anne|Bob|Spot => ( print (yytext^": is a proper noun\n")); a|the => ( print(yytext^": is an article\n") ); boy|girl|dog => ( print(yytext^": is a noun\n") ); walked|chased|ran|bit => ( print(yytext^": is a verb\n") ); [a-zA-Z]+ => ( print(yytext^": Might be a noun?\n") ); .|\n => ( print yytext (* Echo the string *) ); lexresult must be defined in every lex program The function eof must be defined in every lex program

  6. Running ml-lex • Cd to the directory where the foo.lex file resides (or else use the full pathname of the file). • E.g. ..LexYacc\english> ml-lex english.lex Number of states = 43 Number of distinct rows = 33 Approx. memory size of trans. table = 4257 bytes • This creates the fileenglish.lex.sml • Start SML and then load the file. …LexYacc\english> sml Standard ML of New Jersey v110.57 [built: Mon Nov 21 21:46:28 2005] - use "english.lex.sml"; [opening english.lex.sml] structure Mlex : sig val makeLexer : (int -> string) -> unit -> Internal.result exception LexError structure Internal : <sig> structure UserDeclarations : <sig> end val it = () : unit This is a synonym for the type lexresult defined in the lex file.

  7. Building the lexer • Consider the function: Mlex.makeLexer Mlex.makeLexer : (int -> string) -> unit -> lexresult • It takes a function as an argument. This function feeds the lexical analyzer the input “n” characters at a time. val testString = ref "the boy chased the dog"; fun feed n = let val ss = !testString in if String.size ss < n then ( testString := ""; ss ) else ( testString := String.extract(ss,n,NONE); String.extract(ss,0,SOME n) ) end; val lex = Mlex.makeLexer feed;

  8. Running the lexer - val lex = Mlex.makeLexer feed; val lex = fn : unit -> Mlex.Internal.result - lex(); the: is an article val it = () : Mlex.Internal.result - lex(); boy: is a noun val it = () : Mlex.Internal.result - lex(); chased: is a verb val it = () : Mlex.Internal.result - lex(); the: is an article val it = () : Mlex.Internal.result - lex(); dog: is a noun val it = () : Mlex.Internal.result - lex(); unexpected end of file uncaught exception EOF raised at: english.lex.sml:9.53-9.56

  9. Exceptions exception Error of string; fun error s = raise (Error s); fun ex3 b = (if b then error "true branch" else "false branch") handle Error message => message | other => raise other; A new exception is declared, it carries a string as error information. Exceptions can carry any kind of data. Exceptions can be raised, to short-circuit normal evaluation. Main computation returns a string Keyword handle Handler also returns a string A handler, like a “case” has multiple clauses, each can handle a different kind of error. Note “|” separating clauses.

  10. Syntax of “case” vs “handle” • “case” is before the computation being analyzed case (revonto (g x) 4) of [] => true | (x:xs) => false • “handle” is after the computation that might fail (compute (g y) (length zs)) handle Error s => g s | BadLevel n => n+1 | other => raise other

  11. Catching Exceptions in the Lexer val lex = let val f = Mlex.makeLexer feed fun lex () = (f ()) handle Mlex.UserDeclarations.EOF => print "\nReached end of file\n" | other => print "Lex Error" in lex end; Things defined in the first section of a lex file appear in the inner library

  12. A String Lexer • For testing purposes it would be nice to generate lexers that lex a string given as input (rather than one fixed in a variable like teststring). fun makeStringLexer s = let val testString = ref s fun feed n = let val ss = !testString in if String.size ss < n then ( testString := ""; ss ) else ( testString := String.extract(ss,n,NONE); String.extract(ss,0,SOME n) ) end in Mlex.makeLexer feed end;

  13. Testing a lexer interactively - val f = makeStringLexer "the boy sang"; val f = fn : unit -> Mlex.Internal.result - f (); the: is an article val it = () : Mlex.Internal.result - f (); boy: is a noun val it = () : Mlex.Internal.result - f (); sang: Might be a noun? val it = () : Mlex.Internal.result - f (); unexpected end of file uncaught exception EOF raised at: english.lex.sml:9.53-9.56

  14. Exercise • Can we make a string lexer that catches exceptions? • Try it in class …

  15. Running from a file • To lex a file, rather than an explicit string we need to define a function that reads and returns “n” characters of a file at a time. fun inputc h = (fn n => TextIO.inputN(h,n):string); val lex = let val h = TextIO.openIn “test.english” in Mlex.makeLexer (inputc h) end; Reads n characters from a file pointed to by handle Opens a file and returns a handle

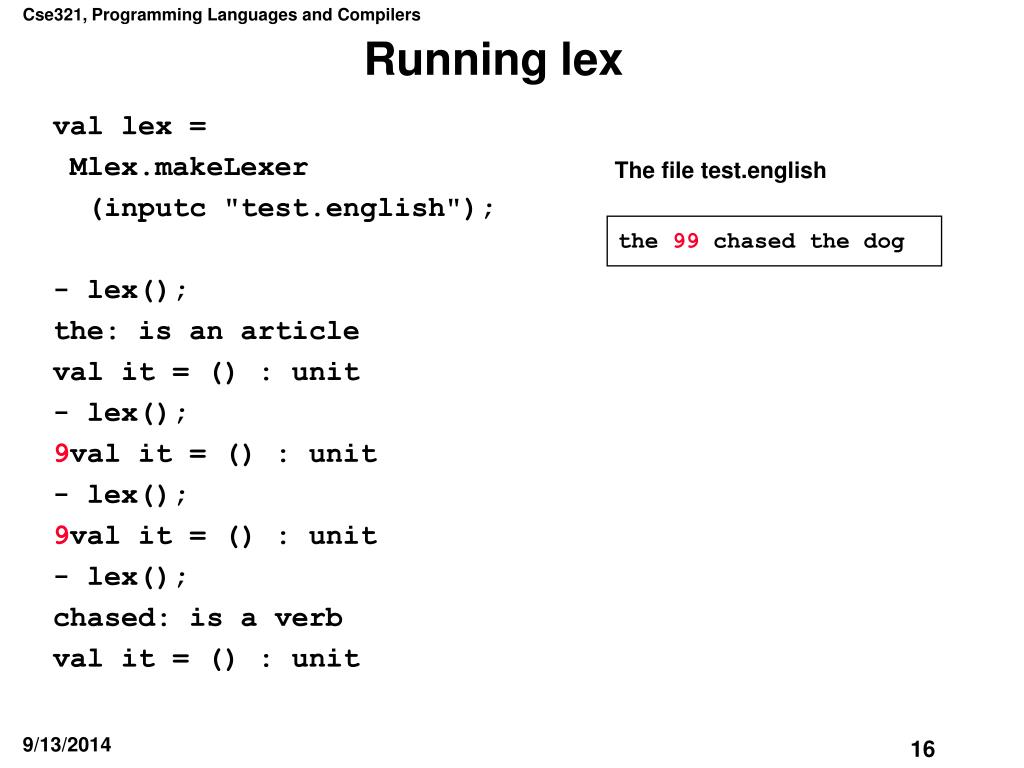

  16. Running lex val lex = Mlex.makeLexer (inputc "test.english"); - lex(); the: is an article val it = () : unit - lex(); 9val it = () : unit - lex(); 9val it = () : unit - lex(); chased: is a verb val it = () : unit The file test.english the 99 chased the dog

  17. Named REs in SML-Lex english2.lex type lexresult = Token type pos = int; type svalue = int; fun eof () = EOF; %% digit=[0-9]; number={digit}+ ; %% [\t\ ]+ => ( lex() ) ; Anne|Bob|Spot| {number} => ( ProperNoun yytext ); a|the => ( Article yytext ); boy|girl|dog => ( Noun yytext ); walked|chased|ran|bit => ( Verb yytext ); Not sure why we need pos and svalue We can name a RE Name = RE Semicolon Use a name by surrounding it in { }s Note that all unrecognized input will raise the default exception.

  18. A driver program datatype Token = ProperNoun of string | Noun of string | Verb of string | Article of string | EOF; use "english2.lex.sml"; fun makeStringLexer s = let val testString = ref s fun feed n = let val ss = !testString in if String.size ss < n then ( testString := ""; ss ) else ( testString := String.extract(ss,n,NONE); String.extract(ss,0,SOME n) ) end val f = Mlex.makeLexer feed fun lex() = (f ()) handle Mlex.LexError => (print "Lex error\n"; EOF) in lex end; Must come after the definition of token or there will be errors.

  19. Test it out • val f = makeStringLexer "Anne chased the dog"; val f = fn : unit -> Token - f(); val it = ProperNoun "Anne" : Token - f(); val it = Verb "chased" : Token - f(); val it = Article "the" : Token - f(); val it = Noun "dog" : Token - f(); val it = EOF : Token

  20. More SML • In SML we use library functions all the time. • Int.toString • List.exists • The list library functions are particularly useful. • These library functions often take a function as an argument • List.map : ('a -> 'b) -> 'a list -> 'b list • List.find : ('a -> bool) -> 'a list -> 'a option • List.filter : ('a -> bool) -> 'a list -> 'a list • List.exists : ('a -> bool) -> 'a list -> bool • List.all : ('a -> bool) -> 'a list -> bool • List.foldr : ('a * 'b -> 'b) -> 'b -> 'a list -> 'b • It is worth studying these functions closely

  21. List.map captures a pattern • Add one to every element of a list • fun addone [] = [] • | addone (x::xs) = (x + 1) :: addone xs addone [2,3,4]  val it = [3,4,5] : int list • Turn a list of ints into a list of strings • fun stringy [] = [] • | stringy (x::xs) = (Int.toString x) :: stringy xs stringy [2,5,9] val it = ["2","5","9"]:string list • Negate every element of a list • fun negL [] = [] • | negL (x::xs) = (not x) :: negL xs negL [true,3 > 4]  val it = [false,true] : bool list

  22. Pattern fun addone [] = [] | addone (x::xs) = (x + 1) :: addone xs fun stringy [] = [] | stringy (x::xs) = (Int.toString x) :: stringy xs fun negL [] = [] | negL (x::xs) = (not x) :: negL xs fun map f [] = [] | map f (x::xs) = (f x) :: (map f xs) val ex1 = map (fn x => (x+1)) [2,3,4]; val ex1 = [3,4,5] : int list val ex2 = map Int.toString [2,5,7]; val ex2 = ["2","5","7"] : string list val ex3 = map not [true, 3 > 4]; val ex3 = [false,true] : bool list

  23. Anonymous functions • Study: (fn x => (x+1)) • It is an anonymous function. A function without a name. • It has one parameter “x” • It adds one to its parameter, and returns the result. (fn x => (x+1)) 4; val it = 5 : int • Any non-recursive function can be written anonymously. • (fn x => x = 5) • Tests if its parameter is equal to 5 map (fn x => x=5) [1,4,5,3,5]; val it = [false,false,true,false,true] : bool list • (fn x => fn y => (x,y)) • Has two parameters • Returns a pair • (fn (x,y) => (not y, x+3)) • What is the type of this function?

  24. List.find • Used for searching a list. • List.find : ('a -> bool) -> 'a list -> 'a option • Uses a function as a parameter to determine if the search is successful. • E.g. Is there an even element in a list? List.find even [1,3,5]; val it = NONE : int option List.find even [1,3,4]; val it = SOME 4 : int option

  25. List.find and anonymous functions List.find (fn x => x = "Tim") ["Tom", "Jane"]; val it = NONE : string option List.find (fn x => even x andalso x>10) [2,4,5,12]; val it = SOME 12 : int option

  26. List.filter Filter keeps some elements, and throws away others. • List.filter : ('a -> bool) -> 'a list -> 'a list It uses a function (p) as a parameter to decide which elements to keep (p x = true), and which to throw away (p x = false) val ex6 = List.filter even [1,2,3,4,5,6]; val ex6 = [2,4,6] : int list

  27. List.filter and anonymous functions val people = [("tim",22),("john",18),("jane",25),("tim",8)]; val ex7 = filter (fn (nm,age) => nm <> "tim" orelse age>10) people; val ex7 = [("tim",22),("john",18),("jane",25)] : (string * int) list

  28. List.exists • “exists” is like “find” in that it searches a list • but rather than the element that completes the search it is only interested in if such an element exists. • List.exists : ('a -> bool) -> 'a list -> bool • Uses a function as a parameter to determine if the search is successful. val ex8 = List.exists even [2,3,5]; val ex8 = true : bool • Note that even if only 1 element in the list causes the function to be true, exists returns true.

  29. List.all • List.all tests elements in a list for a property. It returns true only if every element has that property. • List.all : ('a -> bool) -> 'a list -> bool • Uses a function as a parameter to perform the test. val ex9 = List.all even [2,4,5]; val ex9 = false : bool • List.exists and List.all are related functions. They are duals. • not(List.all p xs) = List.exists (fn x => not(p x)) xs

  30. List.foldr captures a pattern • Add up every element in a list. fun sum [] = 0 | sum (x::xs) = x + (sum xs); • Compute the maximum element in a list of natural numbers (Integers >= 0). fun maximum [] = 0 | maximum (x::xs) = Int.max(x,maximum xs); • Compute if every element in a list of boolean is true. fun allTrue [] = true | allTrue (x::xs) = x andalso (allTrue xs);

  31. Pattern fun sum [] = 0 | sum (x::xs) = x + (sum xs); fun maximum [] = 0 | maximum (x::xs) = Int.max(x,maximum xs); fun allTrue [] = true | allTrue (x::xs) = x andalso (allTrue xs); fun foldr accbase [ ] = base | foldr accbase (x::xs) = acc(x,foldr accbase xs);

  32. See the pattern in use. fun sum [] = 0 | sum (x::xs) = x + (sum xs); fun sum xs = foldr (op +) 0 xs; fun maximum [] = 0 | maximum (x::xs) = Int.max(x,maximum xs); fun maximum xs = foldr Int.max 0 xs; fun allTrue [] = true | allTrue (x::xs) = x andalso (allTrue xs); fun allTrue xs = foldr (fn (a,b) => a andalso b) true xs;

  33. Take another look What does this function do? fun ok [] = false | ok xs = not(exists (fn ys => xs=ys) (!old)) andalso not(exists (fn ys => xs=ys) (!worklist))

  34. The Option Library - open Option; opening Option datatype 'a option = NONE | SOME of 'a exception Option val getOpt : 'a option * 'a -> 'a val isSome : 'a option -> bool val valOf : 'a option -> 'a val filter : ('a -> bool) -> 'a -> 'a option val join : 'a option option -> 'a option val app : ('a -> unit) -> 'a option -> unit val map : ('a -> 'b) -> 'a option -> 'b option val mapPartial : ('a -> 'b option) -> 'a option -> ‘ b option

  35. Interesting functions that use Options • Int.fromString: string -> int option Int.fromString "234"; val it = SOME 234 : int option Int.fromString "abc"; val it = NONE : int option • String.extract: string * int * int option -> string String.extract("abcde",1,SOME 3); val it = "bcd" : string String.extract("abcde",1,NONE); val it = "bcde" : string

  36. More option functions • List.find: ('a -> bool) -> 'a list -> 'a option List.find even [1,3,5]; val it = NONE : int option List.find (fn x => x="tim") ["tom","tim","jane"]; val it = SOME "tim" : string option • List.getItem: 'a list -> ('a * 'a list) option • List.getItem [1,2,3,4]; • val it = SOME (1,[2,3,4]) • List.getItem []; • val it = NONE

  37. Using While Loops fun ident c cs = let val xs = ref cs val x = ref c val ans = ref [] in while (not(null(!xs)) andalso Char.isAlpha (hd (!xs))) do ( ans := !ans @ [!x] ; x := hd(!xs) ; xs := tl(!xs) ); (Id (String.implode (!ans @ [!x])), !xs) end Don’t forget to test for empty list

  38. The Compile-manager • The compile manager is a “make” like facility for SML. • It has some documentation found here. • http://www.smlnj.org/doc/CM/index.html • Peter Lee’s notes also contains a brief (but out of date) introduction • http://www.cs.cmu.edu/~petel/smlguide/smlnj.htm • The basic approach is that a single file contains a list of all the pieces that comprise a project. • A complete scan of all the pieces determines a dependency graph of which pieces depend on which other pieces. • It determines the time-stamp of each piece • It recompiles all the pieces that are out of date • It links everything together

  39. Structures and Libraries • The compile manager compiles whole compilation units called libraries or structures. • Break program into files where each file contains 1 library. • If a file needs stuff from another library, open that library inside of the file. • Create a compile manager source file that lists all the libraries.

  40. Libraries are bracketed by “structure name =struct” and “end” Name of the library, can be different from the name of the file. File: TypeDecls.sml structure TypeDecls = struct datatype Token = ProperNoun of string | Noun of string | Verb of string | Article of string | EOF; end

  41. Opens libraries with needed components File: Driver.sml structure Driver = struct open TypeDecls fun makeStringLexer s = let val testString = ref s fun feed n = let val ss = !testString in if String.size ss < n then ( testString := ""; ss ) else ( testString := String.extract(ss,n,NONE); String.extract(ss,0,SOME n) ) end val f = Mlex.makeLexer feed fun lex() = (f ()) handle Mlex.LexError => (print "Lex error\n"; EOF) in lex:(unit -> Token) end; end

  42. Opens libraries with needed components File: english2.lex open TypeDecls; type lexresult = Token; type pos = int; type svalue = int; fun eof () = EOF; %% digit=[0-9]; number={digit}+ ; %% [\t\ ]+ => ( lex() (* ignore whitespace *) ) ; Anne|Bob|Spot| {number} => ( ProperNoun yytext ); a|the => ( Article yytext ); boy|girl|dog => ( Noun yytext ); walked|chased|ran|bit => ( Verb yytext );

  43. The sources file The name of the file where this list resides File: sources.cm group (sources.cm) is typeDecls.sml driver.sml english2.lex $/basis.cm $/smlnj-lib.cm The extension “.lex” tells the manager to run ml-lex! All the user defined pieces System libraries

  44. Putting it all together. - CM.make "sources.cm"; [scanning sources.cm] [D:\programs\SML110.57\bin\ml-lex english2.lex] Number of states = 39 Number of distinct rows = 33 Approx. memory size of trans. table = 4257 bytes [parsing (sources.cm):english2.lex.sml] [compiling (sources.cm):english2.lex.sml] [code: 13069, data: 5565, env: 1235 bytes] [New bindings added.] val it = true : bool - open Driver; opening Driver val makeStringLexer : string -> unit -> Token datatype Token = Article of string | EOF | Noun of string | ProperNoun of string | Verb of string - val f = makeStringLexer "Anne bit Bob"; val f = fn : unit -> Token - f (); val it = ProperNoun "Anne" : Token - f(); val it = Verb "bit" : Token - f(); val it = ProperNoun "Bob" : Token - f(); val it = EOF : Token Note how it calls ml-lex to create english2.lex.sml It compiles the “*.sml” files I open the Library Driver to get at the function makeStringLexer

  45. Assignments • Programming exercise 6 is now posted on the website. You should download it. • It requires you to • Create a simple lexical analyzer using SML-lex • write short functions using library functions and anonymous functions to answer questions about. datatype Gender = Male | Female; datatype Color = Red | Blue | Green | Yellow | Orange; val people = [("tim",25,Male,Red) ,("mary",30,Female,Orange) ,("john",14,Male,Yellow) ,("bob",55,Male,Green) ,("jane",19,Female,Blue) ,("alexi",25,Male,Green) ,("joan",31,Female,Blue) ,("jill",16,Female,Green)];
