Chromosomal Basis of Inheritance

Chromosomal Basis of Inheritance. Chapter 15. Most genetics work done on fruit flies (little time to observe many generations) Thomas Morgan - fruit fly eye color. Wild type (normal) eye color - red. Mutant - white.

Download Presentation

Chromosomal Basis of Inheritance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chromosomal Basis of Inheritance Chapter 15

  2. Most genetics work done on fruit flies (little time to observe many generations) • Thomas Morgan - fruit fly eye color. • Wild type (normal) eye color - red. • Mutant - white.

  3. Discovered mutant eye color appeared more often in males - some traits sex-linked (carried on sex chromosomes).

  4. Chromosomes have hundreds or thousands of genes. • Genes located on same chromosome, linked genes, inherited together - chromosome passed as unit.

  5. "A" and "B" are linked due to their occurrence in the same chromosome.  Similarly, "a" and "b" are linked in the other chromosome. http://anthro.palomar.edu/biobasis/images/linked_genes.gif

  6. Production of offspring with new combinations of traits inherited from 2 parents - genetic recombination. • Can occur during crossing over - sections of homologous chromosomes exchanged during meiosis I.

  7. http://www.genomenewsnetwork.org/gnn_images/whats_a_genome/crossing_over.jpghttp://www.genomenewsnetwork.org/gnn_images/whats_a_genome/crossing_over.jpg

  8. Genetic map - list of the loci along the chromosomes. • Further apart genes are, higher probability they will switch places.

  9. Sex chromosomes • 2 sex chromosomes - X and Y. • Males – XY, females - XX. • Other species - X-0 system, Z-W system, haplo-diploid system. • Humans - X-Y system like normal chromosomes - 50/50 chance of having male or female.

  10. Until embryo is 2 months old - fetus female. • If fetus XY - SRY gene turned on making fetus male.

  11. http://www.expectalipil.com/images/fetal_dev_2.jpg

  12. Sex chromosomes, have genes for traits other than sex. • Trait recessive - female will only inherit it if both parents pass it on. • Males - 50% chance of inheriting it (only have 1 X chromosome) • Males have higher rate of sex-linked diseases than females.

  13. http://www.emc.maricopa.edu/faculty/farabee/biobk/hemophb.gifhttp://www.emc.maricopa.edu/faculty/farabee/biobk/hemophb.gif

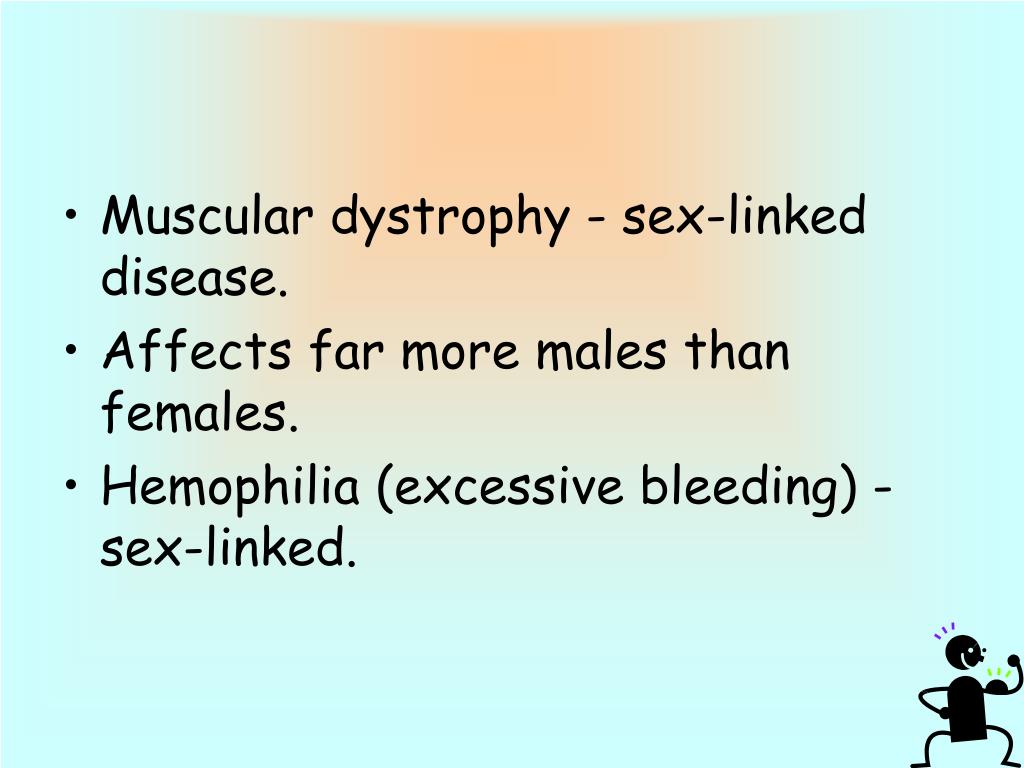

  14. Muscular dystrophy - sex-linked disease. • Affects far more males than females. • Hemophilia (excessive bleeding) - sex-linked.

  15. http://upload.wikimedia.org/wikipedia/en/a/a3/XlinkRecessive.jpghttp://upload.wikimedia.org/wikipedia/en/a/a3/XlinkRecessive.jpg

  16. Only 1 X in females turned on. • Other - Barr body - reactivated in ovaries during egg production (to pass genes on). • Females exhibit characteristics from mother, some from father (sex chromosomes only).

  17. http://www.columbia.edu/cu/biology/courses/c2005/images/barr_body.19.gifhttp://www.columbia.edu/cu/biology/courses/c2005/images/barr_body.19.gif Barr body replicated, not transcribed

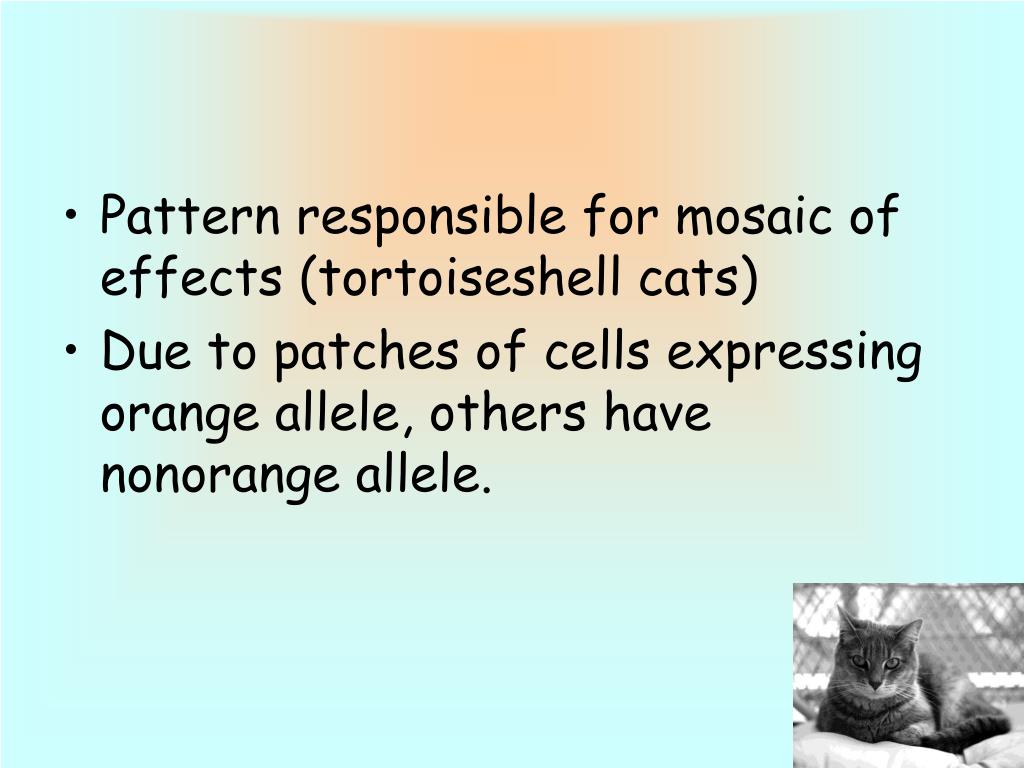

  18. Pattern responsible for mosaic of effects (tortoiseshell cats) • Due to patches of cells expressing orange allele, others have nonorange allele.

  19. http://www.cas.muohio.edu/~wilsonkg/gene2005/images/f3p27.jpghttp://www.cas.muohio.edu/~wilsonkg/gene2005/images/f3p27.jpg

  20. Errors • Errors can occur both in DNA and in chromosomes. • Nondisjunction - homologous chromosomes fail to separate during meiosis I, or chromatids - during meiosis II. • Some gametes receive 2 of same type of chromosome; another gamete receives no copy.

  21. Abnormal # of chromosomes - aneuploidy. • Trisomy - gamete receives 3 of same chromosomes (2n + 1). • Monosomy - gamete receives 1 of same chromosome (2n – 1). • Earlier in development - more profound effect - those cells go through mitosis.

  22. http://www.musckids.com/health_library/genetics/images/chromosome_j.gifhttp://www.musckids.com/health_library/genetics/images/chromosome_j.gif

  23. Organisms with more than 2 complete sets of chromosomes - polyploidy. • Happens more often in plants than animals. • Species with polyploidy usually more normal than aneuploidy (no missing chromosomes)

  24. http://emedia.leeward.hawaii.edu/millen/bot130/learning_objectives/lo15/15b_p37b.gifhttp://emedia.leeward.hawaii.edu/millen/bot130/learning_objectives/lo15/15b_p37b.gif

  25. A rodent species that is the result of polyploidy

  26. Deletion - piece of chromosome broken off during cell division. • Duplication - fragment becomes attached as extra segment to sister chromatid. • Inversion - piece breaks off, turns around, reattaches (backwards). • Translocation - chromosomal fragment joins nonhomologous chromosome.

  27. Down syndrome - trisomy (Trisomy 21). • Chromosome 21 - smallest chromosome - individual can survive.

  28. Aneuploidy – can occur in sex chromosomes. • Klinefelter’s syndrome - male XXY (nondisjunction) • Trisomy X (XXX) can occur in females. • Monosomy X - Turner syndrome - nondisjunction.

  29. http://www.biology.iupui.edu/biocourses/N100/images/klinefelter.gifhttp://www.biology.iupui.edu/biocourses/N100/images/klinefelter.gif

  30. http://www.tokyo-med.ac.jp/genet/kry/xok.jpg

  31. Deletion disease - cri-du-chat - chromosome 5. • Chronic myologenous leukemia - example of translocation between chromosome 9 and chromosome 22.

  32. http://learn.genetics.utah.edu/units/disorders/karyotype/images/criduchat_karyotype.jpghttp://learn.genetics.utah.edu/units/disorders/karyotype/images/criduchat_karyotype.jpg

  33. http://users.rcn.com/jkimball.ma.ultranet/BiologyPages/P/Ph1Karyotype.gifhttp://users.rcn.com/jkimball.ma.ultranet/BiologyPages/P/Ph1Karyotype.gif

  34. Some traits dependent on who passes alleles (mother or father) • Prader-Willi syndrome caused by deletion on chromosome 15 (father) • Deletion from mother - Angelman syndrome. • Due to genomic imprinting - gene on 1 homologous chromosome silenced, allele on homologous chromosome expressed.

  35. http://www.cytopix.com/ImageResizeCache/723578_t2001.5.25.11.38.0_q50_600x450.jpghttp://www.cytopix.com/ImageResizeCache/723578_t2001.5.25.11.38.0_q50_600x450.jpg

  36. Some eukaryotic genes located in mitochondria. • These genes all passed from mother to offspring; none of father’s mitochondrial genes passed on.

  37. Coloration due to mitochondrial genes
