  1. Lesson 22 Vibrations and Waves Eleanor Roosevelt High School Chin-Sung Lin

  2. Vibrations and Waves

  3. What is Vibrations?

  4. What is Vibrations?

  5. Vibrations • Vibration: A wiggle in time is a vibration • A vibration cannot exist in one instant, but needs time to move back and forth • Mechanical oscillations about an equilibrium point

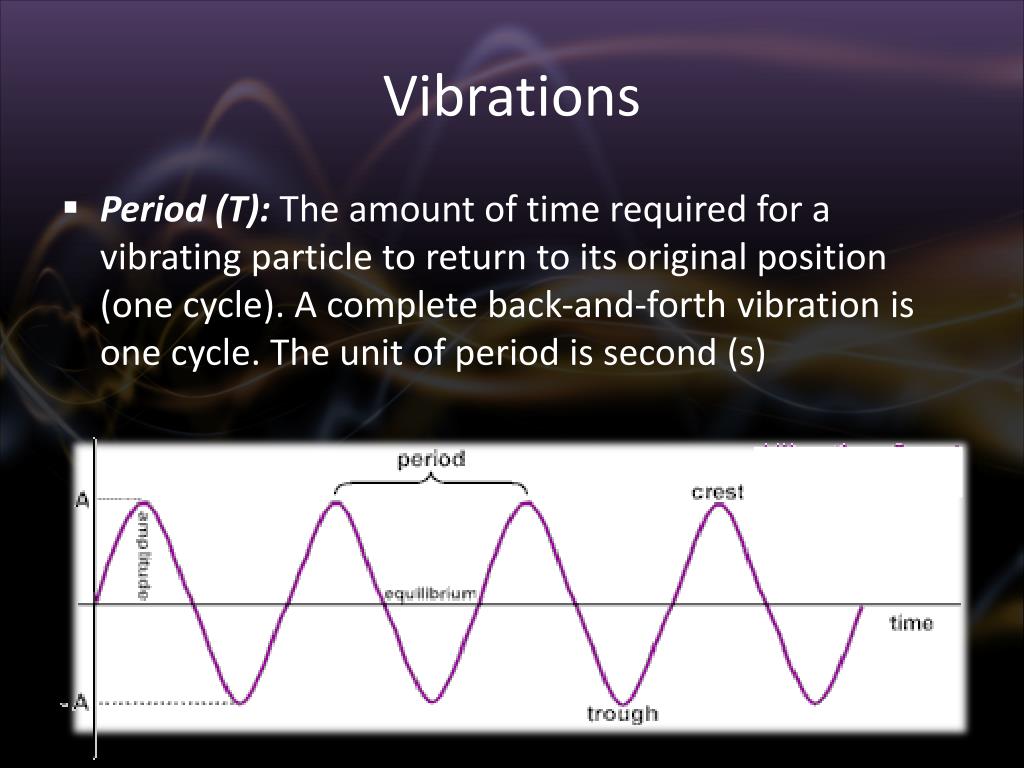

  6. Vibrations • Period (T): The amount of time required for a vibrating particle to return to its original position (one cycle). A complete back-and-forth vibration is one cycle. The unit of period is second (s)

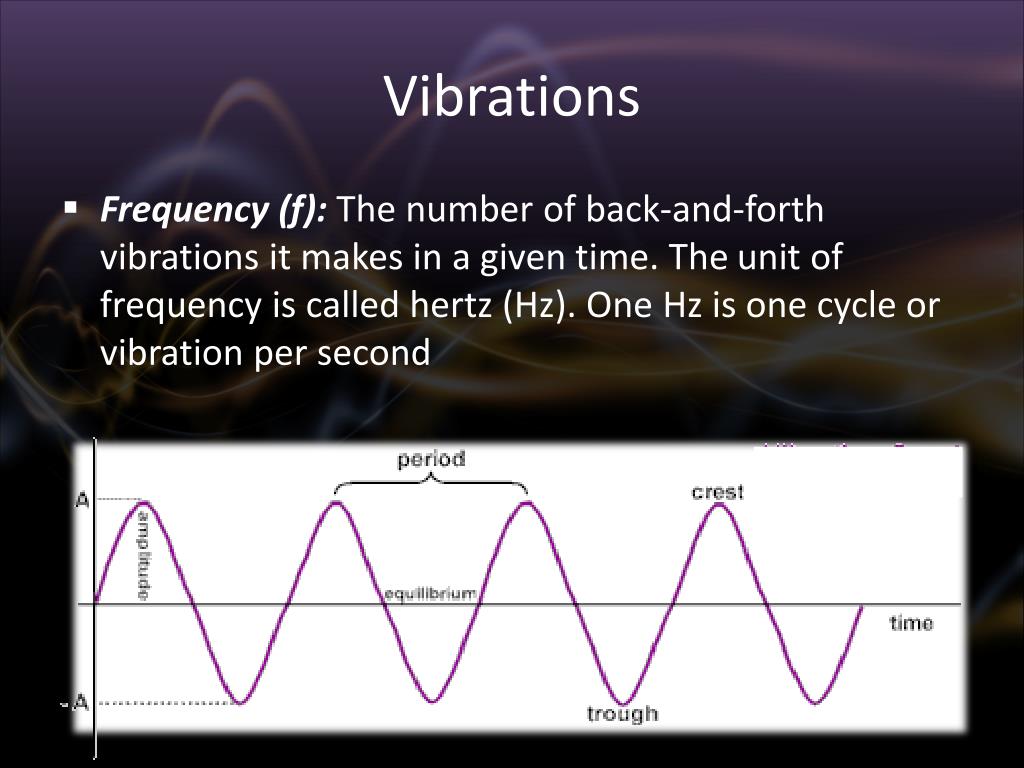

  7. Vibrations • Frequency (f): The number of back-and-forth vibrations it makes in a given time. The unit of frequency is called hertz (Hz). One Hz is one cycle or vibration per second

  8. Frequency • Frequency unit: • 1 kilohertz (kHz— thousands of hertz) = 1 x 103 Hz • 1 megahertz (MHz— millions of hertz) = 1 x 106 Hz • 1 gigahertz (GHz— billions of hertz) = 1 x 109 Hz • frequency = 1/period and period = 1/frequencyf = 1/T and T = 1/f

  9. Frequency Example • If an electromagnetic wave has frequency 5.0 x 106 Hz, what is the period of the wave? What type of wave is that?

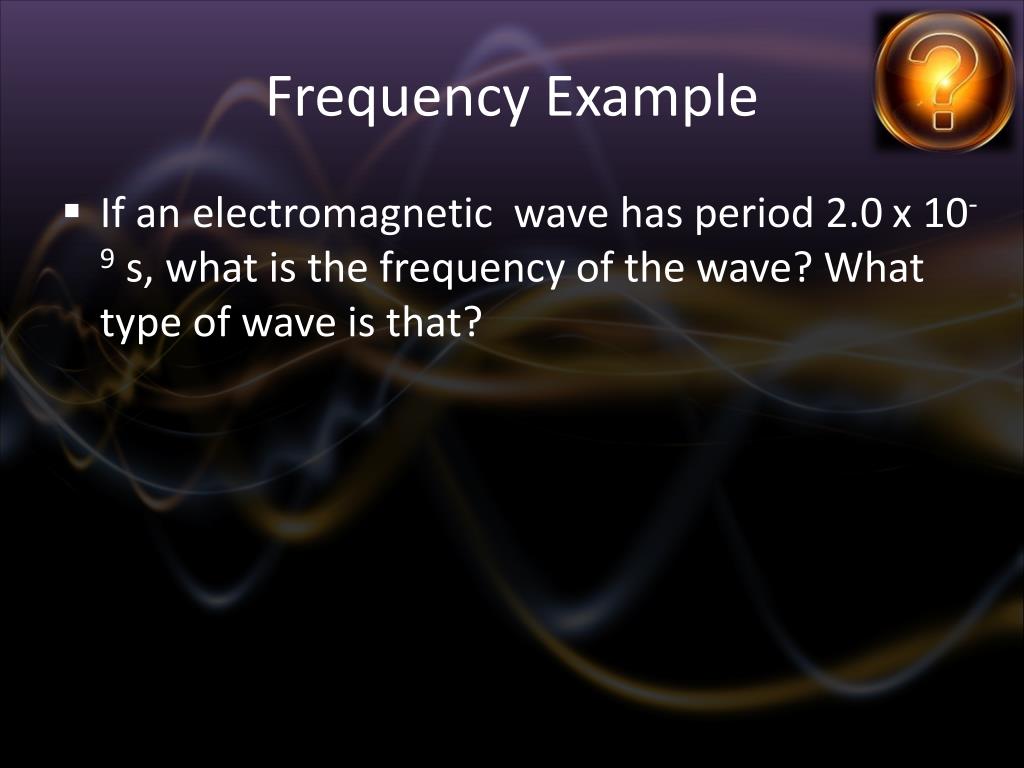

  10. Frequency Example • If an electromagnetic wave has period 2.0 x 10-9s, what is the frequency of the wave? What type of wave is that?

  11. Frequency • High frequency and low frequency

  12. What is Wave?

  13. sound waves light waves radio waves microwaves water waves stadium waves earthquake waves rope waves slinky waves Waves

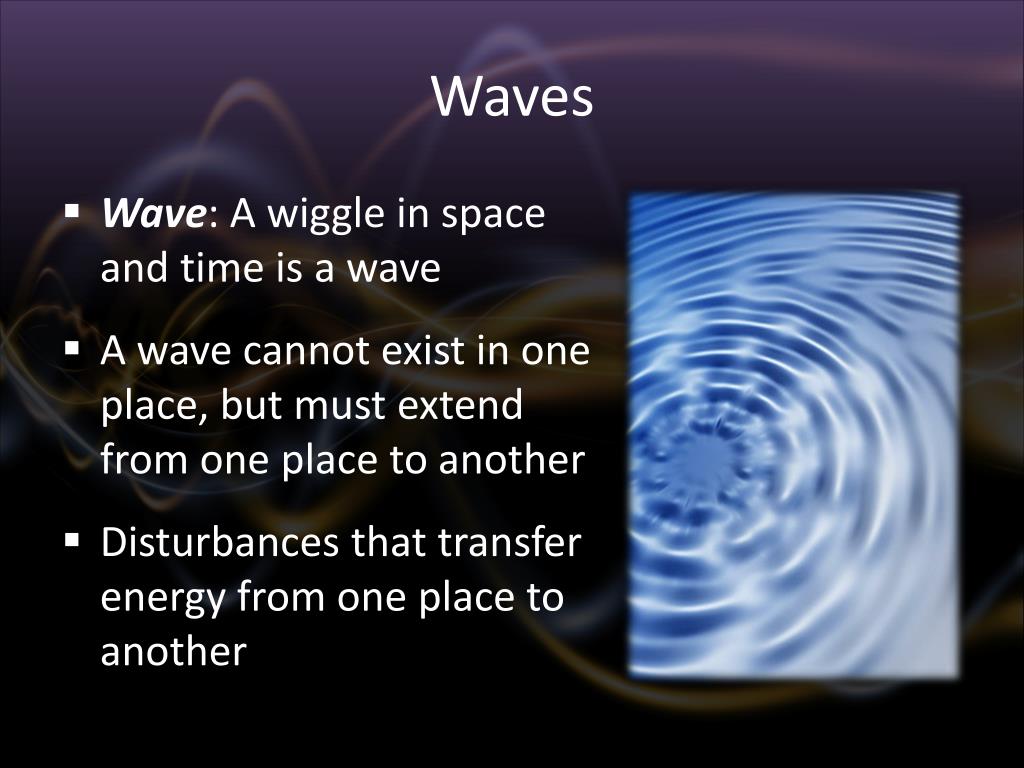

  14. Waves • Wave: A wiggle in space and time is a wave • A wave cannot exist in one place, but must extend from one place to another • Disturbances that transfer energy from one place to another

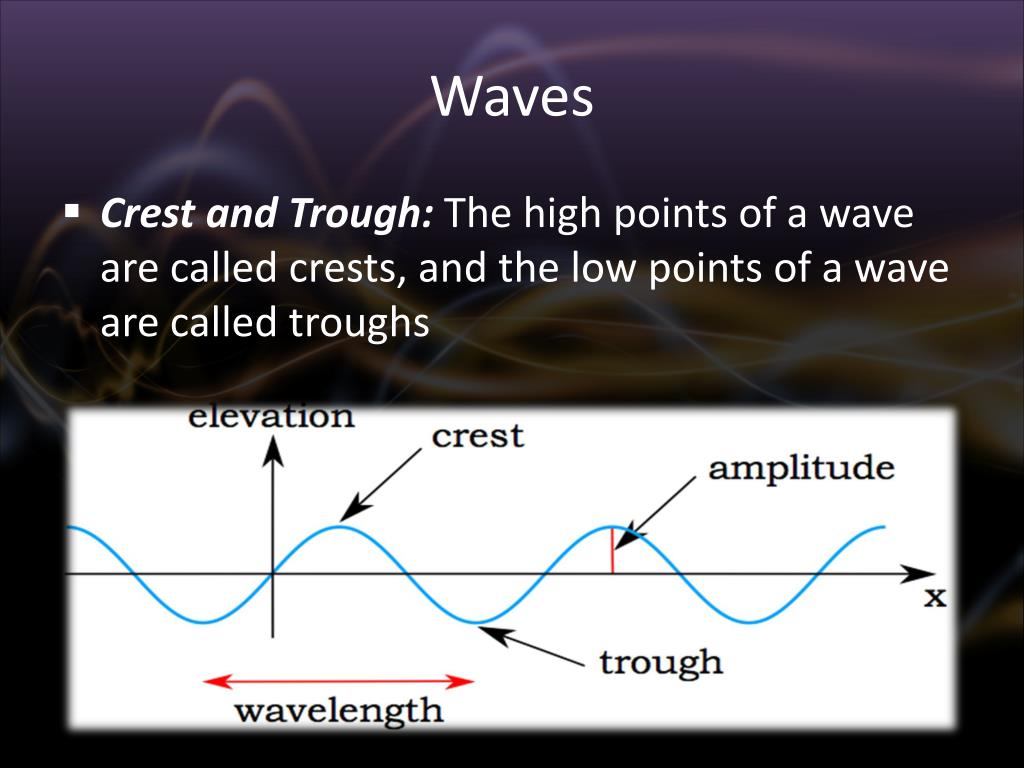

  15. Waves • Crest and Trough: The high points of a wave are called crests, and the low points of a wave are called troughs

  16. Waves • Amplitude (A): refers to the distance from the midpoint to the crest (or trough) of the wave. So the amplitude equals the maximum displacement from equilibrium

  17. Waves • Wavelength (λ): The distance between successive identical parts of the wave such as from the top of one crest to the top of the next one

  18. Wavelength Crest Amplitude Distance Trough Waves Wave Period Amplitude Time Vibration

  19. Aim: Speed of WavesDoNow: • Non-digital clocks have a second hand that rotates around in a regular and repeating fashion. The frequency of rotation of a second hand on a clock is _______ Hz • An echo (reflection of the scream off a nearby canyon wall) is heard 0.82 seconds after the scream. The speed of the sound wave in air is 342 m/s. Calculate the distance from the person to the nearby canyon wall

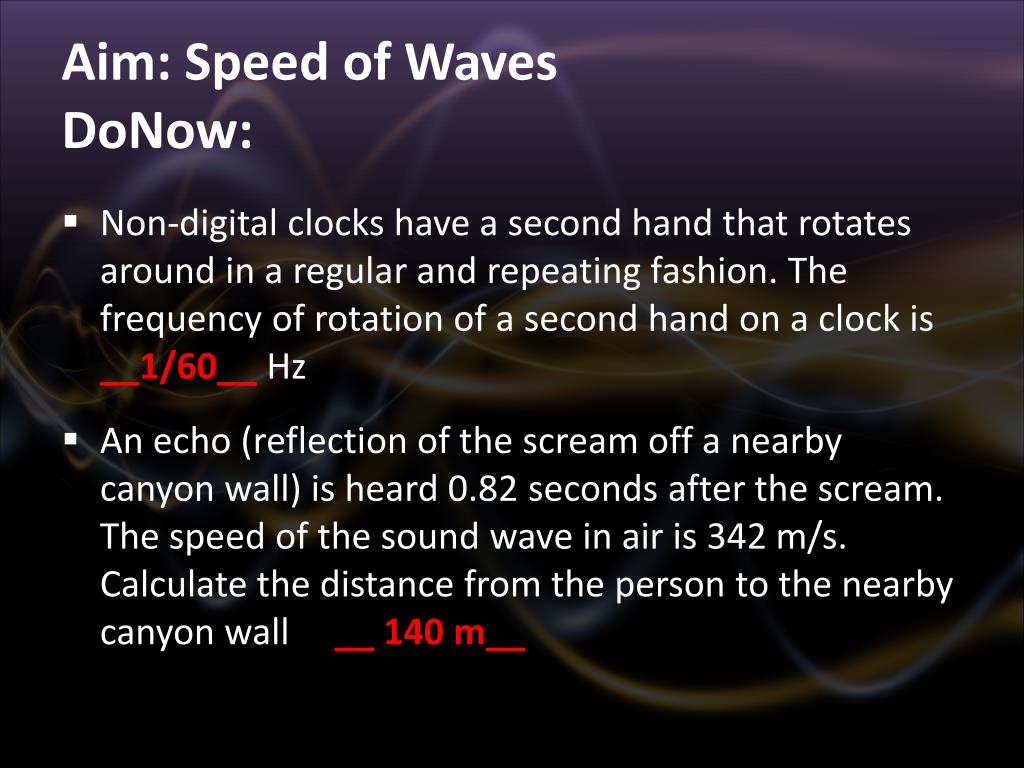

  20. Aim: Speed of WavesDoNow: • Non-digital clocks have a second hand that rotates around in a regular and repeating fashion. The frequency of rotation of a second hand on a clock is __1/60__ Hz • An echo (reflection of the scream off a nearby canyon wall) is heard 0.82 seconds after the scream. The speed of the sound wave in air is 342 m/s. Calculate the distance from the person to the nearby canyon wall __ 140 m__

  21. Speed of Waves

  22. Waves • wave speed = wavelength x frequency = wavelength / period v = f =  / T where v is the wave speed [m/s]  is the wavelength [m] f is the wave frequency [Hz] T is the wave period [s] • This relationship holds for all kinds of waves

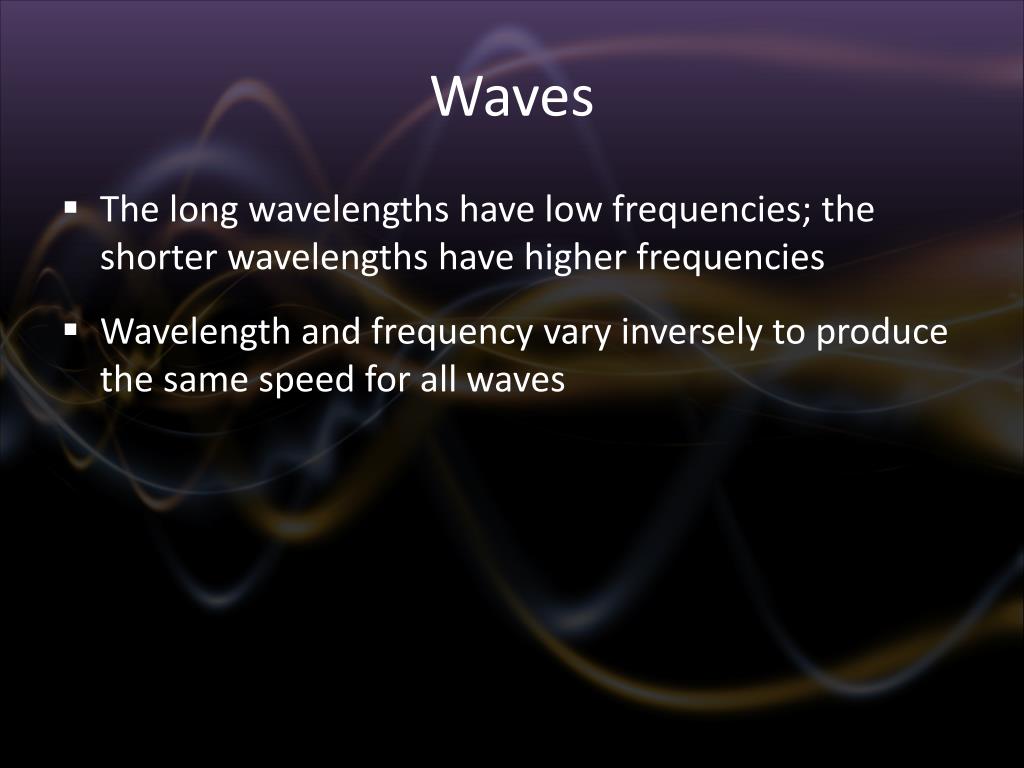

  23. Waves • The long wavelengths have low frequencies; the shorter wavelengths have higher frequencies • Wavelength and frequency vary inversely to produce the same speed for all waves

  24. Wave Example • The time required for the sound waves (v = 340 m/s) to travel from the 512-Hz tuning fork to 20 m away is?

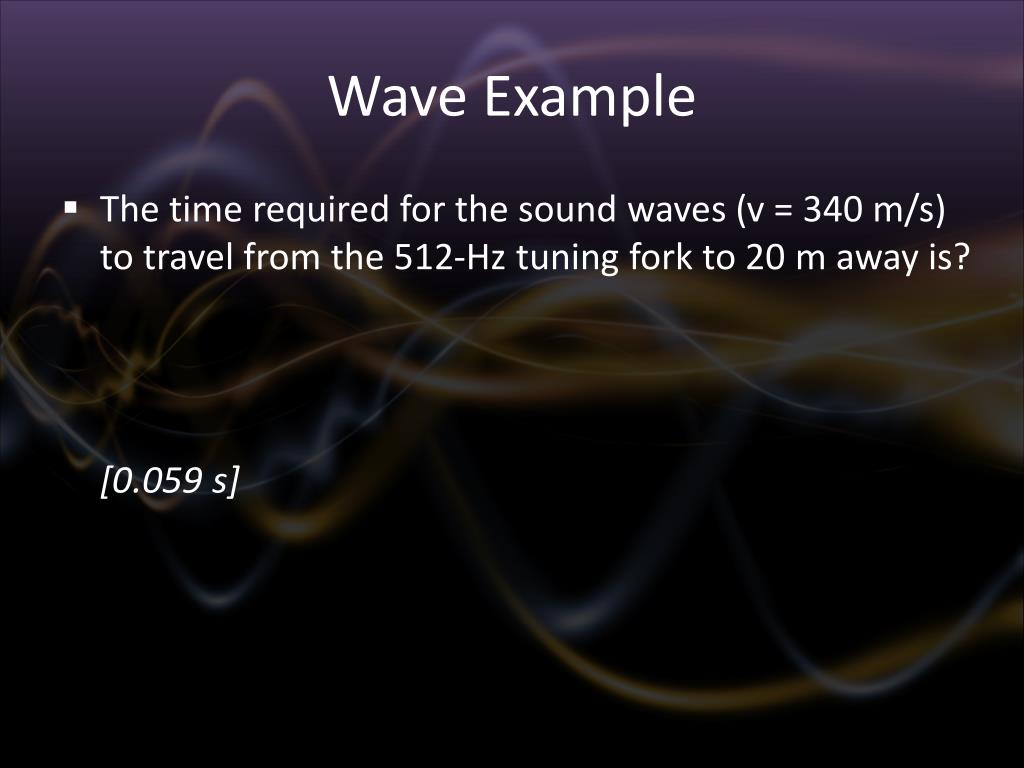

  25. Wave Example • The time required for the sound waves (v = 340 m/s) to travel from the 512-Hz tuning fork to 20 m away is? [0.059 s]

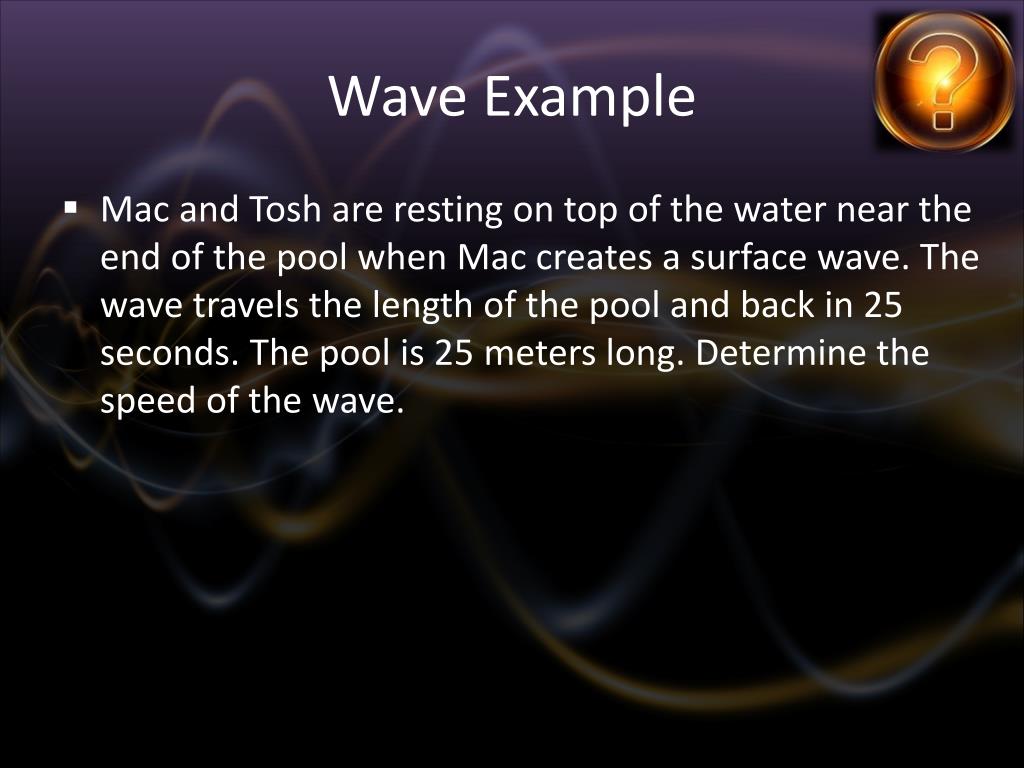

  26. Wave Example • Mac and Tosh are resting on top of the water near the end of the pool when Mac creates a surface wave. The wave travels the length of the pool and back in 25 seconds. The pool is 25 meters long. Determine the speed of the wave.

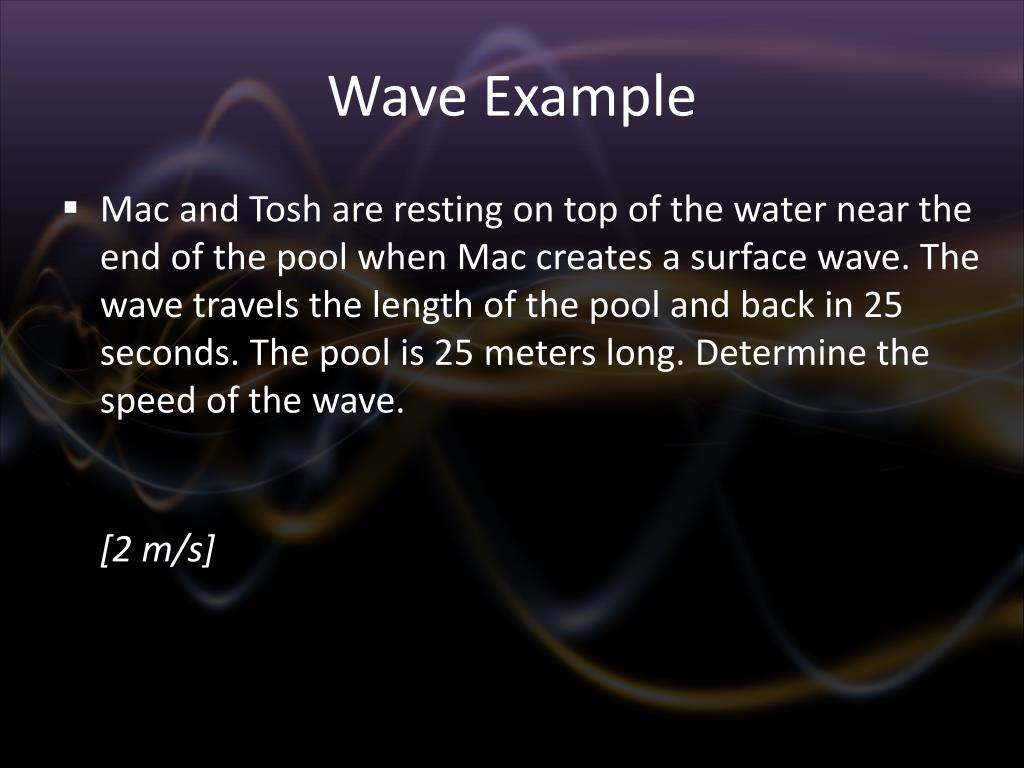

  27. Wave Example • Mac and Tosh are resting on top of the water near the end of the pool when Mac creates a surface wave. The wave travels the length of the pool and back in 25 seconds. The pool is 25 meters long. Determine the speed of the wave. [2 m/s]

  28. Wave Example • The water waves travel at a speed of 2.5 m/s and splashing periodically against Wilbert's perch. Each adjacent crest is 5 meters apart. The crests splash Wilbert's feet upon reaching his perch. How much time passes between each successive drenching?

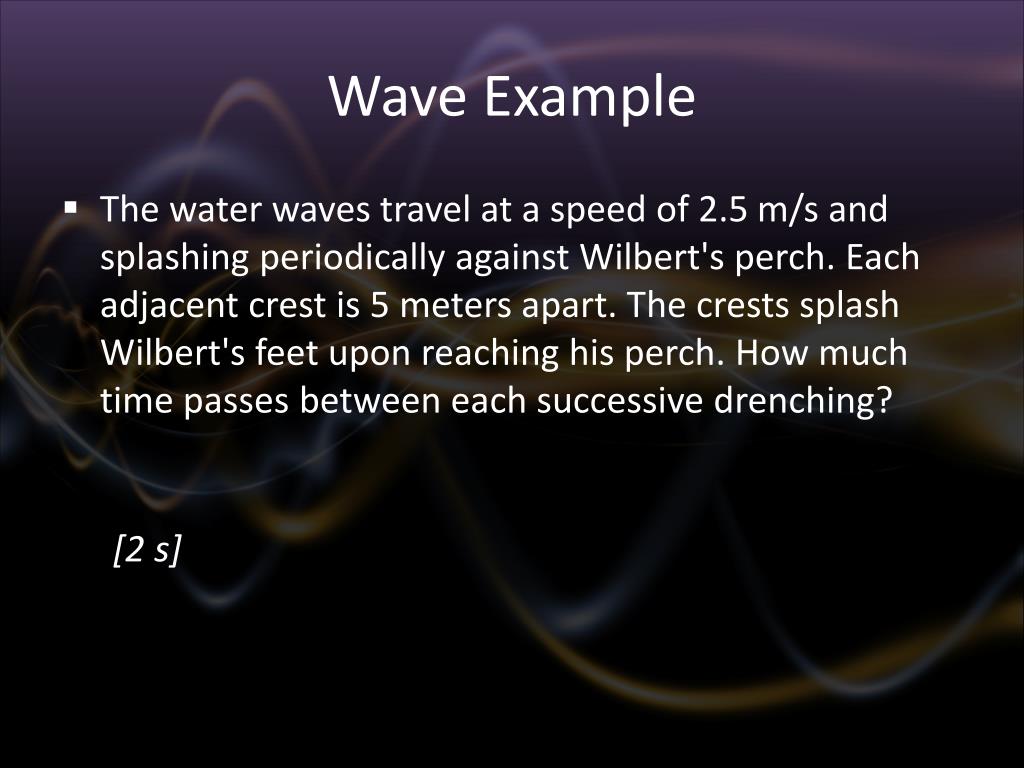

  29. Wave Example • The water waves travel at a speed of 2.5 m/s and splashing periodically against Wilbert's perch. Each adjacent crest is 5 meters apart. The crests splash Wilbert's feet upon reaching his perch. How much time passes between each successive drenching? [2 s]

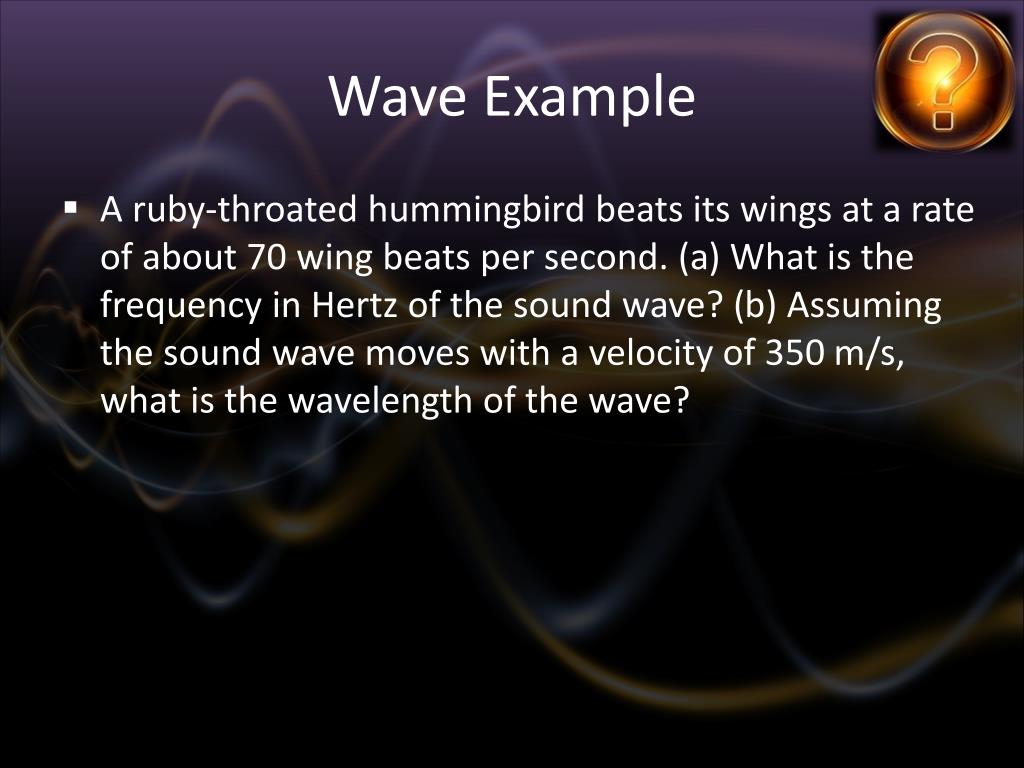

  30. Wave Example • A ruby-throated hummingbird beats its wings at a rate of about 70 wing beats per second. (a) What is the frequency in Hertz of the sound wave? (b) Assuming the sound wave moves with a velocity of 350 m/s, what is the wavelength of the wave?

  31. Wave Example • A ruby-throated hummingbird beats its wings at a rate of about 70 wing beats per second. (a) What is the frequency in Hertz of the sound wave? (b) Assuming the sound wave moves with a velocity of 350 m/s, what is the wavelength of the wave? (a) [70 Hz] (b) [5 m]

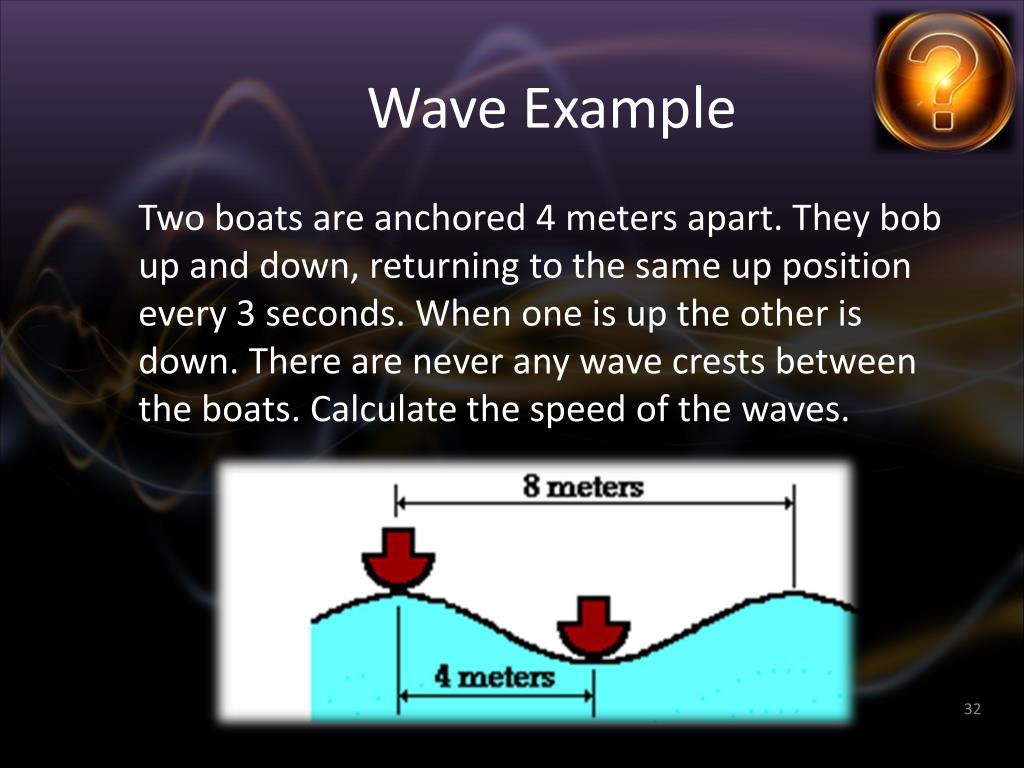

  32. Wave Example Two boats are anchored 4 meters apart. They bob up and down, returning to the same up position every 3 seconds. When one is up the other is down. There are never any wave crests between the boats. Calculate the speed of the waves.

  33. Wave Example Two boats are anchored 4 meters apart. They bob up and down, returning to the same up position every 3 seconds. When one is up the other is down. There are never any wave crests between the boats. Calculate the speed of the waves. [2.667 ms]

  34. Wave Example • If an electromagnetic wave has period 4.0 x 10-15s, what is the frequency of the wave? What is the wavelength of the wave? Which type of wave is that?

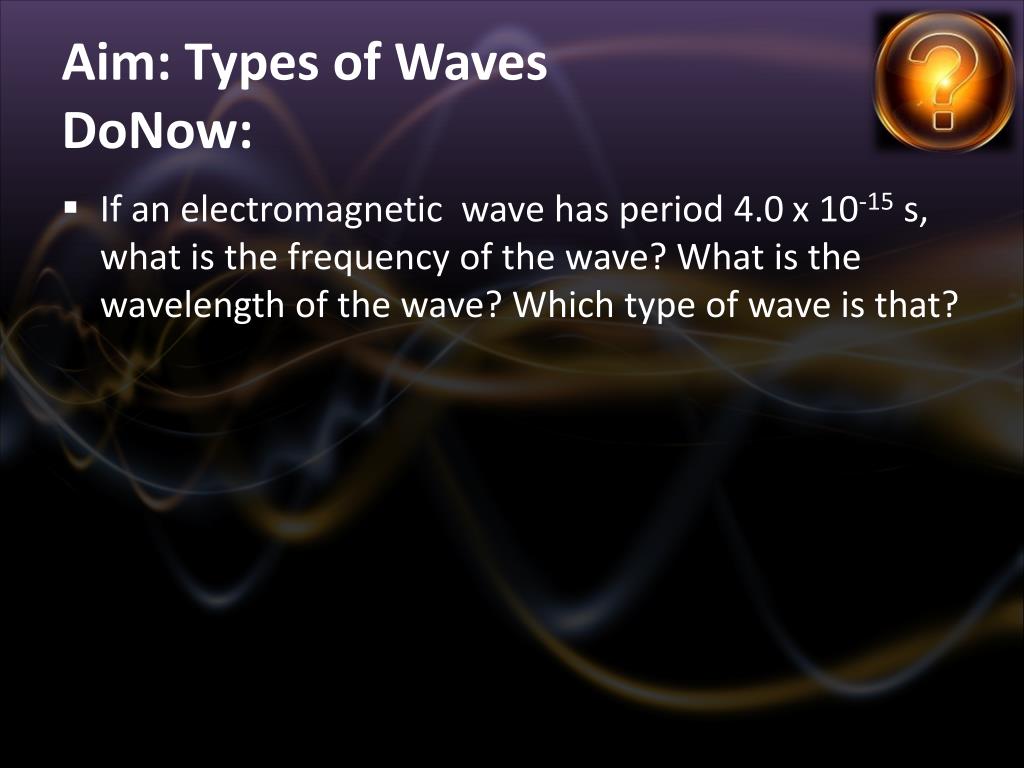

  35. Aim: Types of WavesDoNow: • If an electromagnetic wave has period 4.0 x 10-15s, what is the frequency of the wave? What is the wavelength of the wave? Which type of wave is that?

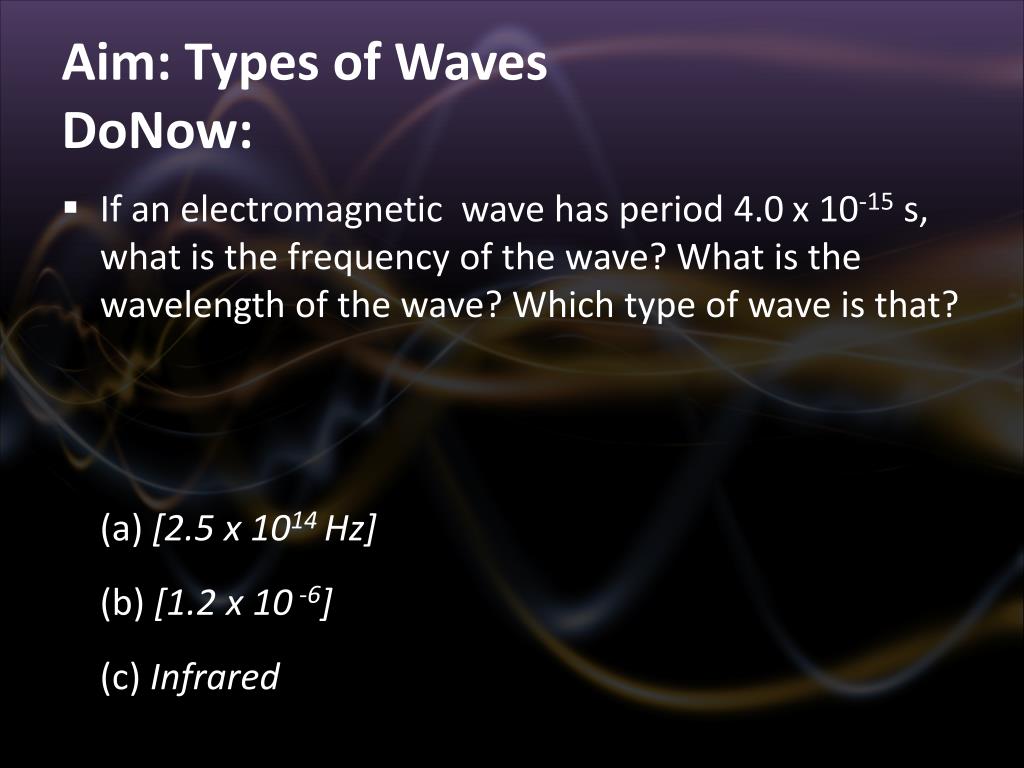

  36. Aim: Types of WavesDoNow: • If an electromagnetic wave has period 4.0 x 10-15s, what is the frequency of the wave? What is the wavelength of the wave? Which type of wave is that? (a) [2.5 x 1014 Hz] (b) [1.2 x 10-6] (c) Infrared

  37. Types of Waves

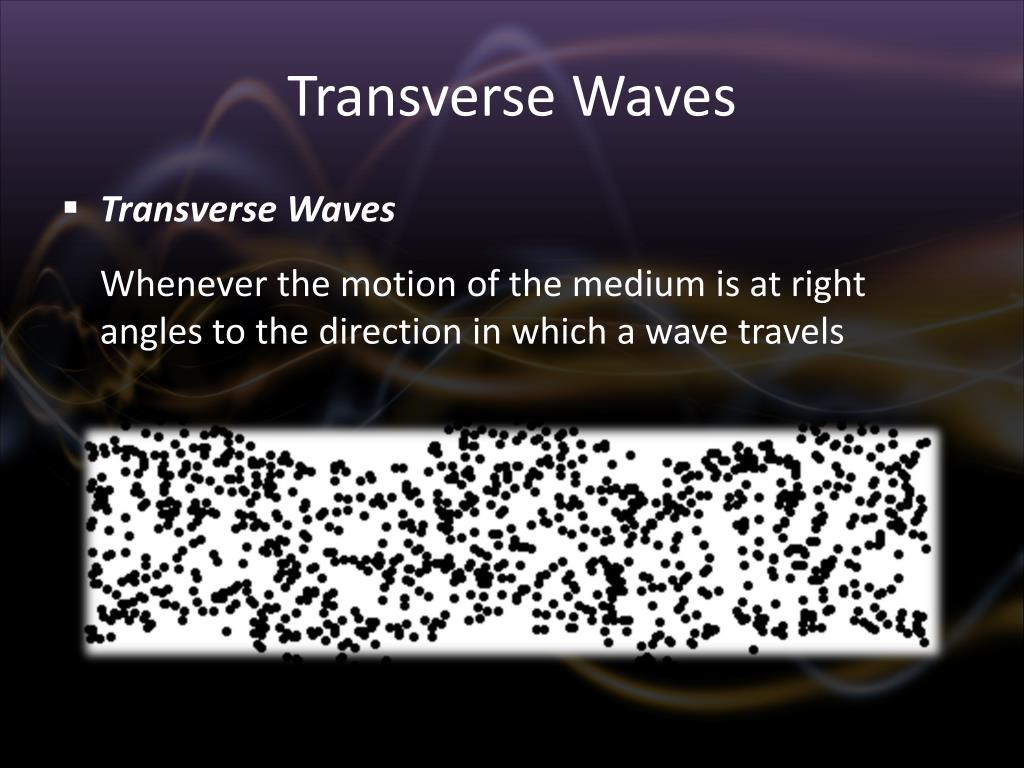

  38. Transverse Waves • Transverse Waves Whenever the motion of the medium is at right angles to the direction in which a wave travels

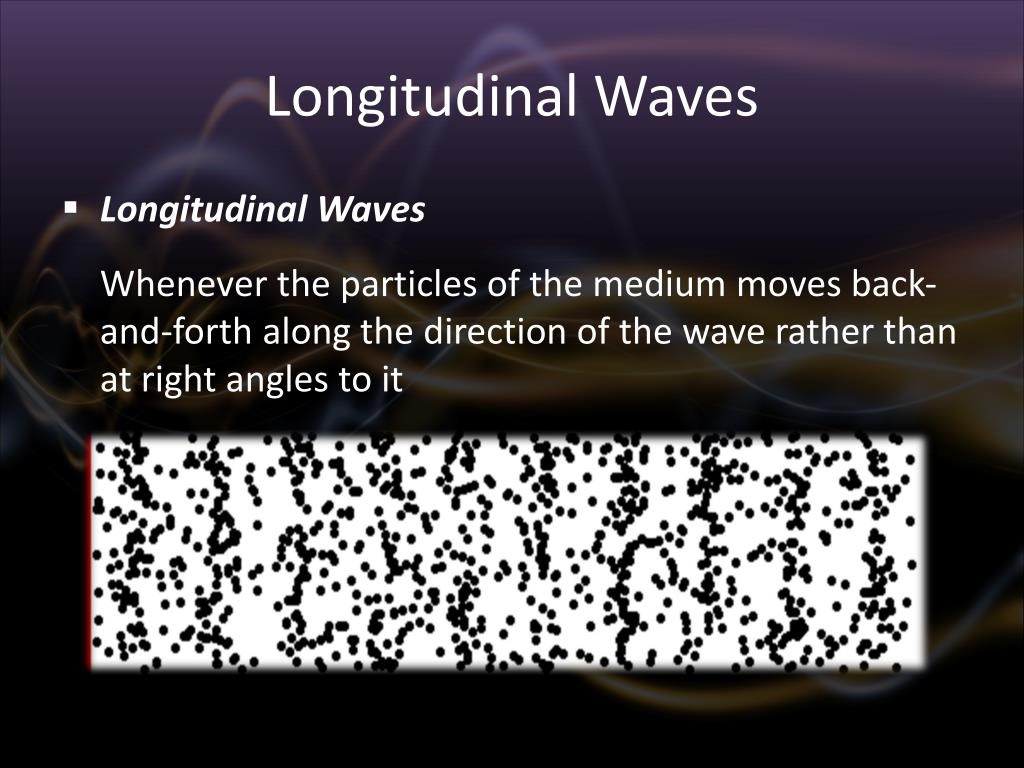

  39. Longitudinal Waves • Longitudinal Waves Whenever the particles of the medium moves back-and-forth along the direction of the wave rather than at right angles to it

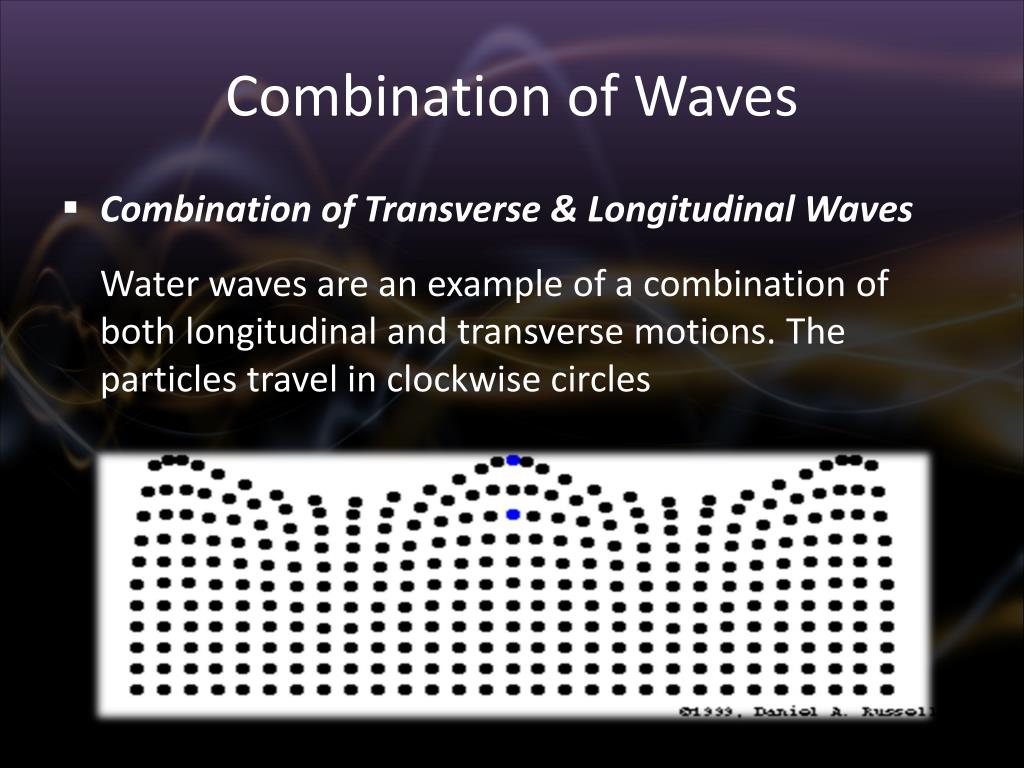

  40. Combination of Waves • Combination of Transverse & Longitudinal Waves Water waves are an example of a combination of both longitudinal and transverse motions. The particles travel in clockwise circles

  41. Longitudinal or Transverse?

  42. Interference

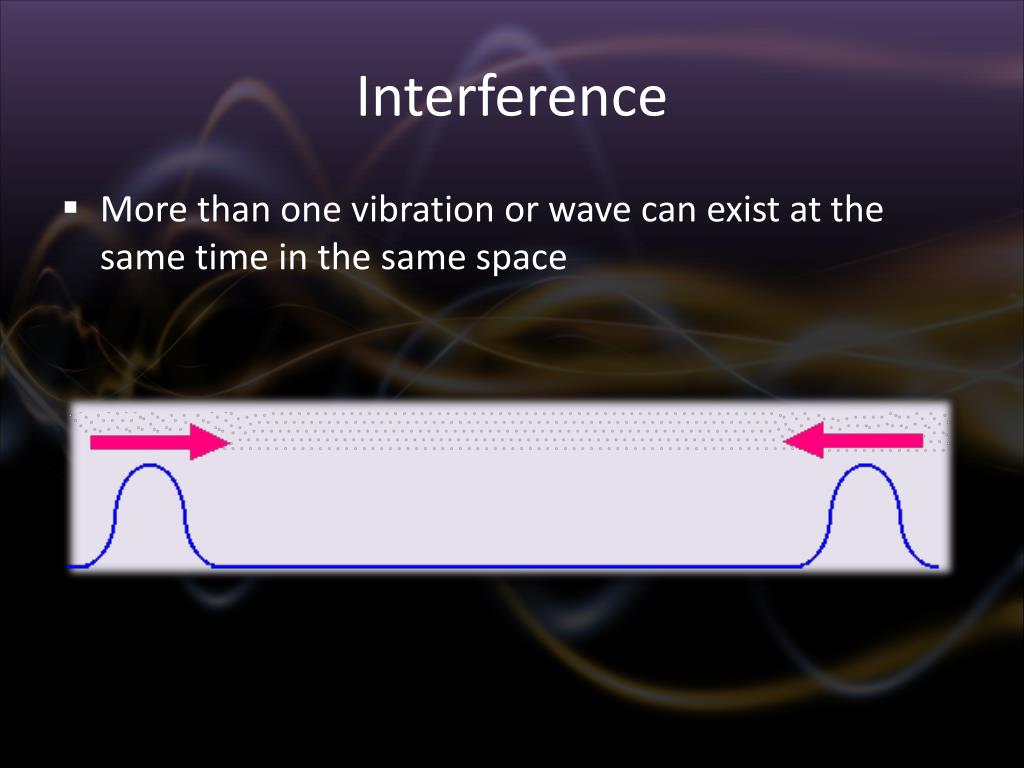

  43. Interference • More than one vibration or wave can exist at the same time in the same space

  44. Interference • The principle of superposition of waves states that the resultant displacement at a point is equal to the vector sum of the displacements of different waves at that point

  45. Constructive Interference • The two waves are in-phase with each other they add together

  46. Constructive Interference • The two waves are in-phase with each other they add together

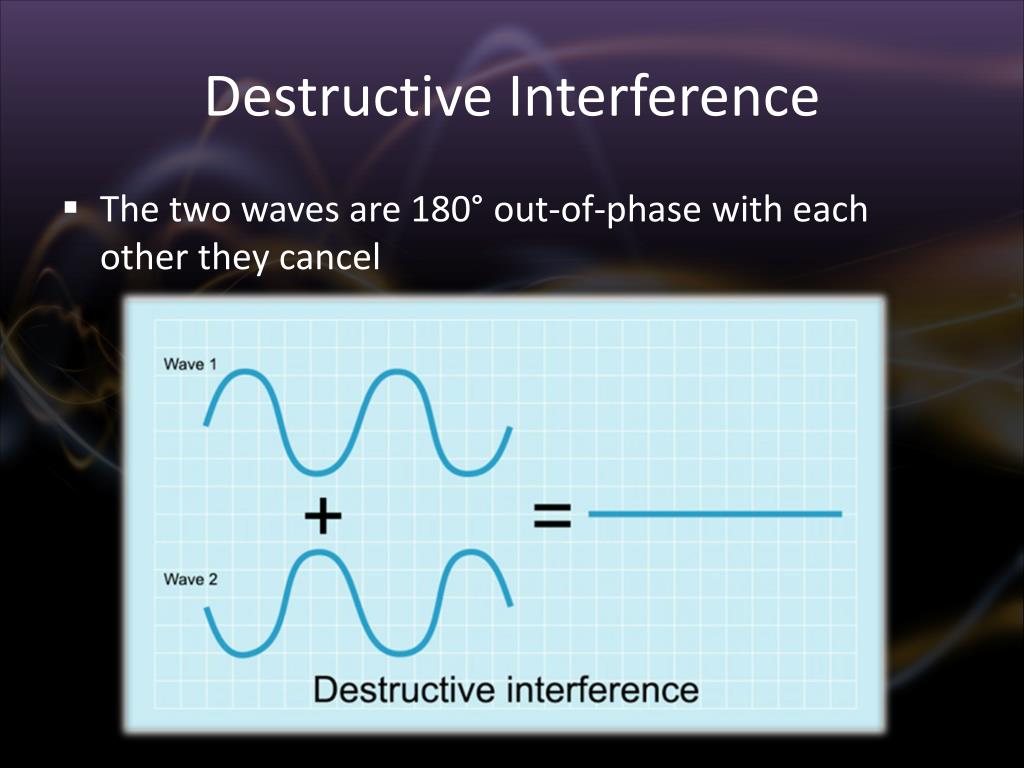

  47. Destructive Interference • The two waves are 180° out-of-phase with each other they cancel

  48. Destructive Interference • The two waves are 180° out-of-phase with each other they cancel

  49. Interference Patterns • Two waves overlap each other will form an interference pattern

  50. Interference Patterns • Gray “spokes”: zero amplitude • Dark- & light-striped: crests of one wave overlap the crests of another, and the troughs overlap as well
