  1. OS UI Software Application Software Middleware RTOS Protocol Stack Hardware & Chipset Device Architecture UIQ,S60,Trolltech,QC Brew, Digital Airways etc. UIQ , S60 ,Trolltech , Openwave ,Obigo, Palm source , Sasken, Jataayu etc. 2G/3G Handset Symbian,Linux Windows Mobile etc Philips,Sasken , Esmertec etc., Nucleus, AMX, Montavista Linux, Rex etc Qualcomm, Ericsson MP, Philips, LSI, Free scale, TI Qualcomm, Ericsson MP, Philips, LSI, Free scale, TI, Comneon etc

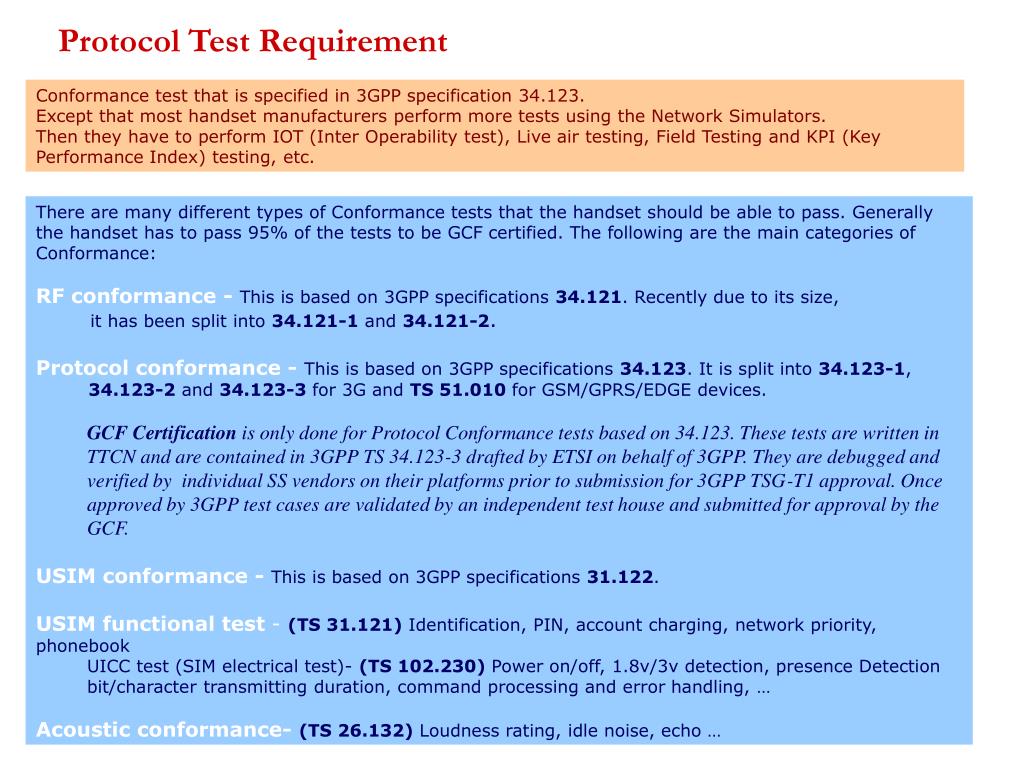

  2. Protocol Test Requirement Conformance test that is specified in 3GPP specification 34.123. Except that most handset manufacturers perform more tests using the Network Simulators. Then they have to perform IOT (Inter Operability test), Live air testing, Field Testing and KPI (Key Performance Index) testing, etc. • There are many different types of Conformance tests that the handset should be able to pass. Generally the handset has to pass 95% of the tests to be GCF certified. The following are the main categories of Conformance: • RF conformance -This is based on 3GPP specifications 34.121. Recently due to its size, • it has been split into 34.121-1 and 34.121-2. • Protocol conformance -This is based on 3GPP specifications 34.123. It is split into 34.123-1, • 34.123-2 and 34.123-3 for 3G and TS 51.010 for GSM/GPRS/EDGE devices. • GCF Certification is only done for Protocol Conformance tests based on 34.123. These tests are written in TTCN and are contained in 3GPP TS 34.123-3 drafted by ETSI on behalf of 3GPP. They are debugged and verified by individual SS vendors on their platforms prior to submission for 3GPP TSG-T1 approval. Once approved by 3GPP test cases are validated by an independent test house and submitted for approval by the GCF. • USIM conformance -This is based on 3GPP specifications 31.122. • USIM functional test -(TS 31.121) Identification, PIN, account charging, network priority, phonebook • UICC test (SIM electrical test)- (TS 102.230) Power on/off, 1.8v/3v detection, presence Detection bit/character transmitting duration, command processing and error handling, … • Acoustic conformance-(TS 26.132) Loudness rating, idle noise, echo …

  3. Protocol Signaling conformance - Message A (Layer 1/2/3 NAS) Protocol signalling scenarios : • Idle and Connected Mode Mobility • Circuit and Packet Switched Services • Inter-RAT • Multi-Services and their combinations Message B (Layer 1/2/3 NAS) UE Network NO YES Is type and format of B correct (within given Timer limits & Specs)? FAIL PASS

  4. RF & RRM conformance - Radio scenarios : • Idle and Connected Mode Mobility • Circuit and Packet Switched Services • Inter-RAT • Multi-Services and their combinations Node B Node B Node B • No Service • Poor Signal Strength • Poor Signal Quality • Call Drop • Voice Muting
