Presentation Transcript
Shadows cs 446 real time rendering game technology l.jpg

Shadows CS 446: Real-Time Rendering & Game Technology

David Luebke

University of Virginia

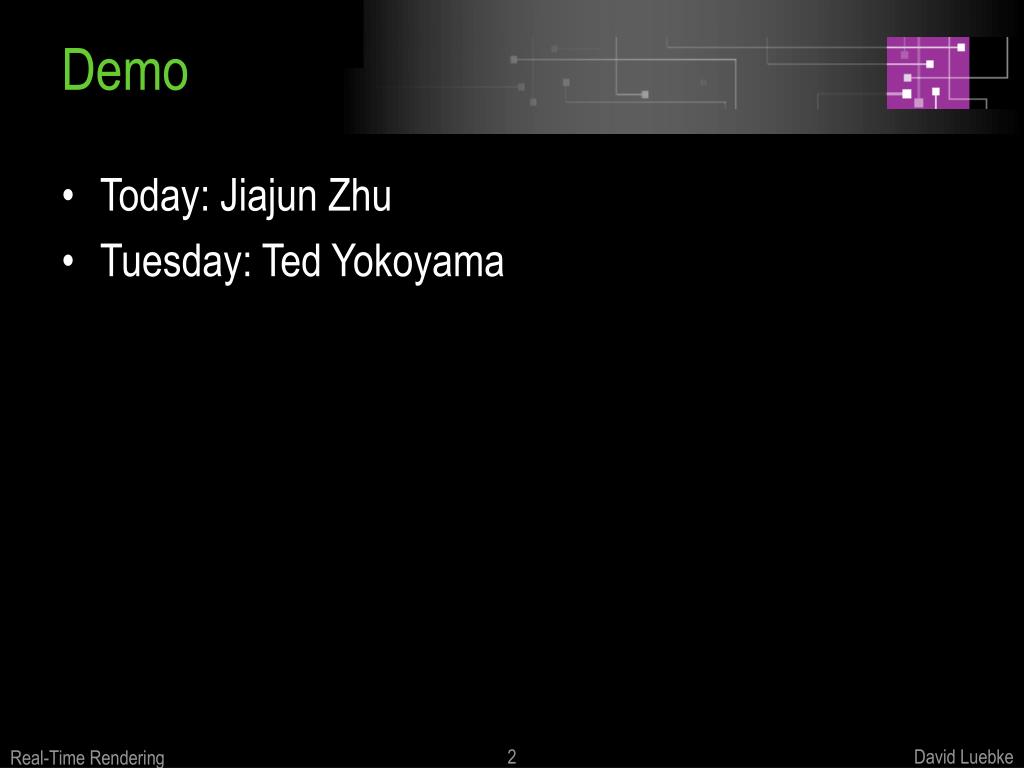

Slide2 l.jpg
Demo

  • Today: Jiajun Zhu

  • Tuesday: Ted Yokoyama

Real-Time Rendering


Assignments l.jpg
Assignments

  • Reminder: integrated version of assn 4 due today

    • Group turns in whole project today

    • Individuals taking late days turn in a new version of whole project when their changes are integrated

    • Remember, show up to class or assignment due in the morning…

Real-Time Rendering


Recap shadow notation l.jpg
Recap: Shadow Notation

  • Light source

    • Point vs area

  • Occluders & receivers

    • Identify ahead of time?

    • Self-shadowing?

  • Shadow

    • Umbra

    • Penumbra

  • Soft vs hard shadows

Real-Time Rendering


Recap planar shadows l.jpg
Recap: Planar Shadows

  • Old trick: project the occluder geometry to a plane and render over ground plane

    • Can do with a matrix

    • Z-bias issues

    • Semiopaque shadows harder

      • Stencil and Z-buffer tricks

    • Another option: generate textured rectangle

  • Problems

    • Light source inside object (Antishadows)

    • Only planar receivers  no self-shadowing

Real-Time Rendering


Planar soft shadows l.jpg
Planar Soft Shadows

  • Basic idea:

    • Sample light source multiple times, average results (accumulation buffer) into a texture

  • Gooch et al: move plane up and down

    • Nested shadows fewer passes

Real-Time Rendering


Projective shadows l.jpg
Projective Shadows

  • Render scene from light’s point of view

    • Render all occluders as black

    • Can turn off depth buffer etc

  • Project onto receiver polygons using projective texture mapping

  • Works for curved surfaces

  • Designer separates occluders and receivers  no self-shadowing

Real-Time Rendering


Shadow volumes l.jpg
Shadow Volumes

  • Basic idea:

    • Create polygonal objects to represent shadowed volumes

    • Make clever use of stencil buffer so that these objects affect what lighting is done

Real-Time Rendering

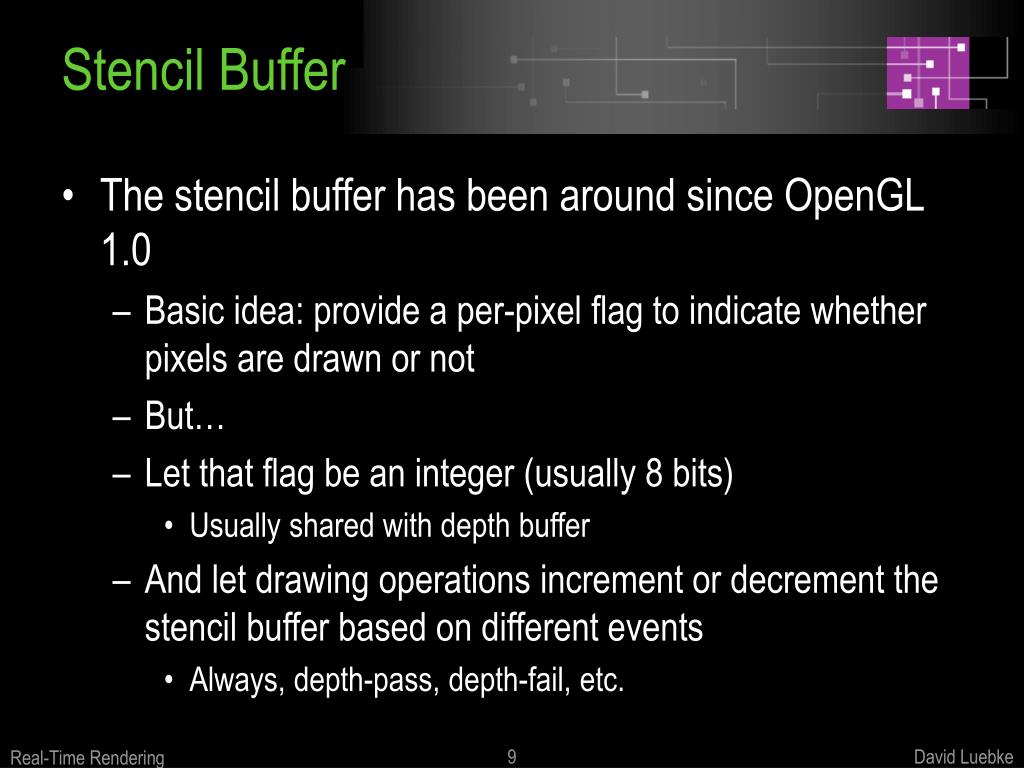

Stencil buffer l.jpg
Stencil Buffer

  • The stencil buffer has been around since OpenGL 1.0

    • Basic idea: provide a per-pixel flag to indicate whether pixels are drawn or not

    • But…

    • Let that flag be an integer (usually 8 bits)

      • Usually shared with depth buffer

    • And let drawing operations increment or decrement the stencil buffer based on different events

      • Always, depth-pass, depth-fail, etc.

Real-Time Rendering

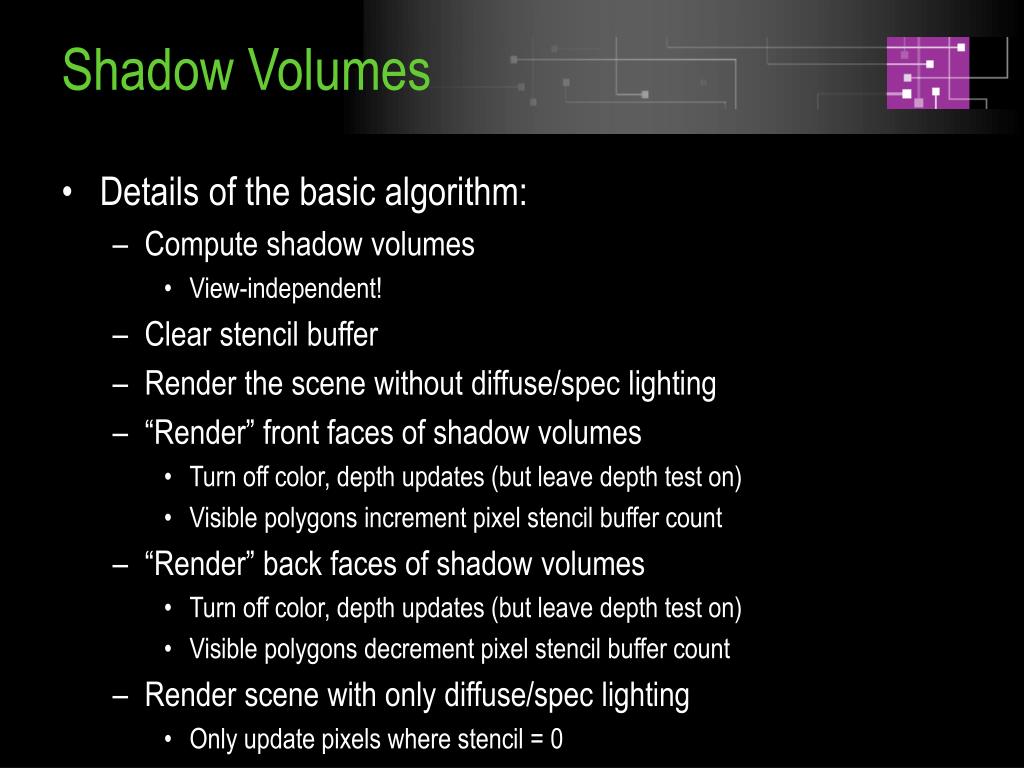

Shadow volumes10 l.jpg
Shadow Volumes

  • Details of the basic algorithm:

    • Compute shadow volumes

      • View-independent!

    • Clear stencil buffer

    • Render the scene without diffuse/spec lighting

    • “Render” front faces of shadow volumes

      • Turn off color, depth updates (but leave depth test on)

      • Visible polygons increment pixel stencil buffer count

    • “Render” back faces of shadow volumes

      • Turn off color, depth updates (but leave depth test on)

      • Visible polygons decrement pixel stencil buffer count

    • Render scene with only diffuse/spec lighting

      • Only update pixels where stencil = 0

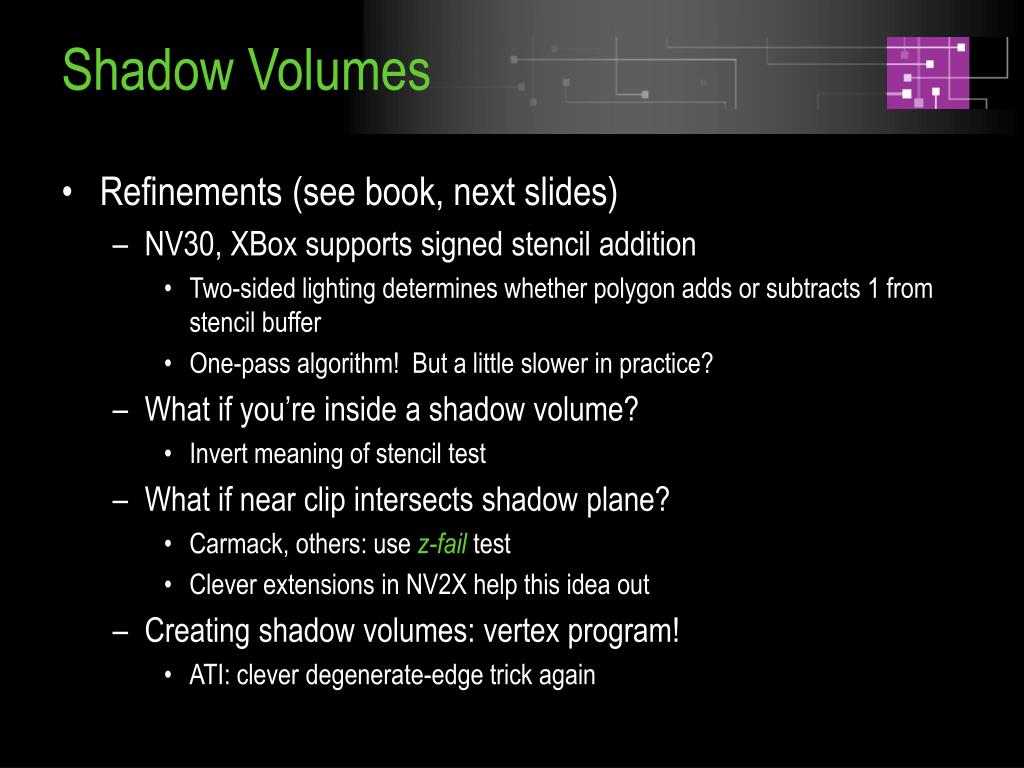

Shadow volumes11 l.jpg
Shadow Volumes

  • Refinements (see book, next slides)

    • NV30, XBox supports signed stencil addition

      • Two-sided lighting determines whether polygon adds or subtracts 1 from stencil buffer

      • One-pass algorithm! But a little slower in practice?

    • What if you’re inside a shadow volume?

      • Invert meaning of stencil test

    • What if near clip intersects shadow plane?

      • Carmack, others: use z-fail test

      • Clever extensions in NV2X help this idea out

    • Creating shadow volumes: vertex program!

      • ATI: clever degenerate-edge trick again


Shadow volumes12 l.jpg
Shadow Volumes

  • Advantages:

    • Robust

    • Self-shadowing

    • GPU

  • Disadvantages:

    • Can be geometry limited

      • Stencil polys

      • Multi-pass scene geometry

    • Can be fill limited

    • Stencil test – per pixel expense

    • Hard shadows


Shadow volumes13 l.jpg
Shadow Volumes

  • Will return to the gruesome details shortly

Real-Time Rendering


Shadow maps l.jpg
Shadow Maps

  • Idea:

    • Render scene from light source, read Z-buffer

    • Result: discretized image (shadow map) telling distance of objects to light source

    • Render scene normally

      • At each pixel, calculate distance D to light

      • Compare to distance S stored in shadow map

      • If D=S, surface lit by light, else in shadow

Real-Time Rendering


Shadow maps15 l.jpg
Shadow Maps

  • The basic algorithm (w/o hardware)

    • Render scene with ambient lighting only

    • Read Z-buffer, transform values into coordinate system of light

    • Use comparison to set alpha buffer

    • Render w/ diffuse and specular components, multiplying by alpha

Real-Time Rendering


Shadow maps16 l.jpg
Shadow Maps

  • Advantages:

    • Hardware-accelerated general shadow algorithm

    • Supports self-shadowing

    • Cost is linear in # lights and # polygons

  • Disadvantages:

    • Self-shadow aliasing

      • Biasing and other techniques can help, but not fix

    • Shadow map resolution critical!

      • Solution: perspective shadow maps

Real-Time Rendering


Taken from l.jpg
Taken from:

Practical & RobustStenciled Shadow Volumes for Hardware-Accelerated Rendering

Cass Everitt & Mark J. Kilgard, NVIDIA

GDC 2003

See the accompanying paper at:

http://developer.nvidia.com/object/robust_shadow_volumes.html

Also see:

http://developer.nvidia.com/object/fast_shadow_volumes.html


2d cutaway of a shadow volume l.jpg
2D Cutaway of a Shadow Volume

Surface outsideshadow volume

(illuminated)

Shadowingobject

Lightsource

Shadowvolume

(infinite extent)

Eye position

(note that shadows are independent of the eye position)

Surface insideshadow volume

(shadowed)

Partially

shadowed

object


Shadow volume advantages l.jpg
Shadow Volume Advantages

  • Omni-directional approach

    • Not just spotlight frustums as with shadow maps

  • Automatic self-shadowing

    • Everything can shadow everything, including self

    • Without shadow acne artifacts as with shadow maps

  • Window-space shadow determination

    • Shadows accurate to a pixel

    • Or sub-pixel if multisampling is available

  • Required stencil buffer broadly supported today

    • OpenGL support since version 1.0 (1991)

    • Direct3D support since DX6 (1998)

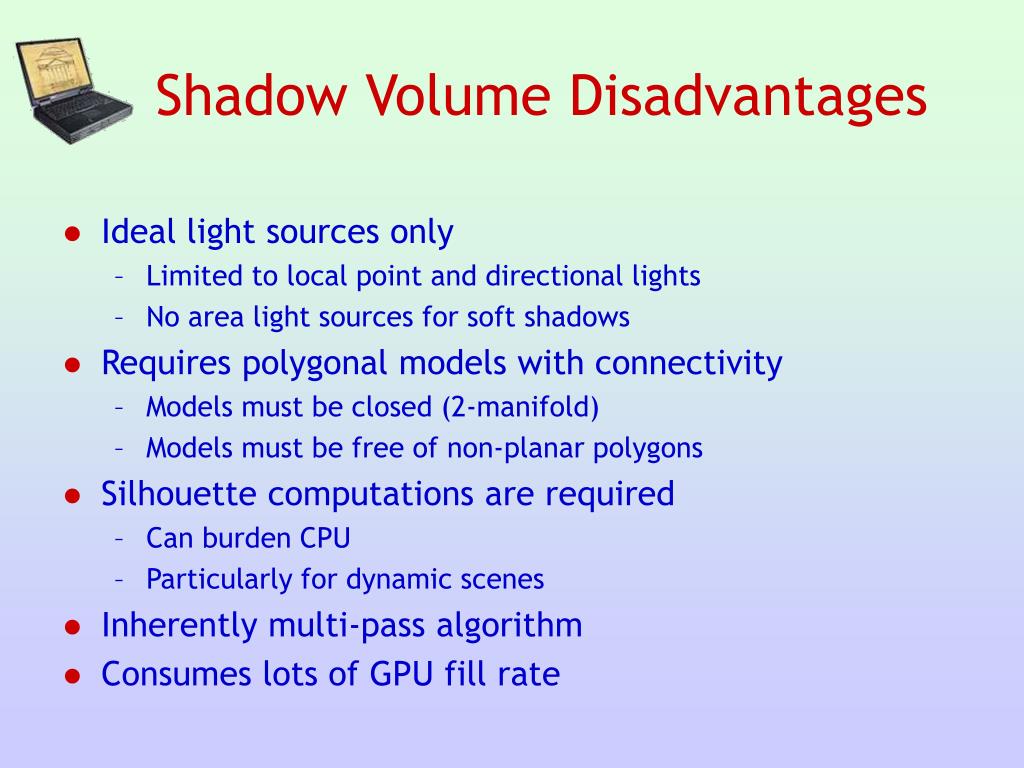

Shadow volume disadvantages l.jpg
Shadow Volume Disadvantages

  • Ideal light sources only

    • Limited to local point and directional lights

    • No area light sources for soft shadows

  • Requires polygonal models with connectivity

    • Models must be closed (2-manifold)

    • Models must be free of non-planar polygons

  • Silhouette computations are required

    • Can burden CPU

    • Particularly for dynamic scenes

  • Inherently multi-pass algorithm

  • Consumes lots of GPU fill rate

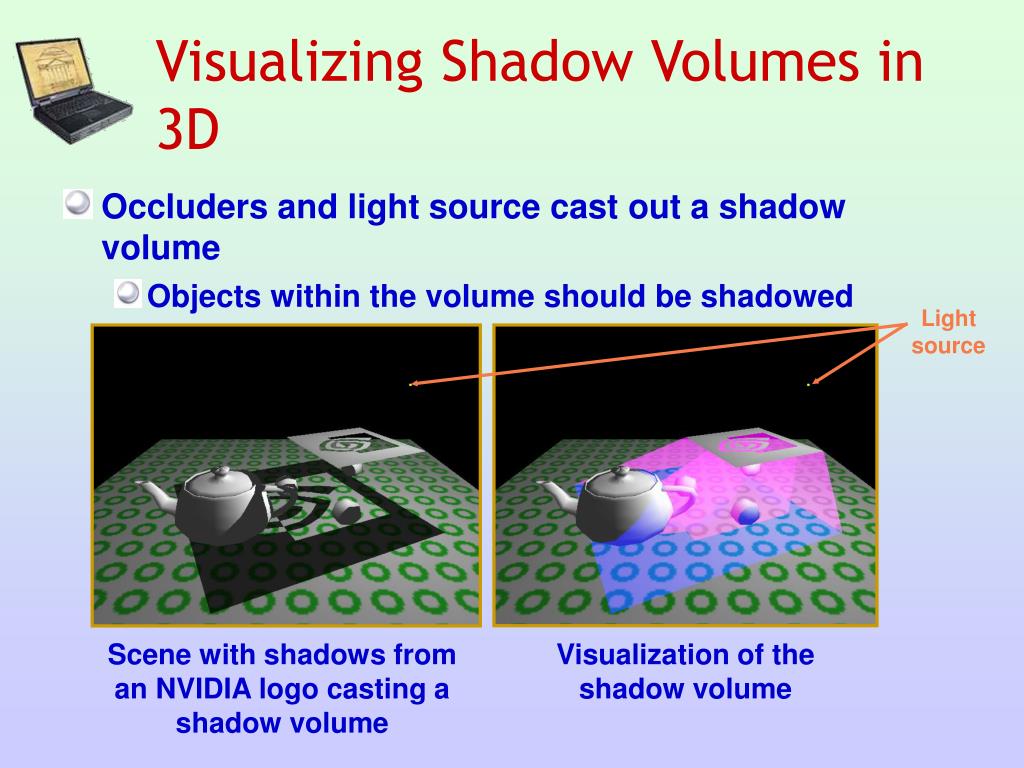

Visualizing shadow volumes in 3d l.jpg
Visualizing Shadow Volumes in 3D

  • Occluders and light source cast out a shadow volume

    • Objects within the volume should be shadowed

Lightsource

Scene with shadows from an NVIDIA logo casting a shadow volume

Visualization of the shadow volume

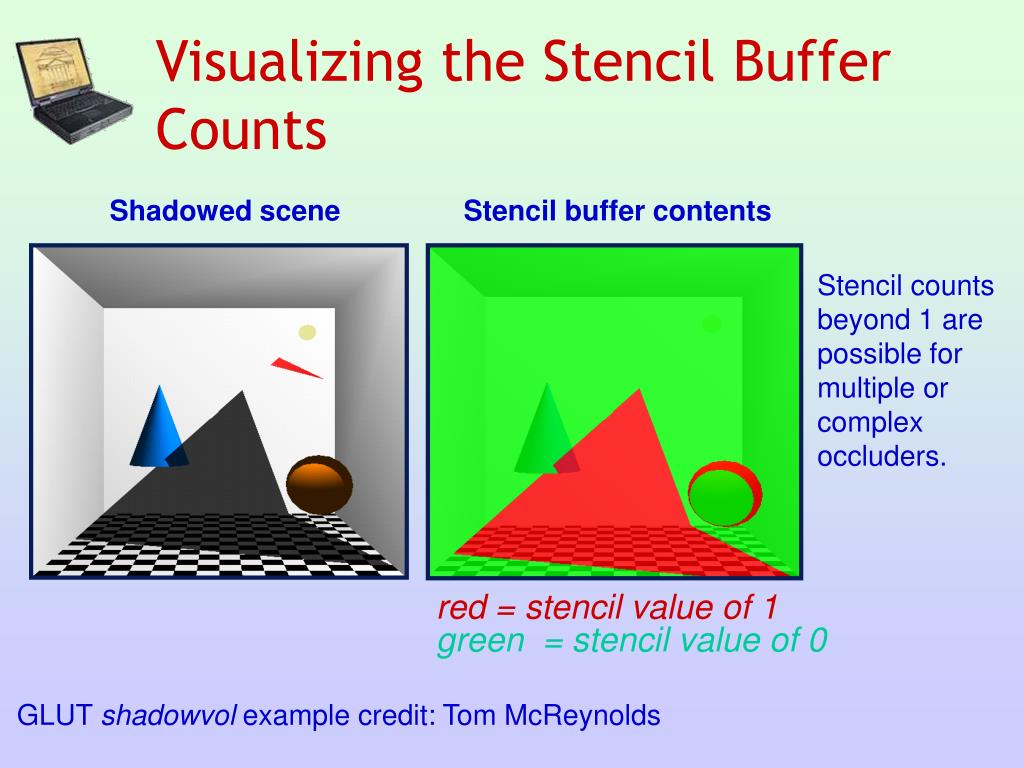

Visualizing the stencil buffer counts l.jpg
Visualizing the Stencil Buffer Counts

Shadowed scene

Stencil buffer contents

Stencil counts beyond 1 are possible for multiple or complex occluders.

red = stencil value of 1green = stencil value of 0

GLUT shadowvol example credit: Tom McReynolds


Algorithm l.jpg
Algorithm

  • Render scene to initialize depth buffer

    • Depth values indicate the closest visible fragments

  • Use a stencil enter/leave counting approach

    • Draw shadow volume twice using face culling

      • 1st pass: render front faces and increment when depth test passes

      • 2nd pass: render back faces and decrement when depth test passes

    • Don’t update depth or color

  • Afterward, pixel’s stencil is non-zero if pixel in shadow, and zero if illuminated

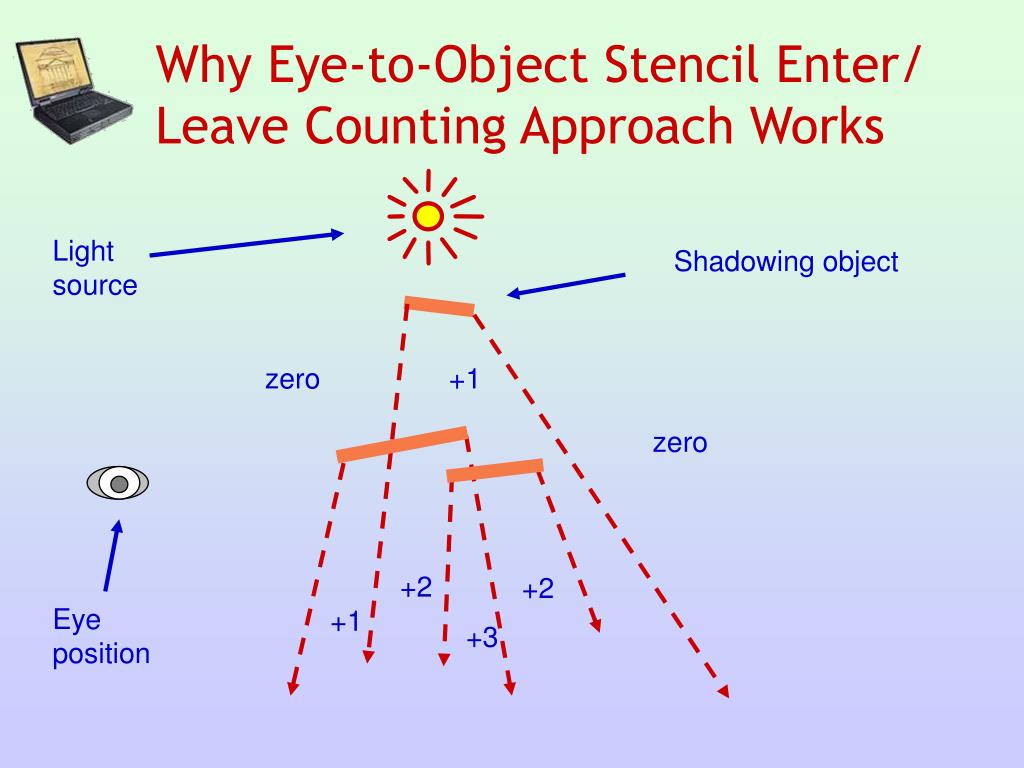

Why eye to object stencil enter leave counting approach works l.jpg
Why Eye-to-Object Stencil Enter/ Leave Counting Approach Works

Lightsource

Shadowing object

zero

+1

zero

+2

+2

Eyeposition

+1

+3


Illuminated behind shadow volumes l.jpg

+ Works

+

+

-

-

-

Illuminated,Behind Shadow Volumes

Lightsource

Shadowing object

zero

+1

zero

Unshadowedobject

+2

+2

Eyeposition

+1

+3

Shadow Volume Count = +1+1+1-1-1-1 = 0

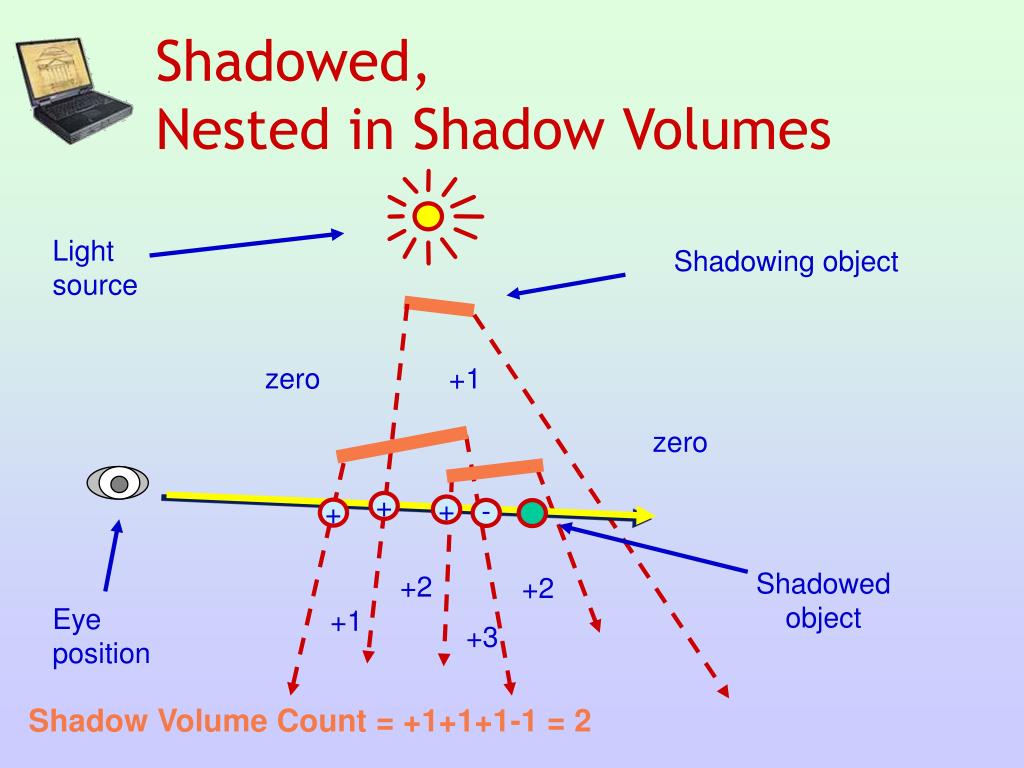

Shadowed nested in shadow volumes l.jpg

+ Works

+

+

-

Shadowed,Nested in Shadow Volumes

Lightsource

Shadowing object

zero

+1

zero

Shadowedobject

+2

+2

Eyeposition

+1

+3

Shadow Volume Count = +1+1+1-1 = 2


Illuminated in front of shadow volumes l.jpg
Illuminated, WorksIn Front of Shadow Volumes

Lightsource

Shadowing object

zero

+1

zero

Shadowedobject

+2

+2

Eyeposition

+1

+3

Shadow Volume Count = 0


Problems created by near plane clipping zpass approach l.jpg
Problems Created by Near Plane Clipping ( WorksZpass approach)

Missed shadow volume intersection due to near clip plane clipping; leads to mistaken count

Far clipplane

zero

+1

+1

+2

zero

+3

+2

Near clipplane
