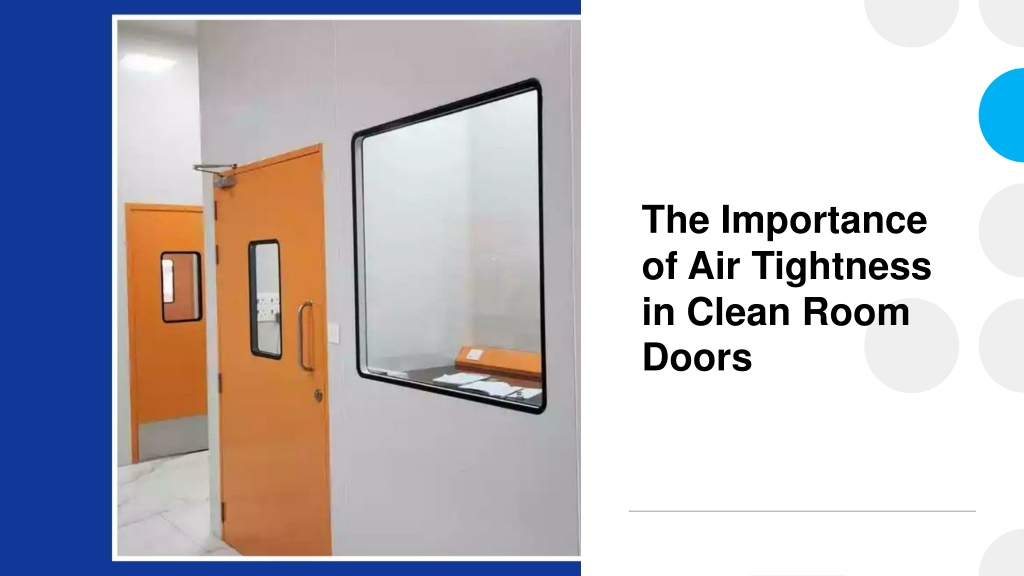

  1. The Importance of Air Tightness in Clean Room Doors

  2. Maintaining a controlled environment is crucial in cleanrooms, where even the slightest contamination can impact production and research processes. One of the key elements in ensuring a secure and contamination-free cleanroom is the installation of high-quality, air-tight clean room doors. These specialized doors provide effective barriers against airborne particles, maintaining the required environmental conditions within the cleanroom space.

  3. Features and Specifications of Clean Room Doors 1. Superior Construction for Durability and Performance Clean room doors are designed with a double skin construction, similar to modular panels, and are assembled with a sturdy door profile. They are available with or without view panels, providing flexibility based on operational requirements.

  4. 2. High-Quality Material for Enhanced Protection Manufactured using GPSP GI Sheet, clean room doors offer robust durability. The standard specifications include: Sheet Thickness: 0.8 mm for standard doors, 1.2 mm for fire-rated doors Frame Thickness: 1.2 mm for standard doors, 1.6 mm for fire-rated doors Shutter Thickness: 42 mm, 44 mm, or 46 mm Paint/Finish: Powder coated or stainless steel Powder Coating Thickness: 60-80 microns

  5. 3. Customizable Sizes for Various Applications Clean room doors come in multiple thicknesses and widths to accommodate different space requirements: Thickness Options: 50mm, 80mm, 100mm, 150mm Width Options: 750mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, 2200mm

  6. 4. Essential Door Accessories for Functionality To enhance performance and usability, clean room doors are equipped with high-quality accessories, including: Stainless steel hinges (3-4 per door) Stainless steel ‘D’ type handles (20 mm dia., 300 mm long) Stainless steel push plate (125 x 300 mm) Dorma TS-68 door closer with standard arm Key-operated locking system Automatic door bottom seal for enhanced air-tightness View panel with 6 mm thick safety glass Panic bar for emergency exits Flush tower bolt for double doors Stainless steel kick plate (300 mm height) Door interlocking system

  7. 5. Superior Insulation for Energy Efficiency Clean room doors are designed with high-performance filler materials that provide exceptional thermal and sound insulation. Options include: PUF: 40±2 kg/m³ PIR: 48±2 kg/m³ ROCKWOOL: 96±2 kg/m³

  8. Conclusion Air tightness is a critical factor in maintaining the integrity of a cleanroom environment. Clean room doors, with their precision-engineered design and advanced insulation materials, play a vital role in ensuring contamination control, energy efficiency, and operational safety. By investing in high-quality clean room doors, industries can uphold the strict standards required for pharmaceutical, food, and chemical manufacturing processes.
