  1. Non-Deterministic Finite Automata

  2. Nondeterministic Finite Automaton (NFA) Alphabet =

  3. Alphabet = Two choices

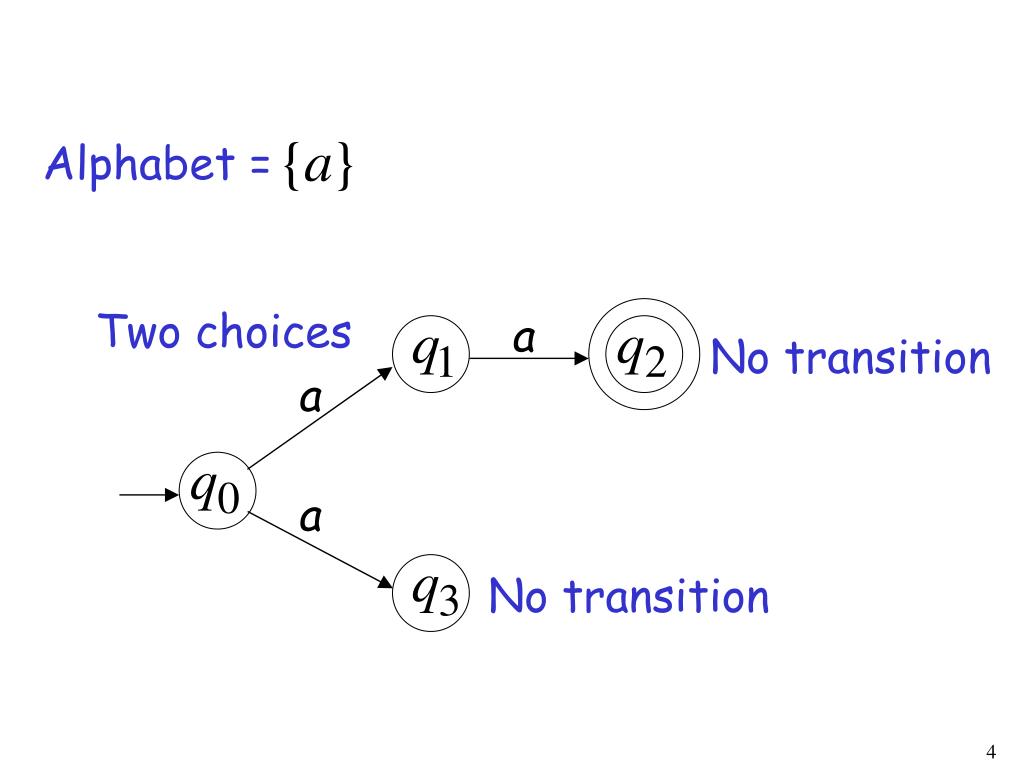

  4. Alphabet = Two choices No transition No transition

  5. First Choice

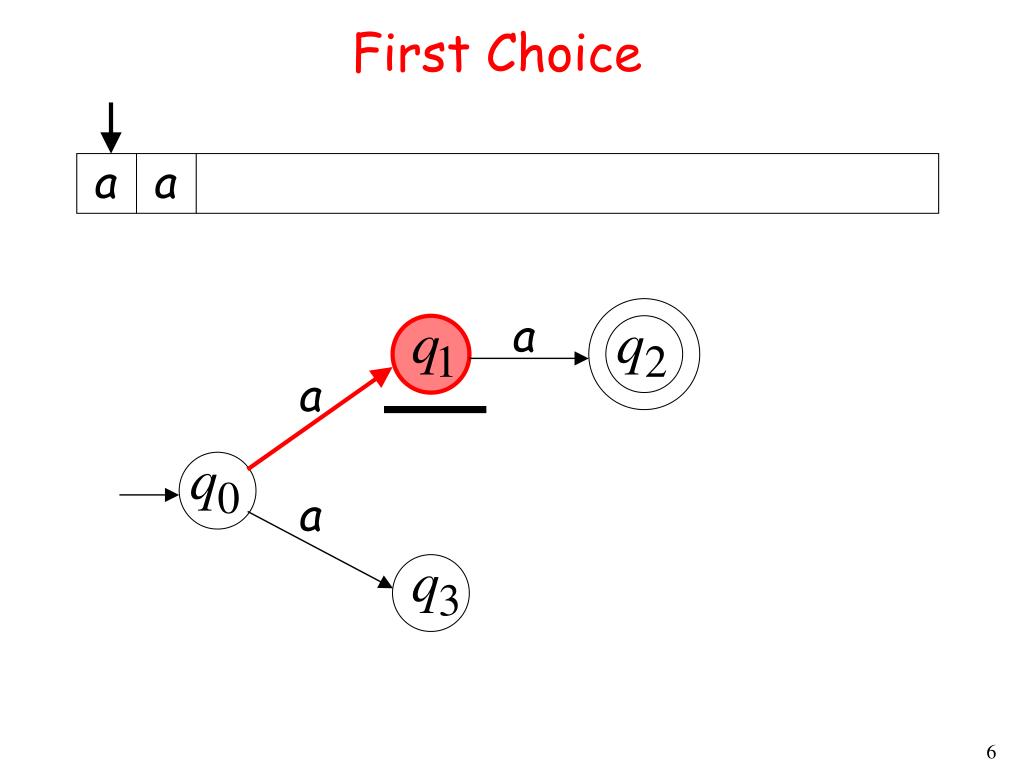

  6. First Choice

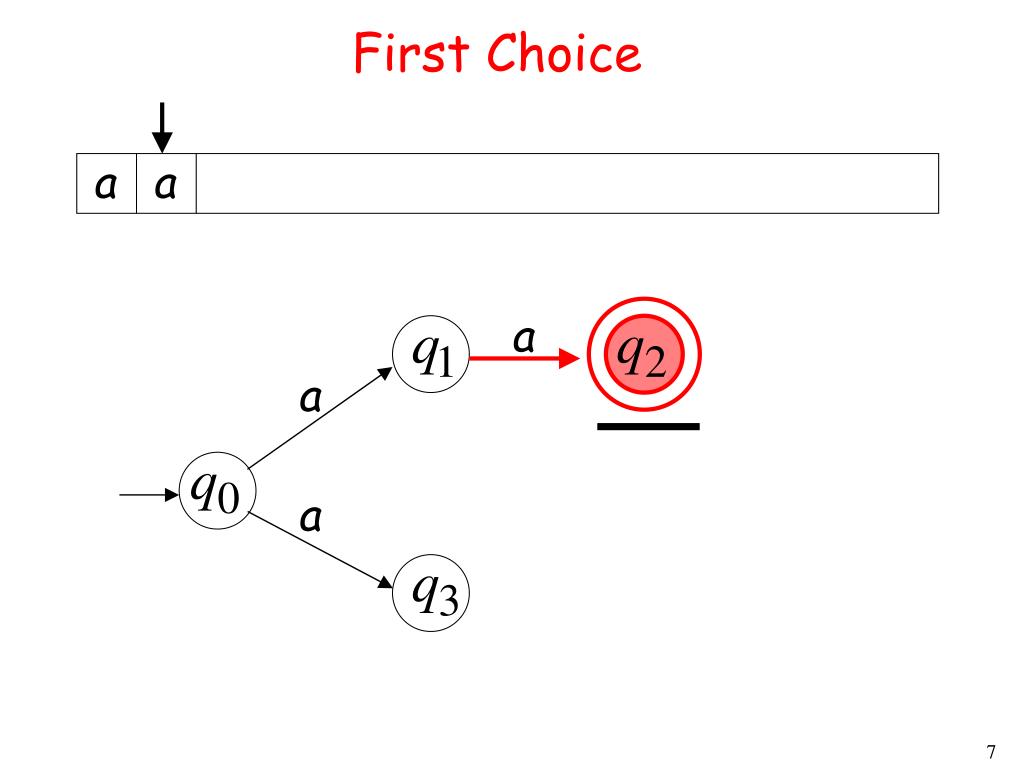

  7. First Choice

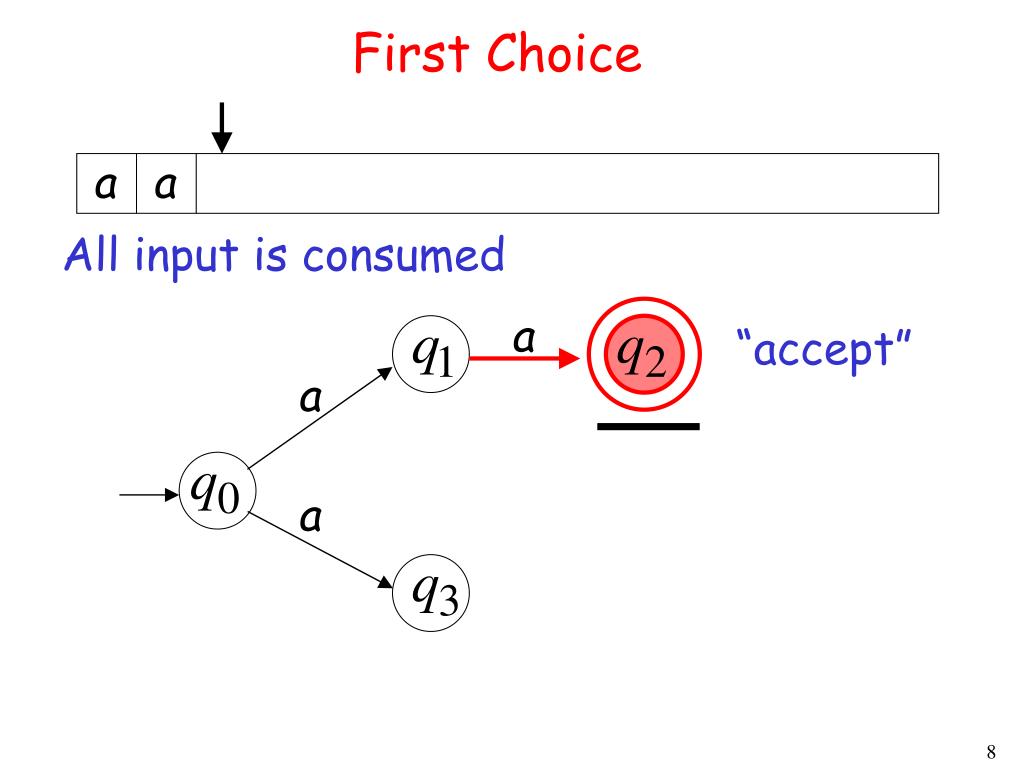

  8. First Choice All input is consumed “accept”

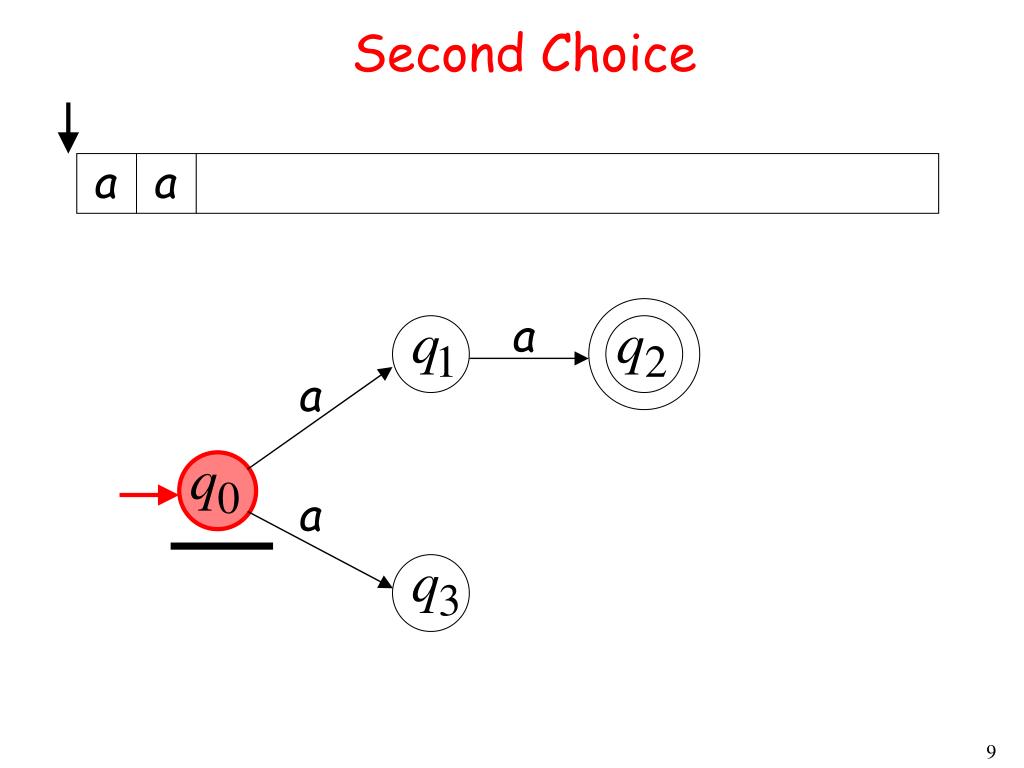

  9. Second Choice

  10. Second Choice

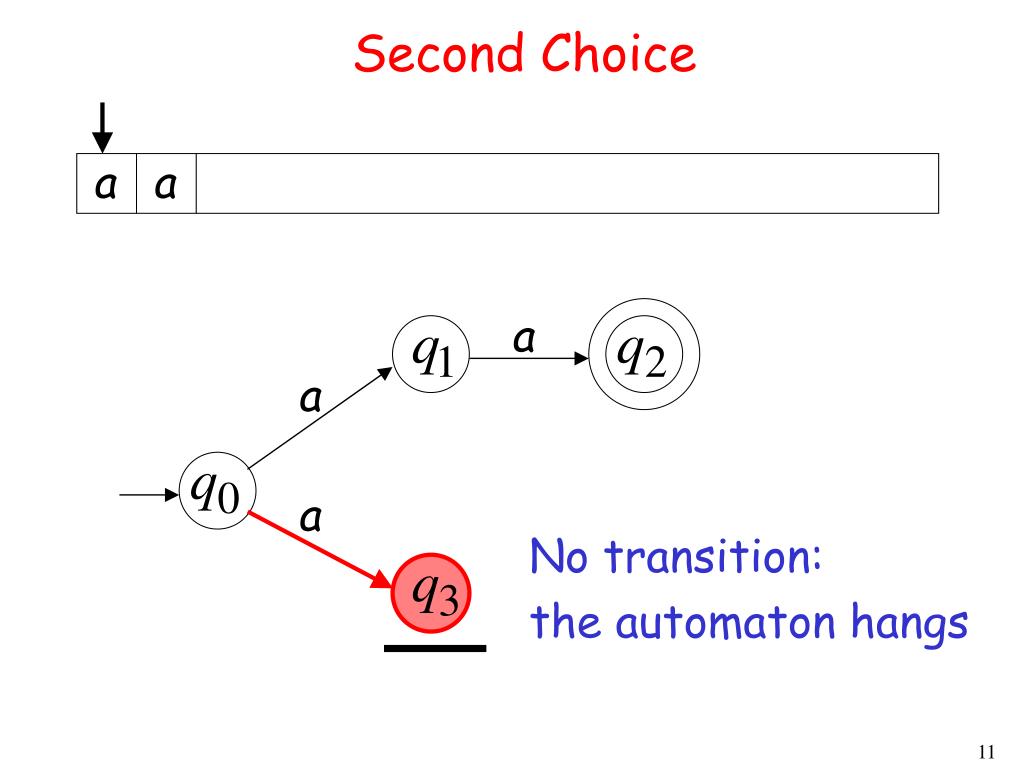

  11. Second Choice No transition: the automaton hangs

  12. Second Choice Input cannot be consumed “reject”

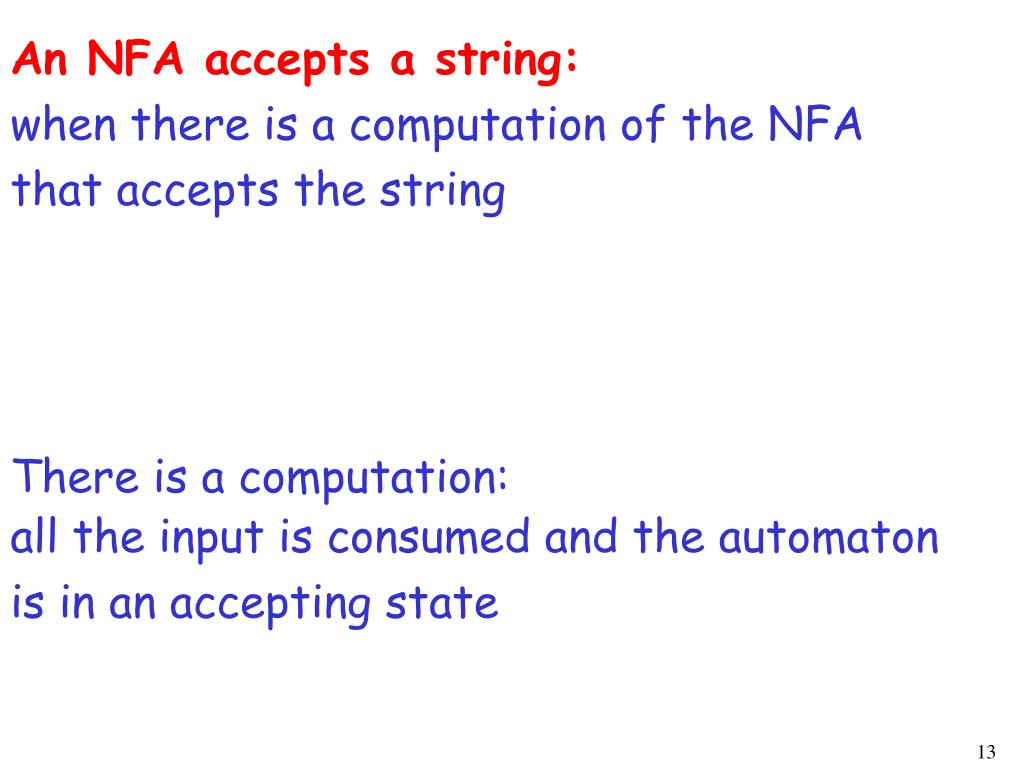

  13. An NFA accepts a string: when there is a computation of the NFA that accepts the string There is a computation: all the input is consumed and the automaton is in an accepting state

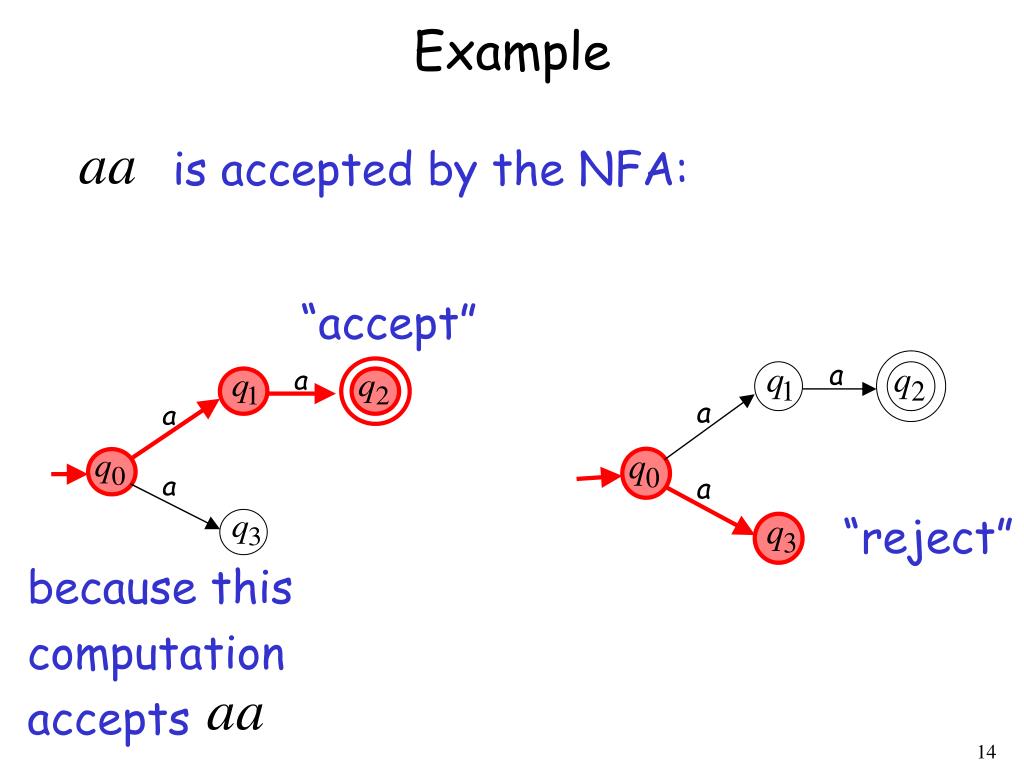

  14. Example is accepted by the NFA: “accept” “reject” because this computation accepts

  15. Rejection example

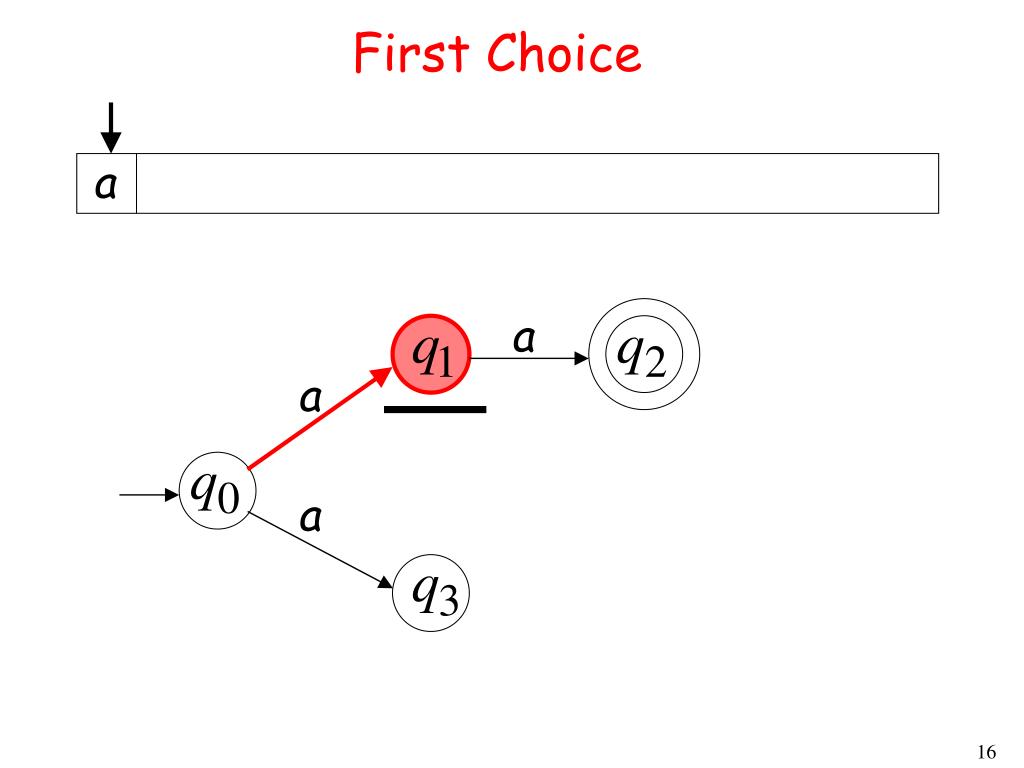

  16. First Choice

  17. First Choice “reject”

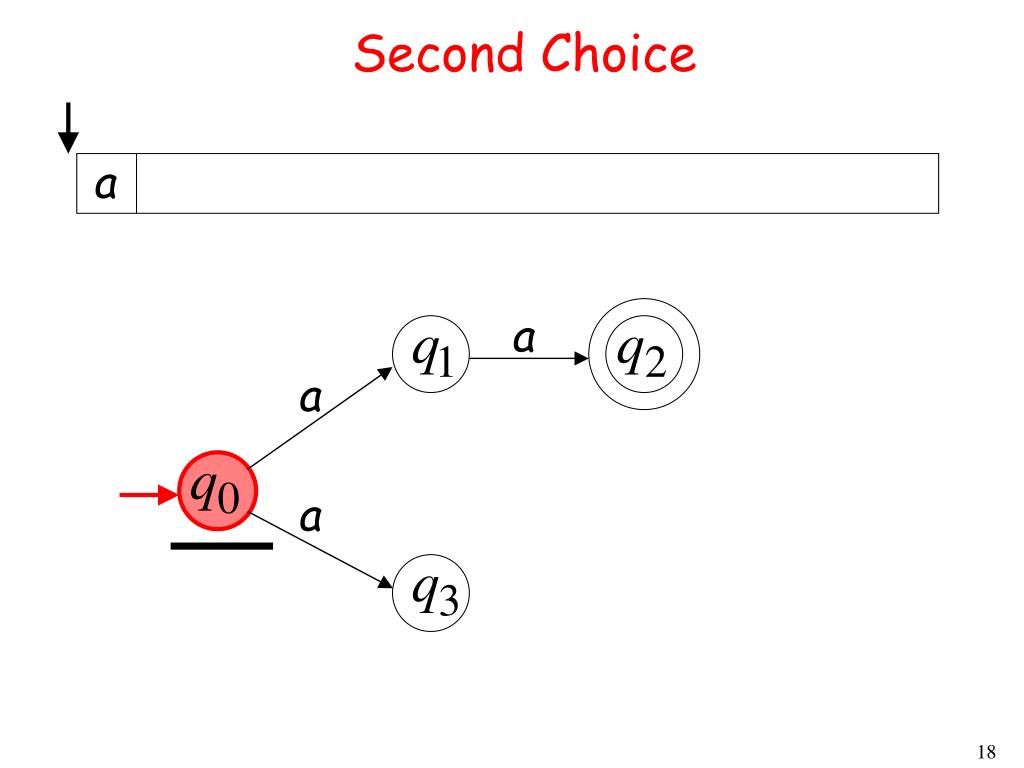

  18. Second Choice

  19. Second Choice

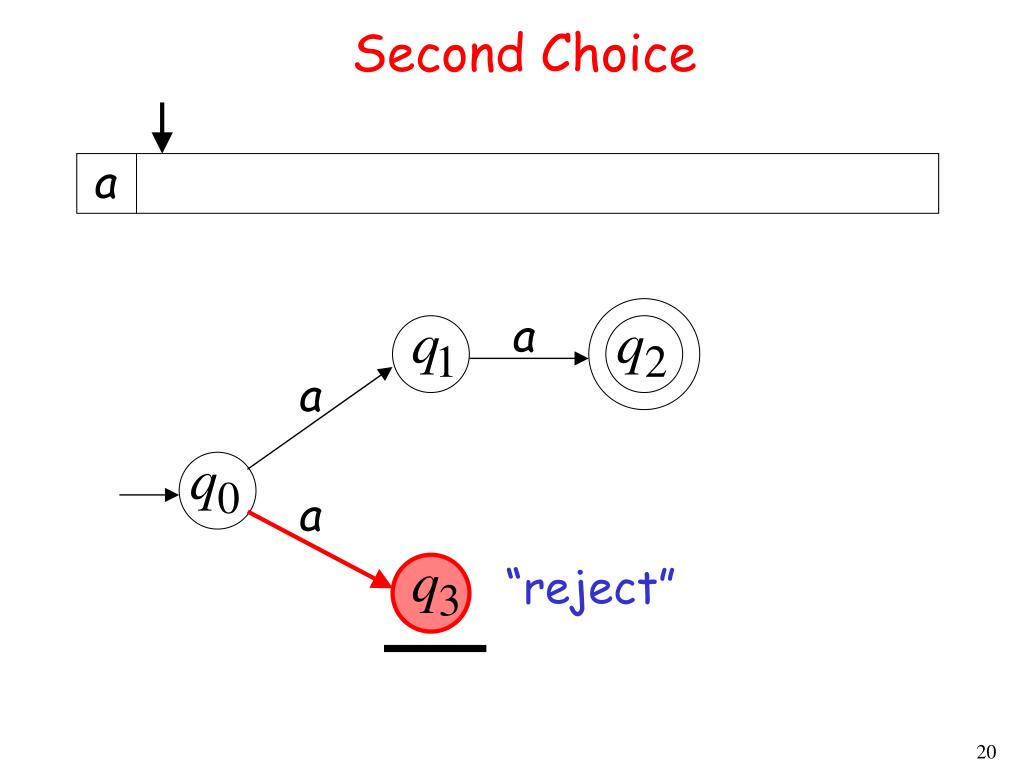

  20. Second Choice “reject”

  21. An NFA rejects a string: when there is no computation of the NFA that accepts the string. For each computation: • All the input is consumed and the • automaton is in a non final state OR • The input cannot be consumed

  22. Three major differences between FA & NFA • Each entry in the table of NFA is a set. • Allow as the second argument of . This means that the NFA can make a transition function without consuming an input symbol. • The set may be empty.

  23. Example is rejected by the NFA: “reject” “reject” All possible computations lead to rejection

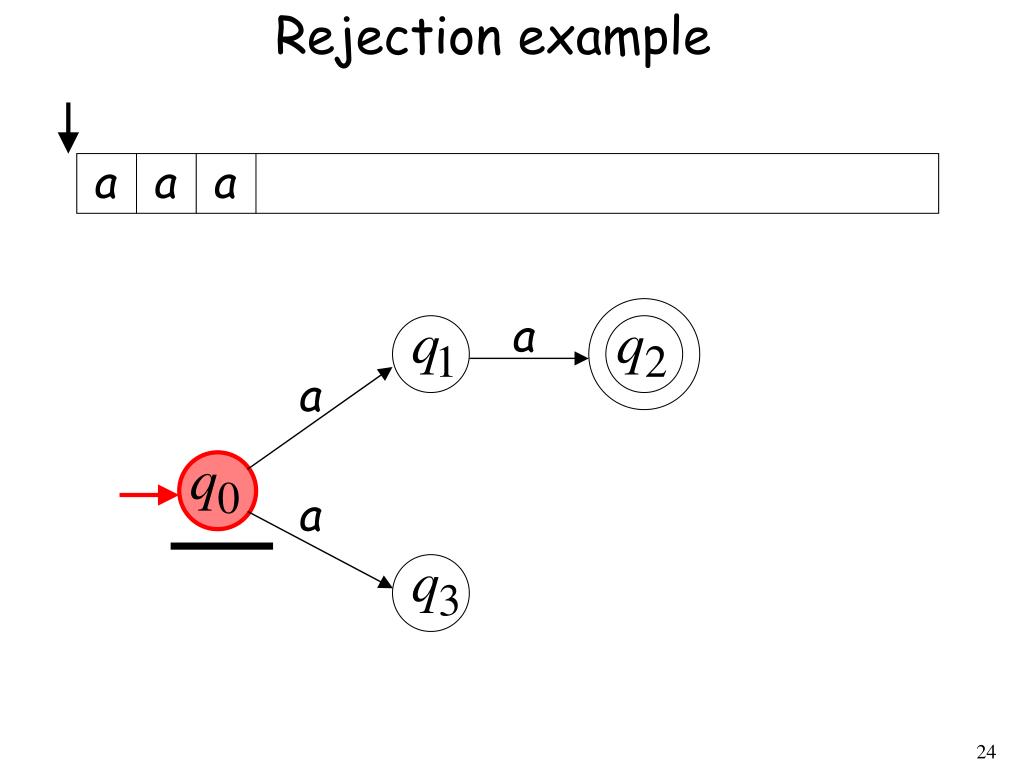

  24. Rejection example

  25. First Choice

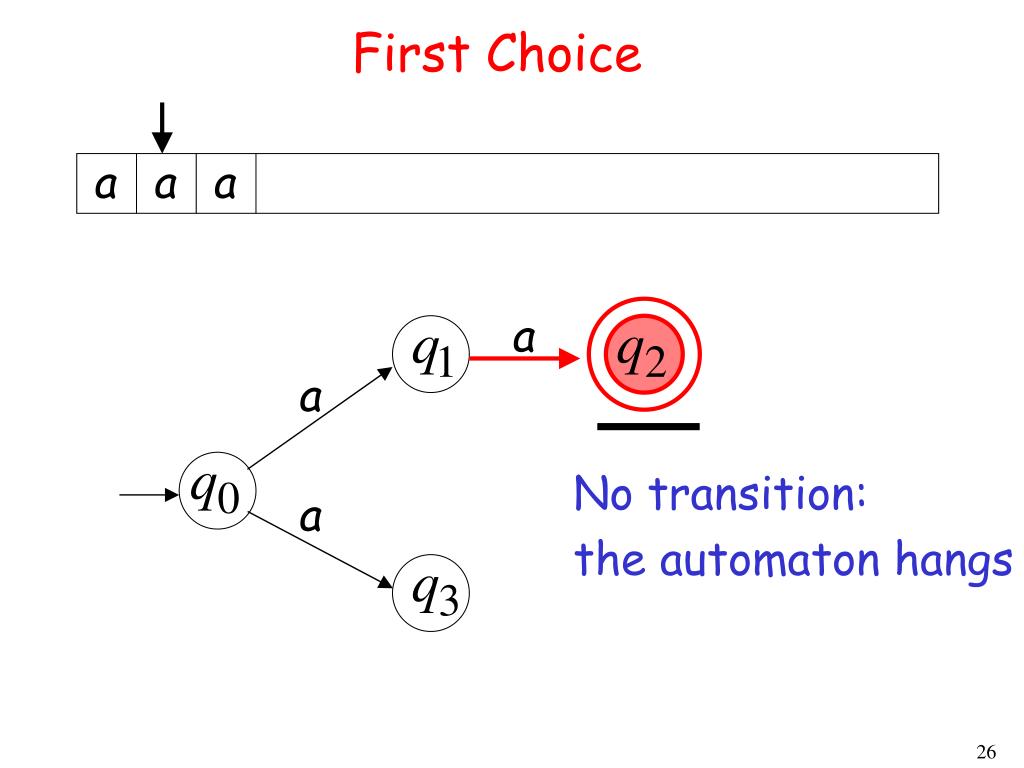

  26. First Choice No transition: the automaton hangs

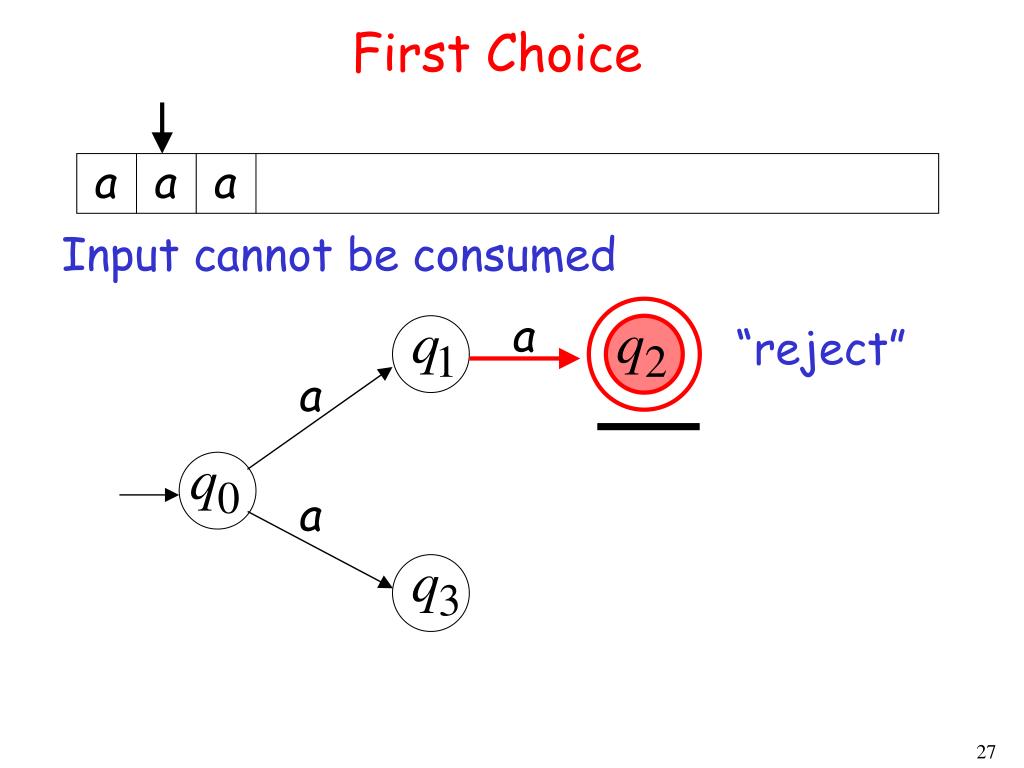

  27. First Choice Input cannot be consumed “reject”

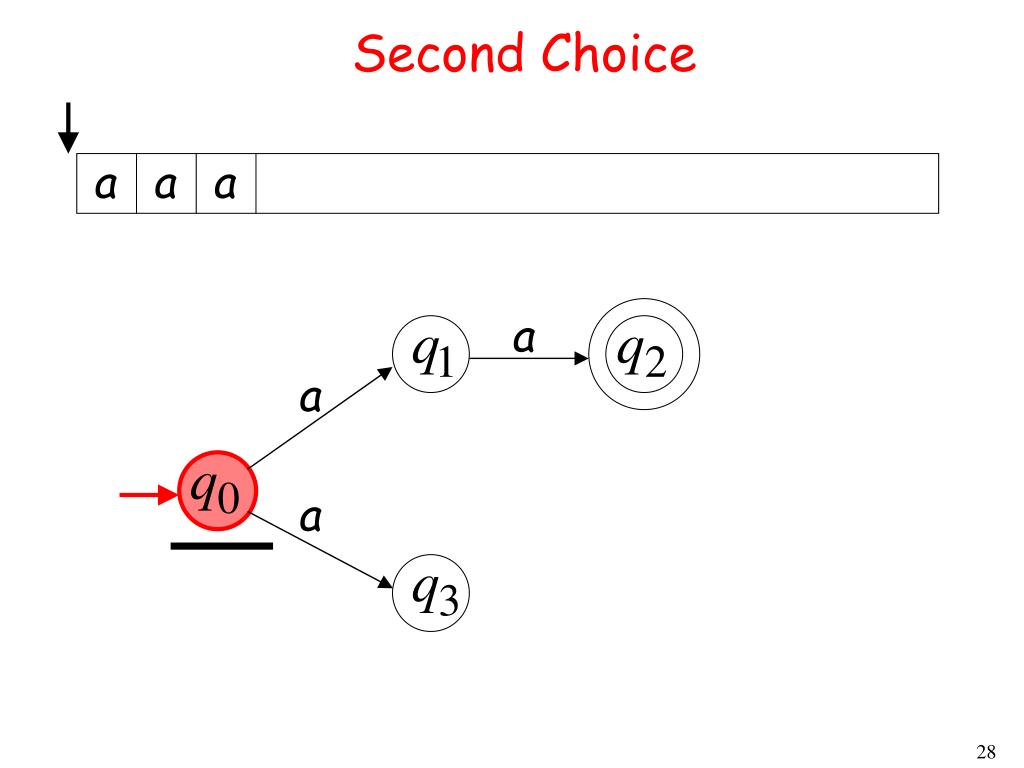

  28. Second Choice

  29. Second Choice

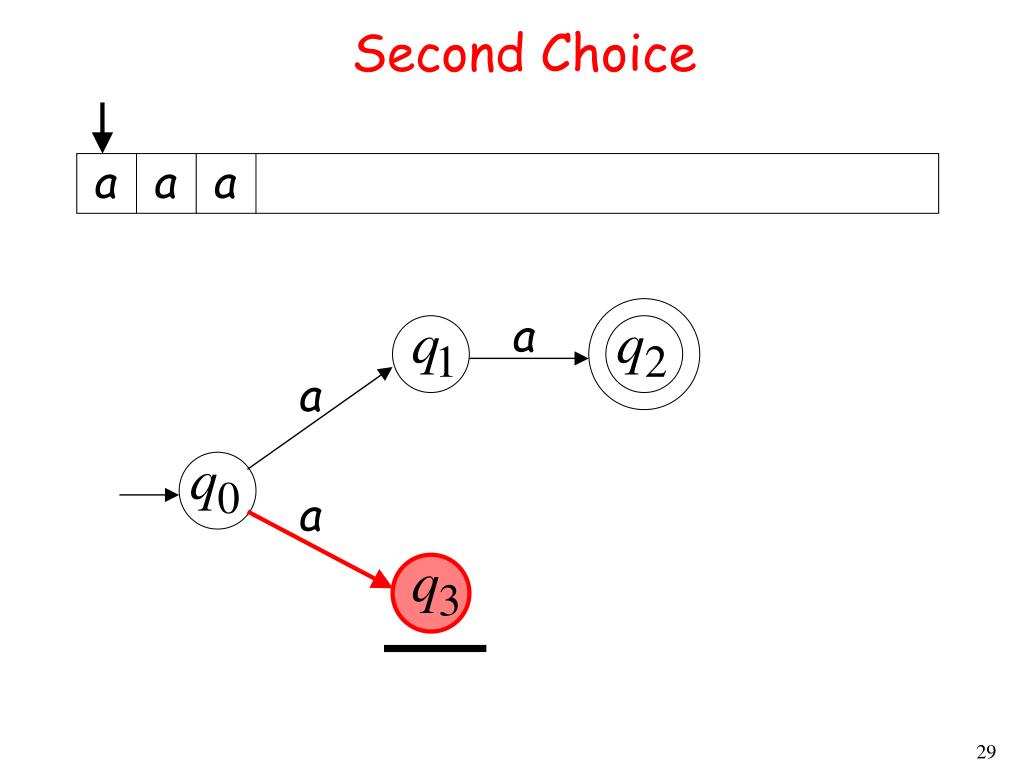

  30. Second Choice No transition: the automaton hangs

  31. Second Choice Input cannot be consumed “reject”

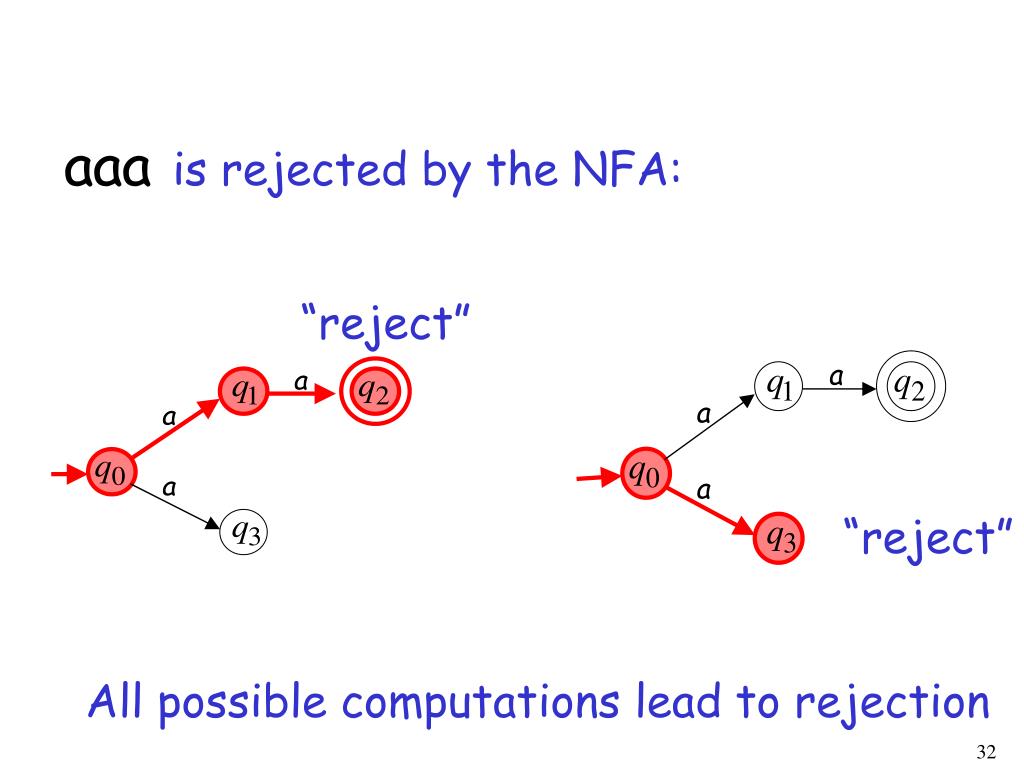

  32. is rejected by the NFA: “reject” “reject” All possible computations lead to rejection

  33. Language accepted:

  34. Lambda Transitions

  35. (read head does not move)

  36. all input is consumed “accept” String is accepted

  37. Rejection Example

  38. (read head doesn’t move)

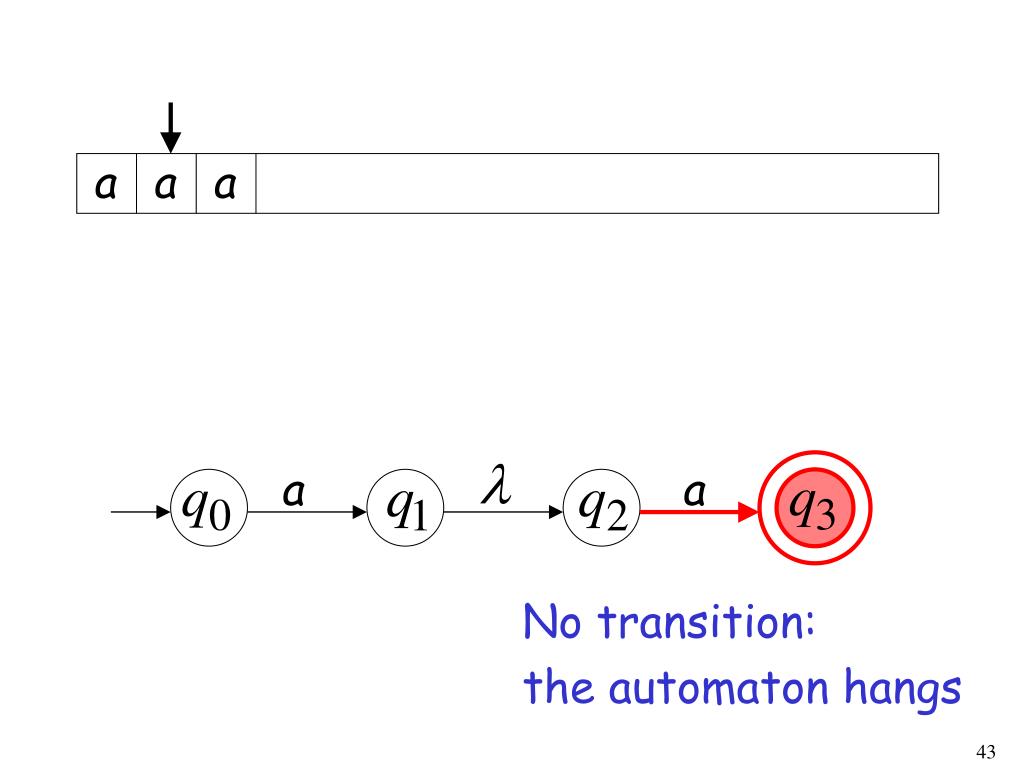

  39. No transition: the automaton hangs

  40. Input cannot be consumed “reject” String is rejected

  41. Language accepted:

  42. Another NFA Example

  43. “accept”
