  1. How Earthquakes are Located and Measured By Jacob and Christian

  2. How Seismologists Measure Earthquakes • Triangulation is the process they use to find the epicenter, or the middle of an earthquake • Triangulation requires the seismogram • To pin the exact location, seismologists use three seismograms that are in three different locations • According to Ask.com

  3. How Earthquake Damage is Measured • Mercalli Scale • Measures damage, not magnitude • Earthquakes can be measured from I to XII • Not very accurate • According to our science book

  4. How Earthquake Magnitudes are Measured • To measure magnitude, scientists can use the Richter Scale; a scale that has a base ten system • Magnitude 1=6 ounces of TNT blown up • Magnitude 8=6 million tons of TNT blown up • The Richter Scale measures energy, not damage • According to UPSeis

  5. Formulas for Measuring Earthquakes • Mb=log10 (A/T) + Q (D,h) • Mb is body wave magnitude • A is the amplitude of ground motion in microns • T is the corresponding period in seconds • Q (D, h) is the correction factor in a function of distance: D is degrees, h (in kilometers) of the earthquake • According to USGS

  6. Formulas (continued) • MS = log10 (A/T) + 1.66 log10 (D) + 3.30 • Standard surface wave formula • A, T, and D are the same exact variables as the Mb formula • According to USGS

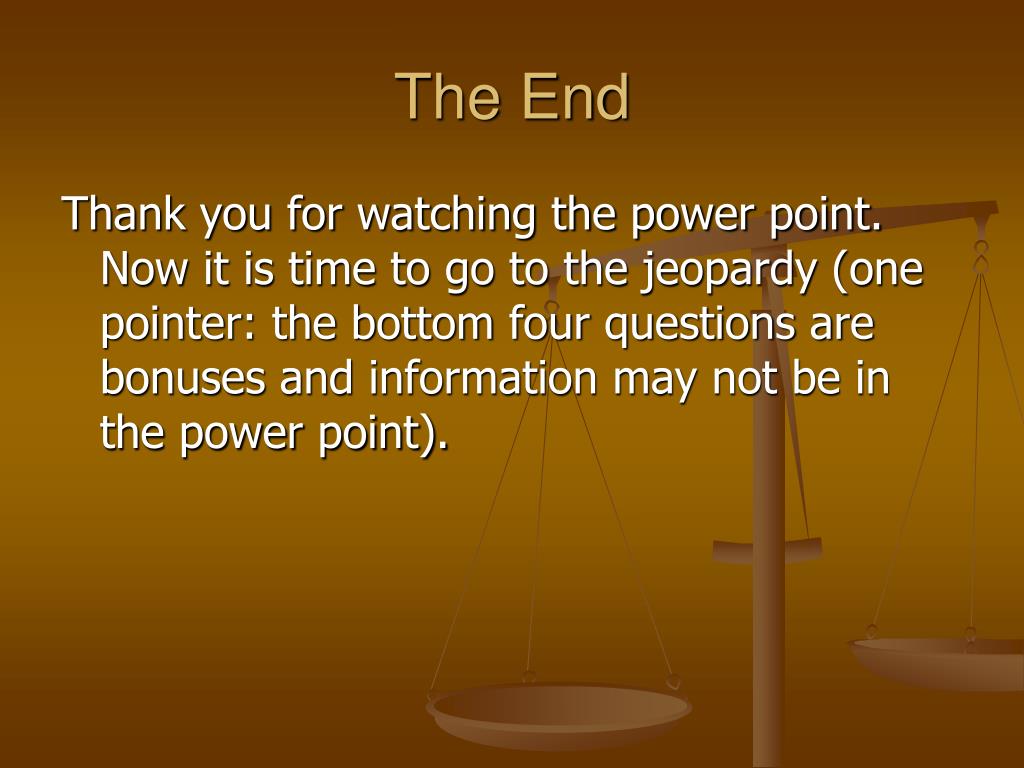

  7. The End Thank you for watching the power point. Now it is time to go to the jeopardy (one pointer: the bottom four questions are bonuses and information may not be in the power point).
