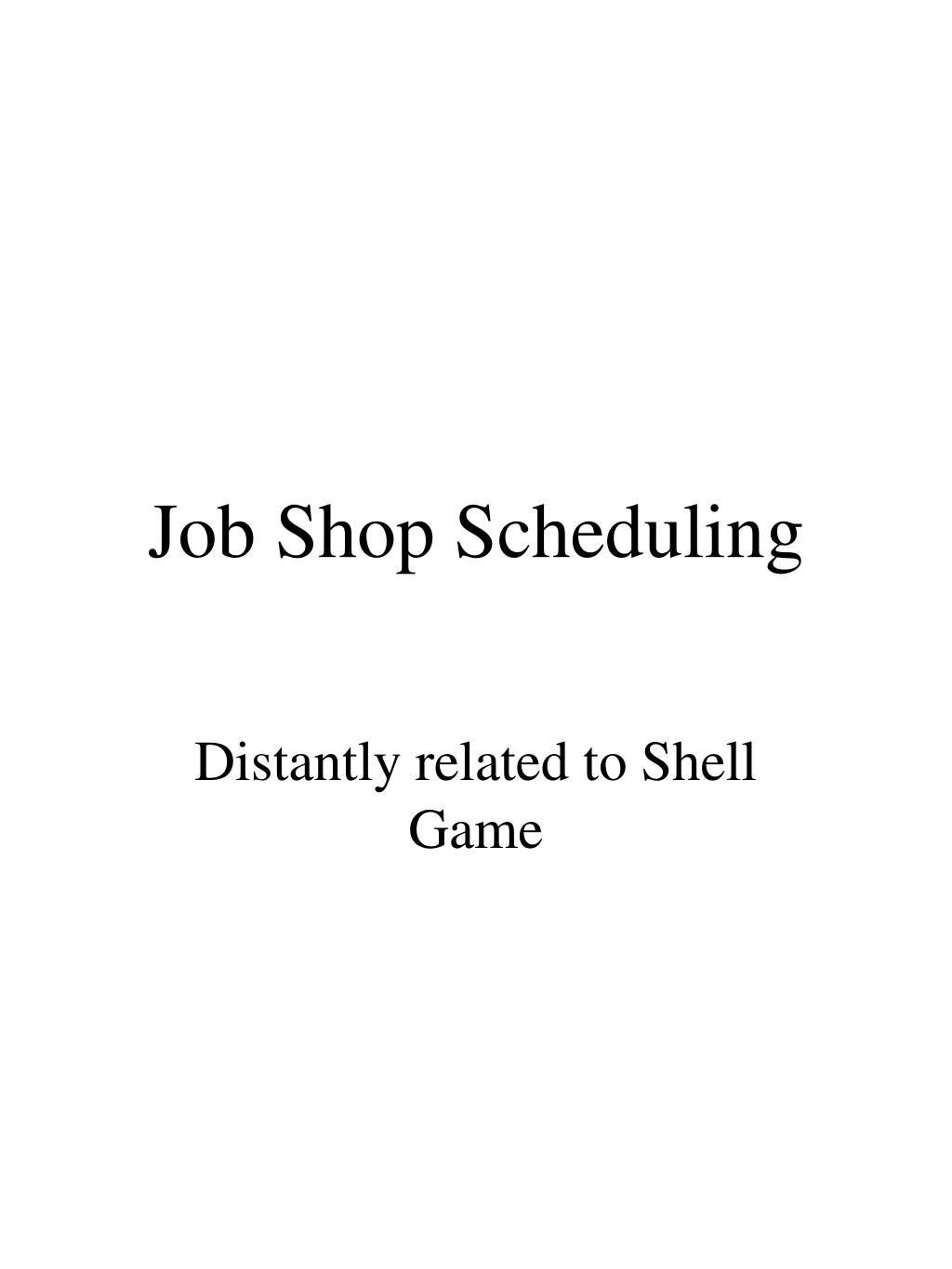

  1. Job Shop Scheduling Distantly related to Shell Game

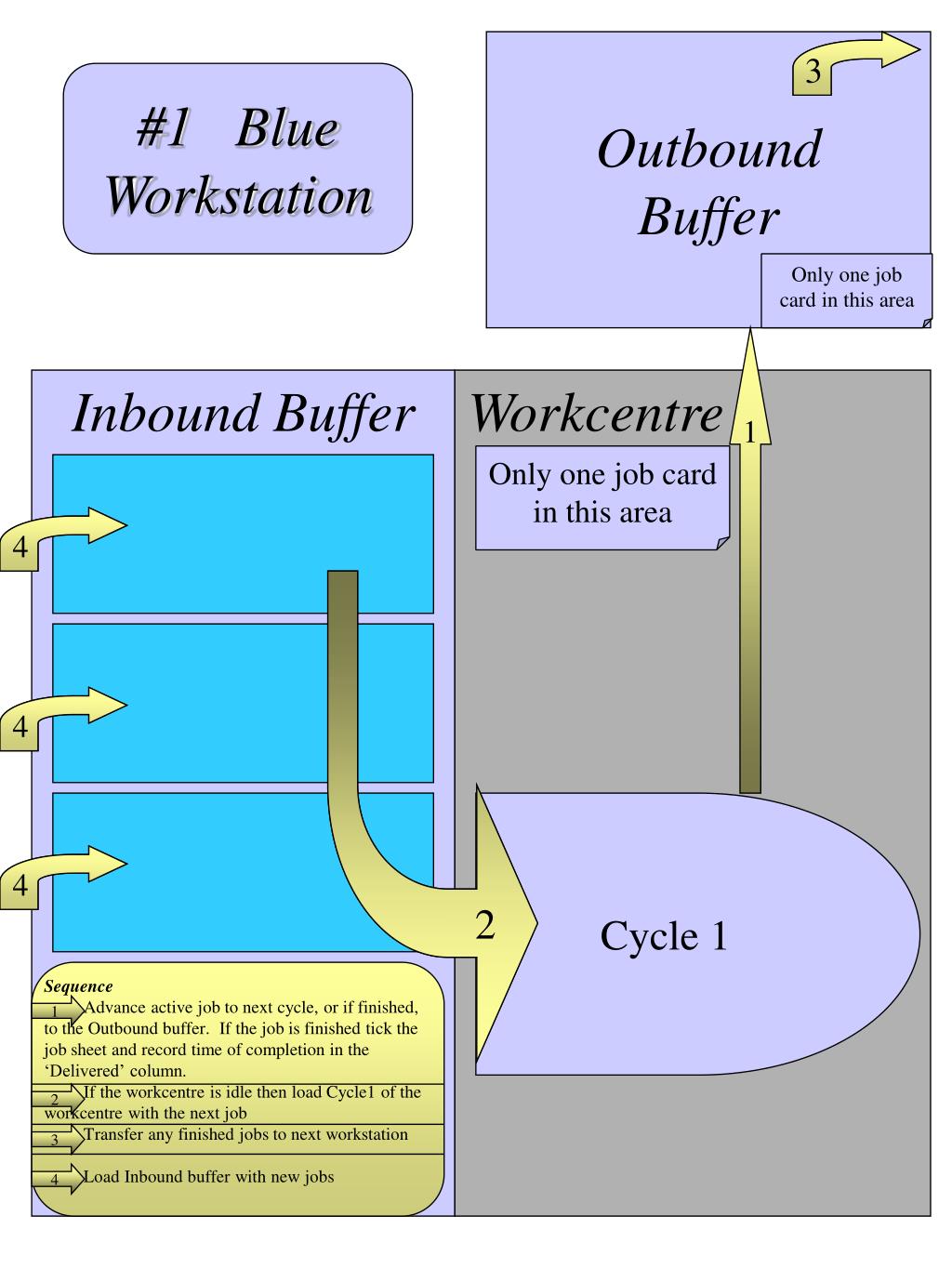

  2. 3 3 3 4 2 2 3 4 4 3 Sequence Advance active job to next cycle, or if finished, to the Outbound buffer. If the job is finished tick the job sheet and record time of completion in the ‘Delivered’ column. If the workcentre is idle then load Cycle1 of the workcentre with the next job Transfer any finished jobs to next workstation Load Inbound buffer with new jobs 1 2 3 4 Outbound Buffer #1 Blue Workstation Only one job card in this area Inbound Buffer Workcentre 1 Only one job card in this area Cycle 1

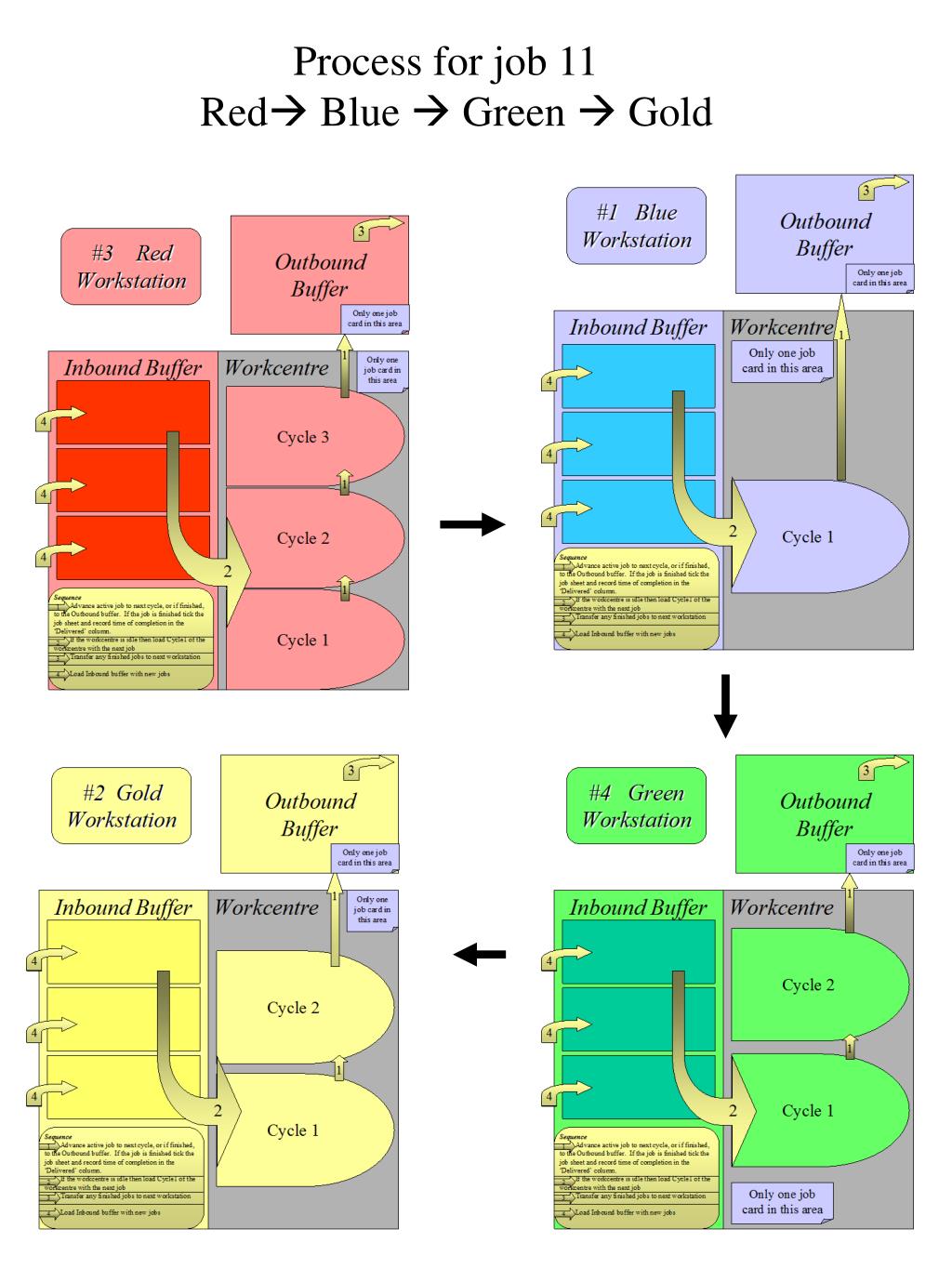

  3. Process for job 11 Red Blue  Green  Gold

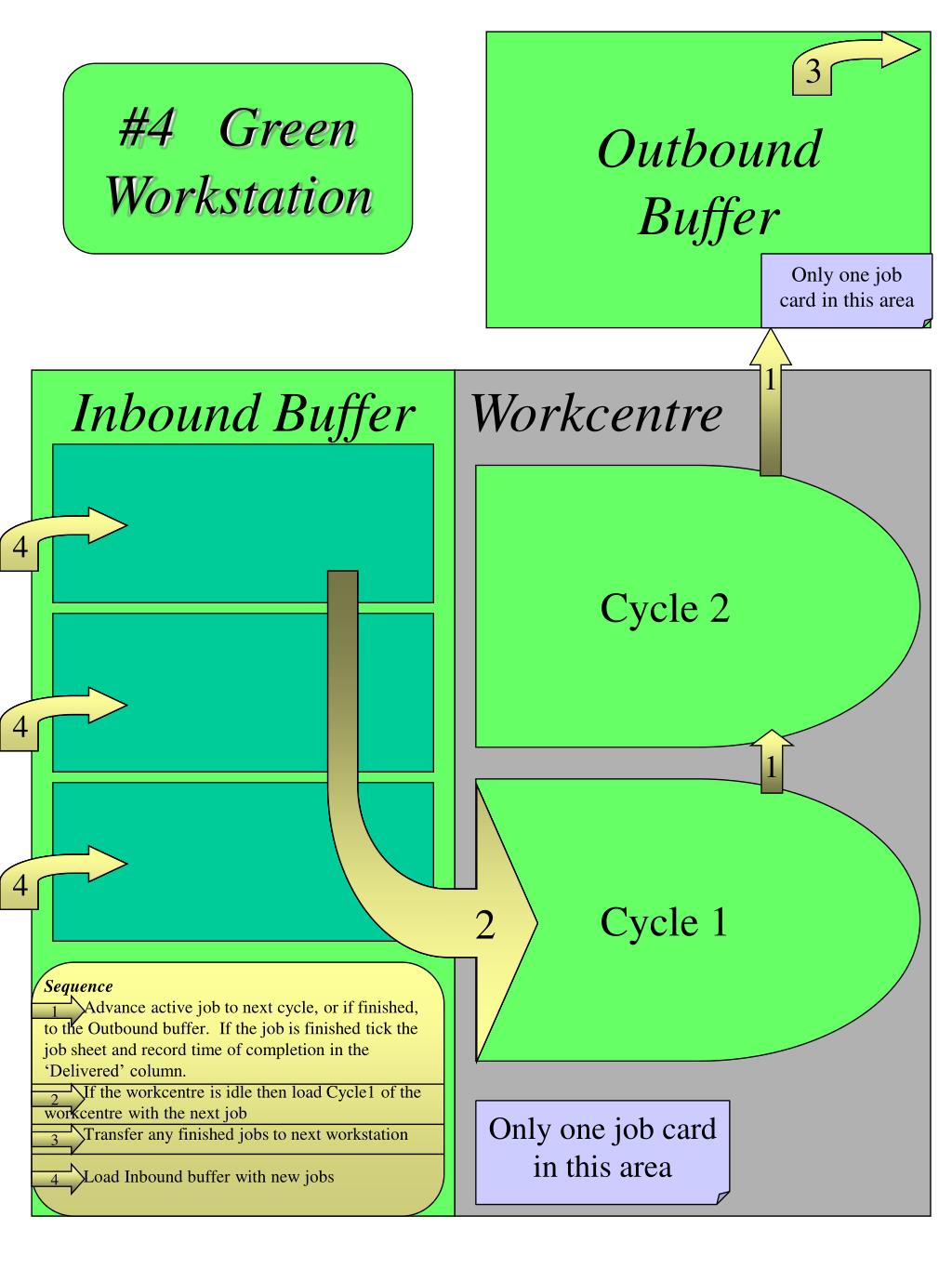

  4. 3 3 3 4 3 3 3 2 2 3 4 4 3 Sequence Advance active job to next cycle, or if finished, to the Outbound buffer. If the job is finished tick the job sheet and record time of completion in the ‘Delivered’ column. If the workcentre is idle then load Cycle1 of the workcentre with the next job Transfer any finished jobs to next workstation Load Inbound buffer with new jobs 1 2 3 4 Outbound Buffer 3 #4 Green Workstation Only one job card in this area 1 Inbound Buffer Workcentre Cycle 2 2 1 Cycle 1 Only one job card in this area

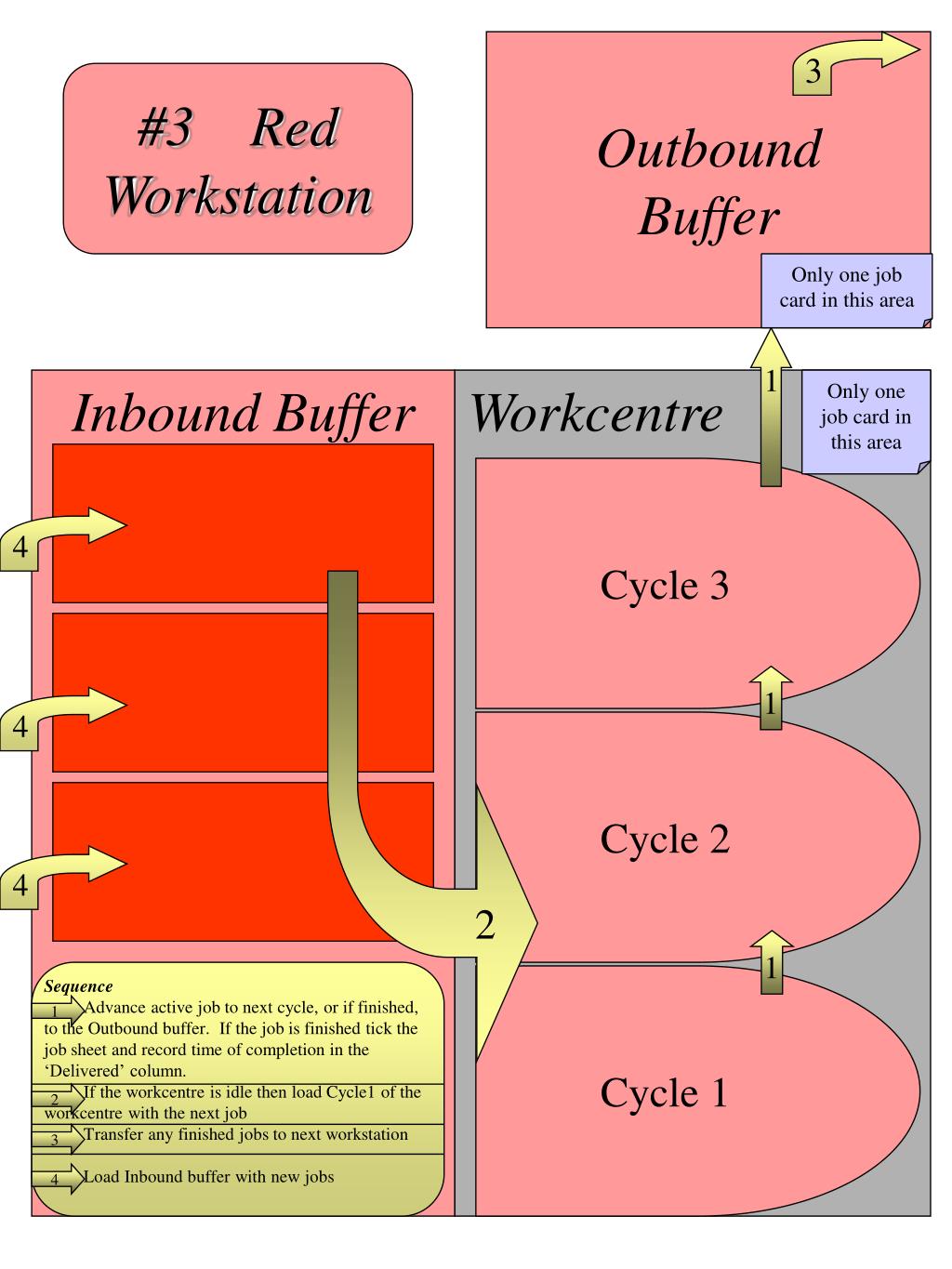

  5. 3 4 2 4 4 Sequence Advance active job to next cycle, or if finished, to the Outbound buffer. If the job is finished tick the job sheet and record time of completion in the ‘Delivered’ column. If the workcentre is idle then load Cycle1 of the workcentre with the next job Transfer any finished jobs to next workstation Load Inbound buffer with new jobs 1 2 3 4 Outbound Buffer #3 Red Workstation Only one job card in this area 1 Inbound Buffer Workcentre Only one job card in this area Cycle 3 1 Cycle 2 1 Cycle 1

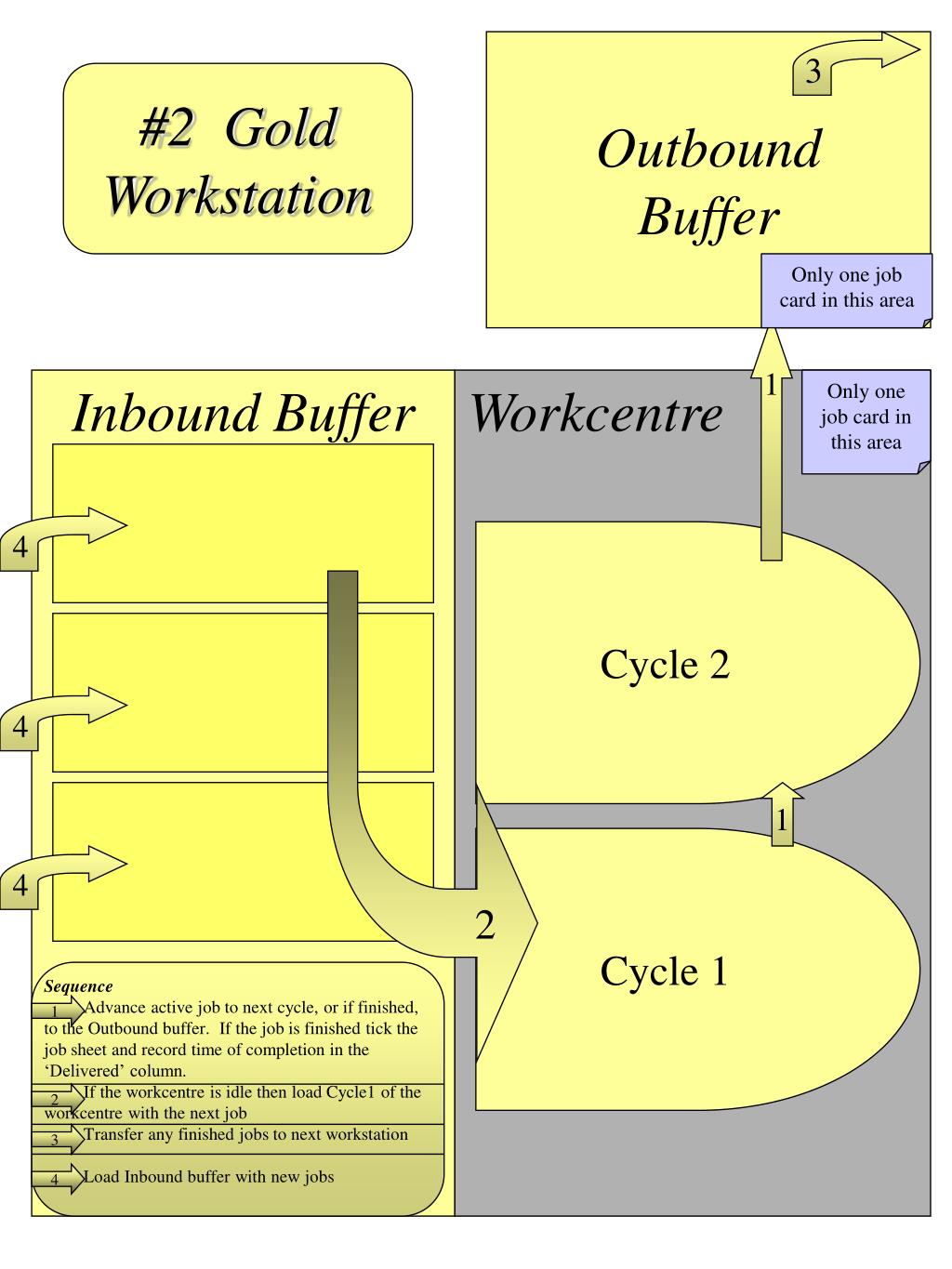

  6. 3 4 2 4 4 Sequence Advance active job to next cycle, or if finished, to the Outbound buffer. If the job is finished tick the job sheet and record time of completion in the ‘Delivered’ column. If the workcentre is idle then load Cycle1 of the workcentre with the next job Transfer any finished jobs to next workstation Load Inbound buffer with new jobs 1 2 3 4 Outbound Buffer #2 Gold Workstation Only one job card in this area 1 Inbound Buffer Workcentre Only one job card in this area Cycle 2 1 Cycle 1
