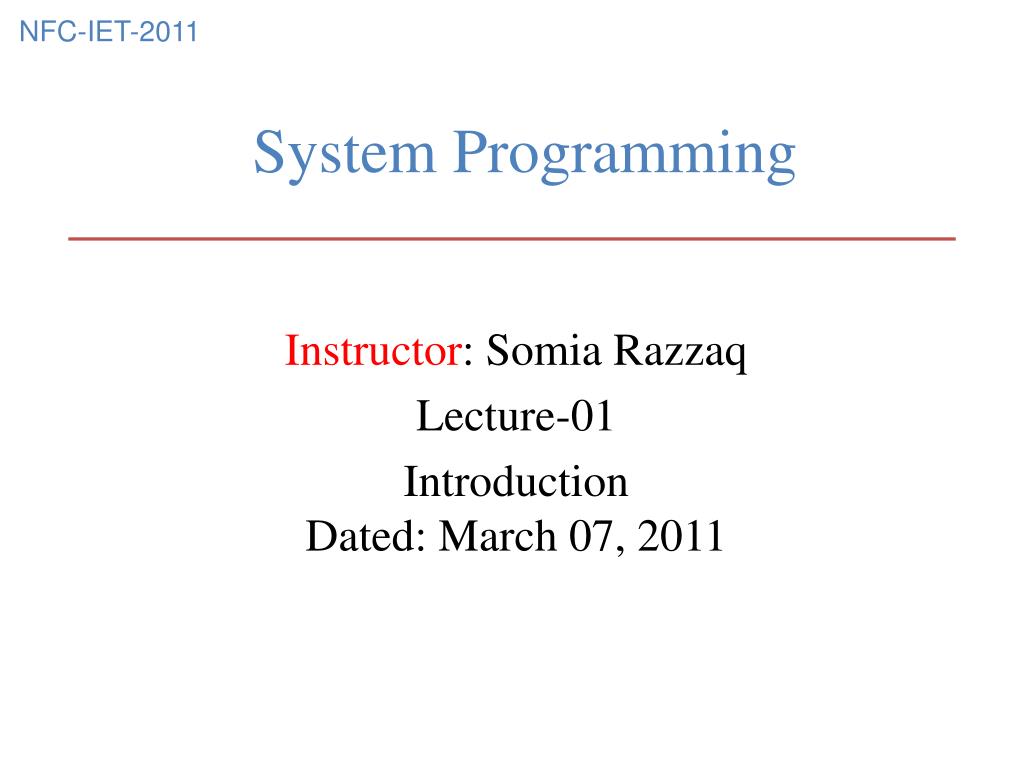

  1. NFC-IET-2011 System Programming Instructor: Somia Razzaq Lecture-01 Introduction Dated: March 07, 2011 Note: The lecture slides are taken from VU with slight modifications wherever it is needed.

  2. Course Grading • Quizzes(Surprise/Announced): 5% • Assignments: 5% • Final Project: 5% • Class Participation, Attendance etc.: 5% • Mid. Exam: 30% • Final Exam. : 50% “Interaction is necessary, please ask question”

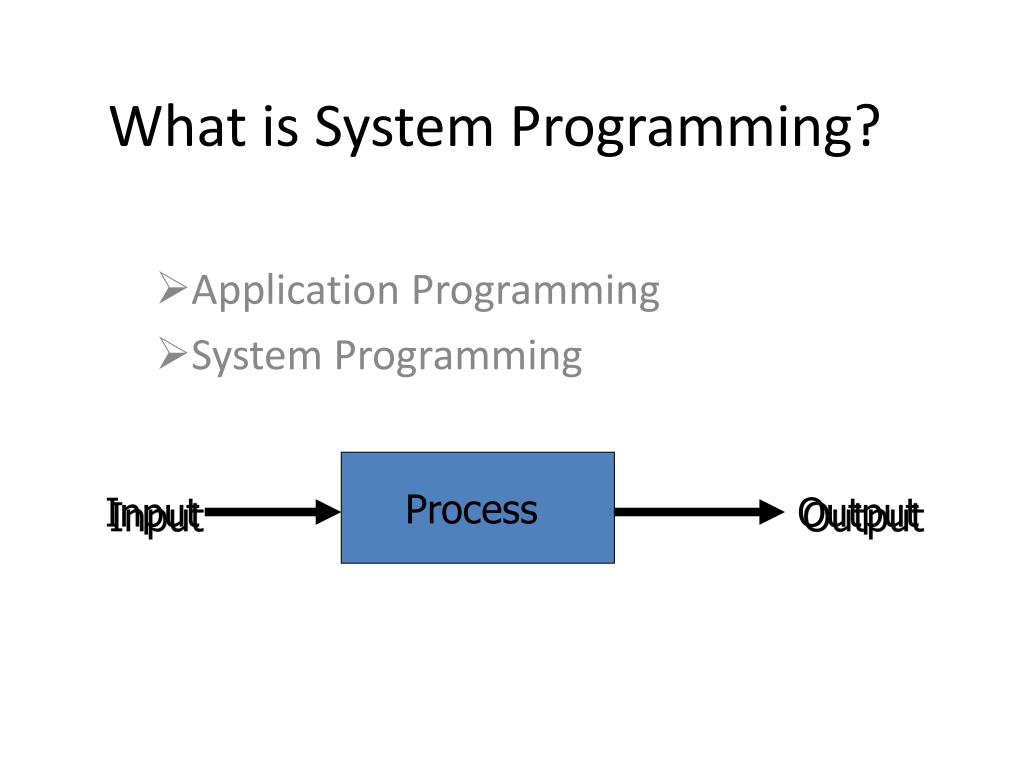

  3. What is System Programming? Application Programming System Programming InputOutput Process

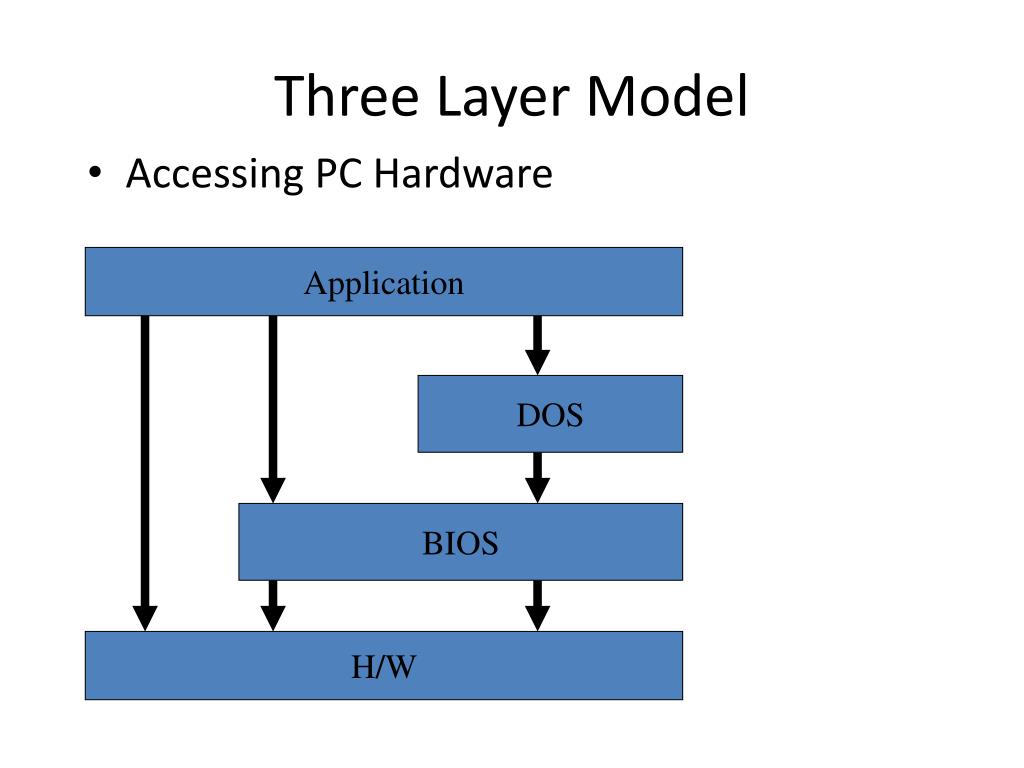

  4. Three Layer Model • Accessing PC Hardware Application DOS BIOS H/W

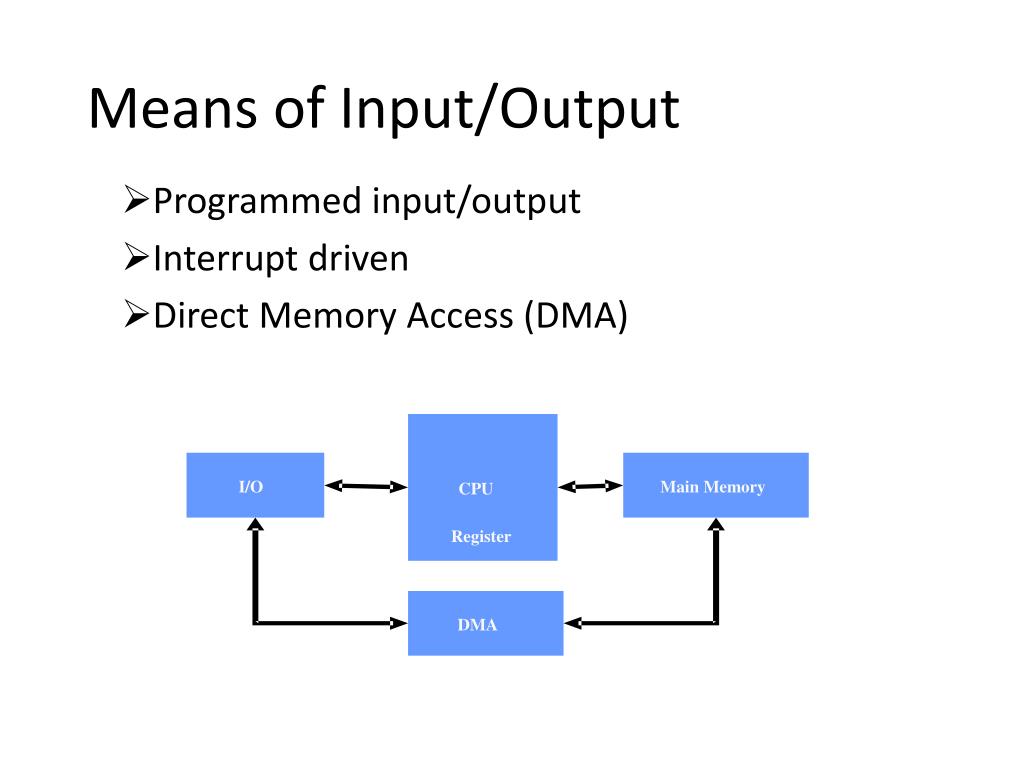

  5. I/O Main Memory CPU Register DMA Means of Input/Output Programmed input/output Interrupt driven Direct Memory Access (DMA)

  6. Controllers • I/O control signals • Buffering • Error Correction and Detection I/O device I/O controller CPU

  7. I/O Controllers • DMA controller • Interrupt controller • Programmable Peripheral Interface (PPI) • Interval Timer • Universal Asynchronous Receiver Transmitter

  8. I/O Controller(Contd..)DMA Controller INPUT OUTPUT Main Memory DMA

  9. I/O Controller(Contd..) Interrupt Controller • Handles the Priorities among hardware interrupt

  10. File Management • Basics • Disk Structure • Disk Formatting • Sector and Clusters

  11. Data Structure in File Management • File Allocation Table(FAT12, FAT16, FAT32) • Directory Structure • BPB(BIOS Parameter Block) • DPB( Drive Parameter Block) • FCBs(File Control Block)

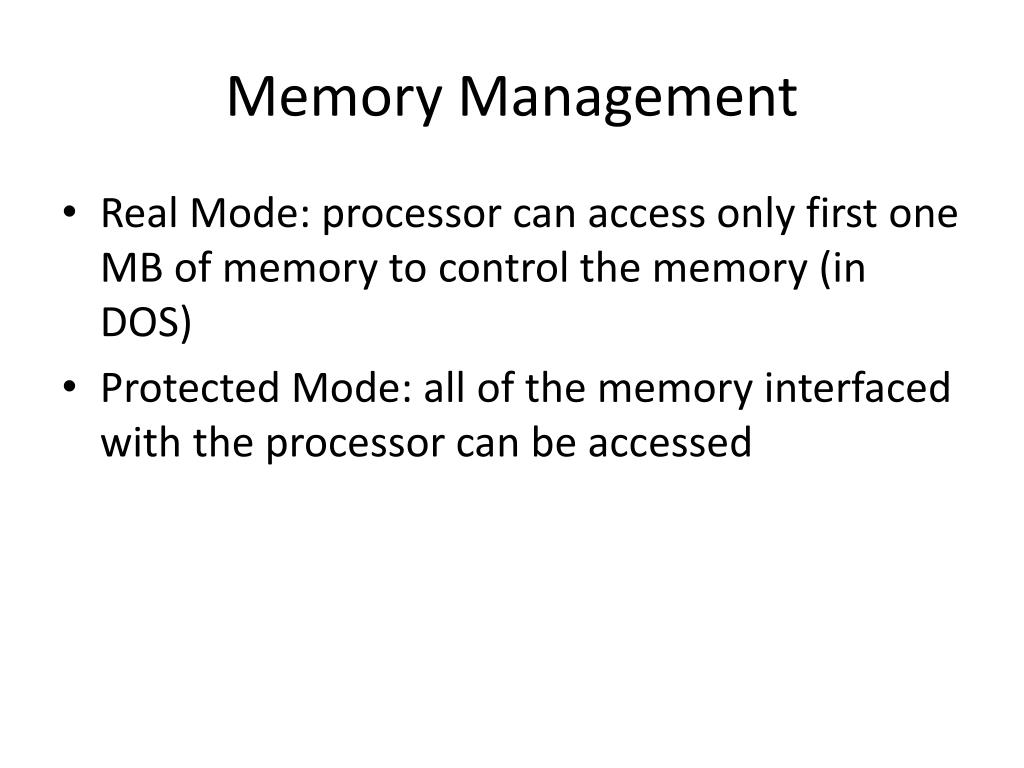

  12. Memory Management • Real Mode: processor can access only first one MB of memory to control the memory (in DOS) • Protected Mode: all of the memory interfaced with the processor can be accessed

  13. Real Mode • Data Structures used for memory management are • Memory Control Block (MCB) • Program Segment Prefix (PSP) • Determining • Allocated memory • Free memory

  14. Protected Mode • Data Structures used for memory management are • Local Descriptor Table (LDT) • Global Descriptor Table (GDT) • Interrupt Descriptor Table • Determine • Address Translation (Logical to Physical) • Exception Handling • Shifting from Real to Protected Mode

  15. Virus Definition and States • Types of Viruses • Executable file • Partition table / Boot Sector Virus • Detection • Removal • Prevention

  16. Device Drivers • It contains the routines which perform I/O operations on the device • Device Drivers for DOS • Device Drivers for Windows • Device Driver Development Kit (DDK)

  17. Methods of I/O

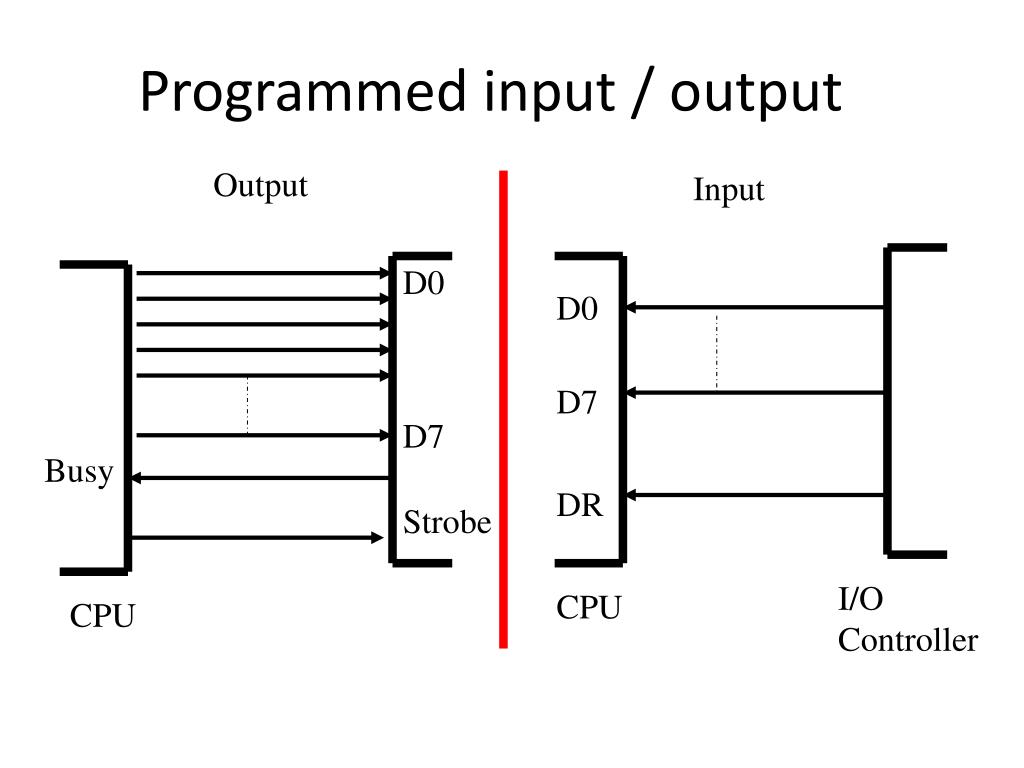

  18. Input D0 D0 D7 D7 Busy DR Strobe I/O Controller CPU Programmed input / output Output CPU

  19. Interrupt Driven input / output Output Input D0 D0 D7 D7 Strobe INT Busy INT IBF ACK I/O Controller CPU CPU I/O Controller

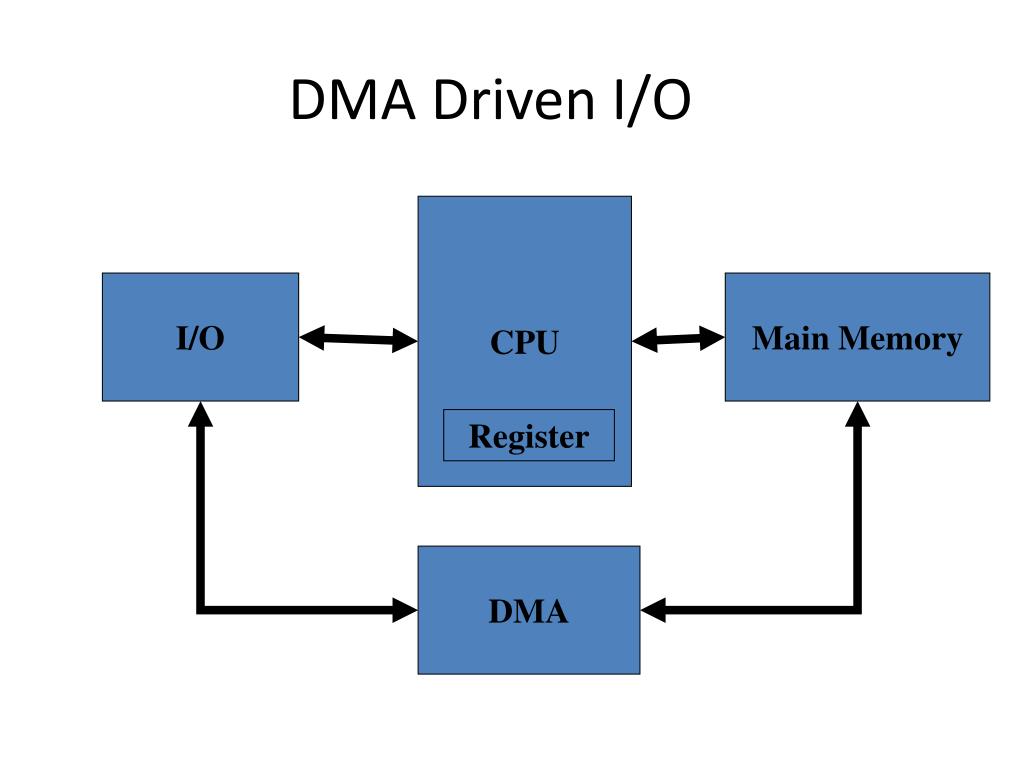

  20. DMA Driven I/O CPU I/O Main Memory Register DMA

  21. Hardware InterruptsSoftware Interrupts What are Interrupts?

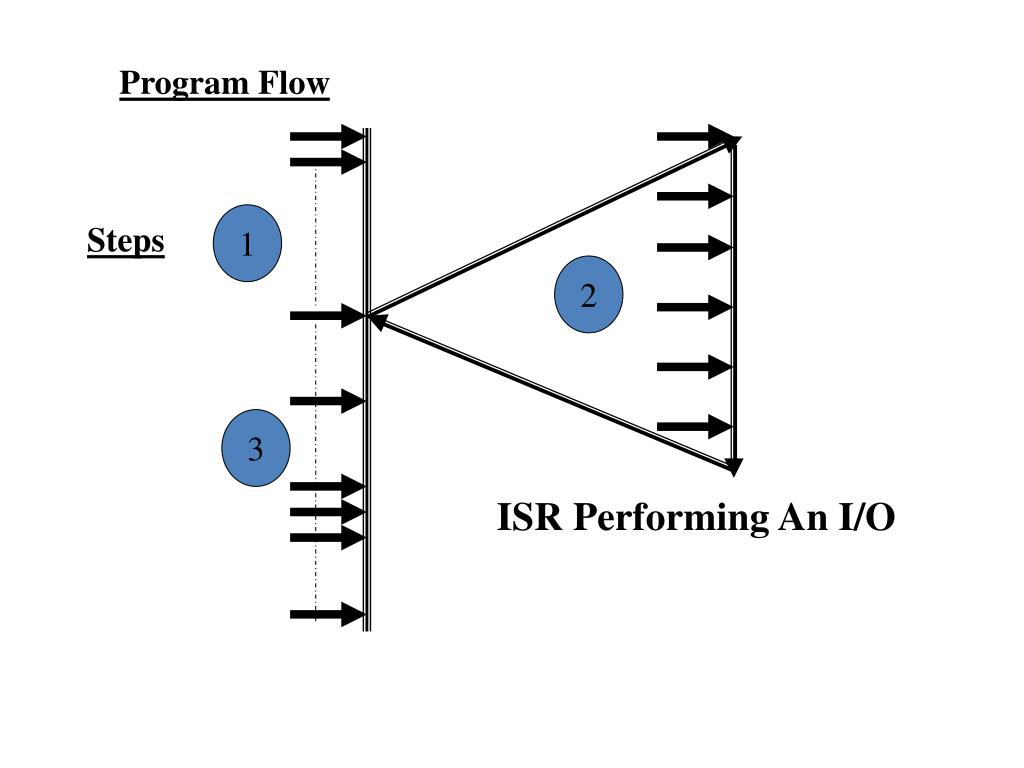

  22. Program Flow 1 Steps 2 3 ISR Performing An I/O

  23. Other Processing Computation for I./O I/O Time Interrupt Driven I/O

  24. Other Processing Computation for I./O I/O Time Programmed I/O
