Field sketches & how to draw them

Field sketches & how to draw them. Maggie Williams. Aims. To show students how to make relevant field sketches To encourage use of appropriate technical terms to describe what is seen & sketched in the field To help students recognise relationships between geology & topography

mackensie-hinton
Download Presentation

Field sketches & how to draw them

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Field sketches & how to draw them Maggie Williams

  2. Aims • To show students how to make relevant field sketches • To encourage use of appropriate technical terms to describe what is seen & sketched in the field • To help students recognise relationships between geology & topography • To help students revise basic field phenomena

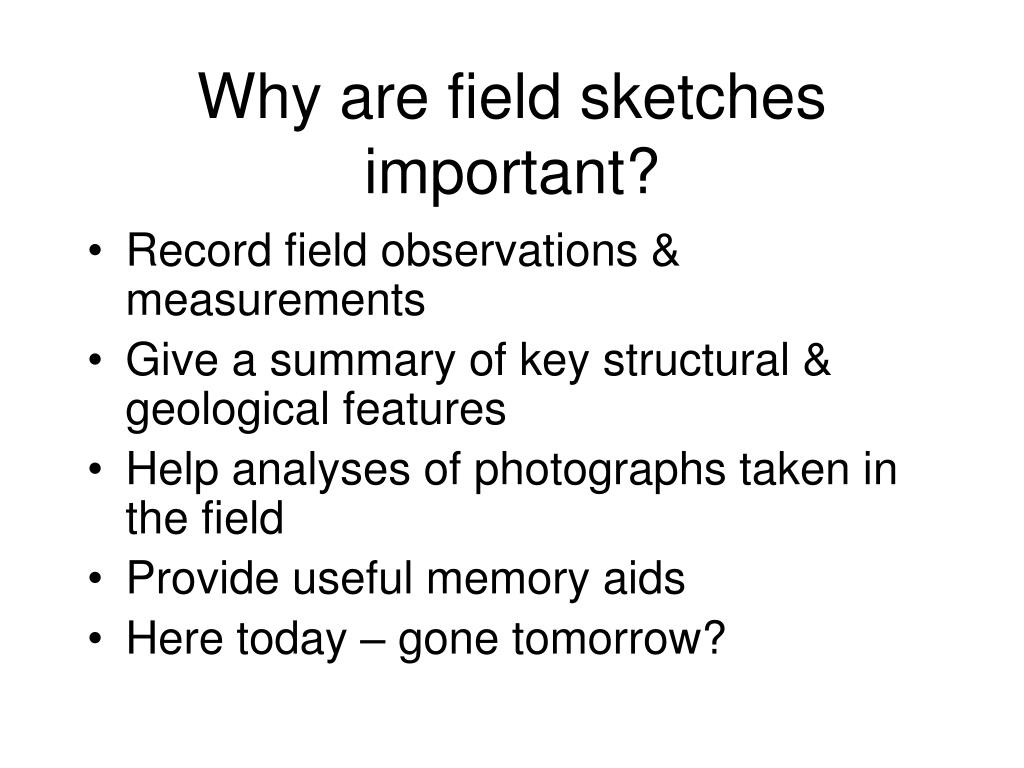

  3. Why are field sketches important? • Record field observations & measurements • Give a summary of key structural & geological features • Help analyses of photographs taken in the field • Provide useful memory aids • Here today – gone tomorrow?

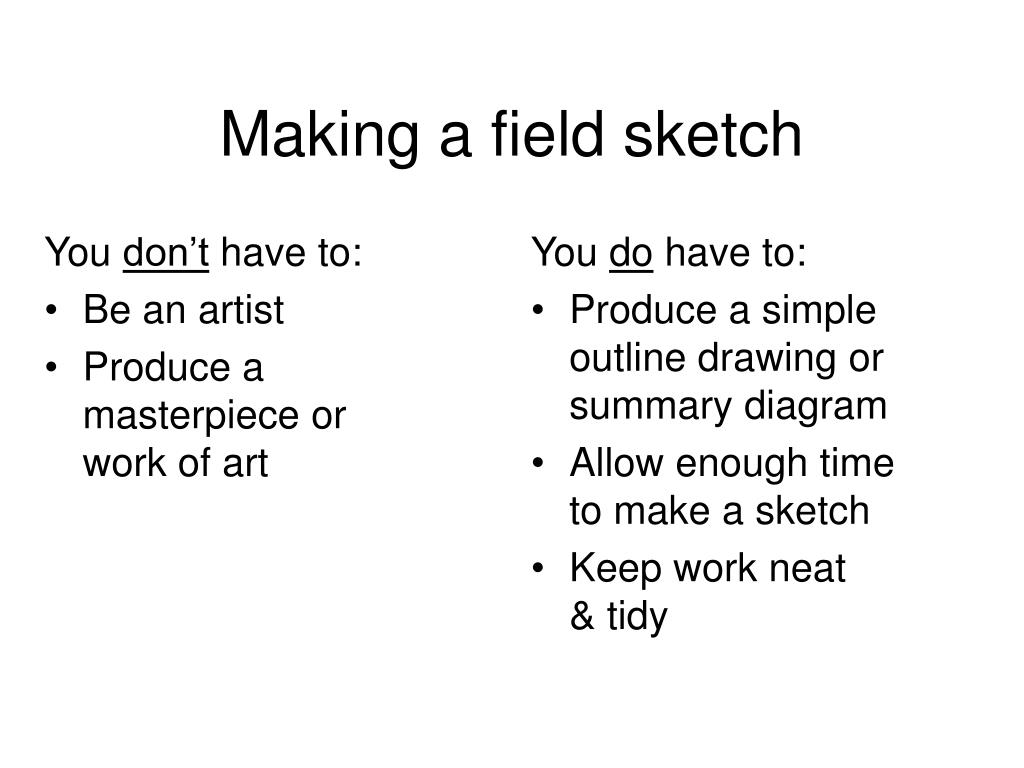

  4. You don’t have to: Be an artist Produce a masterpiece or work of art You do have to: Produce a simple outline drawing or summary diagram Allow enough time to make a sketch Keep work neat & tidy Making a field sketch

  5. The wrong way?

  6. The right way?

  7. Stages in drawing a field sketch1. Choose the view you wish to record

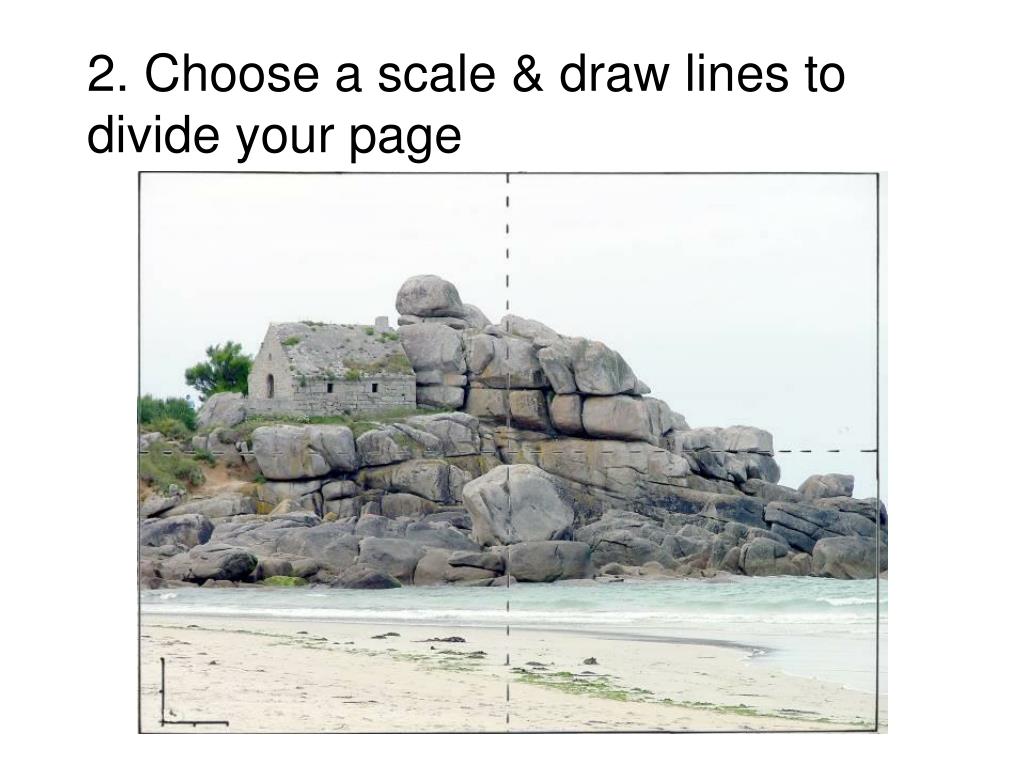

  8. 2. Choose a scale & draw lines to divide your page

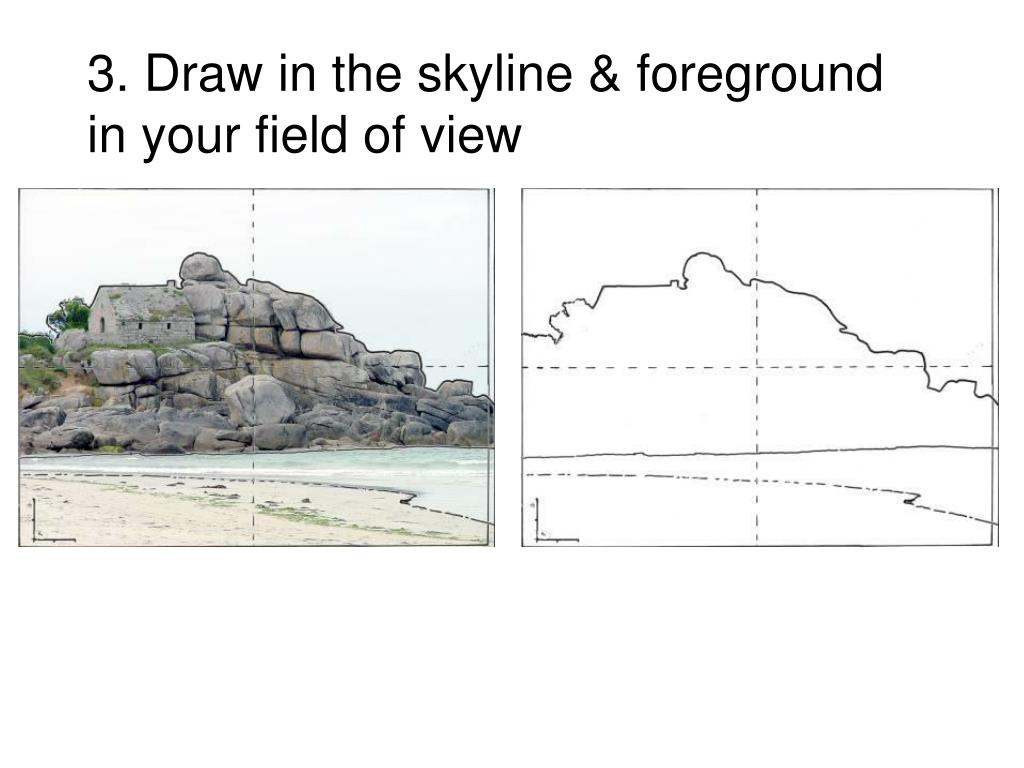

  9. 3. Draw in the skyline & foreground in your field of view

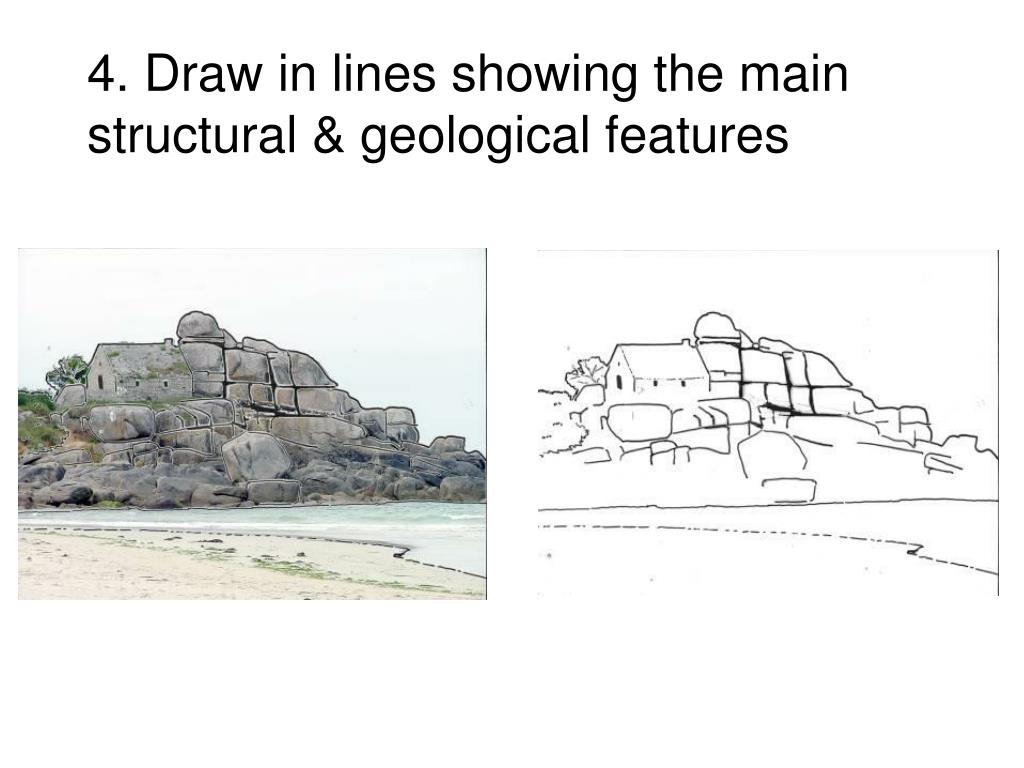

  10. 4. Draw in lines showing the main structural & geological features

  11. 5. Draw in features such as changes in slope, vegetation & rock type.Hint: Leave out details of minor features – best recorded in smaller sketches highlighting details.

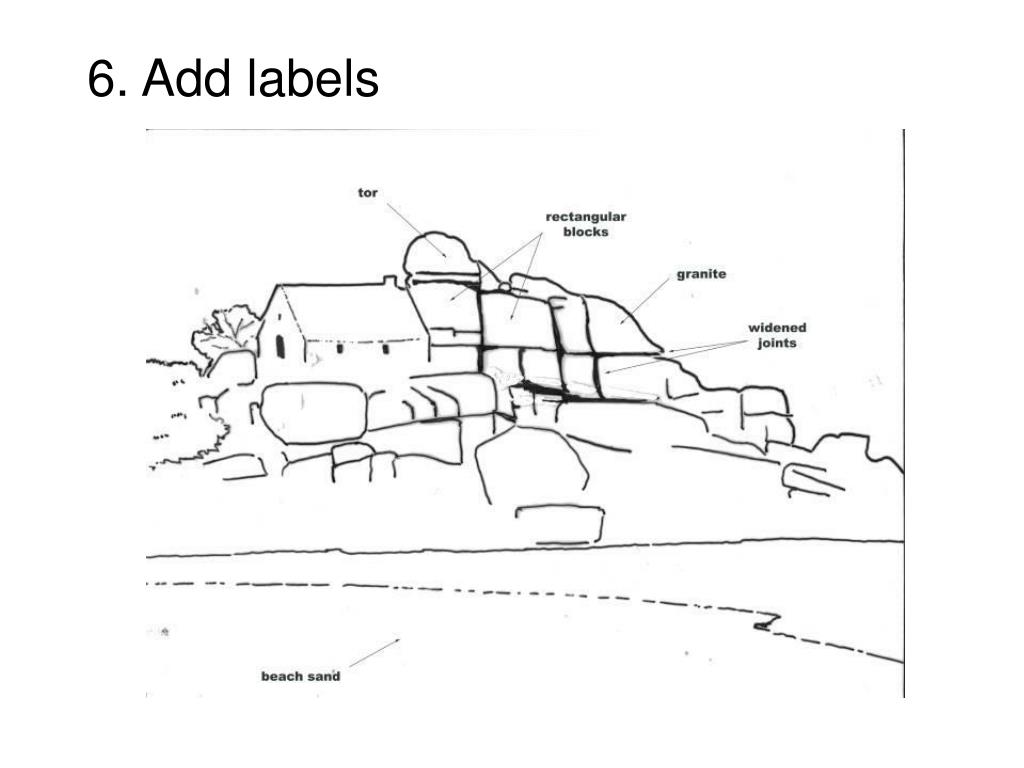

  12. 6. Add labels

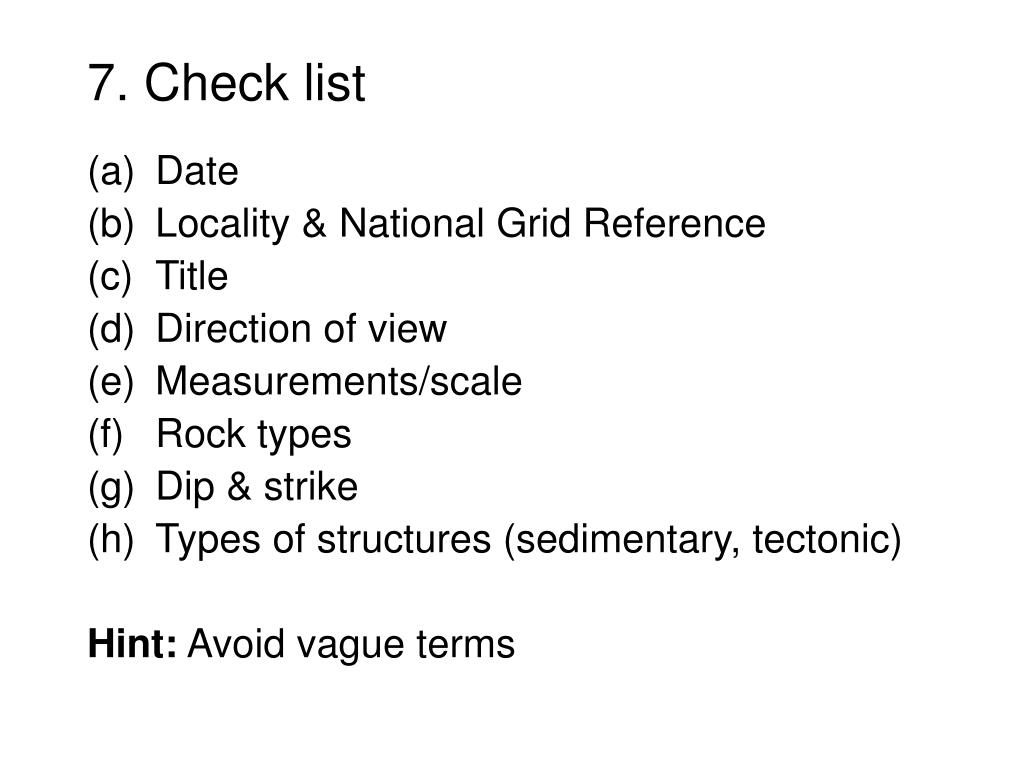

  13. 7. Check list • Date • Locality & National Grid Reference • Title • Direction of view • Measurements/scale • Rock types • Dip & strike • Types of structures (sedimentary, tectonic) Hint: Avoid vague terms
