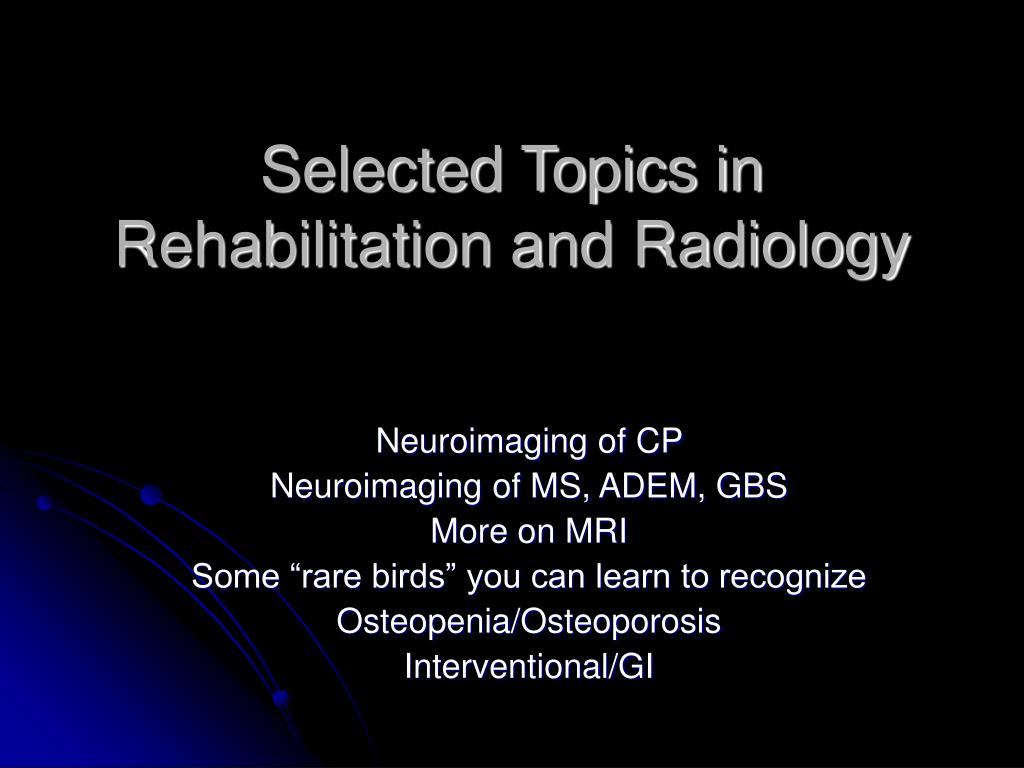

  1. Selected Topics in Rehabilitation and Radiology Neuroimaging of CP Neuroimaging of MS, ADEM, GBS More on MRI Some “rare birds” you can learn to recognize Osteopenia/Osteoporosis Interventional/GI

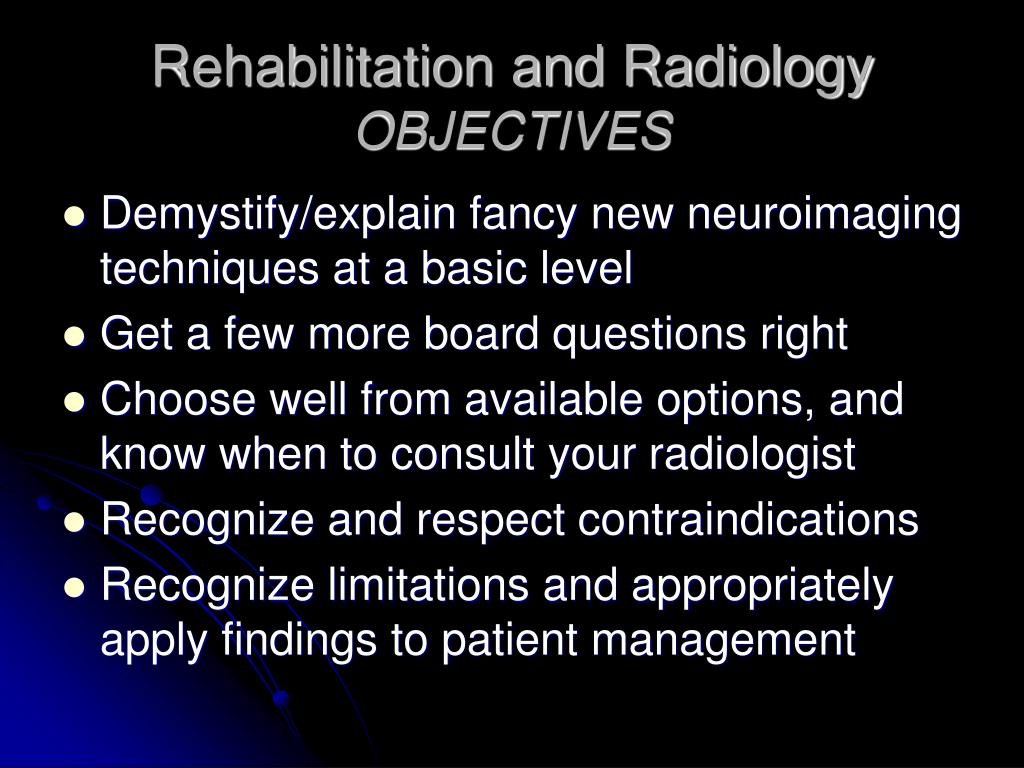

  2. Rehabilitation and RadiologyOBJECTIVES • Demystify/explain fancy new neuroimaging techniques at a basic level • Get a few more board questions right • Choose well from available options, and know when to consult your radiologist • Recognize and respect contraindications • Recognize limitations and appropriately apply findings to patient management

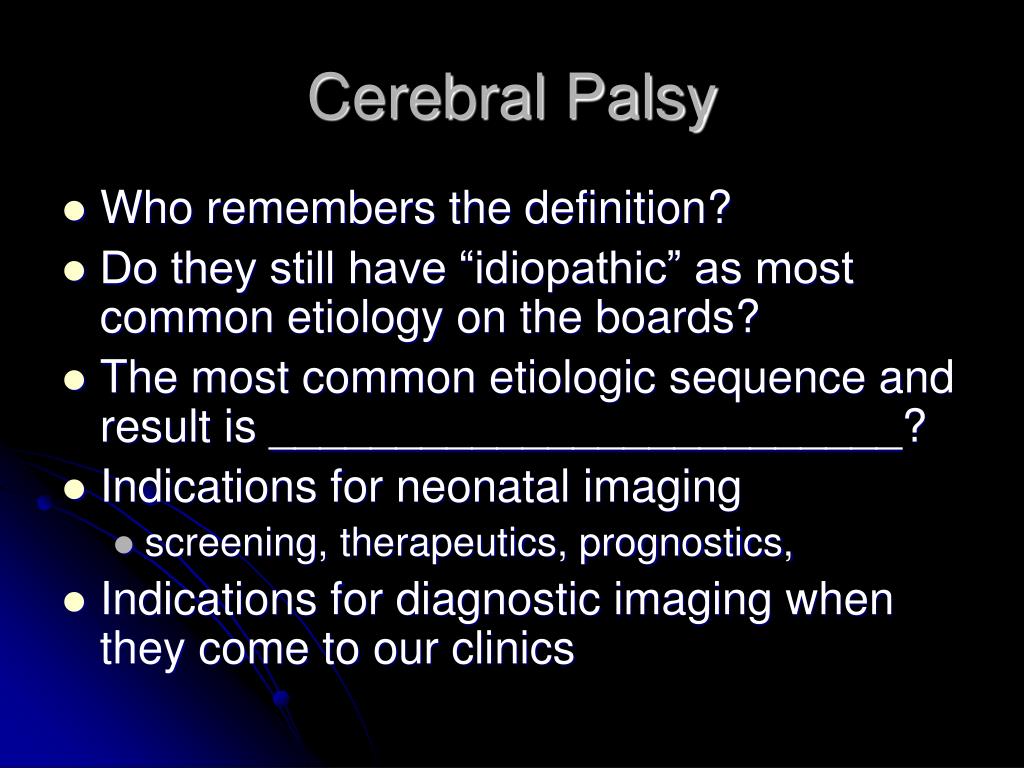

  3. Cerebral Palsy • Who remembers the definition? • Do they still have “idiopathic” as most common etiology on the boards? • The most common etiologic sequence and result is _________________________? • Indications for neonatal imaging • screening, therapeutics, prognostics, • Indications for diagnostic imaging when they come to our clinics

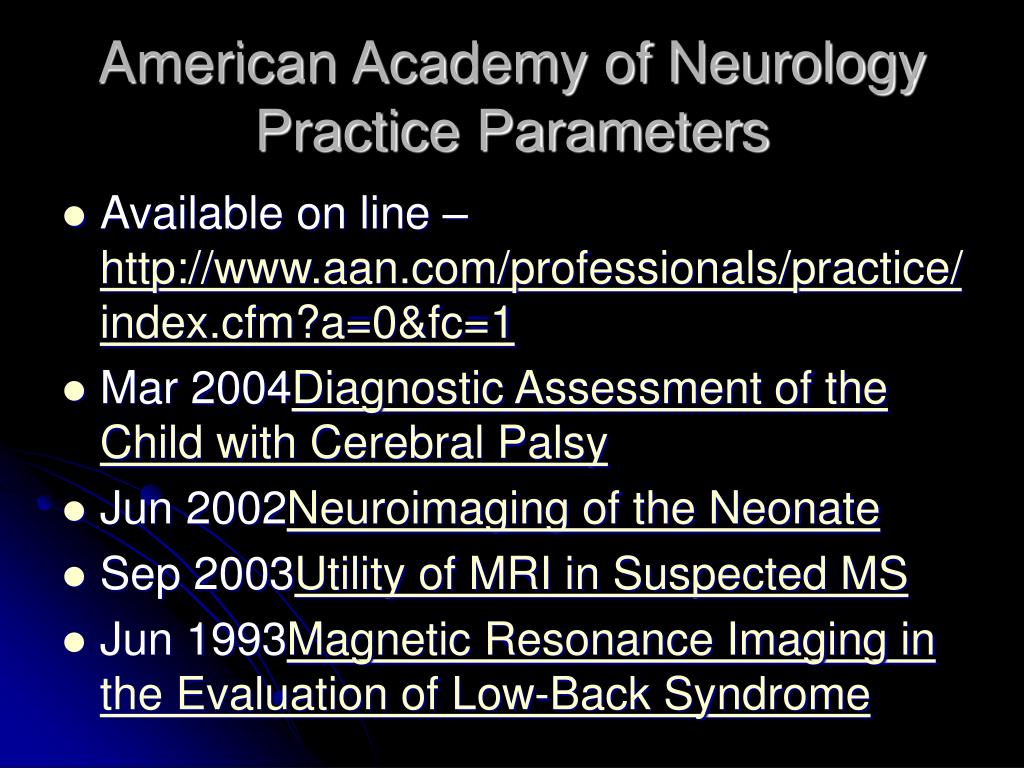

  4. American Academy of Neurology Practice Parameters • Available on line – http://www.aan.com/professionals/practice/index.cfm?a=0&fc=1 • Mar 2004Diagnostic Assessment of the Child with Cerebral Palsy • Jun 2002Neuroimaging of the Neonate • Sep 2003Utility of MRI in Suspected MS • Jun 1993Magnetic Resonance Imaging in the Evaluation of Low-Back Syndrome

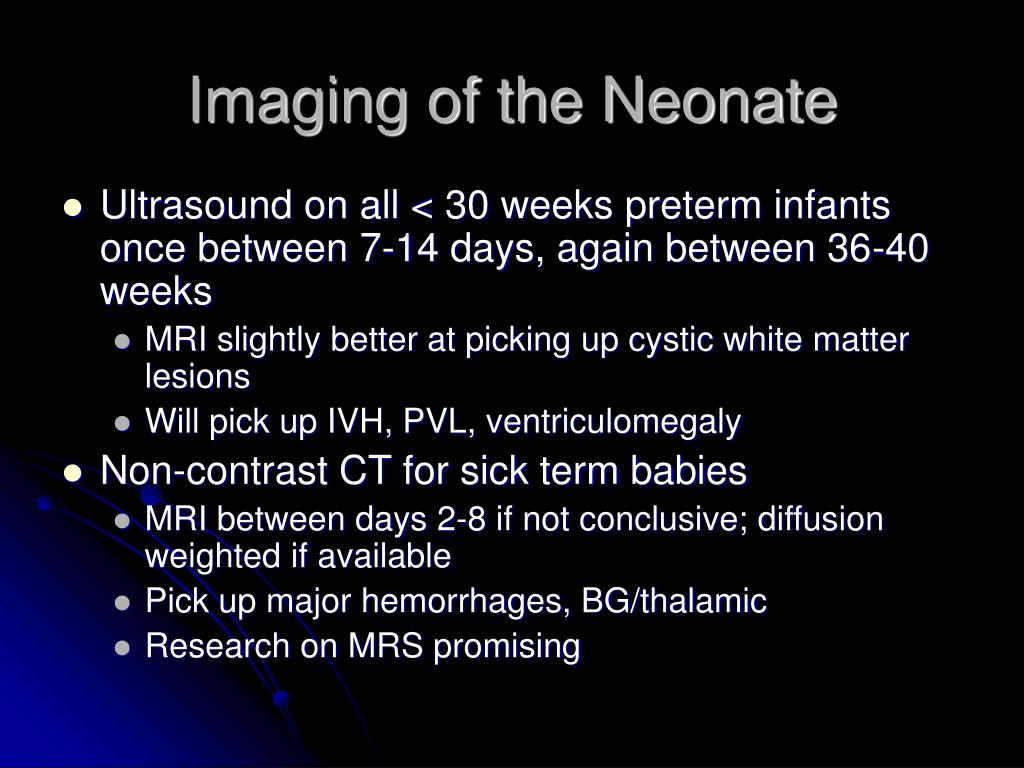

  5. Imaging of the Neonate • Ultrasound on all < 30 weeks preterm infants once between 7-14 days, again between 36-40 weeks • MRI slightly better at picking up cystic white matter lesions • Will pick up IVH, PVL, ventriculomegaly • Non-contrast CT for sick term babies • MRI between days 2-8 if not conclusive; diffusion weighted if available • Pick up major hemorrhages, BG/thalamic • Research on MRS promising

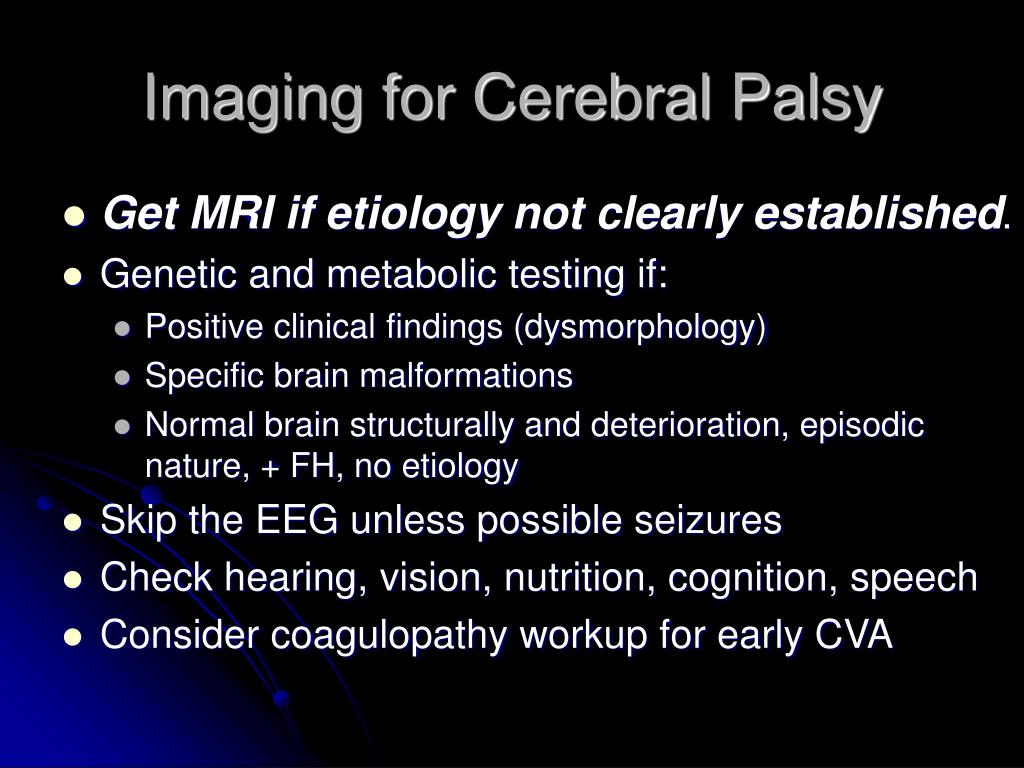

  6. Imaging for Cerebral Palsy • Get MRI if etiology not clearly established. • Genetic and metabolic testing if: • Positive clinical findings (dysmorphology) • Specific brain malformations • Normal brain structurally and deterioration, episodic nature, + FH, no etiology • Skip the EEG unless possible seizures • Check hearing, vision, nutrition, cognition, speech • Consider coagulopathy workup for early CVA

  7. Myelination – Delayed vs abnormal(PVL vs leukodystrophy)

  8. Hypoplasia Corpus Callosum + Septo-Optic Dysplasia (mild)

  9. Hypoplasia Corpus Callosum + Septo-Optic Dysplasia (mild)

  10. Vermian and CC hypoplasia Term baby, smart, bulbar-CP like picture

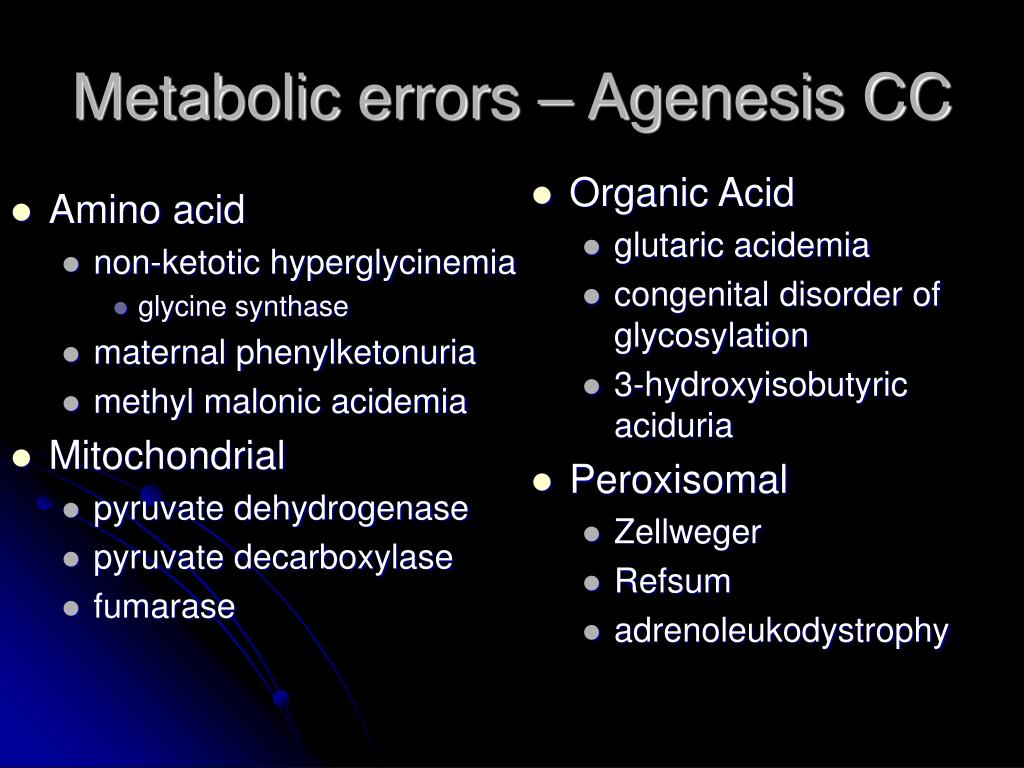

  11. Amino acid non-ketotic hyperglycinemia glycine synthase maternal phenylketonuria methyl malonic acidemia Mitochondrial pyruvate dehydrogenase pyruvate decarboxylase fumarase Organic Acid glutaric acidemia congenital disorder of glycosylation 3-hydroxyisobutyric aciduria Peroxisomal Zellweger Refsum adrenoleukodystrophy Metabolic errors – Agenesis CC

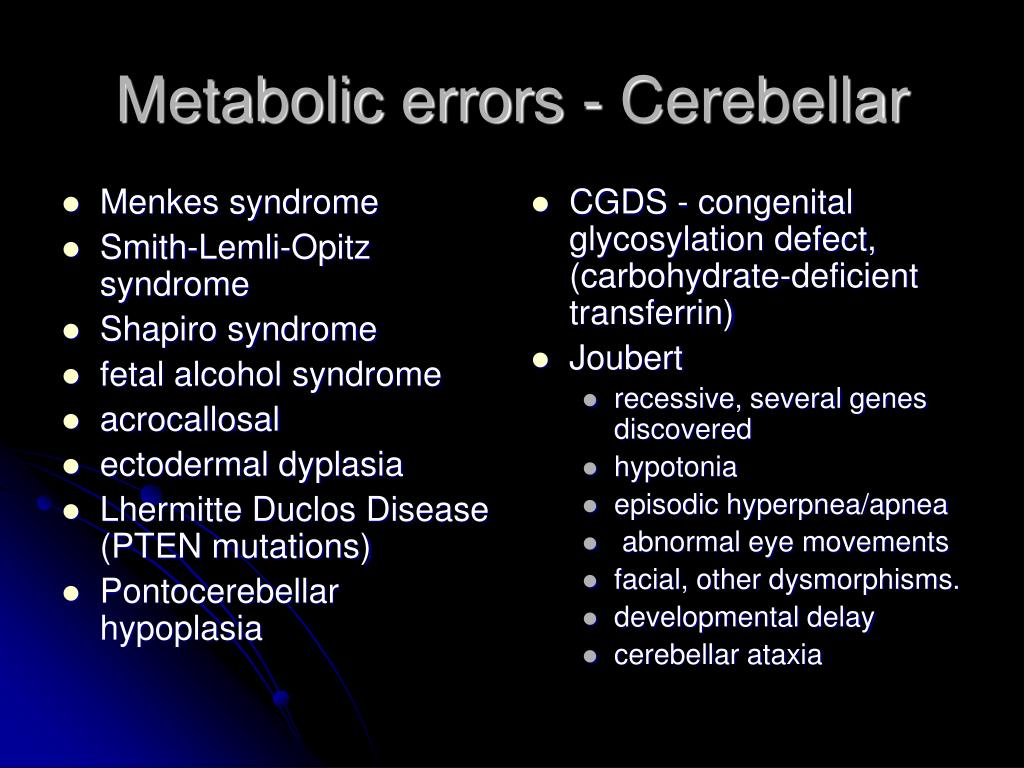

  12. Menkes syndrome Smith-Lemli-Opitz syndrome Shapiro syndrome fetal alcohol syndrome acrocallosal ectodermal dyplasia Lhermitte Duclos Disease (PTEN mutations) Pontocerebellar hypoplasia CGDS - congenital glycosylation defect, (carbohydrate-deficient transferrin) Joubert recessive, several genes discovered hypotonia episodic hyperpnea/apnea abnormal eye movements facial, other dysmorphisms. developmental delay cerebellar ataxia Metabolic errors - Cerebellar

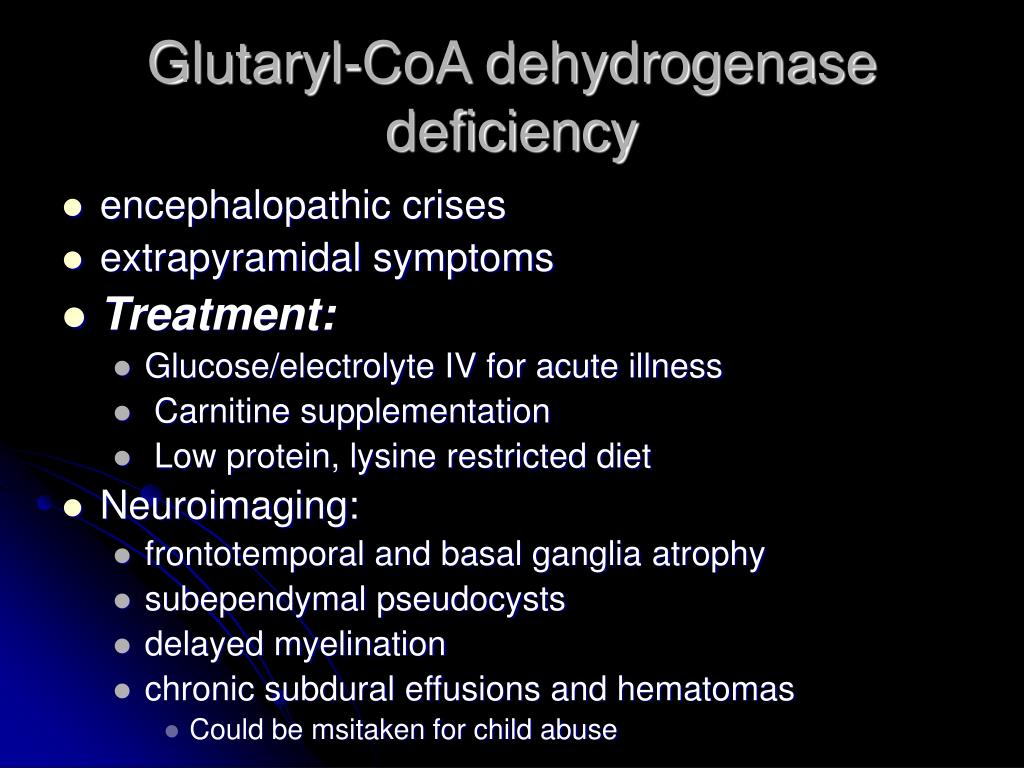

  13. Glutaryl-CoA dehydrogenase deficiency • encephalopathic crises • extrapyramidal symptoms • Treatment: • Glucose/electrolyte IV for acute illness • Carnitine supplementation • Low protein, lysine restricted diet • Neuroimaging: • frontotemporal and basal ganglia atrophy • subependymal pseudocysts • delayed myelination • chronic subdural effusions and hematomas • Could be msitaken for child abuse

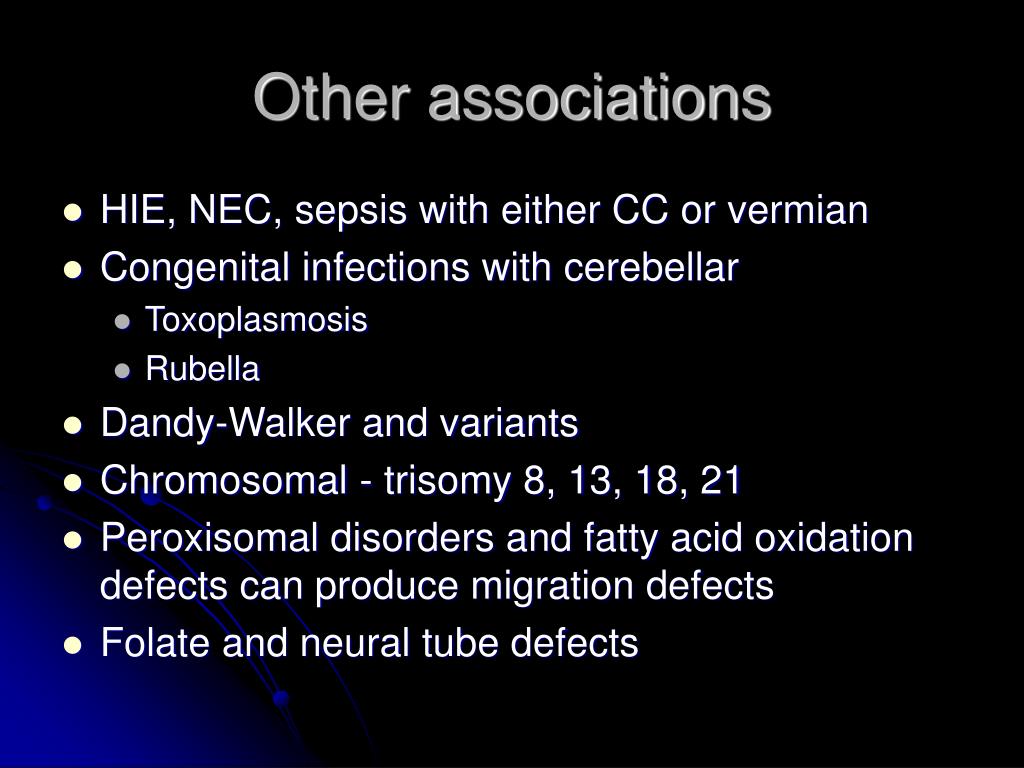

  14. Other associations • HIE, NEC, sepsis with either CC or vermian • Congenital infections with cerebellar • Toxoplasmosis • Rubella • Dandy-Walker and variants • Chromosomal - trisomy 8, 13, 18, 21 • Peroxisomal disorders and fatty acid oxidation defects can produce migration defects • Folate and neural tube defects

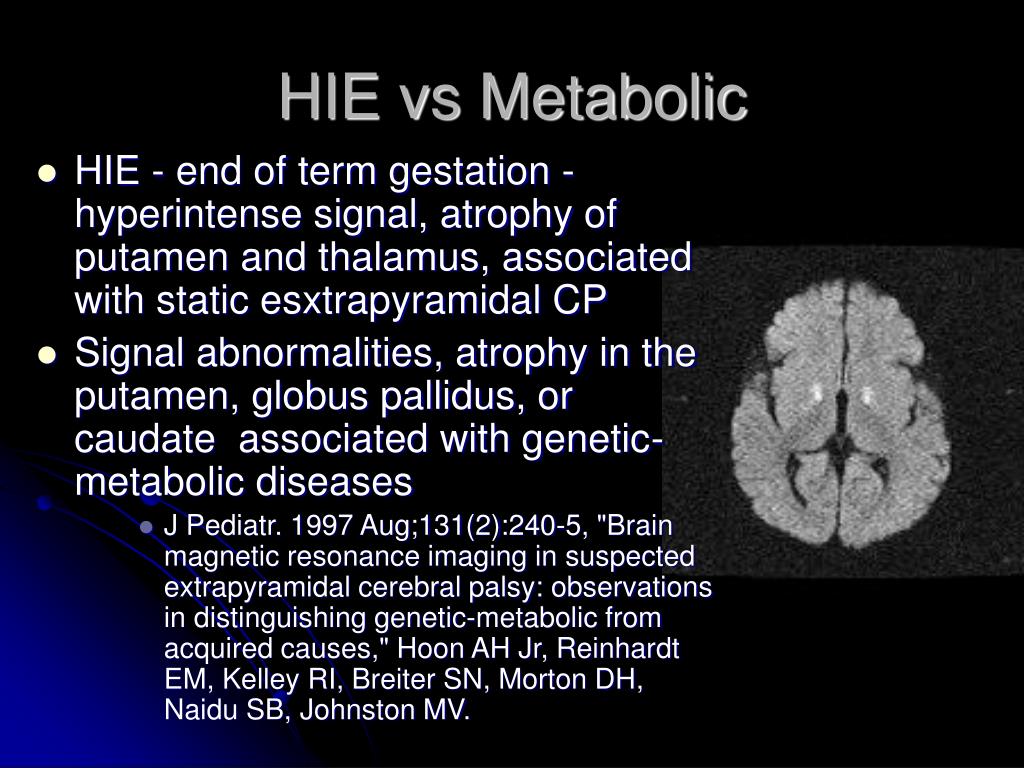

  15. HIE vs Metabolic • HIE - end of term gestation -hyperintense signal, atrophy of putamen and thalamus, associated with static esxtrapyramidal CP • Signal abnormalities, atrophy in the putamen, globus pallidus, or caudate associated with genetic-metabolic diseases • J Pediatr. 1997 Aug;131(2):240-5, "Brain magnetic resonance imaging in suspected extrapyramidal cerebral palsy: observations in distinguishing genetic-metabolic from acquired causes," Hoon AH Jr, Reinhardt EM, Kelley RI, Breiter SN, Morton DH, Naidu SB, Johnston MV.

  16. Lissencephaly Microgyria Pachygyria Schizencephaly Migrational Defects

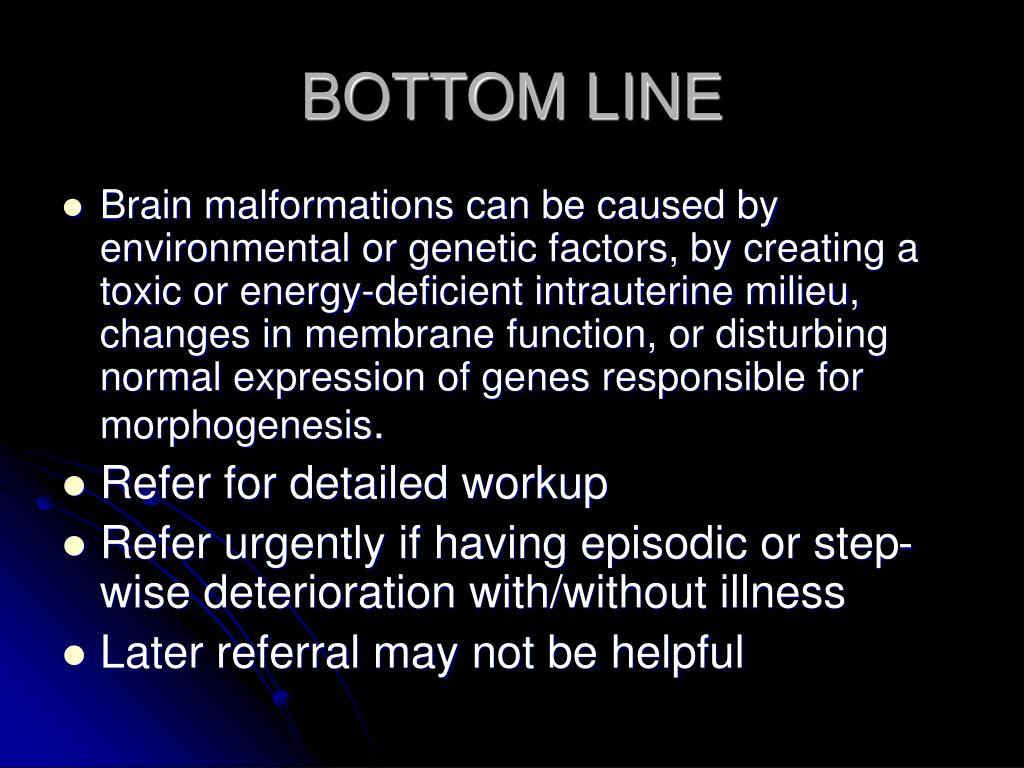

  17. BOTTOM LINE • Brain malformations can be caused by environmental or genetic factors, by creating a toxic or energy-deficient intrauterine milieu, changes in membrane function, or disturbing normal expression of genes responsible for morphogenesis. • Refer for detailed workup • Refer urgently if having episodic or step-wise deterioration with/without illness • Later referral may not be helpful

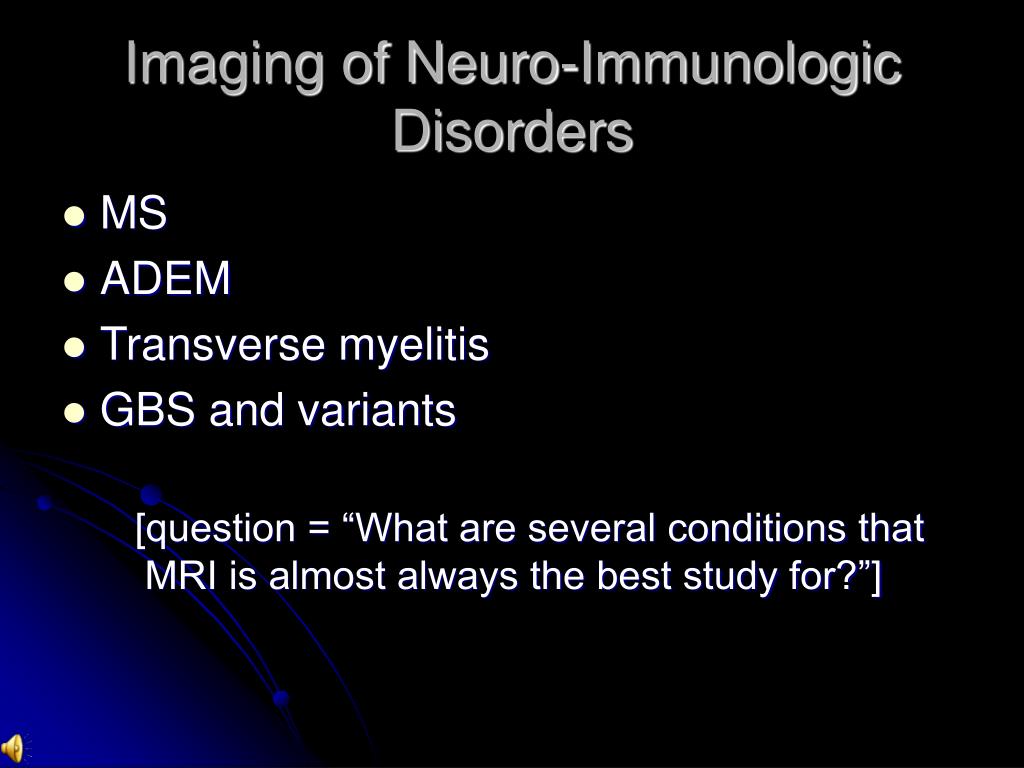

  18. Imaging of Neuro-Immunologic Disorders • MS • ADEM • Transverse myelitis • GBS and variants [question = “What are several conditions that MRI is almost always the best study for?”]

  19. Multiple Sclerosis • Ideal criteria – 2 attacks, 2 lesions • May not fit primary progressive types versus remitting-relapsing • If fewer of either, look for corroboration with CSF and/or VEP studies • Poser, McDonald, newer criteria • Location of lesions • Differential gadolinium enhancement • Differential: ADEM, CVD, HIV, sarcoid • Easy differential: Chiari I, cervical SCI

  20. T2, gadolinium enhancementhttp://www.med.ege.edu.tr/norolbil/2000/NBD12600.htmlhttp://www.annalsofian.org

  21. Representative axial T2- (upper left), noncontrast T1- (upper middle), postcontrast T1- (upper right), and fast fluid-attenuated inversion recovery (FLAIR) (bottom row)

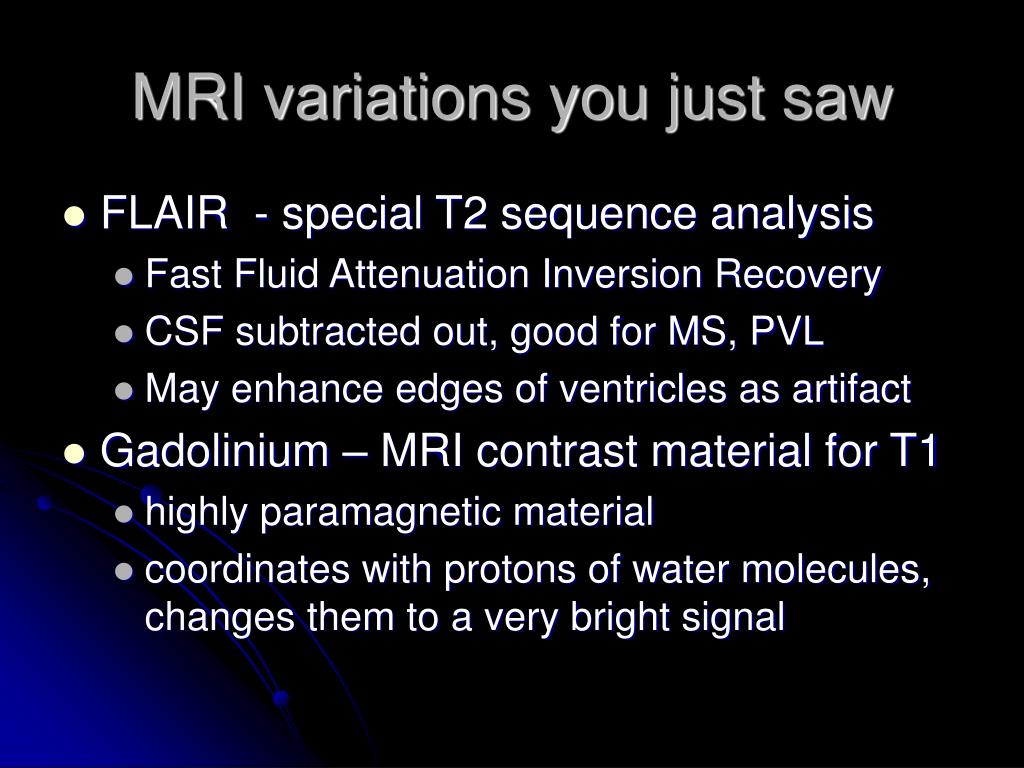

  22. MRI variations you just saw • FLAIR - special T2 sequence analysis • Fast Fluid Attenuation Inversion Recovery • CSF subtracted out, good for MS, PVL • May enhance edges of ventricles as artifact • Gadolinium – MRI contrast material for T1 • highly paramagnetic material • coordinates with protons of water molecules, changes them to a very bright signal

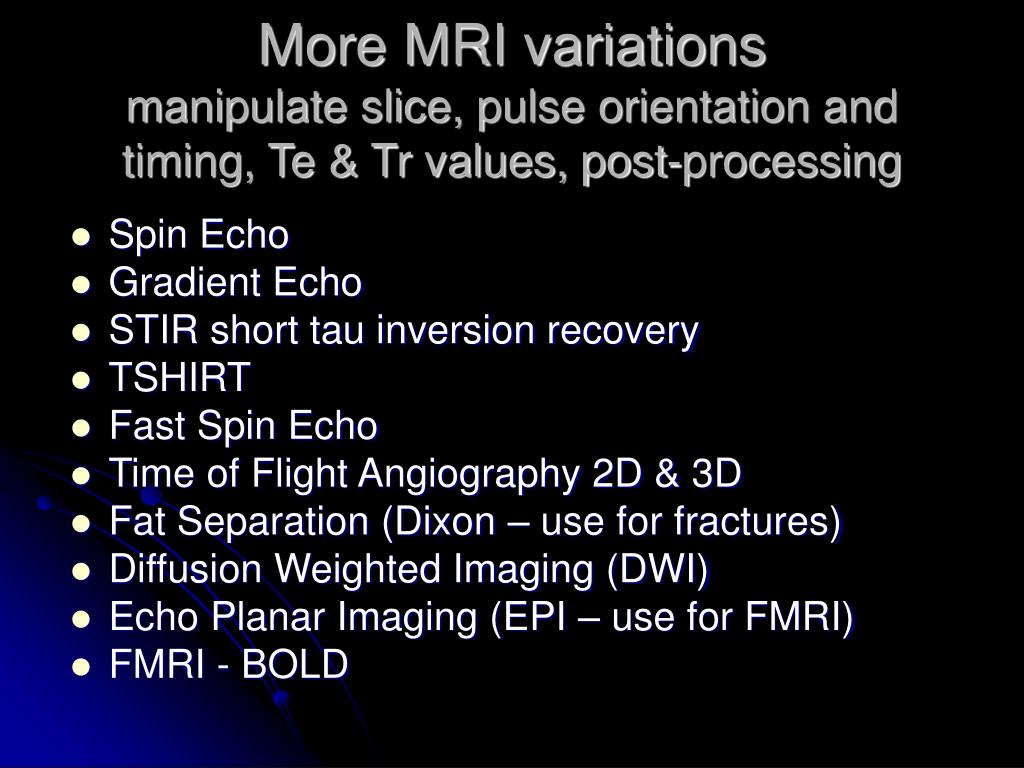

  23. More MRI variationsmanipulate slice, pulse orientation and timing, Te & Tr values, post-processing • Spin Echo • Gradient Echo • STIR short tau inversion recovery • TSHIRT • Fast Spin Echo • Time of Flight Angiography 2D & 3D • Fat Separation (Dixon – use for fractures) • Diffusion Weighted Imaging (DWI) • Echo Planar Imaging (EPI – use for FMRI) • FMRI - BOLD

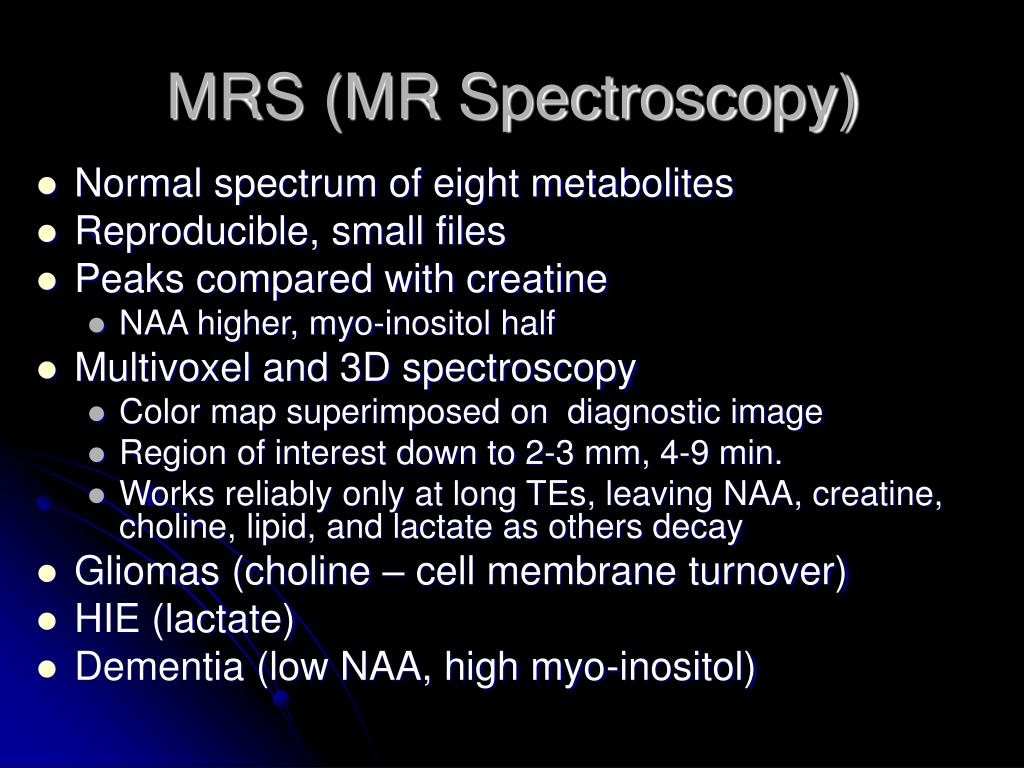

  24. MRS (MR Spectroscopy) • Normal spectrum of eight metabolites • Reproducible, small files • Peaks compared with creatine • NAA higher, myo-inositol half • Multivoxel and 3D spectroscopy • Color map superimposed on diagnostic image • Region of interest down to 2-3 mm, 4-9 min. • Works reliably only at long TEs, leaving NAA, creatine, choline, lipid, and lactate as others decay • Gliomas (choline – cell membrane turnover) • HIE (lactate) • Dementia (low NAA, high myo-inositol)

  25. Craniosynostosis

  26. Post TBI with parietal fracture

  27. Socially Responsive Child

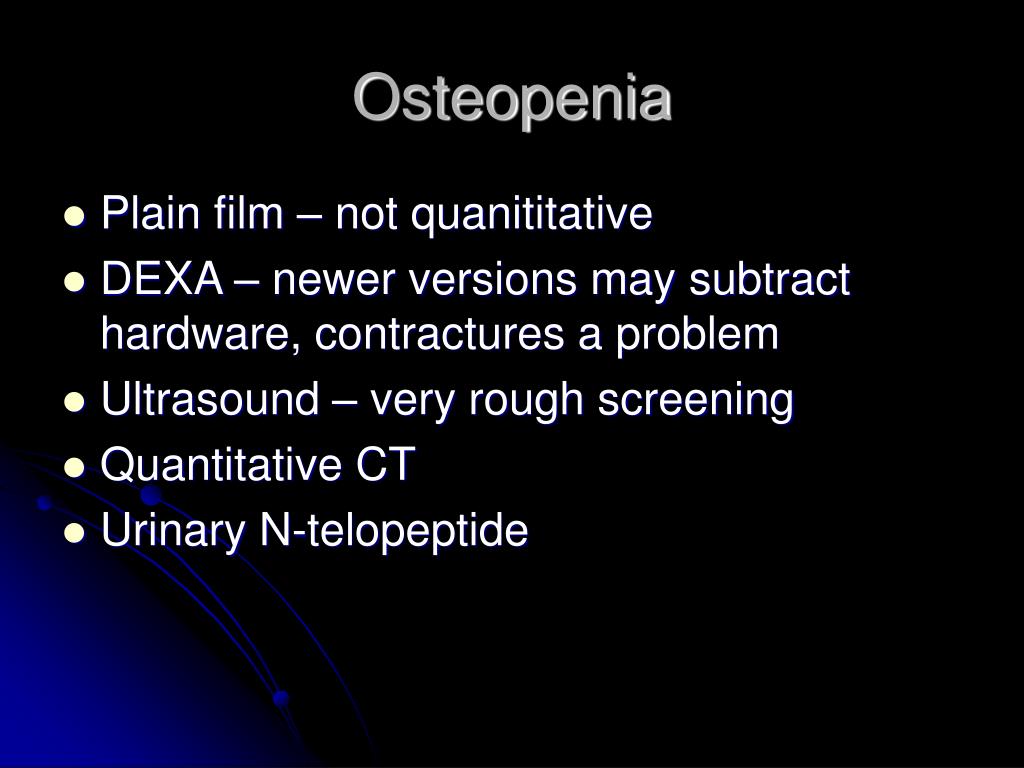

  28. Osteopenia • Plain film – not quanititative • DEXA – newer versions may subtract hardware, contractures a problem • Ultrasound – very rough screening • Quantitative CT • Urinary N-telopeptide

  29. Teen with SMA and knee pain

  30. GI Radiology • KUB • Stool pattern, pneumatosis • Barium study – upper, SBFT, lower • Structural anomaly, IBD • Radionuclide – not as sensitive as pH probe but useful, quanititative • No study sensitive for gastritis, esophagitis

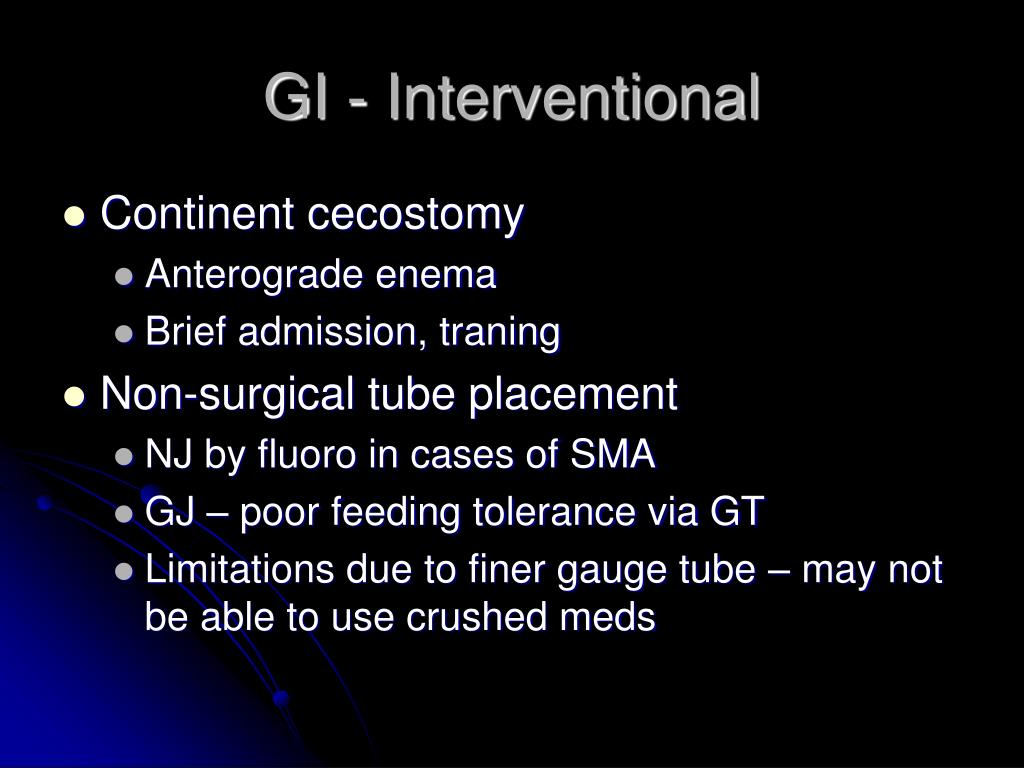

  31. GI - Interventional • Continent cecostomy • Anterograde enema • Brief admission, traning • Non-surgical tube placement • NJ by fluoro in cases of SMA • GJ – poor feeding tolerance via GT • Limitations due to finer gauge tube – may not be able to use crushed meds

  32. SMA - obstruction
