  1. Port Security ECT Delta Terminal Rotterdam, The Netherlands

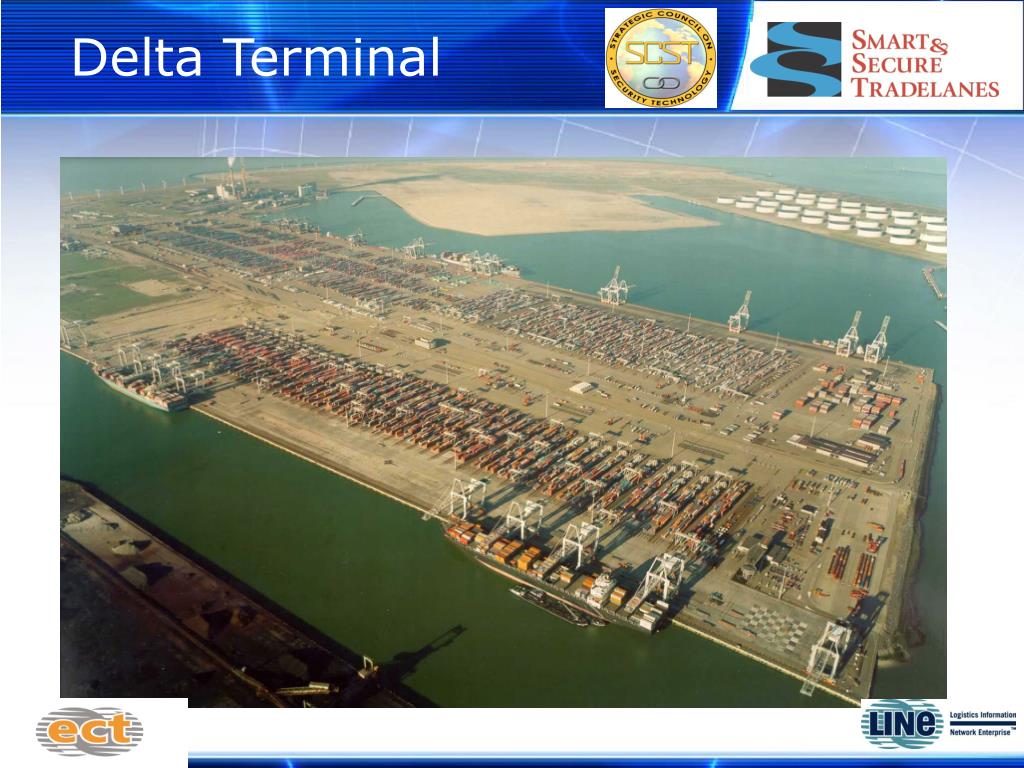

  2. Delta Terminal

  3. ECT Delta Terminal ~~~ ~~~ Admin 22 23 24 25 26 27 28 Pre-Gate Area Gate DDN Rail Term East Rail Term West 64 65 71 DDW DDE Barge Term. 38 37 42 41 40 39 72 45 44 43 32 49 48 47 46 56 52 51 50 ~~~ 33 34 ~~~ ~~~ ~~~ The dark (green) locations are equipped with SAVI-readers to identify e-sealed containers. On the ECT premises BreezeCom operated Hand held Terminals can be used. Delta Terminal 2 3 4 6 34 5

  4. Assign, Lock, Seal Process

  5. Hand Held Application Login • Users with valid handheld user permissions can log into the TSS handheld software. • User names and passwords are authenticated based on the user profiles stored in the security setup • User profiles determine the level of access permissions in the TSS handheld software

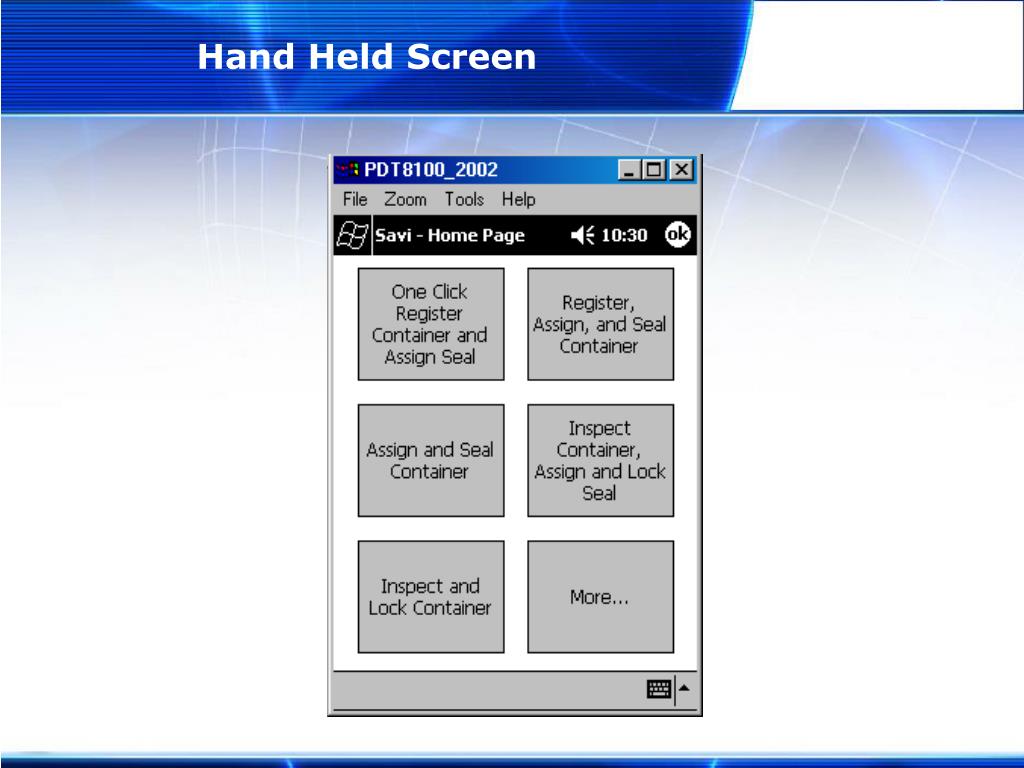

  6. Hand Held Screen

  7. Electronic Seals One Seal Tag on each Container

  8. Signpost & Reader at Truck Gate

  9. Reader at Rail Terminal

  10. Reader at Rail Terminal

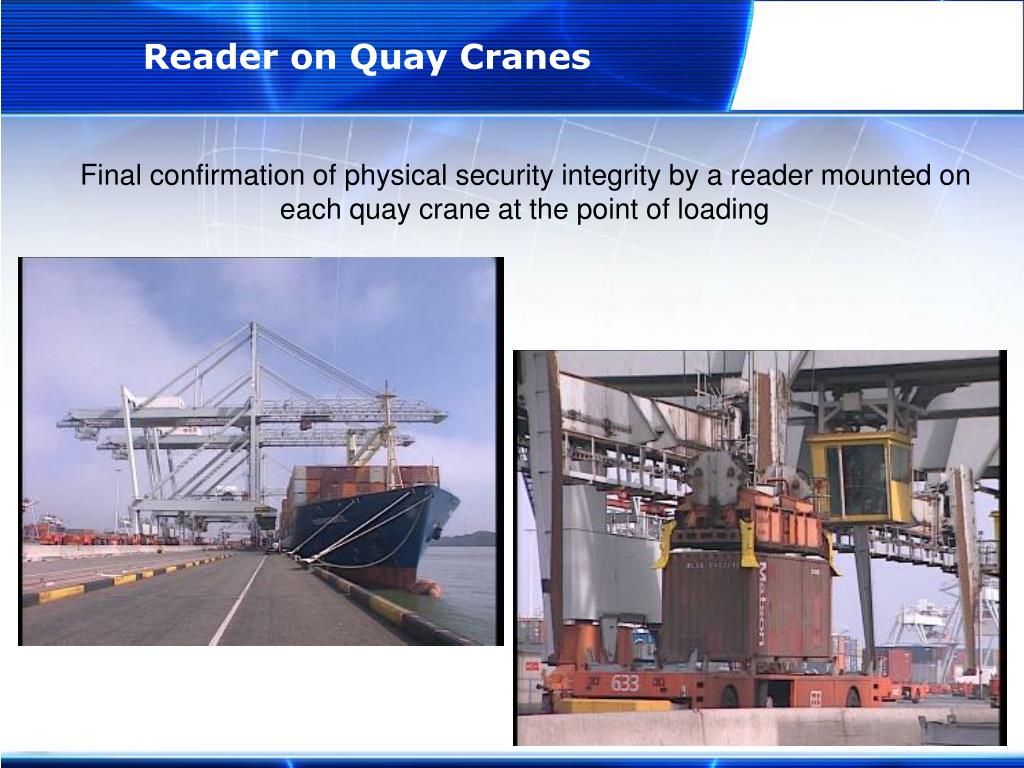

  11. Reader on Quay Cranes Final confirmation of physical security integrity by a reader mounted on each quay crane at the point of loading

  12. Reader on Quay Cranes

  13. Site Manager

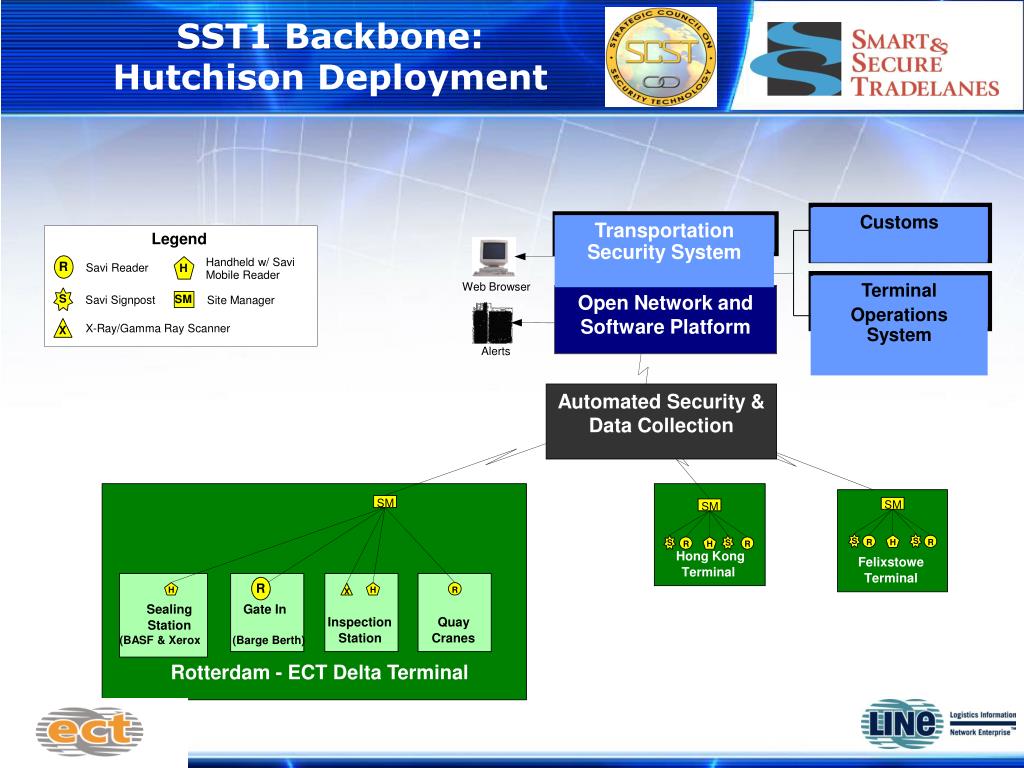

  14. SST1 Backbone: Hutchison Deployment Transportation Security System Terminal Operations System Customs Legend Transportation Handheld w/ Savi R Savi Reader H Security System Mobile Reader Web Browser Open Network and Software Platform S SM Savi Signpost Site Manager SmartChain X-Ray/Gamma Ray Scanner Platform X Alerts Automated Security & Data Collection Secure Intranet SM SM SM S S R H R S S R H R Hong Kong Felixstowe Terminal Terminal R H H H R X Sealing Gate In Inspection Quay Station Station Cranes (BASF & Xerox (Barge Berth) Rotterdam - ECT Delta Terminal

  15. Current & Future Scope Transportation Security System Gamma Ray UDAP RTLS BarCode RFID Technology SST1 baseline to: • Monitor location and security integrity of container traffic • Demonstrate interoperability of different data capture mechanisms • Do end-to-end security: point of origin to port of loading, in-bond, high-value and/or sensitive cargo • Open Network and Software Platform • Network connecting 11 trade lanes • Data aggregation, normalization • Distribute applications across network • Automated Security and Data Collection • UDAP (plug-n-play protocol), Active RFID, GPS, Sensors, Bar Code, RTLS • Integrated and Interoperable Active RFID GPS/GSM SatComm Readers SmartSeal Tag Hand Helds Open Network and Software Platform Sensors Tags Sign Posts ISO E-Seals

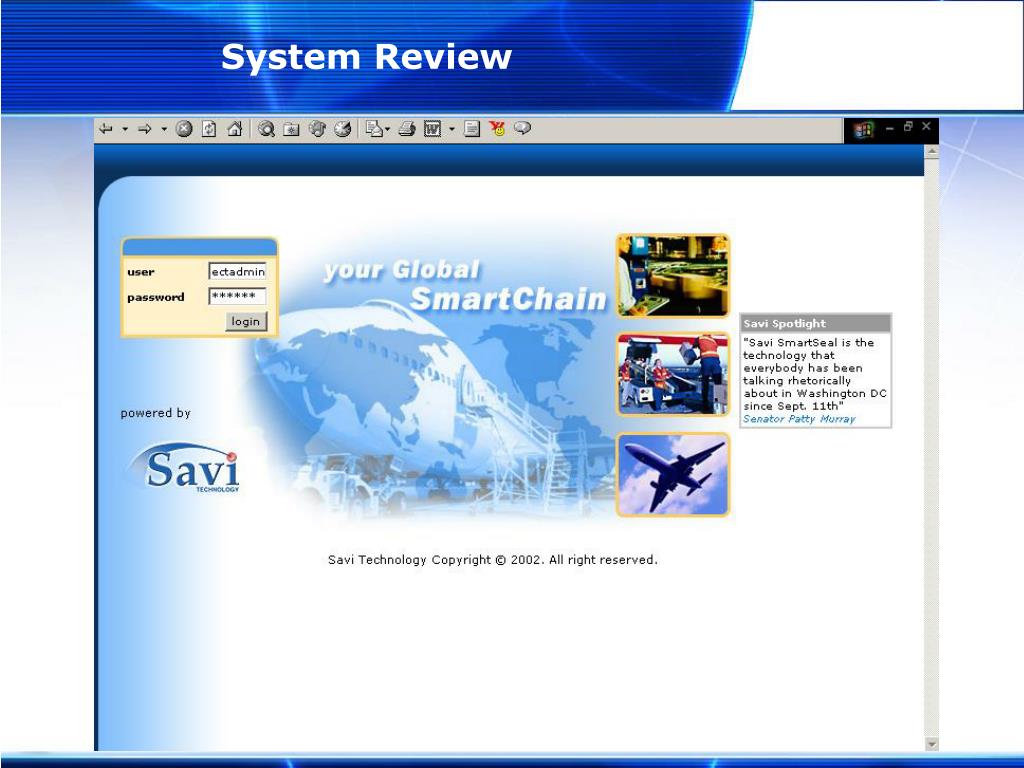

  16. System Review
