Hardlock server setup

Hardlock server setup. MCPS acquisition PC can be used as license server too. Installation steps for license server PC: Install Net-DONGLE on your license server PC on the parallel printer port. Install hlsw32.exe Install aksmon32.exe Start “AKS Monitor” Add module 10081

malana
Download Presentation

Hardlock server setup

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Hardlock server setup MCPS acquisition PC can be used as license server too. • Installation steps for license server PC: • Install Net-DONGLE on your license server PCon the parallel printer port. • Install hlsw32.exe • Install aksmon32.exe • Start “AKS Monitor” • Add module 10081 • Ready to access by remote clients.

  2. Hardlock AKS Monitor Local IP address Local DONGLE Module Address

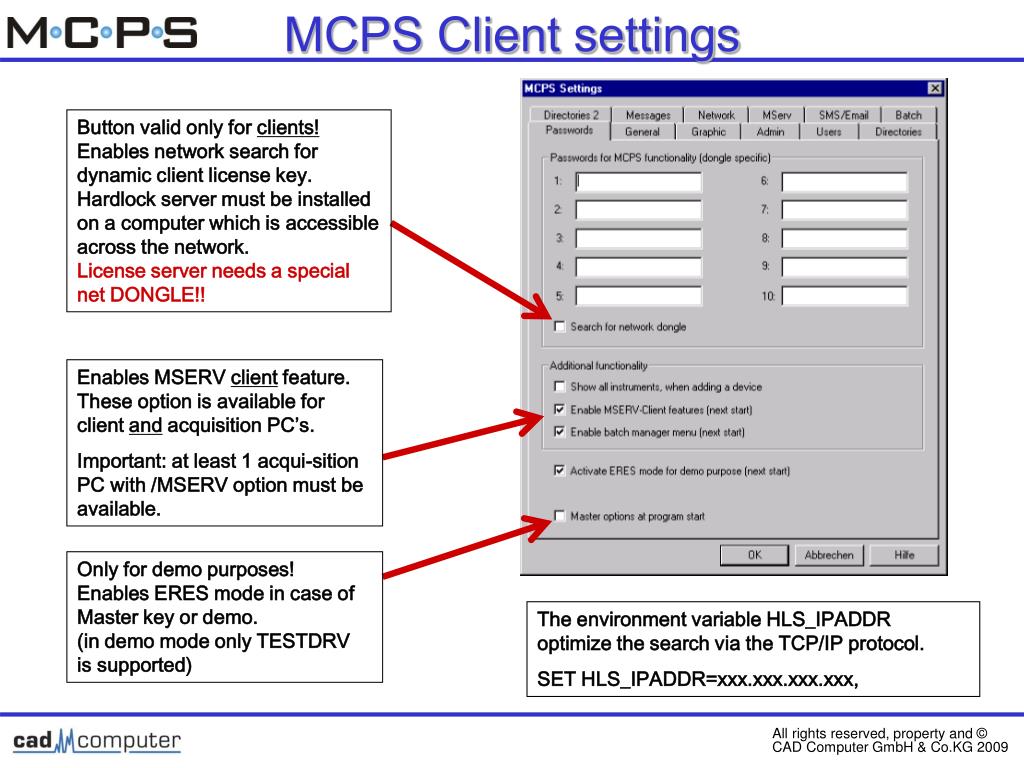

  3. MCPS Client settings Button valid onlyfor clients!Enables network search for dynamic client license key.Hardlock server must be installed on a computer which is accessible across the network.License server needs a special net DONGLE!! Enables MSERV client feature.These option is available forclient and acquisition PC’s. Important: at least 1 acqui-sition PC with /MSERV option must be available. Only for demo purposes!Enables ERES mode in case of Master key or demo. (in demo mode only TESTDRVis supported) The environment variable HLS_IPADDRoptimize the search via the TCP/IP protocol. SET HLS_IPADDR=xxx.xxx.xxx.xxx,

  4. MCPS Client settings Connect to: PC_S1 at IP 192.168.2.10 PC_S2 at IP 192.168.2.20 Both notations are possible History buffer for online clients The number of data scans are downloaded from server at the time the online project is selected.

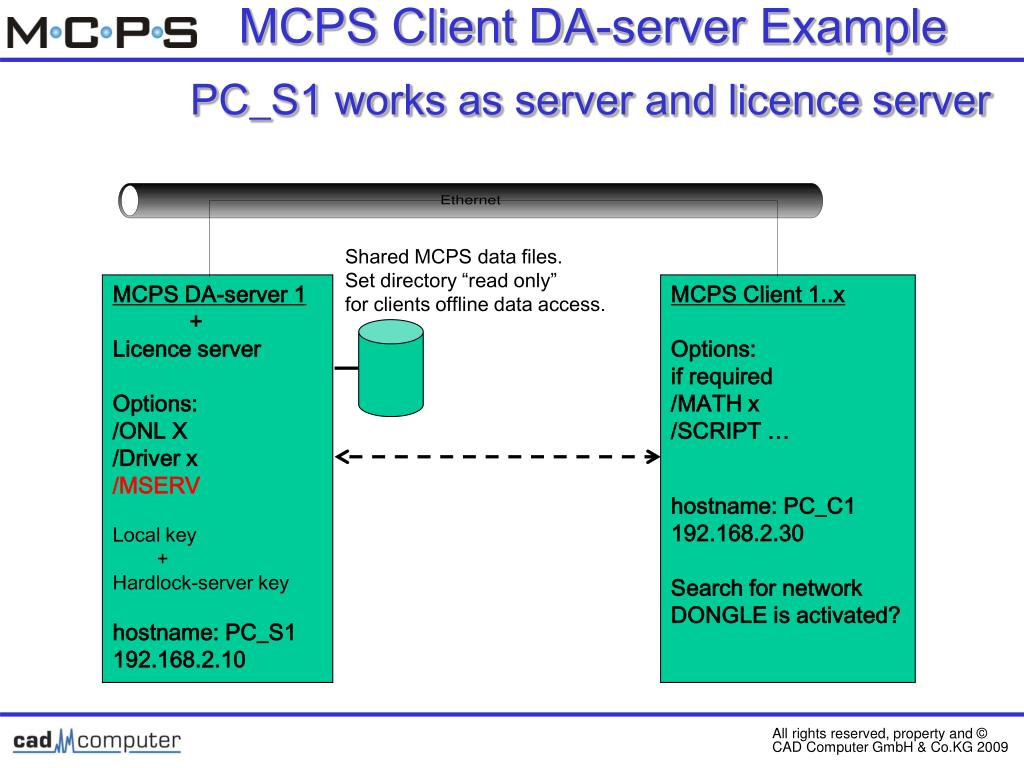

  5. MCPS Client DA-server ExamplePC_S1 works as server and licence server Shared MCPS data files.Set directory “read only” for clients offline data access. MCPS DA-server 1 + Licence server Options:/ONL X/Driver x /MSERV Local key + Hardlock-server key hostname: PC_S1 192.168.2.10 MCPS Client 1..x Options:if required /MATH x/SCRIPT … hostname: PC_C1 192.168.2.30 Search for networkDONGLE is activated?

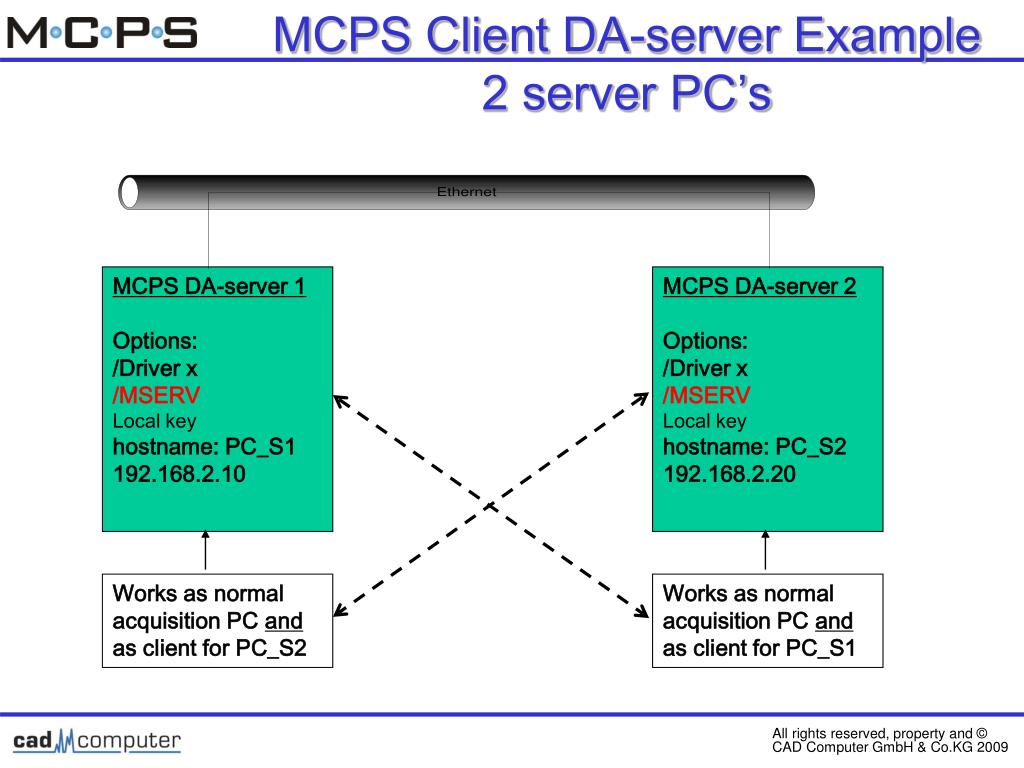

  6. MCPS Client DA-server Example 2 server PC’s MCPS DA-server 1 Options:/Driver x /MSERV Local key hostname: PC_S1 192.168.2.10 MCPS DA-server 2 Options:/Driver x /MSERV Local key hostname: PC_S2 192.168.2.20 Works as normal acquisition PC and as client for PC_S2 Works as normal acquisition PC and as client for PC_S1

  7. Client: Open remote online projects Computer name Project name Open the MCPS remote projectin the menu Project, Open from DA sever Select the remote computerand then choose the project. Several remote computers and projects are possible.

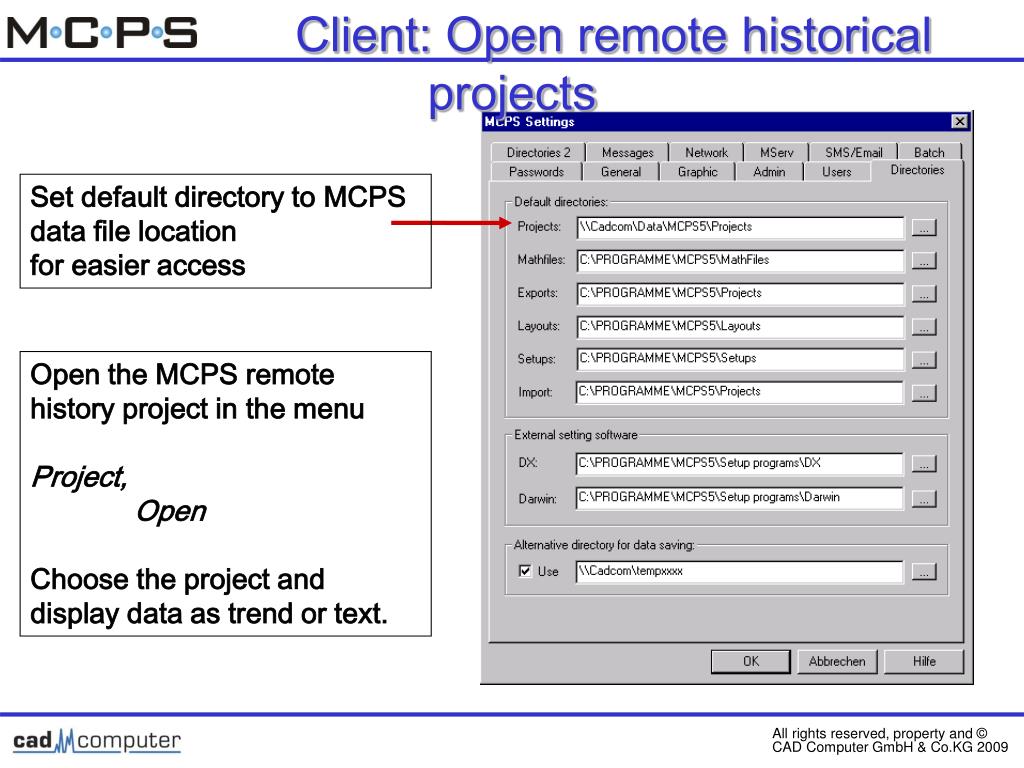

  8. Client: Open remote historical projects Set default directory to MCPS data file locationfor easier access Open the MCPS remote history project in the menu Project, OpenChoose the project and display data as trend or text.
