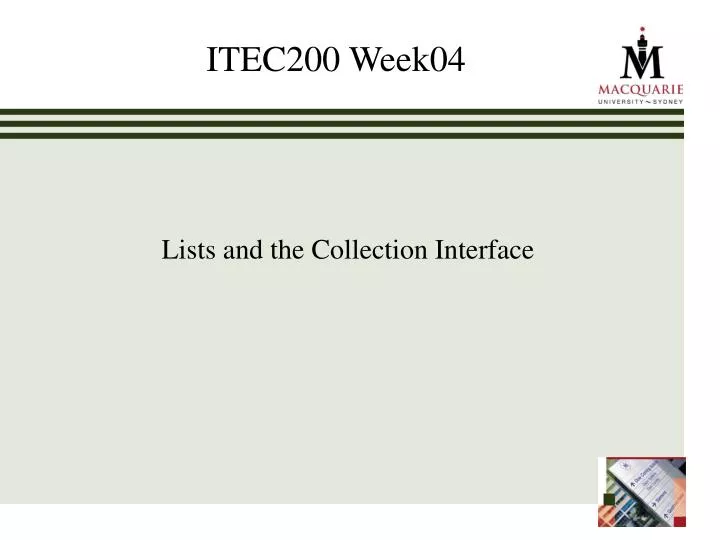

  1. ITEC200 Week04 Lists and the Collection Interface

  2. Learning Objectives Week04Lists and the Collection Interface (Ch4) Students can • Explain the difference between various types of List structures (ArrayList, LinkedList) and their representation in the Java • Utilise List operations to maintain lists of information • Analyse implementations (both the approach to programming and the corresponding efficiency) of various kinds of Lists (eg, array based, single-, double-, and circular linked) • Program augmentations to list implementations • Explain the mechanics of the Iterator interface, analyse implementations of iterators and augment them according to specifications provided • Describe the features of the Java Collection framework in relation to data structures • Apply Java 5.0 generics to the implementation of Lists www.ics.mq.edu.au/ppdp

  3. The ArrayList Class • An ArrayList is an Abstract Data Type for storing lists of data. • Improvement over an array object • Implements the List interface www.ics.mq.edu.au/ppdp

  4. The List Interface www.ics.mq.edu.au/ppdp

  5. Generic Collections • Language feature introduced in Java 5.0 called generic collections (or generics) • Generics allow you to define a collection that contains references to objects of a specific type • List<String> myList = new ArrayList<String>(); specifies that myList is a List of String where String is a type parameter • Only references to objects of type String can be stored in myList, and all items retrieved would be of type String. • A type parameter is analogous to a method parameter. www.ics.mq.edu.au/ppdp

  6. Creating a Generic Collection www.ics.mq.edu.au/ppdp

  7. Specification of the ArrayList Class www.ics.mq.edu.au/ppdp

  8. Implementation of an ArrayList Class • KWArrayList: simple implementation of a ArrayList class • Physical size of array indicated by data field capacity • Number of data items indicated by the data field size www.ics.mq.edu.au/ppdp

  9. Implementation of an ArrayList Class (continued) www.ics.mq.edu.au/ppdp

  10. The Vector Class • Initial release of Java API contained the Vector class which has similar functionality to the ArrayList • Both contain the same methods • New applications should use ArrayList rather than Vector • Stack is a subclass of Vector www.ics.mq.edu.au/ppdp

  11. Single-Linked Lists and Double-Linked Lists • The ArrayList: add and remove methods operate in linear time because they require a loop to shift elements in the underlying array • A Linked list consists of a set of ‘nodes’, each of which contains its data and a reference to the next node • Linked list overcomes this by providing ability to add or remove items anywhere in the list in constant time • Each element (node) in a linked list stores information and a link to the next, and optionally previous, node www.ics.mq.edu.au/ppdp

  12. A List Node • A node contains a data item and one or more links • A link is a reference to a node • A node is generally defined inside of another class, making it an inner class • The details of a node should be kept private www.ics.mq.edu.au/ppdp

  13. Single-Linked Lists www.ics.mq.edu.au/ppdp

  14. Double-Linked Lists • Limitations of a single-linked list include: • Insertion at the front of the list is O(1). • Insertion at other positions is O(n) where n is the size of the list. • Can insert a node only after a referenced node • Can remove a node only if we have a reference to its predecessor node • Can traverse the list only in the forward direction • Above limitations removed by adding a reference in each node to the previous node (double-linked list) www.ics.mq.edu.au/ppdp

  15. Double-Linked Lists (continued) www.ics.mq.edu.au/ppdp

  16. Circular Lists • Circular-linked list: link the last node of a double-linked list to the first node and the first to the last www.ics.mq.edu.au/ppdp

  17. The LinkedList<E> Class • Part of the Java API • Implements List<E> interface using a double-linked list www.ics.mq.edu.au/ppdp

  18. The Iterator<E> Interface • The List interface declares the method iterator, which returns an Iterator object that will iterate over the elements of that list • The interface Iterator is defined as part of API package java.util • An Iterator does not refer to or point to a particular node at any given time but points between nodes www.ics.mq.edu.au/ppdp

  19. The Iterator<E> Interface (continued) www.ics.mq.edu.au/ppdp

  20. The ListIterator<E> Interface • Iterator has limitations • ListIterator<E> is an extension of the Iterator<E> interface for overcoming these limitations • Iterator should be thought of as being positioned between elements of the linked list www.ics.mq.edu.au/ppdp

  21. The ListIterator<E> Interface (continued) www.ics.mq.edu.au/ppdp

  22. The Enhanced for Statement www.ics.mq.edu.au/ppdp

  23. The Iterable Interface • This interface requires only that a class that implements it provide an iterator method • The Collection interface extends the Iterable interface, so all classes that implement the List interface (a subinterface of Collection) must provide an iterator method www.ics.mq.edu.au/ppdp

  24. Implementation of a Double-Linked List www.ics.mq.edu.au/ppdp

  25. Implementation of a Double-Linked List (continued) www.ics.mq.edu.au/ppdp

  26. Application of the LinkedList Class • Case study that uses the Java LinkedList class to solve a common problem: maintaining an ordered list www.ics.mq.edu.au/ppdp

  27. Application of the LinkedList Class (continued) www.ics.mq.edu.au/ppdp

  28. The Collection interface • Collection interface specifies a set of common methods • Fundamental features include: • Collections grow as needed • Collections hold references to objects • Collections have at least two constructors www.ics.mq.edu.au/ppdp

  29. The Collection Hierarchy www.ics.mq.edu.au/ppdp

  30. Where to from here… • Work through Chapter 4 of the Koffman & Wolfgang Text • Conceptual Questions and Practical Exercises • Submit all preliminary work • Be prompt for your online class www.ics.mq.edu.au/ppdp

  31. Acknowledgements These slides were based upon the Objects, Abstraction, Data Structures and Design using Java Version 5.0 Chapter 4 PowerPoint presentation by Elliot B. Koffman and Paul A. T. Wolfgang www.ics.mq.edu.au/ppdp
