RL 22-32 BLU. RL 28/M-190/M. New. New TRD type. SERIES R. FUEL S => Natural Gas L => Light oil LS => Light oil/Natural Gas N => Heavy oil (Nafta). SIZE. MODE OPERATION /1 => Single Stage … => Two Stage /M => Modulating. R. L. 70. /M. BASIC DESCRIPTION.

mandy
Download Presentation

RL 28/M-190/M

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

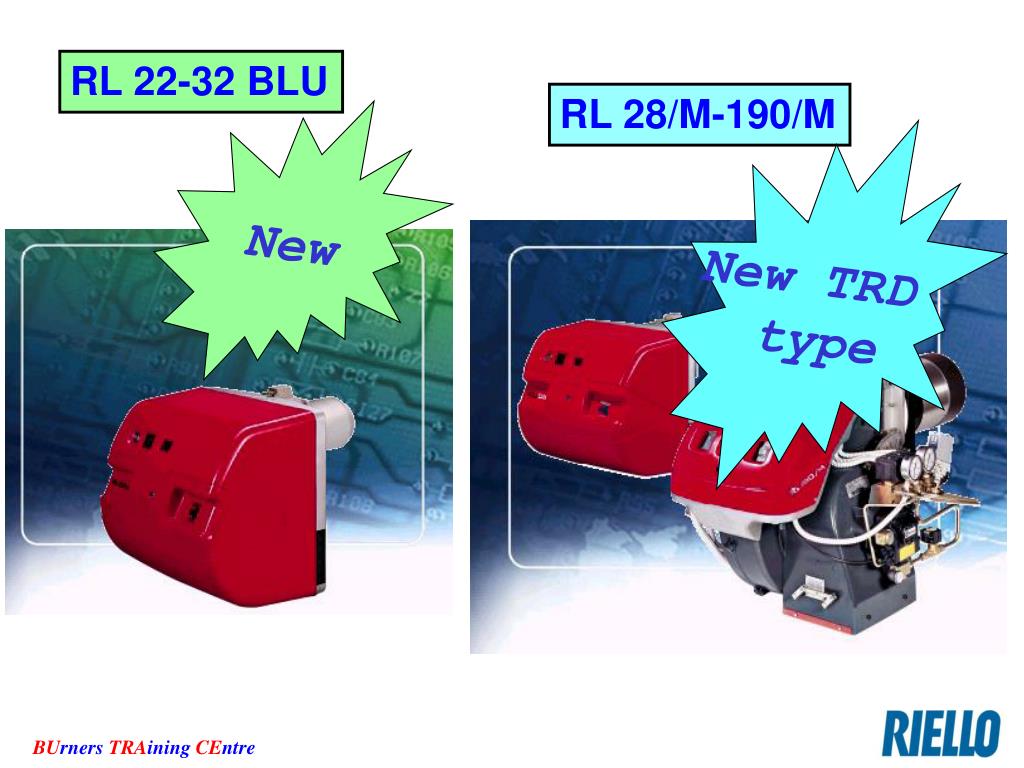

  1. RL 22-32 BLU RL 28/M-190/M New New TRD type

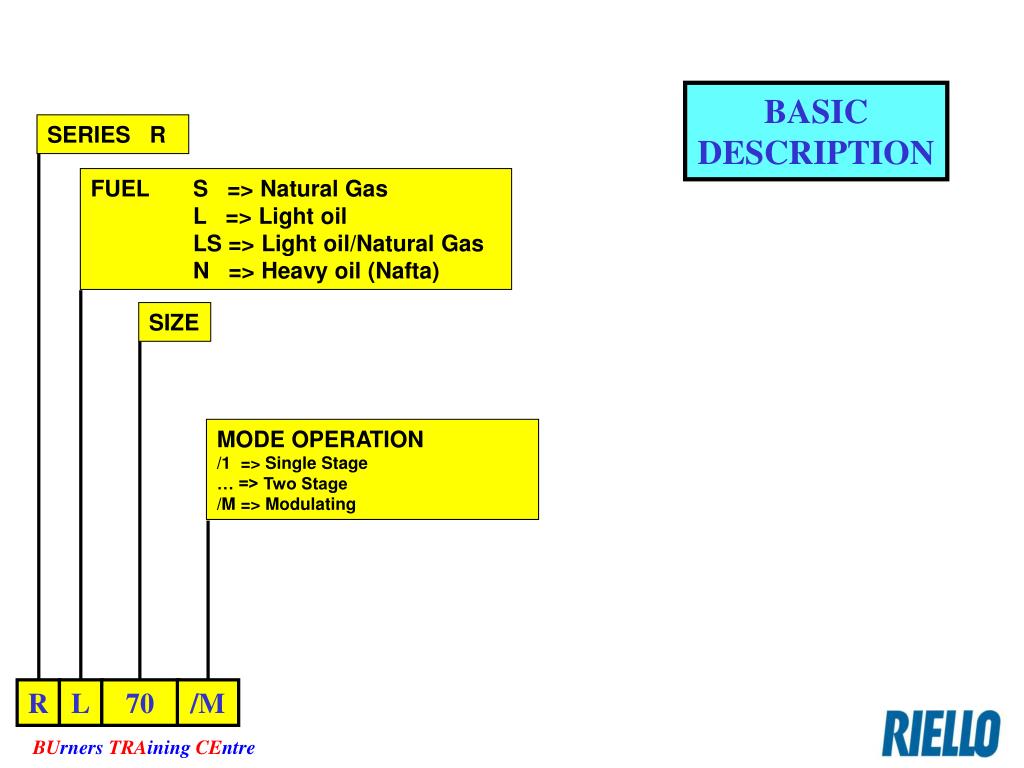

  2. SERIES R FUEL S => Natural Gas L => Light oil LS => Light oil/Natural Gas N => Heavy oil (Nafta) SIZE MODE OPERATION /1 => Single Stage … => Two Stage /M => Modulating R L 70 /M BASIC DESCRIPTION

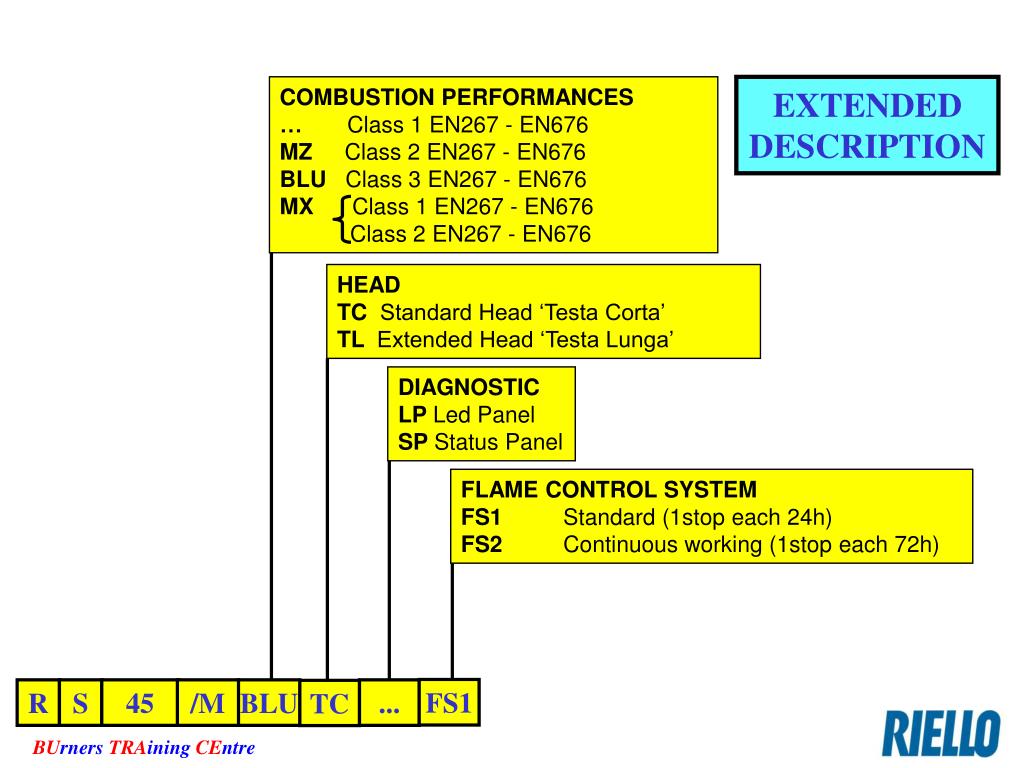

  3. COMBUSTION PERFORMANCES … Class 1 EN267 - EN676 MZ Class 2 EN267 - EN676 BLU Class 3 EN267 - EN676 MX Class 1 EN267 - EN676 Class 2 EN267 - EN676 HEAD TC Standard Head ‘Testa Corta’ TL Extended Head ‘Testa Lunga’ DIAGNOSTIC LP Led Panel SP Status Panel FLAME CONTROL SYSTEM FS1 Standard (1stop each 24h) FS2 Continuous working (1stop each 72h) FS1 BLU ... TC EXTENDED DESCRIPTION R S 45 /M

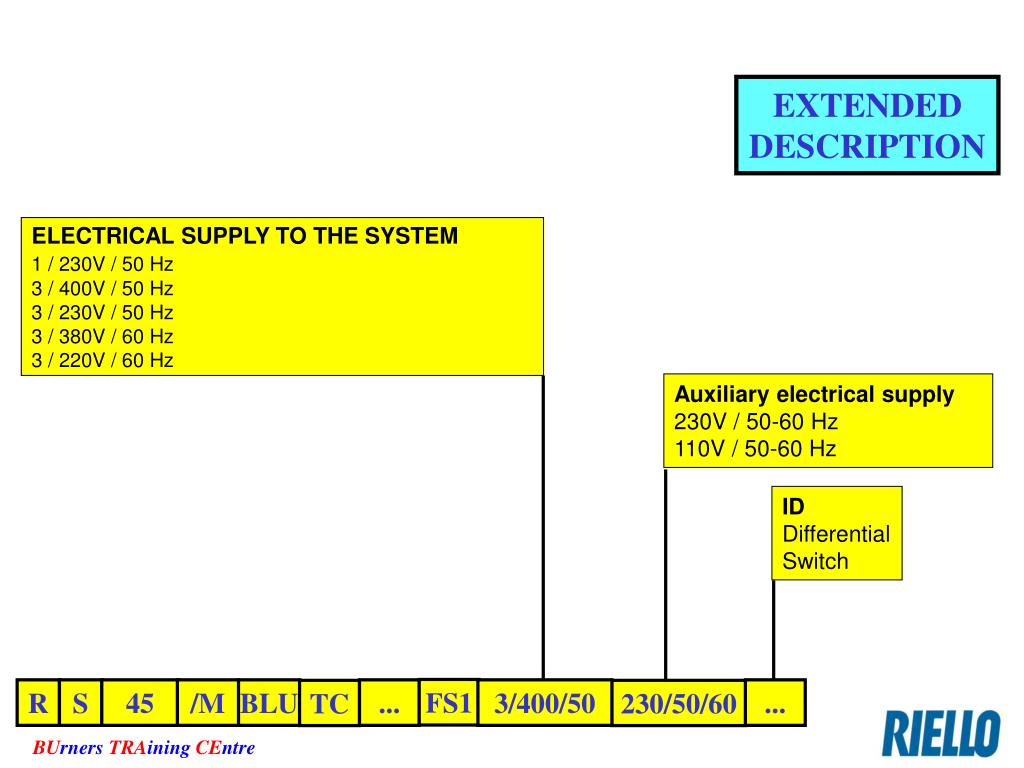

  4. ELECTRICAL SUPPLY TO THE SYSTEM 1 / 230V / 50 Hz 3 / 400V / 50 Hz 3 / 230V / 50 Hz 3 / 380V / 60 Hz 3 / 220V / 60 Hz Auxiliary electrical supply 230V / 50-60 Hz 110V / 50-60 Hz ID Differential Switch 3/400/50 ... 230/50/60 EXTENDED DESCRIPTION FS1 R S 45 /M BLU ... TC

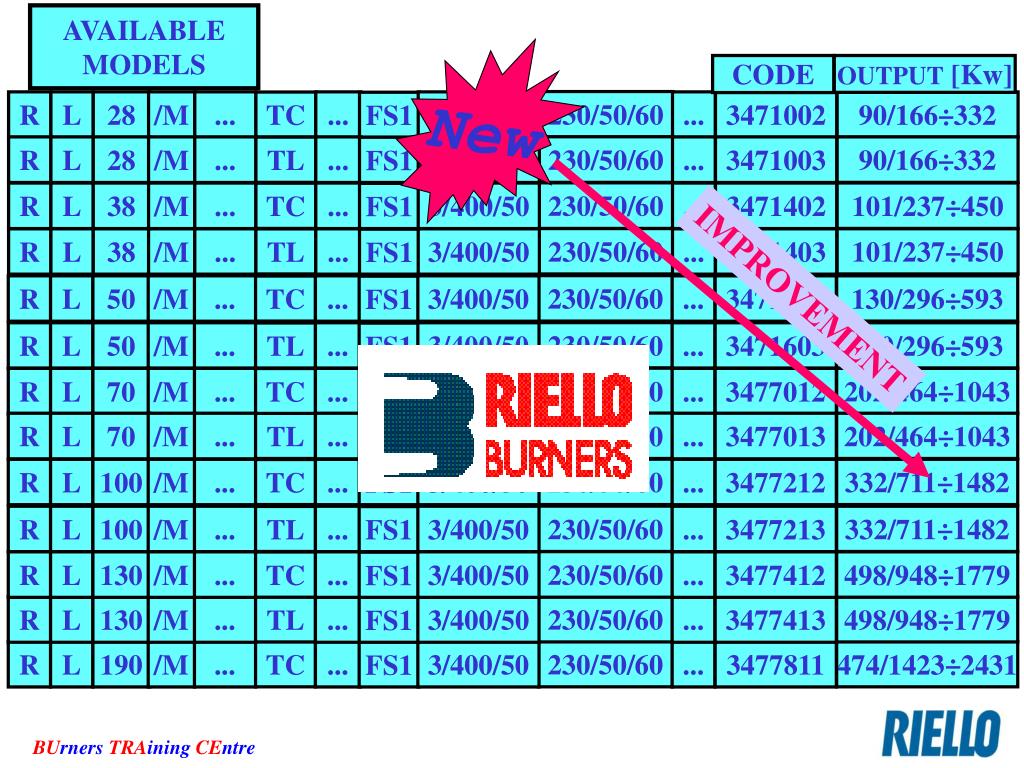

  5. New CODE OUTPUT [Kw] 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 R R R R R R R R R R R R R L L L L L L L L L L L L L 38 28 190 130 28 38 50 50 130 70 70 100 100 /M /M /M /M /M /M /M /M /M /M /M /M /M ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 3/400/50 3/400/50 3/400/50 1/230/50 3/400/50 3/400/50 3/400/50 3/400/50 3/400/50 3/400/50 1/230/50 3/400/50 3/400/50 ... ... ... ... ... ... ... ... ... ... ... ... ... 3471402 3471403 3477213 3471603 3471003 3471602 3477212 3477811 3477013 3471002 3477412 3477012 3477413 90/166÷332 90/166÷332 130/296÷593 498/948÷1779 101/237÷450 332/711÷1482 202/464÷1043 332/711÷1482 202/464÷1043 101/237÷450 498/948÷1779 130/296÷593 474/1423÷2431 TC TC TL TC TL TC TL TC TC TC TL TL TL FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 IMPROVEMENT AVAILABLE MODELS

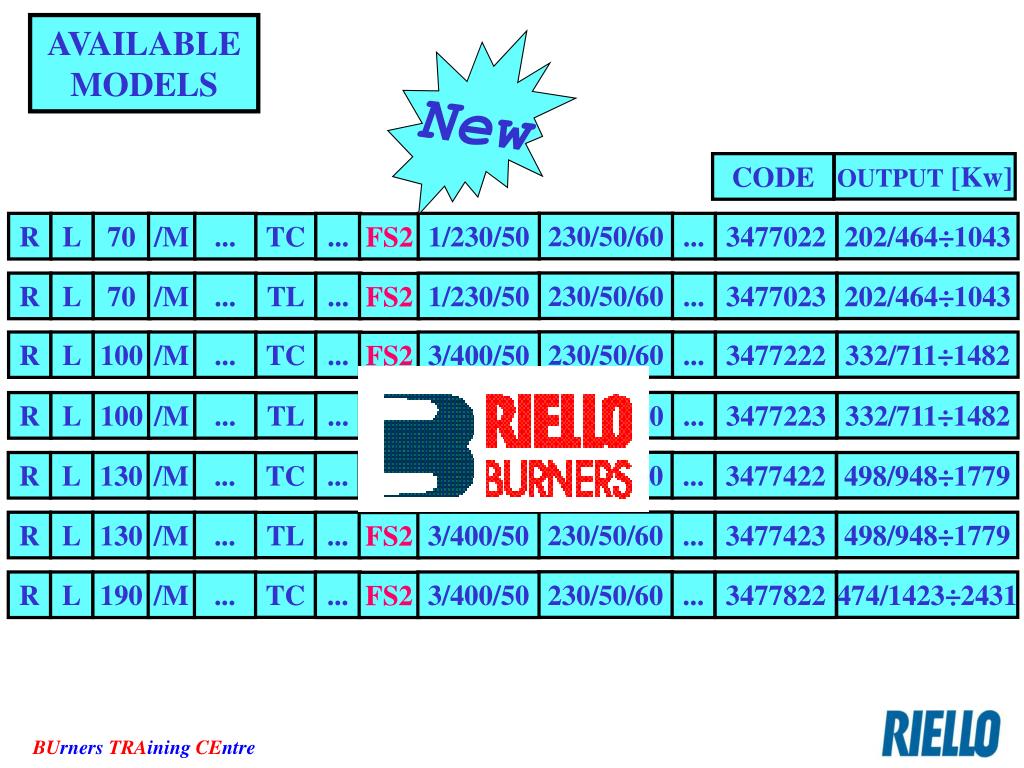

  6. 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 R R R R R R R L L L L L L L 190 70 130 130 70 100 100 /M /M /M /M /M /M /M ... ... ... ... ... ... ... ... ... ... ... ... ... ... 3/400/50 3/400/50 3/400/50 1/230/50 3/400/50 1/230/50 3/400/50 ... ... ... ... ... ... ... 3477423 3477022 3477422 3477223 3477822 3477222 3477023 202/464÷1043 332/711÷1482 498/948÷1779 332/711÷1482 202/464÷1043 498/948÷1779 474/1423÷2431 TL TC TC TL TL TC TC FS2 FS2 FS2 FS2 FS2 FS2 FS2 AVAILABLE MODELS New CODE OUTPUT [Kw]

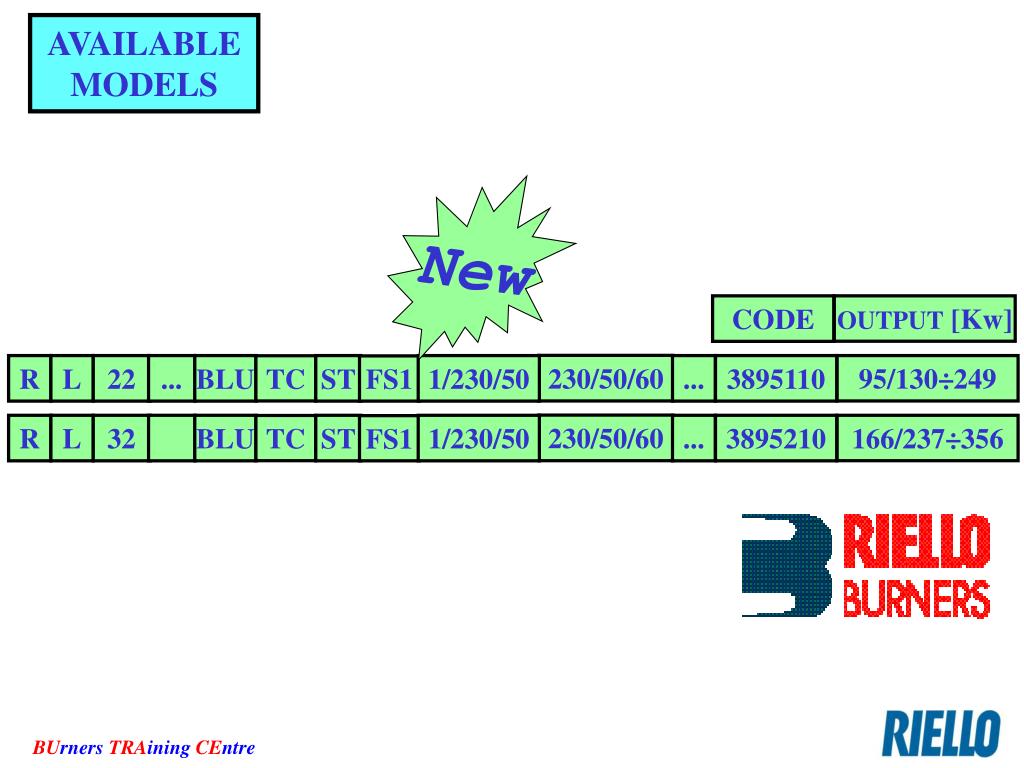

  7. 230/50/60 230/50/60 R R L L 32 22 ... BLU BLU ST ST 1/230/50 1/230/50 ... ... 3895110 3895210 95/130÷249 166/237÷356 TC TC FS1 FS1 AVAILABLE MODELS New CODE OUTPUT [Kw]

  8. New CODE OUTPUT [Kw] 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 230/50/60 R R R R R R R R R R R R R L L L L L L L L L L L L L 38 28 190 130 28 38 50 50 130 70 70 100 100 /M /M /M /M /M /M /M /M /M /M /M /M /M ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 3/400/50 3/400/50 3/400/50 1/230/50 3/400/50 3/400/50 3/400/50 3/400/50 3/400/50 3/400/50 1/230/50 3/400/50 3/400/50 ... ... ... ... ... ... ... ... ... ... ... ... ... 3471400 3471401 3477211 3471601 3471001 3471600 3477210 3477810 3407011 3471000 3477410 3477010 3477411 90/166÷332 90/166÷332 130/296÷593 498/948÷1779 101/237÷450 332/711÷1482 202/464÷1043 332/711÷1482 202/464÷1043 101/237÷450 498/948÷1779 130/296÷593 474/1423÷2431 TC TC TL TC TL TC TL TC TC TC TL TL TL FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 FS1 IMPROVEMENT AVAILABLE MODELS
