Double precision, real and complex

Double precision, real and complex. To make a single precision real number, we declare REAL :: X, Y, Z These are accurate to 7 significant digits, usually stored in 32 bits. Single precision is the default If we want double precision, REAL*8 :: X, Y, Z DOUBLE PRECISION :: A, B, C

Download Presentation

Double precision, real and complex

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Double precision, real and complex To make a single precision real number, we declare REAL :: X, Y, Z These are accurate to 7 significant digits, usually stored in 32 bits. Single precision is the default If we want double precision, REAL*8 :: X, Y, Z DOUBLE PRECISION :: A, B, C INTEGER, PARAMETER :: Prec14 = SELECTED_REAL_KIND(14) REAL(KIND = Prec14) :: D, E, F Each of these gives 14 digit precision in 64 bits

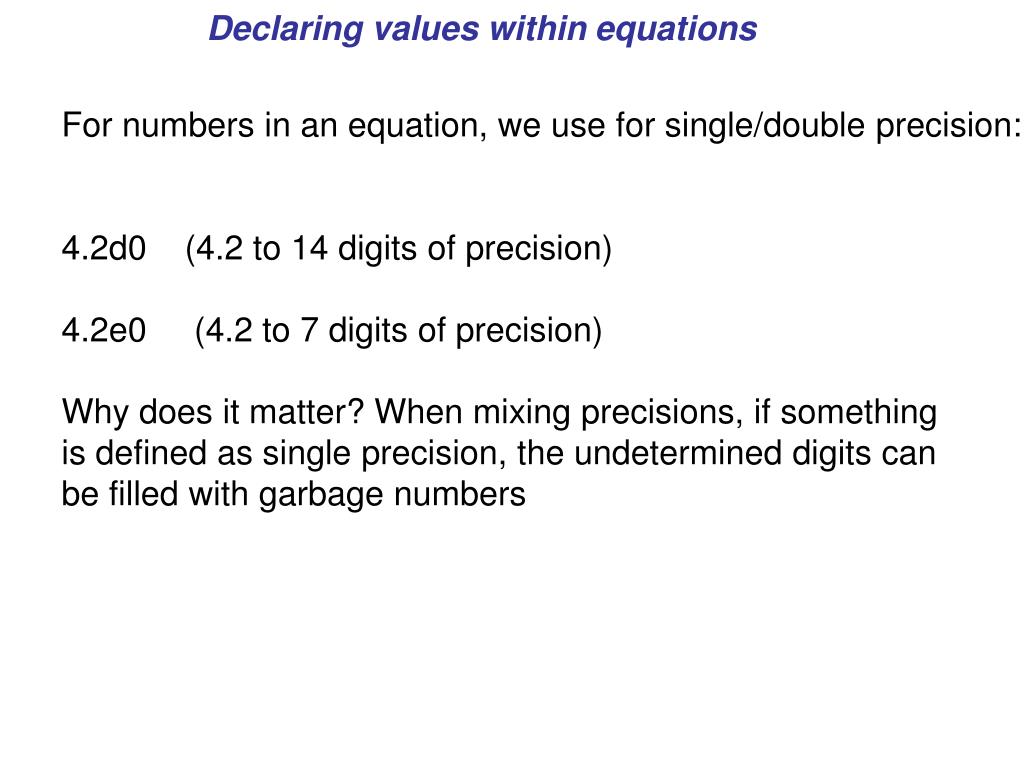

  2. Declaring values within equations For numbers in an equation, we use for single/double precision: 4.2d0 (4.2 to 14 digits of precision) 4.2e0 (4.2 to 7 digits of precision) Why does it matter? When mixing precisions, if something is defined as single precision, the undetermined digits can be filled with garbage numbers

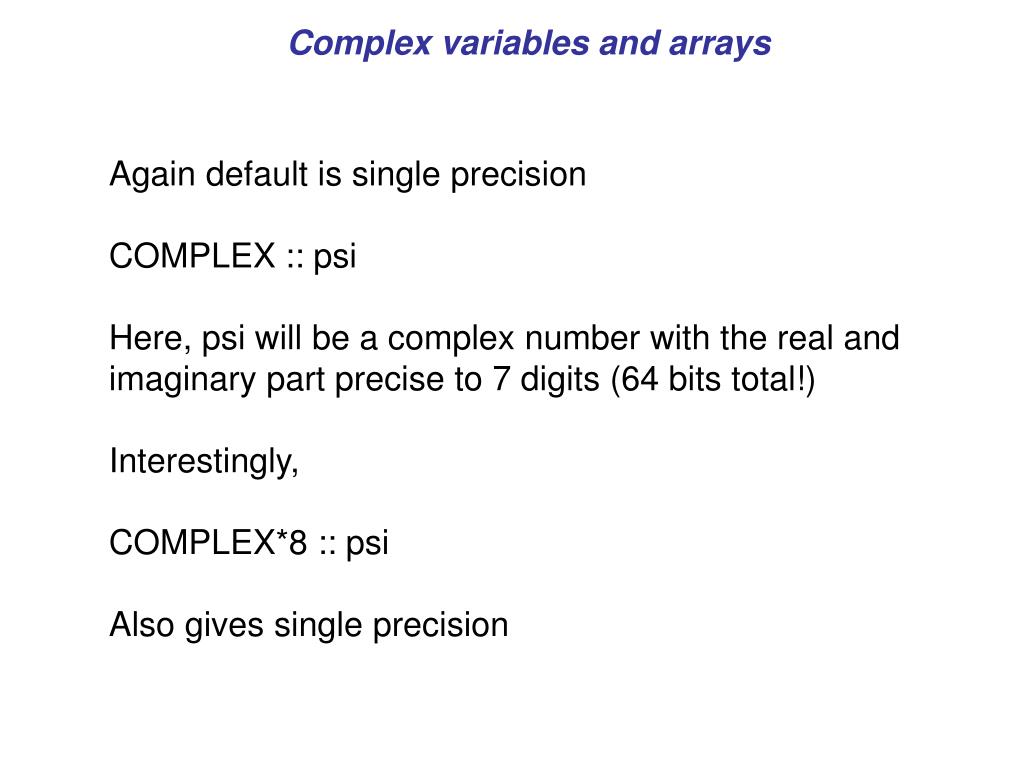

  3. Complex variables and arrays Again default is single precision COMPLEX :: psi Here, psi will be a complex number with the real and imaginary part precise to 7 digits (64 bits total!) Interestingly, COMPLEX*8 :: psi Also gives single precision

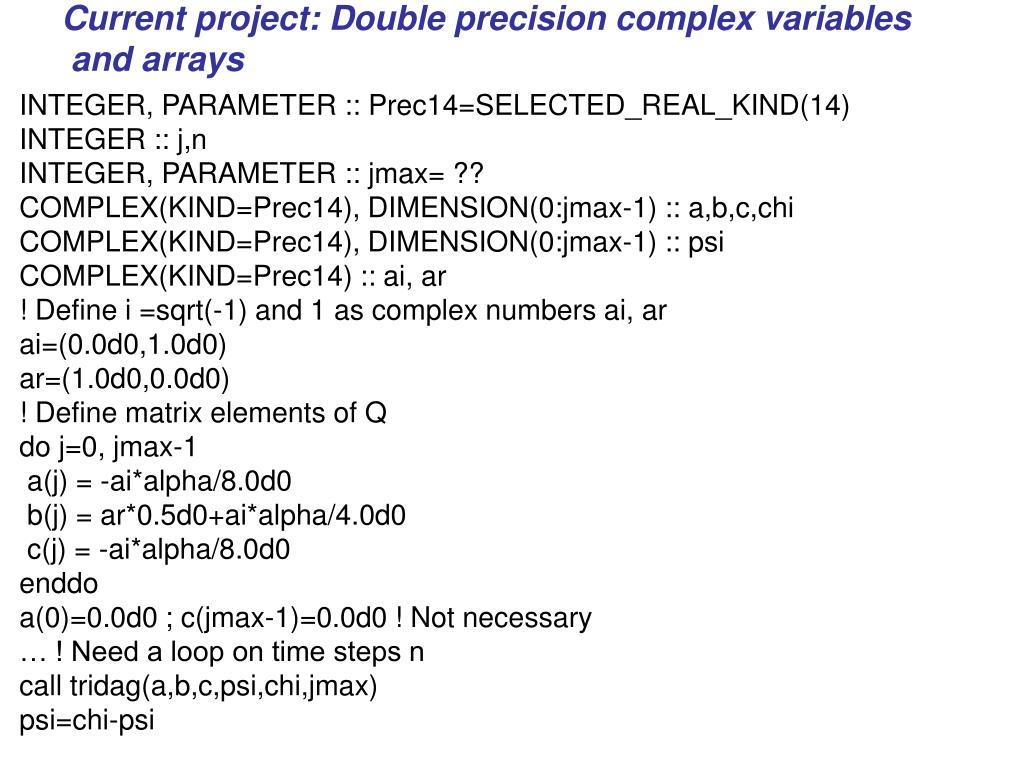

  4. Current project: Double precision complex variables and arrays INTEGER, PARAMETER :: Prec14=SELECTED_REAL_KIND(14) INTEGER :: j,n INTEGER, PARAMETER :: jmax= ?? COMPLEX(KIND=Prec14), DIMENSION(0:jmax-1) :: a,b,c,chi COMPLEX(KIND=Prec14), DIMENSION(0:jmax-1) :: psi COMPLEX(KIND=Prec14) :: ai, ar ! Define i =sqrt(-1) and 1 as complex numbers ai, ar ai=(0.0d0,1.0d0) ar=(1.0d0,0.0d0) ! Define matrix elements of Q do j=0, jmax-1 a(j) = -ai*alpha/8.0d0 b(j) = ar*0.5d0+ai*alpha/4.0d0 c(j) = -ai*alpha/8.0d0 enddo a(0)=0.0d0 ; c(jmax-1)=0.0d0 ! Not necessary … ! Need a loop on time steps n call tridag(a,b,c,psi,chi,jmax) psi=chi-psi

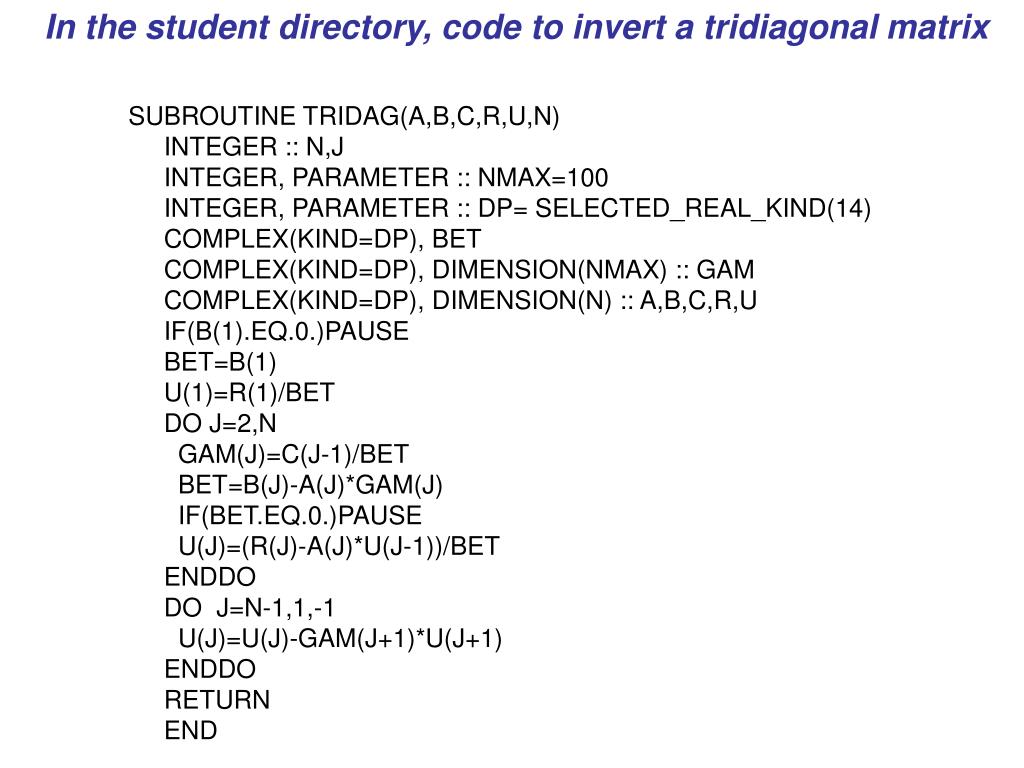

  5. In the student directory, code to invert a tridiagonal matrix SUBROUTINE TRIDAG(A,B,C,R,U,N) INTEGER :: N,J INTEGER, PARAMETER :: NMAX=100 INTEGER, PARAMETER :: DP= SELECTED_REAL_KIND(14) COMPLEX(KIND=DP), BET COMPLEX(KIND=DP), DIMENSION(NMAX) :: GAM COMPLEX(KIND=DP), DIMENSION(N) :: A,B,C,R,U IF(B(1).EQ.0.)PAUSE BET=B(1) U(1)=R(1)/BET DO J=2,N GAM(J)=C(J-1)/BET BET=B(J)-A(J)*GAM(J) IF(BET.EQ.0.)PAUSE U(J)=(R(J)-A(J)*U(J-1))/BET ENDDO DO J=N-1,1,-1 U(J)=U(J)-GAM(J+1)*U(J+1) ENDDO RETURN END
