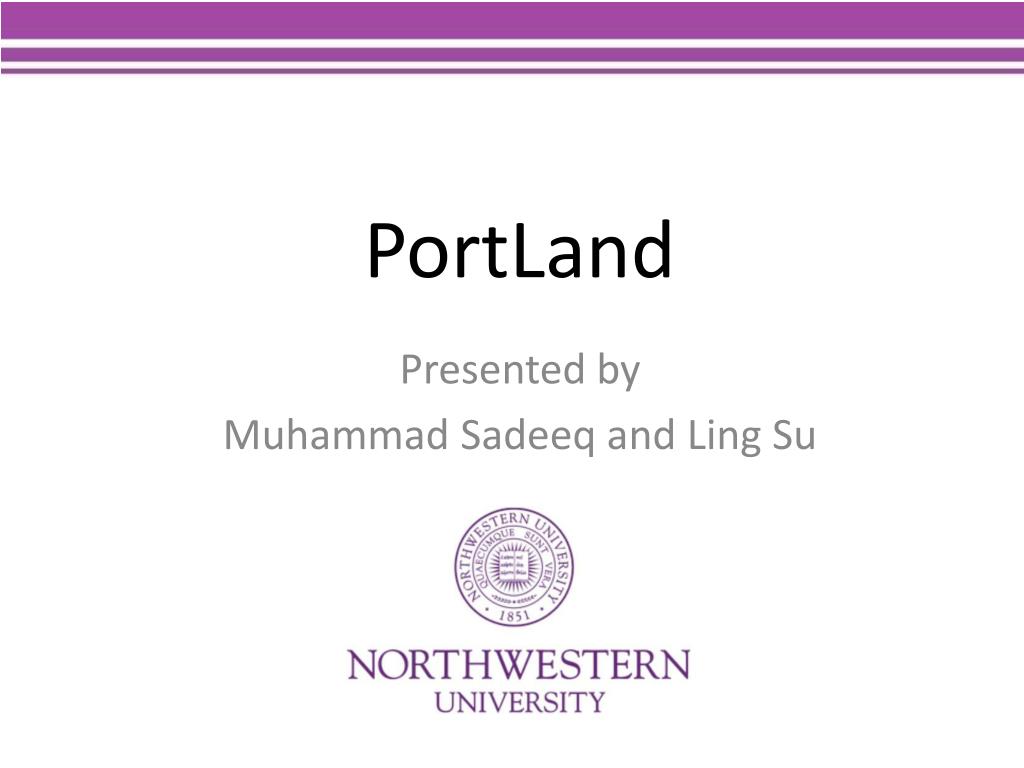

  1. PortLand Presented by Muhammad Sadeeq and Ling Su

  2. Present Data Center Network Current Issues • Topology High price to achieve the non-blocking network • Forwarding Layer 3: administrative burden, hard-to-diagnosed errors Layer 2: scalability, limited performance Middle ground: VLAN • End Host Virtualization Migration Scalability

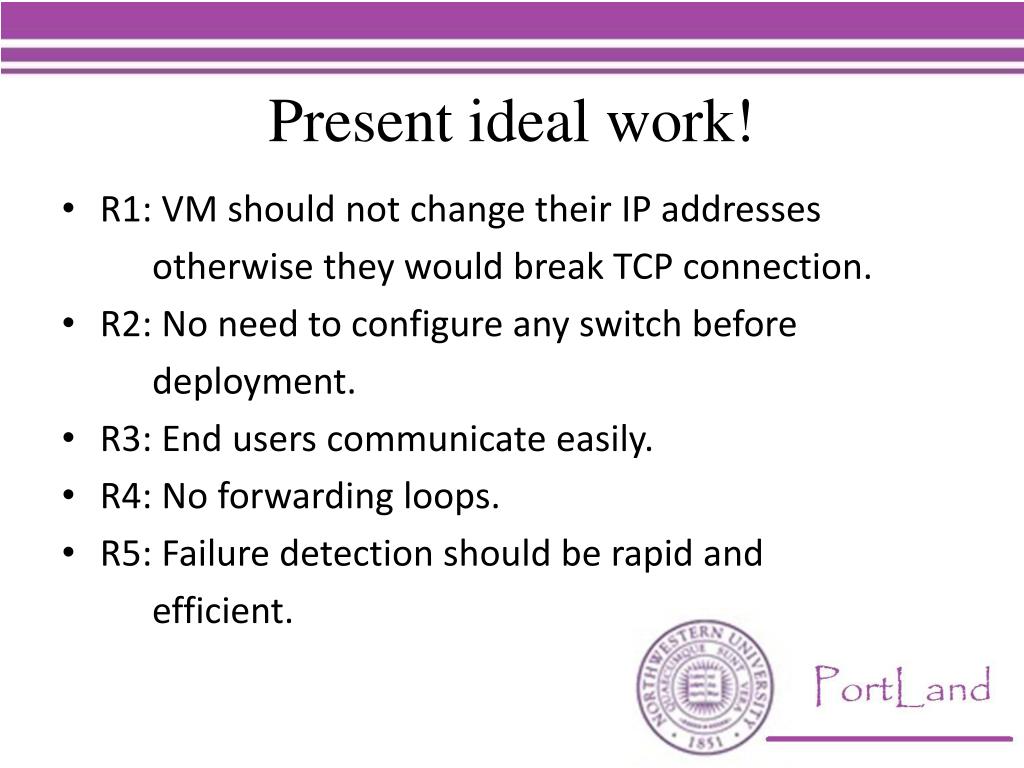

  3. Present ideal work! • R1: VM should not change their IP addresses • otherwise they would break TCP connection. • R2: No need to configure any switch before • deployment. • R3: End users communicate easily. • R4: No forwarding loops. • R5: Failure detection should be rapid and • efficient.

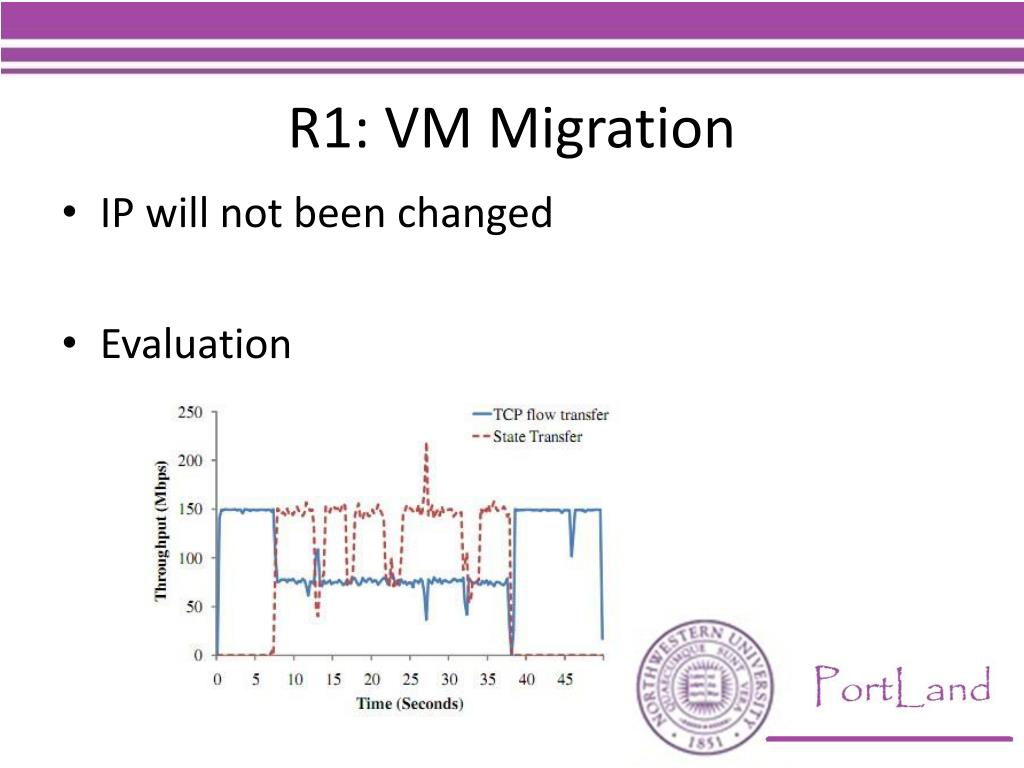

  4. R1: VM Migration • IP will not been changed • Evaluation

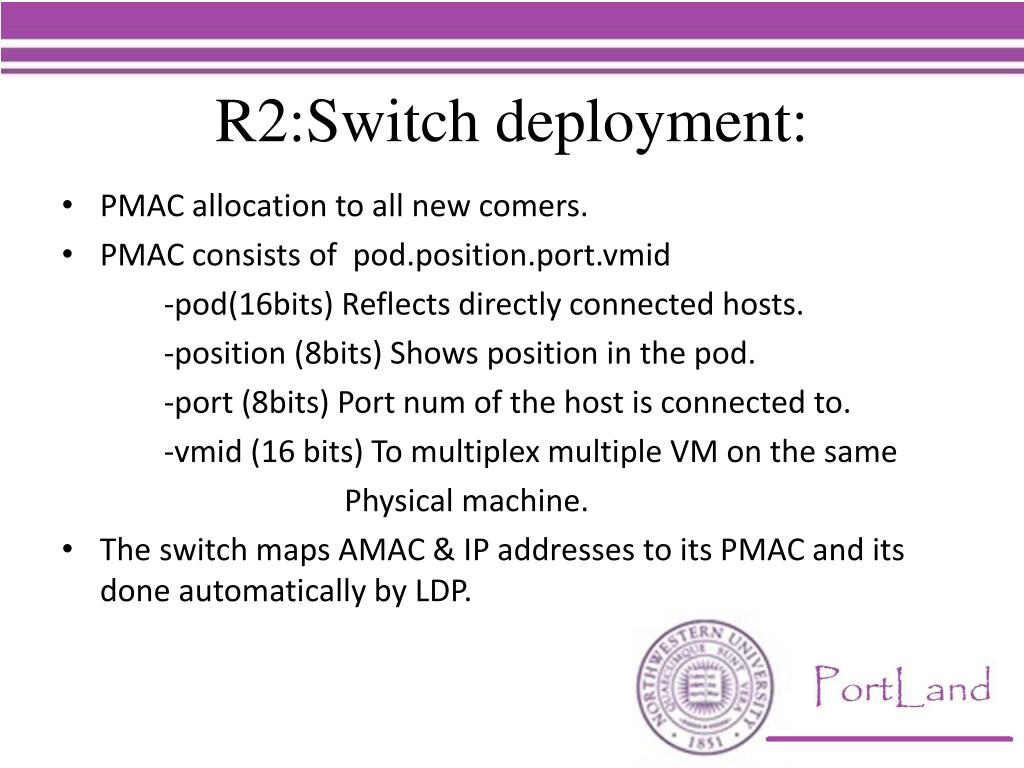

  5. R2:Switch deployment: • PMAC allocation to all new comers. • PMAC consists of pod.position.port.vmid -pod(16bits) Reflects directly connected hosts. -position (8bits) Shows position in the pod. -port (8bits) Port num of the host is connected to. -vmid (16 bits) To multiplex multiple VM on the same Physical machine. • The switch maps AMAC & IP addresses to its PMAC and its done automatically by LDP.

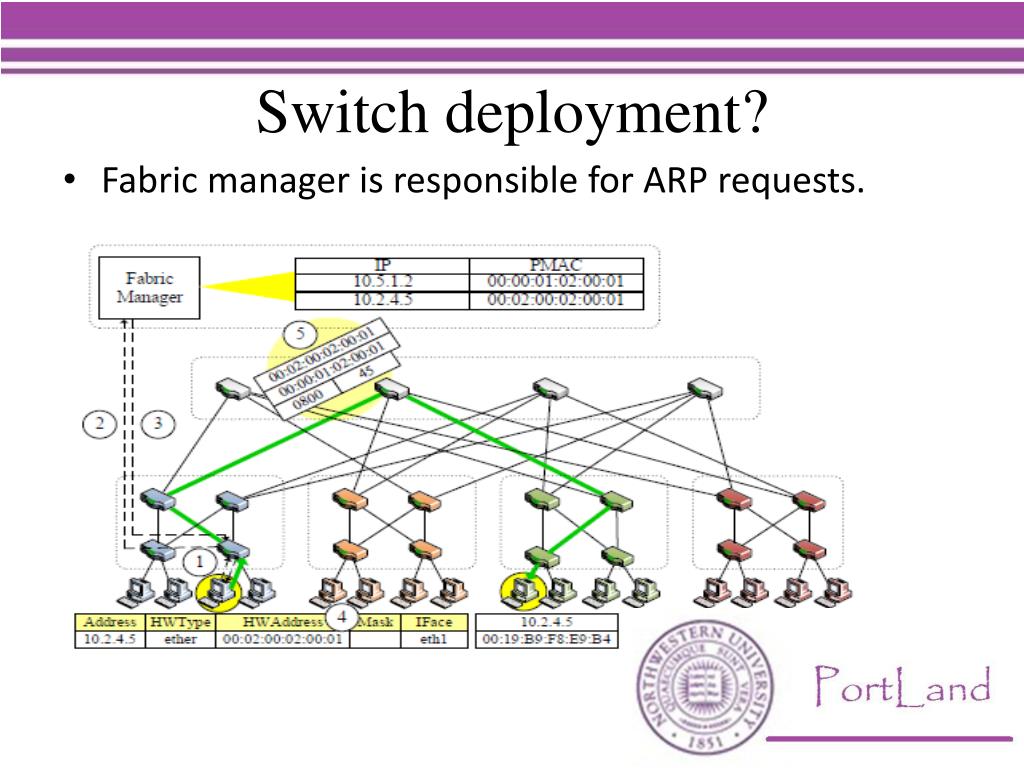

  6. Switch deployment? • Fabric manager is responsible for ARP requests.

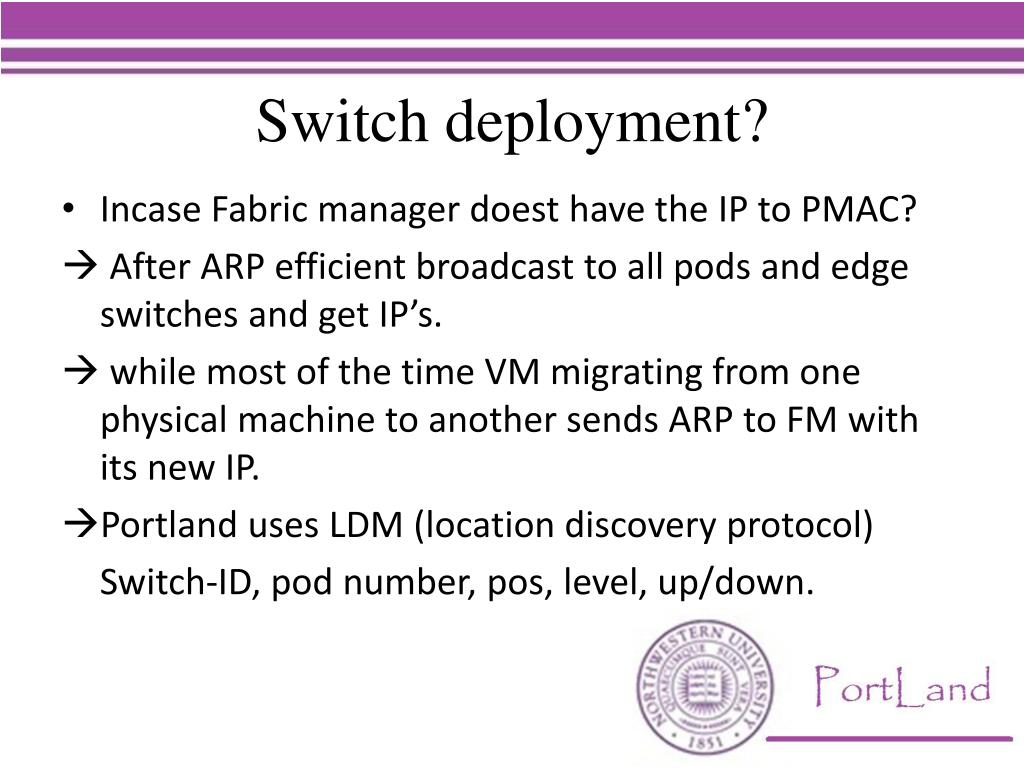

  7. Switch deployment? • Incase Fabric manager doest have the IP to PMAC? • After ARP efficient broadcast to all pods and edge switches and get IP’s. • while most of the time VM migrating from one physical machine to another sends ARP to FM with its new IP. • Portland uses LDM (location discovery protocol) Switch-ID, pod number, pos, level, up/down.

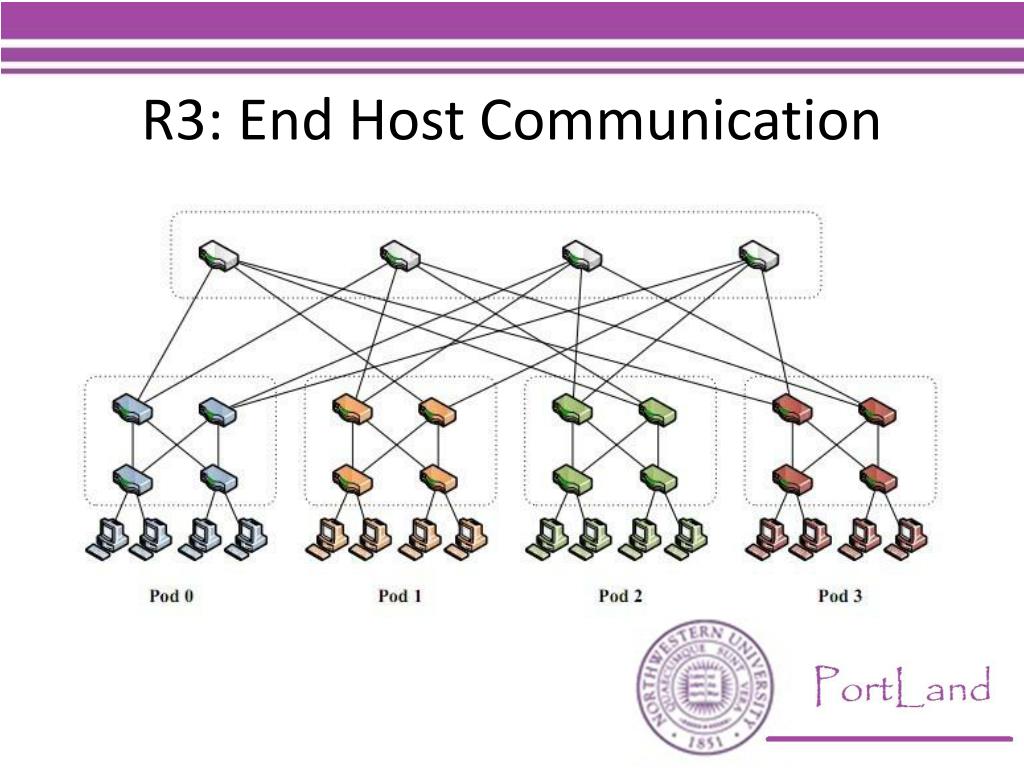

  8. R3: End Host Communication

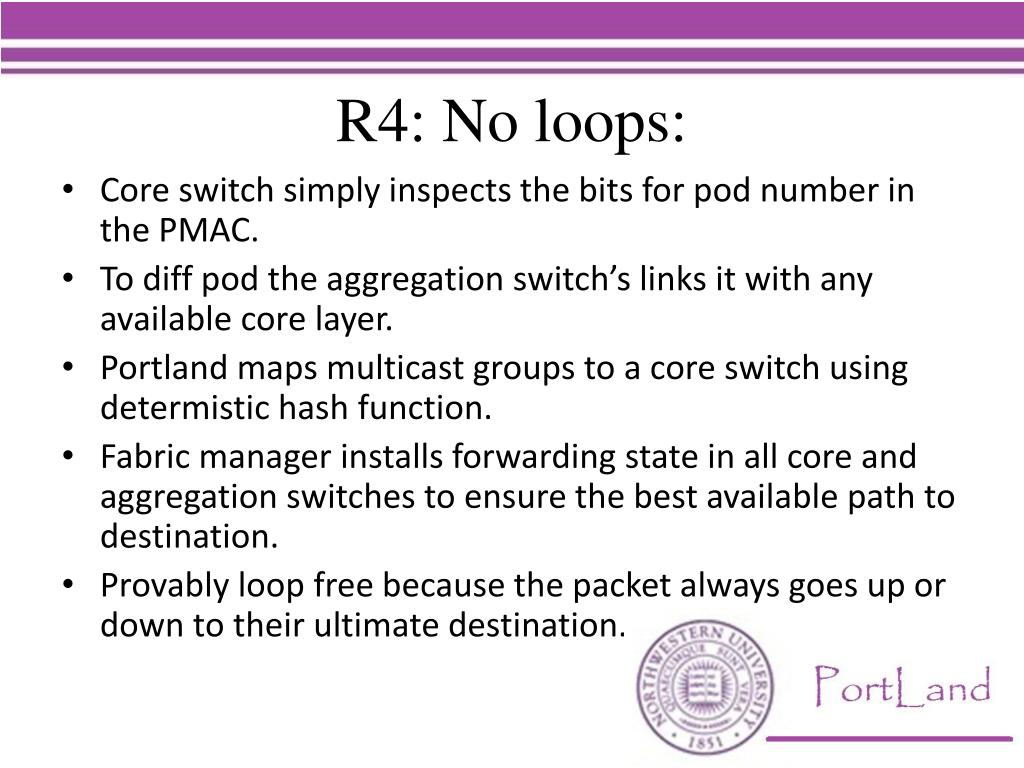

  9. R4: No loops: • Core switch simply inspects the bits for pod number in the PMAC. • To diff pod the aggregation switch’s links it with any available core layer. • Portland maps multicast groups to a core switch using determistic hash function. • Fabric manager installs forwarding state in all core and aggregation switches to ensure the best available path to destination. • Provably loop free because the packet always goes up or down to their ultimate destination.

  10. R5: Failure Detection

  11. Relative work. • Fat tree: Such as multi-rooted trees form the basis for many existing data center topology. -Actually Portland's implementation is on a small-scale fat tree. • Smart Bridge: Extension of single spanning tree while maintaining the loop free property of LANs -Just to propagate the signal to the desired destination. - still suffers from scalability challenges of network.

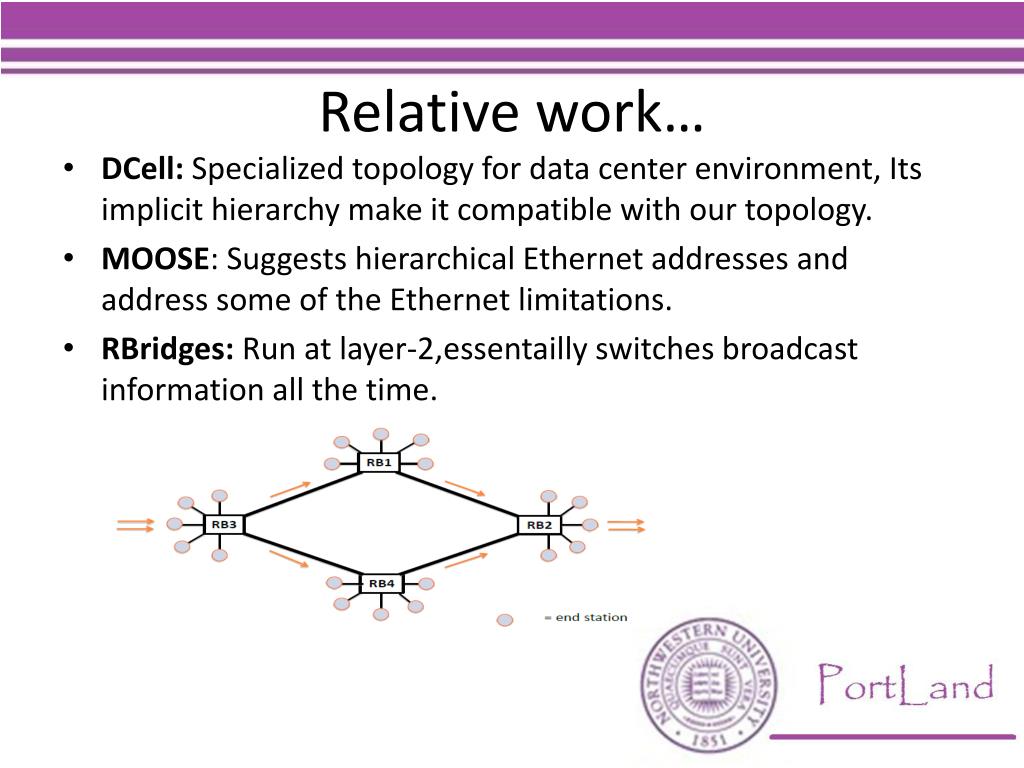

  12. Relative work… • DCell: Specialized topology for data center environment, Its implicit hierarchy make it compatible with our topology. • MOOSE: Suggests hierarchical Ethernet addresses and address some of the Ethernet limitations. • RBridges: Run at layer-2,essentailly switches broadcast information all the time.

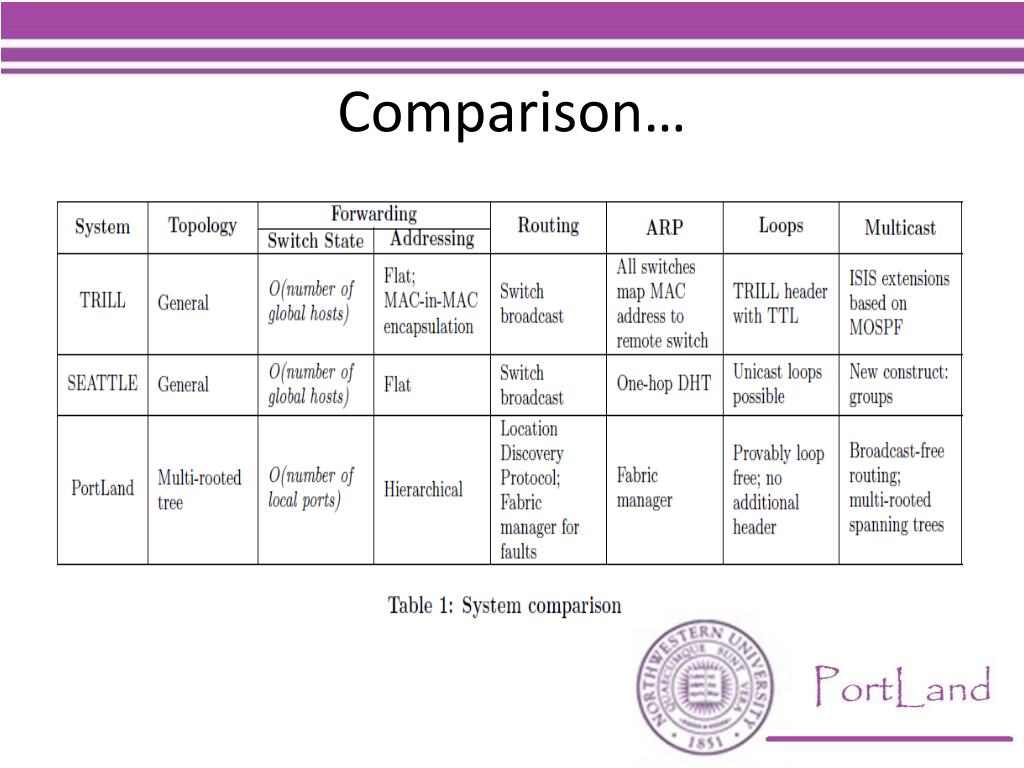

  13. Comparison…

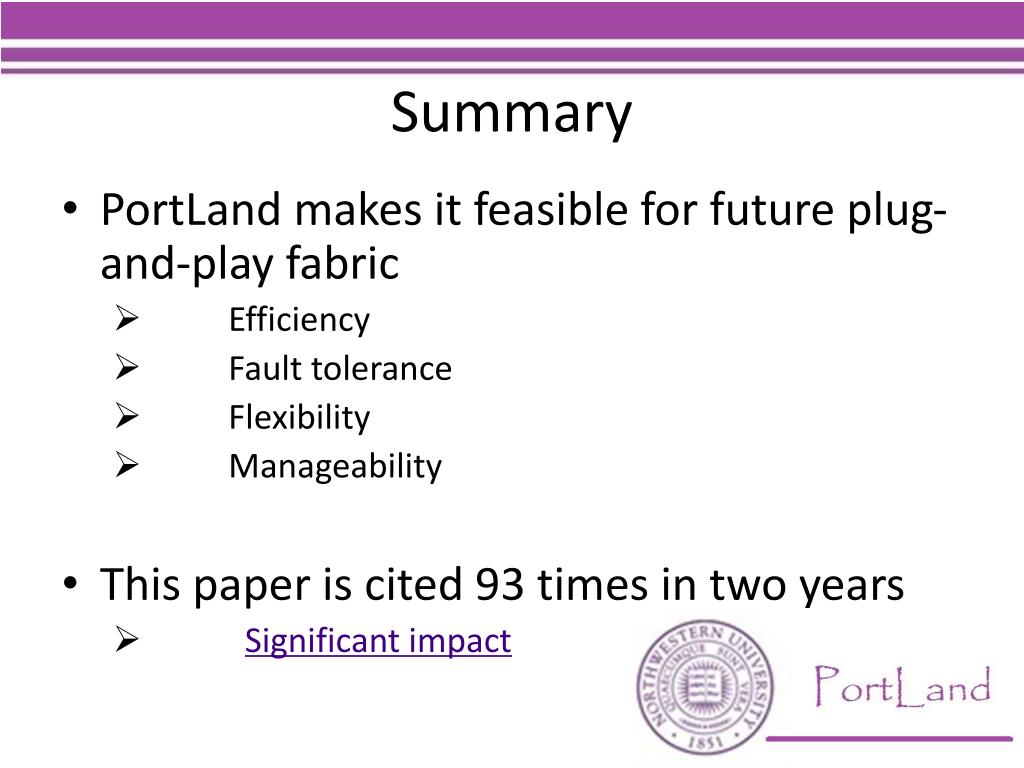

  14. Summary • PortLand makes it feasible for future plug-and-play fabric • Efficiency • Fault tolerance • Flexibility • Manageability • This paper is cited 93 times in two years • Significant impact
