  1. Hot SpotWireless Subscriber Gateway WSG-404

  2. Presentation Outline • Product Overview • Product Features • Product Application • Web UI • Product Comparison

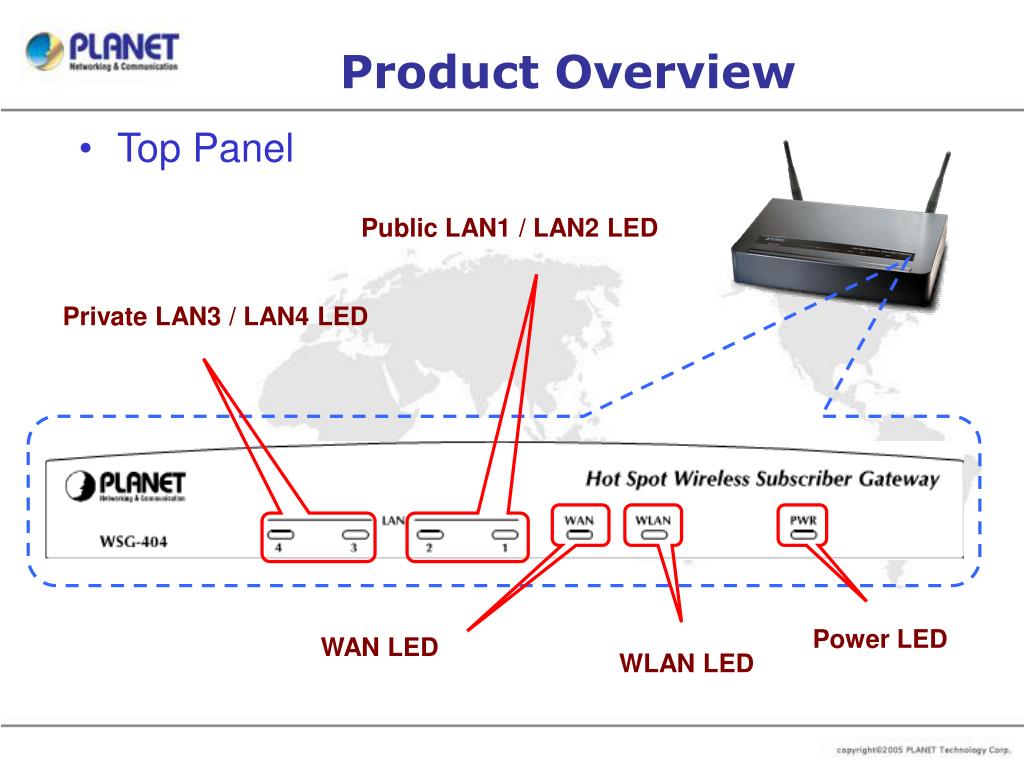

  3. Product Overview • Top Panel Public LAN1 / LAN2 LED Private LAN3 / LAN4 LED Power LED WAN LED WLAN LED

  4. Product Overview • Rear Panel WAN: 10/100 Base-T x 1 Reset Button 12VDC IN Console: RJ-11 x 1 Private LAN3/LAN4: 10/100 Base-T x 2 Public LAN1/LAN2: 10/100 Base-T x 2

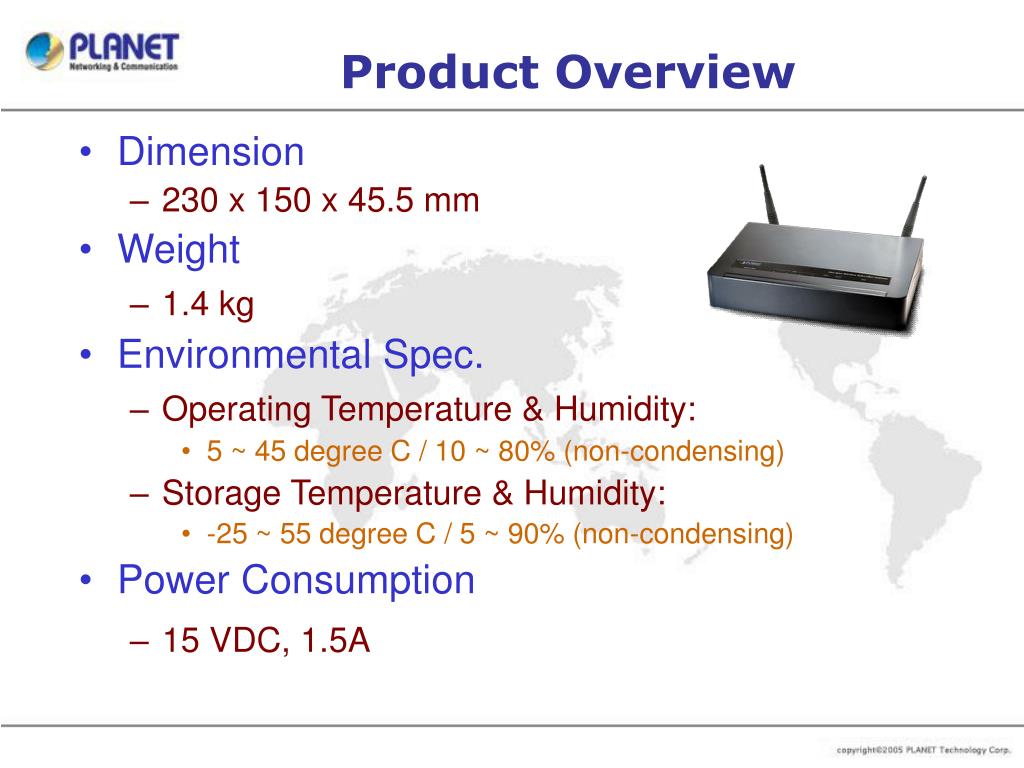

  5. Product Overview • Dimension • 230 x 150 x 45.5 mm • Weight • 1.4 kg • Environmental Spec. • Operating Temperature & Humidity: • 5 ~ 45 degree C / 10 ~ 80% (non-condensing) • Storage Temperature & Humidity: • -25 ~ 55 degree C / 5 ~ 90% (non-condensing) • Power Consumption • 15 VDC, 1.5A

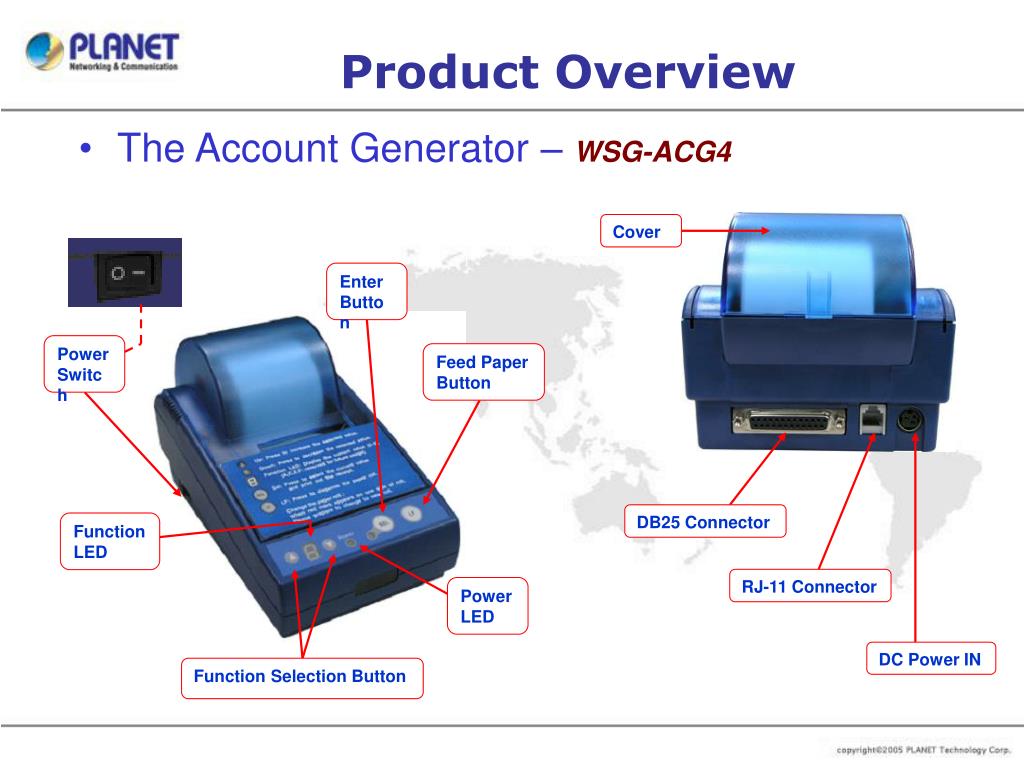

  6. Product Overview • The Account Generator – WSG-ACG4 Cover Enter Button Power Switch Feed Paper Button DB25 Connector Function LED RJ-11 Connector Power LED DC Power IN Function Selection Button

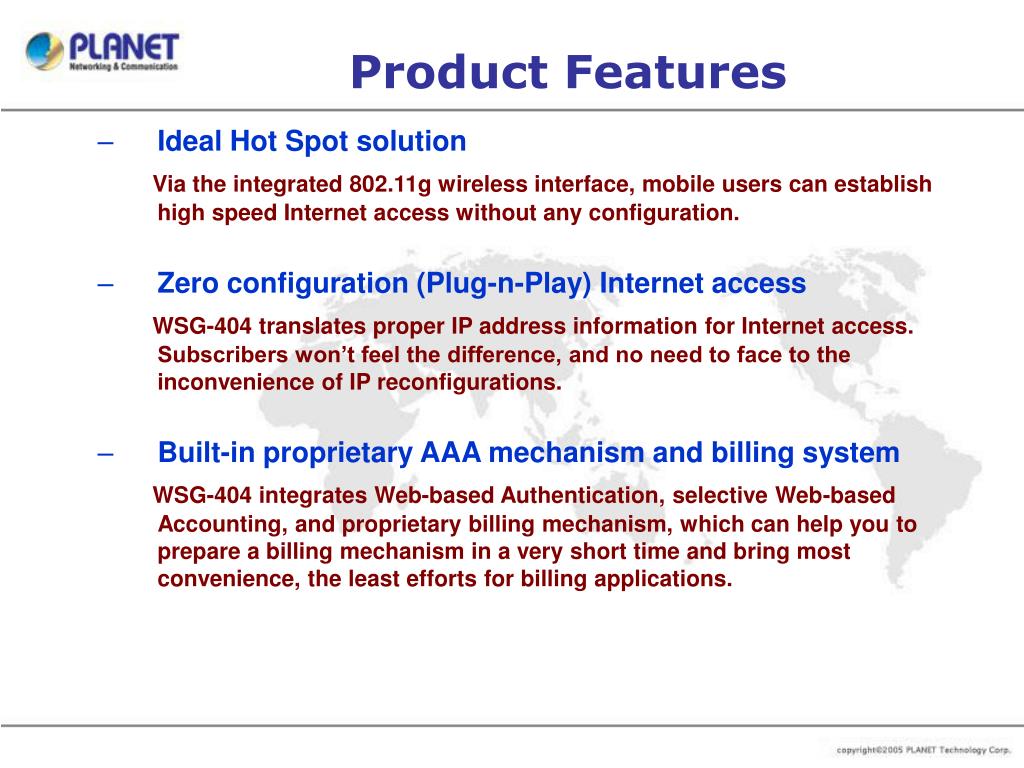

  7. Product Features • Ideal Hot Spot solution Via the integrated 802.11g wireless interface, mobile users can establish high speed Internet access without any configuration. • Zero configuration (Plug-n-Play) Internet access WSG-404 translates proper IP address information for Internet access. Subscribers won’t feel the difference, and no need to face to the inconvenience of IP reconfigurations. • Built-in proprietary AAA mechanism and billing system WSG-404 integrates Web-based Authentication, selective Web-based Accounting, and proprietary billing mechanism, which can help you to prepare a billing mechanism in a very short time and bring most convenience, the least efforts for billing applications.

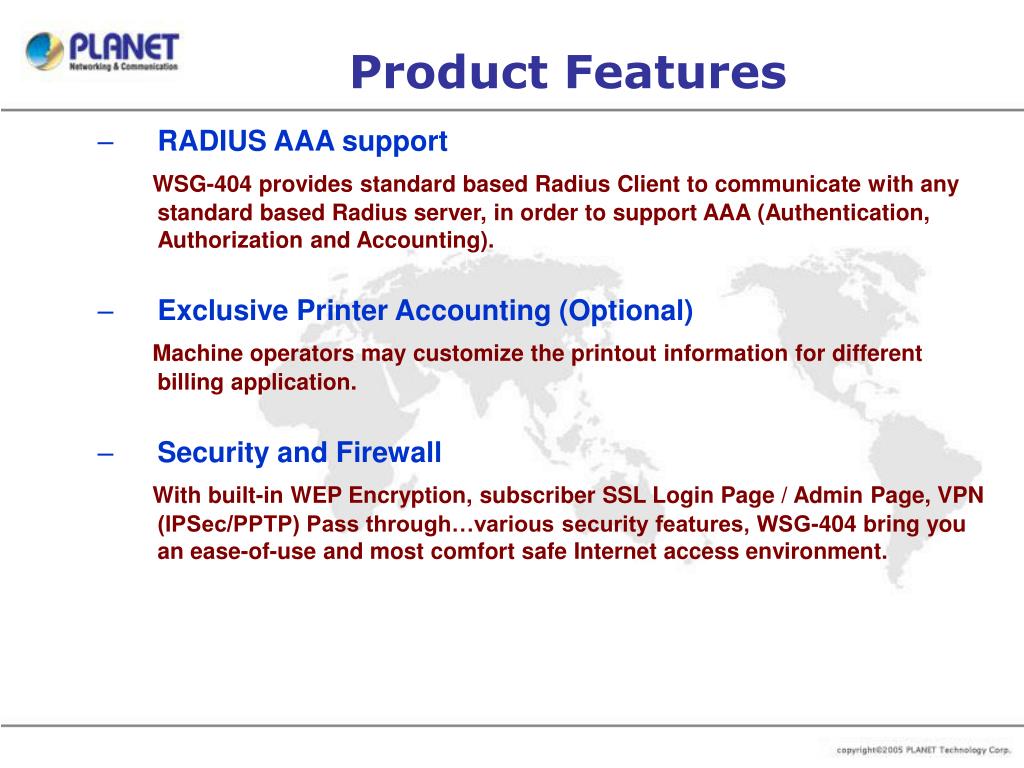

  8. Product Features • RADIUS AAA support WSG-404 provides standard based Radius Client to communicate with any standard based Radius server, in order to support AAA (Authentication, Authorization and Accounting). • Exclusive Printer Accounting (Optional) Machine operators may customize the printout information for different billing application. • Security and Firewall With built-in WEP Encryption, subscriber SSL Login Page / Admin Page, VPN (IPSec/PPTP) Pass through…various security features, WSG-404 bring you an ease-of-use and most comfort safe Internet access environment.

  9. Product Features • Ease-of-Use and Management The built-in web management interface in WSG-404 brings most convenience to system administrators or machine operators. • Virtual Server & DMZ Capability The standard and user-defined Virtual server gives the WSG-404 has the most flexibility to share local resources like Email, FTP or HTTP servers to the Internet in a more secure way. The DMZ (De-Militarized Zone) capability helps LAN users to act like an independent Internet node that communicates to the Internet in both directions while maintaining security for LAN users.

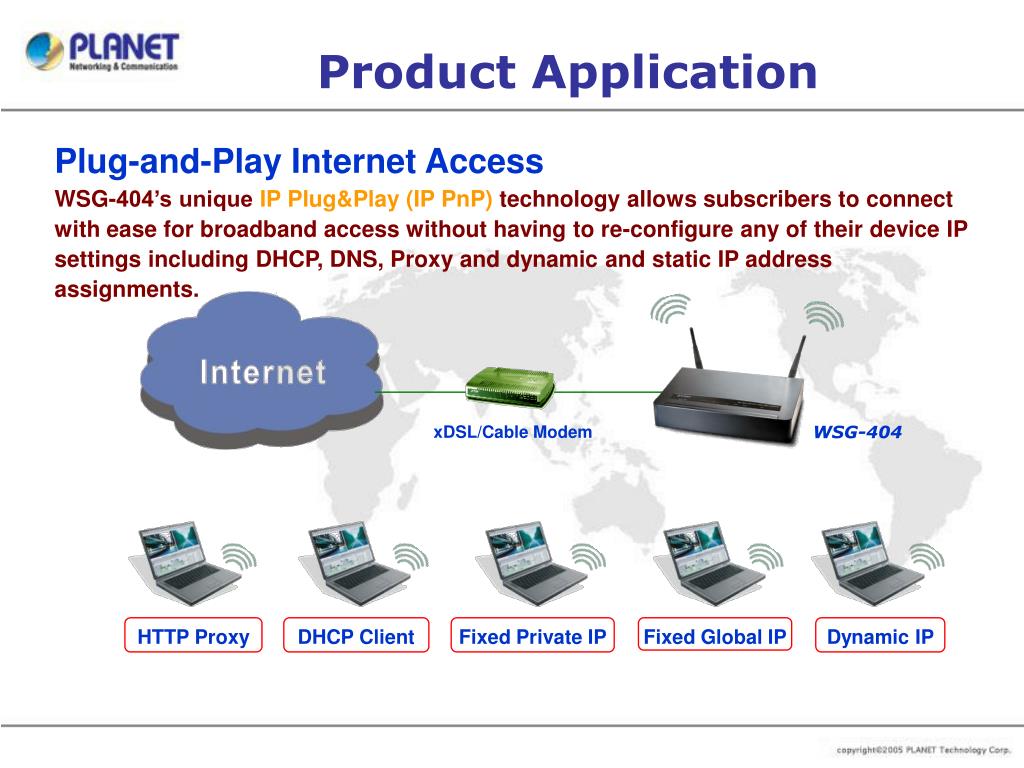

  10. Product Application Plug-and-Play Internet AccessWSG-404’s unique IP Plug&Play (IP PnP) technology allows subscribers to connect with ease for broadband access without having to re-configure any of their device IP settings including DHCP, DNS, Proxy and dynamic and static IP address assignments. xDSL/Cable Modem WSG-404 HTTP Proxy DHCP Client Fixed Private IP Fixed Global IP Dynamic IP

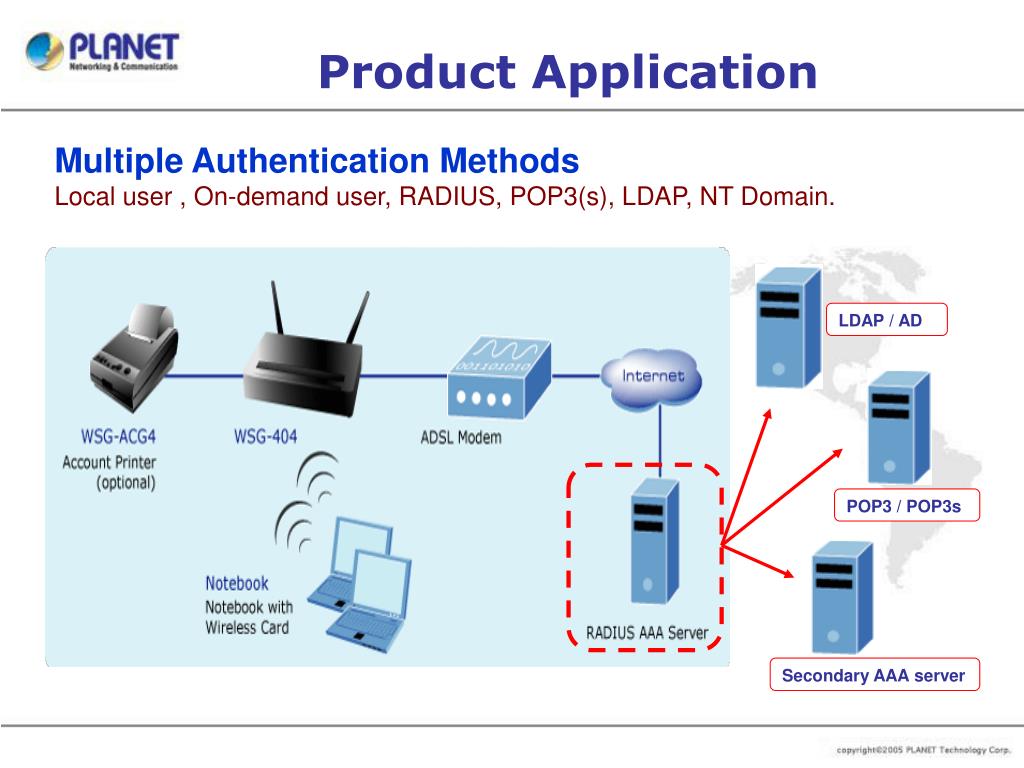

  11. Product Application Multiple Authentication Methods Local user , On-demand user, RADIUS, POP3(s), LDAP, NT Domain. LDAP / AD POP3 / POP3s Secondary AAA server

  12. Product Application Can be installed @ • Campus, library • Cyber Café • Public area such as Restaurant / Hotel / Airport • Enterprise office / guest room

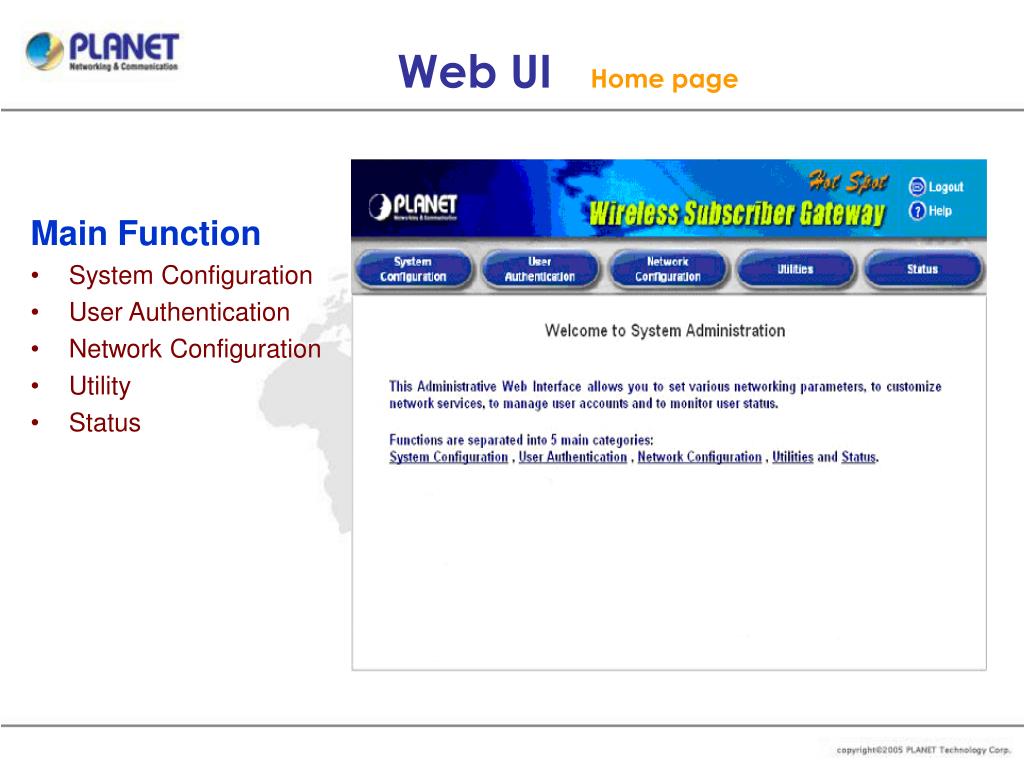

  13. Web UI Home page Main Function • System Configuration • User Authentication • Network Configuration • Utility • Status

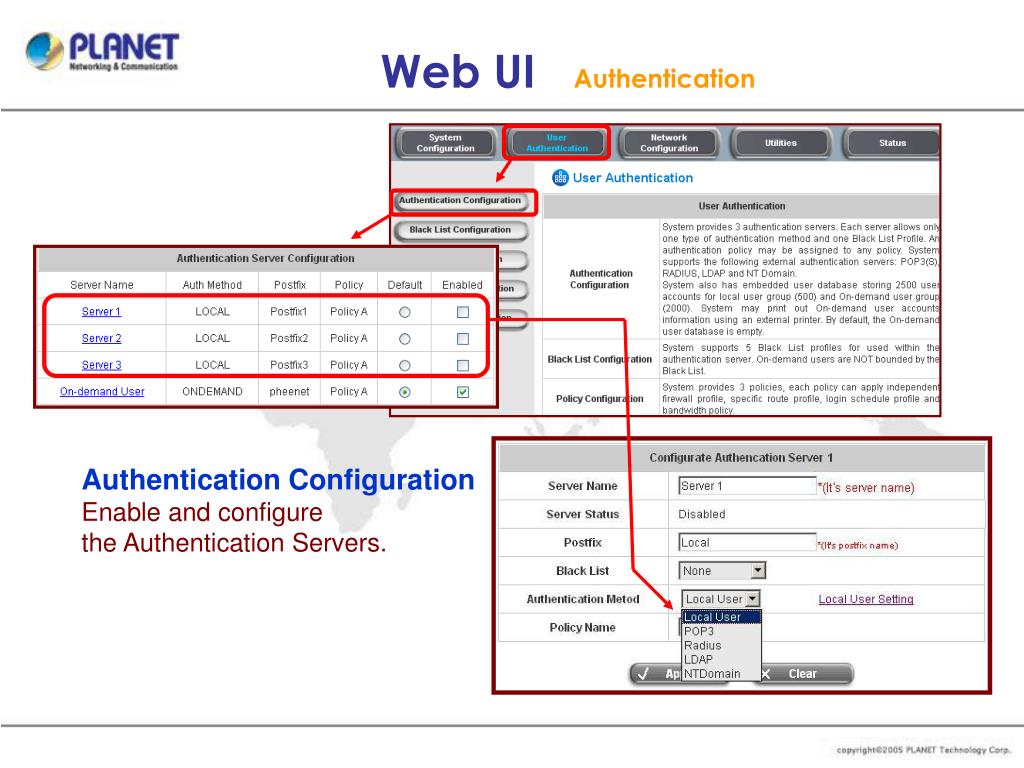

  14. Web UI Authentication • Authentication Configuration • Enable and configure • the Authentication Servers.

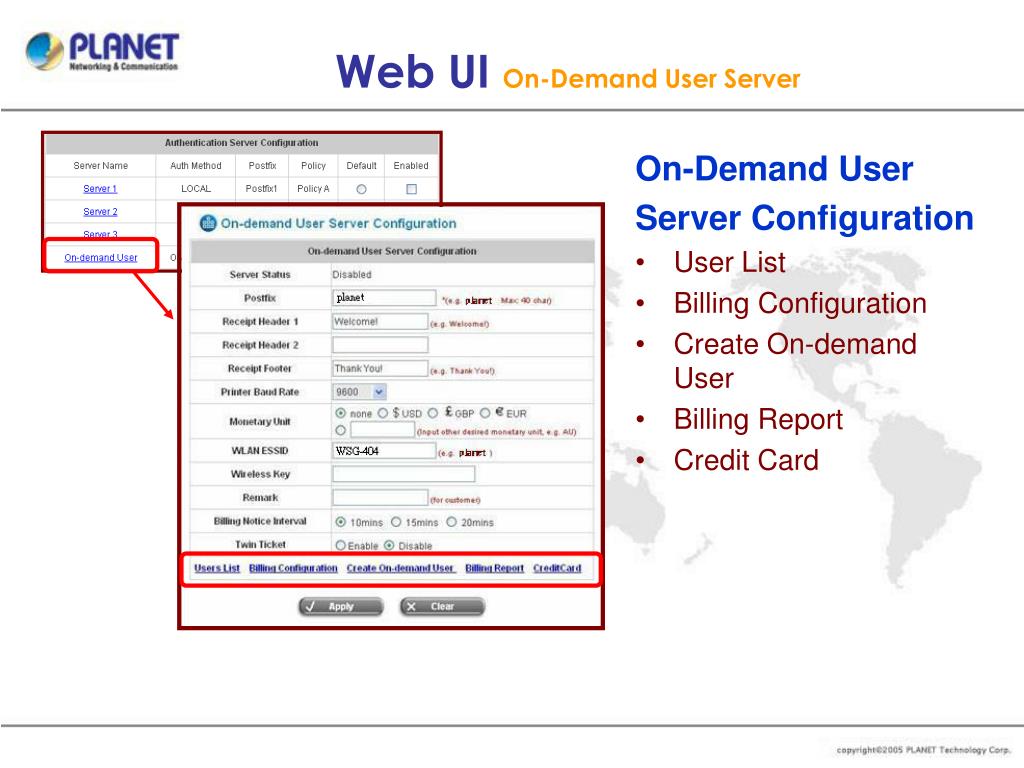

  15. Web UI On-Demand User Server On-Demand User Server Configuration • User List • Billing Configuration • Create On-demand User • Billing Report • Credit Card

  16. Web UI On-Demand Accounts You have two ways to choose the accounts 1. Clicking the button on the Account Generator Printer connected with WSG-404’s Printer port. 2. Clicking the create button from the Web-based Account Operator. 10 Billing Plans support Click

  17. Web UI Login Page User Login Page Username =?????? Password =?????? SSL Login Page Support Successful Page

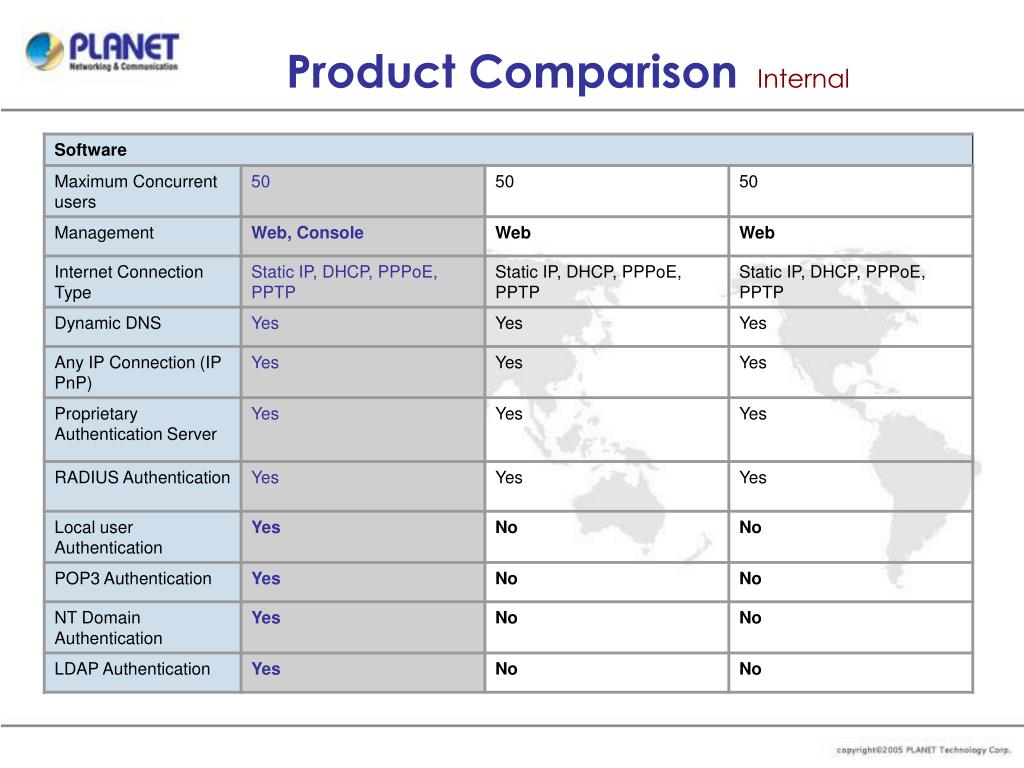

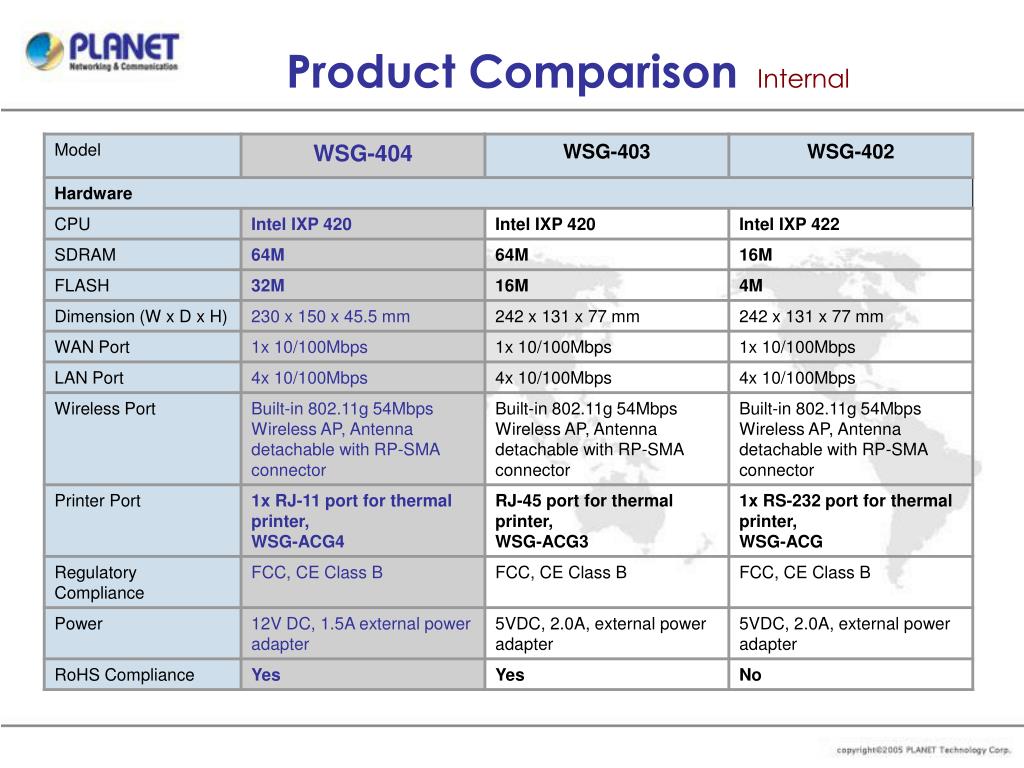

  18. Product ComparisonInternal

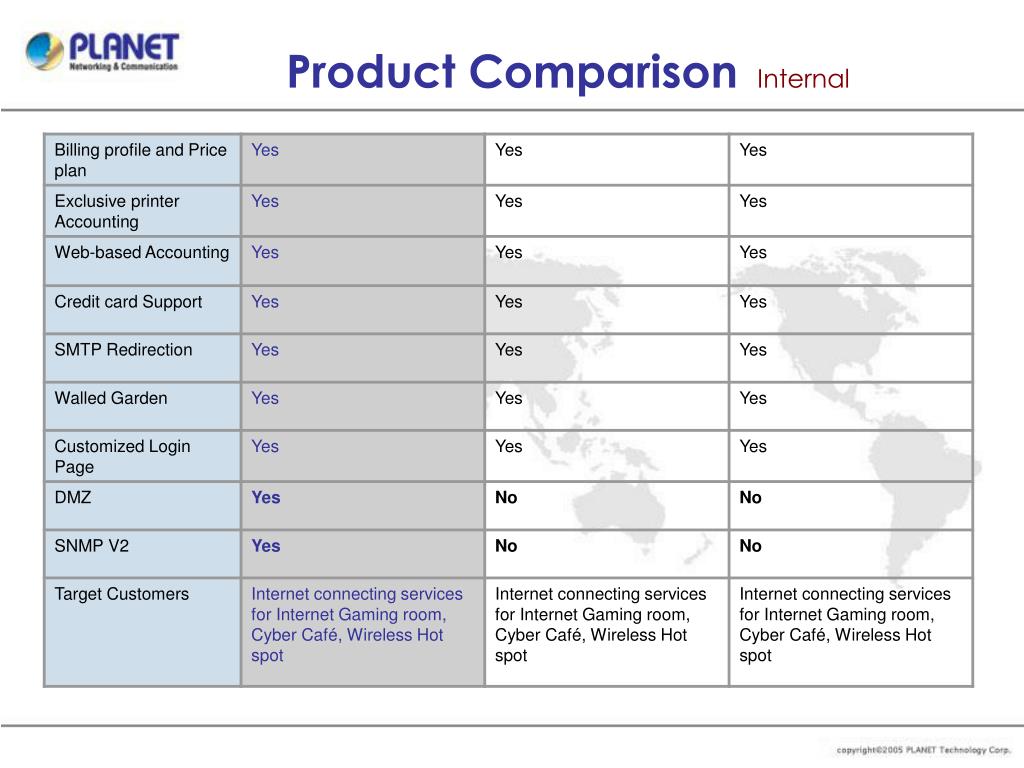

  19. Product ComparisonInternal

  20. Product ComparisonInternal

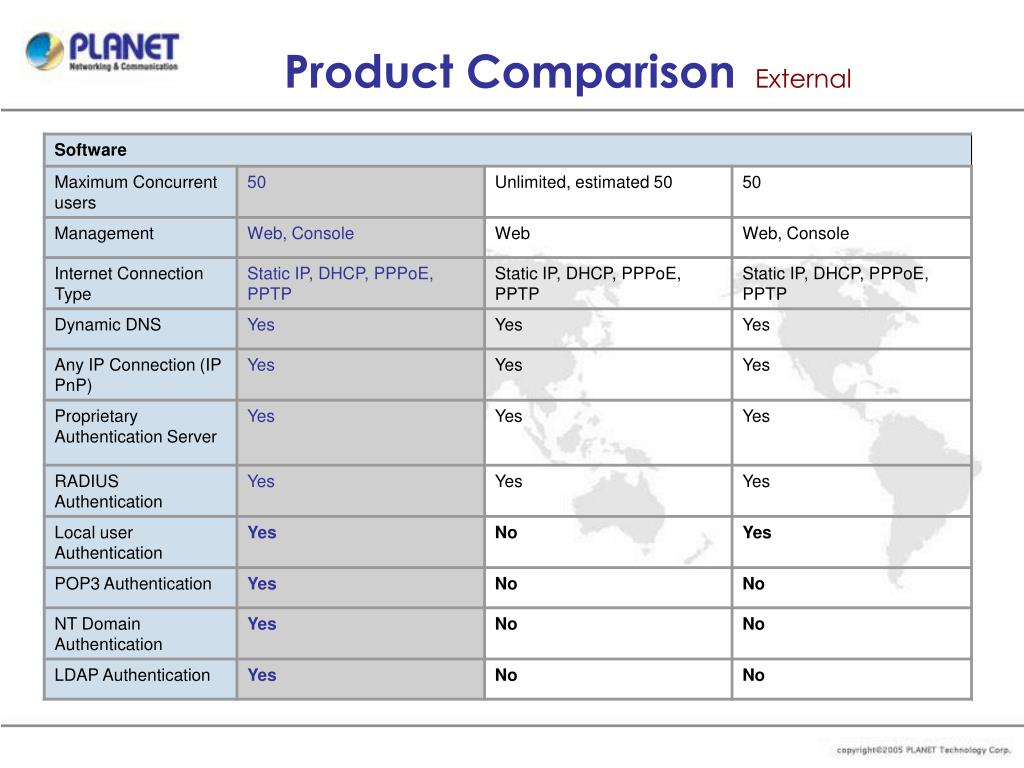

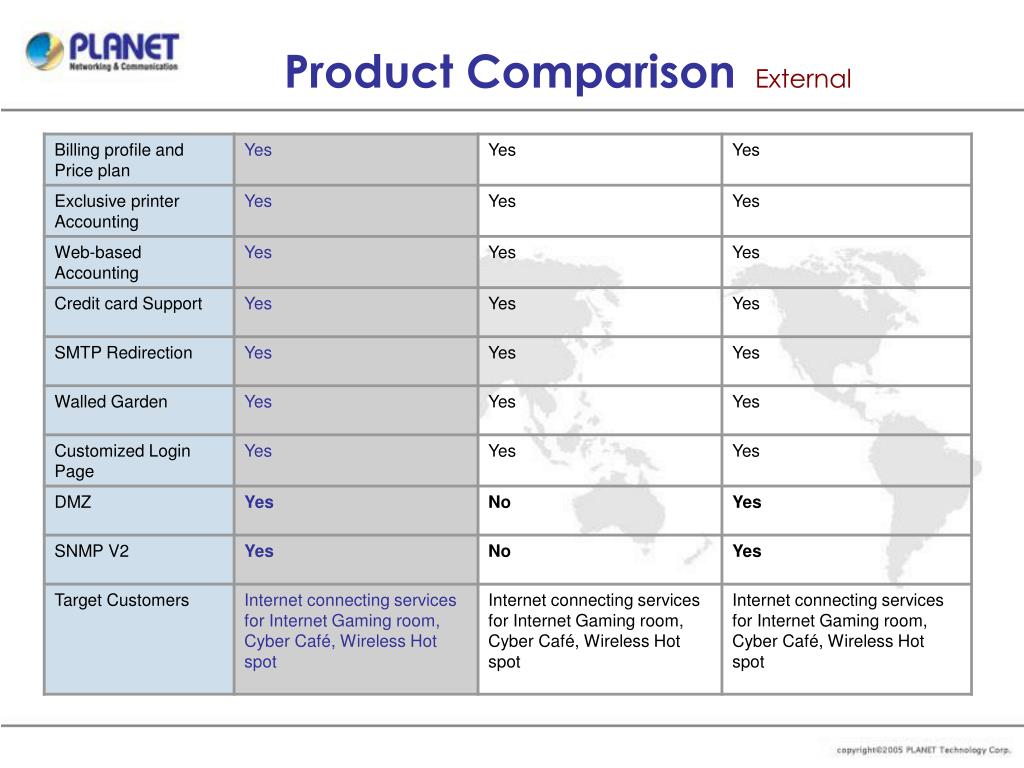

  21. Product ComparisonExternal

  22. Product ComparisonExternal

  23. Product ComparisonExternal

  24. Pioneer of IP Innovation PLANET Technology Corp.
