  1. SIMATIC Panel PC 670 / 870 in remote mount

  2. SIMATIC Panel PC remote mountConcept overview • Available for both SIMATIC Panel PC 670 and PC 870 • Distances up to 20 m in different cable lengths • 2 m, • 5 m, • 10 m, • 20 m. Concept overview Components Panel PC 870 remote mount Panel PC 670 remote mount Benefits at a glance Additional application Simple & fail-safe Full functionality Consistent concept Easy configuration • Configuration 1 x 1 (1x computing unit with 1x operating unit) • Remote mount is an configurator order option Flexibility operating unit Industrial cable Service friendliness

  3. SIMATIC Panel PC remote mount Components 1 x operating unitremote mount 1 x connecting cable 1 x computing unitremote mount Concept overview Components Benefits at a glance Additional application Simple & fail-safe Full functionality . . . Consistent concept . . . Easy configuration Flexibility operating unit Industrial cable Simple configuration consists of three main components Service friendliness

  4. SIMATIC Panel PC remote mount Benefits at a glance Concept overview Components Benefits at a glance Additional application Simple & fail-safe Full functionality Consistent concept Easy configuration Flexibility operating unit Industrial cable Service friendliness

  5. Standard mount Remote mount SIMATIC Panel PC remote mount Additional application possibilities Concept overview Mounting depth:69 - 91 mm Mounting depth:100 - 212 mm Components Benefits at a glance Additional application Installation angle:up to 70° Installation angle:up to 20° Simple & fail-safe Full functionality Consistent concept Easy configuration Flexibility operating unit Remote mount offers additional application possibilities for SIMATIC Panel PC, e. g. for mounting in • operator consoles, • swing arms, • control cabinet doors. Industrial cable Service friendliness

  6. SIMATIC Panel PC remote mount Simple and fail-safe • Only one single connecting cable needed • A single connecting cable for all different signals: video, operating functions, externalperipheral devices e. g. keyboard and mouse, CD-RW, bar code reader. Concept overview Components Benefits at a glance Additional application Simple & fail-safe Full functionality • High EMC interference immunity Consistent concept Easy configuration Flexibility operating unit • No repeater needed at higher distances Industrial cable Service friendliness • Purely digital signal transmission

  7. SIMATIC Panel PC remote mount Simple and fail-safe Concept overview No, separate connecting cables for video data, operating functions and data of external peripheral devices Components Benefits at a glance Additional application Simple & fail-safe No, minimum 1x digital-analogand 1x analog-digital conversion Full functionality Consistent concept No, Repeater necessary depending on cable length Easy configuration Flexibility operating unit No, possibly undue interference by production process on operating and video signals Industrial cable Service friendliness SIMATIC Panel PC in remote mount offers decisive advantages over the conventional analog VGA monitor solution

  8. Configuration options (processor, RAM, HD, CD-ROM, ...) Specifications (temperature, vibration, ...) SIMATIC Panel PC remote mount Full Panel PC functionality Remotemount Standardmount SIMATIC Panel PC 670 & 870 Concept overview identical Components Benefits at a glance identical Additional application ü ü Optional direct key module Simple & fail-safe ü ü USB interface front-side Full functionality - ü additional USB interface at rear-sideof operating unit Consistent concept ü ü USB interface at computing unit Easy configuration Software tools ü Flexibility operating unit ü (dimming backlight, programming softkeys ...) Industrial cable Funktionality of SIMATIC Panel PC is independent from the form factor (standard or remote mount) Service friendliness

  9. SIMATIC Panel PC remote mount Consistent automation concept Panel PC 870standard mount All SIMATIC Panel PC 670 und 870 provide a consistent look & feel independent from the form factor Panel PC 870 remote mount Panel PC 870remote mount Panel PC 670standard mount Panel PC 670 remote mount Concept overview Components Benefits at a glance Additional application Simple & fail-safe Full functionality Consistent concept Easy configuration Flexibility operating unit Industrial cable Service friendliness

  10. SIMATIC Panel PC remote mount Easy configuration • Order number configurator • Form factor • standard mount • remote mount • Operating unit • 12“ touch • 12“ keyboard • 15“ touch- 15“ keyboard • . . . • Connecting cable • 0 m (standard mount) • 2 m • 5 m • 10 m • 20 m • Processors • option 1 • option 2 • . . . Concept overview Components Benefits at a glance Additional application Simple & fail-safe Full functionality Consistent concept Easy configuration Flexibility operating unit Industrial cable Very simple order number configuration set for Panel PC both in standard and remote mount Service friendliness

  11. SIMATIC Panel PC remote mount Configurations at a glance Concept overview Standard mount Remote mount Components - PC 670 ü 10" keyboard Benefits at a glance ü ü 12" keyboard Additional application ü ü 12" touch Simple & fail-safe ü ü 15" keyboard Full functionality ü ü 15" touch Consistent concept - - PC 870 10" keyboard Easy configuration ü ü 12" keyboard Flexibility operating unit - ü 12" touch ü ü 15" keyboard Industrial cable ü ü 15" touch Service friendliness Additional configurations available through remote mount

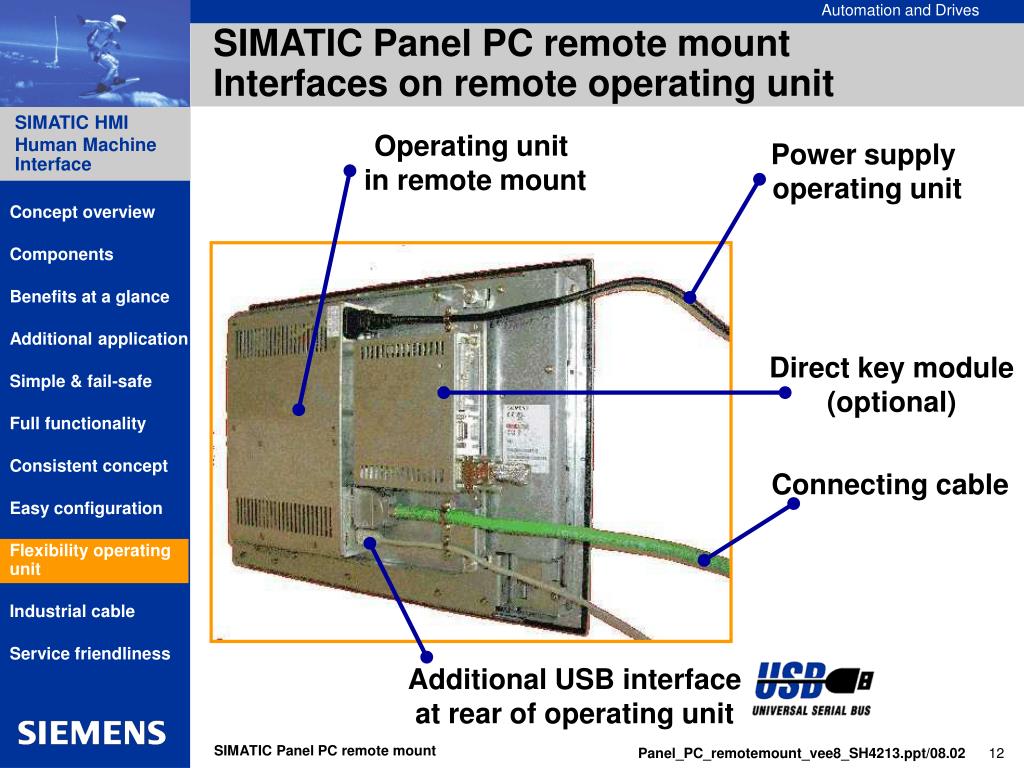

  12. SIMATIC Panel PC remote mount Interfaces on remote operating unit Operating unit in remote mount Power supply operating unit Concept overview Components Benefits at a glance Additional application Direct key module(optional) Simple & fail-safe Full functionality Consistent concept Connecting cable Easy configuration Flexibility operating unit Industrial cable Service friendliness Additional USB interfaceat rear of operating unit

  13. SIMATIC Panel PC remote mount Flexibility through USB interface Concept overview Components Benefits at a glance Additional application Simple & fail-safe Full functionality Consistent concept Easy configuration . . . Flexibility operating unit Barcodereader Directconnect Mouse Keyboard CD-RW USB Stick Industrial cable Universal Serial Bus (USB) interface at operating unit‘s front and rear side enables use of diverse peripheral devices Service friendliness

  14. SIMATIC Panel PC remote mount Flexibility through USB interface Frequent requirement: transfer of application data, e. g. runtime files, or system updates, e. g. service packs Concept overview Before Today Components Benefits at a glance Additional application . . . Simple & fail-safe USB sticks Full functionality Floppy 1,44MB, zip, LSxyz, ... Consistent concept Easy configuration Available in different forms, the USB stick is the ideal alternative to conventional data media • Available in various sizes: 16 to 1024 MB, • Reliable technology without mechanical parts, • Hot plug & play operation , • No external power supply or cable needed, • Small, handy and vibration-proof. Flexibility operating unit Industrial cable Service friendliness

  15. SIMATIC Panel PC remote mount Fail-safe operation through industrial cable Industrial characteristics of connecting cable • 10^6 flex cycles, • Silicon- and CFC-free, coating fire retardant in accordance with IEC 60 332.1, • Resistant against oils in accordance with VDE 0472 part 803 test category B, • Trailing capable, • Cable connectors can be locked. Concept overview Components Benefits at a glance Additional application Simple & fail-safe Full functionality Consistent concept Easy configuration Flexibility operating unit Industrial cable Service friendliness The rugged industrial cable ensures fail-safe operation in an industrial environment Beständig gegen Industrieöle

  16. SIMATIC Panel PC remote mount Service friendliness Proven modular construction concept: SERVICE FRIENDLINESS at ist best ! Operating unit with remote module Concept overview Components Computing unit with host module Benefits at a glance Additional application Simple & fail-safe Full functionality Consistent concept Easy configuration Flexibility operating unit Industrial cable Service friendliness

  17. SIMATIC Panel PC remote mount Spare parts Remote module in 2 variants: • power supply AC 110/230V, • power supply DC 24V. Concept overview Components Benefits at a glance Additional application Connecting cable in 5 lengths: • 2 m, • 5 m, • 10 m, • 20 m. Simple & fail-safe Full functionality Consistent concept Easy configuration Flexibility operating unit Host module in 2 variants: • for Panel PC 670, • for Panel PC 870. Industrial cable Service friendliness
