  1. Subduction Zone Geodynamics: Walking the Maze of Coupling and Decoupling • Kelin Wang • Pacific Geoscience Centre, Geological Survey of Canada

  2. Subduction Zone Geodynamics: Walking the Maze of Coupling and Decoupling • Coupling or decoupling • Velocity continuous or discontinuous (long-term) • Seismic or aseismic • Locked or creeping (short-term) • Strong or weak interface

  3. Cold Forearc Hot Arc, Back Arc 70 ~ 80 km • Low seismic attenuation • Low Vp/Vs • Serpentinization • Stagnant • High attenuation • High Vp/Vs • Melting • Vigorous wedge flow ~ 100 km

  4. Basalt to eclogite ~ 40-50 km depth Feeble arc volcanism Serpentinized mantle wedge corner Intraslab earthquakes to ~90 km depth Basalt to eclogite ~ 100-140 km Active arc volcanism High-velocity wedge corner Earthquakes to hundreds of km End-member warm-slab and cold-slab subduction zones N Cascadia NE Japan Blue: Basaltic crust Purple: Serpentine stability Kirby et al., 1996; van Keken et al., 2002; Wada and Wang, 2009; Syracuse et al., 2010

  5. Warm Cold Survival depth of basaltic crust (blue diamonds) and depth range of intraslab earthquakes (purple) Model-predicted peak dehydration depth (blue) and serpentine stability in subducting slab (purple) Wada and Wang, 2009

  6. 70 ~ 80 km ~ 100 km ? • Questions: • What controls the abrupt transition from decoupling to coupling? • What is the role of petrology, fluids, and rheology?

  7. For coseismic deformation (a few minutes), this is all elastic. Seismogenic zone (stick-slip, velocity-weakening, “seismically coupled”)

  8. N Cascadia NE Japan Blue: Basaltic crust Purple: Serpentine stability • Temperature plays a role but perhaps not via a single critical value • Continental Moho seems to be a limit, but there are counter examples: Many events in NE Japan, 2004 Sumatra (Klingelhoefer et al., 2010) End-member warm-slab and cold-slab subduction zones

  9. ? Seismogenic zone • Questions: • What determines the downdip limit of seismic rupture? • What is the frictional behavior of the slab – mantle wedge interface?

  10. Locked zone Interseismic Coseismic coastline coastline • Interseismic deformation changes with time and therefore is not a mirror image of coseismic deformation. • Locked zone (future rupture zone) cannot be determined by inverting interseismic geodetic data using an elastic model.

  11. Locked zone For interseismic deformation (decades to centuries), this is viscoelastic.

  12. Afterslip Stress relaxation Stress relaxation Locking Rupture Three primary processes after an earthquake: afterslip, viscoelastic stress relaxation, and fault locking.

  13. Sumatra: A few years after a great earthquake: All sites move seaward Courtesy Kelly Grijalva and Roland Burgmann

  14. Alaska and Chile: ~ 40 years after a great earthquake: Opposing motion of coastal and inland sites M = 9.5 1960 M = 9.2 1964 Freymueller et al. (2009) Wang et al. (2007)

  15. Wells and Simpson (2001) Cascadia: ~ 300 years after a great earthquake: All sites move landward

  16. Inter-seismic 2 (Cascadia) Inter-seismic 1 (Alaska, Chile) Post-seismic (Sumatra) Co-seismic Coast line Coast line

  17. ? Locked zone • Questions: • What do interseismic deformation observations tell us about fault friction, rock rheology, and state of locking? • What can we learn by observing subduction zones presently at different stages of the earthquake cycle?

  18. ETS Seismogenic zone

  19. Northern Cascadia ETS event of May 2008 Comparison with a worst-case scenario of megathrust rupture GPS displacements and slip distribution on subduction interface determined by inverting the GPS data. Tremor located by Kao (white) and Wech (gray)

  20. Non-volcanic tremor 1944 1946 1944 (Ichinose et al., 2003) (Baba and Cummins, 2005) 1944 1946 1944 (Sagiya and Thatcher, 1999) Including afterslip (Kikuchi and Yamanaka, 2001)

  21. Warm Cold Nankai Mexico Alaska Costa Rica Survival depth of basaltic oceanic crust (blue) and depth range of intraslab earthquakes (purple) Model-predicted peak dehydration depth (blue) and serpentine stability in subducting slab (purple) Wada and Wang, 2009

  22. End-member warm-slab and cold-slab subduction zones N Cascadia NE Japan Blue: Basaltic crust Purple: Serpentine stability ETS at mantle wedge corner No ETS has been reported • In addition: • Other types of slow slip events: long- and short-duration slow slip without tremor, very-low-frequency earthquakes in ETS zone … … • Vp/Vs anomaly associated with ETS (fluid?) • Mike Brudzinski will provide other details this afternoon

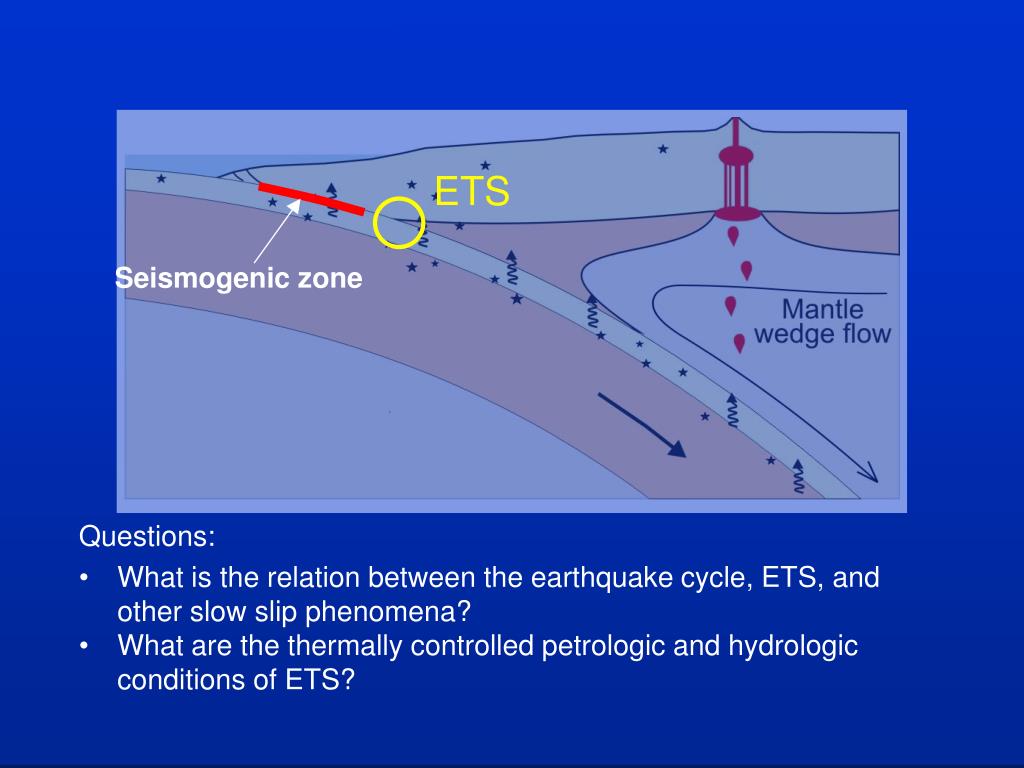

  23. Seismogenic zone ETS • Questions: • What is the relation between the earthquake cycle, ETS, and other slow slip phenomena? • What are the thermally controlled petrologic and hydrologic conditions of ETS?

  24. Seismogenic zone

  25. Interseismic Coseismic coastline coastline Stress increase a few MPa b > 0 Average stress ~ 15 MPa b  0.04 Stress drop a few MPa b  -0.01

  26. Stress increase; resisting slip Rupture; Stress drop Stress decrease Locked; Stress increase Co-seismic Post-seismic

  27. Dynamic CoulombWedge Updip zone Seismogenic zone Understanding how the prism is made … … Classical Coulomb Wedge

  28. Relation between seismogenic zone and prism structure … … Nankai Moore et al., 2007 Costa Rica (based on von Huene et al. (2004) Ranero et al., 2007

  29. Prism stress from NanTroSeize boreholes Byrne et al., 2009

  30. Inter-seismic 2 (Cascadia) ? Inter-seismic 1 (Alaska, Chile) ? Post-seismic (Sumatra) ? Co-seismic ? How the leading edge behaves in earthquake cycles … … Coast line

  31. 2005 Nias-Simeulue earthquake: 1-yr postseismic slip (color) Updip segment off Peru: Not slipping. Fully relaxed? Hsu et al. (2006) Gagnon et al. (2005)

  32. CORK fluid pressure transients associated with Nankai VLF Very-low-frequency earthquakes possibly in Nankai accretionary prism (Ito and Obara, 2006) Fluid transients have also been observed at prism toe, Costa Rica, using flowmeters and also interpreted to indicate transient fault slip (Brown et al., 2005; Labonte et al., 2009). (Davis et al., 2006)

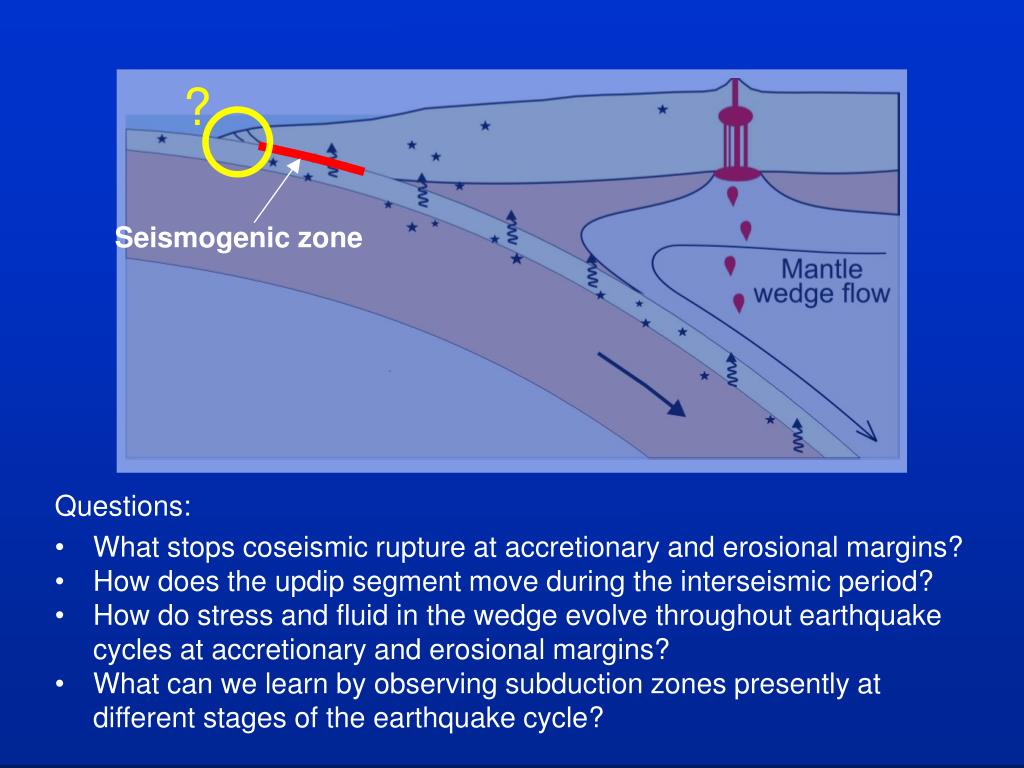

  33. ? Seismogenic zone • Questions: • What stops coseismic rupture at accretionary and erosional margins? • How does the updip segment move during the interseismic period? • How do stress and fluid in the wedge evolve throughout earthquake cycles at accretionary and erosional margins? • What can we learn by observing subduction zones presently at different stages of the earthquake cycle?

  34. Seismogenic zone

  35. very rough smooth rough Bilek (2007) • Two aspects of the megathrust: • Fault zone material and its frictional behaviour • Fault zone morphology and its scale variability

  36. Frictional contact Uneven fault zone Slip can break velocity-strengthening barrier, allowing large displacement in earthquakes. – localized shear Large displacement requires modification of fault geometry, involving complex deformation of the fault-zone volume. –distributed cataclastic shear

  37. very rough smooth rough Bilek (2007) • Two aspects of the megathrust: • Fault zone material and its frictional behaviour • Fault zone morphology and its scale variability

  38. Smoothly coupled fault; Rate-state friction; Giant earthquakes possible Roughly coupled fault; Friction and complex deformation; Earthquakes and creep Very roughly coupled fault; Complex fault zone deformation; Creep and small earthquakes

  39. Built on Ruff (1985)

  40. Thermal state • Evolution throughout earthquake cycles • Comparison between subduction zones Seismogenic zone
