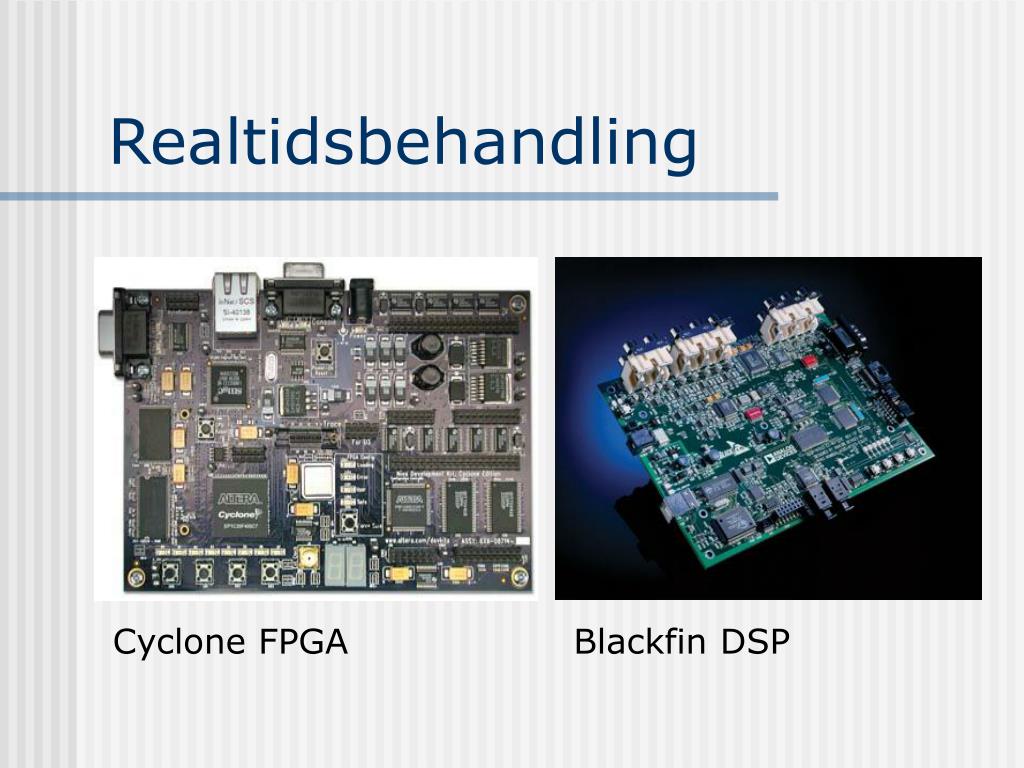

  1. Realtidsbehandling Cyclone FPGA Blackfin DSP

  2. Omnivision 9630 • Kameran • Signaler • USB2.0 • SCCB

  3. Signaler

  4. SCCB • Serial Camera Control Bus

  5. Kontakter • V1.0 • V1.1 • V1.2

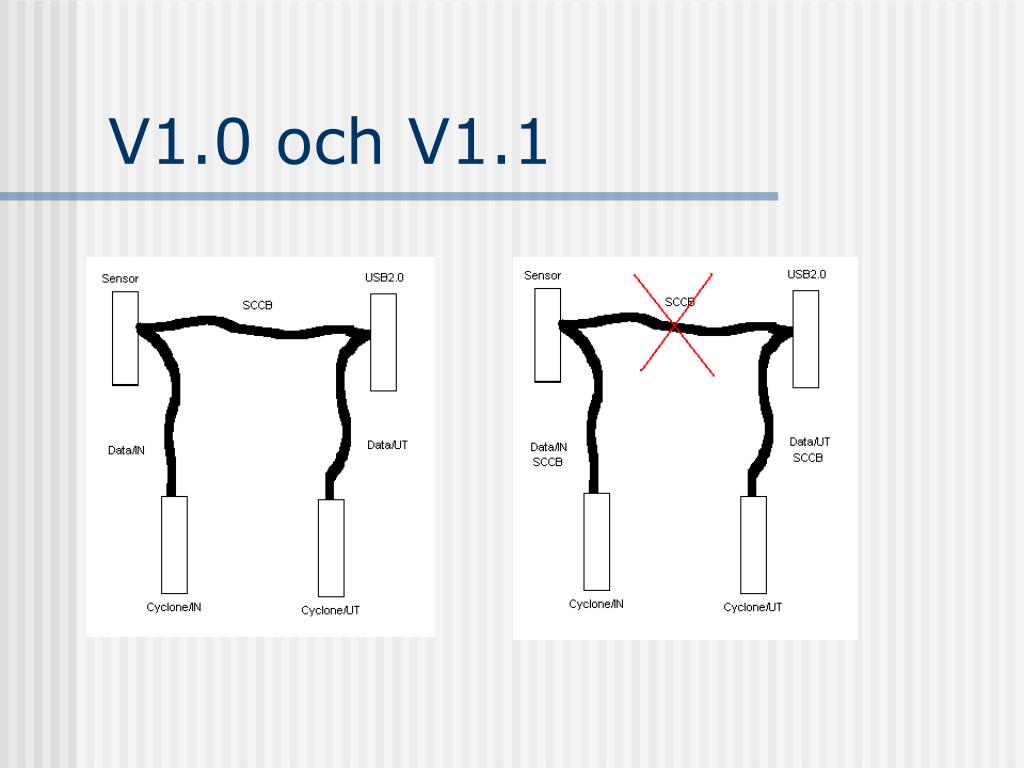

  6. V1.0 och V1.1

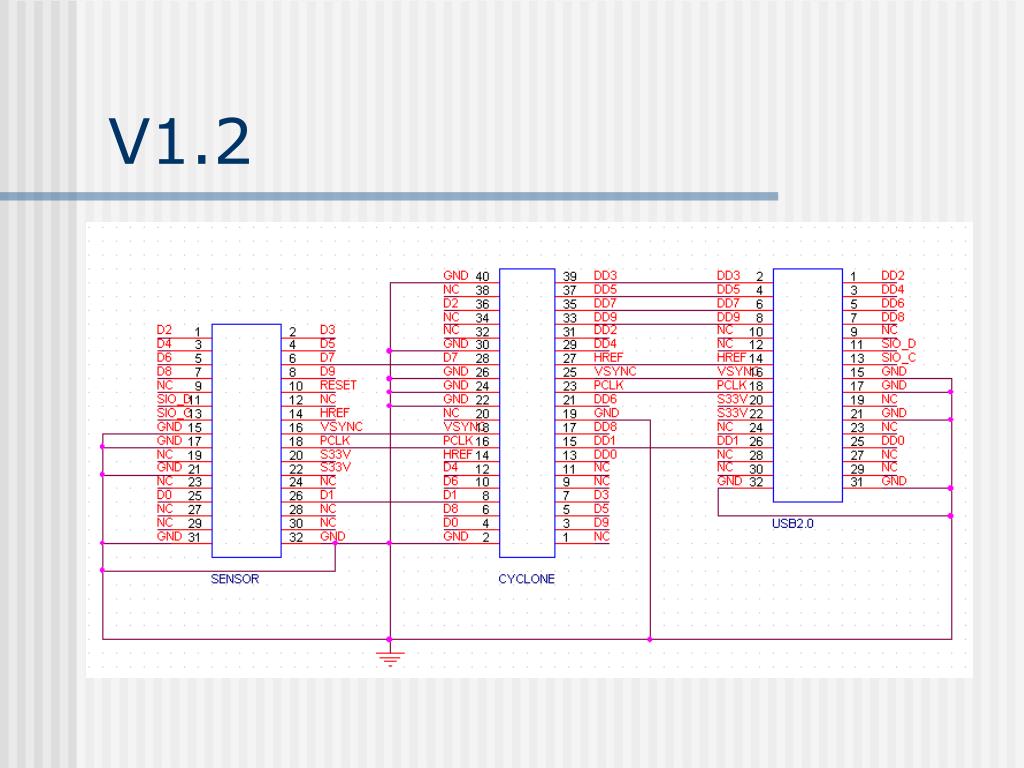

  7. V1.2

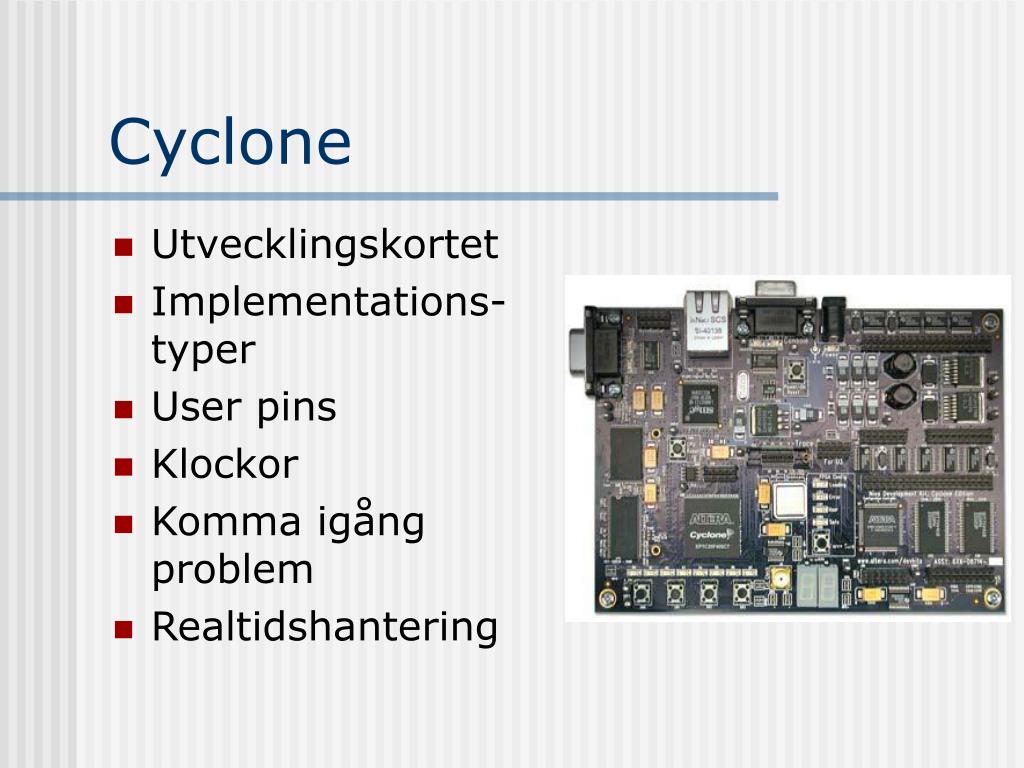

  8. Cyclone • Utvecklingskortet • Implementations-typer • User pins • Klockor • Komma igång problem • Realtidshantering

  9. Quartus II • Allmänt • Assignments • Kompilering

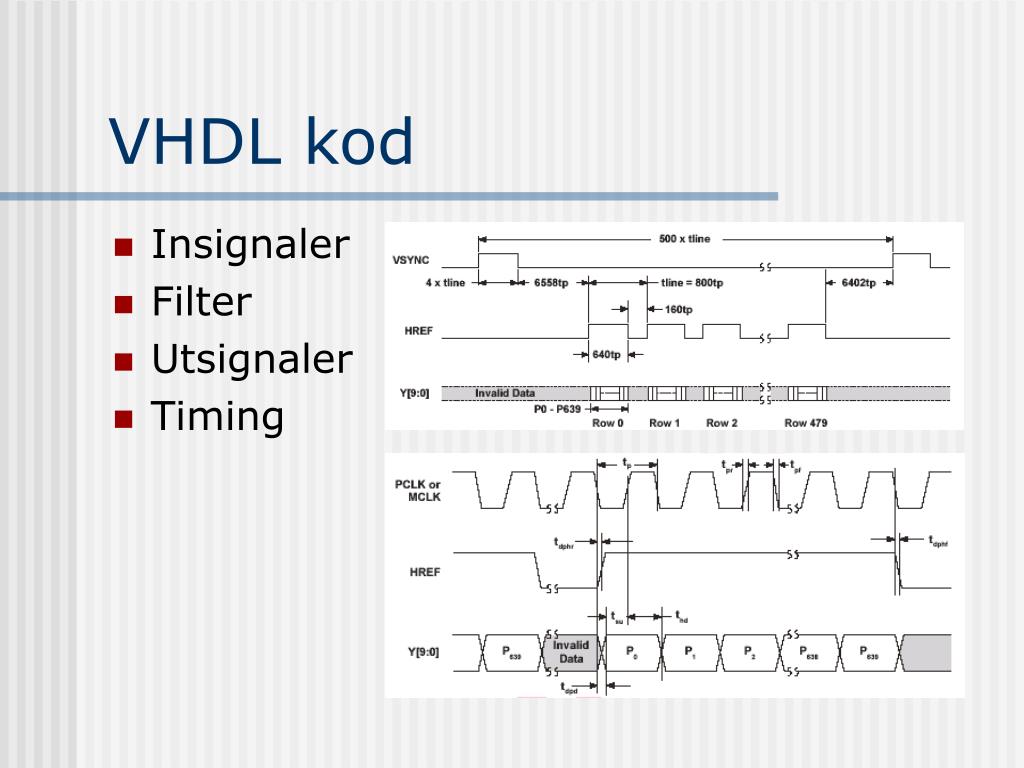

  10. VHDL kod • Insignaler • Filter • Utsignaler • Timing

  11. Filterkärnan FILTER: Process(Data2) is Type Data Is Array (0 To 6) of Integer Range -128 To 127; Variable w : Data; Variable s : Integer Range -8192 To 8191; Begin w := To_Integer(Data2) & w(0 To 5); s := 0; For l In b'Range Loop s := s + b(l)*w(l); End Loop; s :=s/32; pclk <= pclk + 1; If s > 127 Then Data1 <= "00111111"; Elsif s < -128 Then Data1 <= "10000000"; Else Data1 <= To_Signed(s,8); End If; End Process;

  12. DSP • Vad är en DSP? • Vad innehåller en DSP?

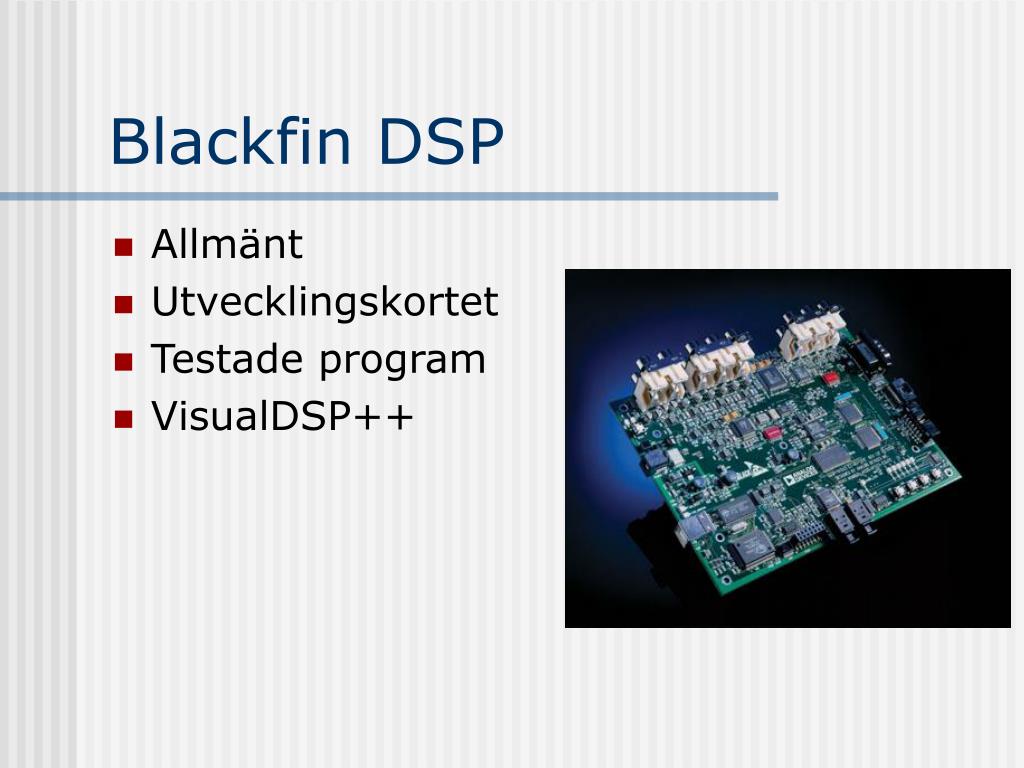

  13. Blackfin DSP • Allmänt • Utvecklingskortet • Testade program • VisualDSP++

  14. FIR filter • Allmänt • 1D FIR • 2D FIR • FIR i FPGA

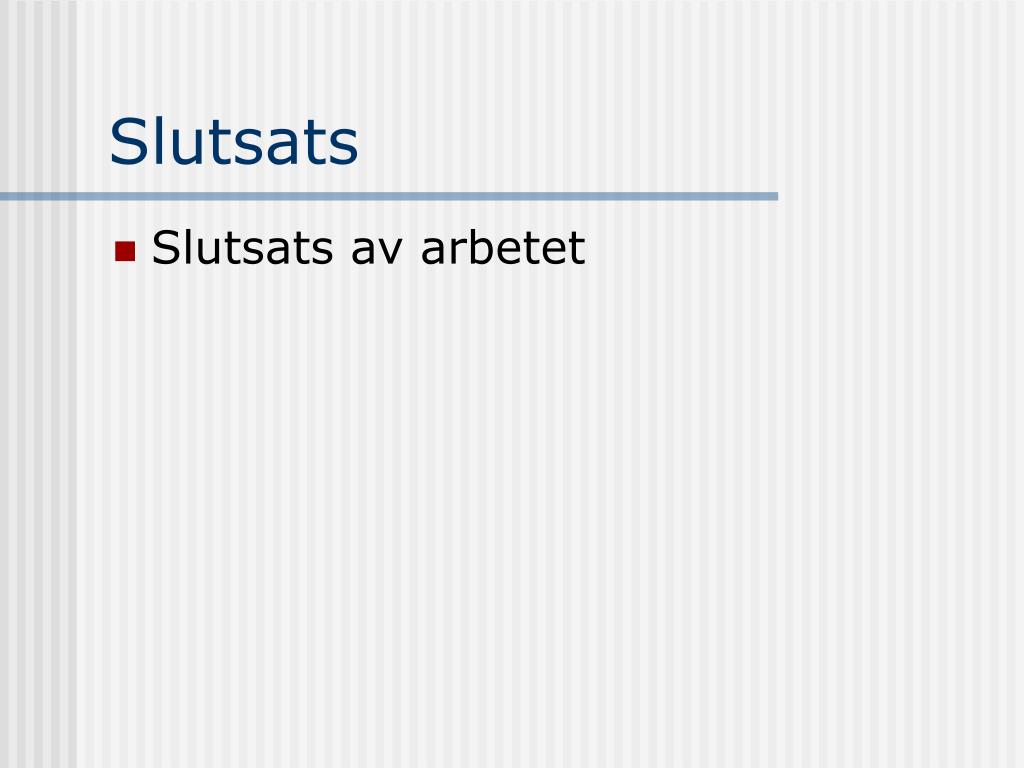

  15. Slutsats • Slutsats av arbetet

  16. Tack för oss Victor Folkebrant Daniel Åberg Jimmy Planting-Bergloo Johan Westergren Henrik Johansson Henrik Tengstedt Christian Buchmann
