  1. Predicting Polyolefin Foamability Using Melt Rheology Associated Polymer Labs Presented by Jim Zwynenburg

  2. Agenda • Define • Rheology Test • Resulting Data • Converting Data • Plots • Interpretations • Examples • Remember to Remember Associated Polymer Labs www.testplastic.com

  3. Definitions • Rheology • Rheo means Flow • Ology means the study of • The Study of Flow • Melt Strength • Is a property of the polymer melt which indicates its ability to withstand drawing without breaking. Associated Polymer Labs www.testplastic.com

  4. ASTM D-4440Standard Test Method for Plastics: Dynamic Mechanical Properties Melt Rheology • Frequency Sweep at 190C • Temperature Ramp from 140C-230C for Polyethylene • Temperature Ramp from 180C-260C for Polypropylene Associated Polymer Labs www.testplastic.com

  5. Rheology Test Sensitivity Increases with Decreasing Frequency Associated Polymer Labs www.testplastic.com

  6. Rheology Lab for Solids and Melts Associated Polymer Labs www.testplastic.com

  7. Typical Data from Temperature Ramp Associated Polymer Labs www.testplastic.com

  8. Rheology Plot 1 Associated Polymer Labs www.testplastic.com

  9. Converted Data Associated Polymer Labs www.testplastic.com

  10. Plotting Data • Tan-Delta (G”/G’) Converted into log. • Fractions (less than one, become negative numbers) • Plot on Linear Scale • Eta* (Complex Viscosity) converted into log. • Decimal place becomes the first number, example 4000Pa-sec is 4.0 • Plot on Linear Scale Associated Polymer Labs www.testplastic.com

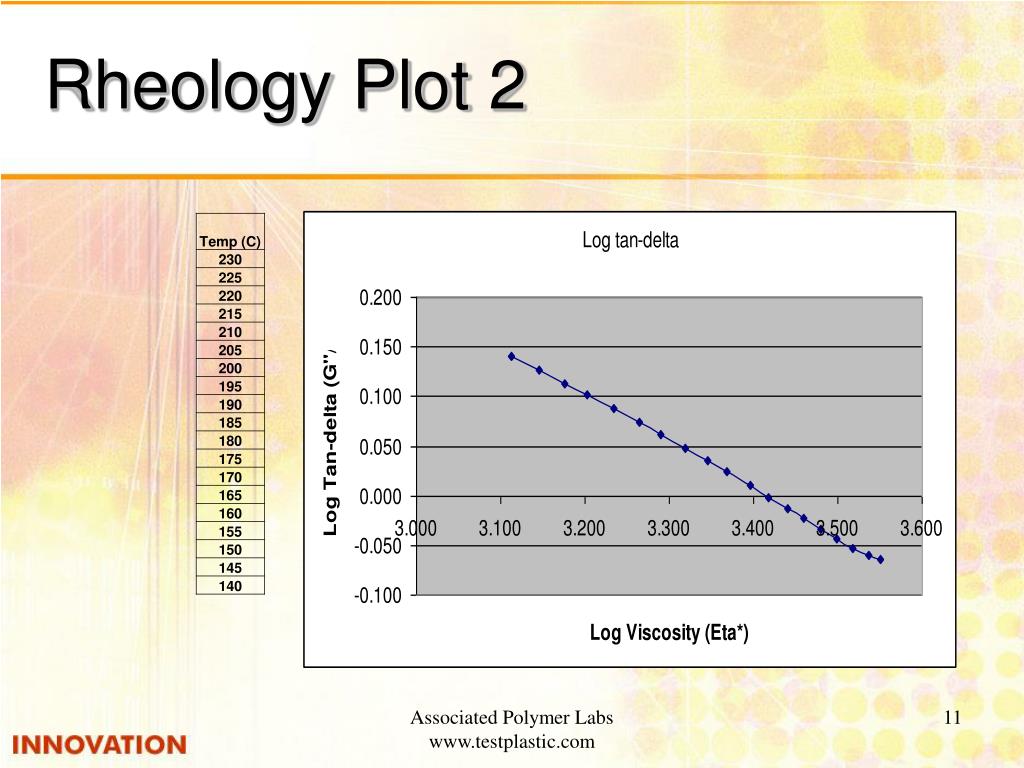

  11. Rheology Plot 2 Associated Polymer Labs www.testplastic.com

  12. Rheology Plot 3 Associated Polymer Labs www.testplastic.com

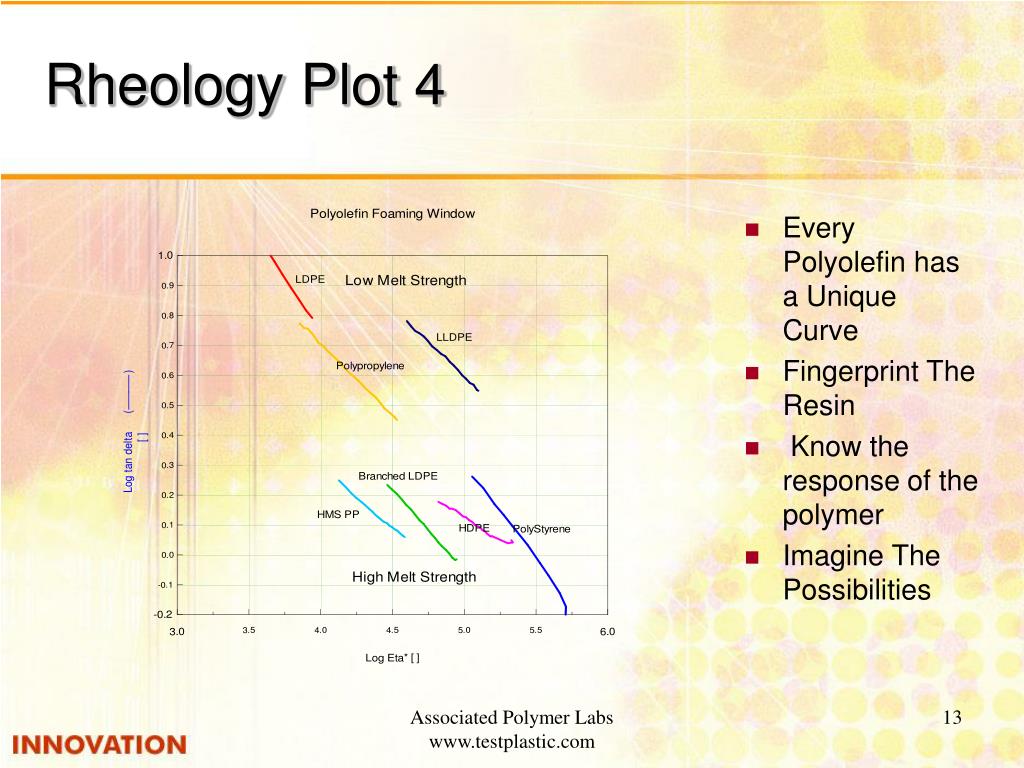

  13. Rheology Plot 4 • Every Polyolefin has a Unique Curve • Fingerprint The Resin • Know the response of the polymer • Imagine The Possibilities Associated Polymer Labs www.testplastic.com

  14. Example 1, Using Recycled Resin • Recycled content appears to separate at higher temperatures Associated Polymer Labs www.testplastic.com

  15. Example 2, Blending Vertically • To blend Polyolefins, • Use the WZ Theorem: geometric averaging of the viscosities produces the new blended viscosity. Associated Polymer Labs www.testplastic.com

  16. Example 3; Blending is as easy as 1,2,3 Associated Polymer Labs www.testplastic.com

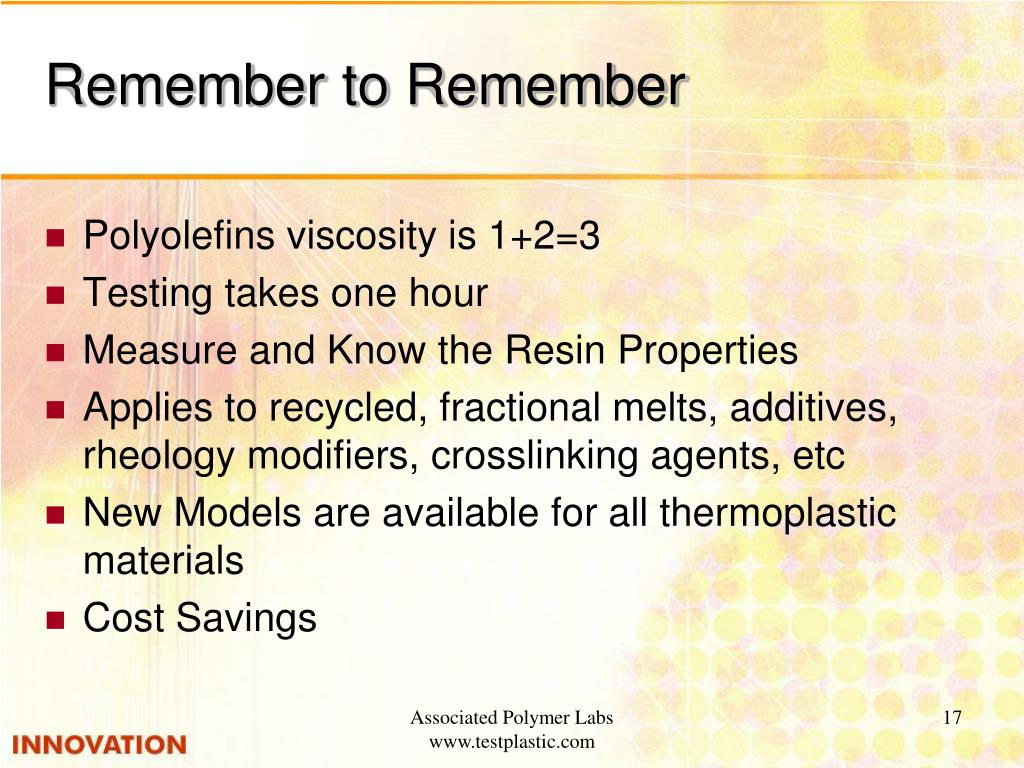

  17. Remember to Remember • Polyolefins viscosity is 1+2=3 • Testing takes one hour • Measure and Know the Resin Properties • Applies to recycled, fractional melts, additives, rheology modifiers, crosslinking agents, etc • New Models are available for all thermoplastic materials • Cost Savings Associated Polymer Labs www.testplastic.com

  18. The End I’m Grateful to share my experience and knowledge Extra Special Thanks to Gary Wilkes Special Thanks to Stephen Driscolle, University of Massachusetts Jay Patel, Patel Scientific Members of the Foams Committee for accepting my paper Everyone present for listening Associated Polymer Labs www.testplastic.com
